Discussion in '3rd Gen. Tacomas (2016-2023)' started by FreshMexicanTaco, Jun 10, 2018.

Page 7 of 94
  1. Jun 22, 2018 at 2:10 PM
    #121
    abaxter41

    #121
    abaxter41 Well-Known Member

    Joined:
    Nov 10, 2015
    Member:
    #169258
    Messages:
    128
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    2018 TRD Pro Cavalry Blue
    Awesome!

    How much for a bolt, bushing, and ram ball, shipped to Bay Area California?

    abaxter41, Jun 22, 2018
    #121
  2. Jun 22, 2018 at 3:39 PM
    #122
    Double Phister

    #122
    Double Phister Punch it Chewie

    Joined:
    Jul 23, 2017
    Member:
    #224795
    Messages:
    588
    Gender:
    Male
    Sacramento, CA
    Vehicle:
    2017 DCSB TRD OR [SOLD]
    Ditto X3 for me to Sacramento

    Double Phister, Jun 22, 2018
    #122
  3. Jun 22, 2018 at 3:43 PM
    #123
    FreshMexicanTaco

    #123
    FreshMexicanTaco [OP] The Taco Garage

    Joined:
    Nov 6, 2016
    Member:
    #201659
    Messages:
    2,266
    Gender:
    Male
    First Name:
    AJ
    San Diego
    Vehicle:
    2019 spiced up Taco with guac, no onions.
    Dashtop Multi-Mount!, Pro grille, snug top, Kings BFGs, Front and rear view camera anytime, CMC, prinsu and more to come!

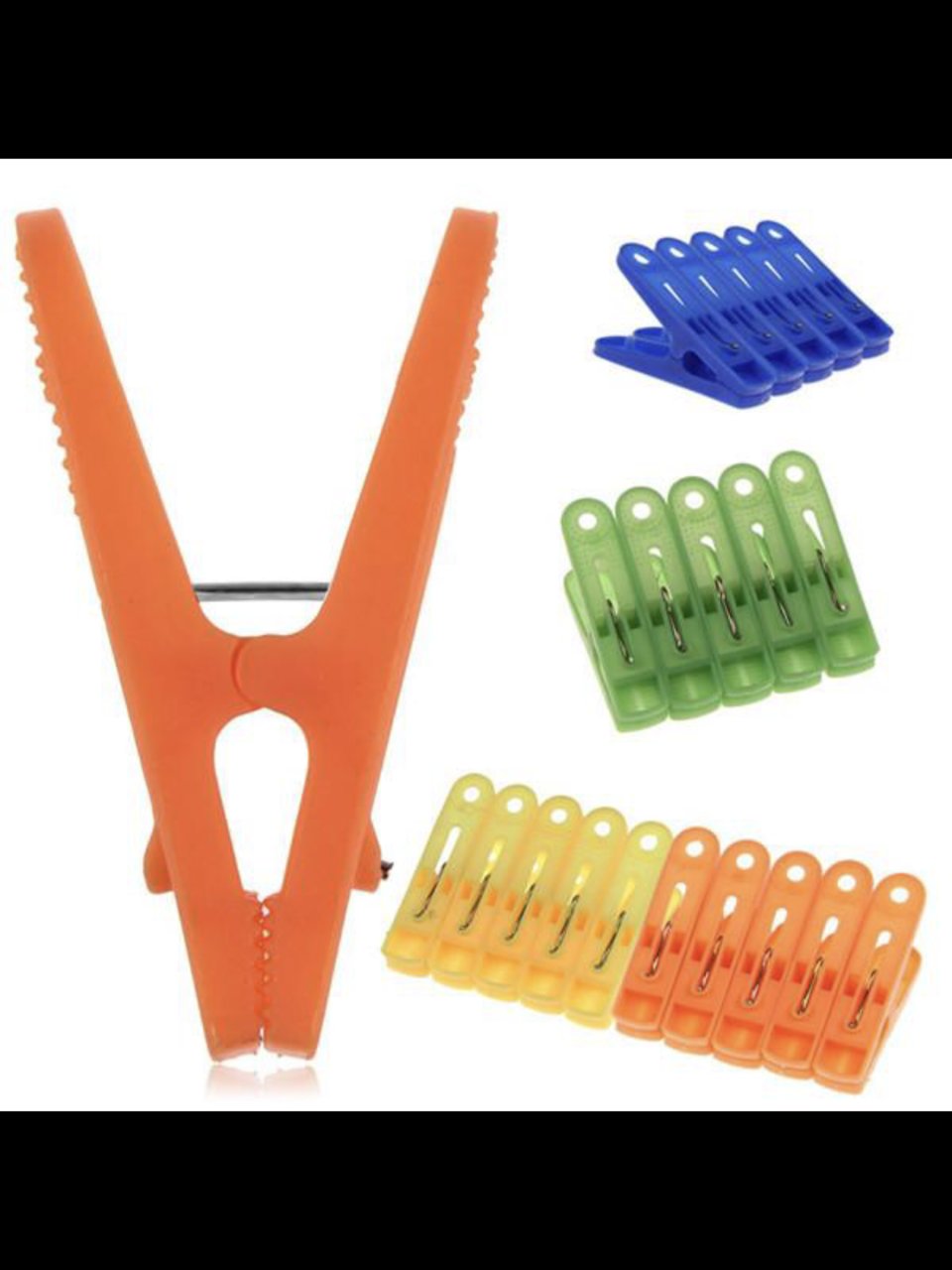

    You could bolt one of these to the mount and your sunglasses would be held pretty firmly...

    Last edited: Jun 22, 2018
    FreshMexicanTaco, Jun 22, 2018
    #123
  4. Jun 22, 2018 at 3:51 PM
    #124
    FreshMexicanTaco

    #124
    FreshMexicanTaco [OP] The Taco Garage

    Joined:
    Nov 6, 2016
    Member:
    #201659
    Messages:
    2,266
    Gender:
    Male
    First Name:
    AJ
    San Diego
    Vehicle:
    2019 spiced up Taco with guac, no onions.
    Dashtop Multi-Mount!, Pro grille, snug top, Kings BFGs, Front and rear view camera anytime, CMC, prinsu and more to come!
    Unfortunately I have been unable to work out a good deal on ram ball mounts so if I sell it to you I would have to charge basically full price plus 1.50 for the bushing and bolt plus shipping for all, I can do it, but for it to be worth it for me I have to charge $20

    FreshMexicanTaco, Jun 22, 2018
    #124
  5. Jun 22, 2018 at 4:13 PM
    #125
    Double Phister

    #125
    Double Phister Punch it Chewie

    Joined:
    Jul 23, 2017
    Member:
    #224795
    Messages:
    588
    Gender:
    Male
    Sacramento, CA
    Vehicle:
    2017 DCSB TRD OR [SOLD]
    mind sharing the ram ball part number then?

    Double Phister, Jun 22, 2018
    #125
  6. Jun 22, 2018 at 5:01 PM
    #126
    FreshMexicanTaco

    #126
    FreshMexicanTaco [OP] The Taco Garage

    Joined:
    Nov 6, 2016
    Member:
    #201659
    Messages:
    2,266
    Gender:
    Male
    First Name:
    AJ
    San Diego
    Vehicle:
    2019 spiced up Taco with guac, no onions.
    Dashtop Multi-Mount!, Pro grille, snug top, Kings BFGs, Front and rear view camera anytime, CMC, prinsu and more to come!
    FreshMexicanTaco, Jun 22, 2018
    #126
  7. Jun 22, 2018 at 8:36 PM
    #127
    dagsamp

    #127
    dagsamp Unknown Member

    Joined:
    Apr 18, 2018
    Member:
    #250978
    Messages:
    207
    Gender:
    Male
    First Name:
    Marla
    Vehicle:
    16' TRDOR DCSB OV Tune
    OV Tune
    dagsamp, Jun 22, 2018
    #127
  8. Jun 23, 2018 at 7:21 AM
    #128
    tjpratt

    #128
    tjpratt Well-Known Member

    Joined:
    Oct 27, 2015
    Member:
    #167820
    Messages:
    782
    Gender:
    Male
    First Name:
    Travis
    Aurora, Colorado
    Vehicle:
    2016 Limited 4X4 Tacoma
    3.75" Lift / OME OVTuned

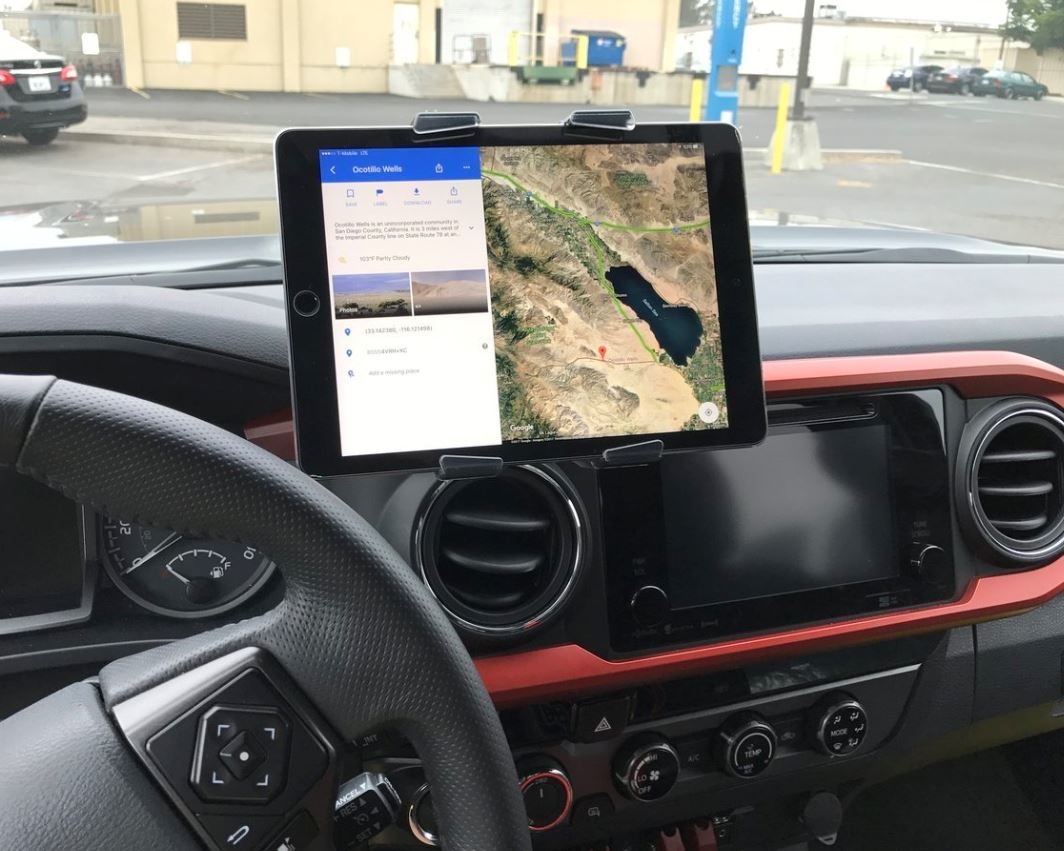

    Sorry for the newbie question. I want to be able to mount my ipad all the way in the hole to the far right for my wife's IPAD for her to watch on road trips and to stream music from etc. Like in this picture. Is this product you are selling just for the narrow mounting plate and post? Or does the actual mount for the ipad come with it? What do I need to do to make this happen basically.


    tjpratt, Jun 23, 2018
    #128
  9. Jun 23, 2018 at 8:51 AM
    #129
    abaxter41

    #129
    abaxter41 Well-Known Member

    Joined:
    Nov 10, 2015
    Member:
    #169258
    Messages:
    128
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    2018 TRD Pro Cavalry Blue
    Check out my setup and then go to Hondo Garage. They have a product called the big squeeze that would be perfect for an iPad.

    abaxter41, Jun 23, 2018
    #129
  10. Jun 23, 2018 at 8:54 AM
    #130
    synaps3

    #130
    synaps3 Wag more bark less

    Joined:
    Feb 27, 2017
    Member:
    #211822
    Messages:
    935
    First Name:
    Dave
    Los Alamos, NM
    Vehicle:
    2017 White SR5 4x4 DCLB
    SOS armor, ARE MX walk-in, Fox coils, Dakar leafs, etc
    My DMM came in!

    It was perfectly packaged, and everything is top-quality. I'm VERY impressed; most DIY-type products are a bit rough, but this was all 100% high quality. My only complaint is the flush mount fasteners are a bit finicky since I've never used that type of fastener before. After the 2nd one though, it went fast. I think I would have been just as content with a countersunk allen bolt, but the finish is a bit better with the flush mount fasteners.

    I think I had the whole thing done start to finish in 30 minutes.
    1. Just grab the radio surround and pull. It pops off.
    2. Clamp DMM in place. I used cheapo tiny Harbor Freight clamps (these ). Drill all the countersunk holes for mounting.
    3. Drill the normal holes for the RAM mount where you'll be putting a RAM ball. I had 2, so I drilled the 2 outer holes and left the rest of the holes not drilled.
    4. Secure the DMM to the backplates. I needed to use an allen wrench and a small (7mm?) crescent wrench to get them snug. I found holding the nut in place, starting by hand, and then tightening with the allen wrench to the LEFT worked better. Remember, you're doing it from the backside, so lefty is tighty for those fasteners.
    5. Put the included spacer in the RAM ball and put the bolt in, tighten in place.
    6. Clip back in truck, mount your gear.

    They recently passed hands-free laws in GA (starting 1 July), so I have my phone up for navigation on one RAM arm and the other's for my UV-5R to clip to. It is stout, looks 100% factory, and should last. I definitely recommend this mod.





    Just look at it! It looks stock! Great product, @FreshMexicanTaco :cheers:

    synaps3, Jun 23, 2018
    #130
    INTERRUPTOR22, The_Black_Pearl, dskakie and 1 other person like this.
  11. Jun 23, 2018 at 9:41 AM
    #131
    tjpratt

    #131
    tjpratt Well-Known Member

    Joined:
    Oct 27, 2015
    Member:
    #167820
    Messages:
    782
    Gender:
    Male
    First Name:
    Travis
    Aurora, Colorado
    Vehicle:
    2016 Limited 4X4 Tacoma
    3.75" Lift / OME OVTuned
    Ok, 2 more questions...
    - How do I get to hondo garage lol
    - Can you order with 2 complete ball setups

    tjpratt, Jun 23, 2018
    #131
  12. Jun 23, 2018 at 9:47 AM
    #132
    ExplorHer

    #132
    ExplorHer Question Authority

    Joined:
    May 2, 2016
    Member:
    #185889
    Messages:
    822
    Gender:
    Male
    Near Pittsburgh
    Vehicle:
    2016 4cyl, 5MT, 4x4, 2 seats, dents, & rust
    Last edited: Jun 23, 2018
    ExplorHer, Jun 23, 2018
    #132
    abaxter41 likes this.
  13. Jun 23, 2018 at 10:28 AM
    #133
    FreshMexicanTaco

    #133
    FreshMexicanTaco [OP] The Taco Garage

    Joined:
    Nov 6, 2016
    Member:
    #201659
    Messages:
    2,266
    Gender:
    Male
    First Name:
    AJ
    San Diego
    Vehicle:
    2019 spiced up Taco with guac, no onions.
    Dashtop Multi-Mount!, Pro grille, snug top, Kings BFGs, Front and rear view camera anytime, CMC, prinsu and more to come!
    FreshMexicanTaco, Jun 23, 2018
    #133
  14. Jun 23, 2018 at 12:05 PM
    #134
    abaxter41

    #134
    abaxter41 Well-Known Member

    Joined:
    Nov 10, 2015
    Member:
    #169258
    Messages:
    128
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    2018 TRD Pro Cavalry Blue
    So I think this is right...

    Bolt:
    https://www.albanycountyfasteners.com/Socket-Head-Cap-10-32-Screws-Stainless-Steel-p/27000.htm

    Bushing:
    http://www.aluminumspacers.com/spacers-by-outer-diameter/5-16-inch-outer-diameter-spacers/as31-10-64

    Ram ball:
    Ram Mount Motorcycle Handlebar Clamp Base with M8 Screws
    $14 RAM Mounts RAM-B-367U Motorcycle Handlebar Clamp Base with M8 Bolts with B Size 1" Ball
    https://www.amazon.com/dp/B005J43I56/ref=cm_sw_r_cp_api_4MPlBbYTN1K1A

    abaxter41, Jun 23, 2018
    #134
  15. Jun 23, 2018 at 12:10 PM
    #135
    FreshMexicanTaco

    #135
    FreshMexicanTaco [OP] The Taco Garage

    Joined:
    Nov 6, 2016
    Member:
    #201659
    Messages:
    2,266
    Gender:
    Male
    First Name:
    AJ
    San Diego
    Vehicle:
    2019 spiced up Taco with guac, no onions.
    Dashtop Multi-Mount!, Pro grille, snug top, Kings BFGs, Front and rear view camera anytime, CMC, prinsu and more to come!
    I am very very happy you guys are finding the DMM as great as I hope you would. Thanks for putting out a good word about it too, I appreciate it.

    FreshMexicanTaco, Jun 23, 2018
    #135
  16. Jun 23, 2018 at 12:14 PM
    #136
    FreshMexicanTaco

    #136
    FreshMexicanTaco [OP] The Taco Garage

    Joined:
    Nov 6, 2016
    Member:
    #201659
    Messages:
    2,266
    Gender:
    Male
    First Name:
    AJ
    San Diego
    Vehicle:
    2019 spiced up Taco with guac, no onions.
    Dashtop Multi-Mount!, Pro grille, snug top, Kings BFGs, Front and rear view camera anytime, CMC, prinsu and more to come!

    YES that's good for the "bushing" and the ram ball but that specific screw WILL NOT work unless you use a washer, the head diameter on those is .303" in and the center hole on the ball is .312", you need either a screw with a wider head or a washer, I will check out that website to see if I can find the right screw.

    FreshMexicanTaco, Jun 23, 2018
    #136
    abaxter41[QUOTED] likes this.
  17. Jun 23, 2018 at 12:16 PM
    #137
    abaxter41

    #137
    abaxter41 Well-Known Member

    Joined:
    Nov 10, 2015
    Member:
    #169258
    Messages:
    128
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    2018 TRD Pro Cavalry Blue
    Or I can just have you mail me everything, which is easier and cheaper after adding shipping on both of those websites (nothing like paying $8 shipping for $1 of goods).

    Just paid through PayPal for a few bolts and bushings, plus one more ram ball. Let me know if what I paid doesn’t cover everything.

    Thanks!

    abaxter41, Jun 23, 2018
    #137
  18. Jun 23, 2018 at 12:17 PM
    #138
    FreshMexicanTaco

    #138
    FreshMexicanTaco [OP] The Taco Garage

    Joined:
    Nov 6, 2016
    Member:
    #201659
    Messages:
    2,266
    Gender:
    Male
    First Name:
    AJ
    San Diego
    Vehicle:
    2019 spiced up Taco with guac, no onions.
    Dashtop Multi-Mount!, Pro grille, snug top, Kings BFGs, Front and rear view camera anytime, CMC, prinsu and more to come!
    FreshMexicanTaco, Jun 23, 2018
    #138
    C41n likes this.
  19. Jun 23, 2018 at 12:22 PM
    #139
    FreshMexicanTaco

    #139
    FreshMexicanTaco [OP] The Taco Garage

    Joined:
    Nov 6, 2016
    Member:
    #201659
    Messages:
    2,266
    Gender:
    Male
    First Name:
    AJ
    San Diego
    Vehicle:
    2019 spiced up Taco with guac, no onions.
    Dashtop Multi-Mount!, Pro grille, snug top, Kings BFGs, Front and rear view camera anytime, CMC, prinsu and more to come!
    Got the payment, will send it out asap. thanks.

    FreshMexicanTaco, Jun 23, 2018
    #139
    The_Black_Pearl likes this.
  20. Jun 23, 2018 at 1:13 PM
    #140
    transworldmoto

    #140
    transworldmoto Well-Known Member

    Joined:
    Aug 6, 2014
    Member:
    #135540
    Messages:
    995
    Gender:
    Male
    First Name:
    Ben
    California Coast
    Vehicle:
    2016 Access Cab TRD OR 4X4
    Hell yeah! Thanks man

    transworldmoto, Jun 23, 2018
    #140
Page 7 of 94

Products Discussed in

Yianerm Mount Metal Plates Replacement Kits with Adhensive for Magnetic Car Mount Phone Holder 4 Pack (2 Rectangle 2 Round)
$4.99
BAOFENG UV-5R VHF/UHF Dual Band Radio 144-148MHz 420-450MHz Transceiver
$18.39
RAM Mounts RAM-B-201U Double Socket Arm (Medium) Compatible with RAM B Size 1" Ball Components
$19.98
RAM Mounts Composite Double Socket Swivel & Ratchet Arm RAP-B-200-2U Compatible with RAM B Size 1" Ball Components
$27.99
Ginsco Dual USB Charger Socket Power Outlet 2.1A & 2.1A（4.2A） for Car Boat Marine RV Mobile with Wire Fuse DIY Kit Blue LED
$9.99
QC3.0+5V 3A Dual USB Power Socket, Quick Charge Car Charger USB Adapter for Smart Phone PDA Android GPS Use for Toyota
$13.99
Blue Sea Systems 1045 Fast Charge 4.8A Dual USB Charger Socket Mount, 12V/24V
$46.10
RAM Mounts X-Grip Universal Holder for 7"-8" Tablets with Ball -B Size RAM-HOL-UN8BU
$51.99
ARKON Mounts 25mm Swivel Ball to GoPro HERO Lateral Prong Pattern Adapter for GoPro Mounts
$8.94
GemCoo 63W USB C Car Charger Socket, 45W PD Outlet 18W Quick Charge 3.0 USB Charger Socket, USB Cigarette Lighter Socket with LED Voltmeter Car USB Port 12V Socket for Car RV Boat Marine Truck Golf
$13.99
ARKON Mounts 25mm Ball to 17mm Ball Adapter SP25MM17
$6.42
Custom Accessories Compatible with Smartphones, 18003 12V Dual USB Under Dash Mount, Black
$14.99
RAM Mounts X-Grip Holder for 12" Tablets RAM-HOL-UN11U Compatible with RAM B 1" and C 1.5" Size Round Ball Bases
$112.99
BAOFENG BF-F8HP (UV-5R 3rd Gen) 8-Watt Dual Band Two-Way Radio (136-174MHz VHF & 400-520MHz UHF) Includes Full Kit with Large Battery
$62.89
Kenwood remote control enabled volume with speaker microphone SMC-34 (G) by KENWOOD
$43.40
8 Way Terminal Block - Splits 1 Input to 8 Out (Onе Pack)
$14.95
RAM Mounts Power Plate III Universal Magnetic Holder RAP-300-1U for Radar Detectors, Cellphones + More
$20.99
ABN 120-Piece Low Profile Small Fuse Set – 5, 7.5, 10, 15, 20, 25, 30 AMP – Low Profile Mini Fuses for Cars, Trucks
$7.99
TYUMEN 40FT 18 Gauge 2pin 2 Color Red Black Cable Hookup Electrical Wire LED Strips Extension Cord 12V/24V DC Cable, 18AWG Flexible Wire Extension Cords for LED Ribbon Lamp Tape Lighting
$9.99
Anker Powerline II Lightning Cable (3ft), MFi Certified for iPhone Xs/XS Max/XR/X / 8/8 Plus / 7/7 Plus / 6/6 Plus (Black)
$13.99
RAM Mounts RAM-B-367U Motorcycle Handlebar Clamp Base with M8 Bolts with B Size 1" Ball
$13.49
WixGear Universal Air Vent Magnetic Phone Car Mount Holder with Fast Swift-Snap Technology for Smartphones and Mini Tablets, Black 1 Pack
$14.99
TEKTON 1/4" Combination Wrench | 18251
$5.00
Century Drill & Tool 11410 Wire Gauge Drill Bit, Size #10
$5.99
To Top
