Tacoma 2.5" x 12-14" Shock Relocation 2005-2023 2nd 3rd gen Archive Garage

Discussion in 'Archive Garage' started by ARCHIVE, Nov 8, 2017.

Page 51 of 63
  1. Feb 10, 2023 at 1:26 PM
    #1001
    Jkriegs.13

    #1001
    Jkriegs.13 Member

    Joined:
    Sep 15, 2021
    Member:
    #377151
    Messages:
    23
    Gender:
    Male
    First Name:
    Joey
    Ft. Worth
    Vehicle:
    2019 DCSB TRD OR
    Damn! My local shop basically did my shocks and bump stops for free.

    Jkriegs.13, Feb 10, 2023
    #1001
    JasonT87 likes this.
  2. Mar 19, 2023 at 3:56 PM
    #1002
    Supra4x4

    #1002
    Supra4x4 IG: hash_brown55

    Joined:
    May 8, 2015
    Member:
    #154861
    Messages:
    3,388
    Gender:
    Male
    First Name:
    Andrew
    SoCal
    Vehicle:
    MGM 2011 DCLB 4X4 Long Travel'd
    Whole lotta stuff
    If anyone needs some cheap shocks to run with the relocation, I have some fox 2.0x14s that need a rebuild/revalve that I'm getting rid of for cheap. Fitment seen below.


    Last edited: Mar 19, 2023
    Supra4x4, Mar 19, 2023
    #1002
  3. Mar 19, 2023 at 4:04 PM
    #1003
    jamie_aug

    #1003
    jamie_aug Active Member

    Joined:
    May 29, 2017
    Member:
    #220219
    Messages:
    44
    Gender:
    Male
    First Name:
    James
    Vehicle:
    2021 Toyota Tacoma
    Accutune Offroad 05+ Tacoma Mid Travel Suspension Kit, Stage 5A – Fox SKU: AOR-3000-0021 Adventure tune -Front Coilovers: Fox 2.5 Performance Elite Series, DSC -Sway bar relocation brackets included with shocks -Front UCA: AccuTune Offroad -Rear Shocks: Fox 2.5 x 12″ DSC – Modified -Rear Archive Garage Shock Relocation Brackets -Rear Springs: Icon RXT Pack -Archive Garage Rear Shock Relocation Brackets -Archive Garage Hammer Hangers -Rear U-Bolt: AccuTune Offroad -Rear +4″ Crown Performance Brake Lines Remove: Front UCA - Icon Delta Joint Add: Camburg Kinetik Series Billet Upper Control Arm, Uniball, 05+ Tacoma, 03+ 4Runner SKU: CAM-310103 Add: CAMBURG TOYOTA TACOMA PRE/4WD 05-20 PERFORMANCE SPINDLE KIT SKU: CAM-310114 Add: CAMBURG TOYOTA TACOMA PRE/4WD 16-20 PERFORMANCE LOWER ARM KIT Code: CAM-310126 Add: '05-CURRENT TOYOTA TACOMA CAMBURG FRONT BYPASS SHOCK MOUNT KIT add recommended FOX 2.5 bypass shock PART#: CAM-310052 Durpbumps - 3rd Gen Tacoma Front Off Road Bump Stops (2016-2023) DBF212 DRT Fab TACOMA CAB MOUNT RELOCATION DRT Fab UNIVERSAL HITCH SKID PLATE Fuel Offroad - Block Model D752 - 17x9 Matte Anthracite w/ Black Ring Negative -12 offset Nitto Ridge Grappler 285/70r17 Nitro Gear and Axle '16-CURRENT TOYOTA TACOMA W/8.75 INCH REAR 4.88 RATIO FRONT AND REAR GEAR PACKAGE KIT VENDOR: Nitro Gear and Axle PART#: GPTACO2016-4.88-8.75 Yes to REM gear polish OV Tune Tacoma 3.5L vF Tune Pack Get right tune for gearing of 4.88 Vftuner.com Nitro Gear and Axle '05-CURRENT TOYOTA TACOMA 8" CLAMSHELL STUB AXLE BUSHING VENDOR: Nitro Gear and Axle PART#: NITRO-AKT8S S.O.S Performance Stoptech 6 PISTON FRONT BIG BRAKE KIT fits 2005-21 TOYOTA TACOMA TR340.6TA SOS PERFORMANCE 4x4 Black Slotted rotors Paint fender flares cement gray to match Custom Viper Cut Front bumper. Seibon Carbon - TR-STYLE CARBON FIBER HOOD FOR 2016-2021 TOYOTA TACOMA, custom painting to look like a TRD Pro. C4 Fab - TACOMA ROCK SLIDERS / 3RD GEN / 2016+, shipped raw, line-x by local shop TACOMA BED STIFFENERS - 3RD GEN, 2016-2023 TOYOTA TACOMA ACCESSORIES,REAR CHANNEL BED STIFFENERS, PART #48676 Wet Okole Seat Covers WeatherTech Floor Liners Full Custom Stereo with 2x8” subs behind the seat, Kenwood head unit. Taco Garage - Dashtop Multi Mount (DMM) for RAM mount system Toyota - TRD Pro Skid Plate Toyota – Bed Mount Step
    I have these and they are a GAME Changer for the rear end.


    jamie_aug, Mar 19, 2023
    #1003
    Skratch&sniff likes this.
  4. Mar 20, 2023 at 7:23 AM
    #1004
    MulletTaco

    #1004
    MulletTaco Wannabe prerunner

    Joined:
    Jul 12, 2021
    Member:
    #371094
    Messages:
    1,565
    Gender:
    Male
    First Name:
    Kevin
    Somewhere in AZ
    Vehicle:
    21 TRD Sport 4x4 DCLB
    Removed some stuff, added some stuff.
    Anyone with a long bed sporting these? The wheel wells are a bit different on the long beds so I’m curious how they mount up if anyone has done it.

    MulletTaco, Mar 20, 2023
    #1004
  5. Mar 20, 2023 at 8:38 AM
    #1005
    ARCHIVE

    #1005
    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,246
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs
    This is probably on more than 500 long beds, it uses a 1" spacer between tower and wheel well


    ARCHIVE, Mar 20, 2023
    #1005
    Its_Taconie likes this.
  6. Mar 20, 2023 at 10:39 AM
    #1006
    MulletTaco

    #1006
    MulletTaco Wannabe prerunner

    Joined:
    Jul 12, 2021
    Member:
    #371094
    Messages:
    1,565
    Gender:
    Male
    First Name:
    Kevin
    Somewhere in AZ
    Vehicle:
    21 TRD Sport 4x4 DCLB
    Removed some stuff, added some stuff.
    Thanks! Any pics of the cross brace on a long bed?

    MulletTaco, Mar 20, 2023
    #1006
  7. Mar 20, 2023 at 10:51 AM
    #1007
    ARCHIVE

    #1007
    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,246
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs

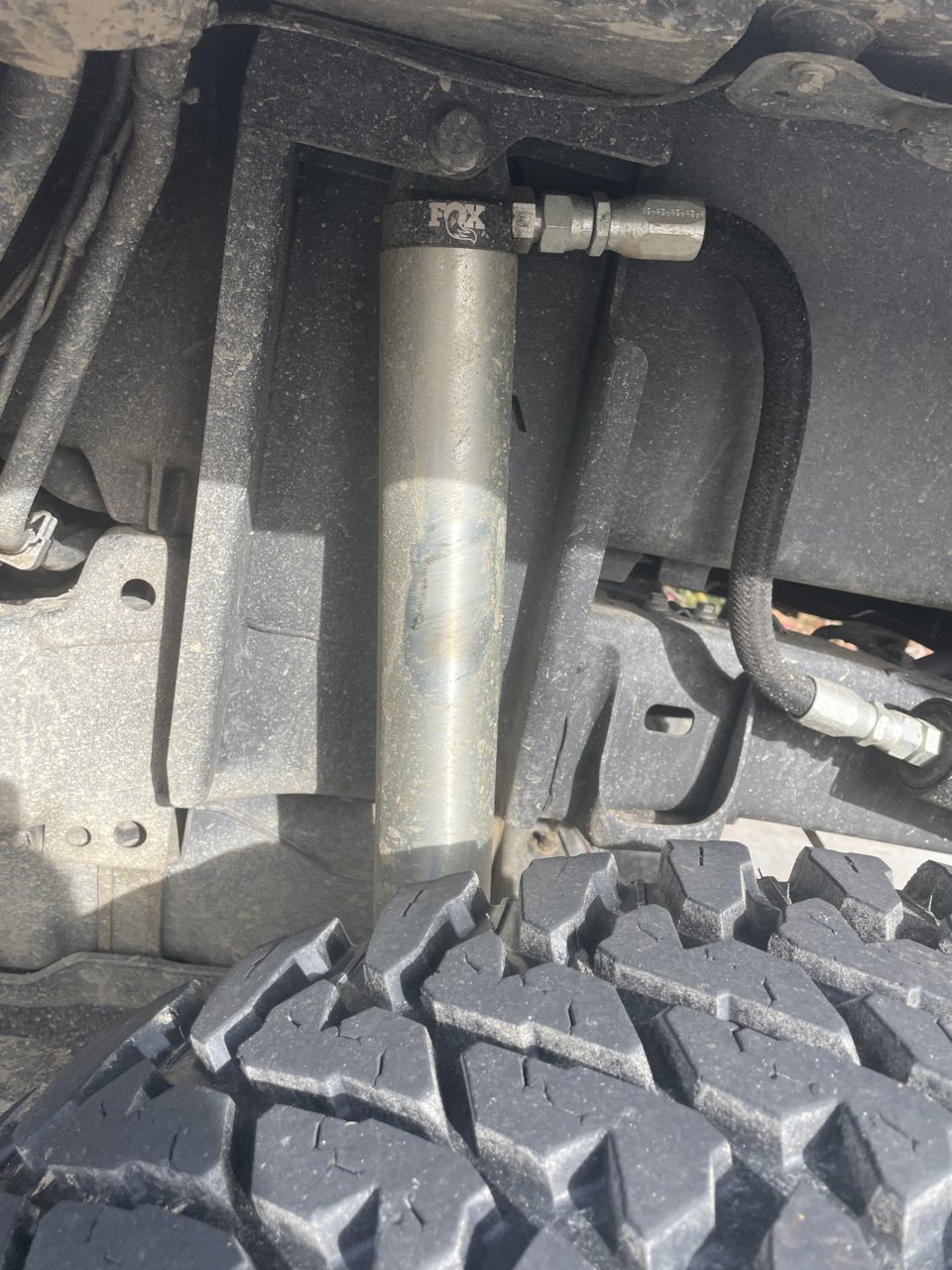

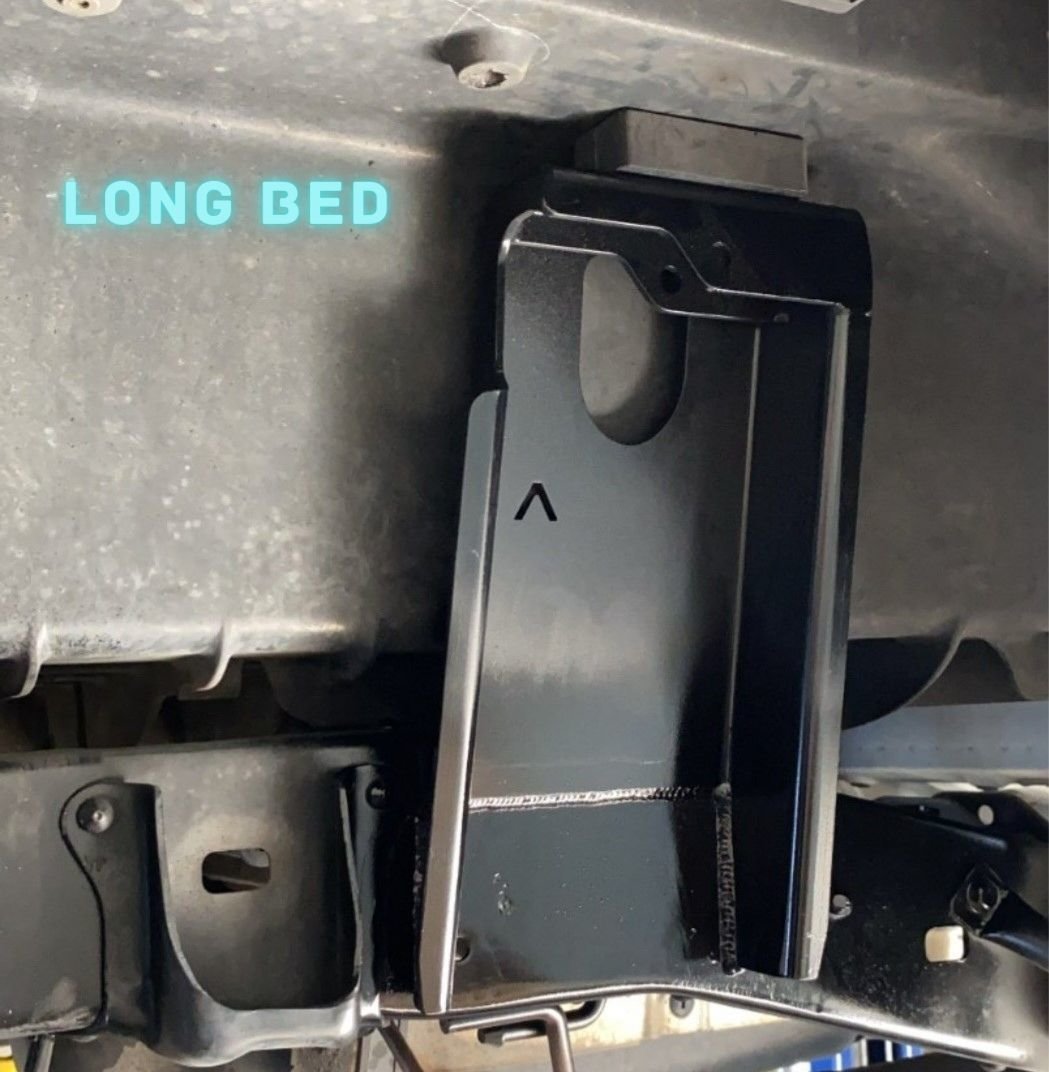

    No, bolting tower to bed shores up the frame rail, it's solid as a rock, cross brace is not needed, but it is possible

    ARCHIVE, Mar 20, 2023
    #1007
  8. Mar 20, 2023 at 11:03 AM
    #1008
    MulletTaco

    #1008
    MulletTaco Wannabe prerunner

    Joined:
    Jul 12, 2021
    Member:
    #371094
    Messages:
    1,565
    Gender:
    Male
    First Name:
    Kevin
    Somewhere in AZ
    Vehicle:
    21 TRD Sport 4x4 DCLB
    Removed some stuff, added some stuff.
    Copy that. I’ve been on the fence about building my own hoops for the rear or going this route. I initially wanted to do a bed cage but I still use my truck as a truck from time to time and don’t want to lose the capability just yet. I like that I can run a 14” travel shock with these. Thanks for the info!

    MulletTaco, Mar 20, 2023
    #1008
    ARCHIVE[QUOTED][OP] likes this.
  9. Apr 3, 2023 at 11:19 AM
    #1009
    aturk

    #1009
    aturk Well-Known Member

    Joined:
    Jul 24, 2019
    Member:
    #300138
    Messages:
    1,701
    Gender:
    Male
    First Name:
    Tony
    Charlotte, NC
    Looking to plan ahead here guys...

    Can someone posts pics of where the upper bolts sit inside the bed on the wheel wells? Going to get some custom drawers made and want to be sure they will fit fine if I ever do a relocate.

    aturk, Apr 3, 2023
    #1009
  10. Apr 3, 2023 at 11:21 AM
    #1010
    GHOST SHIP

    #1010
    GHOST SHIP hates you.

    Joined:
    Mar 9, 2015
    Member:
    #150537
    Messages:
    22,405
    First Name:
    GHOST
    If you have a short bed, the bolts sit inside the indentation intended for a 2x6 stringer.

    GHOST SHIP, Apr 3, 2023
    #1010
    ARCHIVE[OP] and aturk[QUOTED] like this.
  11. Apr 6, 2023 at 3:08 PM
    #1011
    Its_Taconie

    #1011
    Its_Taconie Well-Known Member

    Joined:
    Apr 18, 2017
    Member:
    #216625
    Messages:
    447
    Gender:
    Male
    First Name:
    Nelson
    North Hollywood
    Vehicle:
    2007 Tacoma DCLB PreRunner
    Fox Racing 2.5 (F); 2.0 (R), Archive Garage Leaf Springs, hanger/shackles, shock relocation, U-Bolt Flip Kit PLM P37 (TE37 Knockoffs) Bronze wheels, Nitto Ridgeline 35s, C4 Overland Bumper, Total Chaos Uppers, Outgear Solution HC Swingout, OTTune 4.88 Nitro Gears
    Pretty much the wheel dimensions (set up) I am aiming for. Glad I looked in this thread before posting. Might be going 37s by the end or beginning of next year and have been wanting this kit. I have everything else sitting at home, just need to pull the trigger on the kit.

    I got the cross brace when I ordered my shackles. Can I still run the brace, is it not necessary or will it not fit (work) on a long bed?

    Its_Taconie, Apr 6, 2023
    #1011
  12. Apr 6, 2023 at 3:42 PM
    #1012
    ARCHIVE

    #1012
    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,246
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs
    The cross tube is for Hammer Hangers, it's not affected by the shock relocation or bed size

    ARCHIVE, Apr 6, 2023
    #1012
  13. Apr 6, 2023 at 4:20 PM
    #1013
    Its_Taconie

    #1013
    Its_Taconie Well-Known Member

    Joined:
    Apr 18, 2017
    Member:
    #216625
    Messages:
    447
    Gender:
    Male
    First Name:
    Nelson
    North Hollywood
    Vehicle:
    2007 Tacoma DCLB PreRunner
    Fox Racing 2.5 (F); 2.0 (R), Archive Garage Leaf Springs, hanger/shackles, shock relocation, U-Bolt Flip Kit PLM P37 (TE37 Knockoffs) Bronze wheels, Nitto Ridgeline 35s, C4 Overland Bumper, Total Chaos Uppers, Outgear Solution HC Swingout, OTTune 4.88 Nitro Gears
    Ok. Thanks.I have the hangers, shackles and brace. Just need the time to install them. Will get the shock relocation kit when I order my suspension at the end of the year.

    Its_Taconie, Apr 6, 2023
    #1013
  14. Apr 30, 2023 at 9:56 PM
    #1014
    TACO TM

    #1014
    TACO TM Well-Known Member

    Joined:
    Sep 1, 2020
    Member:
    #339457
    Messages:
    145
    Gender:
    Male
    Vehicle:
    2021 Pro
    Remember it’s +1/2” wheel lip width per side. So the math on a 17x7 +4:

    7”+ 1/2” + 1/2” = 8” outer wheel width
    8” / 2 = 4” wheel centerline
    +4mm offset = +.157”
    4” + .157 = 4.157” rounded to 4.16”

    Edit: Not trolling! lol I’m planning mid-travel on stock wheel. 16x7 +12 4.47” with 265/75. Trying to see if I can get away without spacers on 2” and/or 2.5”.

    Last edited: Apr 30, 2023
    TACO TM, Apr 30, 2023
    #1014
  15. Apr 30, 2023 at 10:23 PM
    #1015
    nudavinci64

    #1015
    nudavinci64 Robert @ Holy Horsepower

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    10,144
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    The Easiest way to get away without spacers is to run a -25 (16") or -38" (17"); you may still get sight rub, but manageable. I went through the same deal when considering a relocate before I did. The other is you can notch the frame, but that is more involved, which I assume you are looking not to do.

    nudavinci64, Apr 30, 2023
    #1015
    Skratch&sniff, airmax233 and TACO TM[QUOTED] like this.
  16. May 1, 2023 at 6:49 AM
    #1016
    ARCHIVE

    #1016
    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,246
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs
    Not happening without spacers on that wheel using the 2.5" relocation this thread is about, you'll need 1.25" spacer for 16x7 +12 4.47” with 265 tire. Check into our Trail Series 2.0 relocation, tucked very close to bed because it doesn't fit bypasses or 2.5", only 2.0s.

    Your math agrees with mine, I add the approx. 1/2" lip per side:
    https://www.tacomaworld.com/threads...n-archive-garage.519011/page-31#post-24310298

    Last edited: May 1, 2023
    ARCHIVE, May 1, 2023
    #1016
    TACO TM[QUOTED] likes this.
  17. May 16, 2023 at 10:33 AM
    #1017
    lm546

    #1017
    lm546 Well-Known Member

    Joined:
    Jan 24, 2019
    Member:
    #280436
    Messages:
    244
    Gender:
    Male
    First Name:
    Craig
    Tucson, AZ
    Vehicle:
    2015 dcsb OR, 2002 double cab, 1985 Toyota pickup

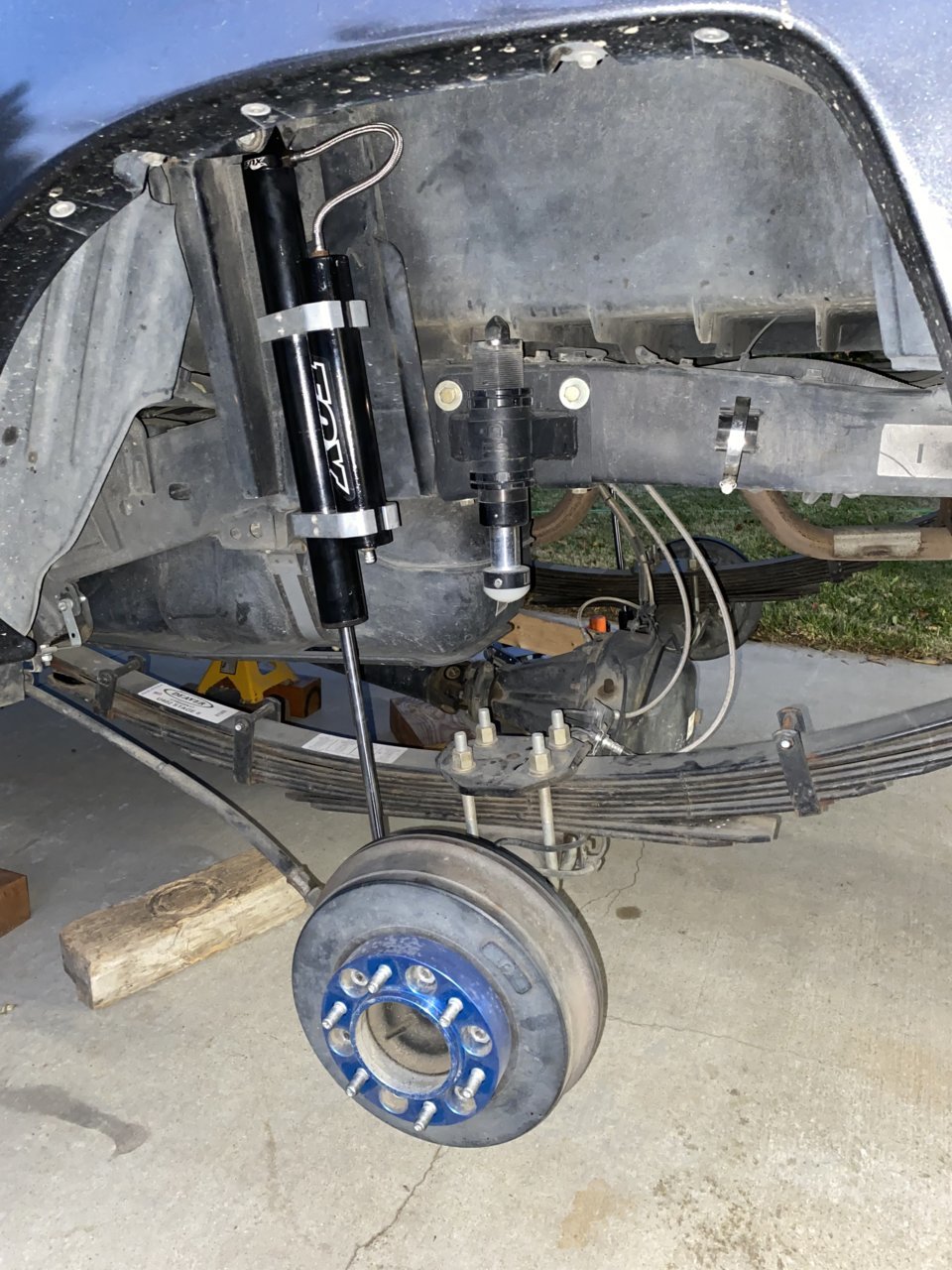

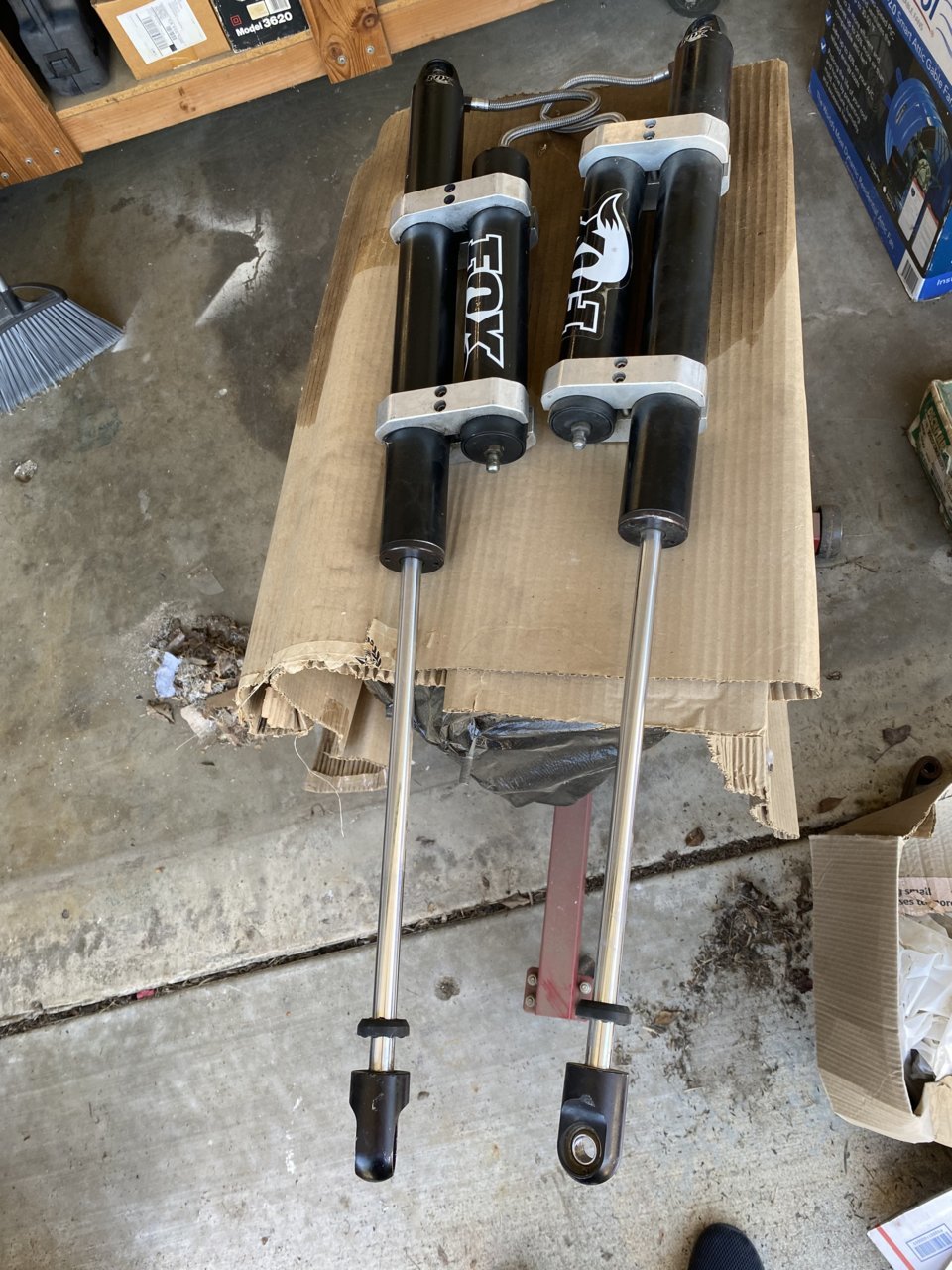

    I have a set of 14"x2.5" short body shocks built for this kit for sale if anyone is interested. Skip the 4 month lead time. The only reason I am not using them is because I switched to ADS in the front and my OCD will not allow me to run a different shock on the rear. This are located in Tucson Arizona. $900.

    [​IMG][​IMG]

    Last edited: May 21, 2023
    lm546, May 16, 2023
    #1017
  18. May 17, 2023 at 7:25 AM
    #1018
    JasonT87

    #1018
    JasonT87 Well-Known Member

    Joined:
    Feb 6, 2016
    Member:
    #177280
    Messages:
    1,022
    Gender:
    Male
    First Name:
    Jason
    Southern California
    Vehicle:
    '16 TRD Sport DCSB
    Total Chaos mid-travel front. JD Fab SUA rear.
    Edit: removed for new thread

    Last edited: May 17, 2023
    JasonT87, May 17, 2023
    #1018
  19. May 18, 2023 at 11:02 AM
    #1019
    pnw_runnin

    #1019
    pnw_runnin Well-Known Member

    Joined:
    May 15, 2021
    Member:
    #365751
    Messages:
    53
    Gender:
    Male
    First Name:
    Louis
    Covington, WA
    Vehicle:
    2022 Tacoma OR DCLB, 2016 4R Trail

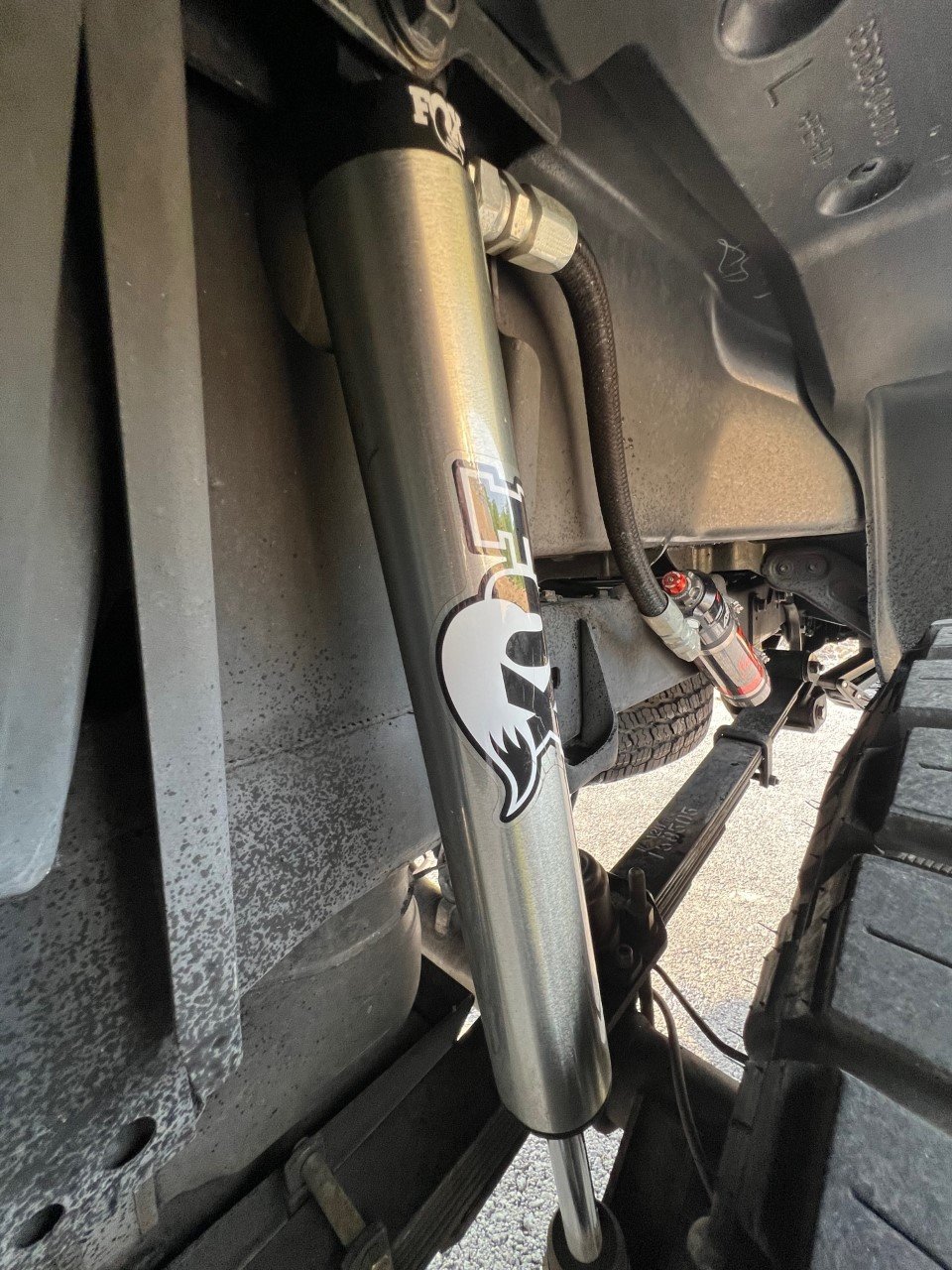

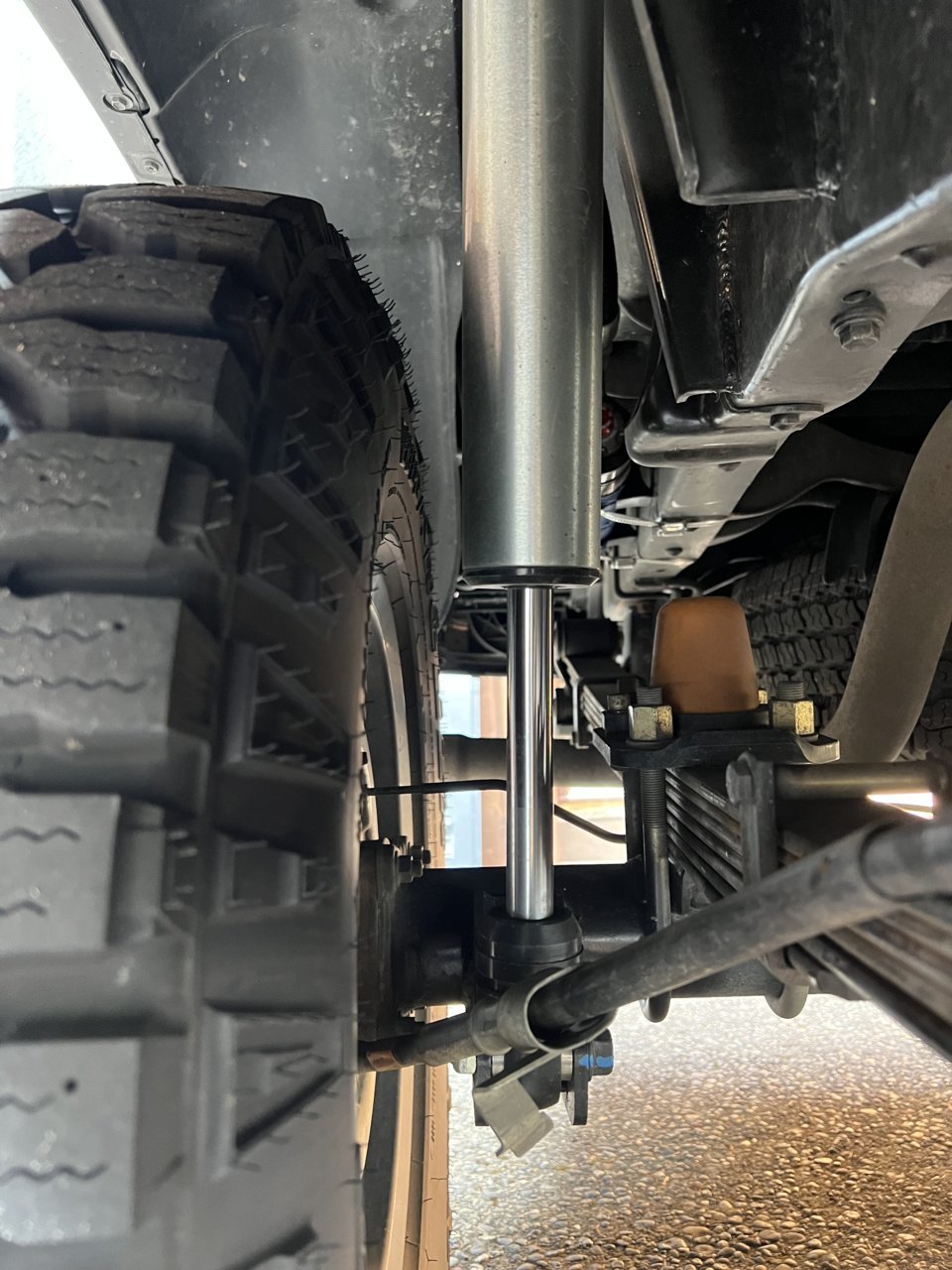

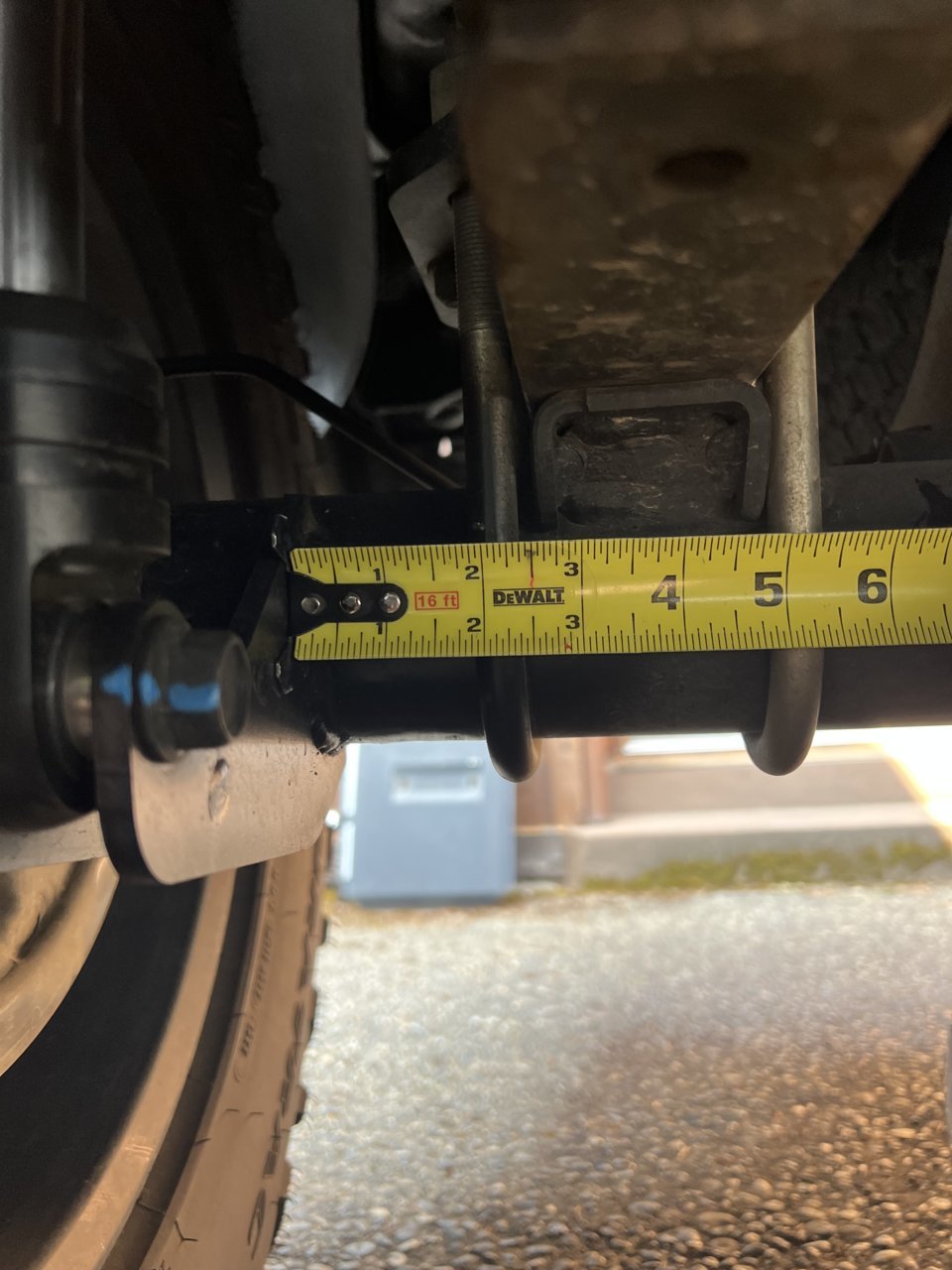

    Just had my relocation installed (finally!). I noticed my axle tabs were burned in farther outboard than what’s suggested in the install directions (1.5” from leaf spring perch for smoothies, and 1.75-2” for bypasses). Mine are closer to 2.5”. Any foreseeable issues with this, other than less clearance for tire rub? I was going to run a 1.25” spacer anyway because of my wheels/tire setup. 17x9 -25 (4” BS) with 295/70/17.
    upload_2023-5-18_10-59-33.jpg upload_2023-5-18_11-0-24.jpg

    pnw_runnin, May 18, 2023
    #1019
    ARCHIVE[OP] likes this.
  20. May 18, 2023 at 3:27 PM
    #1020
    ARCHIVE

    #1020
    ARCHIVE [OP] Well-Known Member Vendor

    Joined:
    Oct 29, 2015
    Member:
    #168099
    Messages:
    2,246
    Gender:
    Male
    First Name:
    Eric
    Orchard Park, NY (Buffalo)
    Vehicle:
    '05 Taco, '22 Tundra, '91 Cummins
    2.5" Fox relocation * Hammer hanger * Archive MD springs
    Looks like it has 1"+ clearance currently, is that without a spacer? If so, in your case with 17x9 -25 (4” BS) & 295/70/17, a 1.25" spacer should be enough for tire clearance. Having more than 2" between tire and shock is ideal.

    ARCHIVE, May 18, 2023
    #1020
    pnw_runnin[QUOTED] likes this.
