Tacoma Audio Endeavor

Discussion in 'Audio & Video' started by ItalynStylion, Dec 22, 2009.

  1. Dec 22, 2009 at 6:13 PM
    #1
    ItalynStylion

    ItalynStylion [OP] Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,627
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    I've been putting the pieces together and following my plan. So far things have been pretty good. I'm sure you all remember seeing my deadening build thread. If not here's a link...http://www.tacomaworld.com/forum/audio-video/59941-my-deadening-project.html


    After I got the car all situated it was time to get the various components sorted out. I knew I'd be using the JL HD 900/5 for a while now. It's been sitting on my dresser for a few months waiting...:D

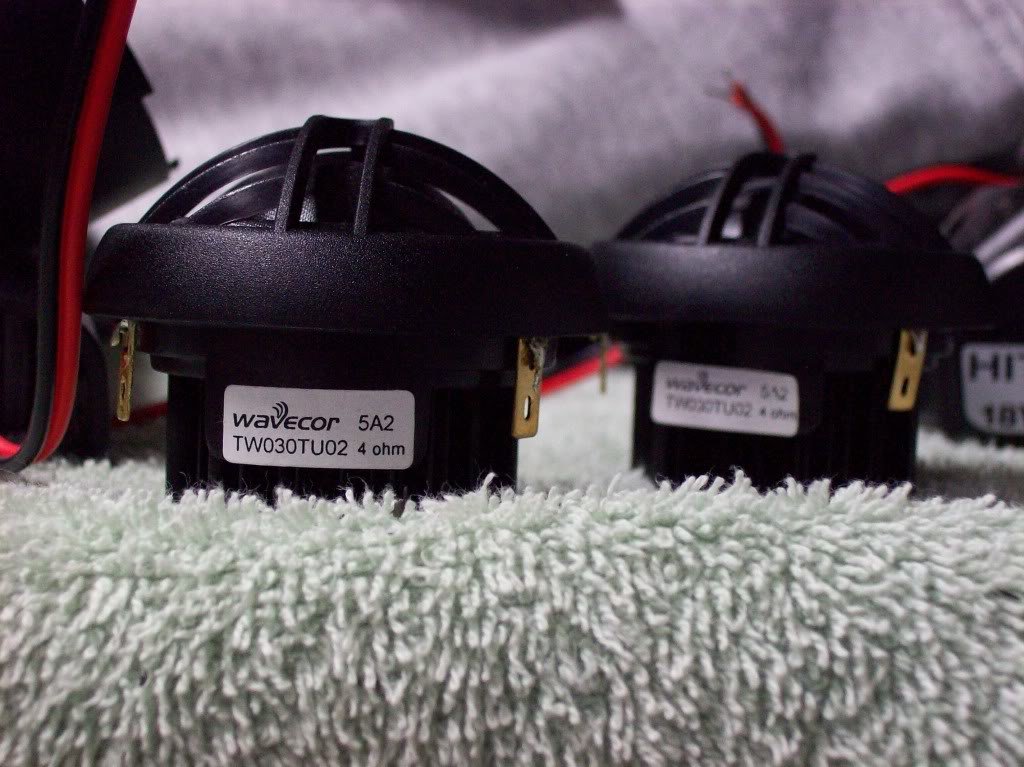

    I'm using a set of Wavecore tweeters that you'll be introduced to here in a moment. The midbass drivers will be introduced later as I get more done. There is a plan for that and I actually already have them but I haven't gotten any pictures yet.

    I had actually bought a Pioneer AVIC X-910bt to run the show but I simply can't use the unit. It's marvelous once it's on but you might have gray hair by that time. It has a few bugs too but nothing too severe. A good all around unit but I think it just doesn't suit my needs. I'll be sending mine back later this week.

    The most recent progress has been the tweeters. Some of you might remember my thread a while back about the Wavecore tweeters (snowflakes) that I'd be trying out. I've finally figured out what I'm going to do with these. They're not huge but they're a fairly large format and putting them behind my door panels just didn't appeal to me. They came with some mounting cups that were pretty useless until I figured out a slick way to use them, properly...

    [​IMG]
    [​IMG]

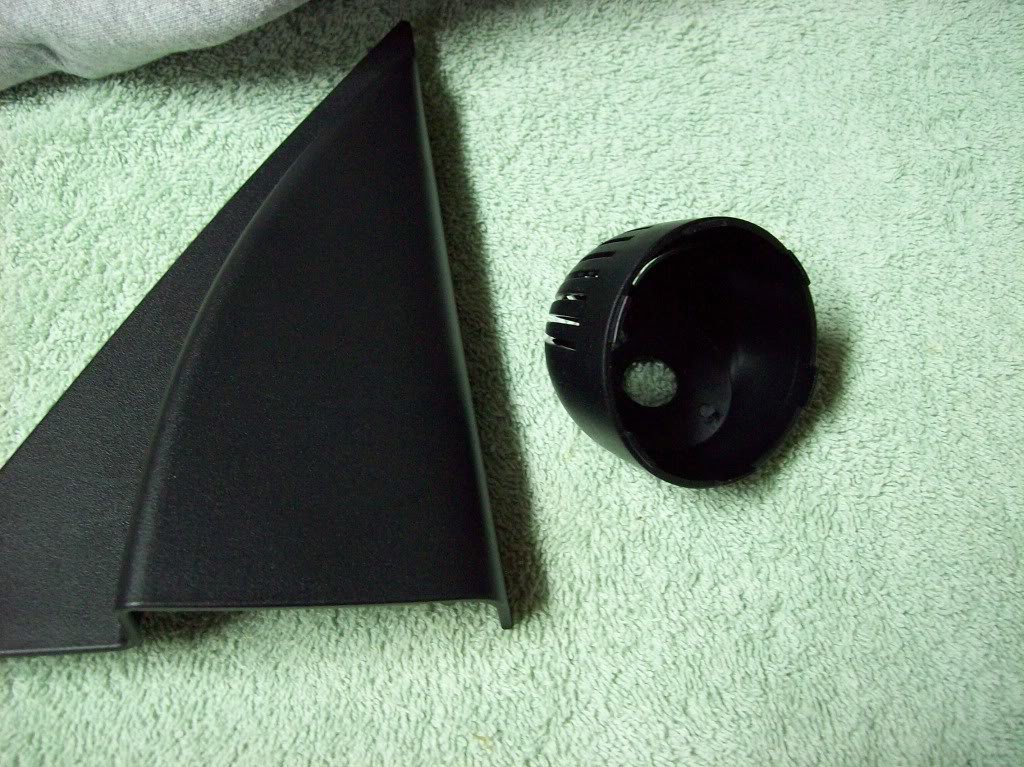

    Tweeter cups have a bad habit of exposing wires and that's just not acceptable in my opinion. I hate exposed wires. So I needed a method to attach the cup to the interior of the car that would hide the wires; and let me aim the tweeter. I accomplished all of this with my idea.


    The idea was to use a threaded pipe fitting to secure the cup to the sail panel. Since it's a pipe fitting it's hollow and I can run the wires through it. Score!!!

    Not so fast though. The the only fittings I found that did this were slightly too large to put into the mounting cup and have the rear of the tweeter still clear the back and fit in. So, cutting solid brass was out of the question....only in the beginning though ;)

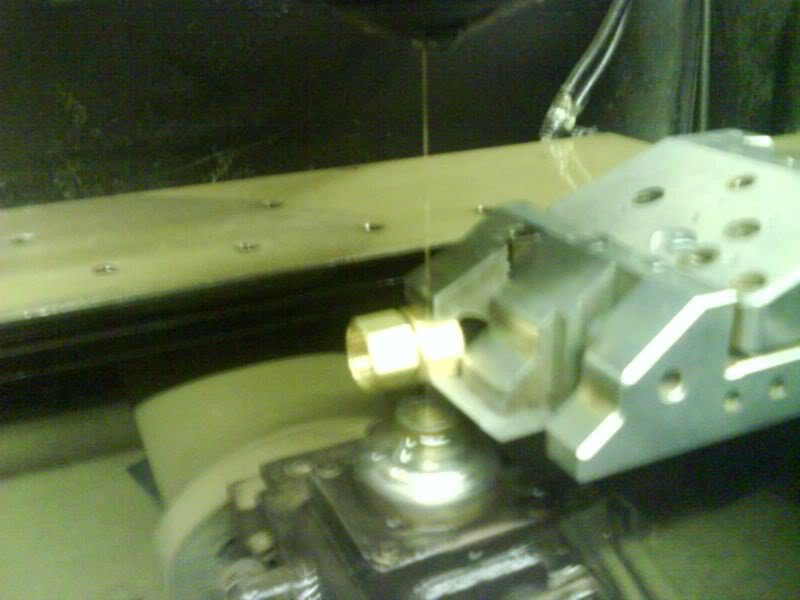

    I remembered that Joseph (~Magic_Man~) had a tool at work he said could cut anything that conducted electricity. I needed solid brass cut and done at a very precise tolerance. He said no problem. This machine was one of the coolest things I've ever seen. A thin brass wire 10thousanths of an inch thick gets electrified underwater and makes the cut...VERY cool shit! Thanks again Joseph for the help!!

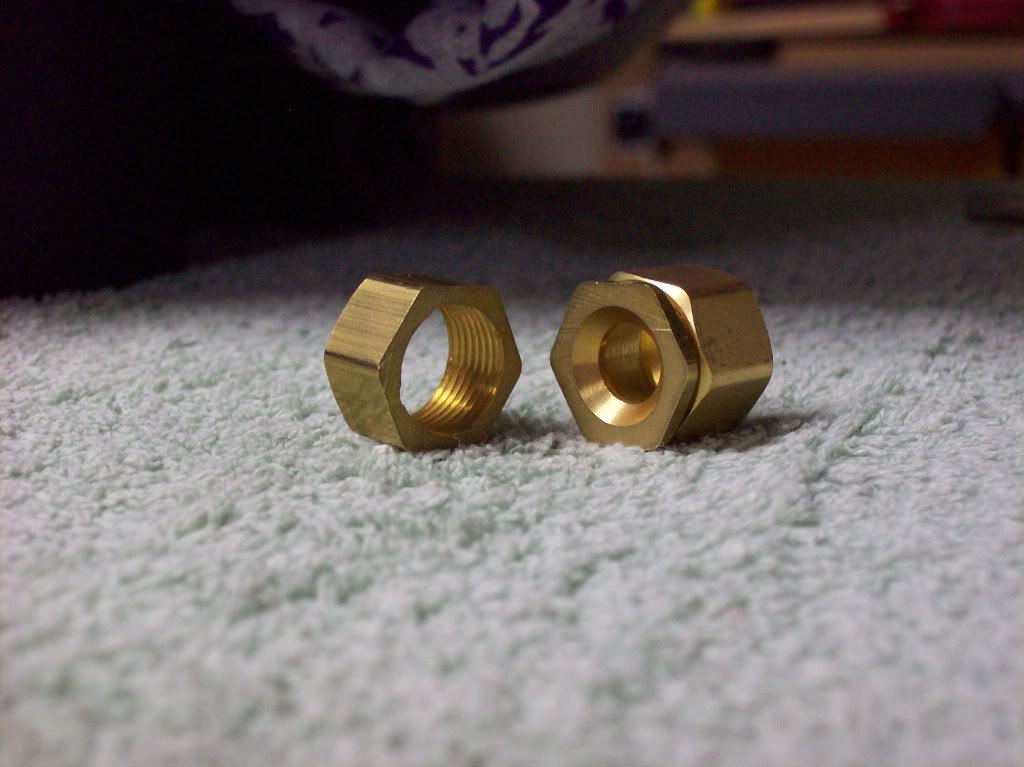

    Crappy Cell phone pic but you get the idea...massively cool
    [​IMG]
    [​IMG]
    [​IMG]

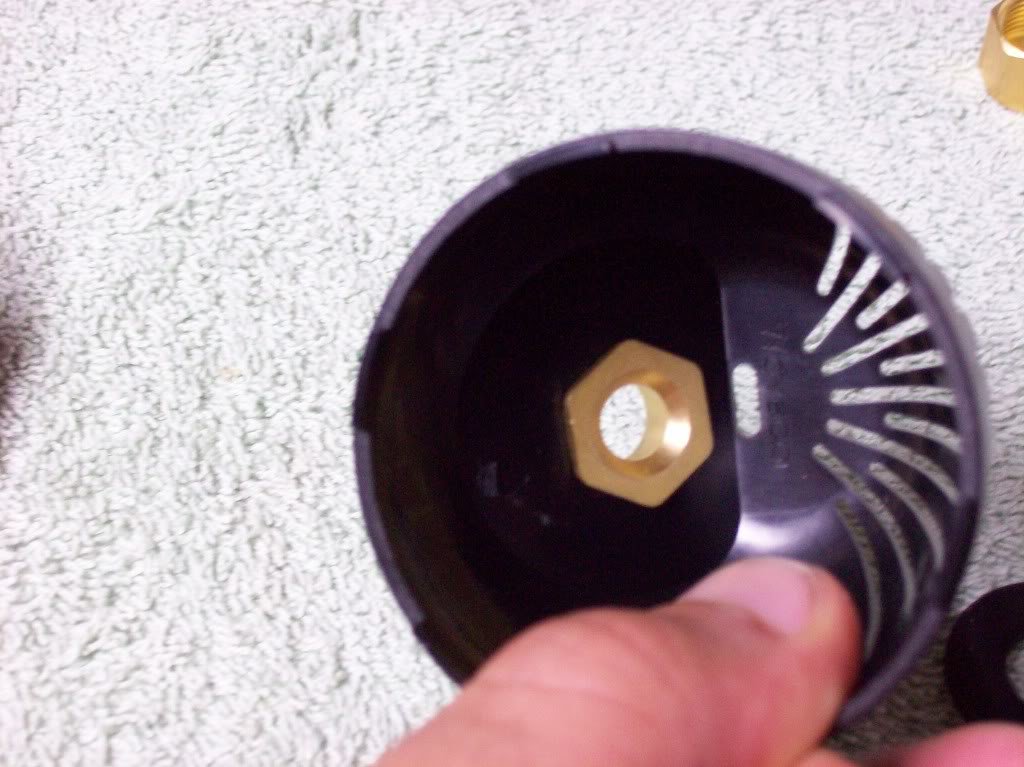

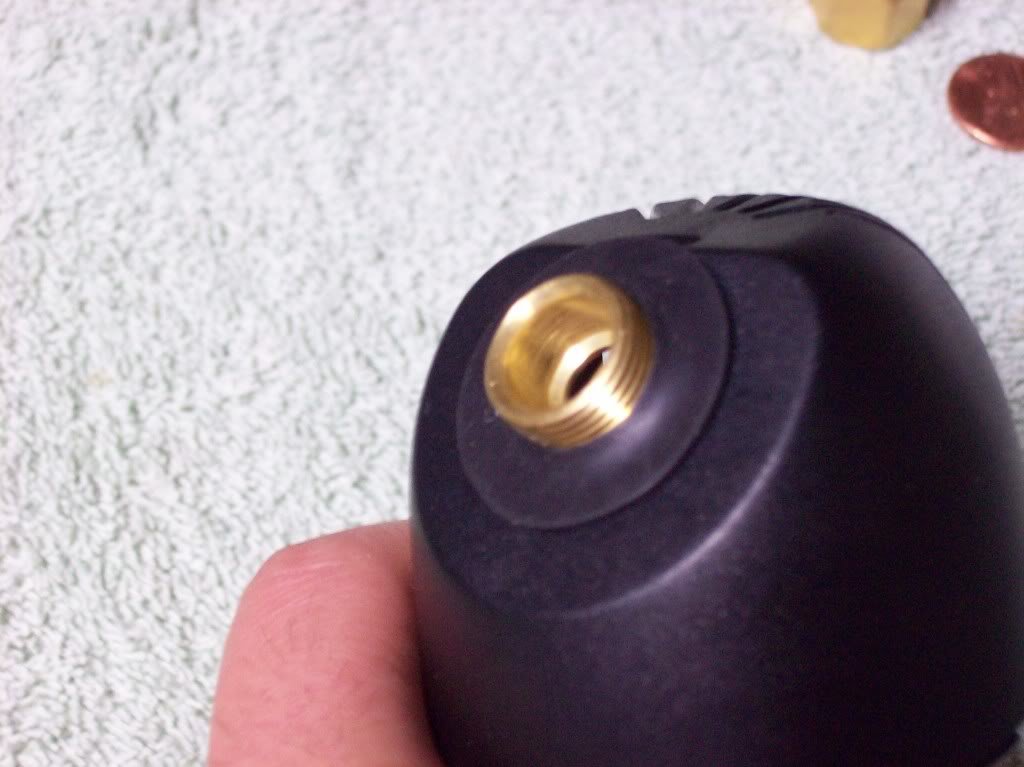

    So with my new cut pipe fittings I went to work getting my stuff together. I was using a thin rubber washer (lowes, hardware aisle drawers) between the sail panel and the tweeter cup. This would give me some padding between the two pieces and friction; both very important to what I needed IMO. I drilled my holes and then pieced it together.


    [​IMG]
    [​IMG]

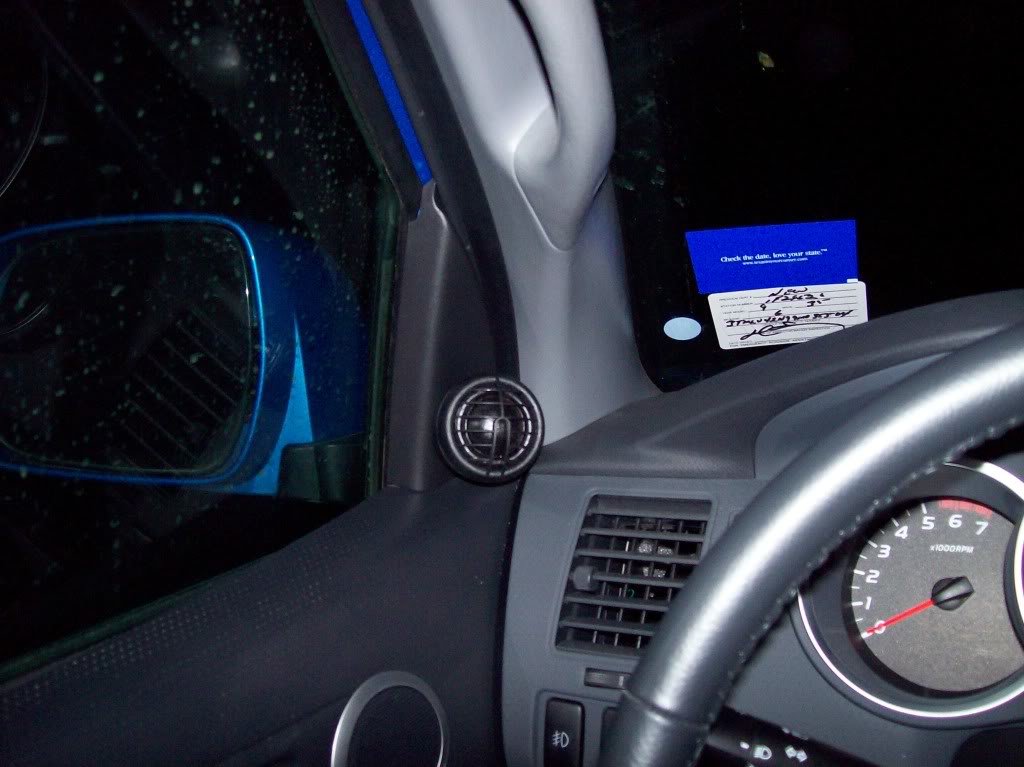

    Here is how I ended up. Because the rubber washers keep it snug but not ridged I can swivel the tweeters up or down. Plus, I've been reading a lot about diffraction and I think these pods with their shape should help a little. I'm looking forward to hearing them.
    [​IMG]
    [​IMG]
    [​IMG][/quote]

  2. Dec 22, 2009 at 9:13 PM
    #2
    zanodave

    zanodave Well-Known Member

    Joined:
    Aug 29, 2007
    Member:
    #2572
    Messages:
    225
    Gender:
    Male
    so il
    Vehicle:
    07speedwayblue
    sweet- how do they sound?

  3. Dec 24, 2009 at 11:46 AM
    #3
    ItalynStylion

    ItalynStylion [OP] Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,627
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    Not sure yet. They amp has yet to go in. I'll be doing that a little while later when I get back from holiday travel. My friend makes RCA's and is going to make me a set. Once he's done with that I can install the amp.

    Also, as I've said, the Pioneer unit didn't work out for me so I'll be replacing it with a different unit. I think the new Eclipse AVN726E will be what I stick in there.

  4. Dec 27, 2009 at 10:27 PM
    #4
    ilovetacos

    ilovetacos Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,319
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    As always nice work!

    :popcorn:

  5. Jan 23, 2010 at 8:59 AM
    #5
    ItalynStylion

    ItalynStylion [OP] Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,627
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    Let me first apologize for the lack of updates. I've not had the time (until now) to really get things going again. Travel with the holidays, going to las vegas for CES, losing my job....I've been a bit tied up


    But, no matter, on to the progress!

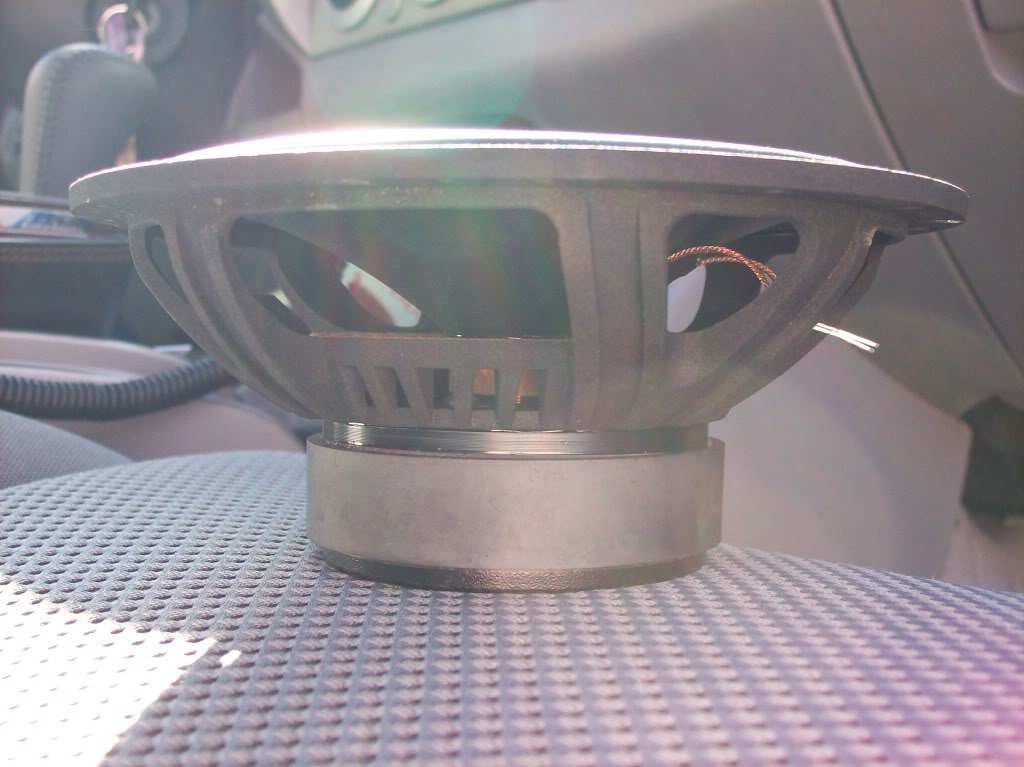

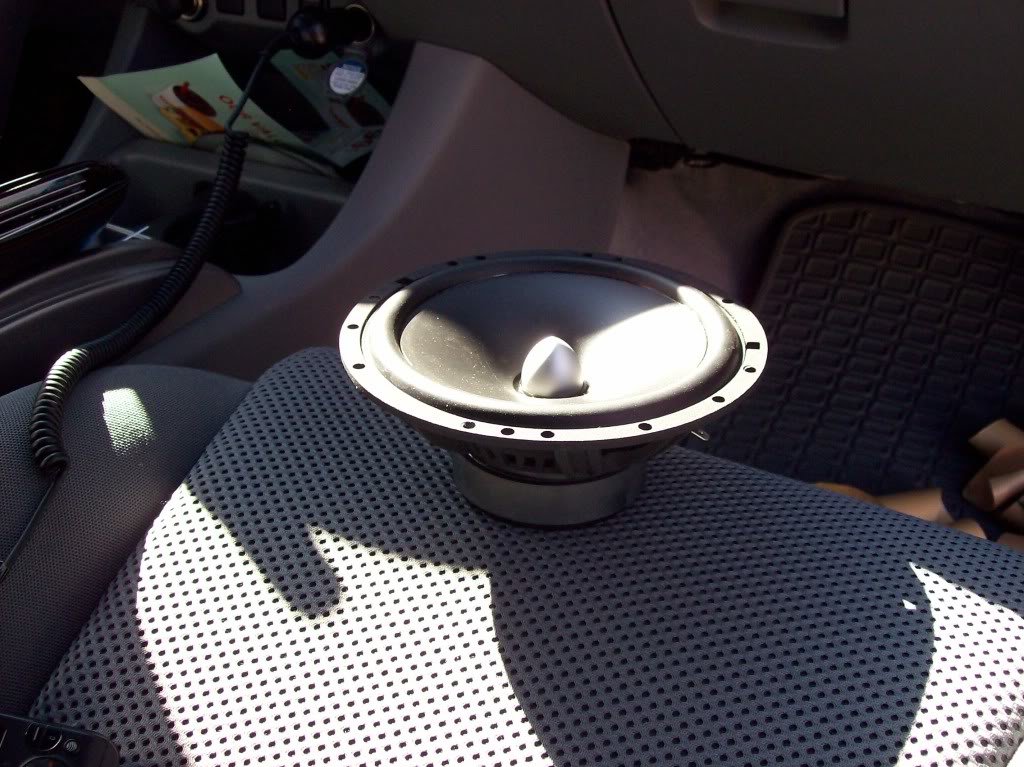

    Here are the midbass drivers I'll be using. They are H-Audio Ebony midbass drivers. I'm a dealer for the brand so if you're interested in trying any of their stuff just shoot me a PM or an email. I'm very excited to get these moving.
    [​IMG]
    [​IMG]

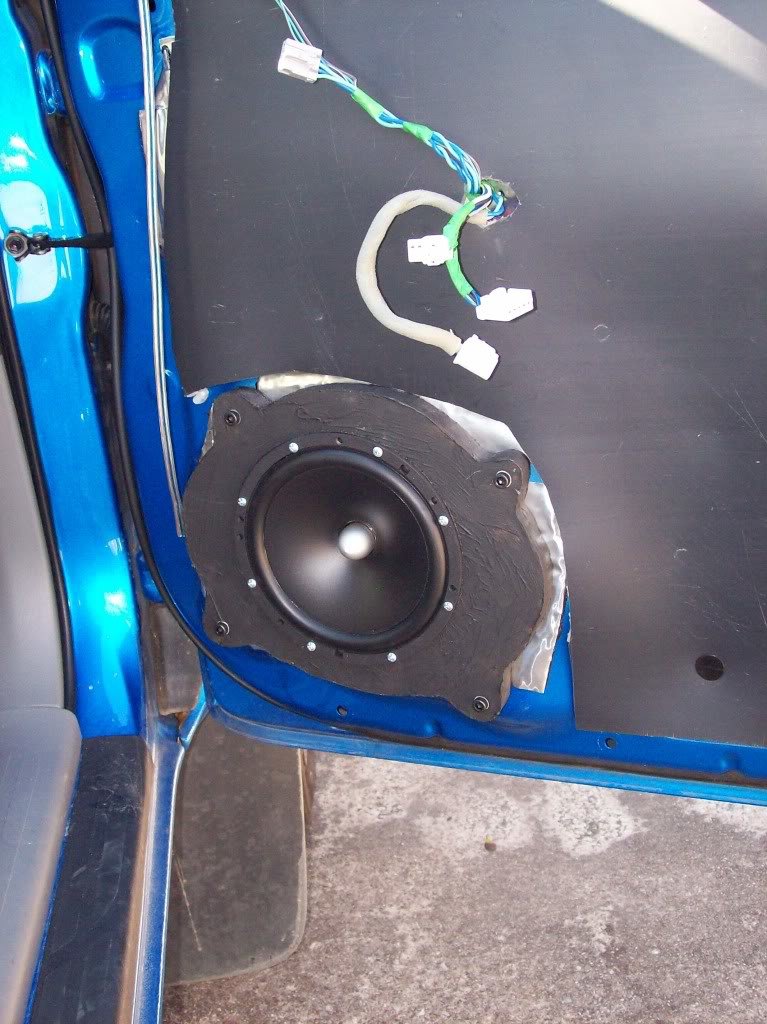

    I opened the doors back up to put these kids in. I also did more deadening in the door in some places I deemed needed work. The baffle is another place I put in a good amount of time. There is a layer of deadener between the baffle and the door. This seals it to the door and also decouples it a little. I used some Second Skin Spectrum (liquid deadener) to seal the baffles since I had it left over from like 2 years ago. It really helps on baffles. Sometimes water will get on the MDF baffles and cause them to swell to about twice their size. Sealing them is a good way to prevent that from happening. I also used some foam speaker gasketing tape on the mounting flange so the speaker sealed well to the baffle. I originally only used 4 screws on the basket but decided to use 8 in the end. Total overkill, but I thought that it would help put even pressure on the basket in a more uniform manner. I figured the more points of contact the better; and having a box of like 300 screws I didn't think twice.
    [​IMG]

    So then that leaves us with a fully deadened vehicle with midbass drivers, tweeters and all the wires run. Not hardly a working system but certainly on our way.

    The Pioneer unit did get returned. After getting everything sorted out I ended up with the Eclipse AVN 726e that I thought I would. I think I'll really like this unit. It comes in next week and it will promptly go in.

    I haven't put in the amp yet because I don't have my RCA's ready. I have a friend making me a 6channel RCA cable and he should be done next week. When that's ready I'll put the amp in.

    Also, some people asked about how quiet the car is now. Hope this video helps a little.

    [​IMG]

  6. Jan 23, 2010 at 9:10 AM
    #6
    Kevin20

    Kevin20 Active Member

    Joined:
    Jan 5, 2010
    Member:
    #28800
    Messages:
    28
    Gender:
    Male
    First Name:
    Kevin
    Pueblo, Colorado
    Vehicle:
    96 Tacoma
    Complete Stereo Upgrade, Python 991 remote start, security, and aftermarket door locks, K&N cold air intake, cherry bomb dual out muffler, sway away 2.0 coilovers and skyjacker 3 inch leaf springs
    im really impressed with the amount of work you put in to this project. It is going to turn out amazing good luck with the rest.

  7. Jan 23, 2010 at 9:13 AM
    #7
    ItalynStylion

    ItalynStylion [OP] Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,627
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    Thanks! I've made some great progress on the sub enclosure too but it wouldn't make sense to post any of it right now till it's done. Without seeing it wrap up it just wouldn't really make sense and I'd hate to have to explain it in text when finished pictures would do a much better job. I'll have all next week to get that finished up as well. It's going to be pretty epic; in every sense of the word.

  8. Jan 23, 2010 at 10:42 AM
    #8
    tacomarock

    tacomarock Well-Known Member

    Joined:
    Nov 21, 2009
    Member:
    #26293
    Messages:
    136
    Gender:
    Male
    That is some cool ideas. I had my truck deadened. I am still thinking I should have had them do the roof!

  9. Jan 23, 2010 at 10:49 AM
    #9
    ilovetacos

    ilovetacos Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,319
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    Sorry to hear about the job.

    That video is pretty impressive, makes me want to redo my truck.

    What sub(s) are you going with?

  10. Jan 24, 2010 at 2:29 PM
    #10
    ItalynStylion

    ItalynStylion [OP] Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,627
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    I wouldn't sweat it about the roof man. If you have everything out I'd totally do it for sure. But it's the area that makes probably the least amount of difference unless it's raining/hailing.
    I'm going with the Tang Band 6.5" subs from PartsExpress...4 of them http://www.parts-express.com/pe/showdetl.cfm?Partnumber=264-832

  11. Jan 27, 2010 at 6:37 AM
    #11
    ItalynStylion

    ItalynStylion [OP] Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,627
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    Ok, I've kept some of the details about the stub stage a secret till now because I honestly wasn't sure if I could get it to work. Now I'm pretty confident it wont be a complete failure. Here is what I've gotten done so far.

    I've cut the lip on the bin underneath the seat so the edge creates an even plane. It was not like this stock which took a lot of work. As a result I had a razor sharp steel edge at the top where I needed to attach the baffle board. I took some crazy long piece of plastic edging I found at lowes, filled it with silicone, and seated it along the edge. This gave me a uniform (and flat) edge to seal against; bueno.

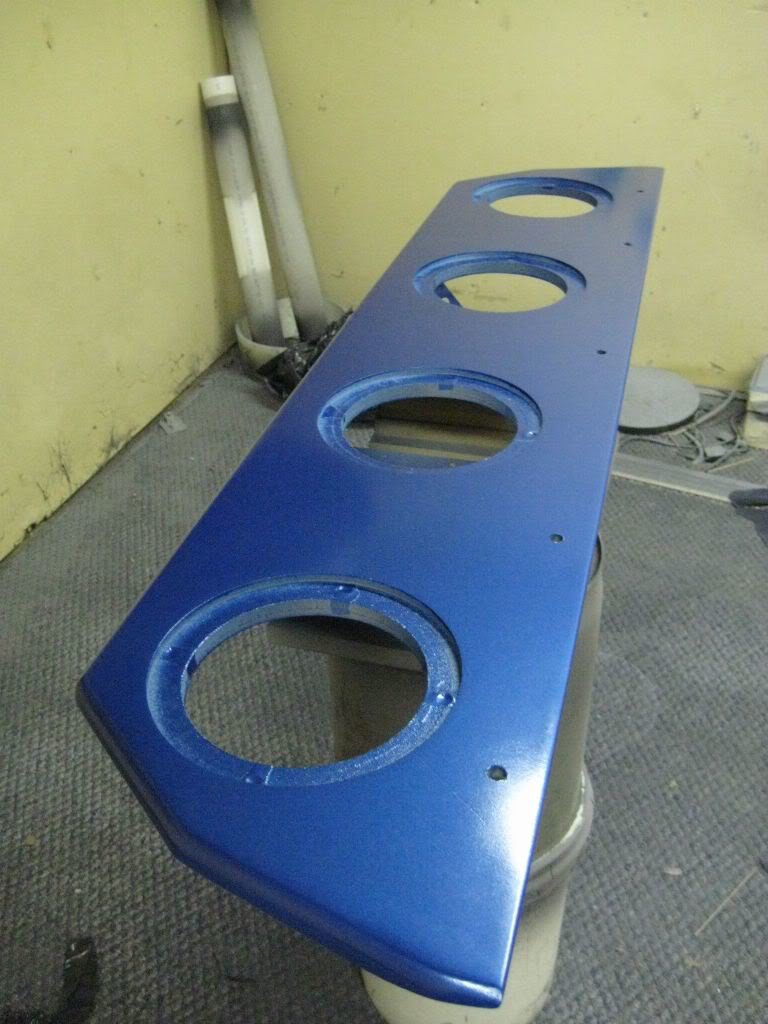

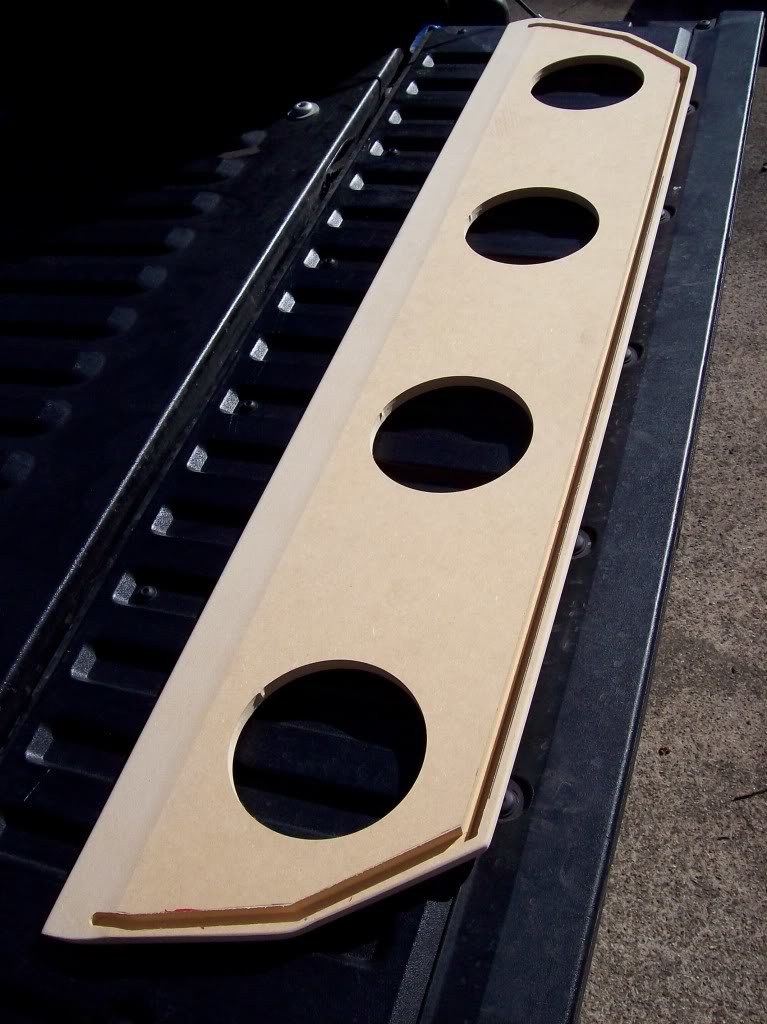

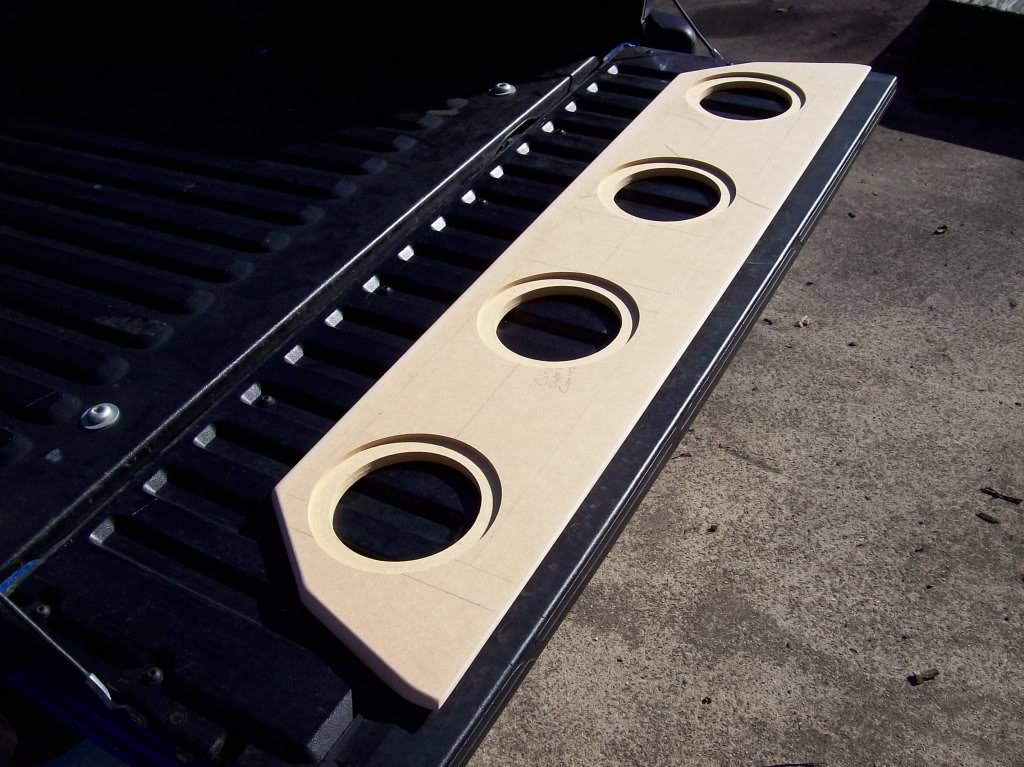

    So now I had to make the board that would seat onto it. Not an easy task. tracing the bin edge onto a piece of wood was an impossible task. So I went back to Lowes and got a solid 1/8" thick piece of aluminum 1"x48" that I bent into the exact shape of the bin edge. I chose aluminum because it was strong and would hold its' shape when I then tried to trace the shape to the wood and also because I could manually bend the piece to the exact specs. It wasn't easy (yeah it was hard) but I got the results I wanted.

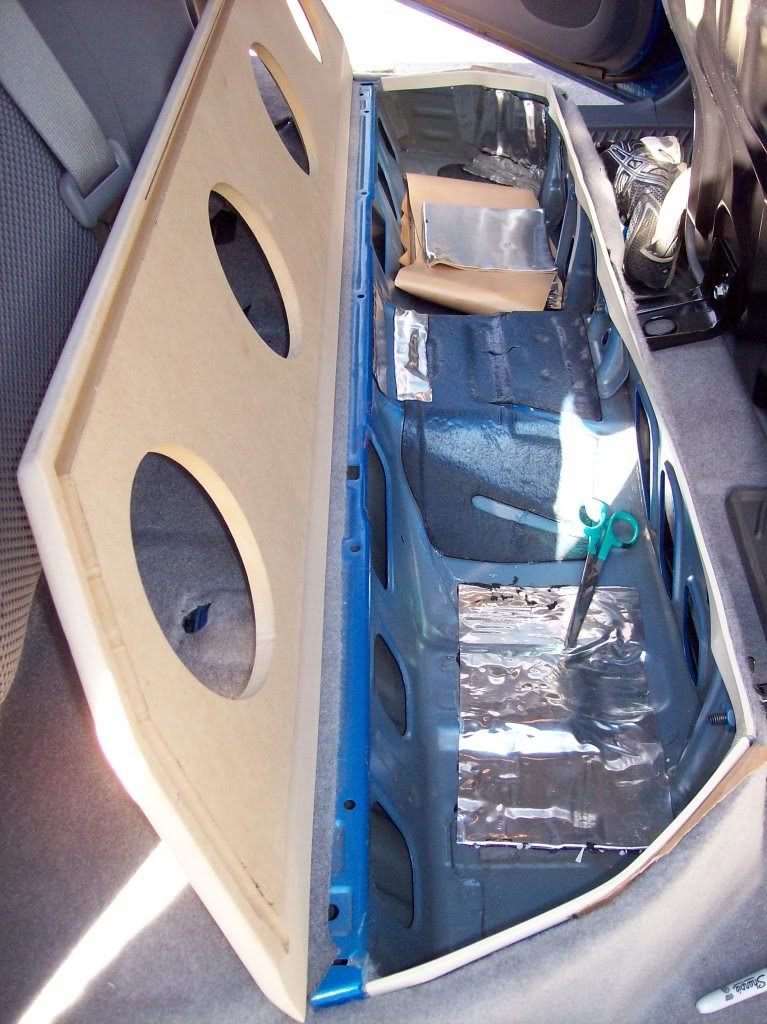

    I need to now seal up the large holes in the metal (I have sheet steel I might use) and then finish the baffle board. Progress pics below.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

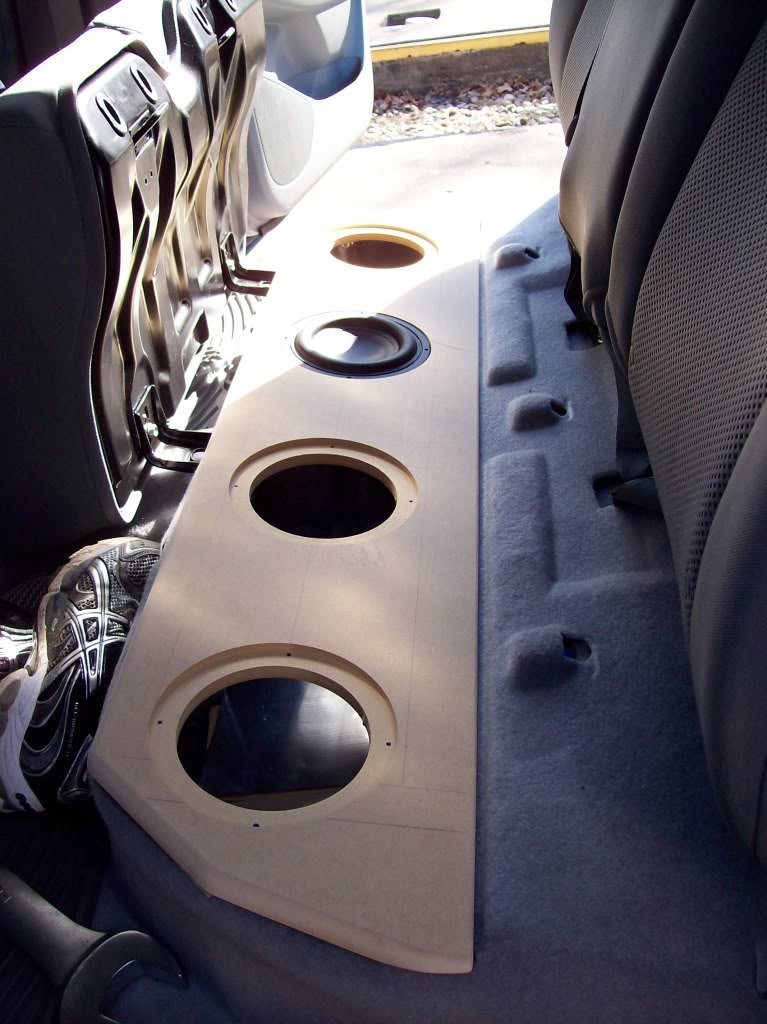

    Money shot...plenty of clearance!
    [​IMG]

  12. Jan 31, 2010 at 5:50 PM
    #12
    jab08

    jab08 Well-Known Member

    Joined:
    Sep 17, 2009
    Member:
    #22883
    Messages:
    1,566
    Gender:
    Male
    Alabama
    Vehicle:
    02 T4R 4wd
    Wow thats awsome!! The enclosure for the subs is crazy cool!! I think I need to build a custom box for the BM, but I may just use the box I have.

  13. Jan 31, 2010 at 5:50 PM
    #13
    ktmrider

    ktmrider Senior Member

    Joined:
    Jul 20, 2009
    Member:
    #19933
    Messages:
    4,978
    Gender:
    Male
    Vehicle:
    07 DCLB 4x4 Sport S/C
    Junk
    looks good

  14. Jan 31, 2010 at 6:02 PM
    #14
    oofy15354

    oofy15354 Proud Tundra *****

    Joined:
    Nov 2, 2009
    Member:
    #25311
    Messages:
    514
    Gender:
    Male
    First Name:
    Dave
    Massachusetts
    Herculiner, Access Tonneau, Uniden cb, firestik antennae, Bosch Wipers, JVC Ipod headunit, Boston Acoustic Speakers
    your sir have the best write ups. now can you buy a first gen and do the same thing to give me ideas?

  15. Jan 31, 2010 at 6:52 PM
    #15
    ItalynStylion

    ItalynStylion [OP] Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,627
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    I did a significant amount of work yesterday. I've got some pictures of what I got done but I don't have them loaded just yet. Hopefully I'll get them up tomorrow.

  16. Jan 31, 2010 at 7:09 PM
    #16
    Broke

    Broke Well-Known Member

    Joined:
    Jan 24, 2010
    Member:
    #29987
    Messages:
    48
    Gender:
    Male
    Kansas
    Vehicle:
    4x4 L/B Black Sand Pearl TRD Sport
    Sun Roof, Leather, Clear Bra, Tint, TRD Exhaust, Scratch Film Door Handles
    Cool Box

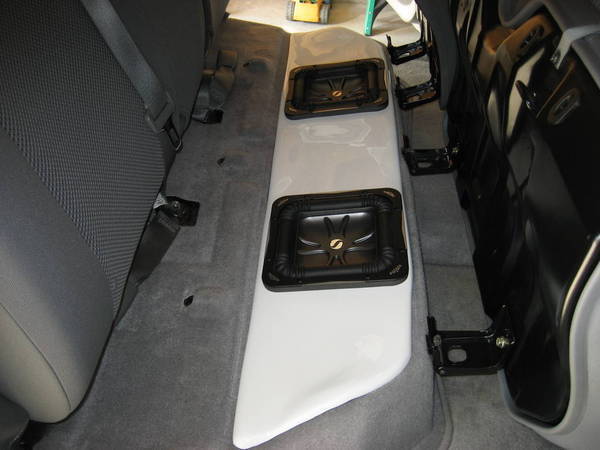

    [​IMG]

  17. Jan 31, 2010 at 10:00 PM
    #17
    ItalynStylion

    ItalynStylion [OP] Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,627
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    Ahhhh, so I'm not the first to realize it's potential am I?

    How did you do yours? Tell me about the build; I want to know how you combated the problems that I'm sure we both faced.

  18. Feb 9, 2010 at 9:41 PM
    #18
    ItalynStylion

    ItalynStylion [OP] Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,627
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    IIIIIIII'm so excited....and I just can't hiiiiide it! [​IMG]

    But really, I've made good progress this week! I think I might have this done by tomorrow evening. That's not a promise but rather an ETA. Things are looking good but I'm not going to rush things after I've come this far to do things correctly.


    Just a teaser for now....that's all you're gettin. Not because I'm mean, but because that's really all I have right now:)





    [​IMG]

  19. Feb 9, 2010 at 10:24 PM
    #19
    ItalynStylion

    ItalynStylion [OP] Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,627
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    I got an email from a member today asking about the subs and what my plans were. He also wanted to know how I was going about doing this. I wrote him back way more detailed than I'd originally intended and it was quite long. I figured I'd post my response in case anyone else had similar questions as to how I went about this.


  20. Feb 10, 2010 at 8:27 AM
    #20
    hookedontronics

    hookedontronics Well-Known Member

    Joined:
    Jan 6, 2010
    Member:
    #28863
    Messages:
    2,791
    Gender:
    Male
    First Name:
    Jake
    Glenville, NY
    Vehicle:
    2010 DC Off Road 4x4
    Icon extended travel 3.5" front coilovers, DSM UCAs, TSB leaf pack w/ wheelers AAL, All Pro U-bolt flip kit, Walker Evans 2.0 rear shocks, 18" XD Monster rims, Nitto trail grappler 285/65R18 Tires, Color matched grill, Grillcraft, Kragen HIDs, Carling switches, my bed light mod, diff drop, Alpine IVA-W505, JL Audio C5 componets and coaxials, JL 300/4 and 250/1 amps and JL stealthbox, wheathertechs, avs vent visors, toyota bed x-tender, alcantara center console cover and door pocket covers, console vault, color matched mirrors, heated mirrors, etc etc etc
    nice enclosure! Please tell me you are planning on fiberglassing the underside though...

    I've been awaiting the arival of my new 2010 dc and was going to put a few subs behind the rear seat but after seeeing this i am think this is a better way to go, and either keep the storage back there or more likely still put woofers back there haha. I'm always going over the top with my builds and once i get the truck in i'll post everything up.

    Keep up the great work! I cannot wait to see this all completed
