Tacoma Bed Light Kits

The new thread http://www.tacomaworld.com/forum/2n...a-bed-lights-hood-light-kits.html#post8793335

These kits use a 5050 SMD waterproof, Black back board light strip. With this kit all that is required is to connect your switch to your leds and route the wires.

After lights have been soldered, they have been tested before shipping. The switch used is a mini switch or a rocker switch. The switch can be mounted where ever you like, the best option is in the driver side back pocket.

Shipping is included in the cost to the lower 48 states, Alaska and Hawaii will be an additional cost.​

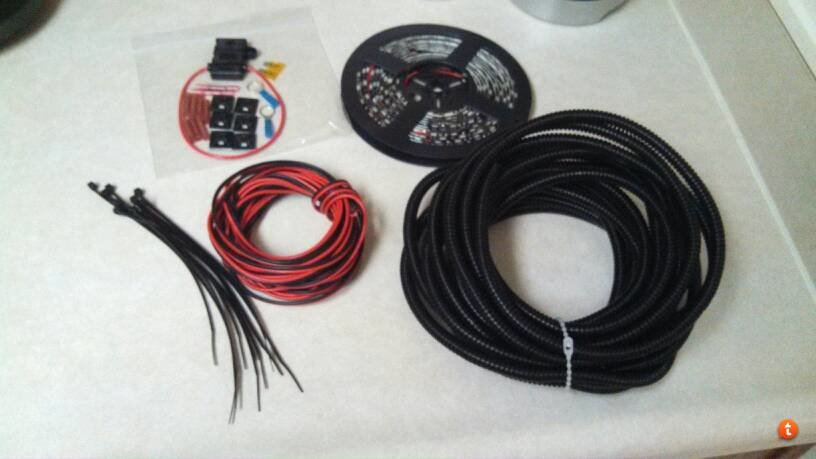

Kits being made:
Kit will include for short bed - $70
2-47" and 1-45" 5050 waterproof led light strips
1- mini toggle switch or rocker switch
2- circle insulated ring connector for ground and battery
25ft of wire ​

25ft of 1/4" loom tubing
10- 8" zip ties
1- waterproof inline fuse and 2 5A fuses
Misc connectors and adhesive mounts

Kit will include for long bed - $75
2-59" and 1- 45" 5050 waterproof led light strip
1- mini toggle switch or rocker switch
2- circle insulated ring connectors
28ft of wire
28ft of 1/4" loom tubing
10- 8" zip ties
1- waterproof in-line fuse and 2 5A fuse
misc connectors and adhesive mounts

Hood Light Kit- $60
2- 14" strips
1- 39" strip
Loom tubing (already installed)
1- Waterproof inline fuse and
2- 5a fuses
4 Adhesive mounts
1- PVC Switch Mount
1- Round Rocker Switch w/ 2 female connectors
2- heat shrink ring terminals
4- butt connectors
Update:The strips will be all connected for easy installation. Figured using butt connectors can cause issues when stripping wires for them or wires coming out of the connector.





The switch being used is small and simple to mount. The how-to I created can be sent to an email and works best if you can receive email on your mobile devices.
Can pm if you have questions.
Also no payment will be taken until the kits are ready to ship.

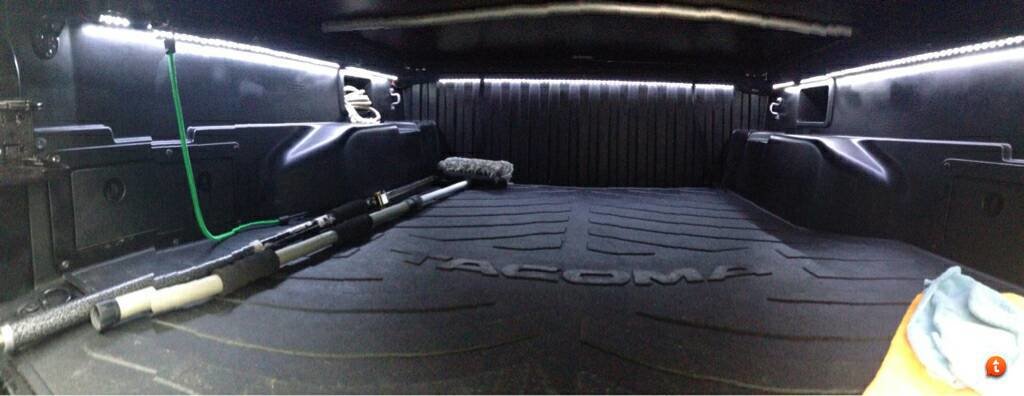

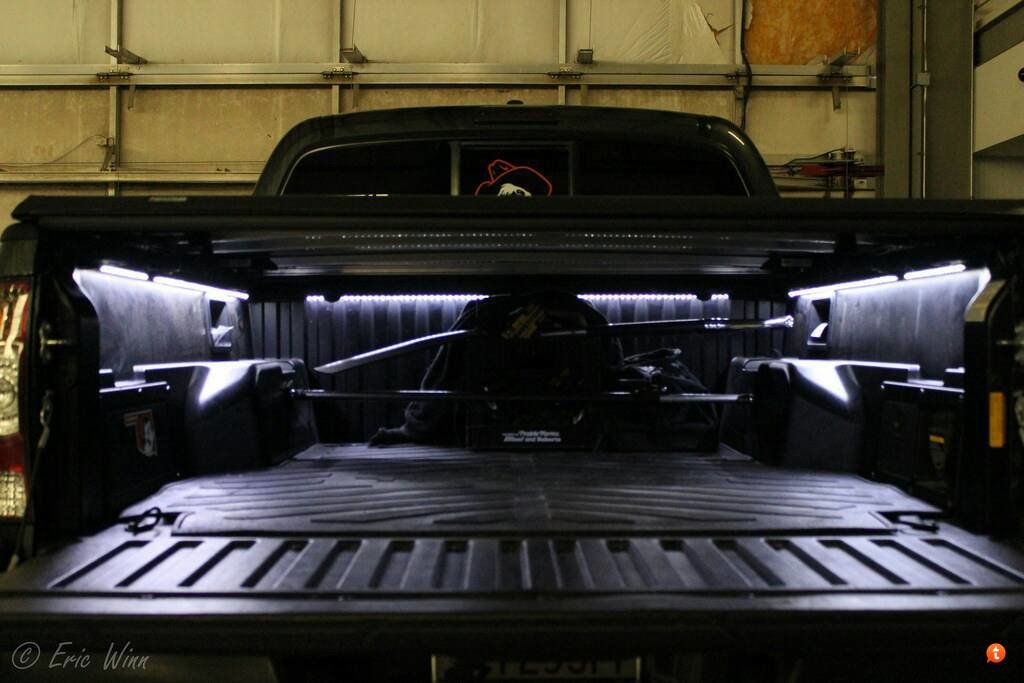

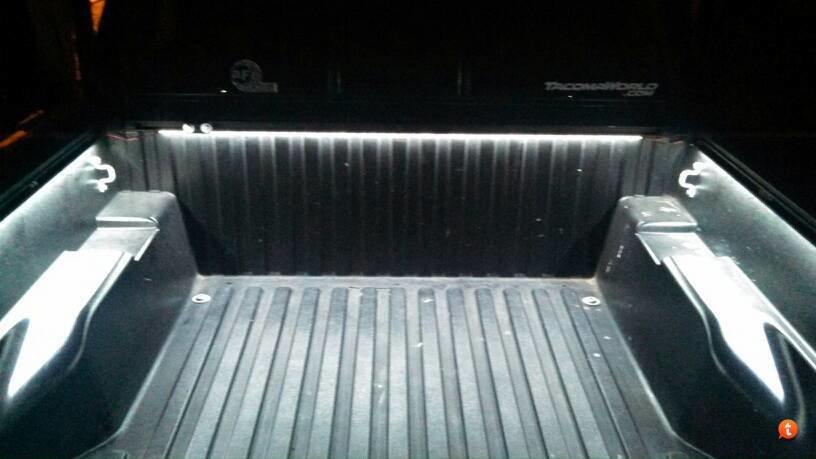

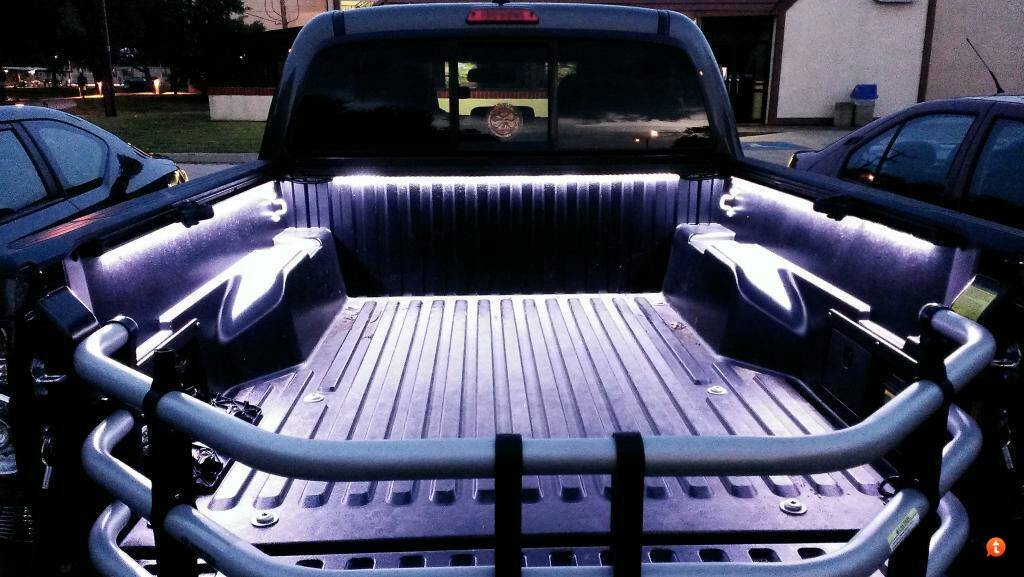

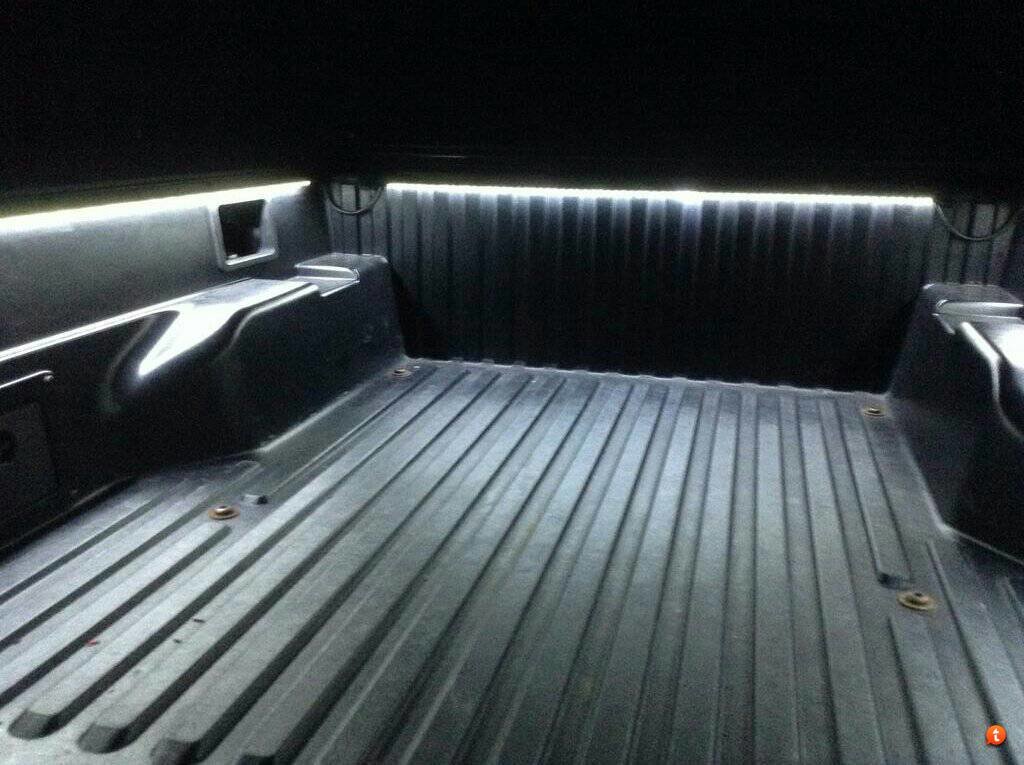

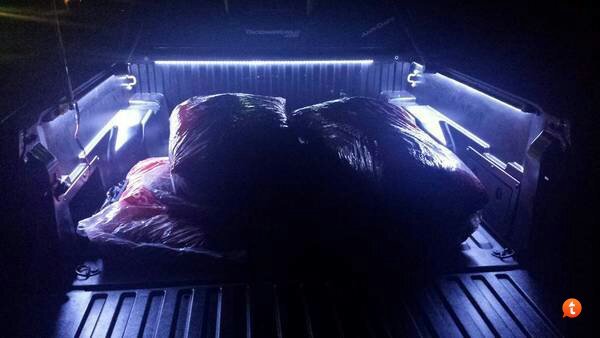

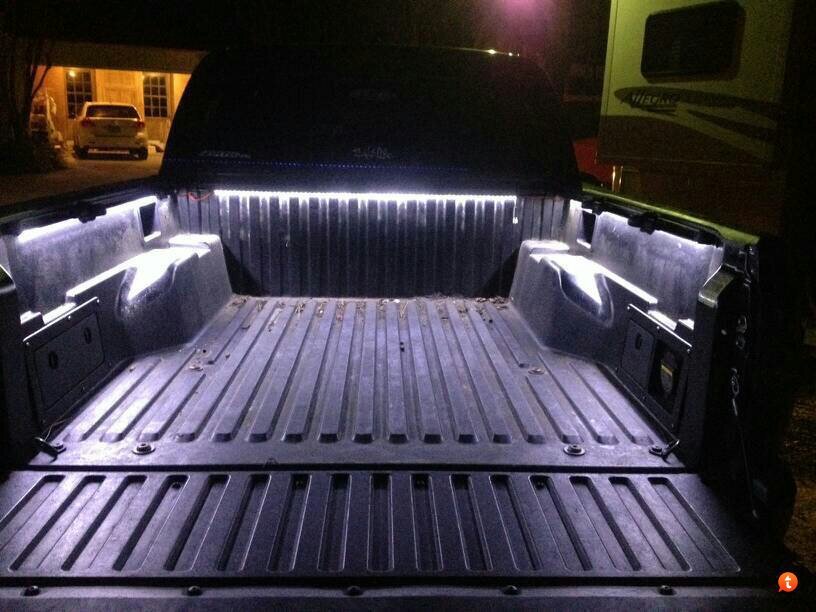

Customers photos​

Ramonortiz55 truck

TacoIII

13HawaiianTRD

Pistol Pete

Ucbearcat46

Slcsez2000



Fair price. GLWS.



Its a start. Thanks



Unfortunately I have to wait for the new switches to come in.



Possibly...

Edit: make sure I'm on the list please



sub'd to see how this plays out


i can't get in on the buy because i have all the parts sitting in my living room waiting to be installed. i originally got the 3850s but i just got some 5050s with black pcb so i'll install the brighter ones.



sub'd



I will be buying a set.



Everything is ordered just waiting for it to arrive



Hmmm... I am interested. Count me in as your number two guinea pig.

Will there be some sort of basic instructions?



List started:

1. tacoIII
2. ramonortiz55



Ya there will be instructions



I'm interested. Count me as number 3 or 4, whichever it is.



I too would be interested in this. Can't wait to see how the brighter LEDs look.

PM me when the kits are available.

Nate



great price, these kits will be great! good luck



List started:

1. tacoIII
2. ramonortiz55
3. 13HawaiianTRD
4. (Possibly jhodge83) SRT Nate



So the four are set in. I'll pm and what not when these are good and ready to ship



No problem


Update so while the items are being shipped I am currently working on a how to so you wont have to many confusions with the install.
