Tacoma Dual Battery Tray Kit for 05+ Tacoma

Discussion in 'Armor Tech Offroad' started by ArmorTech, Dec 13, 2012.

  1. Jan 11, 2013 at 8:09 AM
    #21
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,584
    Gender:
    Male
    I said SQUARE meaning square edges instead of round like the Optimas. Standard shaped rectangle battery's have the SQUARE edges.

    Can I fit 2 regular battery's is the question.

  2. Jan 11, 2013 at 9:33 AM
    #22
    ArmorTech

    ArmorTech [OP] Well-Known Member

    Joined:
    Dec 3, 2012
    Member:
    #92339
    Messages:
    223
    Gender:
    Male
    First Name:
    Adam
    As long as the battery is the same overall size of a group 34 size battery you should not have any problem fitting them in. The factory battery is larger in physical size and would not fit.

  3. Jan 16, 2013 at 7:22 PM
    #23
    ArmorTech

    ArmorTech [OP] Well-Known Member

    Joined:
    Dec 3, 2012
    Member:
    #92339
    Messages:
    223
    Gender:
    Male
    First Name:
    Adam
    I've found a great article for those of you looking for options on how to hook up your dual battery systems. Sadly it is on a Jeep forum, so you'll have to look past that. :eek: All of the info still applies.

  4. Jan 16, 2013 at 7:29 PM
    #24
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,584
    Gender:
    Male
    Thanks man. I have to hold off til I can afford the 2 x 34 series batteries. I saw the sierra expedition had one that accomodated both. BUT you have to use the Optima spacers that come with the battery's. I do NOT want to deal with that.

  5. Jan 31, 2013 at 2:29 PM
    #25
    ArmorTech

    ArmorTech [OP] Well-Known Member

    Joined:
    Dec 3, 2012
    Member:
    #92339
    Messages:
    223
    Gender:
    Male
    First Name:
    Adam
    Thank you to everyone who has ordered a Dual Battery Tray, yours are shipping out today!

    I have a few in stock and ready to go to a new home!

  6. Jan 31, 2013 at 3:46 PM
    #26
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,584
    Gender:
    Male
    Can I trade you anything for one? New air hose fittings, some hand tools, sockets, Dell thermal network Printer, anything in particular your looking for?

    Add space in my sig? on my truck?

    Just a shot in the dark.

    http://www.aetv.com/barter-kings/video/

  7. Feb 4, 2013 at 9:01 AM
    #27
    ArmorTech

    ArmorTech [OP] Well-Known Member

    Joined:
    Dec 3, 2012
    Member:
    #92339
    Messages:
    223
    Gender:
    Male
    First Name:
    Adam
    Sorry Skygear, not looking to trade currently.

  8. Feb 4, 2013 at 6:44 PM
    #28
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,584
    Gender:
    Male
    I know, never hurts to ask though. I will pick one of these up once I am able to.

  9. Feb 4, 2013 at 6:53 PM
    #29
    Deathcure

    Deathcure Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74498
    Messages:
    223
    Gender:
    Male
    First Name:
    Chris
    Wheeling WV
    Vehicle:
    12 Tacoma Off Road
    Sub for later use :popcorn:

  10. Mar 26, 2013 at 7:49 AM
    #30
    ArmorTech

    ArmorTech [OP] Well-Known Member

    Joined:
    Dec 3, 2012
    Member:
    #92339
    Messages:
    223
    Gender:
    Male
    First Name:
    Adam
    Bump for great dual battery trays!

  11. Nov 20, 2013 at 3:56 PM
    #31
    tribum

    tribum Member

    Joined:
    Sep 30, 2013
    Member:
    #113587
    Messages:
    18
    Gender:
    Male
    First Name:
    Craig
    SoCal
    Vehicle:
    05 4x4 LB Tacoma
    ARB Bumper, winch, Camburg UCAs, DR coilovers, 18x9 KMC Black Rockstars, Nitto Grapplers, Rigid LED lights (small driving lights, and 10" bar), Pioneer Nav System, Kicker Speakers, WeatherTech floormats, Leer shell, BedRug, Gibson Catback exhaust, Volant Cold Air Intake, Rear add-a-leafs
  12. Dec 23, 2013 at 9:42 PM
    #32
    romeo

    romeo Wombat

    Joined:
    Feb 18, 2011
    Member:
    #51383
    Messages:
    703
    Gender:
    Male
    First Name:
    Luis
    Lacey, Wa
    Vehicle:
    Silver 4x4 DC Sport
    MBRP Exhaust K&N Intake Pro Comp 3 inch Lift
    since the last update, has there been any more added on pieces to the kit?

  13. Dec 23, 2013 at 11:16 PM
    #33
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,584
    Gender:
    Male
    Tell you what. If you can make it fit 2 31's I will grab this from you .. It will save me some time and effort making one

  14. Dec 24, 2013 at 5:58 AM
    #34
    ArmorTech

    ArmorTech [OP] Well-Known Member

    Joined:
    Dec 3, 2012
    Member:
    #92339
    Messages:
    223
    Gender:
    Male
    First Name:
    Adam
    No there have not been any changes. Was their supposed to be something I didn't know about?

    Take a look at the dimensions of a group 31 and then take a look at the space available. There is no where near enough room there without major modifications. That's not something I'm going to get into.

  15. Dec 24, 2013 at 9:01 AM
    #35
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,584
    Gender:
    Male
    Ok. I already modded the area. just need to level it out and secure them properly. Using hose clamps right now.

  16. Dec 24, 2013 at 9:30 AM
    #36
    romeo

    romeo Wombat

    Joined:
    Feb 18, 2011
    Member:
    #51383
    Messages:
    703
    Gender:
    Male
    First Name:
    Luis
    Lacey, Wa
    Vehicle:
    Silver 4x4 DC Sport
    MBRP Exhaust K&N Intake Pro Comp 3 inch Lift
    i was just asking, i didnt know what the whole kit consisted of so im just making sure that a whole kit is there before i think of buying it.

  17. Dec 30, 2013 at 12:53 PM
    #37
    Arrowshot

    Arrowshot Well-Known Member

    Joined:
    Oct 20, 2013
    Member:
    #114853
    Messages:
    371
    Gender:
    Male
    Alabama
    Vehicle:
    Tacoma 4X4
    - TRD Sport Package - Leer 100XR Wilderness Package Shell

    Will your tray work for a 2014 Tacoma 4x4 DCLB and hold two of these batteries without anyfurther modifications.

    Odyssey 35-PC1400 Battery or Odyssey25-PC1400 Battery (both are same size below)
    Length: 9.46"
    Width: 6.84"
    Height: 8.69"

    Can’t seem to find the Platinum Diehard 34/78 on the Searswebsite and after a few calls it seems like they may not be carrying themanymore.

  18. Jan 8, 2014 at 7:55 AM
    #38
    ArmorTech

    ArmorTech [OP] Well-Known Member

    Joined:
    Dec 3, 2012
    Member:
    #92339
    Messages:
    223
    Gender:
    Male
    First Name:
    Adam

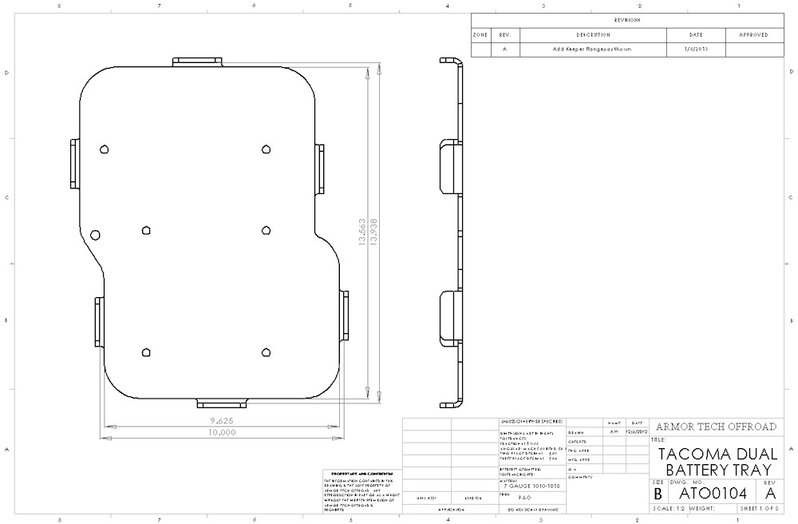

    I've had a couple people asking about this lately. I personally have not tested this tray for all of the different battery combinations, and would go broke trying to. So I've created a drawing just for you guys so you can see if your battery combination will work. I recommend staying within the inside set of dimension, but the radius for the flanges is not all that large so going to the outside set of dims will work as well.

    The tray ships with a new set of 8 inch tall J bolts, so you should be good on height on any battery that will fit in the tray.

    ATO0104 - Tacoma Dual Battery Tray - REV A Battery dims.JPG

    You can download the pdf version as well.


    Attached Files:

  19. Jan 9, 2014 at 4:35 AM
    #39
    Arrowshot

    Arrowshot Well-Known Member

    Joined:
    Oct 20, 2013
    Member:
    #114853
    Messages:
    371
    Gender:
    Male
    Alabama
    Vehicle:
    Tacoma 4X4
    - TRD Sport Package - Leer 100XR Wilderness Package Shell
    Thanks for posting the info and waiting on mine from you guys right now. Went to Sears and they have the batteries. Took my measuring tape with me and came up with the following:


    DieHard Platinum 34/78 Series
    • Length: 10" at bottom
    • Width: 6.25" after you cut off lip at bottom 6 7/8" at the top with the side terminals (you can't remove the side terminals according to one rep that I talked with)
    • Height: 7.80 to include terminals
    Odyssey 35-PC1400T-A
    Dimensions L x W x H (in) - 9.46x6.84x8.69

    I intend to get the DieHards after I get my tray and check them out at the store with the tray. Will post some pictures of the set up as I make progress.

  20. Jan 10, 2014 at 7:17 AM
    #40
    CChampigny

    CChampigny Member

    Joined:
    Nov 16, 2012
    Member:
    #91257
    Messages:
    19
    Gender:
    Male
    First Name:
    Chad
    Calgary
    Vehicle:
    2013 DCSB
    Icon CDC coilovers, Icon 2.0 rear shock, Dakar Leafs, Konig Countersteer wheels, All Pro Skids, Apex Sliders, Apex front bumper, All Pro rear bumper, Access tonneau, LR UCA, BHLM, 285/75/16 Duratracs...I think that its
    Look forward to the pictures. I am actually in the same boat as you where I got no response from Columbia Overland and am looking into this tray. I looked at the installation instructions for this tray and it calls for removing one of the tabs that holds the fuse box lid closed (on the side of the tray that is further back). No access to diehard where I am but I have been looking at Northstar (look almost identical to Odyssey, google "battery bashing" JP mag had them in an article). Anyways, the northstar website has nice detailed drawing of the dimension, and although they are just shy of 10" across the bottom(group 34), they flair out at the top, making the total width 10.87". My suspicion is that if you have to remove a tab on the fuse box for an optima group 34, which does not flare out at the top, then getting diehard group 34 could be tough.

    I stumbled across another member that used this tray for Diehard batteries (chris5255). I asked him for some pics and he put them up in his gallery. He has a group 35 on the side that is offset further back and mentioned that he had to trim the fuse box. Shoot him a PM if you have questions, he may have tried to get a 34 in there and found out that it would not fit.

    Last edited: Jan 10, 2014
