Tacoma Dyno Results

Discussion in 'Performance and Tuning' started by KingKoda, Jan 21, 2014.

  1. Jan 21, 2014 at 8:59 AM
    #1
    KingKoda

    KingKoda [OP] Never Satisfied

    Joined:
    Aug 2, 2012
    Member:
    #83946
    Messages:
    295
    Gender:
    Male
    Palmetto
    Vehicle:
    '12 TRD.S DCSB 4x4
    Boosted TRD/URD All Terrain Sleeper w/ Sockmonkey Decals Worth +666HP

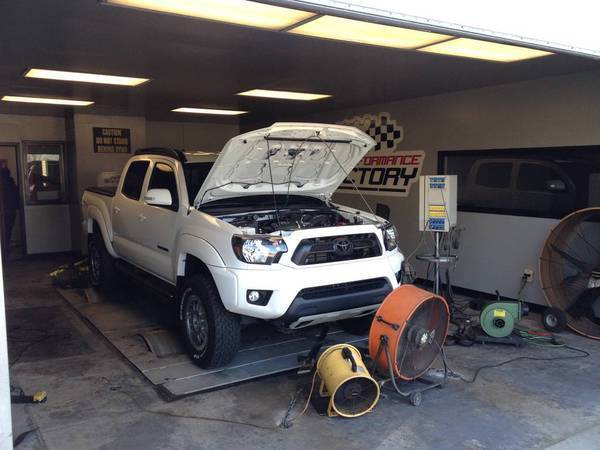

    I took the truck to be run on a dyno this morning and thought some of you might be interested in seeing the results.

    Numbers are about what I expected. Truck did barely dip down a little lean just below 12 when pushed hard, but the URD Fuel Pump upgrade should remedy that (have, but not installed). It's not too lean, but a safety net would be fine with me. However, lean is mean right? ....until kaboom, but the truck is still within the numbers.

    I have two print outs here below. The dyno was a SuperFlow AutoDyn 800 All Wheel Drive Dynamometer. The first below is what this dyno fed back. The second is a simulated results for a DynoJet dyno (shows better numbers)

    Truck is doing 325 HP and 350 TQ in good air.

    Dyno printout - SuperFlow AutoDyn 800 All Wheel Drive Dynamometer
    [​IMG]

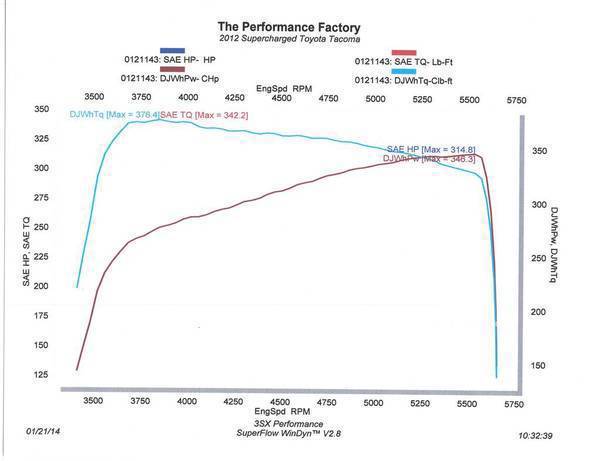

    Simulated DynoJet Readout - DJ: 346 HP / 376 TQ
    [​IMG]

    [​IMG]

    Last edited: Jan 21, 2014
  2. Jan 21, 2014 at 9:31 AM
    #2
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,978
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Which all mods does your truck have, besides the TRD S/C?

  3. Jan 21, 2014 at 9:36 AM
    #3
    KingKoda

    KingKoda [OP] Never Satisfied

    Joined:
    Aug 2, 2012
    Member:
    #83946
    Messages:
    295
    Gender:
    Male
    Palmetto
    Vehicle:
    '12 TRD.S DCSB 4x4
    Boosted TRD/URD All Terrain Sleeper w/ Sockmonkey Decals Worth +666HP
    Performance Related:
    TRD Supercharger, 2.85 Stealth Pulley, TRD Cat-back, AFE Stage 2si CAI (Pro5r Filter), URD Y-Pipe

    Stock Exhaust Manifold.

  4. Jan 21, 2014 at 9:52 AM
    #4
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,978
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Pretty good numbers. I am sure you like the power which waits under the skinny pedal.

    Definitely need to get the fuel pump in there. It is on the very of not being safe, in reference to the AFR.

  5. Jan 21, 2014 at 10:03 AM
    #5
    KingKoda

    KingKoda [OP] Never Satisfied

    Joined:
    Aug 2, 2012
    Member:
    #83946
    Messages:
    295
    Gender:
    Male
    Palmetto
    Vehicle:
    '12 TRD.S DCSB 4x4
    Boosted TRD/URD All Terrain Sleeper w/ Sockmonkey Decals Worth +666HP
    Yeah - I was happy with the numbers. I had kind of thought in my head what they might be (and it was more inflated like the DynoJet Simulation), but the more realistic 325hp/350tq is still solid.

    My main reason for getting the dyno was to check AFR's as I do not have a wideband sensor installed. As mentioned, the upgraded pump should remedy and confirms what I've read that at WOT 'full bore' the fuel pressure can drop in the lines with the performance upgrades that I've got. I just need to install that; I started one evening and decided I'd wait for a helping hand after I had gas all in my face.

  6. Jan 21, 2014 at 10:06 AM
    #6
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,978
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    It definitely helps to have another hand. That and 5 or less gallons. :thumbsup:

  7. Jan 21, 2014 at 10:42 AM
    #7
    CanadaToy

    CanadaToy Well-Known Member

    Joined:
    Nov 7, 2013
    Member:
    #116081
    Messages:
    247
    Gender:
    Male
    First Name:
    Greg
    Toronto
    Vehicle:
    11 4x4 DCLB SWB
    All you need is a scangauge 2 with xgauge and it will be your AFR sensor, you just need to plug it in.

  8. Jan 21, 2014 at 11:06 AM
    #8
    KingKoda

    KingKoda [OP] Never Satisfied

    Joined:
    Aug 2, 2012
    Member:
    #83946
    Messages:
    295
    Gender:
    Male
    Palmetto
    Vehicle:
    '12 TRD.S DCSB 4x4
    Boosted TRD/URD All Terrain Sleeper w/ Sockmonkey Decals Worth +666HP
    No wideband sensor needed?

    I'm already running two guages, boost and aeroforce to monitor different ODBII readings (transmission temp and air intake temp mainly). I just haven't got around to having a wideband sensor spot setup on the exhaust (would have used a bung spot on headers if I had them). Probably won't since I know my A/F ratios are in the OK zone during normal driving, but get's to the lean edge when put to hard use, which isn't very often.

    Last edited: Jan 21, 2014
  9. Jan 21, 2014 at 1:49 PM
    #9
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,978
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    I have entered the codes to be able to read AFR's with my Scangauge2. However, it doesn't read any richer than 12:1.

    What is this "xgauge" you mentioned?

  10. Jan 22, 2014 at 6:29 AM
    #10
    CanadaToy

    CanadaToy Well-Known Member

    Joined:
    Nov 7, 2013
    Member:
    #116081
    Messages:
    247
    Gender:
    Male
    First Name:
    Greg
    Toronto
    Vehicle:
    11 4x4 DCLB SWB
    Yea, see here http://www.ttora.com/forum/showthread.php?t=134107 (btw that was 05-08, the codes may be different for newer trucks)
    The X1 / UCON use the stock AFR sensors for tuning / etc.

    Xguage is what you used to enter the codes. Strange that it will not read richer, not what i have heard in other reports (such as the link above)

    I've yet to get mine working, mainly because i don't want to sit in the truck when it's -15F out without gloves on... LOL.
    This guy also mentions 11's http://www.xr-underground.com/forum/showthread.php?t=24997&page=2 - maybe your tune is just that good :D

  11. Jan 22, 2014 at 6:54 AM
    #11
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,978
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    That would be sweet if the OEM tune were that good. I'd save a lot of gas at the track. ^_^

    AEM bottoms out at 10:1 though, and that is N/A WOT. Stupid rich. When I had the Innovate wideband, it would read about 9.5:1. That is one reason why I miss the Innovate Wideband. The new style is much more simple than the old style, as far as wiring and setup. Might swap back to one since it can read as rich as 9:1.

    Last edited: Jan 22, 2014
  12. Jan 22, 2014 at 4:26 PM
    #12
    Vassily28

    Vassily28 Well-Known Member

    Joined:
    Nov 24, 2011
    Member:
    #67629
    Messages:
    307
    Gender:
    Male
    Quebec, Quebec, Canada
    Vehicle:
    11 TRD SPORT 4x4 Quadcab LB
    TRD supercharger with 2.85" URD stealth pulley and OEM FPR mod. URD fuel pump upgrade, URD TB plate adapter 70mm, FJ/4 runner 70 mm Throttle body, URD exhaust cam gears URD performance thermostat TRD CAI 1st gen. with custom cover (coupe), ProDry S + Filter skin, Doug thorley long tube headers, URD spec U exhaust Icon LT 2.5 front coilover, Timbren front bumpstops, Total Choas UCA, Deaver custom leafpack 3 inch. lift, Icon 2.5 VS series rear resishocks, Timbren rear bumpstops, ARB front bumper with WARN 8500 lbs winch,Hella 500 blackmagic, AVID rear bumper, Allpro front IFS skid + Trans. skid + Transfercase skid. Total chaos LCA skid, SS braided brake line, URD O2 sims, URD MAF controller, Wetokole front seatcovers, Innovate MTX-L, MTX-D AFR and boost gage.
    If you don't have a wideband, i suppose you don't have a supplmentary bung so where the shop did read the AFR ? The AFR on your run was mostly around 13 at WOT and i think it's too lean. For what i've read (cause there is few different information) it should be around 11.5-11.8. Asking the question cause i have the same set up except the Y-pipe (i have the OEM but with DTLT headers) and i have no problem with the stock pump. I even had to lean it a lot with a MAF controller to maintain an AFR between 11.5-12 at WOT.


    TOR, can the AFR be really read trough the ECU? I always think the truck was equiped with narrow band sensor so it can only read 14.7 at +/- 15%
    And Yep, after the reflash for the TRD SC, i had reading of 9-9.5 AFR.


    Attached Files:

  13. Jan 22, 2014 at 4:56 PM
    #13
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,978
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    His AFR was likely read from the end of the exhaust. Which will be a little higher than in the exhaust, further upstream.

    The OEM front sensors are WRAF sensors. Wideband Ratio Air Fuel.

    On the 1GR, due to how hot the rear two cylinders run, you want the AFR'S to be 11 - 11.5:1.

  14. Jan 22, 2014 at 7:22 PM
    #14
    KingKoda

    KingKoda [OP] Never Satisfied

    Joined:
    Aug 2, 2012
    Member:
    #83946
    Messages:
    295
    Gender:
    Male
    Palmetto
    Vehicle:
    '12 TRD.S DCSB 4x4
    Boosted TRD/URD All Terrain Sleeper w/ Sockmonkey Decals Worth +666HP
    The AFR was captured from an exhaust probe. Had some pretty cool air as we'll, high 30's.

    I presume under extended extreme wot throttle input/use the AFR I've seen here could become an issue due to heat and related detonation topics; but I mostly see soot/unburned fuel on my right rear so I'm rich enough to keep them (said rear cylinders) cool/normal under daily driving. Maybe even improve mpg....jk.

    The PCM still has control. This is also not doing the 1:1 fpr mod where you connect to the boost port. I should have got a pull in doing that now that I bring it up.

    To also answer question above, shop did say it was on lean edge at WOT go mode. Maybe the fpr mod would add just enough extra fuel, but maybe at slight HP expense. No telling yet....

    ...need URD to get the PCM connectors for newer Tacoma models- maf/map sensor calibrator so I don't have to splice wires. Would buy.

    Last edited: Jan 22, 2014
  15. Mar 20, 2014 at 10:09 AM
    #15
    WOODEX M.E.

    WOODEX M.E. Well-Known Member

    Joined:
    Nov 4, 2012
    Member:
    #90445
    Messages:
    189
    Gender:
    Male
    First Name:
    Corey
    Maine
    Vehicle:
    2013 Tacoma TRD OR Pyrite Mica
    TRD Supercharger, Speedhut TRD Boost Gauge, Speedhut TRD AFR Gauge, PLX Wideband Controller W/Bosch O2 Sensor, Cravenspeed Boost Pod, TRD Badging, Calvert Racing Caltrac Traction Bars. URD Catback Exhaust
    These numbers are corrected for being at the crank are they not? If so it actually kind bothers me, I plan on doing most of these modifications but was hoping for a little better numbers than +21hp :(

  16. Mar 20, 2014 at 10:24 AM
    #16
    KingKoda

    KingKoda [OP] Never Satisfied

    Joined:
    Aug 2, 2012
    Member:
    #83946
    Messages:
    295
    Gender:
    Male
    Palmetto
    Vehicle:
    '12 TRD.S DCSB 4x4
    Boosted TRD/URD All Terrain Sleeper w/ Sockmonkey Decals Worth +666HP
    Too many factors involved. A dyno you use will likely give you slightly different results, but if you made changes/mods you would use the same dyno to measure those results. I never had a dyno pull before any of the mods so I could not tell you what the benefit was of any mods added alone or together. Best thing to have done was get a dyno pull before any mods were ever added to the truck. But I never thought I was going to mod the truck as I have.

    For instance, this dyno pull I could use the bigger numbers or smaller numbers. The smaller numbers are a lot more conservative, but I would use that parameter setup if I made any mods/changes in the future to understand the impact and would tune (if I had some sort of easily tunable electronics) using this dyno and this baseline.

    These numbers are not a set in stone, 'this is what you will have if you dyno your truck' with these mods. You results will vary. But they are a conservative base guesstimate.

    If it made me feel better, I can say the truck does 346 HP / 376 TQ, but that doesn't mean too much to me since I don't know which mods created the most improvement or was detrimental to gains. I simply wanted to provide my results. I'm sure the dyno could have been even more precisely setup to my trucks specs had I spent the time and money. The truth lies somewhere in between and at the timing lights.

    My next mods are either IPT valve body or TrueTrac install. At some point they both will happen.

    Last edited: Mar 20, 2014
  17. Mar 20, 2014 at 11:50 AM
    #17
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,978
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Those numbers are at the wheel.

  18. Mar 20, 2014 at 12:34 PM
    #18
    Justus

    Justus fucks not given

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    7,552
    Gender:
    Male
    First Name:
    Brock
    Paso Robles
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish

    Your automatic right?
    What gear was this done in?

    It pulled all the way to redline?

  19. Mar 20, 2014 at 12:36 PM
    #19
    signalbobby

    signalbobby Well-Known Member

    Joined:
    Nov 24, 2008
    Member:
    #11007
    Messages:
    1,104
    Gender:
    Male
    First Name:
    Robert
    Arizona
    Vehicle:
    14 TRD O/R
    When did Toyota start using wideband sensors? I was under the impression stock sensors were narrowband.

    I used a Bosch wideband sensor, EGT bung at the hottest cylinder for headers or at the collector for a turbo-manifold, knock sensor and pressure sensor. I had an all in 1 unit that all sensor fed into (can't remember the brand name).

  20. Mar 21, 2014 at 5:58 AM
    #20
    Vassily28

    Vassily28 Well-Known Member

    Joined:
    Nov 24, 2011
    Member:
    #67629
    Messages:
    307
    Gender:
    Male
    Quebec, Quebec, Canada
    Vehicle:
    11 TRD SPORT 4x4 Quadcab LB
    TRD supercharger with 2.85" URD stealth pulley and OEM FPR mod. URD fuel pump upgrade, URD TB plate adapter 70mm, FJ/4 runner 70 mm Throttle body, URD exhaust cam gears URD performance thermostat TRD CAI 1st gen. with custom cover (coupe), ProDry S + Filter skin, Doug thorley long tube headers, URD spec U exhaust Icon LT 2.5 front coilover, Timbren front bumpstops, Total Choas UCA, Deaver custom leafpack 3 inch. lift, Icon 2.5 VS series rear resishocks, Timbren rear bumpstops, ARB front bumper with WARN 8500 lbs winch,Hella 500 blackmagic, AVID rear bumper, Allpro front IFS skid + Trans. skid + Transfercase skid. Total chaos LCA skid, SS braided brake line, URD O2 sims, URD MAF controller, Wetokole front seatcovers, Innovate MTX-L, MTX-D AFR and boost gage.
    I don't think your results are so conservative. I've exactly the mods except the URD Y-Pipe but i have the Doug thorley long tube headers and a MAF controller.

    Whit this set up i've pulled 298.2 RWHP and 328.6 lbs-pi. So based on my own result, the thumb rule based on the pressure boost and other dynos seen on this site, 325/350 don't look like conservative. But TORSPD and the other TW gurus can comment that.

    WOODEX, with all the mods except TRD SC, i've pulled 216/253, after with the SC 281/296 and later with the URD 2.85 pulley 298/329.

    In NA conditions all the mods have produced something like 25HP/35lbs-pi. They are probably more efficient in SC conditions. But like said, it's a lot related to having or not reading on dyno and it should be the same dyno. My 3 runs were done on the same dynos with the same technician in a few days interval. Working now on a 4th and 5th run. 4th will be 70mm throttle body (a lot of people waiting for this one) and 5th with UCON and 7th injector when avalaible for 2009+:eek:
