Tacoma Factory LED Bed Lights

Discussion in '3rd Gen. Tacomas (2016+)' started by tanabersx, Dec 4, 2016.

  1. Dec 4, 2016 at 6:37 PM
    #1
    tanabersx

    tanabersx [OP] Well-Known Member

    Joined:
    Mar 7, 2013
    Member:
    #99235
    Messages:
    118
    Gender:
    Male
    First Name:
    Miguel
    Puerto Rico
    Vehicle:
    2016 Tacoma TRD Sport, 3/1 Lift Kit, Bilstein 5100's

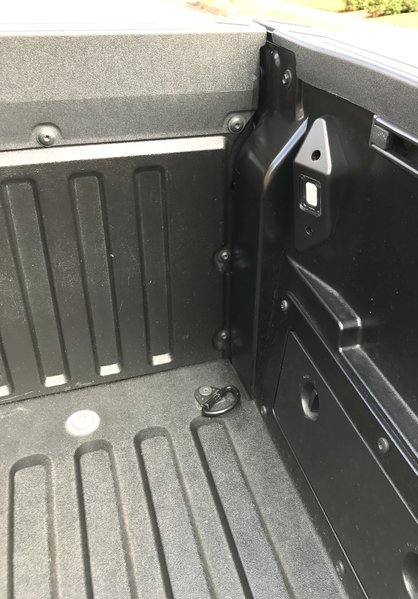

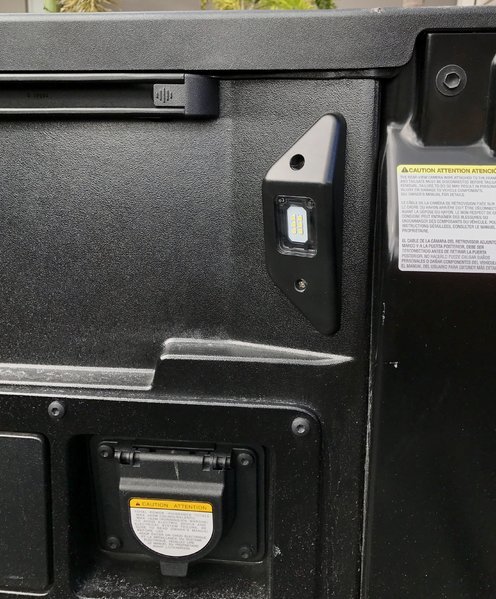

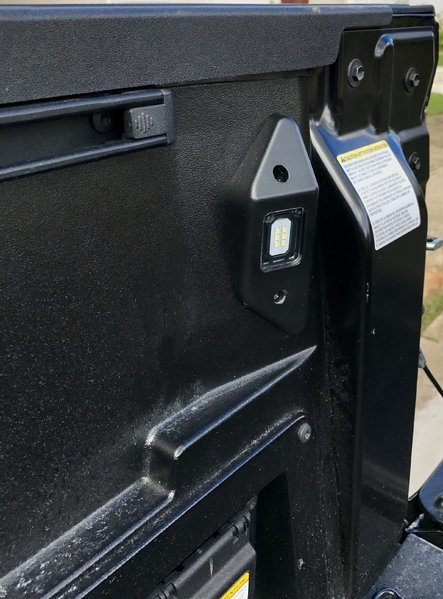

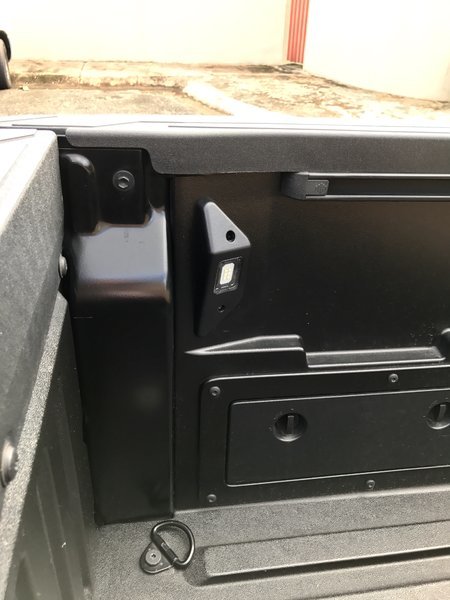

    So, I ordered the factory led bed lights for the Tacoma/Tundra, part number 00016-34089. Got them off ebay for $65. The kit comes with everything you need. Connnectors, wiring harness, wire taps, etc. You do have to drill holes in the bed liner. Three per light, one about 1/2" for the light harness, and two 7/64" for the holding screws. Tapped them to the factory bed light circuit so they light up together. I used the attached instructions. The instructions are pretty straight forward. The only PITA is routing the harness all the way to the driver kick panel. I cut the excess harness and re-terminated the ends, the instructions tell you to leave all excess underneath the truck and zip tie it. The lights output is really good, it is cool white(the pic looks yellowish). I can finally see sheit in my bed at night plus my bakflip fibermax is on its way. I will post more pics tomorrow with daylight. Enjoy!
    IMG_7867.jpg IMG_7871.jpg image.jpg IMG_7824.jpg IMG_7826.jpg IMG_7827.jpg IMG_7829.jpg


    Attached Files:

    Last edited: Dec 12, 2016
  2. Dec 4, 2016 at 8:09 PM
    #2
    Buckeye88

    Buckeye88 Active Member

    Joined:
    Sep 29, 2016
    Member:
    #198518
    Messages:
    38
    Gender:
    Male
    First Name:
    Nate
    Columbus, OH
    Vehicle:
    2017 Inferno TRDOR DCLB
    Looks great man. I'm often digging for tools in the dark and this will be super useful. Thanks for the info!

  3. Dec 4, 2016 at 11:49 PM
    #3
    Z50king

    Z50king DCLBOR4X4FTW

    Joined:
    Jun 9, 2015
    Member:
    #157056
    Messages:
    8,460
    Gender:
    Male
    First Name:
    Eric
    Southern California
    Vehicle:
    2016 DCLB Off Road 4x4 Super White
    Stock and loving it
    are you in an access cab?

  4. Dec 5, 2016 at 1:41 AM
    #4
    tanabersx

    tanabersx [OP] Well-Known Member

    Joined:
    Mar 7, 2013
    Member:
    #99235
    Messages:
    118
    Gender:
    Male
    First Name:
    Miguel
    Puerto Rico
    Vehicle:
    2016 Tacoma TRD Sport, 3/1 Lift Kit, Bilstein 5100's
    Nope, double cab. But the access cab is included in the instructions.

  5. Dec 5, 2016 at 4:31 AM
    #5
    TRSAndrew

    TRSAndrew Well-Known Member Vendor

    Joined:
    Jan 3, 2012
    Member:
    #69858
    Messages:
    3,082
    Gender:
    Male
    ATL
    Vehicle:
    2019 DCSB 4WD 040
    That looks fantastic. Love that it's OEM too.

    ChadsPride likes this.
  6. Dec 5, 2016 at 5:06 AM
    #6
    swordfish

    swordfish Well-Known Member

    Joined:
    Aug 11, 2016
    Member:
    #194292
    Messages:
    708
    Gender:
    Male
    First Name:
    Jon
    CT
    Vehicle:
    '17 OR DCSB 6MT *Inferno*
    That light output is nice.

  7. Dec 5, 2016 at 5:20 AM
    #7
    GoRideToday

    GoRideToday Member

    Joined:
    Nov 21, 2016
    Member:
    #203010
    Messages:
    18
    Gender:
    Male
    Vehicle:
    2016 White DCSB 6-Speed
    Let's go explore
    Looks great! As far as tapping into the right wires on the 3rd gen, was there any confusion because the truck looks like a 2nd gen on the instructions?

  8. Dec 5, 2016 at 5:28 AM
    #8
    tanabersx

    tanabersx [OP] Well-Known Member

    Joined:
    Mar 7, 2013
    Member:
    #99235
    Messages:
    118
    Gender:
    Male
    First Name:
    Miguel
    Puerto Rico
    Vehicle:
    2016 Tacoma TRD Sport, 3/1 Lift Kit, Bilstein 5100's
    Your are right! I edited the original post, the link was for the 2nd gen, I attached the .pdf for the 3rd gens.
    thanks!

    Last edited: Dec 5, 2016
  9. Dec 5, 2016 at 8:21 AM
    #9
    GamerGuy

    GamerGuy Well-Known Member

    Joined:
    Nov 2, 2016
    Member:
    #201347
    Messages:
    222
    Gender:
    Male
    First Name:
    Casey
    Alabama
    Vehicle:
    2015 Honda Oddessey Touring
    Added Kids for moral support with the intent on more.
    Do you still have the original link for 2nd gens handy?

  10. Dec 5, 2016 at 9:02 AM
    #10
    tanabersx

    tanabersx [OP] Well-Known Member

    Joined:
    Mar 7, 2013
    Member:
    #99235
    Messages:
    118
    Gender:
    Male
    First Name:
    Miguel
    Puerto Rico
    Vehicle:
    2016 Tacoma TRD Sport, 3/1 Lift Kit, Bilstein 5100's
    JangoprimeTaco likes this.
  11. Dec 5, 2016 at 9:08 AM
    #11
    MojaveMadman

    MojaveMadman Cali Raised LED

    Joined:
    Feb 20, 2013
    Member:
    #98029
    Messages:
    2,287
    Gender:
    Male
    First Name:
    Chris
    Los Angeles, CA
    Vehicle:
    2010 Tacoma TRD OR
    All New Everything
    Silly question, I may have missed it... But how do you turn them on or off? Where is the switch located and is it always hot?

  12. Dec 5, 2016 at 9:12 AM
    #12
    GamerGuy

    GamerGuy Well-Known Member

    Joined:
    Nov 2, 2016
    Member:
    #201347
    Messages:
    222
    Gender:
    Male
    First Name:
    Casey
    Alabama
    Vehicle:
    2015 Honda Oddessey Touring
    Added Kids for moral support with the intent on more.
  13. Dec 5, 2016 at 9:47 AM
    #13
    tanabersx

    tanabersx [OP] Well-Known Member

    Joined:
    Mar 7, 2013
    Member:
    #99235
    Messages:
    118
    Gender:
    Male
    First Name:
    Miguel
    Puerto Rico
    Vehicle:
    2016 Tacoma TRD Sport, 3/1 Lift Kit, Bilstein 5100's

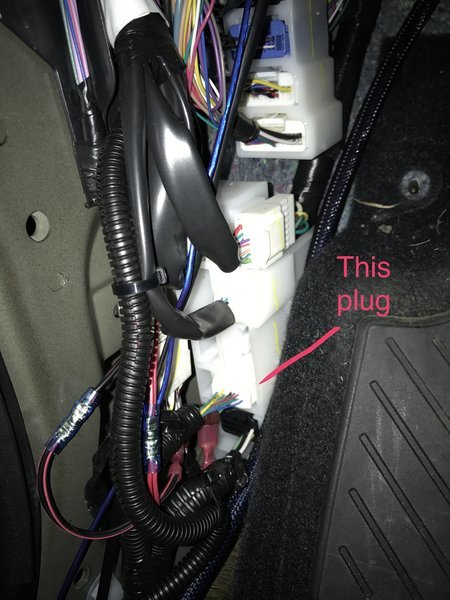

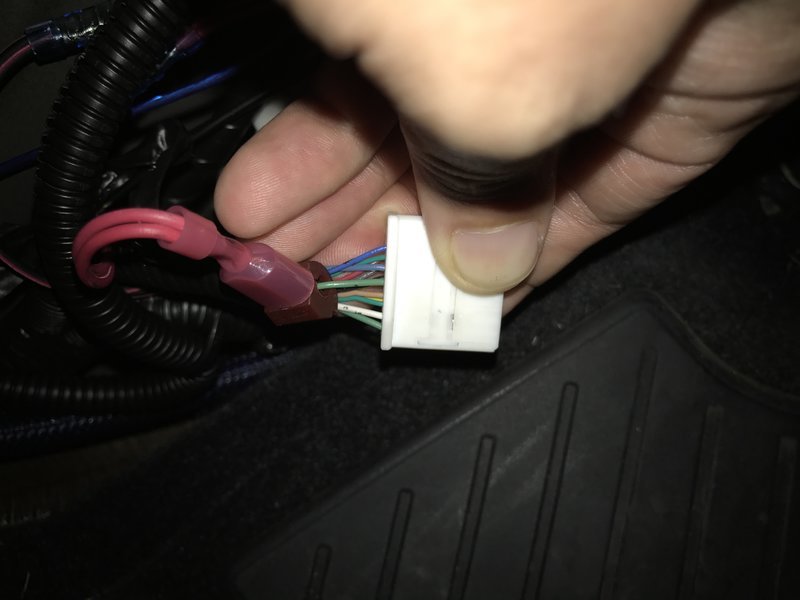

    If you have a double cab you tap into the bed light circuit on the drivers side kick panel and you use the bed light switch to turn them on or off, if you have a access cab you tap into the dome light circuit in the same place. It is a switched circuit not always hot. There are many ways you can connect this lights.

  14. Dec 5, 2016 at 9:51 AM
    #14
    MojaveMadman

    MojaveMadman Cali Raised LED

    Joined:
    Feb 20, 2013
    Member:
    #98029
    Messages:
    2,287
    Gender:
    Male
    First Name:
    Chris
    Los Angeles, CA
    Vehicle:
    2010 Tacoma TRD OR
    All New Everything
    Didn't know I had a bed light switch!? Thanks for the info!

  15. Dec 5, 2016 at 10:40 AM
    #15
    Taco Jax

    Taco Jax Active Member

    Joined:
    Oct 22, 2014
    Member:
    #140852
    Messages:
    37
    Gender:
    Male
    First Name:
    Barry
    Jacksonville, FL
    Vehicle:
    Silver 14 SR5 4x4
    Slight lift for function. Mods galore.
    Guys, will these bed lights work on a 2014 model DC? The way it's worded, I'm not sure my truck is pre-wired with the OE harness connectors for a bed light:notsure:

  16. Dec 5, 2016 at 11:09 AM
    #16
    tanabersx

    tanabersx [OP] Well-Known Member

    Joined:
    Mar 7, 2013
    Member:
    #99235
    Messages:
    118
    Gender:
    Male
    First Name:
    Miguel
    Puerto Rico
    Vehicle:
    2016 Tacoma TRD Sport, 3/1 Lift Kit, Bilstein 5100's
    No truck is pre-wired with the harness, you have to run the harness from the kick panel to the lights

    Taco Jax likes this.
  17. Dec 5, 2016 at 12:18 PM
    #17
    Taco Jax

    Taco Jax Active Member

    Joined:
    Oct 22, 2014
    Member:
    #140852
    Messages:
    37
    Gender:
    Male
    First Name:
    Barry
    Jacksonville, FL
    Vehicle:
    Silver 14 SR5 4x4
    Slight lift for function. Mods galore.
    I didn't understand it then. I appreciate it, pal. It should work for a 2012-2015 if this is the case. I wonder why it only says 2015-16 models. Oh well

  18. Dec 5, 2016 at 12:32 PM
    #18
    tanabersx

    tanabersx [OP] Well-Known Member

    Joined:
    Mar 7, 2013
    Member:
    #99235
    Messages:
    118
    Gender:
    Male
    First Name:
    Miguel
    Puerto Rico
    Vehicle:
    2016 Tacoma TRD Sport, 3/1 Lift Kit, Bilstein 5100's
    The kit includes a wiring harness( that you have to route and install) that goes from the bed lights to the driver side kick panel were you tap that harness into an existing harness in your truck.
    It is the same kit for all years what changes is the connection point. This is the link for 2012-2015.
    https://cdn.shopify.com/s/files/1/0...8_TA_TOYOTA_MCDONOUGH.pdf?6492033332345436988
    Hope this helps

    Taco Jax likes this.
  19. Dec 5, 2016 at 12:56 PM
    #19
    dusman

    dusman Well-Known Member

    Joined:
    Mar 12, 2012
    Member:
    #74768
    Messages:
    210
    Gender:
    Male
    First Name:
    Dustin
    Windsor, Maine
    Vehicle:
    2017 TRD ORDC MGM
    just bought one for my 2017 I would guess the wiring is identical....?

  20. Dec 5, 2016 at 1:07 PM
    #20
    tanabersx

    tanabersx [OP] Well-Known Member

    Joined:
    Mar 7, 2013
    Member:
    #99235
    Messages:
    118
    Gender:
    Male
    First Name:
    Miguel
    Puerto Rico
    Vehicle:
    2016 Tacoma TRD Sport, 3/1 Lift Kit, Bilstein 5100's
    Yes it is

    dusman likes this.
