Tacoma Suspension Parts and kits, Shackle Flip, HD Shackles and more

Discussion in '4x Innovations' started by traxman25, Nov 14, 2016.

  1. Nov 14, 2016 at 7:42 PM
    #1
    traxman25

    traxman25 [OP] 4x Innovations Vendor

    Joined:
    Oct 15, 2009
    Member:
    #24343
    Messages:
    630
    Gender:
    Male
    First Name:
    Adam
    Platteville Wi
    Vehicle:
    Too Many!
    Toyota's factory shackle mount is not setup to allow maximum flex at the shackle which limits the drop out flex of the rear axle on your Tacoma. This kit allows you to remove the factory shackle hanger and invert the shackle to allow for maximum flex and axle droop. A shackle flip makes a dramatic difference in the rear suspension travel. An added benefit to a shackle flip is the ability to install a longer shackle to add height to a suspension lift. You will get approximately 3/4" of lift with the factory shackle.

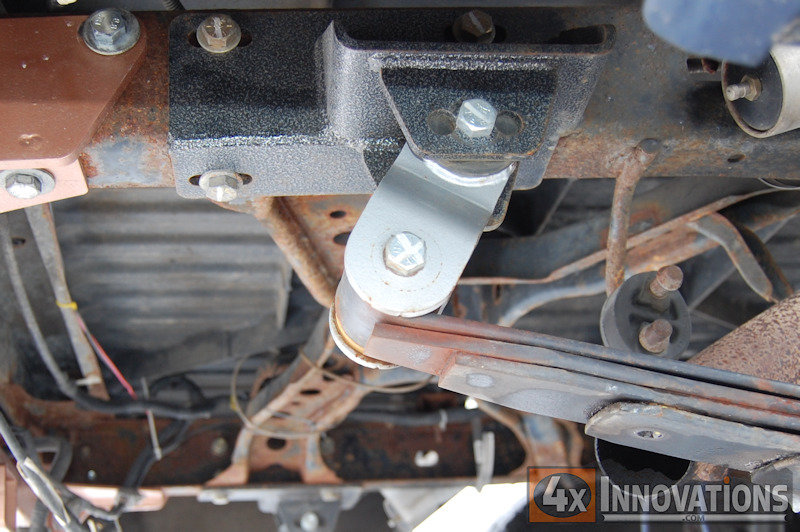

    To mount the kit you will remove the rivets holding the factory bracket and bolt on the new brackets with included grade 8 hardware. The factory shackle is then flipped and bolted to the new hanging bracket using the factory bolt.



    The following information is based on stock springs. Other spring configurations will require you to take your own measurements to determine shock length, bump stop mounting, and brake line length.

    Shocks:

    You will need longer shocks to utilize the full suspension travel. Remember shocks are NOT limit straps, most shocks will be damaged by maxing their travel. If not installing shocks to utilize the full travel of the spring a limit strap will be required. Shock lengths and limit strap lengths will depend on each truck's particular setup, and desired performance.

    Stock springs will work with a 16" collapsed length/25.25" extended shock.

    OME Dakar Springs have shown travel numbers around 19" collapsed/28 extended in the stock mounts.


    Brake lines:

    Like the shocks, brake lines are not limit straps. The factory 17" brake lines are at the very limit of their extension at full droop. Purchasing extended brake lines is recommended. A brake line that is 17"+(spring/block/shackle lift height) is a minimum recommendation.


    Bump Stops:

    Flipping the shackle lowers the rear of the leaf spring. Adding a bump stop extension may be desirable to limit damage to the leaf springs.


    Heavy Duty Shackles and Increasing lift with longer shackles:

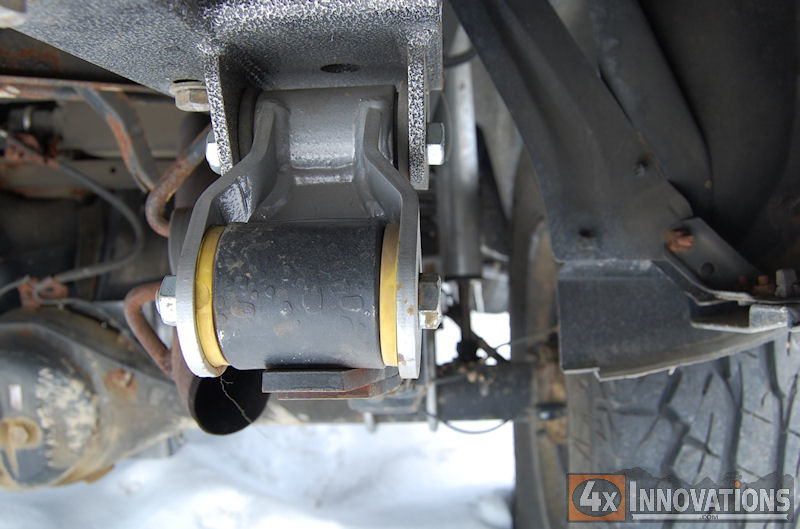

    We now have Heavy Duty stock length shackles available. This stock replacement shackle is 3.5 inch long, and work in any application the fits the factory Toyota shackle, including the stock spring hangers. Stock length HD Shackles are $94 and available here.





    Longer shackles will provide lift by a factor of 1/2 of the difference in length of the new shackle when compared to a factory 3.5" shackle. In English, a 6" shackle is 2.5" longer than the 3.5" factory shackle. One half of 2.5" is 1.25" of lift. Combined with the kit would give a total of 2 inches of lift.


    4x Innovations also has 6" long HD replacement shackles, to give a total of 2 inches of lift to the rear when combined with the shackle flip kit. 6" HD Shackles are $105 and available here.


    FYI These aren't actually new, they have been available for several years over at our Armor Tech Offroad division. I'm working to move info towards the 4x sub forum as we're working on some changes. Check out the long, old thread here if you'd like, but most of the info has been summed up above.

    Last edited: Nov 14, 2016
    Charles135 and rlx02 like this.
  2. Nov 16, 2016 at 9:37 AM
    #2
    Charles135

    Charles135 Well-Known Member

    Joined:
    Aug 14, 2014
    Member:
    #136160
    Messages:
    514
    Gender:
    Male
    LA-Orange county
    Vehicle:
    19 cement trd
    Thank you I just got some 5100 up front and this cleared up my questions on shackle kits and how exactly they provide "lift" to the rear

  3. Jan 23, 2017 at 10:45 PM
    #3
    scocar

    scocar Putting socks on roosters in my head

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    38,484
    First Name:
    Horst
    State of Disbelief
    Vehicle:
    Suprise, fear, and ruthless efficiency
    Animal husbandry, Bullshit detection, Very runny cheese
    I was just looking into these on the 4x website.

    Can these shackles be used as a direct replacement on OEM shackle hangers (i.e., without flip kit)?

  4. Jan 24, 2017 at 6:22 AM
    #4
    traxman25

    traxman25 [OP] 4x Innovations Vendor

    Joined:
    Oct 15, 2009
    Member:
    #24343
    Messages:
    630
    Gender:
    Male
    First Name:
    Adam
    Platteville Wi
    Vehicle:
    Too Many!
    Yes, the stock length shackle is a direct replacement for the stock shackle.

    scocar likes this.
  5. Jan 24, 2017 at 2:58 PM
    #5
    scocar

    scocar Putting socks on roosters in my head

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    38,484
    First Name:
    Horst
    State of Disbelief
    Vehicle:
    Suprise, fear, and ruthless efficiency
    Animal husbandry, Bullshit detection, Very runny cheese
    :thumbsup:

    I actually sent you a contact message via your website with a few more questions. Maybe you can take a peak and run down the list.

    Or maybe I can just post them here:

    The description says the are greasable. Do they include a tapped zirc in both bushing housings? I don't see any in the pictures, so I'm not sure.

    Will the spring side of the shackle accept an OME/Dakar (ARB SB108) leaf spring bushing with a tight fit?

    Finally, the description says "price includes two shackles." So for $95, I get a pair of shackles, one shackle for each side of my truck, correct?

  6. Jan 27, 2017 at 6:44 AM
    #6
    traxman25

    traxman25 [OP] 4x Innovations Vendor

    Joined:
    Oct 15, 2009
    Member:
    #24343
    Messages:
    630
    Gender:
    Male
    First Name:
    Adam
    Platteville Wi
    Vehicle:
    Too Many!
    The bushing barrel has a grease zirc on it, it is on the opposite side of the barrel from the camera in the pictures.
    The shackle will fit any spring that fits the stock shackle, so any spring that is advertised to fit the Tacoma. We are running the Dakars with the Dakar bushing set on my truck.
    Yes the price includes both shackles.

    scocar likes this.
  7. Jan 27, 2017 at 6:57 AM
    #7
    scocar

    scocar Putting socks on roosters in my head

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    38,484
    First Name:
    Horst
    State of Disbelief
    Vehicle:
    Suprise, fear, and ruthless efficiency
    Animal husbandry, Bullshit detection, Very runny cheese
    Outstanding. You can start on a pair for me. :thumbsup:

  8. Jan 27, 2017 at 7:39 AM
    #8
    scocar

    scocar Putting socks on roosters in my head

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    38,484
    First Name:
    Horst
    State of Disbelief
    Vehicle:
    Suprise, fear, and ruthless efficiency
    Animal husbandry, Bullshit detection, Very runny cheese
    Ordered. :bananadance:

  9. Jan 27, 2017 at 8:32 PM
    #9
    traxman25

    traxman25 [OP] 4x Innovations Vendor

    Joined:
    Oct 15, 2009
    Member:
    #24343
    Messages:
    630
    Gender:
    Male
    First Name:
    Adam
    Platteville Wi
    Vehicle:
    Too Many!
    Thanks! We've got some blanks coming in already so it shouldn't be too long for us to get them put together for you.

  10. Mar 7, 2017 at 2:38 PM
    #10
    Waited many moons

    Waited many moons Well-Known Member

    Joined:
    Jan 17, 2017
    Member:
    #207897
    Messages:
    184
    Gender:
    Male
    First Name:
    Pat
    Honolulu, Hawaii
    Vehicle:
    2014 Alaska Edition
    Are you selling the shackle flip kit, or just the shackles? I am looking for a shackle flip kit, will be using the shackles that I have.(2014 Tacoma)

  11. Mar 7, 2017 at 3:40 PM
    #11
    traxman25

    traxman25 [OP] 4x Innovations Vendor

    Joined:
    Oct 15, 2009
    Member:
    #24343
    Messages:
    630
    Gender:
    Male
    First Name:
    Adam
    Platteville Wi
    Vehicle:
    Too Many!
    Yes we offer just the shackle flip, available here.

  12. May 20, 2020 at 12:19 PM
    #12
    Nimble9

    Nimble9 Keystone State Adventures

    Joined:
    Oct 20, 2015
    Member:
    #167184
    Messages:
    6,504
    Gender:
    Male
    Lebanon, PA
    Vehicle:
    2006 4x4 DCSB
    enough to have fun
    traxman25 [OP] likes this.
