Tacoma Tire Bed Rack

Discussion in '3rd Gen. Tacomas (2016-2023)' started by UltraTRD, Jul 5, 2022.

  1. Jul 5, 2022 at 8:34 AM
    #1
    UltraTRD

    #1
    UltraTRD [OP] New Member

    Joined:
    May 26, 2020
    Member:
    #329380
    Messages:
    2
    Gender:
    Male
    First Name:
    Omar
    Vehicle:
    2020 Tacoma TRD 4x4 Sport

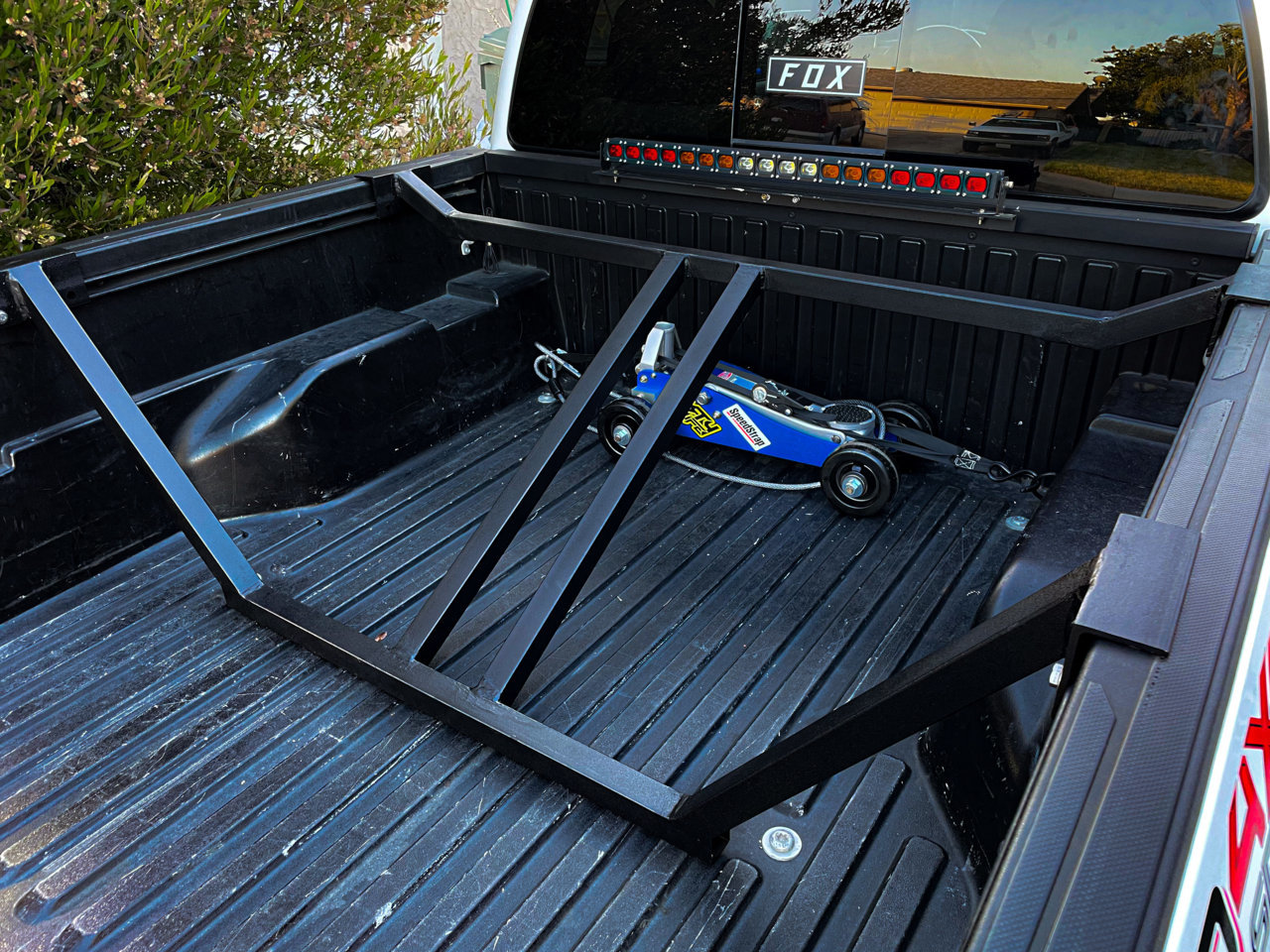

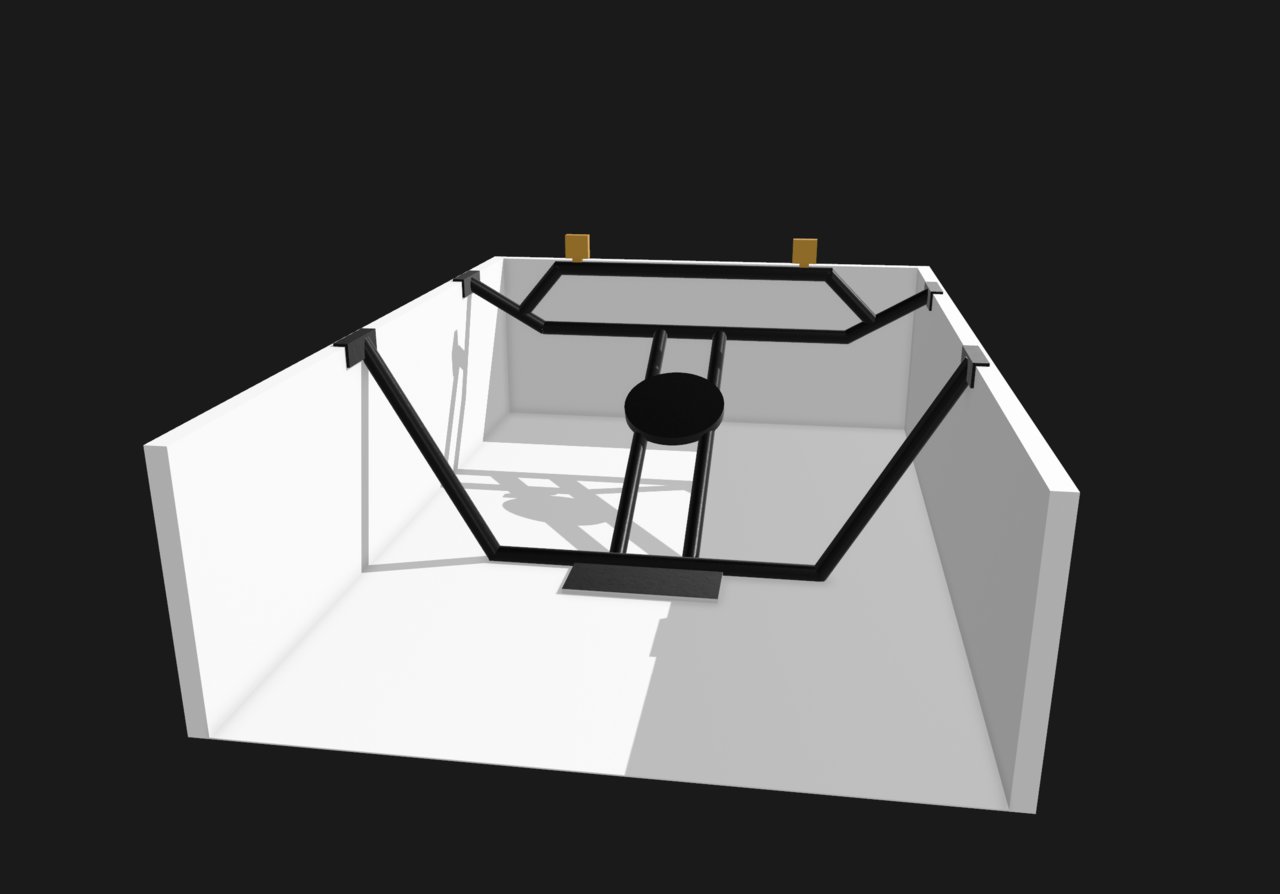

    So I decided to make a Bed Tire Rack for my 3rd Gen Tacoma. After searching and not finding exactly what I wanted, or it was just to expensive. I jumped on a CAD program to design something. Here’s the CAD design and how it’s
    Going so far after welding together some metal…

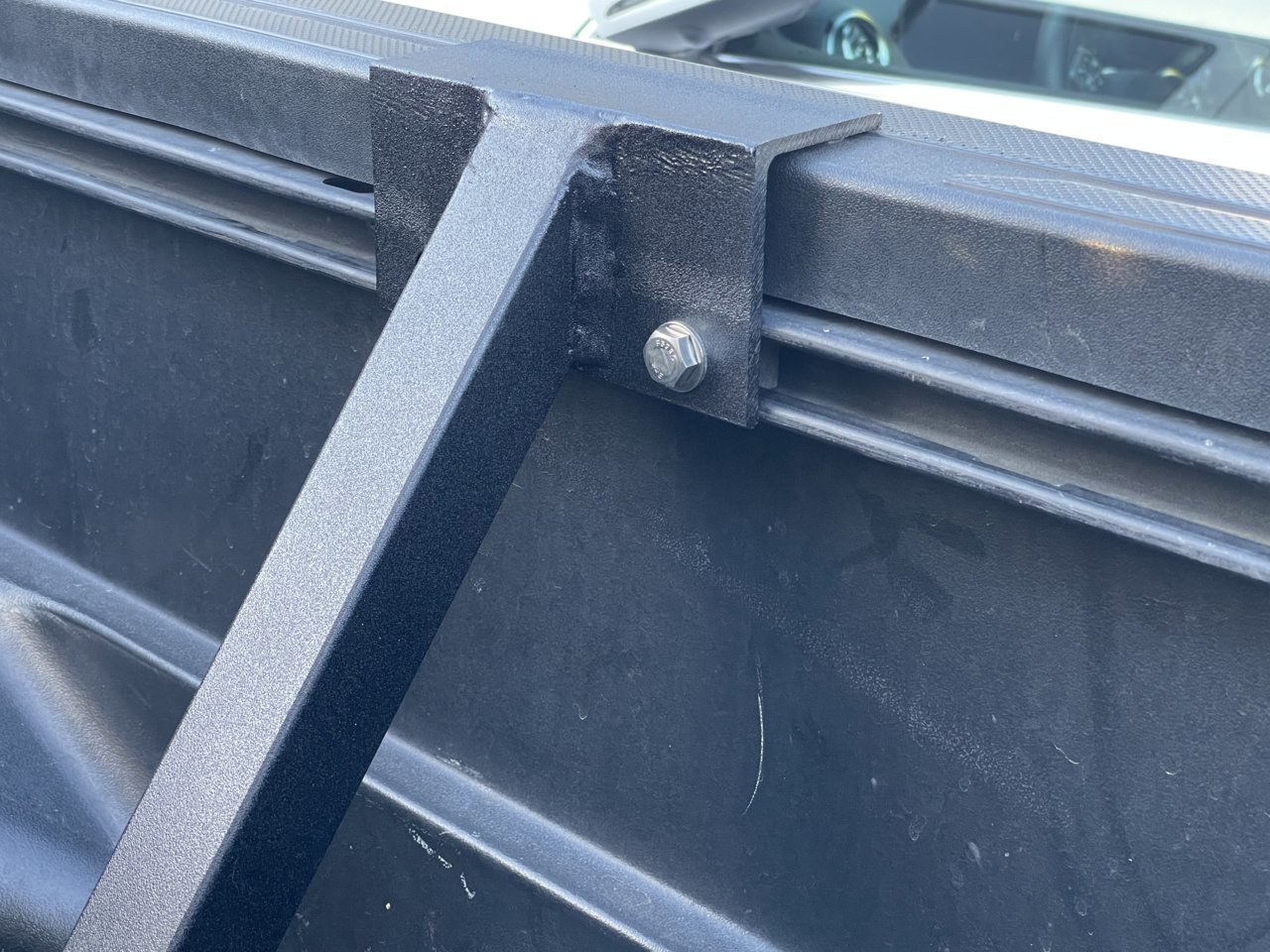

    I ended up using 1/16 thick, 1.5 x 1.5 inch square tubing and although it seems thin, it’s actually really sturdy. The “L” Brackets are 6 inches long and 3/16 thick.
    Next design I’ll try 1/8 thick, 1 x 1 inch square tubing. That would just be easier to weld.
    I’m still not 100% sure I’ll weld the other bar running across the top to mount a LED Chase Bar or Light Pods. The bottom plate is to mount a ProEagle Style off-road Jack. But decided to go another route on that.
    8D435F17-1510-4515-8A66-CBC8A42F8483.jpg C7F0CBDD-8088-4CAC-AB48-2F1FC64FA5C0.jpg DC1684E6-BC7B-4E42-BD45-FC73253CB7ED.jpg

    Last edited: Jul 5, 2022
    UltraTRD, Jul 5, 2022
    #1
    TSAVO, greymachine and dangeroso like this.
