Tail light mod (both lights used as brake and signals)?

Discussion in '3rd Gen. Tacomas (2016+)' started by Chris.taco.2016, Jan 22, 2017.

  1. Jan 22, 2017 at 10:21 PM
    #1
    Chris.taco.2016

    Chris.taco.2016 [OP] Well-Known Member

    Joined:
    Nov 18, 2015
    Member:
    #170072
    Messages:
    226
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2016 Tacoma trd sport mgm dclb
    has anyone done a wiring mod so both lights in the tail lights work as a signal and both light up when braking instead of just the bottom section I'm sure visibility would be better and aestheticly look better.

    ToyoDrew and Kilokato like this.
  2. Jan 22, 2017 at 10:33 PM
    #2
    mesojdm

    mesojdm Major Modder

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    10,352
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    I hate our tail lights.

  3. Jan 23, 2017 at 7:25 AM
    #3
    Optimaltaco

    Optimaltaco Well-Known Member

    Joined:
    Dec 27, 2016
    Member:
    #205798
    Messages:
    237
    Gender:
    Male
    First Name:
    Dave
    Cochrane, AB
    Vehicle:
    '17 Tacoma DCSB TRD Off-Road
    TRD Pro - Grill and Rear Tail-Lights OEM Roof Rack BFG KO2 Morimoto 2 stroke LED headlights 30” lightbar
    Should be simple enough, just need to create a jumper wire that taps the signal lights and brake lights together. once it gets warmer here I might give it a go.

  4. Jan 23, 2017 at 8:13 AM
    #4
    Pickupman2007

    Pickupman2007 Well-Known Member

    Joined:
    Mar 27, 2016
    Member:
    #182547
    Messages:
    351
    Gender:
    Male
    First Name:
    Kenneth
    Wake Forest, NC
    Vehicle:
    2017 DCSB TRDOR V6 6MT 4x4
    Morimoto 5500k HID, OEM Audio Plus System 500Q + Aftermarket JBL door speakers, Morimoto XB LED Fog lights, LED bed lights, T-Rex Grille, Amber rear signals, Shift knob (non OE), DEI aftermarket auto lamps, Fortin EVO One remote start OVTune

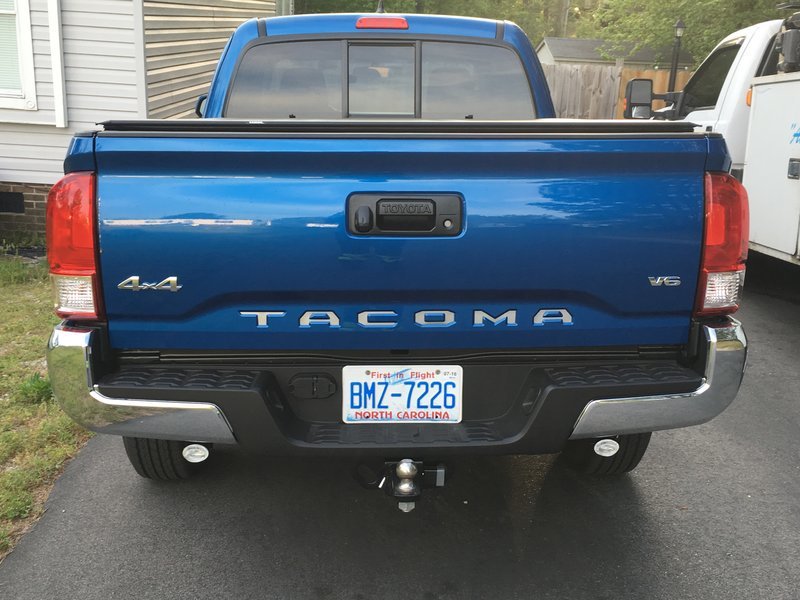

    I wired mine so both bulbs are brake lights and replaced the clear back up bulbs with amber ones for turn signals. Also installed new backup lights under the bumper. Doing this was less wiring than combining them. You can not just wire them together as the brake would override the turm signal, so you would have to use a trailer light converter or wire your lights to the towing harness. To do what I did you would need to disconnect the backup wire and run it to other lighs, cut the signal wire off the signal socket and connect to the backup socket amd then splice the original signal socket to the brake light socket.

  5. Jan 23, 2017 at 10:13 AM
    #5
    Siblue

    Siblue Well-Known Member

    Joined:
    Dec 2, 2014
    Member:
    #143489
    Messages:
    1,910
    Gender:
    Male
    First Name:
    Ryan
    So Cal
    Vehicle:
    18 4Runner
    What amber bulb did you use?

  6. Jan 23, 2017 at 11:17 AM
    #6
    Pickupman2007

    Pickupman2007 Well-Known Member

    Joined:
    Mar 27, 2016
    Member:
    #182547
    Messages:
    351
    Gender:
    Male
    First Name:
    Kenneth
    Wake Forest, NC
    Vehicle:
    2017 DCSB TRDOR V6 6MT 4x4
    Morimoto 5500k HID, OEM Audio Plus System 500Q + Aftermarket JBL door speakers, Morimoto XB LED Fog lights, LED bed lights, T-Rex Grille, Amber rear signals, Shift knob (non OE), DEI aftermarket auto lamps, Fortin EVO One remote start OVTune
    921NA

    Siblue likes this.
  7. Jan 23, 2017 at 11:27 AM
    #7
    Camel89

    Camel89 IG: kcamel89

    Joined:
    Nov 30, 2015
    Member:
    #171087
    Messages:
    314
    Gender:
    Male
    Houston, TX
    Vehicle:
    2016 TRD OR 4x4
    Any pics of the new backup lights? I was thinking of doing the same thing.

  8. Jan 23, 2017 at 11:28 AM
    #8
    dYL0n

    dYL0n أنا لست الإسلامي

    Joined:
    Jan 14, 2011
    Member:
    #49250
    Messages:
    4,774
    Gender:
    Male
    First Name:
    Dyl0n
    New Orleans, LA
    Vehicle:
    17TRDORDCSBQSJBLKBRO2SPECU1.04
    1.04. Kbro2s. ICONS.
    I'm sure if a wreck happened and somehow this was caught, it would be your fault

    PvilleJohn and Joe23 like this.
  9. Jan 23, 2017 at 11:37 AM
    #9
    FiaCobra

    FiaCobra Well-Known Member

    Joined:
    Jan 5, 2017
    Member:
    #206640
    Messages:
    102
    Gender:
    Male
    I'm not buying that. As long as his truck passes State Inspection, he should be good to go.

    Blais03, SD_Taco and Mr-Paul like this.
  10. Jan 23, 2017 at 11:46 AM
    #10
    Camel89

    Camel89 IG: kcamel89

    Joined:
    Nov 30, 2015
    Member:
    #171087
    Messages:
    314
    Gender:
    Male
    Houston, TX
    Vehicle:
    2016 TRD OR 4x4
    Are you referring to the OP? The problem I see with that is you would need dual filament bulbs for both turn signals and brakes.

    PvilleJohn likes this.
  11. Jan 23, 2017 at 12:41 PM
    #11
    Pickupman2007

    Pickupman2007 Well-Known Member

    Joined:
    Mar 27, 2016
    Member:
    #182547
    Messages:
    351
    Gender:
    Male
    First Name:
    Kenneth
    Wake Forest, NC
    Vehicle:
    2017 DCSB TRDOR V6 6MT 4x4
    Morimoto 5500k HID, OEM Audio Plus System 500Q + Aftermarket JBL door speakers, Morimoto XB LED Fog lights, LED bed lights, T-Rex Grille, Amber rear signals, Shift knob (non OE), DEI aftermarket auto lamps, Fortin EVO One remote start OVTune

    Also video:
    https://youtu.be/V8h_zh8uPd4

    This was a sunny day and all brake lights on.

  12. Jan 23, 2017 at 12:46 PM
    #12
    Outlier

    Outlier I get around...

    Joined:
    Feb 16, 2016
    Member:
    #178331
    Messages:
    568
    Gender:
    Male
    Dallas GA
    Vehicle:
    2016 Tacoma AC TRD OR 4x4 V6 Slushbox
    No BRO-ness to speak of... Well, except Kbro2's
    This.

  13. Jan 23, 2017 at 1:23 PM
    #13
    Kilokato

    Kilokato Go Vols!

    Joined:
    Nov 24, 2008
    Member:
    #10996
    Messages:
    869
    Gender:
    Male
    First Name:
    George
    East Tennessee
    Vehicle:
    2016 SR5 Access Cab V6 Auto 4wd
    Limited wheels, extra rope hooks in bed.
    I'd buy a kit to convert the whole light to brake lights

    Then just have the entire light blink for turn signals.

    I like our tail lights but not the way they halfway light up when applying the brakes.

    helix66, PvilleJohn and Jukeboxx13 like this.
  14. Jan 23, 2017 at 1:24 PM
    #14
    mesojdm

    mesojdm Major Modder

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    10,352
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    I debated about using an amber 921bulb(in reverse socket) and relocating Reverse lights to under bumper. But they just look tacky hanging there(IMO).
    The ultimate way is to run a set of Switchback Amber/White (will require some minor modifications to bulb socket)

    I went from; OEM reverse lights(SUCK)----->Led white 921 bulb(OK)--->V3 tritton(HOLY CRAP). Reverse is literally a spot light(the chrome reverse housing helps alot with projecting the light out)
    I can tell a huge difference looking through the backup camera during night.

  15. Jan 23, 2017 at 5:05 PM
    #15
    Chris.taco.2016

    Chris.taco.2016 [OP] Well-Known Member

    Joined:
    Nov 18, 2015
    Member:
    #170072
    Messages:
    226
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2016 Tacoma trd sport mgm dclb
    That's literally what I want and why I posted this thread I wanna know what to splice to do this

    Kilokato likes this.
  16. Jan 23, 2017 at 5:06 PM
    #16
    Chris.taco.2016

    Chris.taco.2016 [OP] Well-Known Member

    Joined:
    Nov 18, 2015
    Member:
    #170072
    Messages:
    226
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2016 Tacoma trd sport mgm dclb
    Yes all I would think you would need is a dual filiment for the the running light bulb

  17. Jan 23, 2017 at 5:21 PM
    #17
    mesojdm

    mesojdm Major Modder

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    10,352
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    ^ I think the problem that you are going to encounter when trying to make both lights the same,
    is that you have THREE circuits(parking,brake,turn), and only a DUAL filament bulb.

    For instance, what if your turn signal is on, and you are applying the brakes??
    Both lights would be completely solid. And if you did get them to flash, how will I see your brake light?

    Best way:: put the turn down in the reverse bucket, and use the upper section for Running light/Brake.:cheers:

    SPDGD-6, remgu2000, JJ TACO and 2 others like this.
  18. Jan 23, 2017 at 6:13 PM
    #18
    Pickupman2007

    Pickupman2007 Well-Known Member

    Joined:
    Mar 27, 2016
    Member:
    #182547
    Messages:
    351
    Gender:
    Male
    First Name:
    Kenneth
    Wake Forest, NC
    Vehicle:
    2017 DCSB TRDOR V6 6MT 4x4
    Morimoto 5500k HID, OEM Audio Plus System 500Q + Aftermarket JBL door speakers, Morimoto XB LED Fog lights, LED bed lights, T-Rex Grille, Amber rear signals, Shift knob (non OE), DEI aftermarket auto lamps, Fortin EVO One remote start OVTune

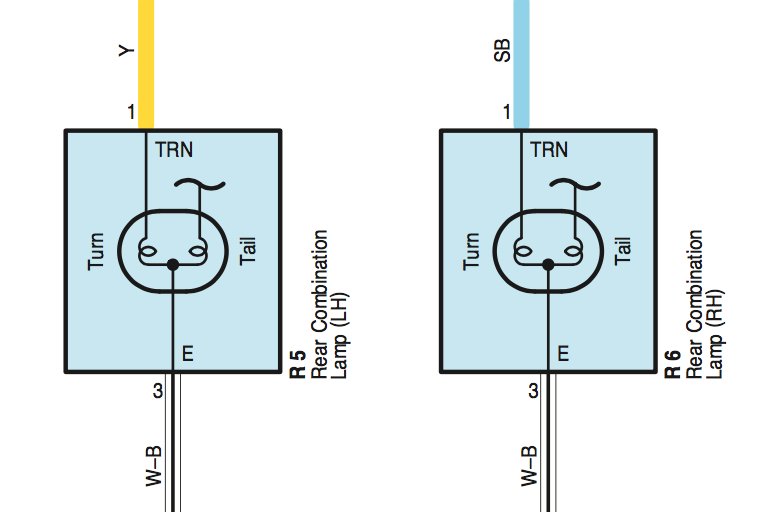

    From the factory both the turn signal and brake lights are dual filament bulbs, just wired separately. Combining the signals is the issue, just like wiring a truck with amber signals to a trailer.

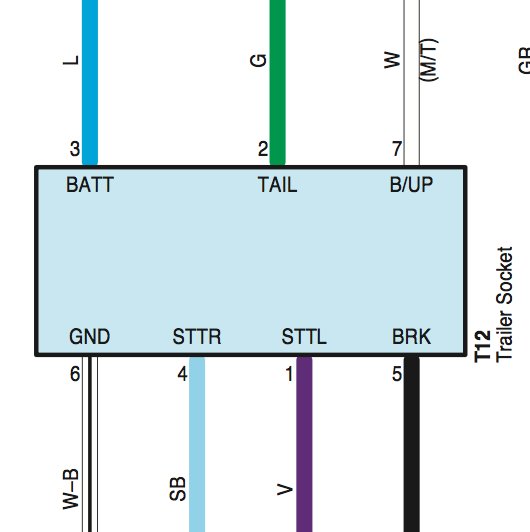

    The Tacoma already has wiring with the combined signal if it has the factory trailer tow wiring. To use this you would run the left side off the violet wire from the trailer harness to the yellow and the light blue wires on the turn signal and brake light sockets and on the right side the the light blue wire from the trailer harness to the blue and light blue wires on the brake and turn signal sockets.



    If you don't have or don't want to use the trailer harness then the same could be done with a trailer light converter available at any auto parts store. it would be wired as follows: on the input side of the converter: yellow wire on left side of truck to yellow, light blue wire from right side of truck to green, light blue wire from left side to red, white wire with black stripe to white. Then from the converter output: yellow to both left side sockets and green to both right side sockets.

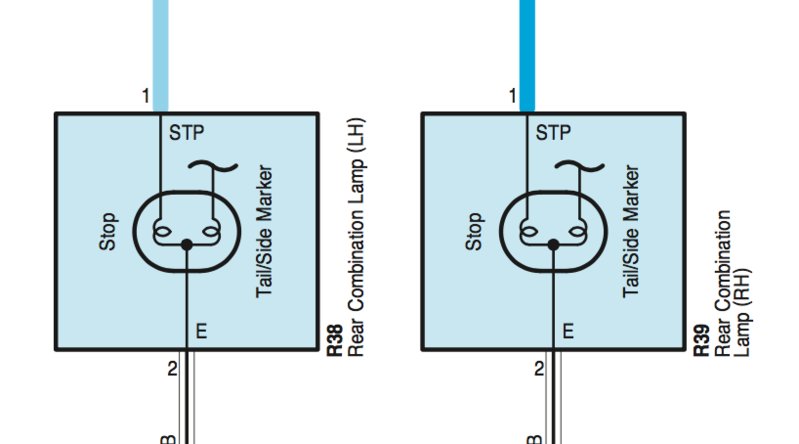

    Stop lights.jpg

    remgu2000, Bastek and HNLSFO1 like this.
  19. Feb 3, 2017 at 5:40 PM
    #19
    Siblue

    Siblue Well-Known Member

    Joined:
    Dec 2, 2014
    Member:
    #143489
    Messages:
    1,910
    Gender:
    Male
    First Name:
    Ryan
    So Cal
    Vehicle:
    18 4Runner
    Here is my take on this mod. I used tail as turn diy from diode dynamics to make this possible. I forgot I had this originally for my TLX. Diode dynamics noted in an email that I must use LEDs not incondesent bulbs. I purchased two sets of philips 7443 red and used universal resistors to prevent hyper flash.
    I'll try to upload a video.
    https://www.diodedynamics.com/store...1872/s/tail-as-turn-module-diy/category/1441/


    Can someone show me how to upload video?

    Last edited: Feb 3, 2017
  20. Feb 3, 2017 at 6:04 PM
    #20
    9TRDTCO

    9TRDTCO Well-Known Member

    Joined:
    Aug 20, 2016
    Member:
    #195094
    Messages:
    1,578
    Upload it to YouTube then post the link
