Tailgate Handle Backup Camera Install -- 2009 Tacoma

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Taco-NB, Aug 30, 2009.

  1. Aug 30, 2009 at 7:31 AM
    #1
    Taco-NB

    Taco-NB [OP] MMMMM Taco's

    Joined:
    May 1, 2009
    Member:
    #16662
    Messages:
    1,744
    Gender:
    Male
    New Brunswick
    Vehicle:
    '09 4X4 SR5 Access Cab V6 - Black Sand Pearl
    I picked up a new '09 Tacoma last week. It has the wiring for the backup camera but it has a plastic blank instead of the camera.

    I took the tailgate apart today to have a look at the wiring, etc. The pictures are below.

    I have contacted a couple backup camera sellers. If I find something that fits, I will post the install. I imagine that the dealer would sell me a camera but it's likely very expensive.

    Cheers.

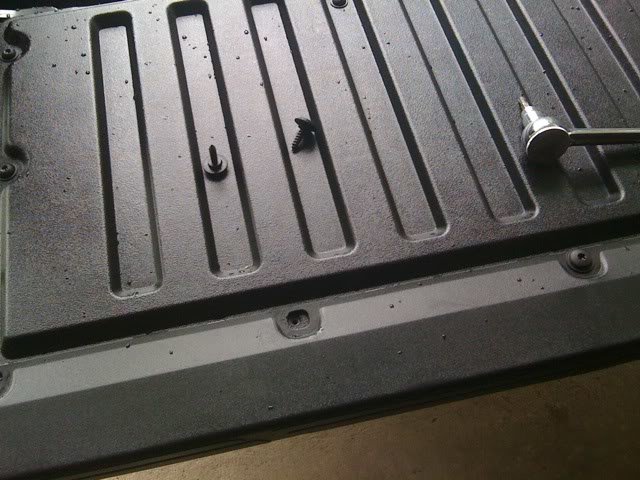

    It easy to take the tailgate apart
    [​IMG]

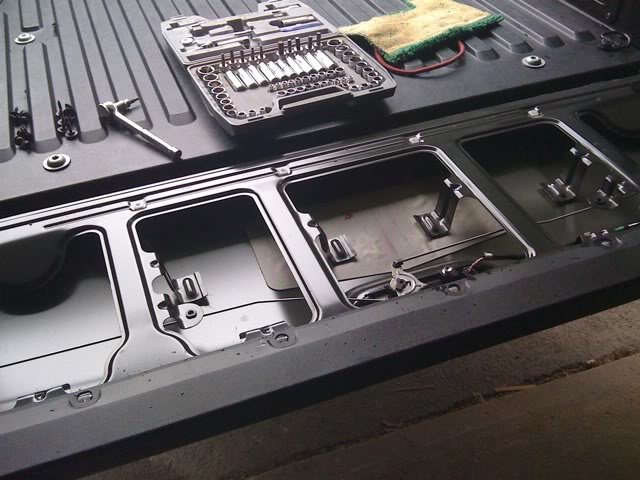

    Don't remove the top rail, just remove all the screws and then remove the large plastic cover.
    [​IMG]

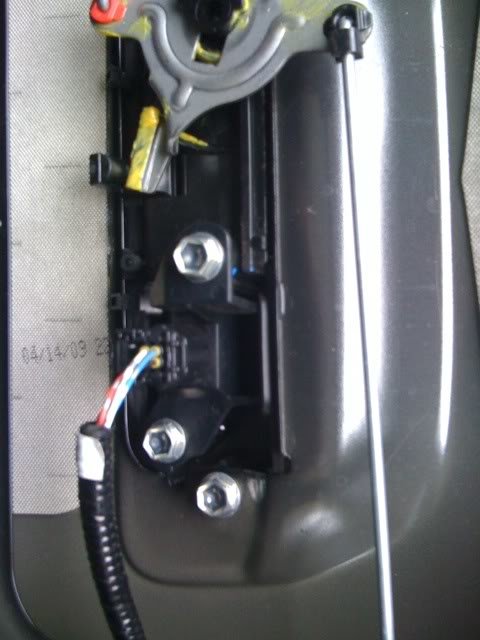

    Here is the handle with the wire harness attached
    [​IMG]

    I removed the connects. The wire harness is attached to a plastic blank.
    [​IMG]

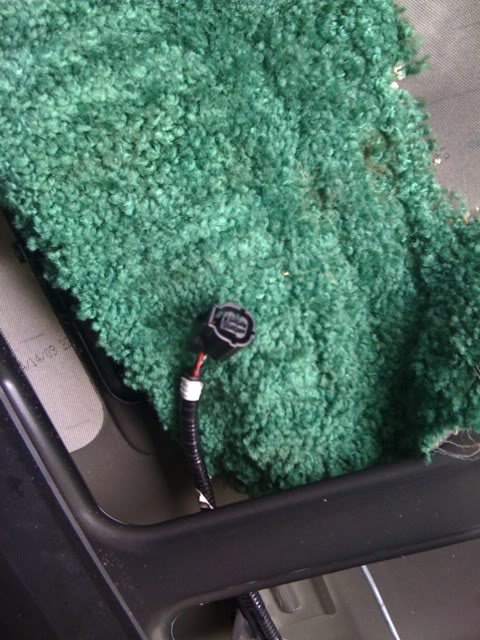

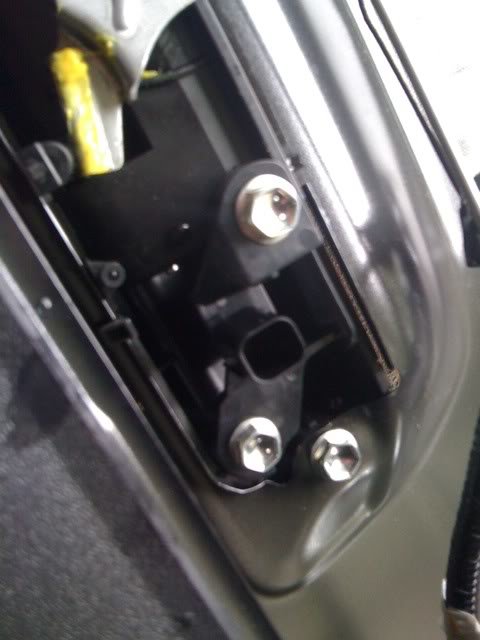

    Here is a picture of the plug for the backup camera.
    [​IMG]

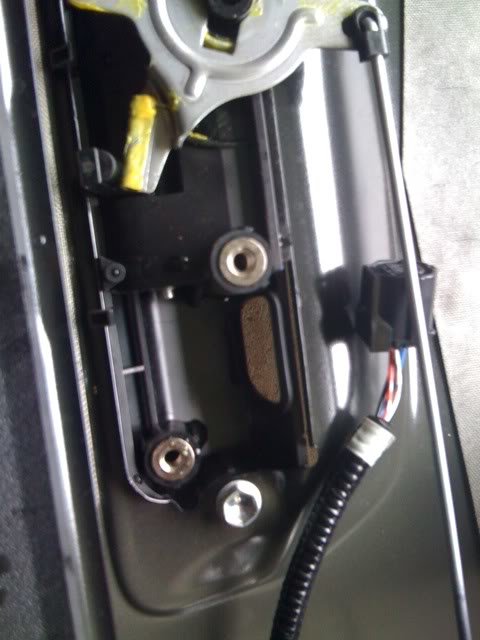

    The handle with the plastic blank removed.
    [​IMG]

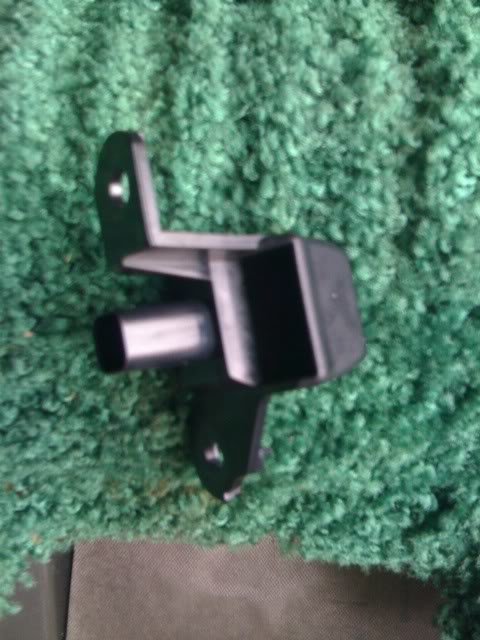

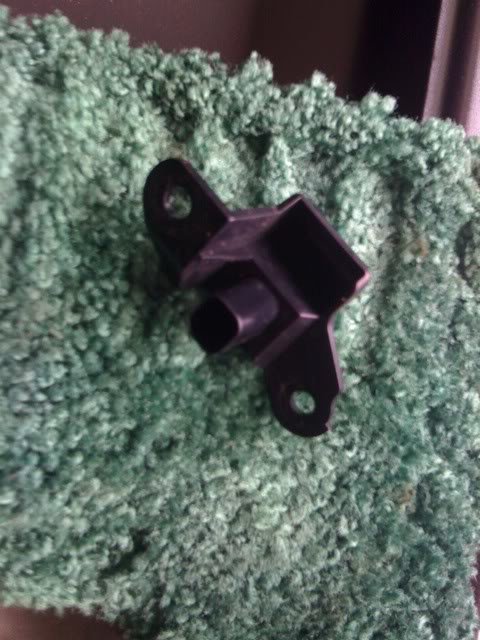

    The plastic blank.
    [​IMG]
    [​IMG]

    Another picture of the backup camera connector.
    [​IMG]

  2. Aug 30, 2009 at 7:40 AM
    #2
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,192
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Good post! Keep us informed. :)

  3. Aug 30, 2009 at 4:22 PM
    #3
    Old Soul

    Old Soul Well-Known Member

    Joined:
    May 9, 2009
    Member:
    #16995
    Messages:
    367
    Gender:
    Male
    NC
    Vehicle:
    09 AC V6 SR5 2WD SWB
    not to many, love it the way it is
    I find myself checking the rear view and looking out for little kids when I back up now. I bet these back up cameras will save a few lives

  4. Aug 30, 2009 at 5:12 PM
    #4
    Rickochet

    Rickochet Well-Known Member

    Joined:
    Oct 18, 2008
    Member:
    #10041
    Messages:
    472
    Gender:
    Male
    First Name:
    Rick
    Kentucky
    Vehicle:
    '09 Tacoma Access 2.7 4 x 2
    Added VS Wipers, Cruise Control, DRL, Undercover SE Bed Cover
    It looks like you have the wiring harness but not the camera. And I would guess that if you feel around under the headliner above the mirror you will find the other end of the harness with the plug that goes to the mirror. I have an '09 basic access I got last October (built in CA) and I got the camera but no mirror/monitor. I recently replaced my OEM tailgate handle with a Pop & Lock PL5300 and my tailgate wiring looks just like yours except I got the cam.

    Check out some of the threads about about the DIY mods like DRL, Cruise and others. They list several sources of dealers who offer online OEM parts. It could be they can hook you up with an OEM cam. I would think that an OEM cam with that fits the OEM plug and mount in the tailgate handle would be an easier fix than rigging up a non OEM unit. Gentex also offers a mirror monitor unit specifically made for the Taco with the appropriate plug.

  5. Aug 30, 2009 at 6:12 PM
    #5
    Tfrere

    Tfrere Member

    Joined:
    Jul 31, 2009
    Member:
    #20445
    Messages:
    16
    Gender:
    Male
    Louisiana
    Vehicle:
    09 Tacoma Access cab 4x4
    Has anyone found a OEM partnumber for the camera yet? I to have a 09 base v6-4X4 access cab. Did the DIY cruise and itermediate wiper mods. and looking to hookup a backup camera to my newly installed Pioneer AVIC 700BT.

  6. Aug 30, 2009 at 6:50 PM
    #6
    Taco-NB

    Taco-NB [OP] MMMMM Taco's

    Joined:
    May 1, 2009
    Member:
    #16662
    Messages:
    1,744
    Gender:
    Male
    New Brunswick
    Vehicle:
    '09 4X4 SR5 Access Cab V6 - Black Sand Pearl
    I heard back from a guy who sells backup cameras. He said that the connector on his camera is different from the wiring harness.

    I am going to call the dealership tomorrow to see if they sell the camera, how much it is and the part number. If it's too expensive, I may order the camera from China and see if I can wire it up.

    Cheers.

  7. Aug 31, 2009 at 6:38 AM
    #7
    Taco-NB

    Taco-NB [OP] MMMMM Taco's

    Joined:
    May 1, 2009
    Member:
    #16662
    Messages:
    1,744
    Gender:
    Male
    New Brunswick
    Vehicle:
    '09 4X4 SR5 Access Cab V6 - Black Sand Pearl
    I called the dealership. They do not have the camera listed as an accessory, just as a replacement part. They want $497.80 just for the camera LMAO. I asked him if that included the mirror etc. and he said no that was just for the camera.

    Here is the part number: 86790-040-10

    Guess I'll be buying from China!!:eek:
    I'll let you guys know how it goes when i get it installed.

    Cheers.

  8. Aug 31, 2009 at 6:44 AM
    #8
    stang88

    stang88 Well-Known Member

    Joined:
    Feb 24, 2009
    Member:
    #14001
    Messages:
    233
    Gender:
    Male
    i have my factory camera wired into my 700bt

  9. Aug 31, 2009 at 7:20 AM
    #9
    Tfrere

    Tfrere Member

    Joined:
    Jul 31, 2009
    Member:
    #20445
    Messages:
    16
    Gender:
    Male
    Louisiana
    Vehicle:
    09 Tacoma Access cab 4x4
    Wow! Toyota of Dallas wants $602 for the camera!!! that is a precious piece of hardware. Thanks for the info Taco-NB, please keep us updated.

    Stang88: did you find some kind of harness to get from the factory plug in the headliner to the 700BT?

  10. Aug 31, 2009 at 3:58 PM
    #10
    NuovoTech

    NuovoTech Well-Known Member

    Joined:
    Aug 2, 2009
    Member:
    #20531
    Messages:
    107
    Gender:
    Male
    Upper Left Corner
    Vehicle:
    09 Tacoma 4x2
    That's the correct part #, I just pulled the backup camera from my 2009 Tacoma. I do not need it & would take a reasonable offer for it(you could also have the tailgate wire-harness). My Tacoma is brand new(600 miles on it). I would need your plastic blank mailed to me, so I could plug my hole. Camera's been sold, thanx all! :cool:


  11. Oct 10, 2009 at 9:00 AM
    #11
    Taco-NB

    Taco-NB [OP] MMMMM Taco's

    Joined:
    May 1, 2009
    Member:
    #16662
    Messages:
    1,744
    Gender:
    Male
    New Brunswick
    Vehicle:
    '09 4X4 SR5 Access Cab V6 - Black Sand Pearl
    I ended up purchasing the tailgate camera (Thanks NuovoTech!!!) and then I purchased an original rearview mirror off ebay. Everything worked great!!

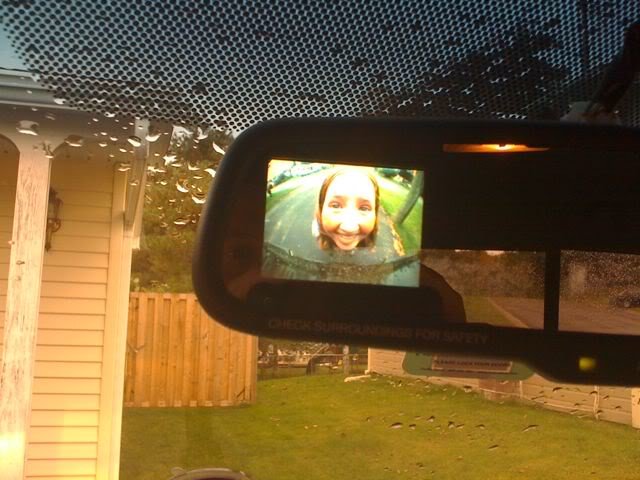

    Here is a picture I took of my daughter looking at the camera. LOL :D

    Cheers.

    [​IMG]

  12. Oct 10, 2009 at 9:10 AM
    #12
    Yota1

    Yota1 Well-Known Member

    Joined:
    May 29, 2009
    Member:
    #17777
    Messages:
    291
    Gender:
    Male
    so was the wiring in the headliner for the camera?

  13. Oct 10, 2009 at 2:05 PM
    #13
    Taco-NB

    Taco-NB [OP] MMMMM Taco's

    Joined:
    May 1, 2009
    Member:
    #16662
    Messages:
    1,744
    Gender:
    Male
    New Brunswick
    Vehicle:
    '09 4X4 SR5 Access Cab V6 - Black Sand Pearl
    Yes the wiring is there. If you stick your finger up in the headliner/window gap, you will feel it. I couldn't get it down and I didn't want to force it so I took the overhead console down so that I could access it more easily. It's held up there pretty good with some tape.

    Cheers.

  14. Feb 4, 2010 at 6:38 PM
    #14
    LouD72

    LouD72 Member

    Joined:
    Dec 31, 2009
    Member:
    #28533
    Messages:
    5
    Gender:
    Male
    NC
    Vehicle:
    08 4WD Dbl Cab
    Was wondering if anyone knew of the 2009 handle will fit the 2008 tailgate?

  15. Feb 4, 2010 at 7:15 PM
    #15
    KPT

    KPT sees what you did there.

    Joined:
    Sep 3, 2009
    Member:
    #22227
    Messages:
    32,339
    Gender:
    Male
    Vehicle:
    09 Prerunner
    Katskin leather interior, Satoshi grille, Bilstein 5100's @ 1.75, rear leaf TSB, magnaflow exhaust, 18x9 BBS RW's, 275/65/18 Nitto TG's, black headlights, black taillights, Hella Supertones, weathertechs, EFX tri-fold tonneau, n-Fab steps
    The handle itsself should fit no problem.

  16. Jun 25, 2012 at 2:15 PM
    #16
    nj636

    nj636 Hub Master General

    Joined:
    Feb 14, 2012
    Member:
    #72804
    Messages:
    4,967
    Gender:
    Male
    First Name:
    Kev
    Jersey
    OME lift 4x sliders 4x skids
    REVIVING OLD THREAD:

    here's something I didn't see pictured or mentioned.

    where does the harness leave the tailgate?

  17. Jun 25, 2012 at 3:48 PM
    #17
    Rickochet

    Rickochet Well-Known Member

    Joined:
    Oct 18, 2008
    Member:
    #10041
    Messages:
    472
    Gender:
    Male
    First Name:
    Rick
    Kentucky
    Vehicle:
    '09 Tacoma Access 2.7 4 x 2
    Added VS Wipers, Cruise Control, DRL, Undercover SE Bed Cover
    At the bottom center of the tailgate. There is a plug there.

  18. Jun 25, 2012 at 5:50 PM
    #18
    nj636

    nj636 Hub Master General

    Joined:
    Feb 14, 2012
    Member:
    #72804
    Messages:
    4,967
    Gender:
    Male
    First Name:
    Kev
    Jersey
    OME lift 4x sliders 4x skids
    even on the older model's ie: '05? my tailgate does not have a provision for a plug. any pics available?

  19. Jun 28, 2012 at 5:40 AM
    #19
    Rickochet

    Rickochet Well-Known Member

    Joined:
    Oct 18, 2008
    Member:
    #10041
    Messages:
    472
    Gender:
    Male
    First Name:
    Rick
    Kentucky
    Vehicle:
    '09 Tacoma Access 2.7 4 x 2
    Added VS Wipers, Cruise Control, DRL, Undercover SE Bed Cover
    Correction, after looking at it the wire comes from the right side at the bottom of the tailgate. The camera was added in the '09 models so the '05 probably won't have the wiring. To remove the tailgate there is a plug just under the bed.


  20. Jun 28, 2012 at 7:39 AM
    #20
    nj636

    nj636 Hub Master General

    Joined:
    Feb 14, 2012
    Member:
    #72804
    Messages:
    4,967
    Gender:
    Male
    First Name:
    Kev
    Jersey
    OME lift 4x sliders 4x skids
    there's what looks to be like a drain hole in the bottom middle of my 05 bed, I can run the wiring out there then through the spare tire provision with a plug if I want the tailgate off :thumbsup:
