TailGate Opener Module V2 By DSIM Solutions

So if I want the 3x unlock and the momentary switch, I need to buy both A and B harness?



Or Driver's Unlock tap to Front passenger's for x2 to Open...



Yup module will come with A harness that will give 3x unlock functionality out of the box. The Bharness will add the push button and lockouts functionality. Bharness is a few weeks out but the module is set up for the bharness to be added.



Added some diagrams to Post #2.



what about pushing button for tailgate to go back up?



ugh my remote starts uses the 3x lock function. any solutions?



Changing the unlock input to the Driver's unlock input would reduce the press by one, DSIM would program it or send instructions for setup. KTJO4x4 has the IC1 harness you'd need.



Ummm that should not effect using the UNLOCK button 3 times to work the tailgate

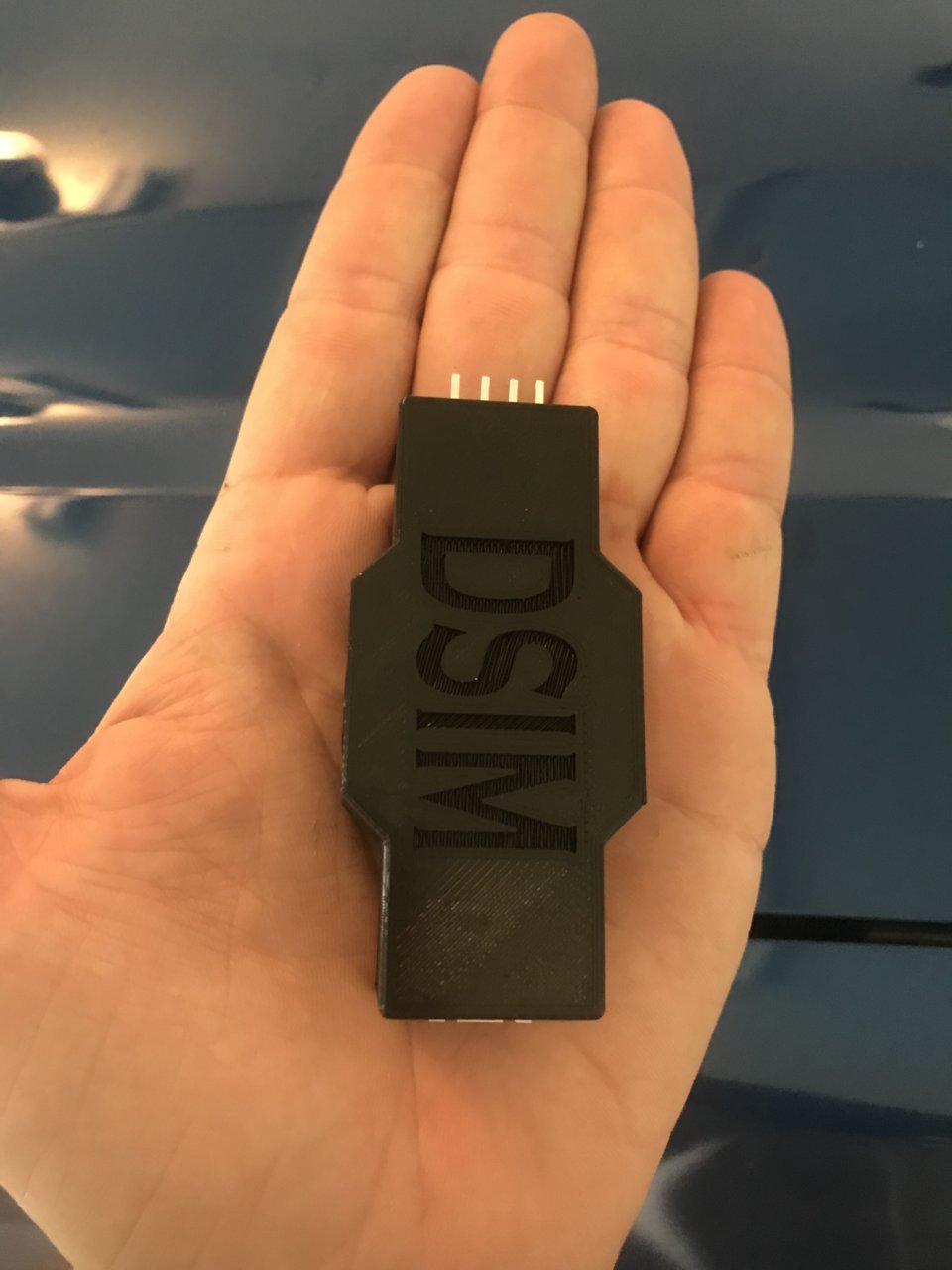

Got lucky to test out a v2 , Just need one small part to try it out .

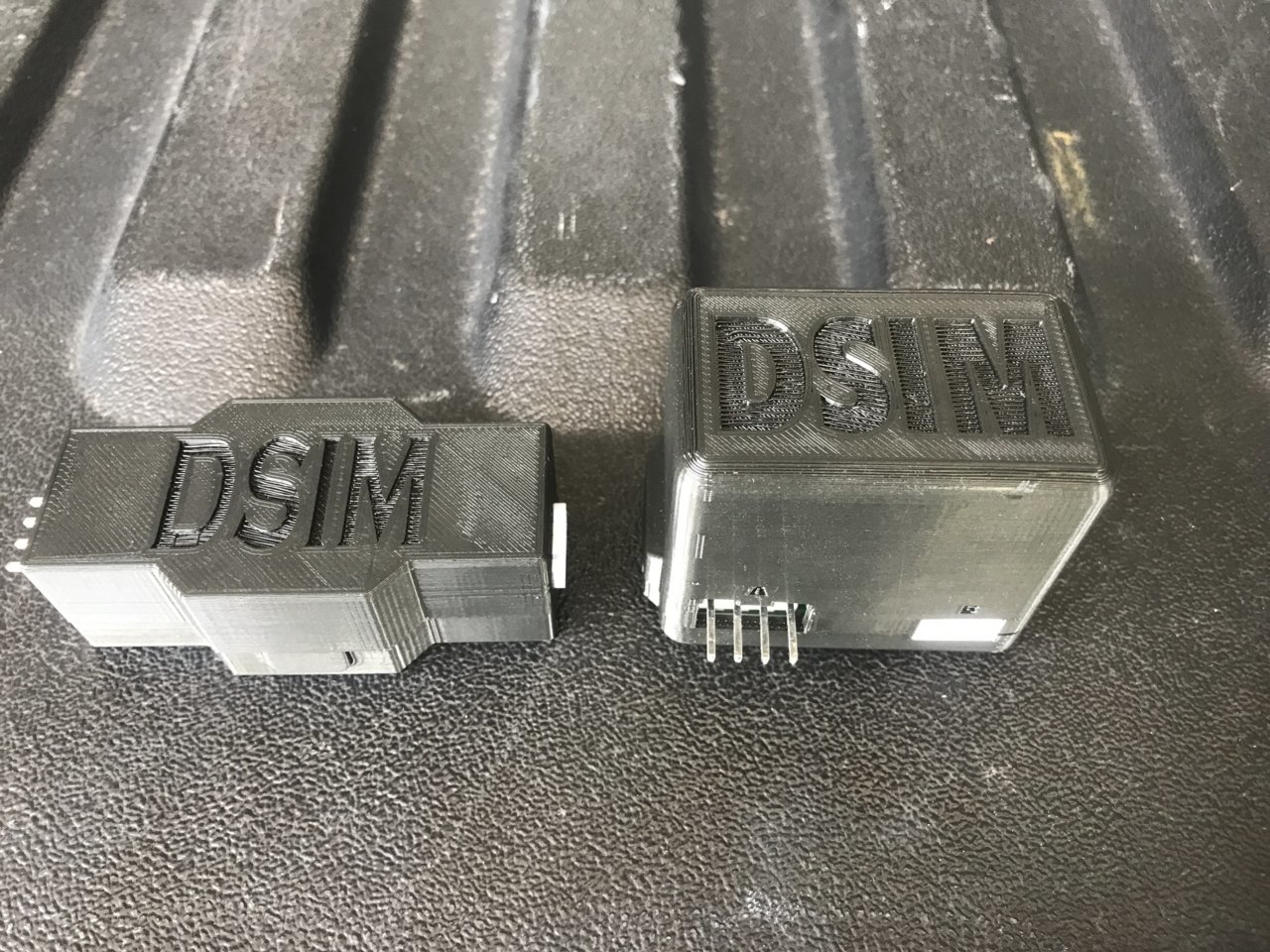

Size difference between the v2 and the v1



Excuse my illiteracy. I’m that case I’m so in.



I’m in



Sent that to ya yesterday



Countdown is on! Planning a small first batch on Friday. CC: @KTJO 4x4 @tacodnr

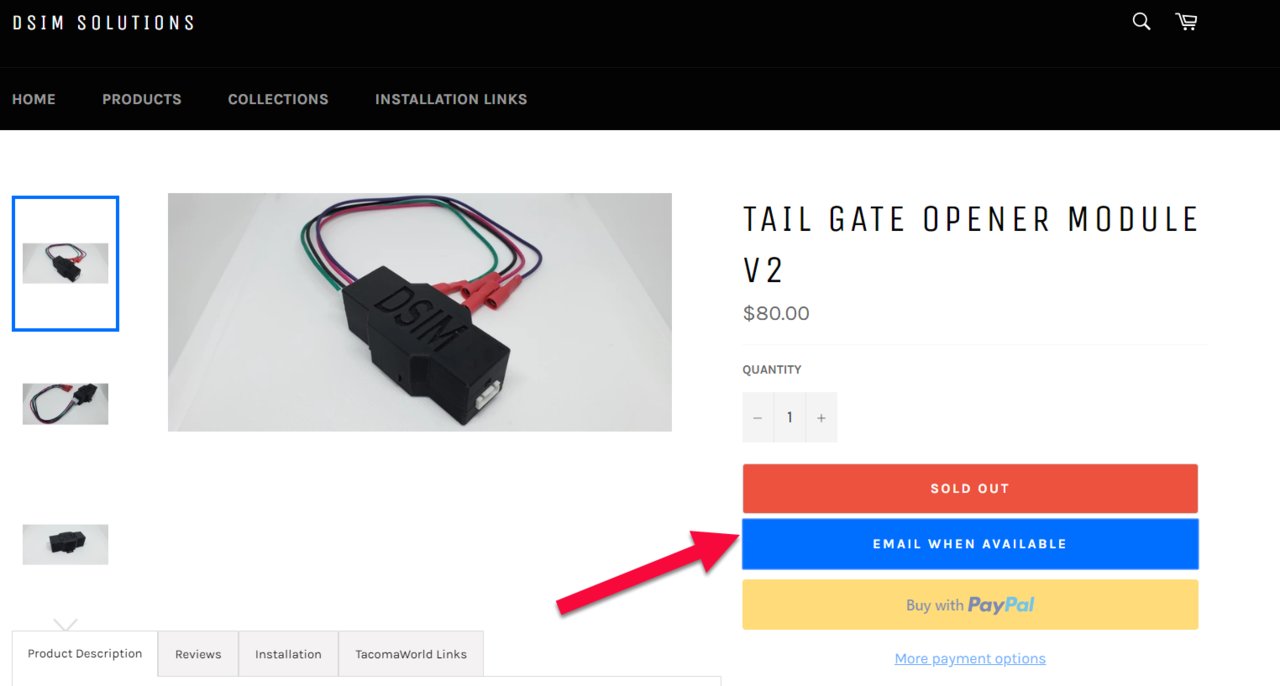

I had to switch back in stock alert apps. If you previously signed up for a notification please go redo it if you still want notifications. My apologies the last app gave me all sorts of trouble in the DomeRock release. This one has a better rep. The "Email When Available" button will be relocated underneath the "buy with PayPal" button as soon as I can get it to work. Having slight troubles with this app as well but as far as you guys actually getting the emails it should work. I can fix the aesthetics later on. EDIT: Fixed my button, located below Sold Out Button. Updated picture below.

https://dsimsolutions.com/products/tail-gate-opener-module-v1



Thank you , New site looks fantastic!

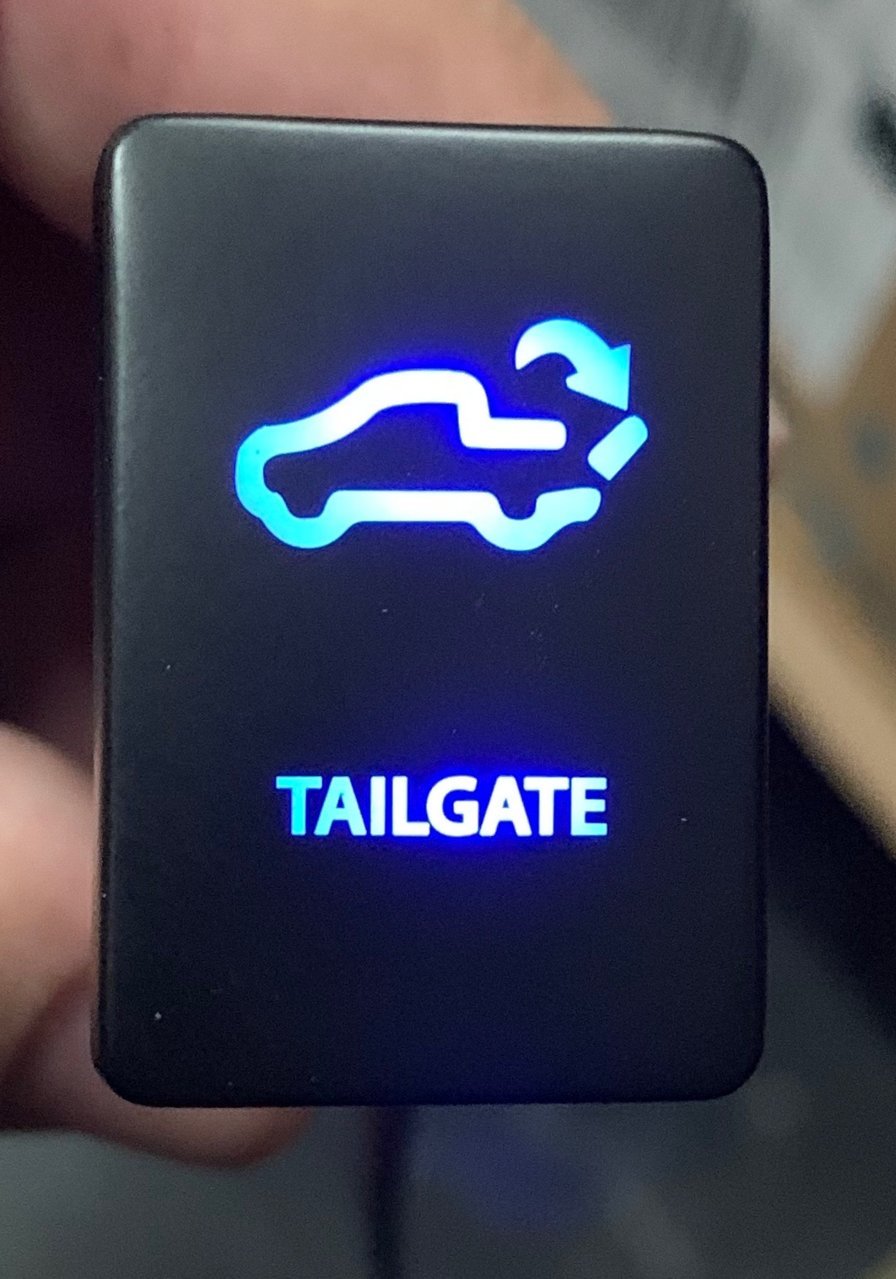

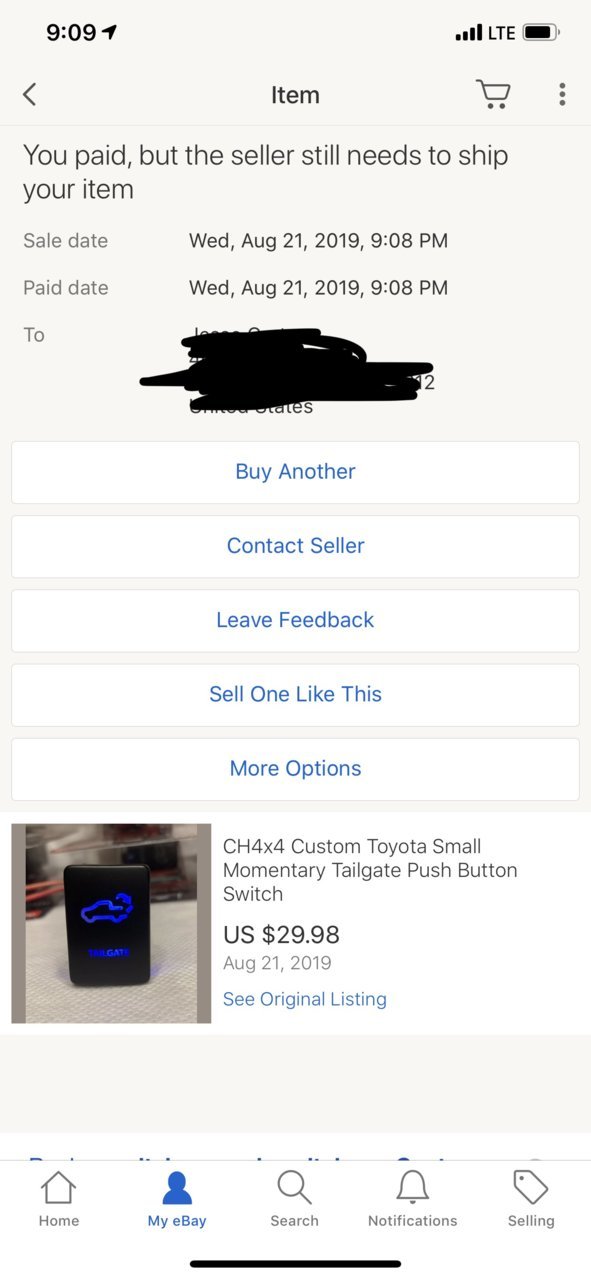

Order my switch.



Just signed up for notification



Update had my diagram wrong on post 2. Had to flip around to have the right colors for the right pins on the board. Thanks to @KTJO 4x4, @tacodnr for the help pointing this out.

Also I know I sent this out yesterday but just a reminder, if you are indeed interested in purchasing please sign up for the email reminder. This helps me adequately gauge interest and adjust my batch sizes accordingly. Judging by what I am seeing now looks like I'm gonna have to make a sizable second batch.

https://dsimsolutions.com/products/tail-gate-opener-module-v1



Damn, missed the first batch.



Don’t think they go on sale till Friday around noon .



Really?
I went by this
Update
Batch #1 set for release (8/21/2019 11:30ish est)

So I thought I missed out
