Tekonsha P3 brake controller. Can I borrow your brains?

Discussion in 'Towing' started by ChuckLee, Aug 25, 2011.

  1. Aug 25, 2011 at 6:32 AM
    #1
    ChuckLee

    ChuckLee [OP] Well-Known Member

    Joined:
    Jul 5, 2011
    Member:
    #59369
    Messages:
    535
    Gender:
    Male
    Richmond, VA
    Vehicle:
    06 SR5 4x4 DC
    Need your brains for a moment.
    Have an 06 4x4 DCSB with tow package. I am confused as to whether or not I need to buy a harness adapter for my Tekonsha P3 brake controller. I have done searches, etc but am not quite clear on it. How would I install it without buying the harness? I bought a used P3 that also came with a Dodge harness.
    Thanks guys!!!

    Oh yeah, also. Noticed this brake controller harness is cheap, but says it is for 2007-2011. I have an 06. Does the 07 wire up differently? This I have not searched yet, sorry.
    http://www.rvwholesalers.com/catalo...s-for-prodigy-brake-control-3040-17-0140.html

  2. Aug 25, 2011 at 6:37 AM
    #2
    ChuckLee

    ChuckLee [OP] Well-Known Member

    Joined:
    Jul 5, 2011
    Member:
    #59369
    Messages:
    535
    Gender:
    Male
    Richmond, VA
    Vehicle:
    06 SR5 4x4 DC
    I gotta figure this out soon. Supposed to go north this evening and pick up an M3 vert! wahoo!

  3. Aug 25, 2011 at 8:18 AM
    #3
    MJonAgs32

    MJonAgs32 asphinctersayswhat?

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    9,269
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    check out my build
    the brake contorller will work for your 06. same thing

  4. Aug 25, 2011 at 12:53 PM
    #4
    08TRDOFFROAD

    08TRDOFFROAD Well-Known Member

    Joined:
    Nov 4, 2008
    Member:
    #10482
    Messages:
    328
    Gender:
    Male
    Vehicle:
    08' 4x4 TRD Offroad
    Bilstein 5100's w/front's set at 1.75", 17x9 Moto Metal 951's, 265/70/17 BFG AT KO's, TRD exhaust, Colormatched grill, GrillCraft,, Rear leaf TSB, Illuminated 4wd selector switch
    I replied to your PM, but will post up here too.

    No, you do not NEED the vehicle specific harness. I wired mine with the factory pigtail (included when you bought the truck) and it works fine.

    Here is how I did it.


  5. Aug 25, 2011 at 2:38 PM
    #5
    ChuckLee

    ChuckLee [OP] Well-Known Member

    Joined:
    Jul 5, 2011
    Member:
    #59369
    Messages:
    535
    Gender:
    Male
    Richmond, VA
    Vehicle:
    06 SR5 4x4 DC
    You guys are great! Thanks for the help and the PM's!

  6. Aug 25, 2011 at 5:29 PM
    #6
    08TRDOFFROAD

    08TRDOFFROAD Well-Known Member

    Joined:
    Nov 4, 2008
    Member:
    #10482
    Messages:
    328
    Gender:
    Male
    Vehicle:
    08' 4x4 TRD Offroad
    Bilstein 5100's w/front's set at 1.75", 17x9 Moto Metal 951's, 265/70/17 BFG AT KO's, TRD exhaust, Colormatched grill, GrillCraft,, Rear leaf TSB, Illuminated 4wd selector switch
    You're welcome!

  7. May 18, 2012 at 6:36 PM
    #7
    tractng

    tractng Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42969
    Messages:
    454
    Gender:
    Male
    I am installing at this moment.

    Regarding ground wire. So the brown wire goes to the white wiring from the Prodigy3. I don't need run those wires to a metal piece?

    I have a 2012 with tow package.

  8. Mar 7, 2015 at 9:02 AM
    #8
    HootYeah

    HootYeah Member

    Joined:
    Aug 17, 2014
    Member:
    #136382
    Messages:
    7
    Gender:
    Male
    Vehicle:
    Truck...

    Can someone confirm if this is correct? I'm pretty confused by what the Tekonsha P3 controller diagram says and what the pigtail harness connector says. I have a 2014 DCSB with tow package.

  9. Mar 7, 2015 at 11:14 AM
    #9
    RedMosquito

    RedMosquito Active Member

    Joined:
    Jun 13, 2014
    Member:
    #131918
    Messages:
    27
    Gender:
    Male
    Phoenix, AZ
    Vehicle:
    '14 DCLB TRD Sport 4x4
    Not sure if you got your answer yet, but I am starting the same project as you today and am going to use the wiring scheme posted on this thread. I will let you know if it works shortly ;)

  10. Mar 7, 2015 at 11:39 AM
    #10
    RedMosquito

    RedMosquito Active Member

    Joined:
    Jun 13, 2014
    Member:
    #131918
    Messages:
    27
    Gender:
    Male
    Phoenix, AZ
    Vehicle:
    '14 DCLB TRD Sport 4x4
    HootYeah - you are good to go with this wiring diagram, just splice the wires according to the diagram in this post and you should have no trouble. I just finished the wiring, plugged in the P3, and it powers up and I can tweak with the settings. Will test with the trailer later this week but anticipate no problems. Now on to mounting the unit, best of luck to you.

  11. Mar 7, 2015 at 7:33 PM
    #11
    HootYeah

    HootYeah Member

    Joined:
    Aug 17, 2014
    Member:
    #136382
    Messages:
    7
    Gender:
    Male
    Vehicle:
    Truck...
    I got impatient and just went for it. First time I've trusted someone online lol... Worked perfect. Jacked up my trailer and tested the brakes to see if they were engaging. Excited to get this beast out on the road! Will be towing a 1986 22' Wilderness trailer by fleetwood.

    Also, there is a cubbie right of the steering column that you can pop out, I ran the wires of the unit through that hole without any of mounting screws, surprisingly the pressure from the wires in the back after the insert/cubbie is popped back in holds the unit perfectly. I'm going to devise a way to make sure it stays stable without drilling holes in my truck. To much of a sissy for that....

    Last edited: Mar 7, 2015
  12. Mar 7, 2015 at 7:48 PM
    #12
    HootYeah

    HootYeah Member

    Joined:
    Aug 17, 2014
    Member:
    #136382
    Messages:
    7
    Gender:
    Male
    Vehicle:
    Truck...
    I thought pretty long about where I wanted this and I feel like having my right hand ready to reach down near the steering wheel to hit the manual trigger is ideal. will stabilize it somehow but it's pretty solid.


  13. Jun 8, 2015 at 4:38 AM
    #13
    WalkeJ

    WalkeJ Well-Known Member

    Joined:
    Apr 29, 2015
    Member:
    #154185
    Messages:
    71
    Gender:
    Male
    Vehicle:
    2015 DCSB TRD Off Road Tacoma
    I installed my P3 in my 2015 Tacoma DCSB OR using the factory provided towing package pigtail and the pigtail that came with the P3. I sliced (soldered) the wires per the thread above:

    Factory pigtail color -----------> P3 pigtail color
    Black with red tracer (thick)------> Black (thick)
    Solid Brown----------------------> White
    Green w/white tracer-------------> Red
    Red (thick)----------------------> Blue (thick)
    Solid Green----------------------> Does not connect to P3 pigtail (tape up out of the way)

    And the unit appears to operate properly. I still need to try things out with the trailer.

    Like tractng, I was also wondering if the brown/white wires also need to be tied to a ground somewhere or is that already done with the brown wire coming from the factory connector. The directions for the factory connector call this wire "trailer ground", but can I assume that this is also tied to the truck chassis ground?


  14. Jun 8, 2015 at 4:32 PM
    #14
    RedMosquito

    RedMosquito Active Member

    Joined:
    Jun 13, 2014
    Member:
    #131918
    Messages:
    27
    Gender:
    Male
    Phoenix, AZ
    Vehicle:
    '14 DCLB TRD Sport 4x4
    WalkeJ - Yes, from what I have found the brown wire from the factory connector is ground and you should be good to go with connecting the way included in the diagram. I installed this same configuration a few months ago and have had no issues since with multiple towing trips. It is a great controller, enjoy.

  15. Jun 9, 2015 at 7:40 PM
    #15
    AEmedic

    AEmedic Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114034
    Messages:
    664
    Gender:
    Male
    First Name:
    Chris
    Patrick AFB, FL
    Vehicle:
    2014 DCLB 4X4 TRD Sport Supercharged
    TRD Supercharger, Toytec Adj. Coil-Overs, Biliistein 5100's, JL Audio system w/Kenwood DNX9980HD HU

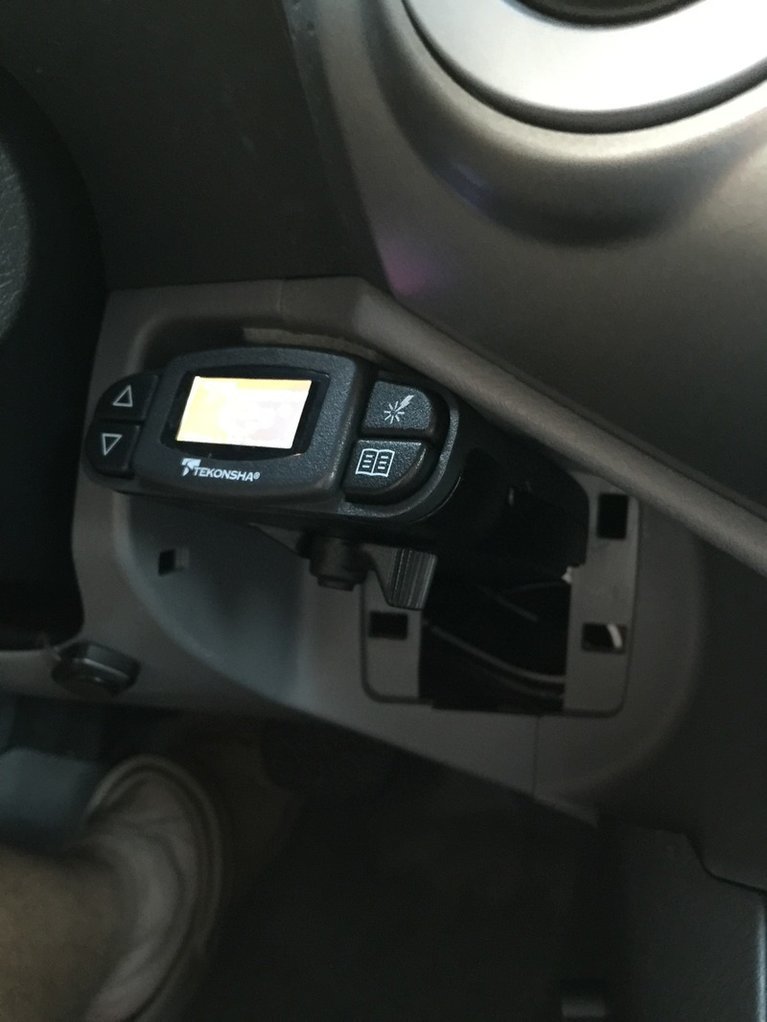

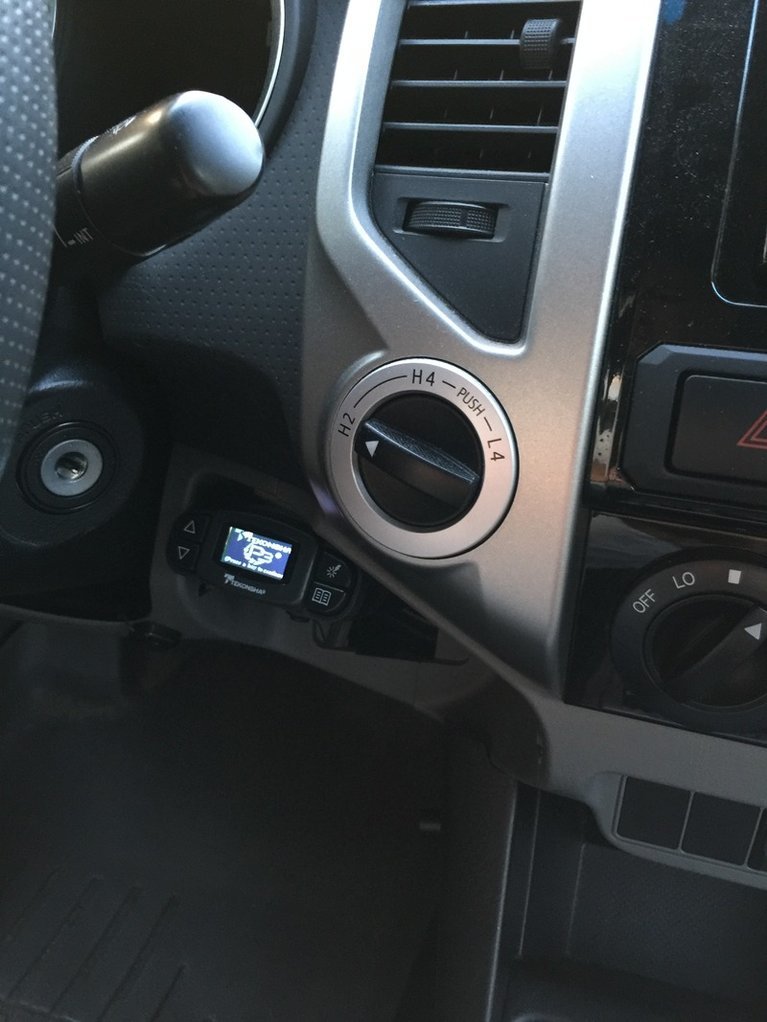

    I pull out the little cubby when I use the P3.

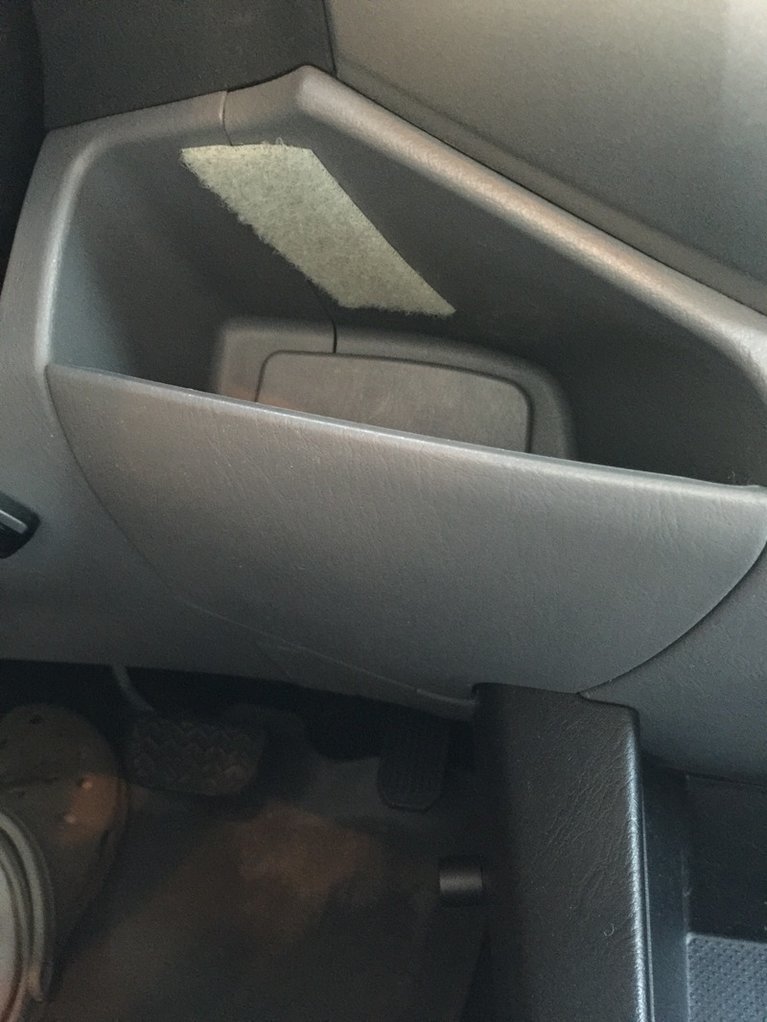

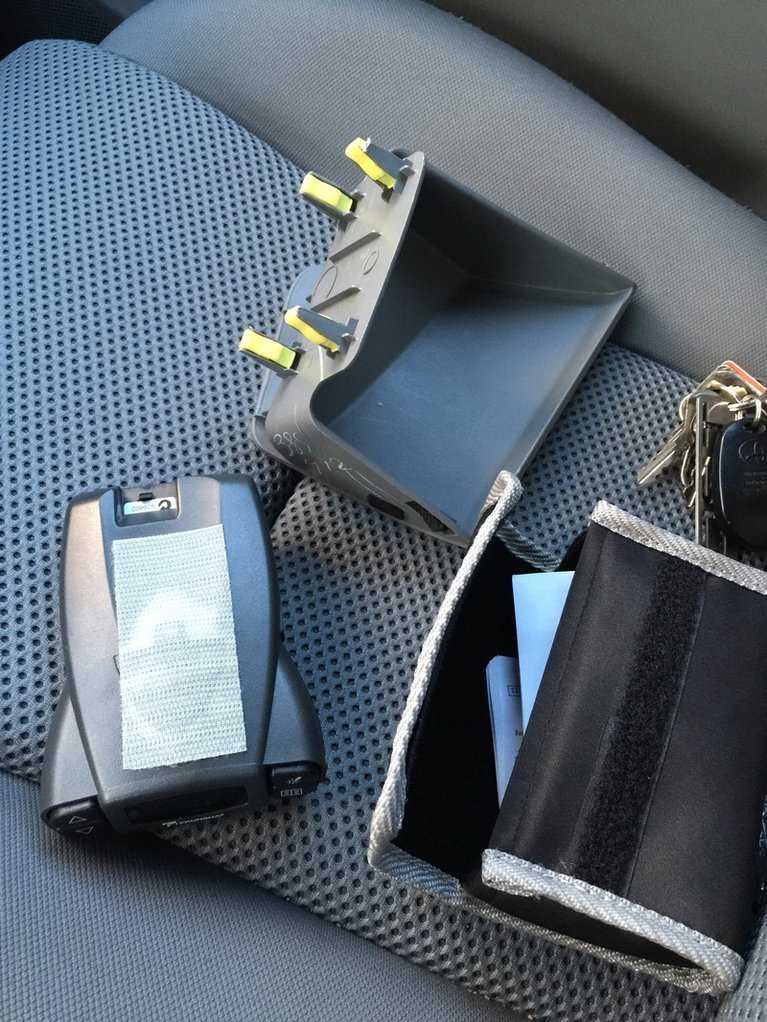

    I bought some industrial strength Hook and Pile tape (Velcro) and put the Hook part (scratchy side) on the P3 and the Pile (soft side) on the upper portion of the area where the cubby was.

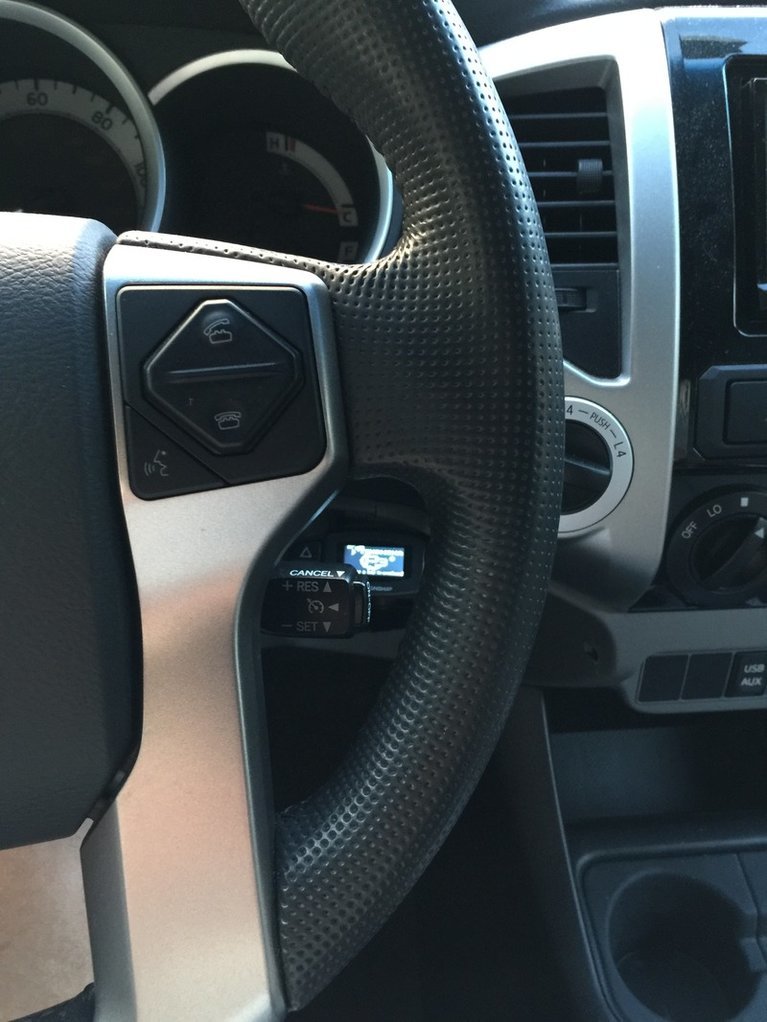

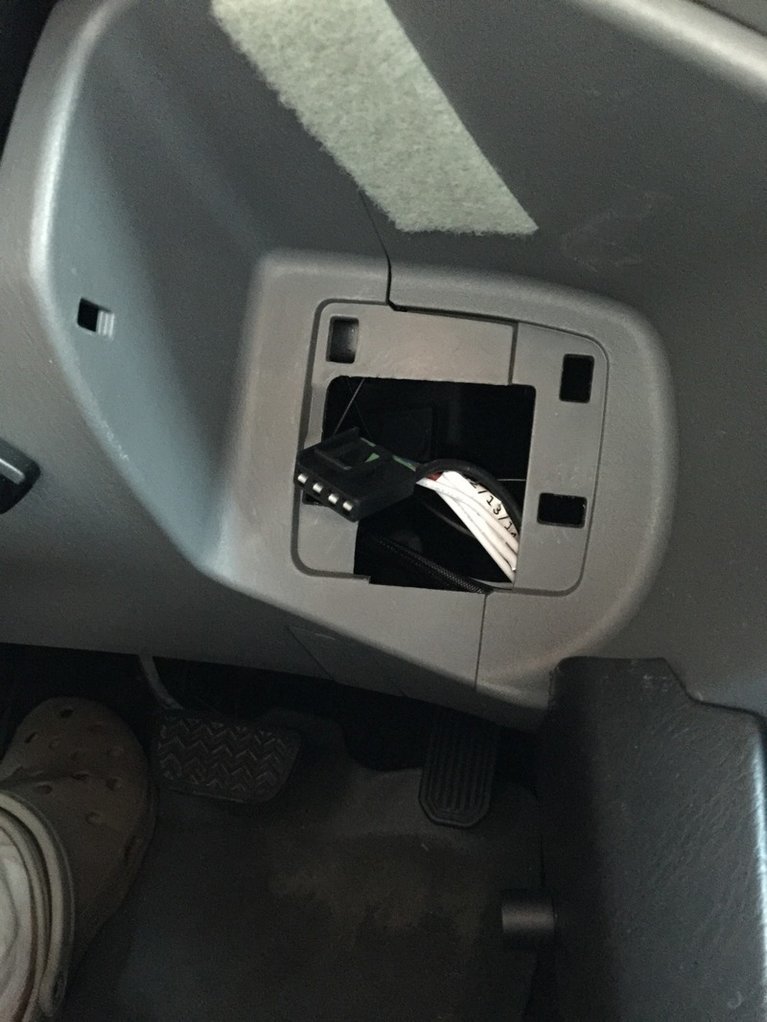

    When I am towing I feed the harness through the opening that is behind the removed cubby and connect the P3 and stick the P3 Hook to the dash Pile and it works perfect and is up out of the way and is easy to see and access.

    When I am not towing, I pull it off put it back in the pouch that comes with the P3 and store it in the truck. The harness pushes back and the cubby snaps back into place like it never came out.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
