    So this is the Front Range t-case crossmember, that supposedly fits the 2nd gen, but it wont even get close. So I had to trim to get it to clear the tunnel.
    Still didn't like it, so I cut off the passenger arm and dropped it an inch.
    Then the drivers side was very far from the frame, so I cut it off, added an inch, then dropped it a little to get better clearance for the fuel lines. Beveled both side for full penetration.
    Then added some plates to both sides of both arms to give them more strength.

    Last edited: Jan 4, 2017
    bullaculla, Jan 3, 2017
    #949
    Nate87, polekasta, squint0241 and 3 others like this.
  10. Jan 4, 2017 at 12:02 AM
    #950
    bullaculla

    #950
    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,155
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K
    Here is the crossmember all welded up and painted, and I'm very happy with the fit.

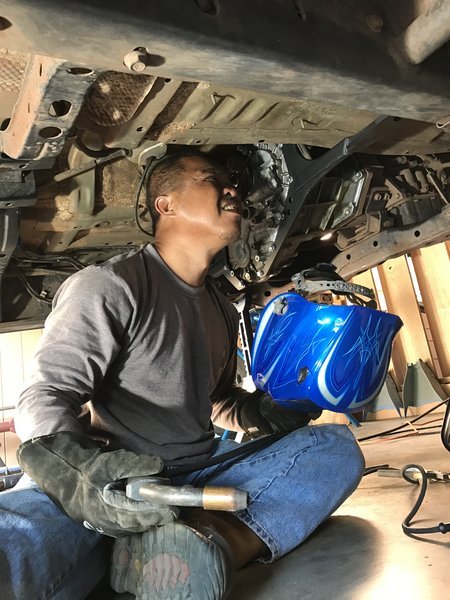

    I had my good friend Richard, one of the best pipe fitters/welders at BAE Systems Hawaii shipyards come down and weld on my frame plates to support the crossmember
    I hate overhead...
    Now I need to fab up some brackets and gussets to hold this trans/t-case up, then I can finally cut off that last factory X member.

    bullaculla, Jan 4, 2017
