The Bullaculla 3 link SAS build (pic heavy)

Discussion in '2nd Gen. Builds (2005-2015)' started by bullaculla, Sep 2, 2013.

  1. Jan 4, 2017 at 10:15 PM
    #961
    bullaculla

    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,158
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K
    :rofl: not a big deal man. Sorry it gave you a hard time.

  2. Jan 5, 2017 at 3:55 PM
    #962
    bullaculla

    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,158
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K

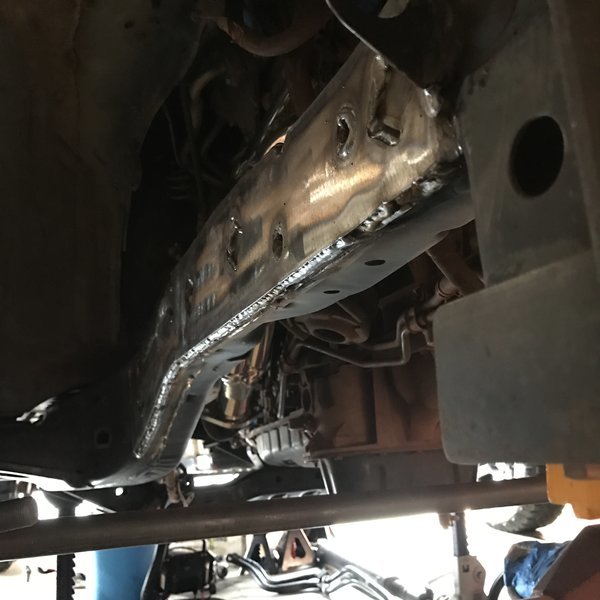

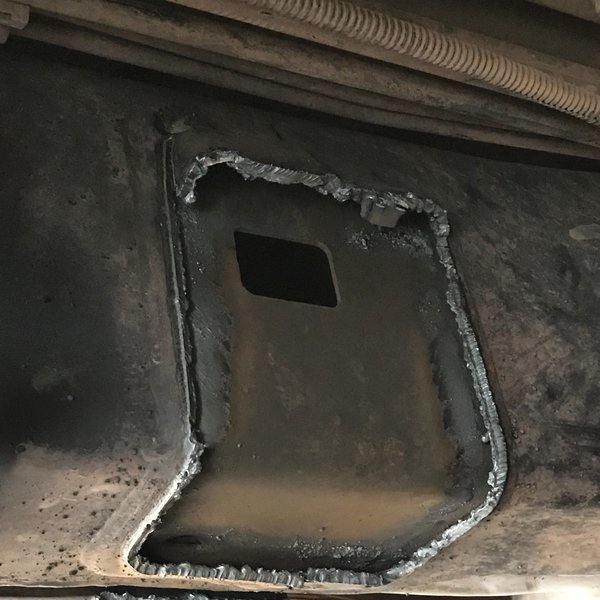

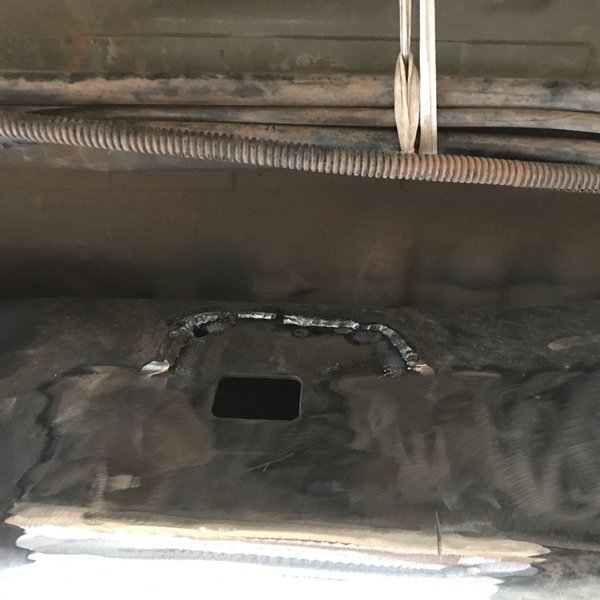

    Frame plate from Eddy at SOS concepts all welded up! There are a few spots that needed a lot of buttering up due to low spots in the frame. Shooting solid wire out of the mig gun and back stepping made it go pretty quick.

    Nate87, sloth671, polekasta and 13 others like this.
  3. Jan 7, 2017 at 7:10 AM
    #963
    BDL5589

    BDL5589 Well-Known Member

    Joined:
    Jan 25, 2015
    Member:
    #147199
    Messages:
    471
    Gender:
    Male
    NE Georgia
    Vehicle:
    '14 MGM 4WD RC
    Props on the build, love the attention to detail. And even bigger props to cutting up such a new truck! Subd.

    bullaculla [OP] likes this.
  4. Jan 7, 2017 at 9:42 AM
    #964
    Acerwin

    Acerwin The unNORM NORM

    Joined:
    Nov 20, 2014
    Member:
    #142732
    Messages:
    32,739
    Gender:
    Male
    First Name:
    Andrew
    South Carolina
    Vehicle:
    Toyota Tundra
    Looks great buddy. Can't wait to start on my sas already.

    bullaculla [OP] likes this.
  5. Jan 13, 2017 at 2:41 PM
    #965
    Wishbone Runner

    Wishbone Runner Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    5,768
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Can you expand on what you mean by this? Putting unburned wire in the gap and then welding over it?

  6. Jan 13, 2017 at 9:52 PM
    #966
    bullaculla

    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,158
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K
    No, just using solid wire to MIG weld instead of flux core, or stick welding. No slag to clean off with solid wire. back stepping is just welding a few inches, then going backward past the start of the previous weld and running another pass to the start to keep it from getting too hot. Like playing backwards leap frog :D

    [​IMG]

  7. Jan 14, 2017 at 4:13 PM
    #967
    Wishbone Runner

    Wishbone Runner Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    5,768
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Ok cool, didn't know the name for that, thanks! Sort of like stitching, but with the stiches moving in a single direction.

  8. Jan 21, 2017 at 10:34 AM
    #968
    bullaculla

    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,158
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K

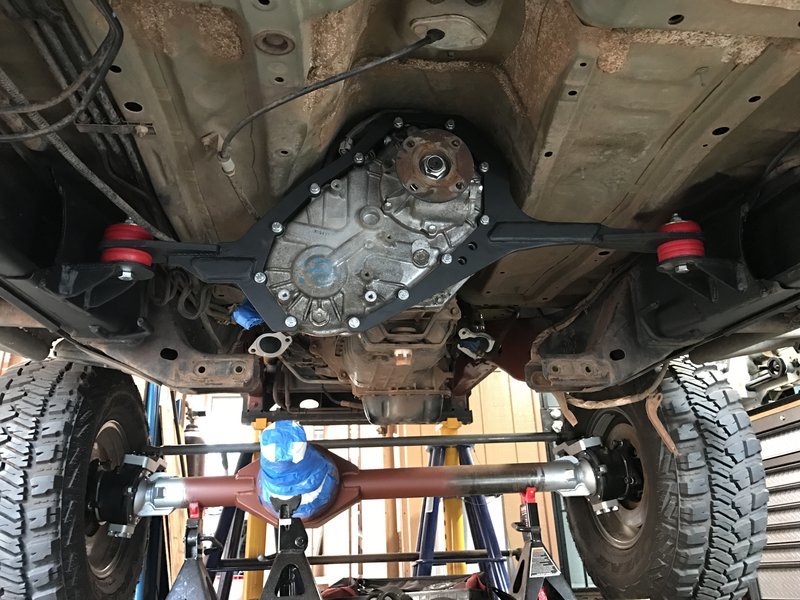

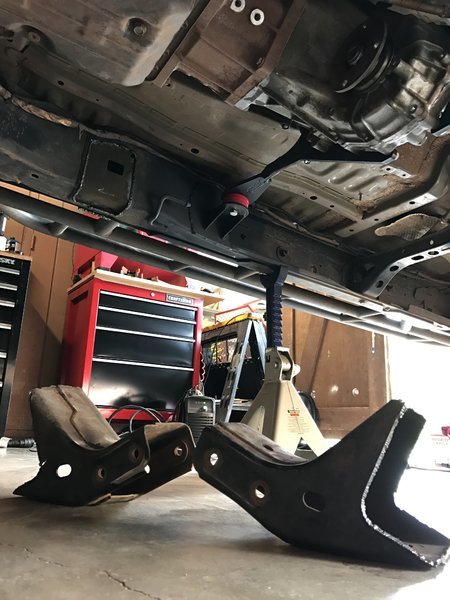

    I got the crossmember brackets all welded into place, and painted it all up. Very happy with this.
    Now to chop off the last part. The trans crossmember brackets. The fuel and brake lines above it make it sketchy...
    @1uzrnr let me borrow his plasma again, and that makes it go quick.
    This is as close to the fuel lines as I wanted to get with the plasma cutter...
    And now my favorite part again! Grinding :angrygirl:

    Last edited: Jan 21, 2017
  9. Jan 21, 2017 at 6:20 PM
    #969
    allenfab

    allenfab I hate everything

    Joined:
    Oct 23, 2014
    Member:
    #140913
    Messages:
    2,319
    Gender:
    Male
    First Name:
    Todd
    Lakeland, FL
    Vehicle:
    95 Tacoma Single Cab 3.4 V6
    3-link SAS, Detroit's f/r, 37 RAZR's, Atlas 4
    That stock trans crossmember is a bitch to get all trimmed and ground off. That's about as close as I got on the one I am doing too.

    Looks like your build is going about as fast as mine as well haha

    Last edited: Jan 21, 2017
    bullaculla [OP] likes this.
  10. Jan 21, 2017 at 6:44 PM
    #970
    bullaculla

    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,158
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K
    Cool! What did you do for a crossmember?

  11. Jan 21, 2017 at 7:15 PM
    #971
    allenfab

    allenfab I hate everything

    Joined:
    Oct 23, 2014
    Member:
    #140913
    Messages:
    2,319
    Gender:
    Male
    First Name:
    Todd
    Lakeland, FL
    Vehicle:
    95 Tacoma Single Cab 3.4 V6
    3-link SAS, Detroit's f/r, 37 RAZR's, Atlas 4
    Nothing yet. Waiting for the owner of the truck to decide what he is doing for the transfer case setup (crawl box with FJ case, Atlas, etc..) before I start that part yet. I think he is leaning toward the crawl box option so if that happens, I will just build a crossmember that utilizes the stock mount on the bottom of the transmission plus the one on the crawl box.

  12. Jan 21, 2017 at 10:30 PM
    #972
    bullaculla

    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,158
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K
    I think the one I have now is temporary also. I want to see how much room I end up with so I can try and design one that clears the links and also uses the stock mount.

  13. Jan 27, 2017 at 10:58 PM
    #973
    bullaculla

    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,158
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K

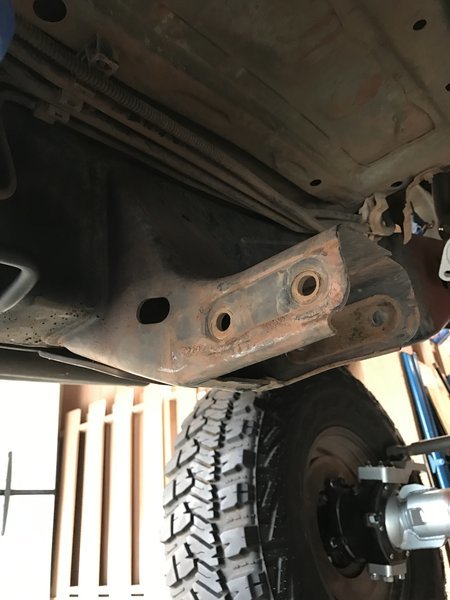

    So I decided to quit being lazy and unclipped the fuel and brake lines, and tied them off as far away as possible. That gave me enough room to plasma off the last top part of the drivers side bracket. But I did manage to destroy 3 of those plastic clips that hold all the lines.
    Then proceeded to finish grinding off all the welds.
    Now I finally can get to tacking up all the link brackets and check for clearance and binding.
    Getting there!

    Nate87, sawjai526, Pirhett and 5 others like this.
  14. Jan 28, 2017 at 12:21 AM
    #974
    rka

    rka PAVEMENT PRINCESS

    Joined:
    Feb 21, 2013
    Member:
    #98064
    Messages:
    879
    Gender:
    Male
    First Name:
    Rylan
    H A W A I I
    Vehicle:
    2013 SPORT DCLB
    100% Stock
    TFTI

    lemon177 likes this.
  15. Jan 28, 2017 at 12:29 AM
    #975
    bullaculla

    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,158
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K
    How's your cheeks? :laughing:

  16. Jan 28, 2017 at 12:39 AM
    #976
    rka

    rka PAVEMENT PRINCESS

    Joined:
    Feb 21, 2013
    Member:
    #98064
    Messages:
    879
    Gender:
    Male
    First Name:
    Rylan
    H A W A I I
    Vehicle:
    2013 SPORT DCLB
    100% Stock
    That has nothing to do with grinding. :anonymous:

  17. Jan 28, 2017 at 7:34 PM
    #977
    bullaculla

    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,158
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K

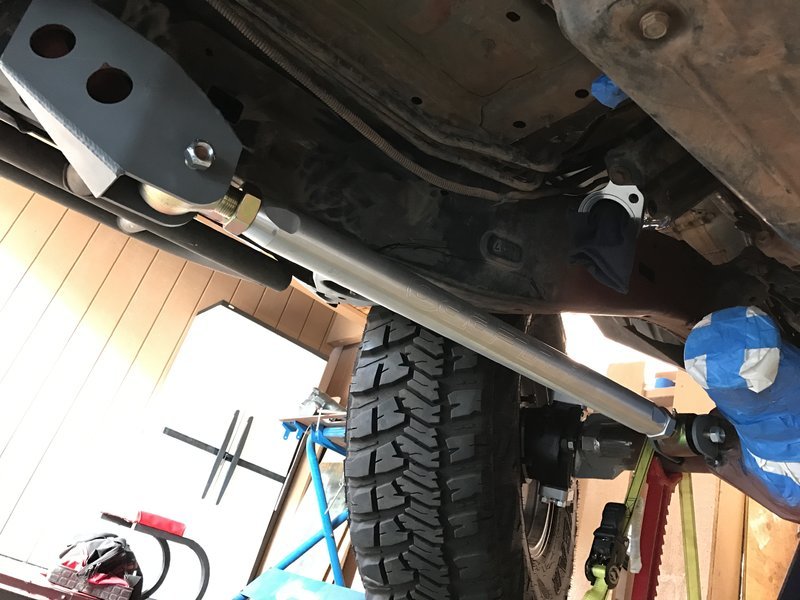

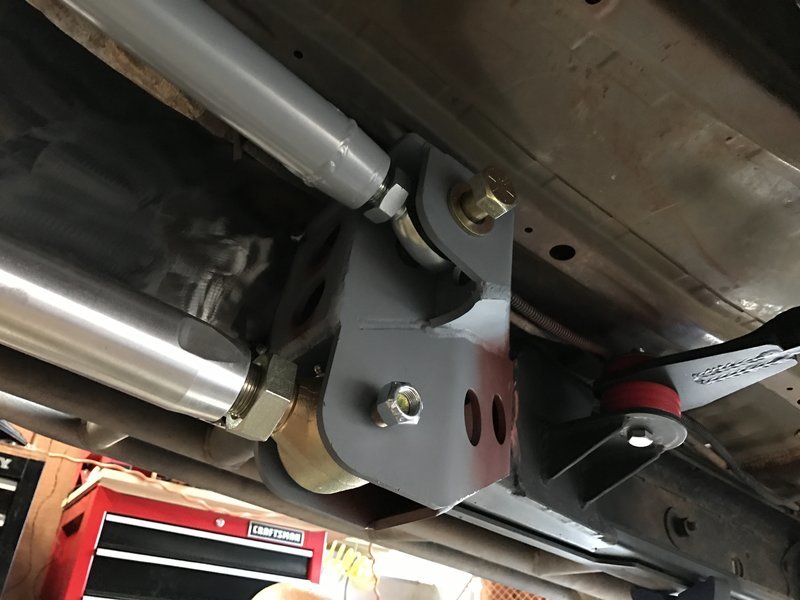

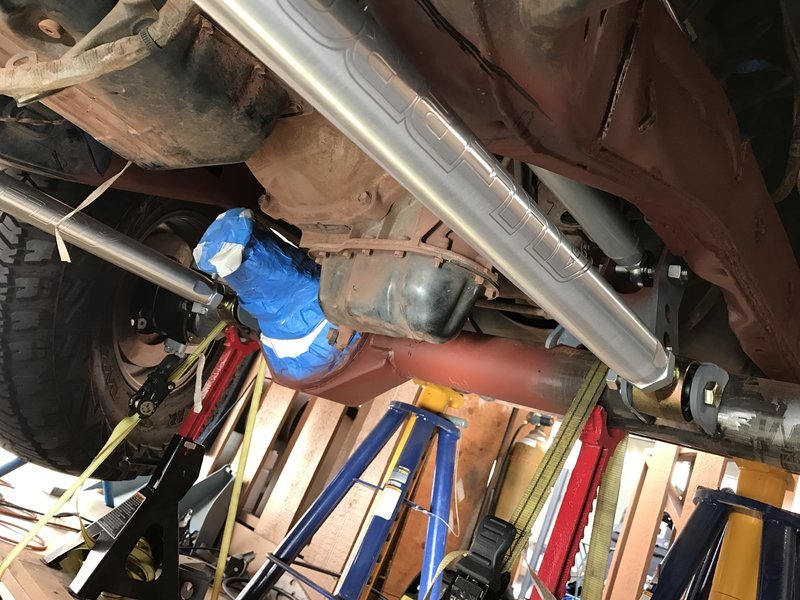

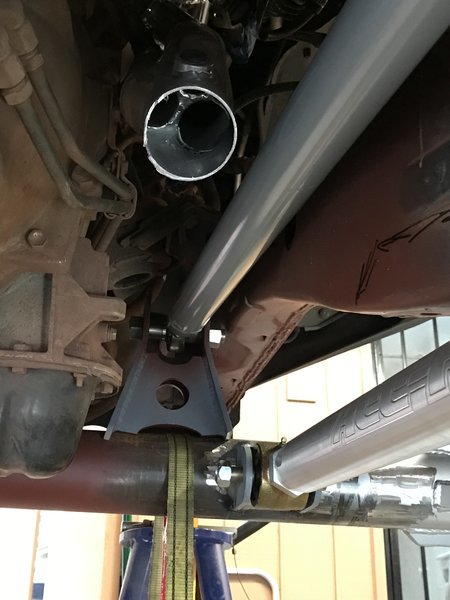

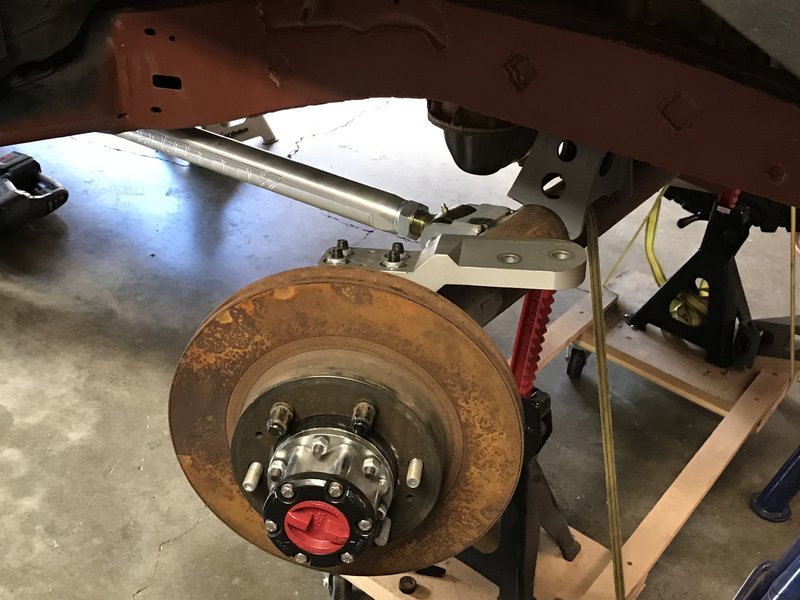

    Just tacked a few brackets into place according to all pros specs. Might have to move a little forward, but we'll try and make it work. Need to mount steering box to see how much room got up front.
    The link brackets are very nice.
    2" diameter solid 7075 aluminum lower links. Had to cut off the flange off my brand new Doug thorley headers :(
    Still need to notch the inside corner of the frame so the links can come up a little more. Also gotta trim the top link bracket on the axle. This is nearly as high as it will go right now, but I want to get it up a couple more inches.

    Last edited: Jan 29, 2017
  18. Feb 2, 2017 at 1:51 PM
    #978
    bullaculla

    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,158
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K

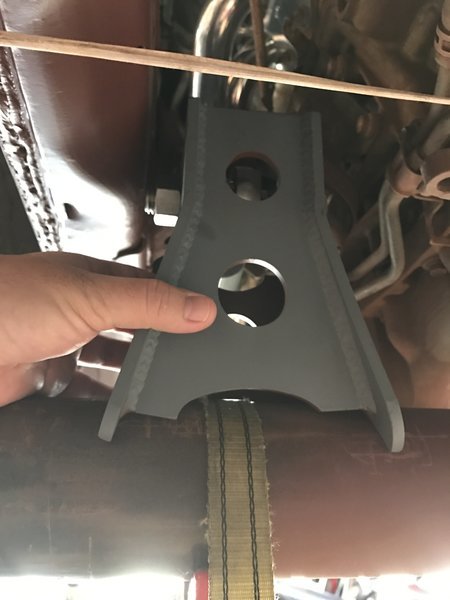

    So as you can see here, the passenger side top link bracket they gave me is enormous...
    I can trim it to get it to stuff a little more, but when the drivers side tire drops, the top of the bracket will swing into the engine.
    So the plan is to remove a strip from the middle, plug the extra bolt holes above it and trim as much as possible.

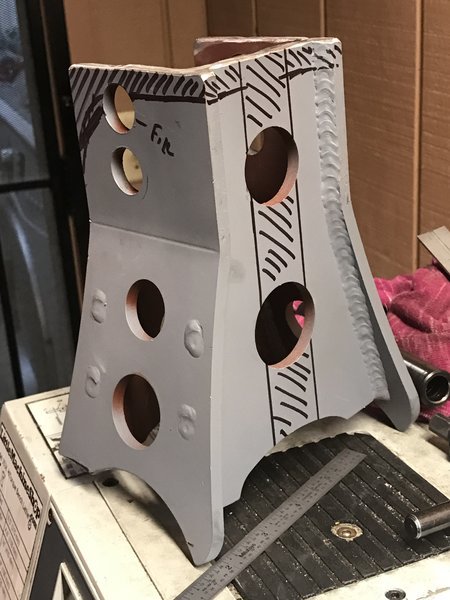

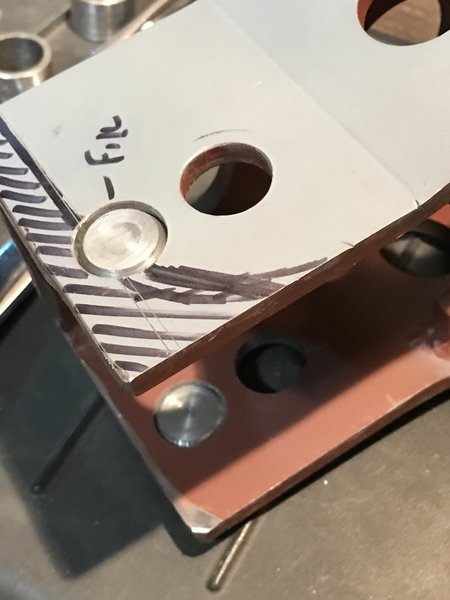

    I made some steel slugs, 45 degree chamfer on both sides, with a 1/16" landing in the middle. It's about 0.010" thicker than the bracket so I can grind it flush after it's welded.

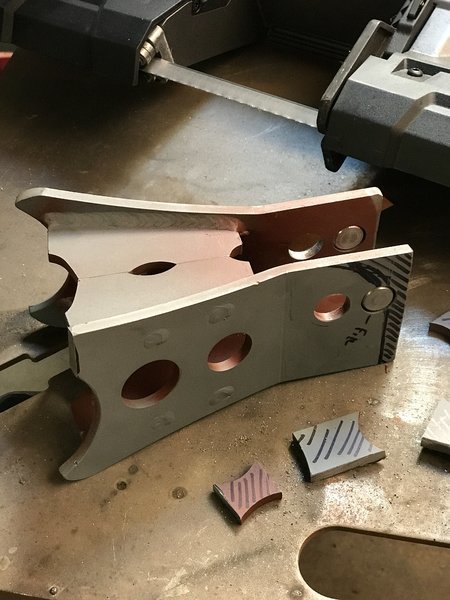

    Here it is after some surgery with the band saw. I will make a 0.010-0.015" oversized dummy spacer to keep the sides parallel during welding. Now I gotta grind some bevels and weld it up. It'll be easy to weld in the plugs while it's apart.
    It's still very beefy, and I'll still need to space the heim joint with some 1/8" spacers. I didn't want to come all the way into the top link heim. Gotta let it have some room to flex
    :cool:

    Last edited: Feb 2, 2017
    ChadsPride, Nate87, polekasta and 7 others like this.
  19. Feb 2, 2017 at 6:27 PM
    #979
    squint0241

    squint0241 OVRLND

    Joined:
    Jan 4, 2014
    Member:
    #119916
    Messages:
    6,861
    Gender:
    Male
    First Name:
    Rick
    Tropics
    Vehicle:
    '14 DCSB/Off-Road 4X4
    Bone Stock
  20. Feb 2, 2017 at 8:49 PM
    #980
    1999RegCab

    1999RegCab Well-Known Member

    Joined:
    Apr 4, 2014
    Member:
    #127007
    Messages:
    1,363
    Gender:
    Male
    Cacti Land, AZ
    Vehicle:
    1999 Reg Cab, 2.7, 5 speed
    3-link SAS
    good surgery on that bracket.

    if it doesn't work see if you can get one from Ruff Stuff or Ballistic Fabrication. I bet they can do a custom one if you give them measurements.

    But it seems like what you did will work.

    I ended up not using my upper link tower. Instead, a custom truss was built covering the D60 pumpkin, tall enough to create enough vertical separation between the upper and lower link. On top of the truss we welded regular tabs to hold a heim joint in place.

    Last edited: Feb 2, 2017
    bullaculla [OP] likes this.
