The Bullaculla 3 link SAS build (pic heavy)

Discussion in '2nd Gen. Builds (2005-2015)' started by bullaculla, Sep 2, 2013.

Page 50 of 93
  1. Feb 5, 2017 at 10:57 AM
    #981
    bullaculla

    #981
    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,155
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K

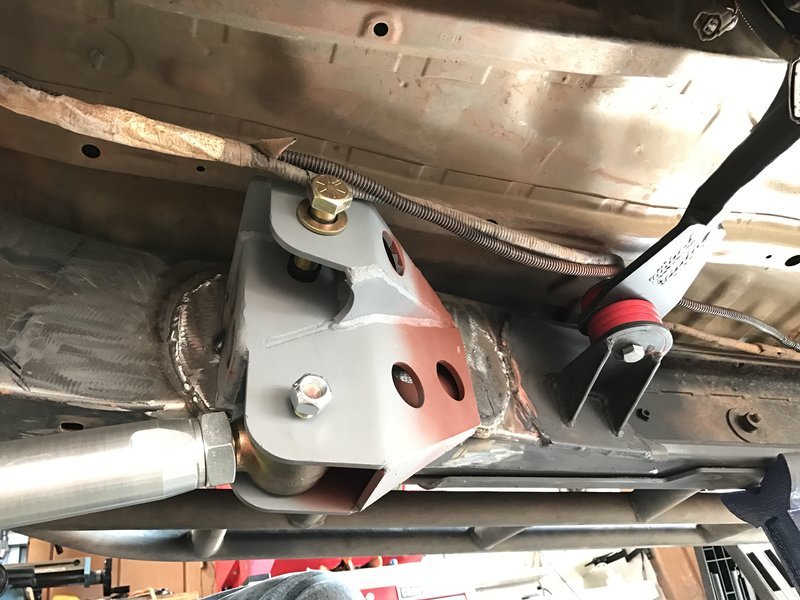

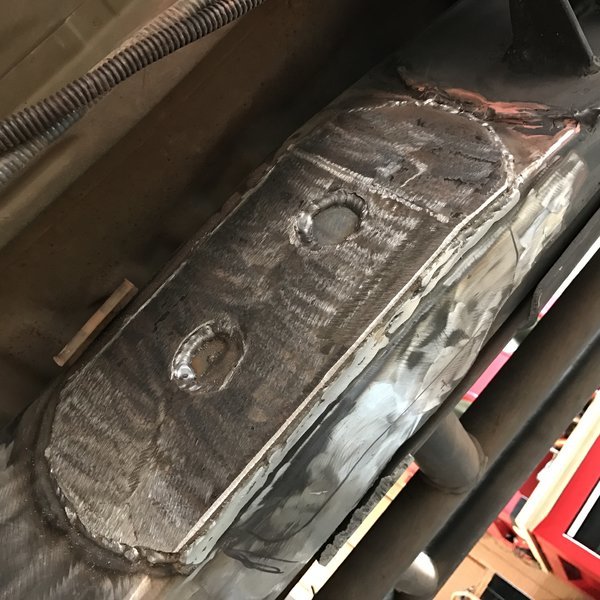

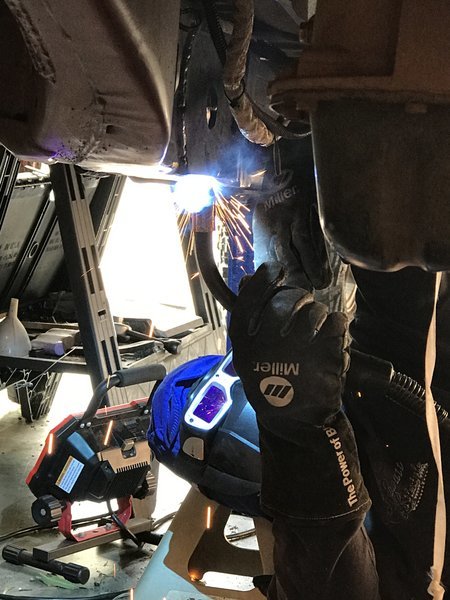

    So we made and welded in some frame plates to back the link brackets that get welded to the frame. A lot of the frame sections consist of 2-3 layers of thin sheet metal, so @EddyRRT suggested that I plate the frame first. So thanks again for the heads up Eddy :)
    It's 3/16"steel. You can see the slight bend in the frame, and so the plate had to be bent to conform to it.
    looks good, and less chance of cracking the frame. I just wish I had the foresight to plate this so I could have made just one long plate for the crossmember brackets and the link brackets...

    Last edited: Feb 5, 2017
    bullaculla, Feb 5, 2017
    #981
    ChadsPride, tx novice, Nate87 and 8 others like this.
  2. Feb 5, 2017 at 11:03 AM
    #982
    kh7nm

    #982
    kh7nm Stay Boosted

    Joined:
    Nov 1, 2011
    Member:
    #66227
    Messages:
    4,235
    Gender:
    Male
    First Name:
    Miles
    Ewa Beach, Hawaii
    Vehicle:
    2011 MGM DC 4x4 TX PRO Off Road
    What have you done to your truck lately
    Need little more detail please? What polarity did you use:rofl:

    kh7nm, Feb 5, 2017
    #982
  3. Feb 5, 2017 at 11:03 AM
    #983
    Papa Taco

    #983
    Papa Taco HARD CAAAAAAARRRRRRRL

    Joined:
    Feb 20, 2013
    Member:
    #98004
    Messages:
    8,868
    Gender:
    Male
    First Name:
    Jared
    Socal
    Vehicle:
    2011 Access Cab 4x4 6 Speed
    Follow the yellow brick road
    Sub'd for truck porn

    Papa Taco, Feb 5, 2017
    #983
  4. Feb 5, 2017 at 11:09 AM
    #984
    bullaculla

    #984
    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,155
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K
    Correct polarity :welder:

    bullaculla, Feb 5, 2017
    #984
    Vigo, SOS CONCEPTS and kh7nm[QUOTED] like this.
  5. Feb 5, 2017 at 3:50 PM
    #985
    bullaculla

    #985
    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,155
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K
    Welding time! All on my own today...
    Gonna finish up the top link axle bracket.
    I did a double bevel on both sides for full penetration, but didnt get pics...
    Ground these flat after.
    Had some 1.375" diameter 6061 aluminum laying around, so I made a spacer to hold the two sides together and parallel. Largest drill I had was 5/8", so I had to use a boring bar to get the ID to 3/4".
    Didn't get a pic of it all fit up before welding. Got in the groove and forgot to take pics.
    Laying out the radius with a hermaphrodite caliper.
    Done! All primed up!
    IMG_0222.jpg IMG_0221.jpg
    I'll put it back on the axle as soon as it dries and and check the fit again.

    Last edited: Feb 5, 2017
    bullaculla, Feb 5, 2017
    #985
    SnowroxKT, Pirhett, ChadsPride and 11 others like this.
  6. Feb 5, 2017 at 4:04 PM
    #986
    kh7nm

    #986
    kh7nm Stay Boosted

    Joined:
    Nov 1, 2011
    Member:
    #66227
    Messages:
    4,235
    Gender:
    Male
    First Name:
    Miles
    Ewa Beach, Hawaii
    Vehicle:
    2011 MGM DC 4x4 TX PRO Off Road
    What have you done to your truck lately
    Hi iven :cheers:

    kh7nm, Feb 5, 2017
    #986
    bullaculla[OP] likes this.
  7. Feb 5, 2017 at 5:33 PM
    #987
    kumz

    #987
    kumz Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #103998
    Messages:
    563
    Gender:
    Male
    looking good! hermaphrodite caliper sounds like fun :anonymous:

    kumz, Feb 5, 2017
    #987
    squint0241 and Vigo like this.
  8. Feb 5, 2017 at 6:54 PM
    #988
    bullaculla

    #988
    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,155
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K
    Goes both ways ;)

    bullaculla, Feb 5, 2017
    #988
    kumz[QUOTED] likes this.
  9. Feb 5, 2017 at 7:06 PM
    #989
    bullaculla

    #989
    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,155
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K
    Here it is in place. Hard to tell, but now it can come up another 2", and when the drivers side tire drops, the bracket will have room to swing to the side.

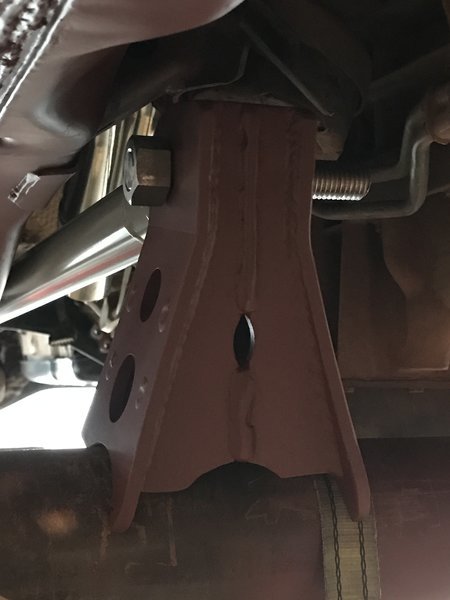

    Before:

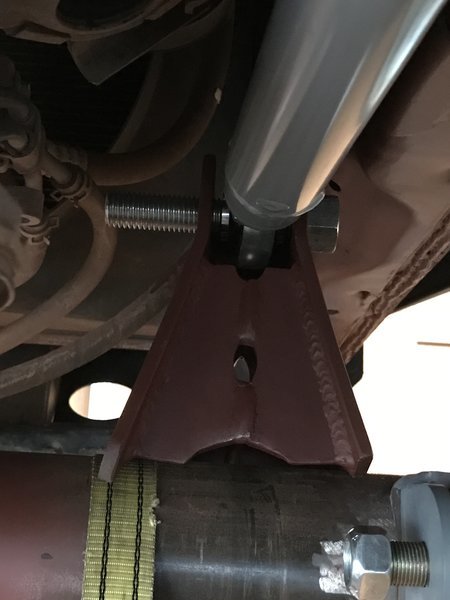

    After:
    And no, that bolt will not be used :laughing:

    Last edited: Feb 5, 2017
    bullaculla, Feb 5, 2017
    #989
    ChadsPride, Neutral, squint0241 and 11 others like this.
  10. Feb 5, 2017 at 7:38 PM
    #990
    hirod

    #990
    hirod Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105540
    Messages:
    1,245
    Gender:
    Male
    hawaii
    Vehicle:
    16 double cab short bed OR
    Hey!

    hirod, Feb 5, 2017
    #990
    Vigo, kh7nm[QUOTED] and bullaculla[OP] like this.
  11. Feb 6, 2017 at 2:56 PM
    #991
    R09ster

    #991
    R09ster Well-Known Member

    Joined:
    Apr 6, 2013
    Member:
    #101482
    Messages:
    625
    Gender:
    Male
    First Name:
    Josh
    OK
    Vehicle:
    06 SSM DCSB TRD Sport
    debadged, Bilstein 5100 all around (fronts at 1.75" sport coils), Skyjacker softride 1.5" AAL, Firestone Ride Right Airbags, 17X8.5 Method NVs, 285/70/r17 Falken Wildpeak AT3W, US Offroad hidden winch mount, grillcraft grill, Sypder Auto projector headlights, blackedout LED taillights, bed extender, bedrack w/CVT Mt Shasta tent,
    Sweet progress!

    R09ster, Feb 6, 2017
    #991
  12. Feb 6, 2017 at 9:07 PM
    #992
    bullaculla

    #992
    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,155
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K

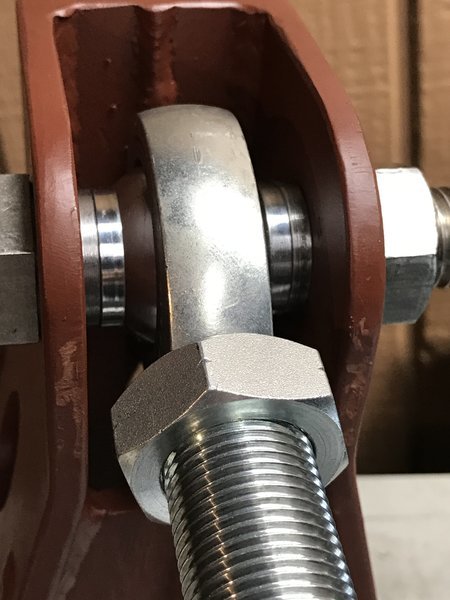

    Made the spacers for the top link axle bracket.

    bullaculla, Feb 6, 2017
    #992
    ChadsPride, tx novice, squint0241 and 3 others like this.
  13. Feb 6, 2017 at 11:06 PM
    #993
    polekasta

    #993
    polekasta Well-Known Member

    Joined:
    Oct 20, 2011
    Member:
    #65504
    Messages:
    1,396
    Gender:
    Male
    Wahiawa, Oahu, Hawaii
    Vehicle:
    06 4x4 long bed
    add a leaf, Bilstein 5100's
    So you think it'll be done in time for a March camp-out?

    polekasta, Feb 6, 2017
    #993
  14. Feb 6, 2017 at 11:10 PM
    #994
    bullaculla

    #994
    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,155
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K
    I doubt it. Still so much left to do to get it running even once the SAS is complete.

    bullaculla, Feb 6, 2017
    #994
  15. Feb 6, 2017 at 11:12 PM
    #995
    polekasta

    #995
    polekasta Well-Known Member

    Joined:
    Oct 20, 2011
    Member:
    #65504
    Messages:
    1,396
    Gender:
    Male
    Wahiawa, Oahu, Hawaii
    Vehicle:
    06 4x4 long bed
    add a leaf, Bilstein 5100's
    Darn, so you would have to use your wife's 4runner then...:D

    polekasta, Feb 6, 2017
    #995
  16. Feb 6, 2017 at 11:17 PM
    #996
    bullaculla

    #996
    bullaculla [OP] IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,155
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K
    Meh. I'll just take the 5 lug taco and show you guys how.

    bullaculla, Feb 6, 2017
    #996
    lemon177, tx novice, squint0241 and 4 others like this.
  17. Feb 6, 2017 at 11:18 PM
    #997
    polekasta

    #997
    polekasta Well-Known Member

    Joined:
    Oct 20, 2011
    Member:
    #65504
    Messages:
    1,396
    Gender:
    Male
    Wahiawa, Oahu, Hawaii
    Vehicle:
    06 4x4 long bed
    add a leaf, Bilstein 5100's
    :rofl::rofl:

    polekasta, Feb 6, 2017
    #997
  18. Feb 7, 2017 at 12:00 AM
    #998
    Mudman

    #998
    Mudman Well-Known Member

    Joined:
    Dec 5, 2010
    Member:
    #47201
    Messages:
    625
    Gender:
    Male
    Cerritos
    Vehicle:
    08 4X4 TRD Sport
    This is one badass project!

    Mudman, Feb 7, 2017
    #998
    bullaculla[OP] likes this.
  19. Feb 7, 2017 at 9:47 AM
    #999
    PupuleUlua

    #999
    PupuleUlua Well-Known Member

    Joined:
    Jun 25, 2012
    Member:
    #81340
    Messages:
    266
    Gender:
    Male
    First Name:
    Rod
    Honolulu
    Vehicle:
    2011 MGM TRD Sport DCSB 4x4
    Looking MEAN Iven! Can't wait to see the end result and when are you converting the 4runner?

    PupuleUlua, Feb 7, 2017
    #999
    bullaculla[OP] likes this.
  20. Feb 7, 2017 at 11:54 AM
    #1000
    Boomkanani

    #1000
    Boomkanani Well-Known Member

    Joined:
    Nov 7, 2015
    Member:
    #168939
    Messages:
    997
    Gender:
    Male
    First Name:
    Mike
    Goldsboro, NC
    Vehicle:
    2009 TRD OffRoad DCSB - 6 Speed
    Some stuffz
    When are you opening up a local shop so I can get my taco SAS? :D

    Boomkanani, Feb 7, 2017
    #1000
    bullaculla[OP] and seoulja99 like this.
