The Getaway...Crom's build and adventures

Discussion in '2nd Gen. Builds (2005-2015)' started by Crom, Feb 11, 2015.

Thread Status:
Not open for further replies.
  1. Mar 23, 2016 at 5:11 PM
    #1561
    Acerwin

    Acerwin The unNORM NORM

    Joined:
    Nov 20, 2014
    Member:
    #142732
    Messages:
    32,739
    Gender:
    Male
    First Name:
    Andrew
    South Carolina
    Vehicle:
    Toyota Tundra
    Just can't get better than this build.

    RogueTRD and Crom [OP] like this.
  2. Mar 23, 2016 at 8:32 PM
    #1562
    samiam

    samiam Always here, never there

    Joined:
    Apr 7, 2011
    Member:
    #54533
    Messages:
    3,154
    Gender:
    Male
    First Name:
    Sam
    Stinky Vegas
    Vehicle:
    2008 TRD OR DCSB 4.0 6MT 1E7 Alu Cab
    Workin' on Workin' on it
    I am now thinking about taking on this OBA project with my Viair 450.

    G.T. likes this.
  3. Mar 24, 2016 at 2:50 PM
    #1563
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,508
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Thanks so much!

    Go for it! Once mounted, it saves a ton of time. I aired up my wife's car tires 4 PSI in (4) seconds. lol

    I'm going to list some of the parts and prices that I used in the project, it may be useful...

    Acerwin likes this.
  4. Mar 24, 2016 at 2:53 PM
    #1564
    Over da Hill

    Over da Hill "Roads...where we're going we don't need roads"

    Joined:
    Jan 2, 2015
    Member:
    #145416
    Messages:
    4,487
    Gender:
    Male
    First Name:
    Johnny
    SoCal
    Vehicle:
    15 Black Taco 4WD DC SB SC
    Supercharger, Icon stage 3 suspension, Pelfreybilt Armor, All-Pro Sliders & Leaf Pack, 17 inch Black Rhino Sidewinder wheels, 33 inch Toyo tires, Rigid Lighting, SPod,
    Nice work on the OBA!

    Crom [OP] likes this.
  5. Mar 24, 2016 at 3:01 PM
    #1565
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,508
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    I used 3/8" Flexzilla air hose to go from the compressor to the back of the truck.

    Cost was negligible between the two size choices.

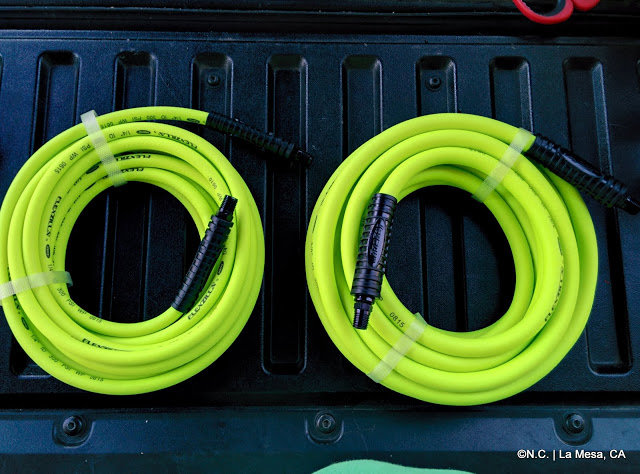

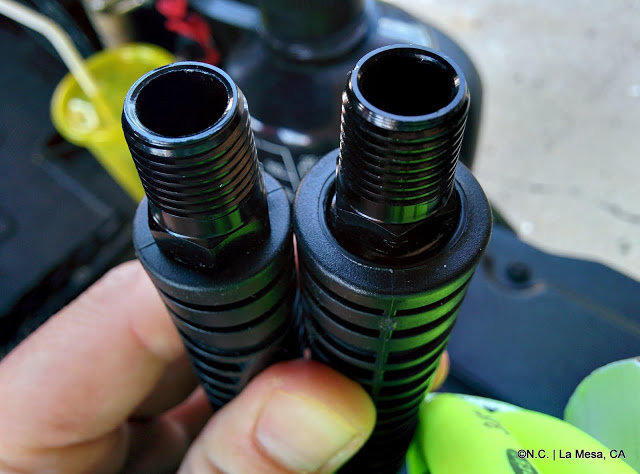

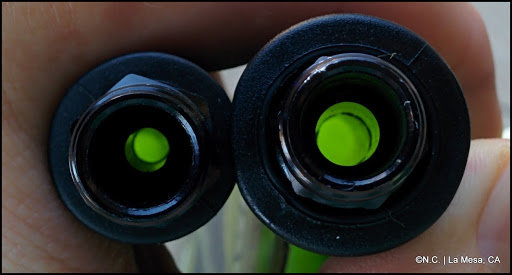

    1/4" left vs 3/8" right.

    The connectors are both 1/4" NPT. Won't that slow down the 3/8" air hose?

    Not a chance. I don't fully understand the NPT sizing circus, but if you look inside the connectors, the air passage way is substantially larger for 3/8. Furthermore if you do the old-school-huff-and-puff test, there is a lot more resistance blowing through 25' of 1/4" hose vs. 3/8".

    I have no plans to ever run a tank, but if I did, 3/8" would be mandatory in my book. Anyways, I used 3/8" hose in my project for running along the frame rail.

    For airing up the tires, I use the 1/4" sized hose since it does the job and it's lightweight.

    Last edited: Sep 15, 2016
    xsf18cdf and nfs257 like this.
  6. Mar 24, 2016 at 3:19 PM
    #1566
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,508
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    This is a picture of my initial test connection.

    I like this brand air hose, but I wasn't about to be showing lime green anywhere on the truck, so I wrapped about 24" of air hose end with dry vinyl tape, finished the ends with regular automotive electrical vinyl tape.

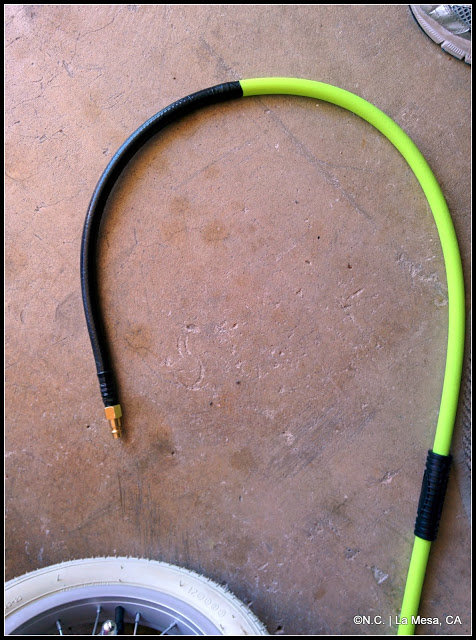

    The end of the air hose pictured below is the one that connects to the quick disconnect fitting on the back of the cab.

    All you see is a black hose if you look at the truck.

    Hose runs between composite bed and frame, then tucks into the frame rails and through cross members to the rear of the truck, then it sweeps 90° above the factory hitch all the way to the passenger side where it's secured with velcro or zip tie.

    I connected it to the passenger side, so when I get aftermarket bumper, reconfiguring the air hose is an easy task. Plus I like exhaust. o_O :rolleyes:

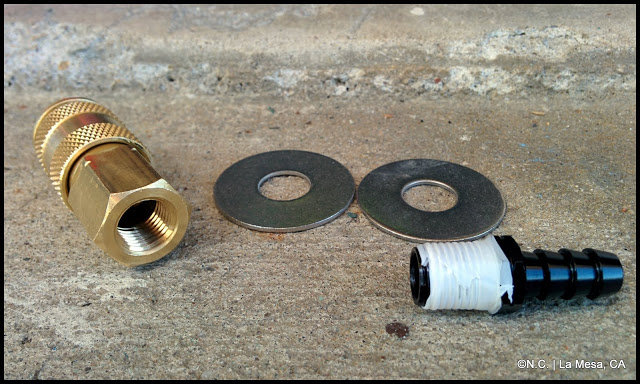

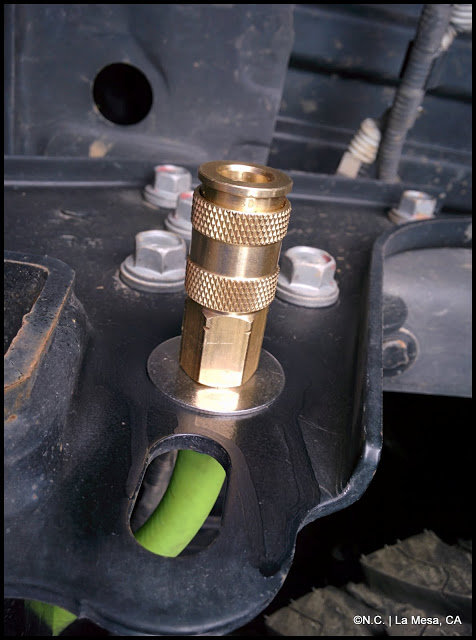

    To mount the final quick disconnect and finish the hose, like many before me, I drilled a 1/2" hole in the tow hitch.

    I cut the hose to length, recovered the air fitting from the excess hose. Then grabbed some 1/2" stainless washers. I spray painted the fresh hole I drilled.


    Then assembled.


    Used size 4 stainless worm clamp with red lock tight in the screw.

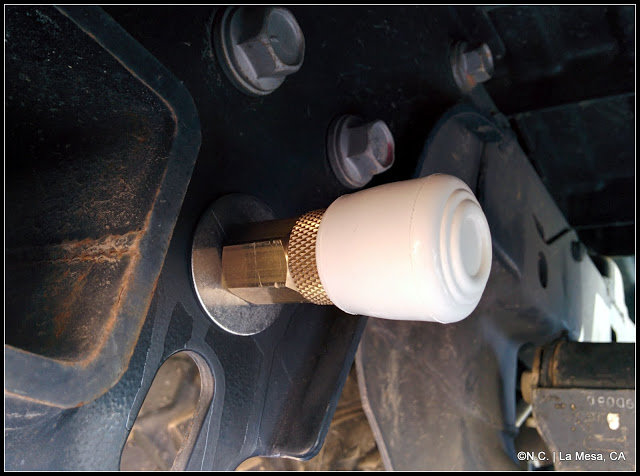

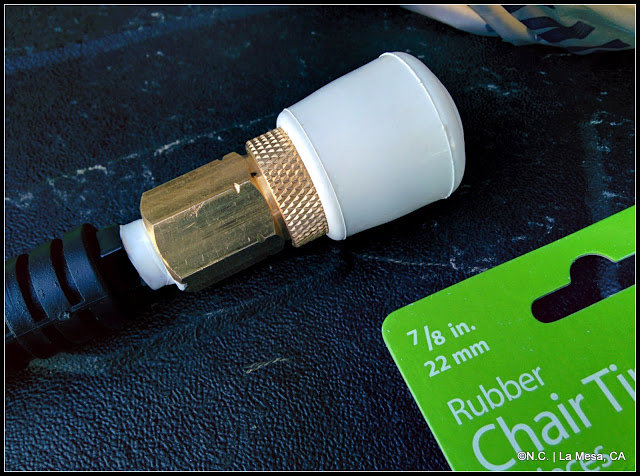

    I found these rubber chair ends to protect the air disconnect.

    Finished end, ready for business.

    No air leaks, tested to 150 PSI.

    ETAV8R, kgarrett11, Pirhett and 9 others like this.
  7. Mar 24, 2016 at 3:40 PM
    #1567
    PerfectTekniq

    PerfectTekniq I'm undefeated in the UFC.

    Joined:
    Feb 22, 2011
    Member:
    #51683
    Messages:
    9,945
    Gender:
    Male
    First Name:
    Pepe Silvia
    Claremont, CA
    Vehicle:
    2009 Super White 4x4 DC SB Sport
    AllPro Front, AllPro Rear w/ wraps, AllPro IFS Skid, 5100 w/ 885's upfront, Duratracs, Front Superbumps, BuiltRight UCAs, Dakar Leaf Pack, Extended 5100's, AllPro Flip Kit, Rear Superbumps, Extended SS brake lines WeatherTech Floormats, TRD Intake, ScanGaugeII, TRD SoCal, Grillcraft, Wet Okoles, Cobra 75 w/ 4' whip
    Nominated for Best Documented Build Thread.
    I could watch this unfold on a TV show.

  8. Mar 24, 2016 at 3:55 PM
    #1568
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,508
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    On the electrical side, the air compressor is completely controlled by a $0.25 switch I had, plus a $15 80-Amp relay I bought. By design I only wanted my air compressor to run if the truck is running, which is why I tapped the ignition circuit for +12v.

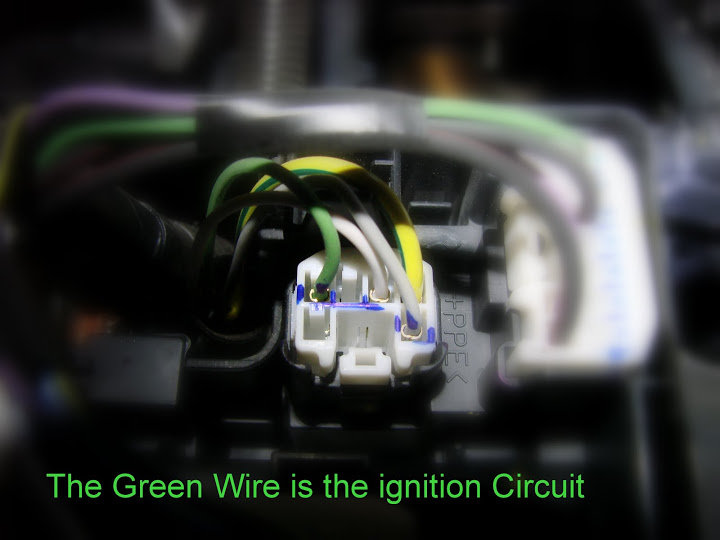

    Ignition circuit to tap is under the hood fuse block.
    98LvtyeWhPbOFiubB9EP5_t_AyDMrXXGeExWNz7o_d20ce0d0dd705f3a788f0b9ea29e1b35fdcfb64f.jpg

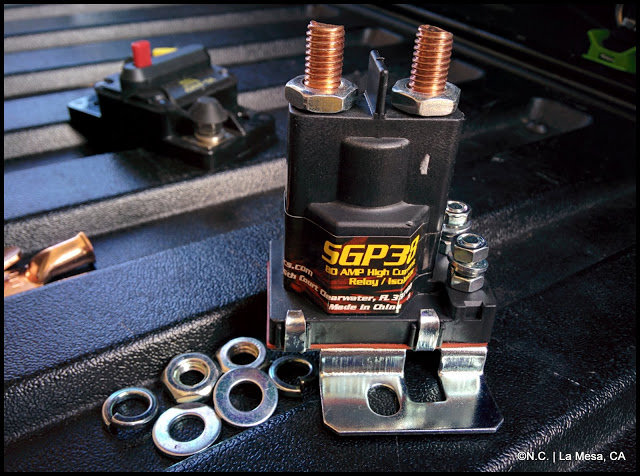

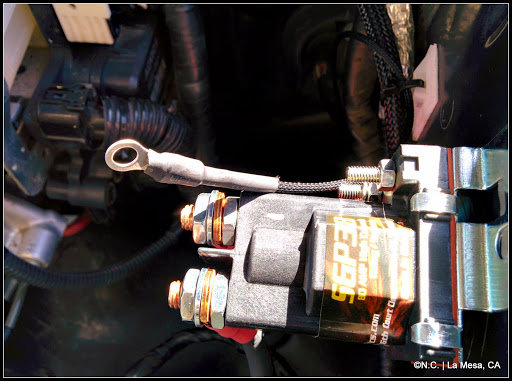

    Here it is mounted in the engine bay. I took advantage of a factory hole in the engine room wall, it was M8 1.25.

    Hole is on the bottom of relay, top is held on by 3M super strength molding tape.

    (no picture) I wrapped the 5/16" exposed lugs with dry vinyl tape to protect them, and then covered that with 1/2" split loom held on by zip tie. It looks stupid, hence no pic, but it's very effective! :thumbsup: lol

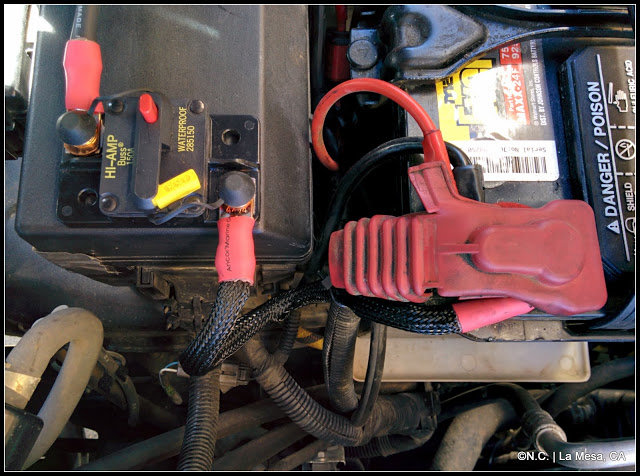

    I used a Bussman circuit breaker to protect wiring.

    And unfortunately, the top nut on my factory positive battery terminal clamp is so tight, that it spins the captured bolt below, so I had to piggy back onto the terminal bolt to finish this project. I'm now going to have to shop for a replacement. :(

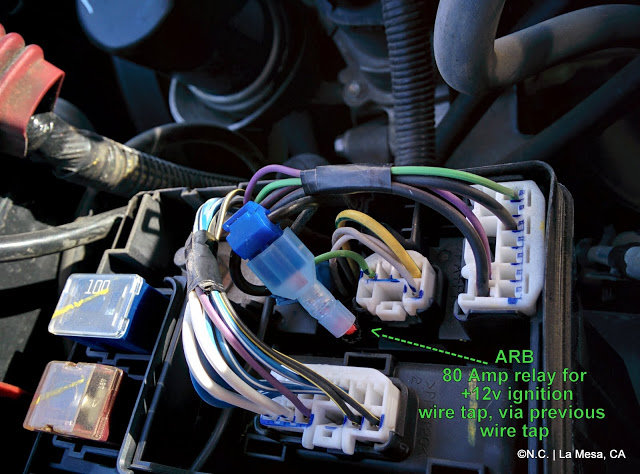

    For the relay control, I tapped a wire which was a tap to another. It gets +12 via the green ignition wire. (also pictured above)

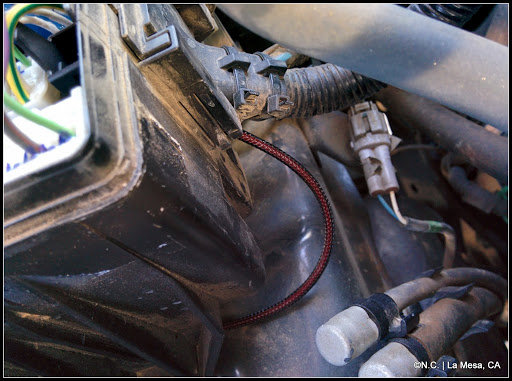

    Easy to sneak wire up into the fuse box by following the main factory wiring.

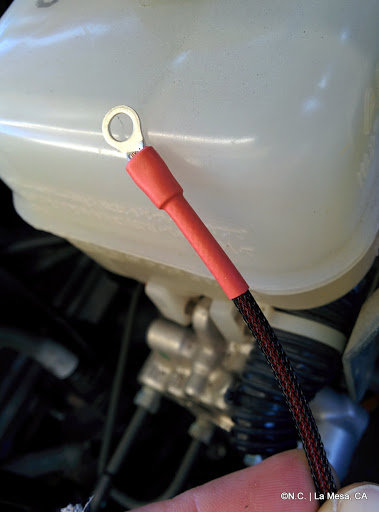

    Finished end that provides +12v, attaches to relay. Only hot when truck is running.

    Finished ground wire, connected to switch inside cab, and relay control.

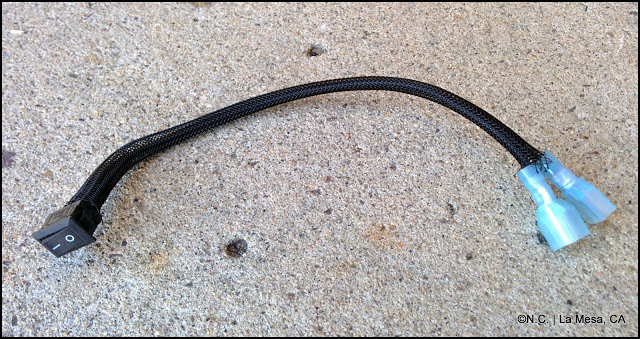

    Switch harness. When switch is closed, it grounds the relay and current will flow to the compressor. Stupid simple--just the way I wanted it.


    Final location of switch on the left for compressor switch, and all my other mod switches.

    Last edited: Sep 1, 2016
    RogueTRD, Pirhett, Leppz and 7 others like this.
  9. Mar 24, 2016 at 3:56 PM
    #1569
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,508
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    This is about how I feel right now. :D :D :) :taco::taco::taco::taco::taco:

    kgarrett11, Pirhett, Leppz and 6 others like this.
  10. Mar 24, 2016 at 4:10 PM
    #1570
    scocar

    scocar Prebunking

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    37,029
    Nice. I've been wondering how folks protect the internals of a quick-disconnect fitting from filth exposure under the truck. I love it when I find random crap at Home Depot that works perfectly.

    Crom [OP] likes this.
  11. Mar 24, 2016 at 5:34 PM
    #1571
    Drainbung

    Drainbung Somedays you are the show....

    Joined:
    Sep 2, 2010
    Member:
    #42629
    Messages:
    8,204
    Gender:
    Male
    First Name:
    Bob
    Fallabama, NV
    Vehicle:
    10 DCLB
    TRD Fleshlight
    The major difference with NPT is that the thread is tapered.

    Crom [OP] likes this.
  12. Mar 24, 2016 at 8:39 PM
    #1572
    samiam

    samiam Always here, never there

    Joined:
    Apr 7, 2011
    Member:
    #54533
    Messages:
    3,154
    Gender:
    Male
    First Name:
    Sam
    Stinky Vegas
    Vehicle:
    2008 TRD OR DCSB 4.0 6MT 1E7 Alu Cab
    Workin' on Workin' on it
    I just told the wife that I will be starting a new project...ooops! If looks could kill.:eek:
    Thanks for the parts list and other stuff. It will be useful.
    I was curious where the line would terminate. Now I see.
    Thanks for sharing all your hard work. I wish I could be so detailed.:thumbsup:

    nfs257 and Crom [OP] like this.
  13. Mar 24, 2016 at 9:37 PM
    #1573
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,508
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    OBA Parts List, for hard mounting the compressor.

    Air / mount side:


    Electrical side:


    Stuff I already had:

    • 1/2" Ancor Marine red heat shrink tubing
    • 1/2" Ancor Marine black heat shrink tubing
    • Insulated female slide connectors.
    • Split wire loom
    • Solder
    • Red lock tite
    • Ring terminals for 16-22 AWG.
    • Insulated butt splice connectors for 10 AWG.
    • Tsunami Mini ANL fuse holder.
    • Grommets used as vibration isolators on air compressor mounting plate.
    • Self stick foam to insulate between alum plate and cab mounting brace

    Last edited: Mar 25, 2016
  14. Mar 24, 2016 at 10:06 PM
    #1574
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,508
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions

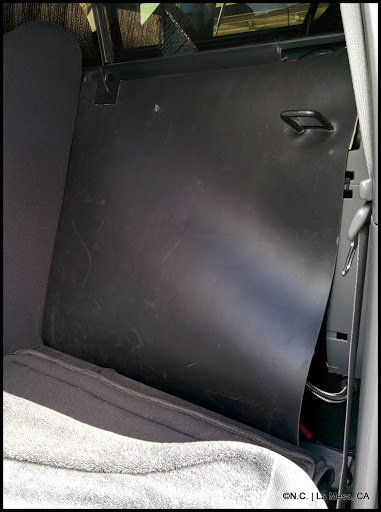

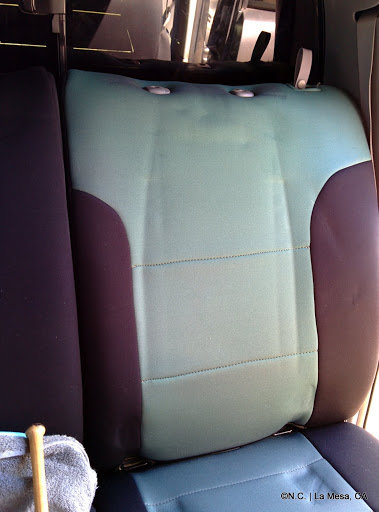

    Air compressor is installed behind this seat back.


    Behind the seat is a layer of mass loaded vinyl (MLV) sound barrier I hung as a last minute finishing touch on install. This was after carefully studying the air passageways back in there. I theorized it would be fine for the compressor for short bursts of filling the tires. The compressor has a fan that pulls air in from the bottom and blows it over the manifold and out the top. There is a 2"x2" hole that allows fresh air in where the seat back meets the hinge. This space was created when I pulled the plastic bin out. Heat seems to escape just fine out the top.

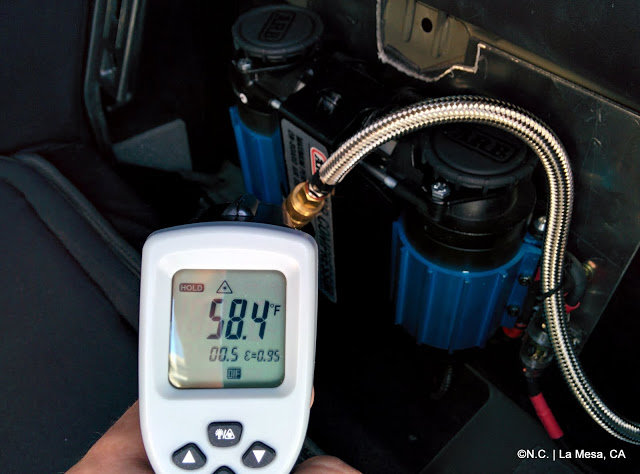

    I measured ambient temperature of 58.4°F

    I then dropped the MLV barrier and put the seat back up. I got my water sprayer ready in case of combustion accident.

    I ran the compressor for ten (10) minutes straight, alternating between load and free flow. I did this with the doors closed.

    After ten minutes, I opened the door and pulled the seat down and lifted the barrier and took these readings.

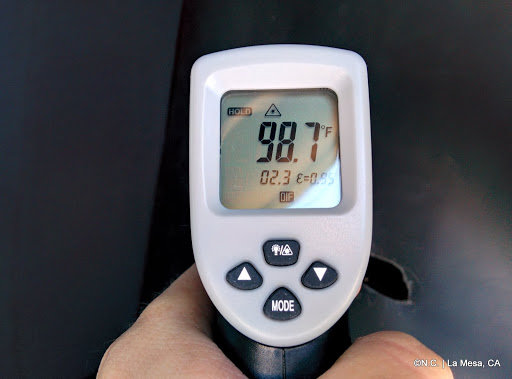

    MLV sound barrier temp 98.7°F

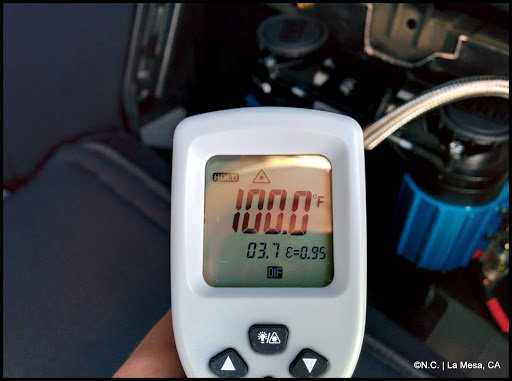

    Ambient temp behind seat 100.0°F

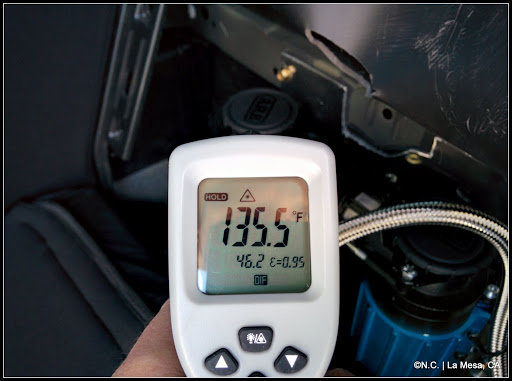

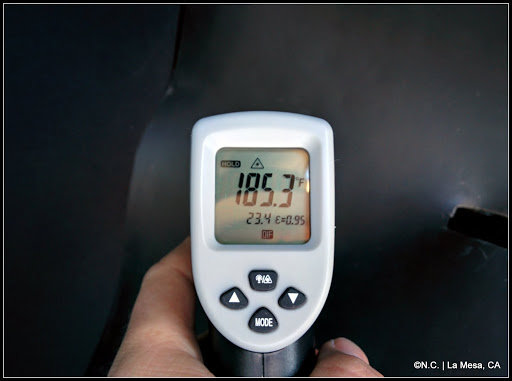

    Plastic air compressor filter housing (disk shaped thing on left) 135.5°F

    The air manifold itself. (not pictured, but it's the metal between the two compressor bodies.) 185.3°F

    I feel this is acceptable for my intended usage of airing up at the end of trails. However, I'll probably repeat this test in the middle of summer when ambient temps are much higher, just to be safe.

    Last edited: Mar 24, 2016
    Pirhett, DrFunker, Drainbung and 2 others like this.
  15. Mar 24, 2016 at 10:39 PM
    #1575
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,508
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    lol Yes the wife looks. I've been getting a rash of it lately. But in her heart she can't be too mad because on the weekend kids were with me for a big part of it, which frees her up to do other things.

    You're welcome. Parts list posted, as much as I could remember, hope it helps.

    I showed my wife the pic of the finished air compressor. She looked at it said "Air Compressor" and walked away. lol She just doesn't care. I could do as ugly as a job as I wanted and it wouldn't even matter to her, as long as it worked, she would care about that. :)

    Thanks!

    Thank you for the complement!

    Yup. Tapered threads. What I meant is if you take a 1/4" air fitting and throw a caliper on it and measure the ID it's like .30", and OD is .50" It just doesn't make any sense to me. :)

    RogueTRD, Leppz, qnyla and 2 others like this.
  16. Mar 25, 2016 at 7:38 AM
    #1576
    samiam

    samiam Always here, never there

    Joined:
    Apr 7, 2011
    Member:
    #54533
    Messages:
    3,154
    Gender:
    Male
    First Name:
    Sam
    Stinky Vegas
    Vehicle:
    2008 TRD OR DCSB 4.0 6MT 1E7 Alu Cab
    Workin' on Workin' on it
    My only concern is overheating.

  17. Mar 25, 2016 at 9:55 AM
    #1577
    DVexile

    DVexile Exiled to the East

    Joined:
    Dec 17, 2014
    Member:
    #144469
    Messages:
    2,238
    Gender:
    Male
    First Name:
    Ken
    Vehicle:
    2015 DCSB V6 TRD OR 4X4
    So I'm not done with my OBA just yet, but I'm taking a slightly different approach. Rather than running a permanent hose to the front or the back where I would then attach another hose to run all the way back past the compressor to the opposite tire I'll just flip the seat forward and connect directly to the pump when airing up (and actually the hose will be stored there already connected). The seat will thus be open while the compressor is running and there should be plenty of cooling. I've got a housing (more of a shroud as it is open on one side) to put the compressor in so that nothing else stored behind the seat can come in contact with hot parts of the compressor.

    None of that will happen until next week at the earliest though, I'll post results in my "not as cool as Crom's" build thread.

  18. Mar 25, 2016 at 10:19 AM
    #1578
    samiam

    samiam Always here, never there

    Joined:
    Apr 7, 2011
    Member:
    #54533
    Messages:
    3,154
    Gender:
    Male
    First Name:
    Sam
    Stinky Vegas
    Vehicle:
    2008 TRD OR DCSB 4.0 6MT 1E7 Alu Cab
    Workin' on Workin' on it
    I like that as well. Thanks.

  19. Mar 25, 2016 at 11:13 AM
    #1579
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,508
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    That's a great idea. Less is more. I'm incredibly envious of those that have immediate access to behind the seats. I've had it up to my eyeballs with kids carseats blocking access. When my kids grow out of them, i secretly want to beat them like they beat the copier in office space. lol

    I'm running 34' of combined air hose, 25' of that is 1/4". The longer air hose isn't necessarily a bad thing, it acts like a mini tank when moving to new tire to air up. Don't get me wrong though, i know it only helps for the first 2-3 seconds...Hose gets pressurized to 150 PSI. I discovered that even without a tank, I can use the compressor with hose to blow dust out the back of the truck. :). An unexpected benefit. :)

    One advantage of having an external air fitting, is if the weather is bad, the family can be inside and doors closed. I'm thinking rain (lol) or more likely strong wind, blowing dust.

    I hope somebody found humor in the memes I added. I think they're hilarious. :D

    Love your build, and excellent build thread, "The Diet Taco Rocks build thread" :thumbsup:

    kgarrett11, RogueTRD and ERMB like this.
  20. Mar 25, 2016 at 2:31 PM
    #1580
    Nate87

    Nate87 Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR
    Great Work as always! Those switches are piling up quick on that dash! Keep up the great work.

    Crom [OP] likes this.
Thread Status:
Not open for further replies.

Products Discussed in

To Top
