    Quick Links: How to: DIY OEM mic retention 2014 Carplay & Android Auto In Dash Nav/DVD/BlueTooth/XM/IPhone SWI JACK install Tuning subwoofer with aftermarket head unit help! 2012 Taco Kenwood 9980HD issues New speakers sound bad

The JBL upgrade they didn't want you to have

Discussion in 'Audio & Video' started by JasonT87, May 21, 2016.

Page 6 of 13
  1. Jul 12, 2016 at 3:54 PM
    #101
    JasonT87

    #101
    JasonT87 [OP] Well-Known Member

    Joined:
    Feb 6, 2016
    Member:
    #177280
    Messages:
    1,016
    Gender:
    Male
    First Name:
    Jason
    Southern California
    Vehicle:
    '16 TRD Sport DCSB
    Total Chaos mid-travel front. JD Fab SUA rear.

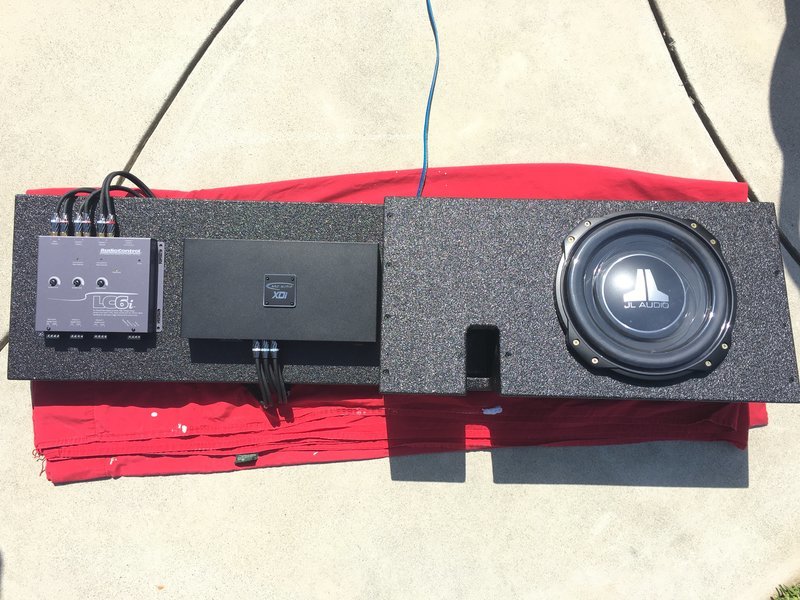

    Mr Marv box is Line-X'd and sub wired and installed. This is a general mock up of the LOC and amp. Nothing screwed in, still trying to figure out where the stock amp will go.


    JasonT87, Jul 12, 2016
    #101
    solscooter and Man of Steel TRD like this.
  2. Jul 12, 2016 at 3:55 PM
    #102
    Man of Steel TRD

    #102
    Man of Steel TRD Ignorance is the new normal

    Joined:
    Mar 1, 2016
    Member:
    #179879
    Messages:
    4,834
    Gender:
    Male
    First Name:
    Jeremy
    Gilbert, AZ
    Vehicle:
    2021 Ram Limited Night Edition, 91 300ZXTT, 90 Toyota Pickup ECLB
    Tow package, LED interior lighting, led low beams, led fog lights, led licence plate lights, OEM bed mat, OEM mud flaps, OEM chrome raised tailgate letter inserts, nerf bars, AVS ventshades. Complete Kicker audio system (4 channel amp, mids and tweets in the front, 2 ways in the back, 2 10 inch comp rt subs, Zxsum8, alpine pdx 1.600 boxes and amp rack by Mr Marv), Pop & Lock, Mobtown locking bed storage doors, Bilstein 5100s, Katzkin Leather interior, Redline Hoodstruts, Backflip.
    That looks awesome Line-X'd!!

    Man of Steel TRD, Jul 12, 2016
    #102
    JasonT87[QUOTED][OP] likes this.
  3. Jul 12, 2016 at 8:53 PM
    #103
    JasonT87

    #103
    JasonT87 [OP] Well-Known Member

    Joined:
    Feb 6, 2016
    Member:
    #177280
    Messages:
    1,016
    Gender:
    Male
    First Name:
    Jason
    Southern California
    Vehicle:
    '16 TRD Sport DCSB
    Total Chaos mid-travel front. JD Fab SUA rear.
    Thanks man, came out great!

    JasonT87, Jul 12, 2016
    #103
    Man of Steel TRD[QUOTED] likes this.
  4. Jul 13, 2016 at 2:05 AM
    #104
    JasonT87

    #104
    JasonT87 [OP] Well-Known Member

    Joined:
    Feb 6, 2016
    Member:
    #177280
    Messages:
    1,016
    Gender:
    Male
    First Name:
    Jason
    Southern California
    Vehicle:
    '16 TRD Sport DCSB
    Total Chaos mid-travel front. JD Fab SUA rear.

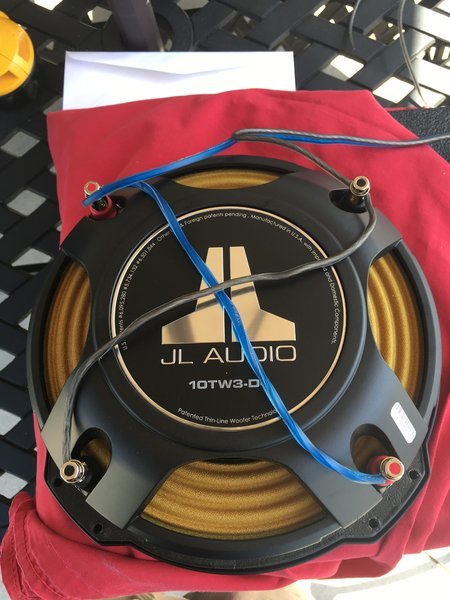

    I'm wiring this 4ohm sub to the 2ohm 1ch amp, all you wiring guru's, is this correct?


    JasonT87, Jul 13, 2016
    #104
  5. Jul 13, 2016 at 6:51 AM
    #105
    Man of Steel TRD

    #105
    Man of Steel TRD Ignorance is the new normal

    Joined:
    Mar 1, 2016
    Member:
    #179879
    Messages:
    4,834
    Gender:
    Male
    First Name:
    Jeremy
    Gilbert, AZ
    Vehicle:
    2021 Ram Limited Night Edition, 91 300ZXTT, 90 Toyota Pickup ECLB
    Tow package, LED interior lighting, led low beams, led fog lights, led licence plate lights, OEM bed mat, OEM mud flaps, OEM chrome raised tailgate letter inserts, nerf bars, AVS ventshades. Complete Kicker audio system (4 channel amp, mids and tweets in the front, 2 ways in the back, 2 10 inch comp rt subs, Zxsum8, alpine pdx 1.600 boxes and amp rack by Mr Marv), Pop & Lock, Mobtown locking bed storage doors, Bilstein 5100s, Katzkin Leather interior, Redline Hoodstruts, Backflip.
    As long as the + and - that are going to the amp are on different voicecoils then you are good. If the two are coming from the same voicecoil then it is wrong.

    Man of Steel TRD, Jul 13, 2016
    #105
  6. Jul 13, 2016 at 9:36 AM
    #106
    BlackSabbathTacoma

    #106
    BlackSabbathTacoma Well-Known Member

    Joined:
    Sep 2, 2015
    Member:
    #163297
    Messages:
    97
    Gender:
    Male
    Vehicle:
    2016 TRD OFF ROAD - BLACK
    Ahhh. So you went with a 10 and not a 12? I have a 10TW3 in my 16. Sounds great. I have it in the prefab wedge from JL...

    BlackSabbathTacoma, Jul 13, 2016
    #106
  7. Jul 13, 2016 at 1:26 PM
    #107
    solscooter

    #107
    solscooter Sh!t Outta Luck

    Joined:
    Nov 8, 2015
    Member:
    #169056
    Messages:
    1,935
    Gender:
    Male
    First Name:
    Brian
    Minnesota
    Vehicle:
    2016 TRD OR DCSB 4x4
    Did you have to remove the rear panels to get that in?

    solscooter, Jul 13, 2016
    #107
  8. Jul 13, 2016 at 1:31 PM
    #108
    Liberator32

    #108
    Liberator32 Active Member

    Joined:
    May 13, 2013
    Member:
    #104051
    Messages:
    44
    Gender:
    Male
    Vehicle:
    2016 DC TRD Off Road - Black
    Yeah and back of the seat. It would all fit behind the passenger side if you wanted to leave the driver side cubbies in tact...worked like that for me anyway with that same setup

    Liberator32, Jul 13, 2016
    #108
    Man of Steel TRD likes this.
  9. Jul 13, 2016 at 1:45 PM
    #109
    JasonT87

    #109
    JasonT87 [OP] Well-Known Member

    Joined:
    Feb 6, 2016
    Member:
    #177280
    Messages:
    1,016
    Gender:
    Male
    First Name:
    Jason
    Southern California
    Vehicle:
    '16 TRD Sport DCSB
    Total Chaos mid-travel front. JD Fab SUA rear.
    Explain please

    JasonT87, Jul 13, 2016
    #109
  10. Jul 13, 2016 at 1:46 PM
    #110
    JasonT87

    #110
    JasonT87 [OP] Well-Known Member

    Joined:
    Feb 6, 2016
    Member:
    #177280
    Messages:
    1,016
    Gender:
    Male
    First Name:
    Jason
    Southern California
    Vehicle:
    '16 TRD Sport DCSB
    Total Chaos mid-travel front. JD Fab SUA rear.
    Yes it's a 10", didn't think a 12" was necessary

    JasonT87, Jul 13, 2016
    #110
  11. Jul 13, 2016 at 5:43 PM
    #111
    bear263

    #111
    bear263 Well-Known Member

    Joined:
    Sep 25, 2012
    Member:
    #87716
    Messages:
    669
    Gender:
    Male
    Florida
    Vehicle:
    2013 PreRunner TRD SP
    LED interior lights. Steering wheel mod. New radio. Amp, speakers and sub woofer.

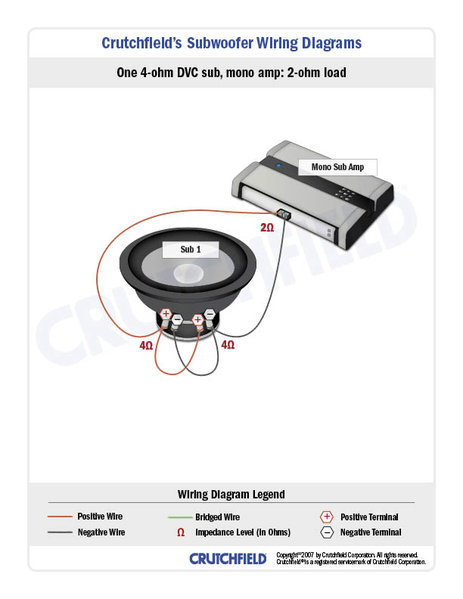

    If you look at your crutchfield diagram you posted, one voice coil is the left +/- and the other voice coil is the right +/-. What 1sttruckguy78 is saying is, looking at the diagram, pull the + from the left voice coil and the - from the right voice coil. Or vice versa. In other words, you hook both voice coils + and - together on the woofer and connect one from each voice coil + and - so long as you don't connect both from the same voice coil to your amp.

    bear263, Jul 13, 2016
    #111
    Man of Steel TRD likes this.
  12. Jul 13, 2016 at 6:03 PM
    #112
    JasonT87

    #112
    JasonT87 [OP] Well-Known Member

    Joined:
    Feb 6, 2016
    Member:
    #177280
    Messages:
    1,016
    Gender:
    Male
    First Name:
    Jason
    Southern California
    Vehicle:
    '16 TRD Sport DCSB
    Total Chaos mid-travel front. JD Fab SUA rear.
    I hooked up VC1+ to VC2+ then 1- to 2-, then the wire to the amp is 1+ and 1-. You're saying to either wire the sub to amp like: 1+ and 2- or 1- and 2+ ?

    JasonT87, Jul 13, 2016
    #112
    Man of Steel TRD likes this.
  13. Jul 13, 2016 at 6:09 PM
    #113
    bear263

    #113
    bear263 Well-Known Member

    Joined:
    Sep 25, 2012
    Member:
    #87716
    Messages:
    669
    Gender:
    Male
    Florida
    Vehicle:
    2013 PreRunner TRD SP
    LED interior lights. Steering wheel mod. New radio. Amp, speakers and sub woofer.
    Exactly. 1+ and 2- or vice versa. So long as not on the same coil.

    bear263, Jul 13, 2016
    #113
    Man of Steel TRD likes this.
  14. Jul 13, 2016 at 7:51 PM
    #114
    JasonT87

    #114
    JasonT87 [OP] Well-Known Member

    Joined:
    Feb 6, 2016
    Member:
    #177280
    Messages:
    1,016
    Gender:
    Male
    First Name:
    Jason
    Southern California
    Vehicle:
    '16 TRD Sport DCSB
    Total Chaos mid-travel front. JD Fab SUA rear.
    Thanks guys!!

    JasonT87, Jul 13, 2016
    #114
    Man of Steel TRD likes this.
  15. Jul 14, 2016 at 3:32 AM
    #115
    kenrickv

    #115
    kenrickv Well-Known Member

    Joined:
    Apr 24, 2016
    Member:
    #185190
    Messages:
    80
    Gender:
    Male
    TN
    Vehicle:
    2016 Inferno DCSB OR
    Too many to list
    Nice install you have going on. Mine should be similar as I have the JBL system to deal with. When you get to it, if you haven't already, I would be interested in how you interface the LC6 to the JBL amp. Are we looking at cutting the plug from the speaker wires out from the amp?

    kenrickv, Jul 14, 2016
    #115
    Man of Steel TRD likes this.
  16. Jul 14, 2016 at 5:04 PM
    #116
    JasonT87

    #116
    JasonT87 [OP] Well-Known Member

    Joined:
    Feb 6, 2016
    Member:
    #177280
    Messages:
    1,016
    Gender:
    Male
    First Name:
    Jason
    Southern California
    Vehicle:
    '16 TRD Sport DCSB
    Total Chaos mid-travel front. JD Fab SUA rear.
    Seems like we have to splice into the stock amp speaker outs then wire that into the LOC speaker inputs. Haven't reached that point yet but I'll be sure to document it

    JasonT87, Jul 14, 2016
    #116
    Man of Steel TRD likes this.
  17. Jul 14, 2016 at 5:10 PM
    #117
    Man of Steel TRD

    #117
    Man of Steel TRD Ignorance is the new normal

    Joined:
    Mar 1, 2016
    Member:
    #179879
    Messages:
    4,834
    Gender:
    Male
    First Name:
    Jeremy
    Gilbert, AZ
    Vehicle:
    2021 Ram Limited Night Edition, 91 300ZXTT, 90 Toyota Pickup ECLB
    Tow package, LED interior lighting, led low beams, led fog lights, led licence plate lights, OEM bed mat, OEM mud flaps, OEM chrome raised tailgate letter inserts, nerf bars, AVS ventshades. Complete Kicker audio system (4 channel amp, mids and tweets in the front, 2 ways in the back, 2 10 inch comp rt subs, Zxsum8, alpine pdx 1.600 boxes and amp rack by Mr Marv), Pop & Lock, Mobtown locking bed storage doors, Bilstein 5100s, Katzkin Leather interior, Redline Hoodstruts, Backflip.
    I don't envy you at all with the JBL system. You're going to have to relocate that stock amp somewhere as well. I'm guessing you should be able to mount it on the back of your amp rack right? As long as your amp rack is designed the same as mine is that should work. Have you been able to locate a wiring diagram?

    Man of Steel TRD, Jul 14, 2016
    #117
  18. Jul 14, 2016 at 7:39 PM
    #118
    WarrenH

    #118
    WarrenH Active Member

    Joined:
    Jul 3, 2012
    Member:
    #81843
    Messages:
    40
    Gender:
    Male
    Lake Stevens, WA
    Vehicle:
    V6, Long Bed, TRD Sport
    JBL system has to go if you upgrade the door speakers. Amp and all. Not a clean way around it.

    WarrenH, Jul 14, 2016
    #118
    12TRDTacoma likes this.
  19. Jul 14, 2016 at 9:05 PM
    #119
    Man of Steel TRD

    #119
    Man of Steel TRD Ignorance is the new normal

    Joined:
    Mar 1, 2016
    Member:
    #179879
    Messages:
    4,834
    Gender:
    Male
    First Name:
    Jeremy
    Gilbert, AZ
    Vehicle:
    2021 Ram Limited Night Edition, 91 300ZXTT, 90 Toyota Pickup ECLB
    Tow package, LED interior lighting, led low beams, led fog lights, led licence plate lights, OEM bed mat, OEM mud flaps, OEM chrome raised tailgate letter inserts, nerf bars, AVS ventshades. Complete Kicker audio system (4 channel amp, mids and tweets in the front, 2 ways in the back, 2 10 inch comp rt subs, Zxsum8, alpine pdx 1.600 boxes and amp rack by Mr Marv), Pop & Lock, Mobtown locking bed storage doors, Bilstein 5100s, Katzkin Leather interior, Redline Hoodstruts, Backflip.
    That's not how it works. You have to keep t
    Where are you getting this information from? From my understanding that is incorrect. The factory amplifier has to stay in the truck in order for the signal to get to the loc. @Mr Marv has been installing aftermarket audio systems in tacomas for a long time and that's what he told me and @JasonT87.

    Man of Steel TRD, Jul 14, 2016
    #119
  20. Jul 14, 2016 at 9:40 PM
    #120
    WarrenH

    #120
    WarrenH Active Member

    Joined:
    Jul 3, 2012
    Member:
    #81843
    Messages:
    40
    Gender:
    Male
    Lake Stevens, WA
    Vehicle:
    V6, Long Bed, TRD Sport
    Ah... I replaced my deck too. That's prob the diff. So you have to keep the JBL amp just for a signal. Ouch. Glad I could get rid of it and free up the back for a real amp. :)

    WarrenH, Jul 14, 2016
    #120
    Man of Steel TRD likes this.
