    Testing the Rigid amber SAE pre-production prototypes

    I was concerned with the level of output reduction caused by the amber lens on these pre-production lights after seeing the 50% loss caused by Rigid's amber snap on covers. I compared the measurements of the new Amber SAE pods (purple) vs the standard white Amber SAE pods running the Amber covers (green):

    upload_2018-10-9_23-38-27.jpg upload_2018-10-9_23-38-27.jpg

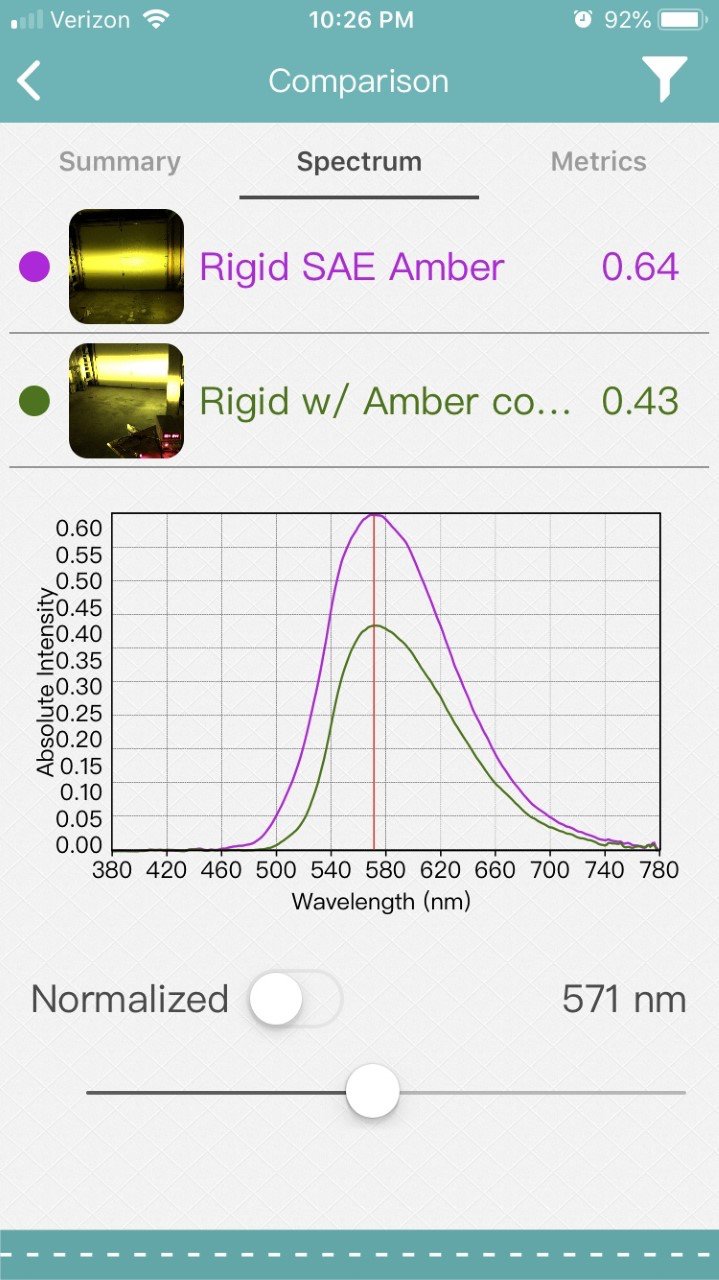

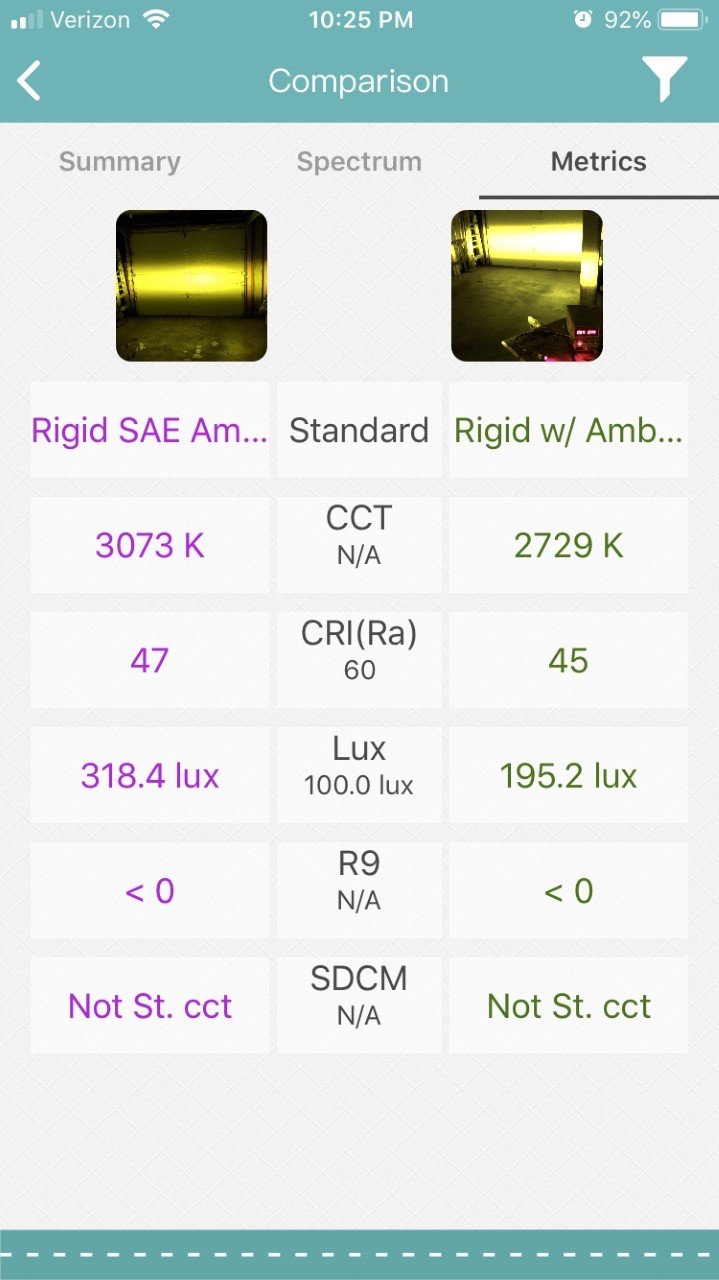

    The new prototypes come in at over 60% brighter than using the amber covers on white lights, while also having a slightly higher color temperature which is helpful for general visibility. A significant improvement over the snap on cover solution. You can see Rigid did their homework to achieve the lower color temperature while minimizing the lux loss in their amber SAE fog.

    As a major added benefit to those in cold environments, the yellow filtering lens appears to absorb a good amount of light energy and get quiet warm compared to the clear lens. You can see in the comparison to the unfiltered spectrum output below, that all that low wavelength blue light gets absorbed by the lens, translating into heat. The amber lens should therefore have much better resistance to icing than the clear lens.

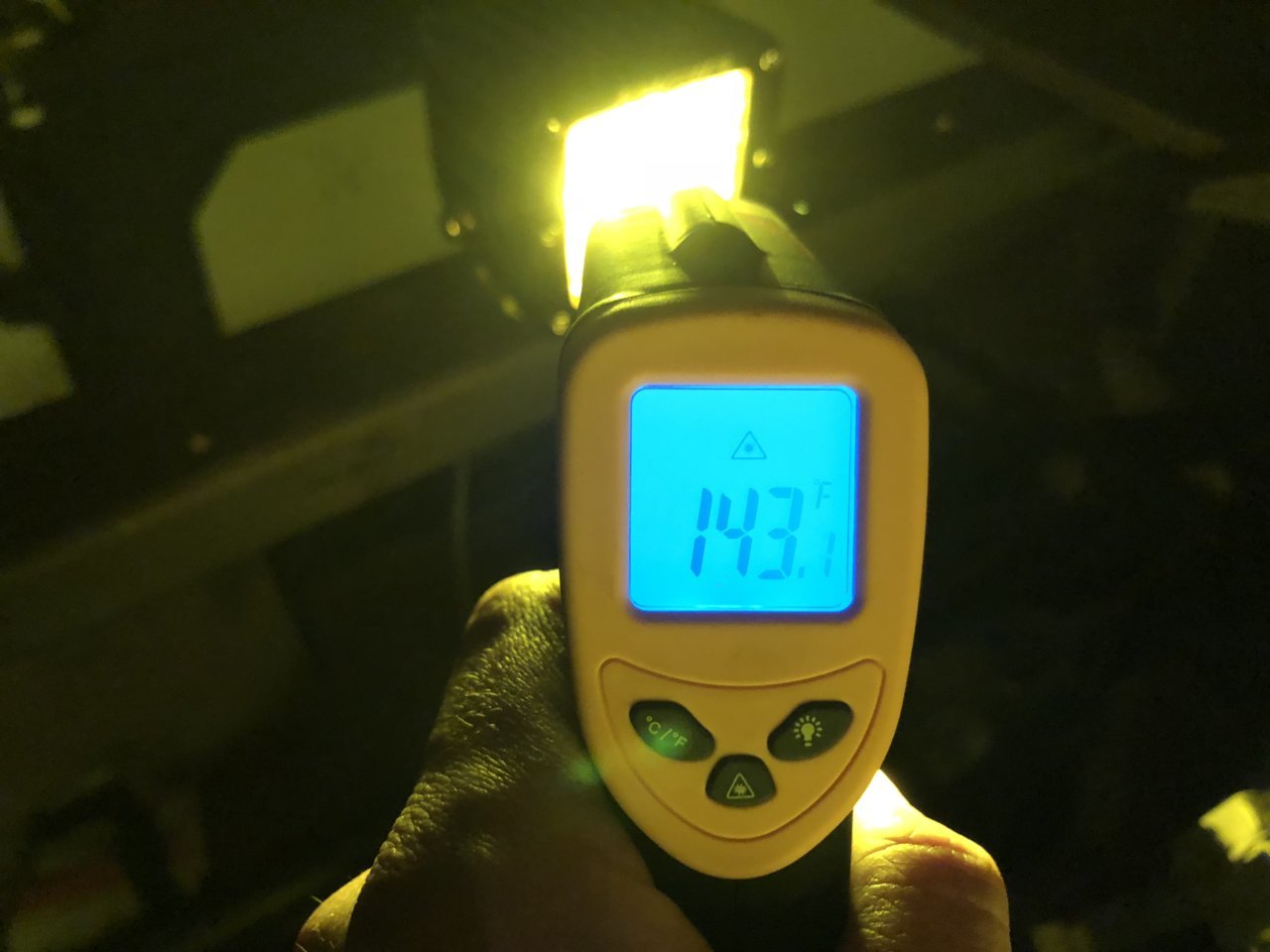

    They take a little while to get warm, but icing shouldn’t be an issue. Ambient temp 63 degrees, lens temp 143 degrees.

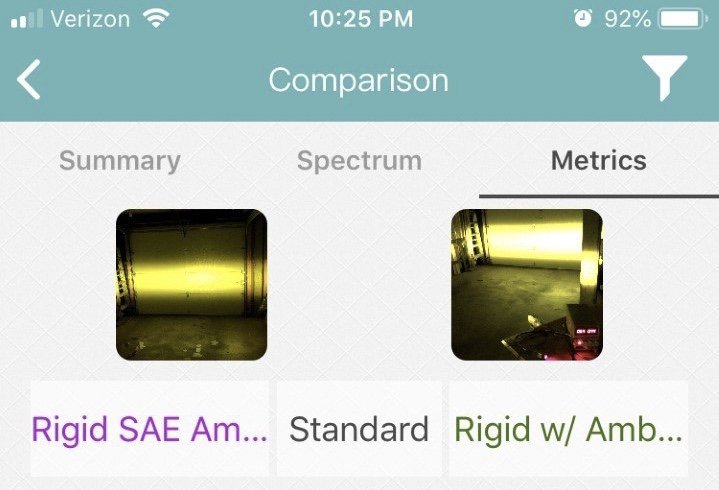

    The reduction in output from using the snap on amber cover compared to no cover was measured at about 50% loss as shown below. The new prototype design is significantly more efficient with only a 20% loss.


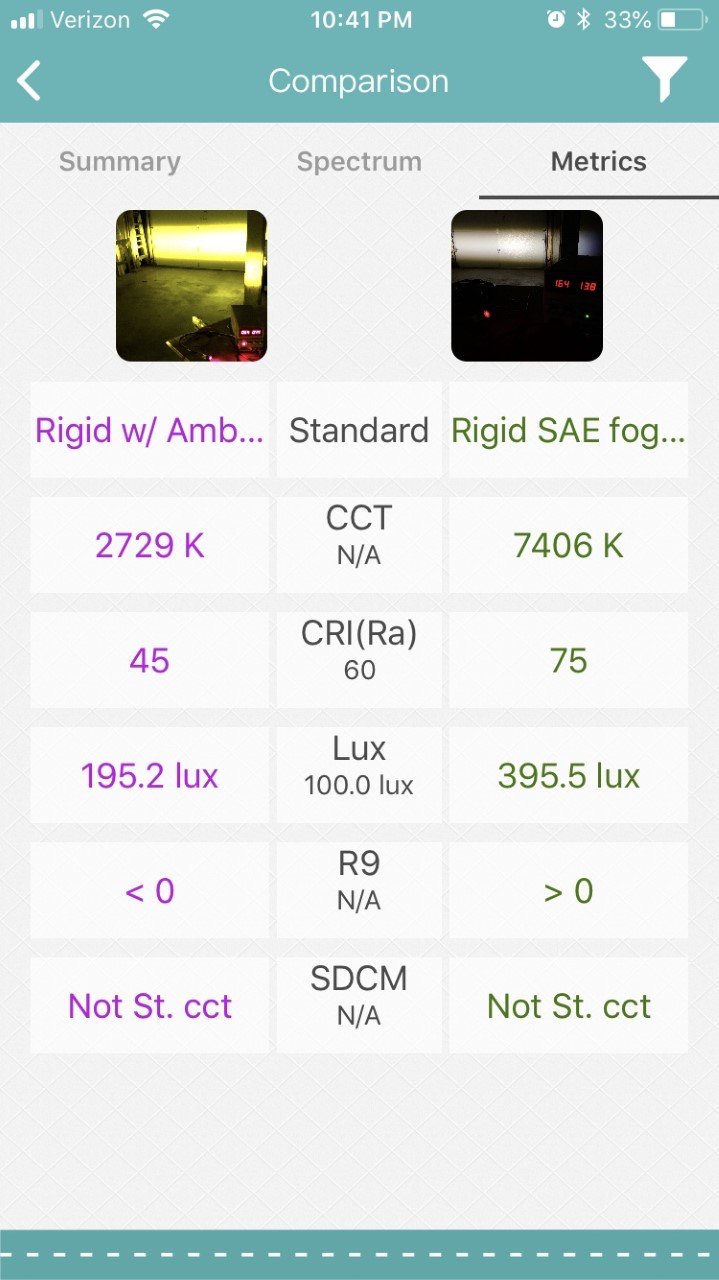

    I've ordered Rago mounts for street testing. The performance of these lights is quiet compelling for an amber fog compared to the amber cover option.

    Last edited: Oct 11, 2018
  2. Oct 10, 2018 at 5:18 AM
    #262
    Rebelman21

    Rebelman21 Well-Known Member

    Joined:
    Aug 21, 2016
    Member:
    #195117
    Messages:
    72
    Gender:
    Male
    First Name:
    Mike
    Cleveland
    Vehicle:
    2018 Tacoma TRD Sport DCSB MT
    None yet, several planned
    Eastcoastsmorgasbord likes this.
  3. Oct 10, 2018 at 5:51 AM
    #263
    TRD2010SpeedwayBlue

    TRD2010SpeedwayBlue Well-Known Member

    Joined:
    Sep 12, 2015
    Member:
    #164039
    Messages:
    1,082
    Gender:
    Male
    First Name:
    Brandon
    Albany, Ny
    Vehicle:
    2010 Speedway Blue TRD Offroad
    crashnburn80 [OP] likes this.
  4. Oct 10, 2018 at 8:02 AM
    #264
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,554
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    As mentioned above, CaliRaised does not make fogs, they make spots. This is covered in the beginning of the original post. Spots do not light an area well like fogs, they light a very small area and are designed for distance, they have no cut offs to prevent blinding other drivers.

    Options for amber fogs:
    -Rigid SAE fog pods with amber covers
    -KC G4 SAE amber fogs (will test here next month)
    Not currently available but coming soon:
    -Rigid SAE amber fog pods
    -Morimoto SAE amber fogs

  5. Oct 10, 2018 at 8:07 AM
    #265
    neverenoughdirt

    neverenoughdirt Well-Known Member

    Joined:
    Sep 3, 2018
    Member:
    #265104
    Messages:
    64
    Gender:
    Male
    First Name:
    Brian
    Diamond Bar, CA
    Vehicle:
    2018 DCSB OR AT 4x4
    Very interested in this info and looking forward to your findings!
    If you're able to also include recommendations for:
    "top of the line type"
    "bang for the buck type"
    "tight budget type"
    This will be helpful.

  6. Oct 10, 2018 at 8:16 AM
    #266
    Rebelman21

    Rebelman21 Well-Known Member

    Joined:
    Aug 21, 2016
    Member:
    #195117
    Messages:
    72
    Gender:
    Male
    First Name:
    Mike
    Cleveland
    Vehicle:
    2018 Tacoma TRD Sport DCSB MT
    None yet, several planned

    Ok, thanks for the information.

    crashnburn80 [OP] likes this.
  7. Oct 10, 2018 at 8:16 AM
    #267
    backcountryj

    backcountryj Well-Known Member

    Joined:
    Aug 19, 2010
    Member:
    #41950
    Messages:
    2,994
    Gender:
    Male
    First Name:
    Jonathan
    GA
    Vehicle:
    2017 QS DCSB TRD OR 4wd
    That info is the the first post...Cliff Notes section.

    crashnburn80 [OP] likes this.
  8. Oct 10, 2018 at 8:59 AM
    #268
    neverenoughdirt

    neverenoughdirt Well-Known Member

    Joined:
    Sep 3, 2018
    Member:
    #265104
    Messages:
    64
    Gender:
    Male
    First Name:
    Brian
    Diamond Bar, CA
    Vehicle:
    2018 DCSB OR AT 4x4
    Thanks for the reminder. I either forgot or missed it entirely. I will revisit the first post after the next review.

    @crashnburn, thanks a bunch for your work. I learned so much. I don't want to blind others and have used your info on a purchase decision. (Got philips halogen low beam instead of HID). Now looking at fogs next. Thanks again!

  9. Oct 10, 2018 at 10:18 AM
    #269
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,554
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    I took this to mean recommendations for amber SAE pods. But yes, I’ll put together a section in this thread devoted to just amber lights with recommendations.

    backcountryj and neverenoughdirt like this.
  10. Oct 10, 2018 at 11:41 AM
    #270
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,554
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Last edited: Oct 10, 2018
  11. Oct 10, 2018 at 7:32 PM
    #271
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,554
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    70 people on the thread. I’d say there is a little interest in the Rigids.

    Edit: ok 90+

    Last edited: Oct 10, 2018
  12. Oct 10, 2018 at 7:47 PM
    #272
    ovrlndkull

    ovrlndkull STUKASFK-HC4LIFE

    Joined:
    Jan 7, 2017
    Member:
    #206806
    Messages:
    21,423
    Gender:
    Male
    First Name:
    Skip
    Burlington, NC
    Vehicle:
    2005 DCLB Silver
    Bilstein 6112, Deavers, Method Standards, GDYR DuraTracs
    o_O

  13. Oct 11, 2018 at 12:30 PM
    #273
    Lanayru

    Lanayru Well-Known Member

    Joined:
    Aug 27, 2018
    Member:
    #264337
    Messages:
    79
    Gender:
    Male
    Vehicle:
    2016 Quicksand Tacoma OR
    @crashnburn80

    In the comparison of the two Rigid versions, the new prototype appears to have a shorter beam. Was that the case? The original Rigid looks to cover more vertical space.


    crashnburn80 [OP] likes this.
  14. Oct 11, 2018 at 12:57 PM
    #274
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,554
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Good question.

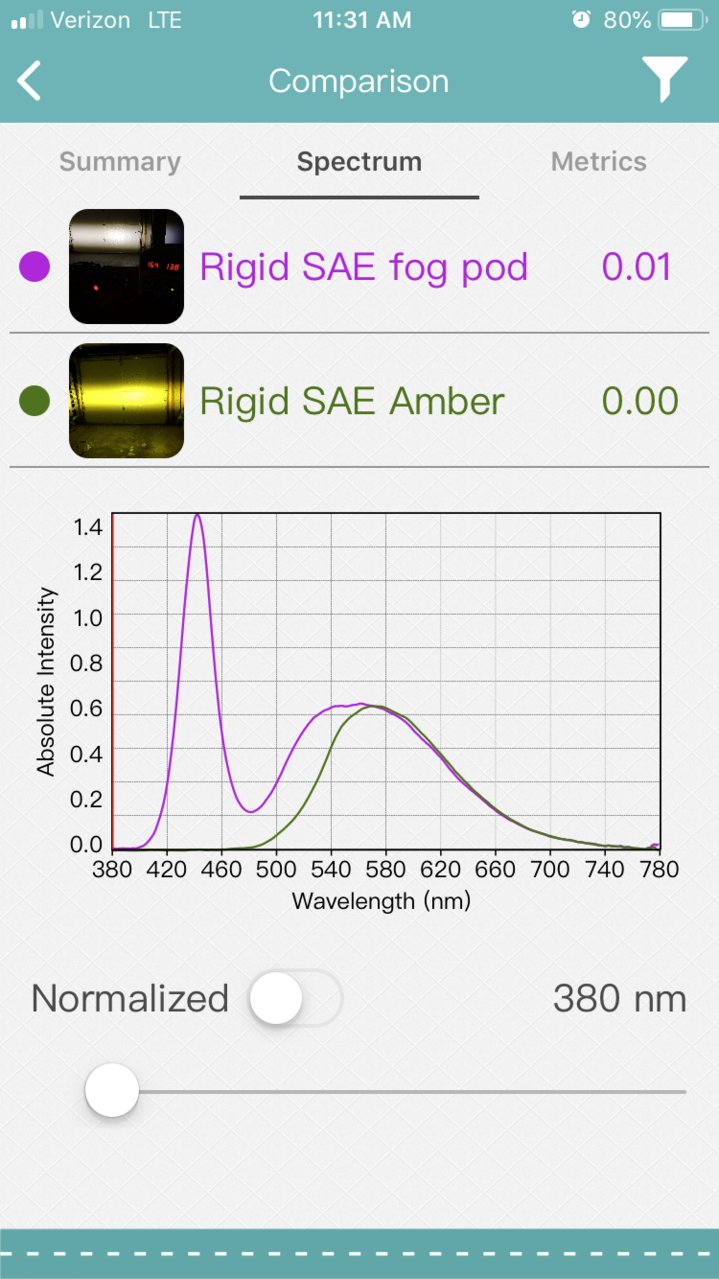

    The pictures in the spectrometer screen shots are not relative. You can see that the lights using the cover appear brighter in that photo, which is overexposed. I think I was trying to capture the cut offs in that one where as the other I was trying to capture color without overexposing the shot. Really a DSLR would be more appropriate.
