The LED SAE J583 Fog Pod & Fog Light Review

Discussion in 'Lighting' started by crashnburn80, Jun 20, 2018.

  1. May 23, 2019 at 9:51 AM
    #801
    w.adventures

    w.adventures Adventure is out there

    Joined:
    Nov 28, 2013
    Member:
    #117482
    Messages:
    5,069
    Gender:
    Male
    Nowheresville, SC
    Vehicle:
    2005 Lexus GX470 Family Hauler
    Another good reason to splice into the vehicle wires.

  2. May 23, 2019 at 11:30 AM
    #802
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    10,007
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    I think the GX470 he is doing this on takes H3 fogs. I didn’t see any plug and play H3 adapters, though they would not be hard to make since H3s use blade terminal connectors.

    0uTkAsT and w.adventures like this.
  3. May 23, 2019 at 4:41 PM
    #803
    HawkShot99

    HawkShot99 Well-Known Member

    Joined:
    Oct 20, 2015
    Member:
    #167182
    Messages:
    1,867
    Gender:
    Male
    Poughkeepsie, NY
    Vehicle:
    13' Silver DCLB TRD Sport
    I have the kc g4 in my Tacoma. They hook right into the factory plugs. Does the gx470 use the same plugs?

  4. May 29, 2019 at 6:34 AM
    #804
    se7enine

    se7enine MCMLXXIX

    Joined:
    Apr 18, 2013
    Member:
    #102322
    Messages:
    18,301
    Gender:
    Male
    Reno, NV
    Vehicle:
    98 Tacoma SR5 Xtra Cab 3.4L
    I think I want to try and adapt the 2016-17 Accord fogs to my ARB bumper. They have a slight angle to them which seems to line up with the bottom of the bumper. Nice wide coverage too.

    [​IMG]

    Area51Runner and ChadsPride like this.
  5. May 29, 2019 at 9:25 AM
    #805
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    10,007
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    That would certainly be something unique! The fog hold won’t fit those obviously, you looking to use the corner light spot?

  6. May 29, 2019 at 9:47 AM
    #806
    se7enine

    se7enine MCMLXXIX

    Joined:
    Apr 18, 2013
    Member:
    #102322
    Messages:
    18,301
    Gender:
    Male
    Reno, NV
    Vehicle:
    98 Tacoma SR5 Xtra Cab 3.4L

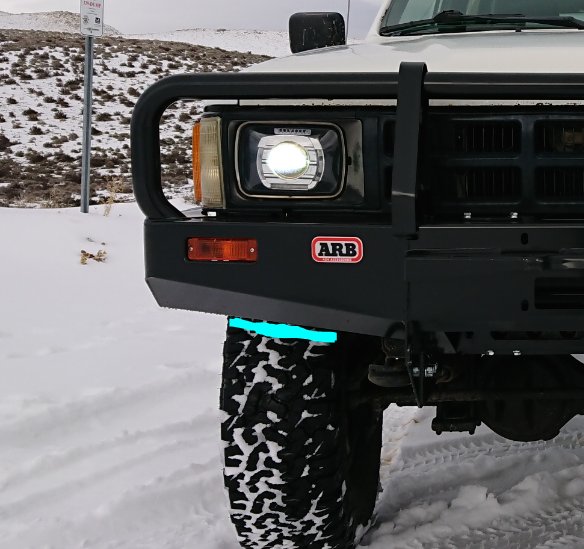

    Thinking about making my own mount set back underneath the lower lip. Don't really want to cut out any metal and want all mods to be reversible.
    Accord LED fog mount.jpg

  7. May 29, 2019 at 4:48 PM
    #807
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    10,007
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Certainly no reason why you couldn't make it work. You'd want to make sure the fog pattern is level with your mounting. If the fogs lights sit level in the Accord and you follow the ARB bumper lines, you'll end up with a pattern tilted up to the sides blinding other drivers and defeating the fog purpose. It seems somewhat of a hazardous spot for trail use depending on the trails you run.

  8. May 30, 2019 at 12:26 AM
    #808
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    10,007
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    I just received the shipping notification for my Rigid selective yellow fogs. Data backed analysis coming soon! :)

  9. May 30, 2019 at 3:16 AM
    #809
    tperks

    tperks Active Member

    Joined:
    Oct 2, 2017
    Member:
    #231767
    Messages:
    32
    Gender:
    Male
    First Name:
    Tyler
    Vehicle:
    2017 Tacoma TRD Off-Road; Quicksand
    tl;dr I read all of the info on you testing the prototype before; what’s the testing on this? Confirmation of final product? I’ve been guilty of running Amber BD Sport’s with wide cornering for Fogs
    Glad I found this thread

  10. May 30, 2019 at 6:27 AM
    #810
    se7enine

    se7enine MCMLXXIX

    Joined:
    Apr 18, 2013
    Member:
    #102322
    Messages:
    18,301
    Gender:
    Male
    Reno, NV
    Vehicle:
    98 Tacoma SR5 Xtra Cab 3.4L
    The Accord fogs are at a slight angle and i'll have to make one side adjustable up and down to level out if it's off.
    [​IMG]
    I'm also thinking of making them flip up inside the bumper and out of the way when wheeling. There is also actual mounts on the top of the bumper in the center section for lights but it seems a bit high for fogs. I'd like to find some square ones the size of the blinkers that are on the bumper. That would be ideal.

    crashnburn80 [OP] likes this.
  11. May 30, 2019 at 9:39 AM
    #811
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    10,007
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    The prototypes I tested were an amber lens over their white SAE LED, which turns out fell outside the required SAE chromaticity window for selective yellow. Recall that their white lights are a bit blue, and blue light filtered through an amber lens has likely too much green to be in the SAE selective yellow requirements. They since changed the LEDs out with a 'warm white' version (4000k-4300k) which should produce a richer yellow, and since the LED color is closer to the filter color, you have a lower lumen loss rate through the filter resulting in brighter output, assuming the new LEDs are of equal intensity. While the prototype testing was fun and showed promise, I'd like to provide the data of the actual finished product for comparison.

    Hopefully you have plans to change out the lights for street use, or at least recognize how unfriendly those BDs are for street use and modify lighting use habits accordingly. :)

    Something to consider for a flip mount, is the ability to lock them in back at the right position so you don't have to reaim them every-time you flip up/down. If you went to a top mount, the KC G4s are available in a free standing universal mount. But I do agree that is a bit high of a position for fog lights.

  12. May 30, 2019 at 5:15 PM
    #812
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    10,007
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!

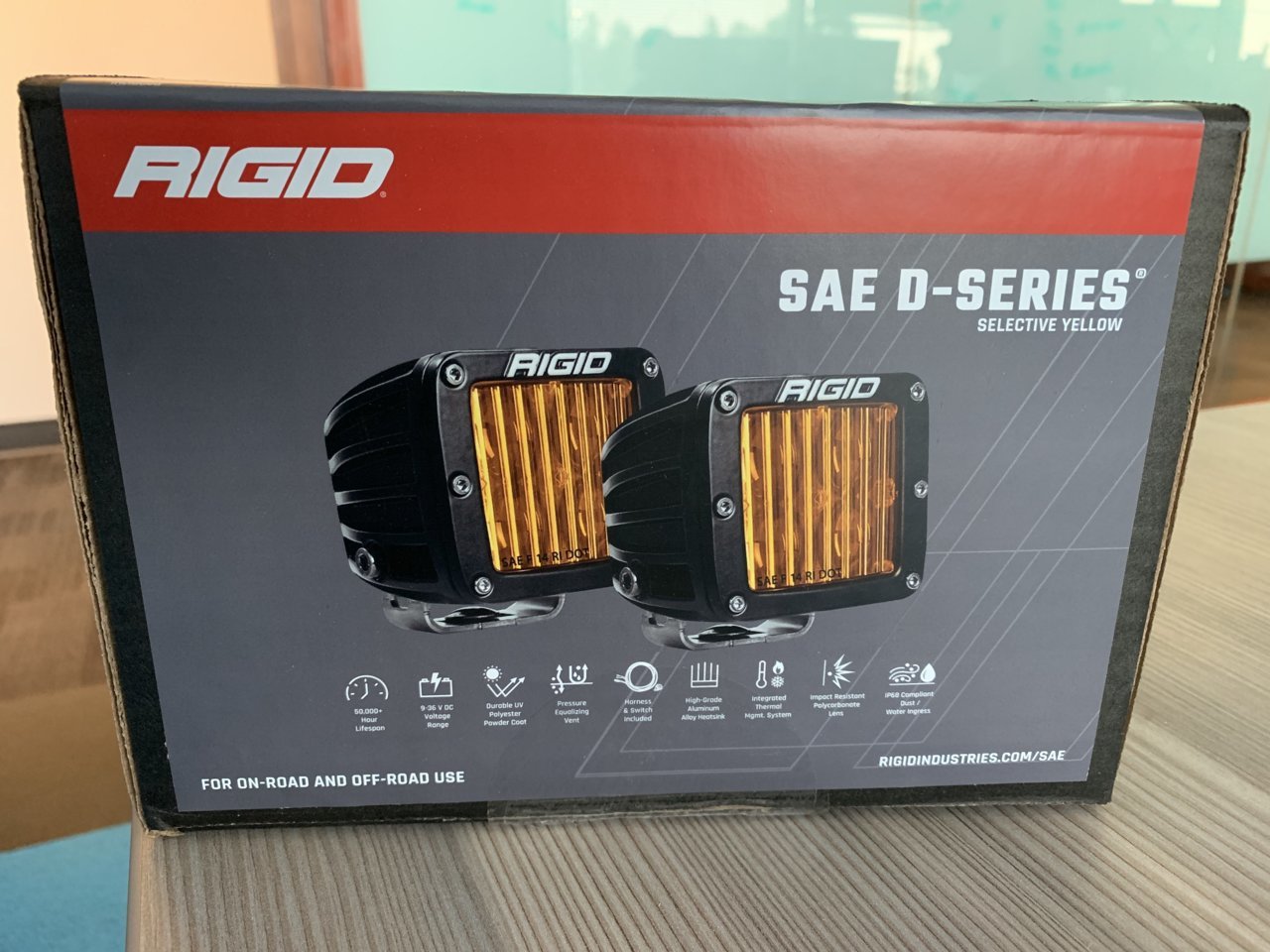

    These arrived today! Super stoked!!!

    yeos, rdpoe, Onwarrds and 5 others like this.
  13. May 30, 2019 at 9:37 PM
    #813
    w.adventures

    w.adventures Adventure is out there

    Joined:
    Nov 28, 2013
    Member:
    #117482
    Messages:
    5,069
    Gender:
    Male
    Nowheresville, SC
    Vehicle:
    2005 Lexus GX470 Family Hauler
    Going to be interesting to see how they compare to the KC G4 ambers

  14. May 30, 2019 at 9:44 PM
    #814
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    10,007
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Not going to be much of a comparison, these are massively brighter. But these are also selective yellow, vs KC being true amber. I pitched this product to Rigid over a year ago, I tested the prototypes back in October. All my testing is standardized, so you can compare the lux numbers in the prototype testing to the numbers of the KC Ambers below. The production version of these Rigids use a warm white LED vs the prototype using cool white. Warm white will have less filtration losses, meaning they should be higher in output over the prototypes. I'll test them soon.

    Amber fog/pod comparisons:
    Rigid amber/yellow: See the preproduction prototype comparison here.
    KC G4 amber: see here.

  15. May 31, 2019 at 6:47 AM
    #815
    se7enine

    se7enine MCMLXXIX

    Joined:
    Apr 18, 2013
    Member:
    #102322
    Messages:
    18,301
    Gender:
    Male
    Reno, NV
    Vehicle:
    98 Tacoma SR5 Xtra Cab 3.4L

    crashnburn80 [OP] likes this.
  16. May 31, 2019 at 8:35 AM
    #816
    TxStVanWilder

    TxStVanWilder The Pale Horse

    Joined:
    Apr 19, 2015
    Member:
    #153494
    Messages:
    550
    Gender:
    Male
    Tx
    Vehicle:
    2013 TRD Sport
    I keep trying to find deals on the KC g4’s but damn the price keeps going up and up :annoyed:

    w.adventures likes this.
  17. May 31, 2019 at 12:33 PM
    #817
    Odoyle

    Odoyle Well-Known Member

    Joined:
    Jun 12, 2011
    Member:
    #58191
    Messages:
    131
    Gender:
    Male
    All over
    Vehicle:
    08 SR5 Offroad
    3" Toytec Lift, TC UCAs, 4.56 gears, Black Baja Wheels, Relentless fabrication Front Bumper and Rock Sliders, Warn Winch, PIAA Fogs in Bumper, Diff Breather Mod
    Sub’d

  18. May 31, 2019 at 3:58 PM
    #818
    TxStVanWilder

    TxStVanWilder The Pale Horse

    Joined:
    Apr 19, 2015
    Member:
    #153494
    Messages:
    550
    Gender:
    Male
    Tx
    Vehicle:
    2013 TRD Sport
    Clears are on backorder too. Guess that’s what I get for waiting.

    crashnburn80 [OP] likes this.
  19. May 31, 2019 at 4:43 PM
    #819
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    10,007
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    [​IMG]

  20. May 31, 2019 at 9:38 PM
    #820
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    10,007
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!

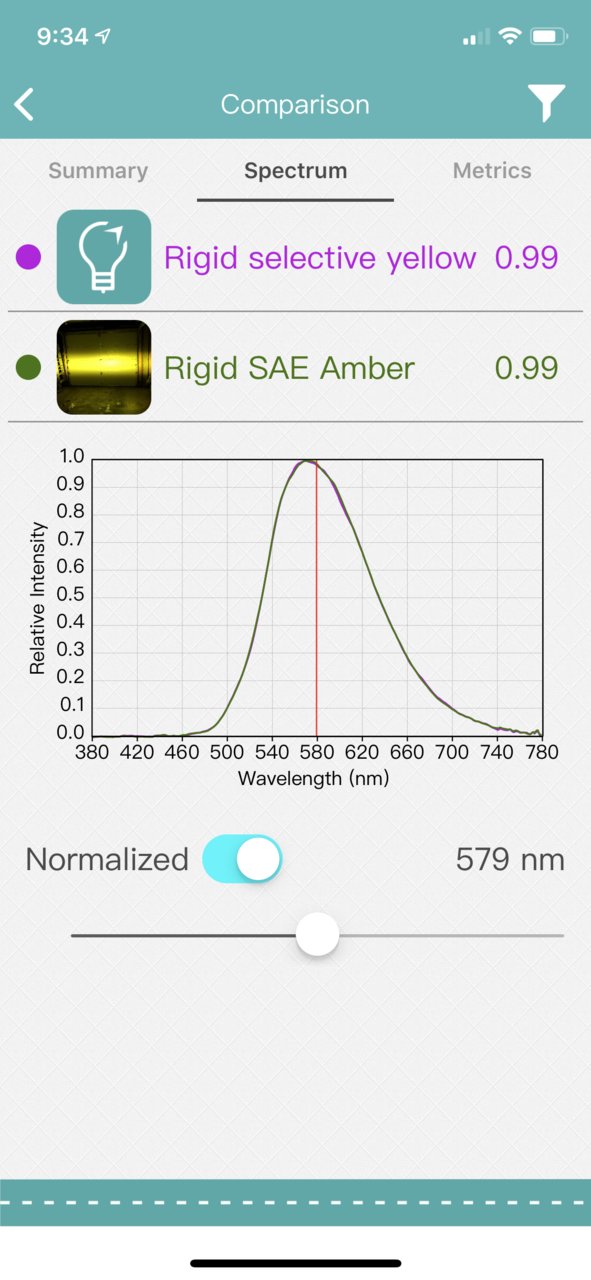

    I’m a bit confused. Rigid said they swapped the LEDs to warm white to meet selective yellow vs the prototypes using cool white.

    However, based on my data:

    (“Amber” is the prototype)

    The light output is nearly identical. I’ll have to compare side-by-side to the prototypes and possibly ping Rigid because it doesn’t appear these are actually any different.

    I do wish I sprung for the extra $500 option on my light meter when I purchased it to give me color chromaticity so that I would have a better tool for the color definition, but based on what I’m seeing it looks the same.

    Onwarrds, DirtJumper14 and Willyummk like this.
