The Lumpskie Build - '96 5-speed

Discussion in '1st Gen. Builds (1995-2004)' started by Lumpskie, May 17, 2013.

  1. May 17, 2013 at 10:49 AM
    #1
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,978
    Gender:
    Male
    New Hampshire
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    After seeing some of the build threads on here, I decided to make one of my own. I own a '96 with manual everything. (transmission, hubs and even windows!)

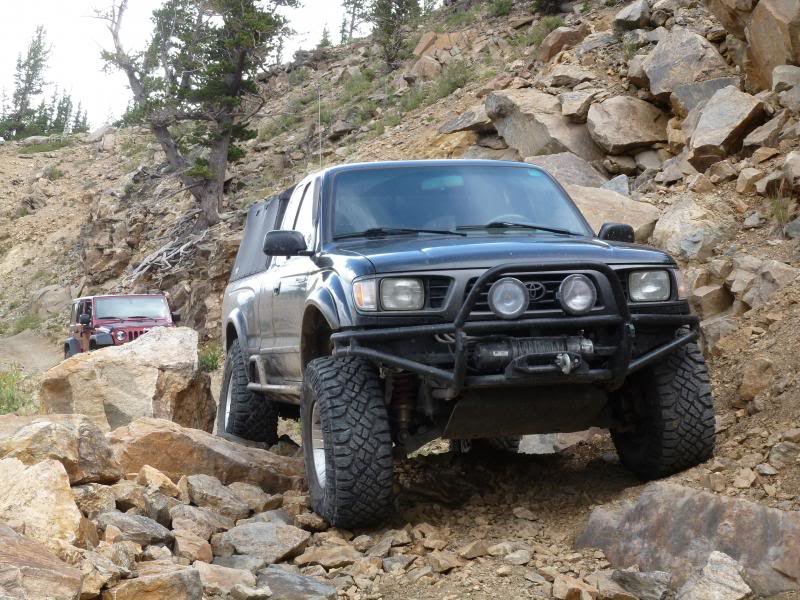

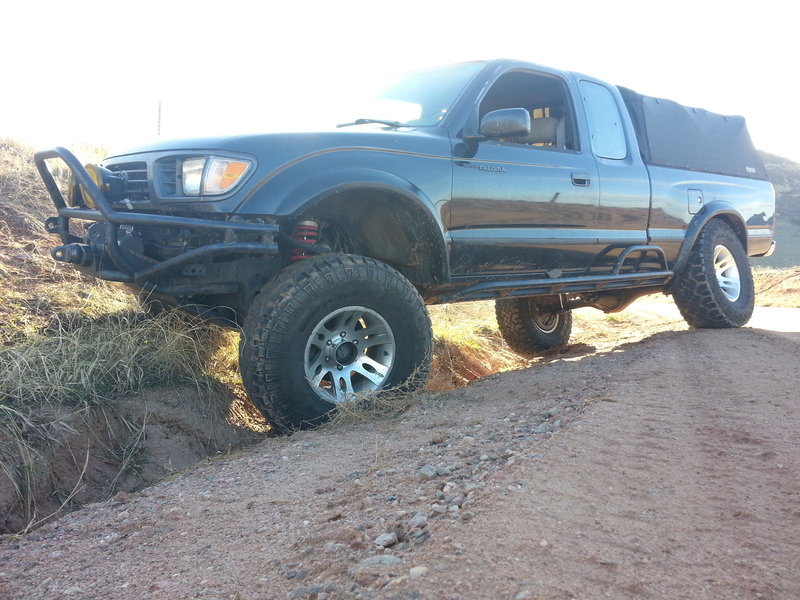

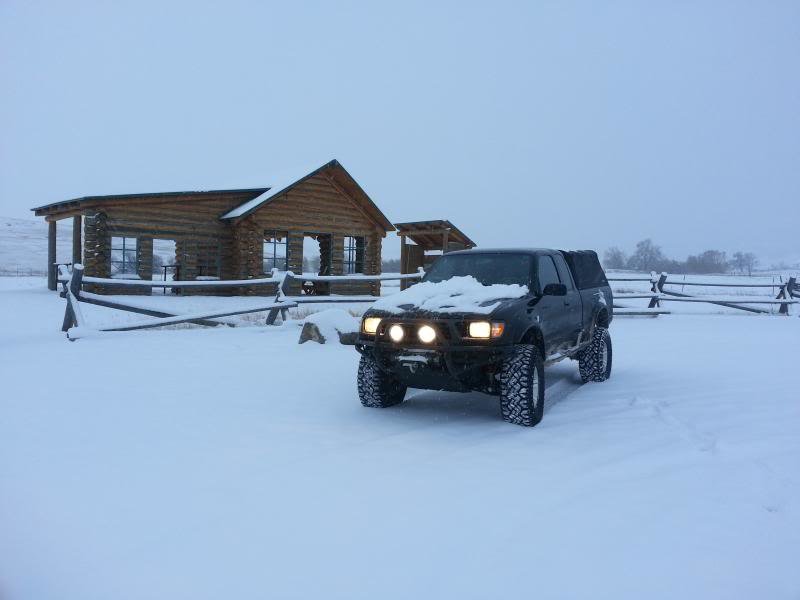

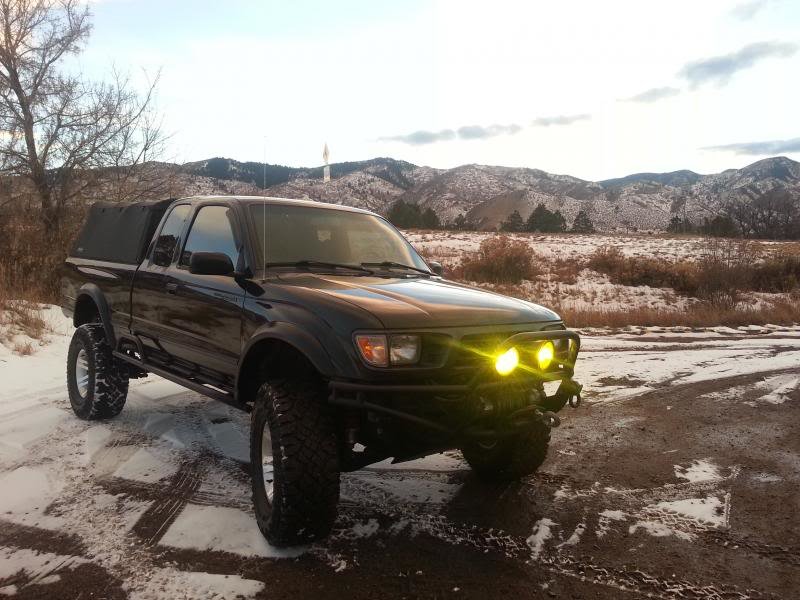

    Here's how it sits now:









    Toytec 600lb front Coilovers
    Tundra Bilstein 5100s
    Light Racing Upper Control Arms
    ARB Rear Locker
    Garage Built Front Bumper with removable winch plate
    Warn M8000
    Vision X HID Offroad Lights (Hi/Lo beam)
    Alcan Leaf springs (Custom length and Orbit Eyes)
    Bilstein 7100 12" Short Bodies
    Custom 6" shackles
    Inchworm dual Transfer Case setup, 15º clocking
    Bushwacker Fender Flares
    CBI Sliders
    33x12.5 GY Duratracs
    Mombasa Roof Top Tent

    To Do/Wish list:


    1. Fabricate rear bumper with tire/hi-lift/fuel can carrier
    2. Redo belly skid/T-case mount for flat belly
    http://youtu.be/0hRnUBoZ9t4

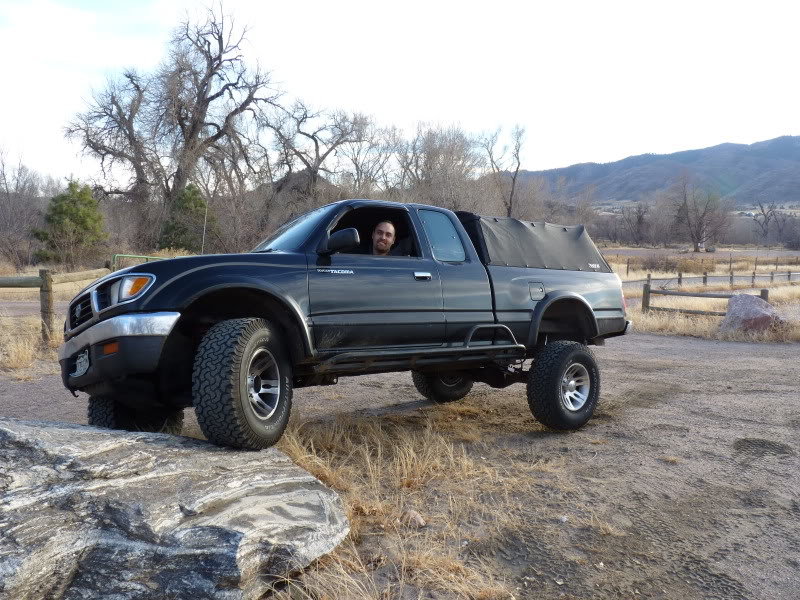

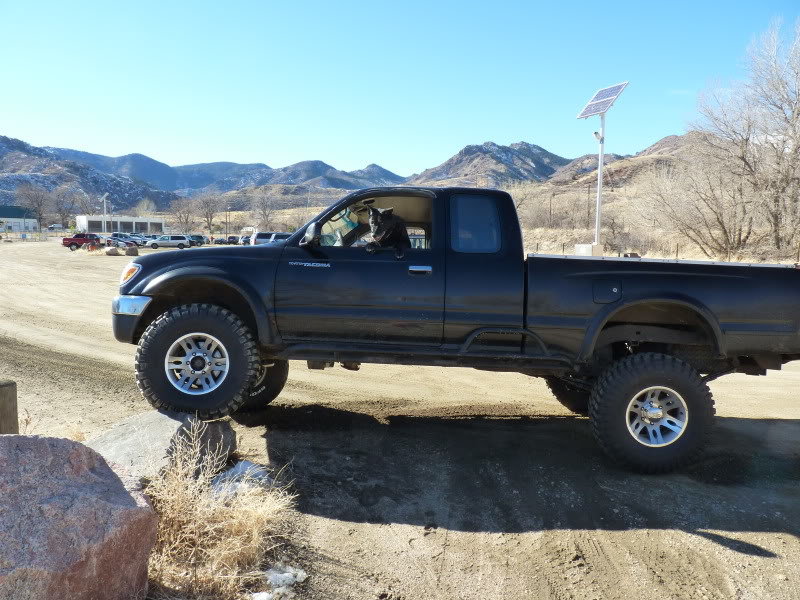

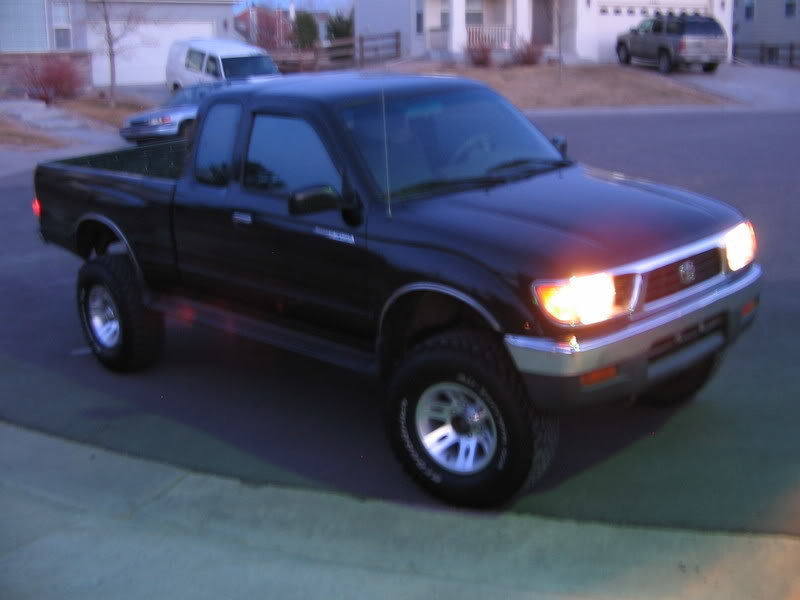

    Here's my truck in '09 when I bought it. It had a NWOR suspension on it, that didn't flex too well. Other than that it was stock. It's been kind of a work truck all it's life



    _____________________________________________________________________________________________________________________________________________

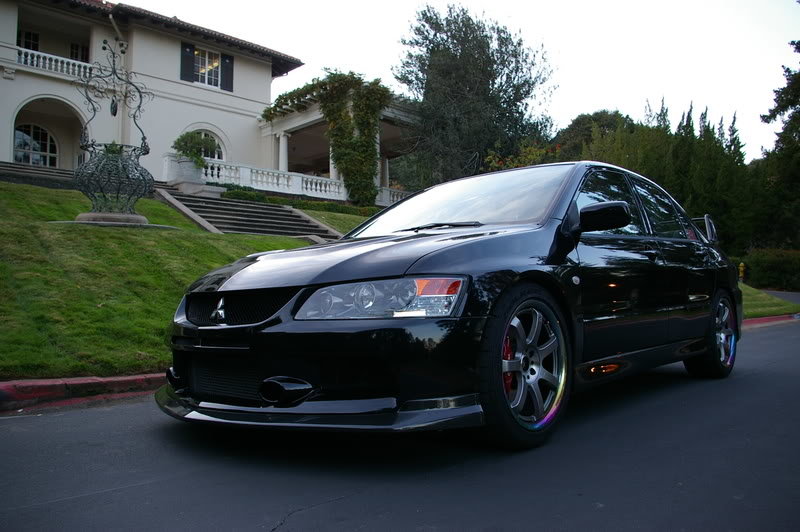

    Due to popular demand, here's a few pics and a mod list for my Evo 9!







    Injen TBE
    Perrin HFC,
    Walbro 255 fuel pump,
    RC 750 injectors,
    Buschur Exhaust Manifold,
    Invidia O2 housing,
    Tactrix 3 Port,
    Samco turbo and radiator hoses,
    Tanabe Sustec Pro 7 coilovers,
    Tanabe TEAS,
    ETS Intake,
    K&N 4" intake filter,

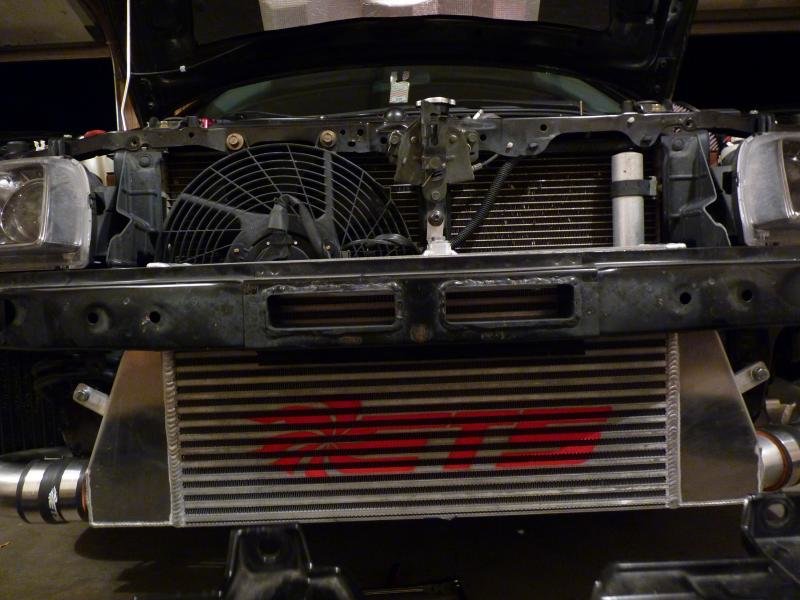

    ETS 3.5" Intercooler,
    ETS LP2 LICP,
    PLX DM 200 MFD (boost, oil temp, OBD II),
    Gramlights 57s pro titan,
    Exedy Twin Disk,
    Rotor Pros Rotors,
    EBC Red Stuff pads,
    JDM rear bumper,
    APR CF front lip

    Questions and comments welcome!

    Last edited: Apr 30, 2015
    Boston10Taco likes this.
  2. May 17, 2013 at 10:55 AM
    #2
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,978
    Gender:
    Male
    New Hampshire
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    So, I didn't start modding the truck till the beginning of 2011. The first order of business was to remove the Northwest Offroad HD leaf springs and replace them with a custom Alcan 8 pack. The Alcans were setup for the extra weight you'd see in the bed during expedition trips. So, the are stiffer than normal. Also, I picked up a set of CBI Sliders from a guy up in Wyoming.


    Last edited: May 17, 2013
  3. May 17, 2013 at 10:59 AM
    #3
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,978
    Gender:
    Male
    New Hampshire
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking

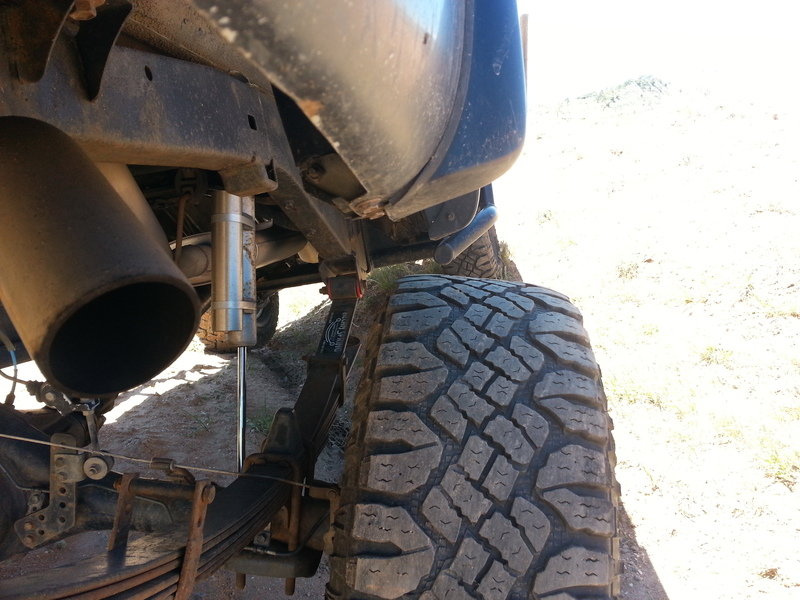

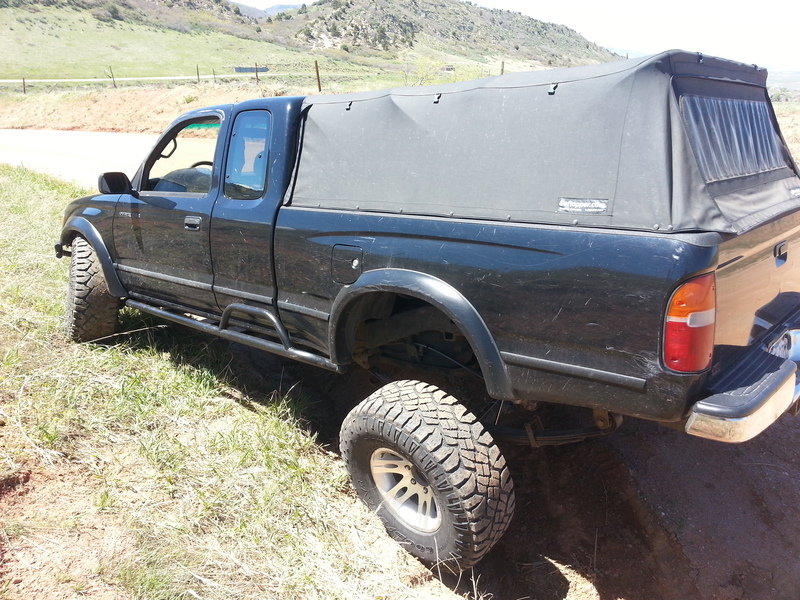

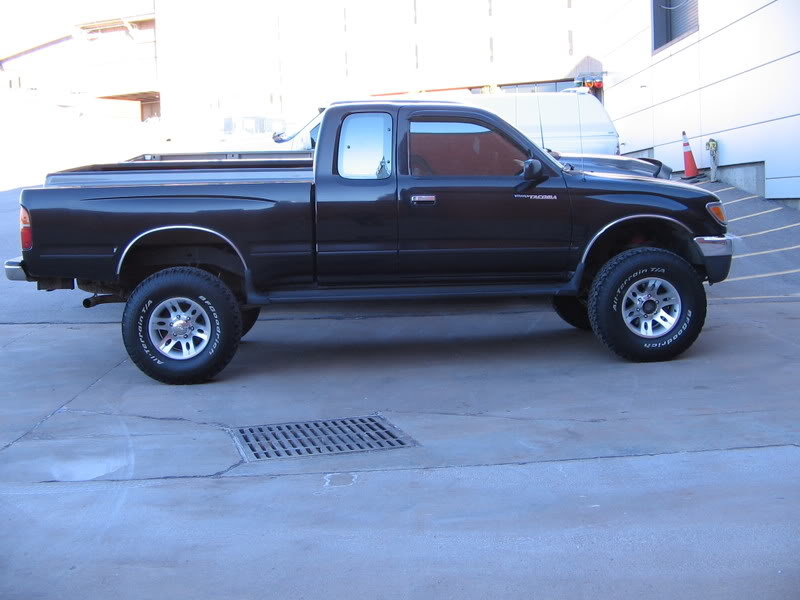

    Next, I put on 32x11.5 KM2s and bilstein 5100s in the rear.

  4. May 17, 2013 at 11:02 AM
    #4
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,978
    Gender:
    Male
    New Hampshire
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking

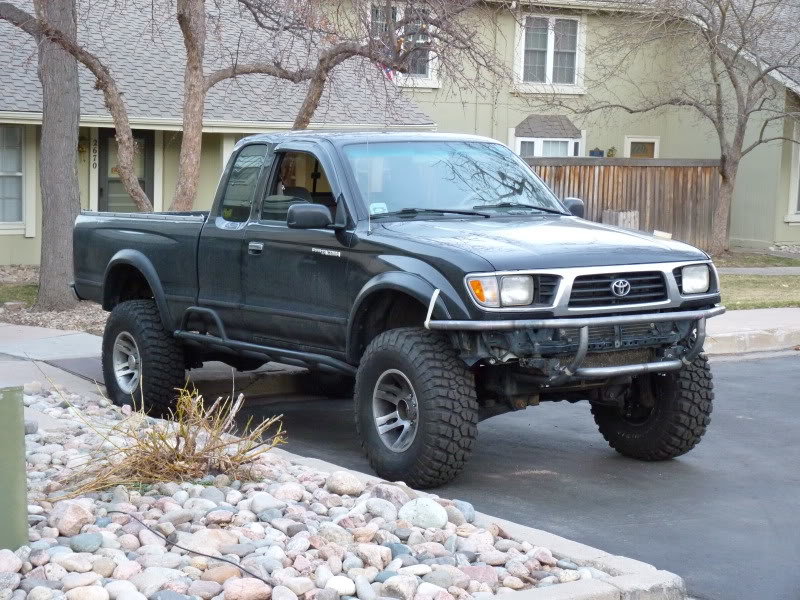

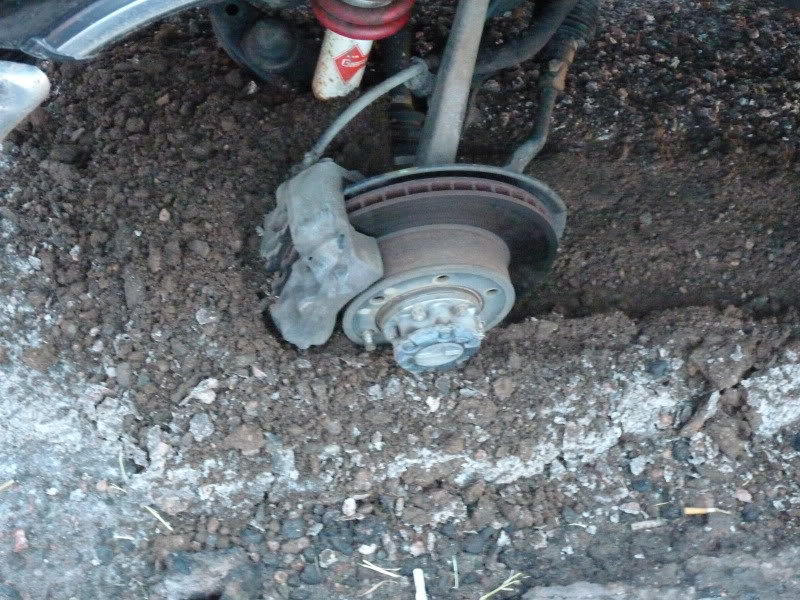

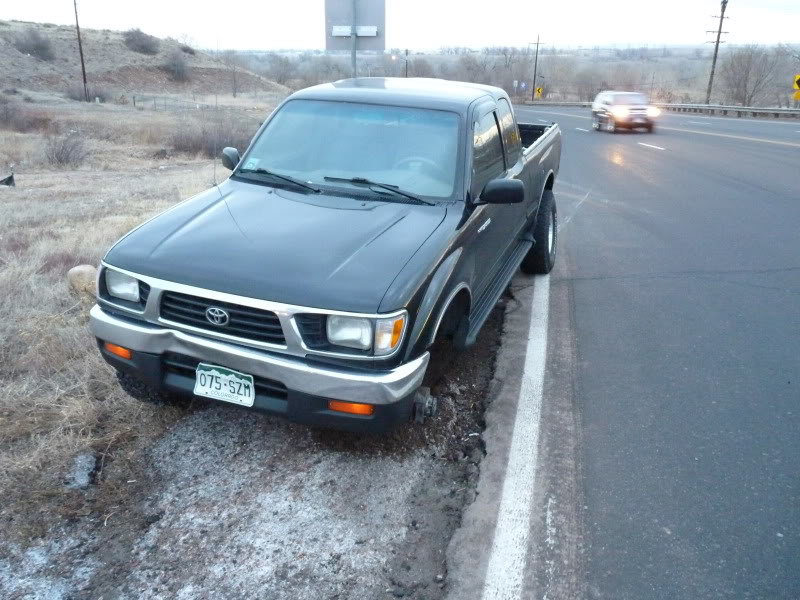

    Then I had a little boo boo on the road...

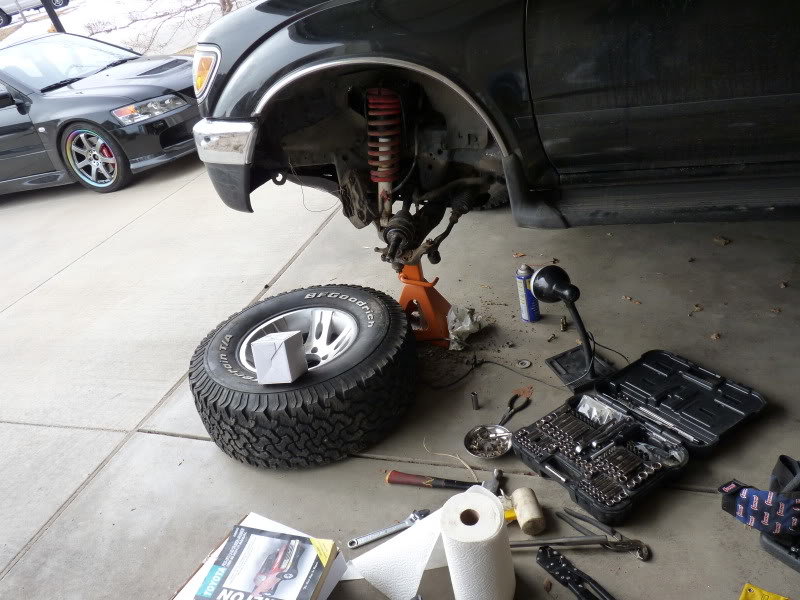

    This made me look at the front end of my truck. It was time for new suspension and a bumper.

  5. May 17, 2013 at 11:05 AM
    #5
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,978
    Gender:
    Male
    New Hampshire
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking

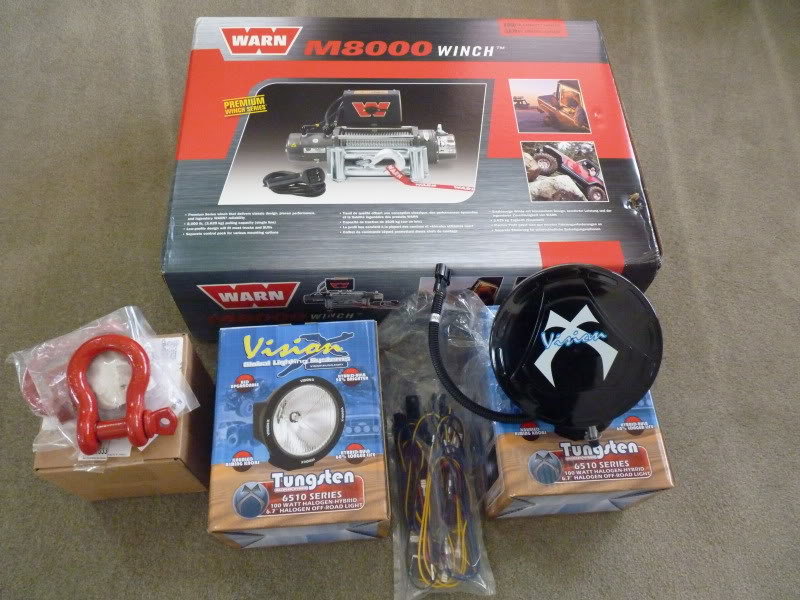

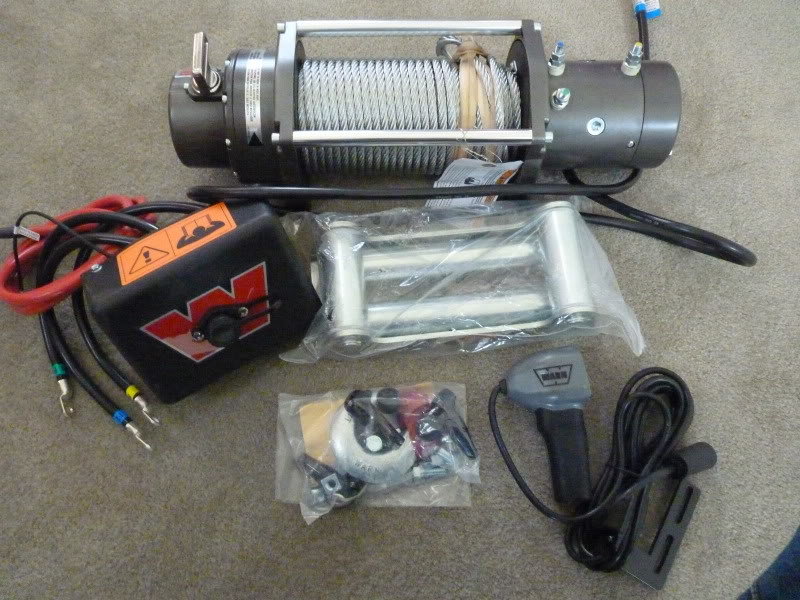

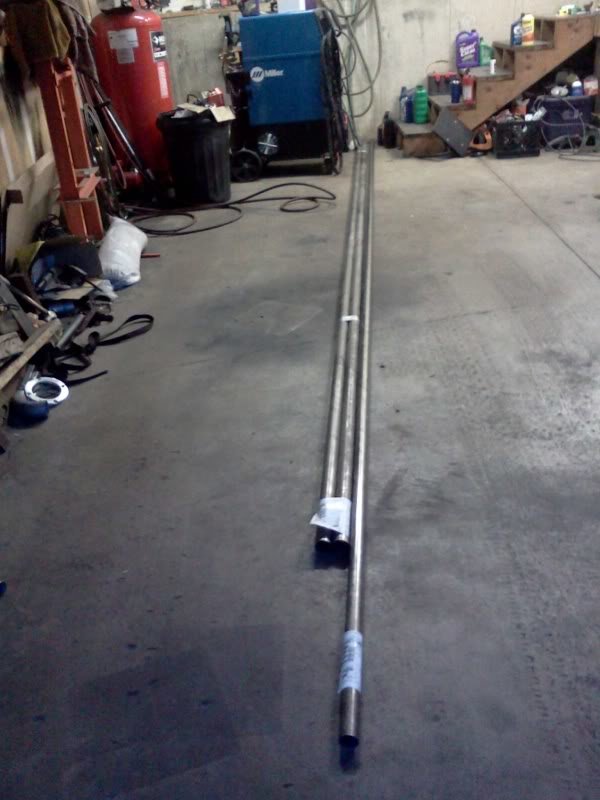

    So, I picked up some goodies and decided to build myself a bumper.





  6. May 17, 2013 at 11:14 AM
    #6
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,978
    Gender:
    Male
    New Hampshire
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    So, my buddy and I got down to business on the front bumper

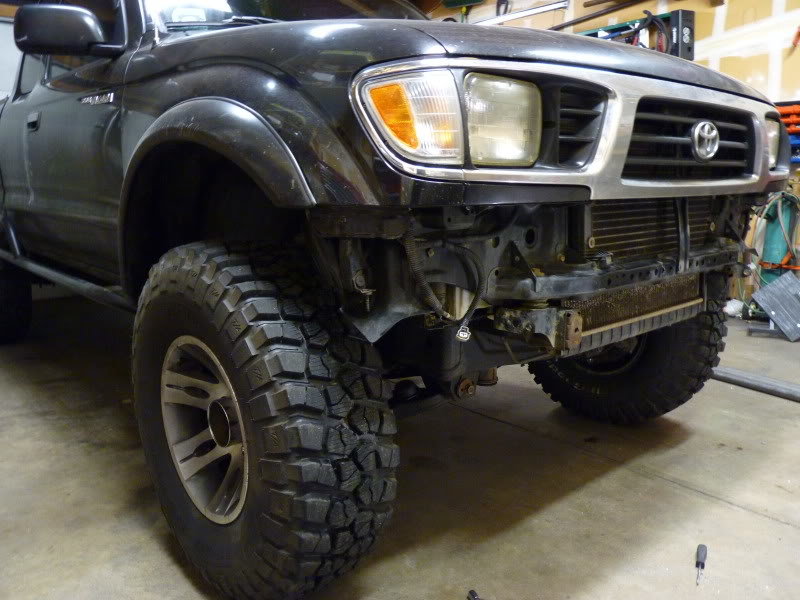

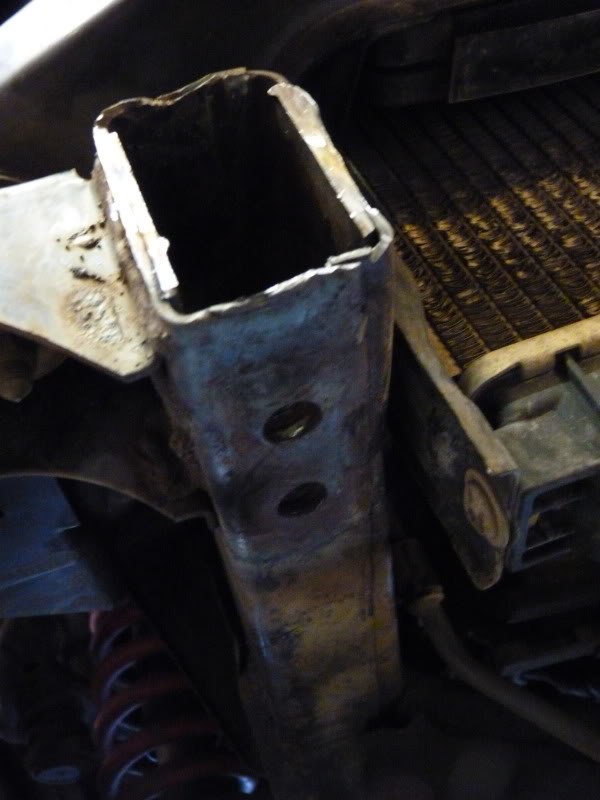

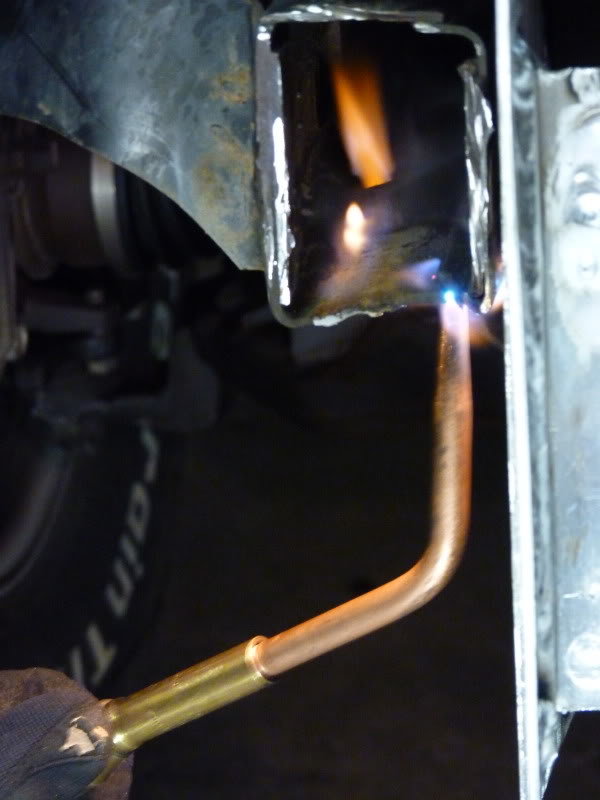

    Before we could start on the bumper, we had to straighten out my frame. The previous owner got a little too boisterous with the front tow hook...



    Looks better now.


  7. May 17, 2013 at 11:17 AM
    #7
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,978
    Gender:
    Male
    New Hampshire
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking

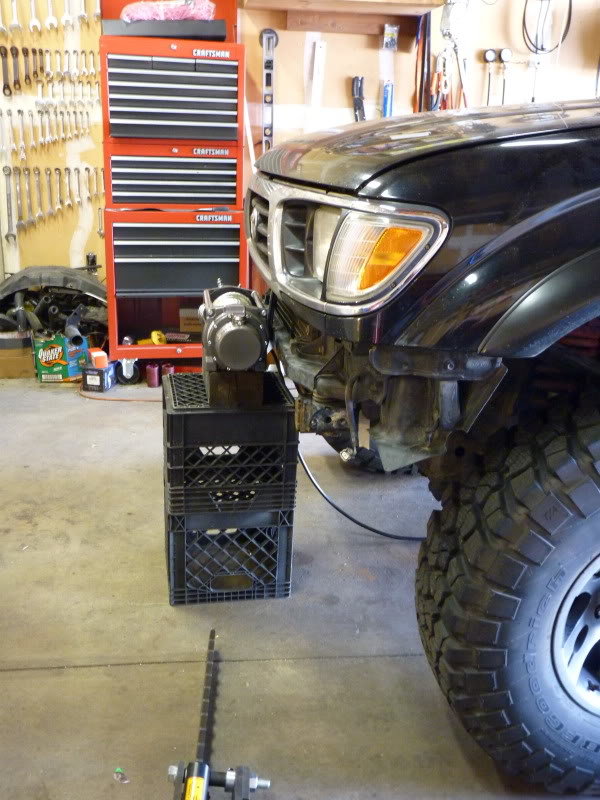

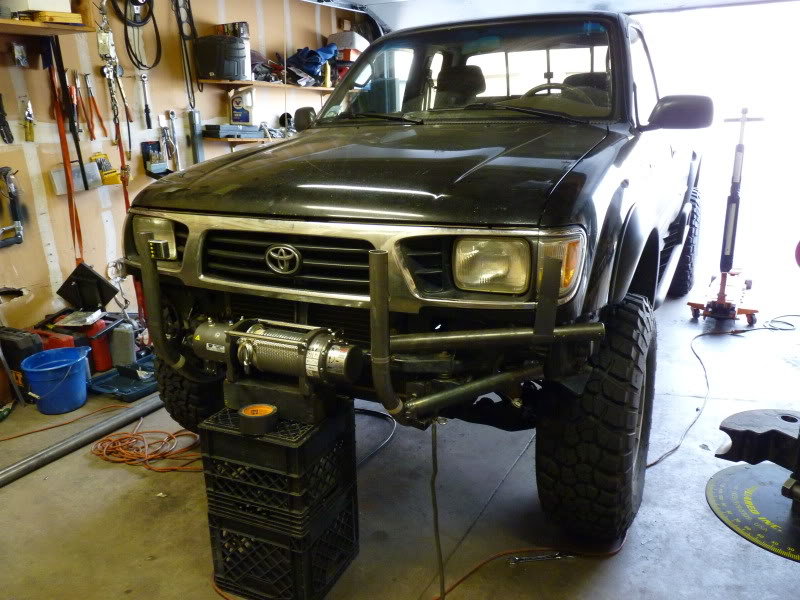

    Now, I decided I wanted a bumper with a removable winch plate that didn't need any tools. So we had to figure out how everything was going to fit together. We started with winch placement.

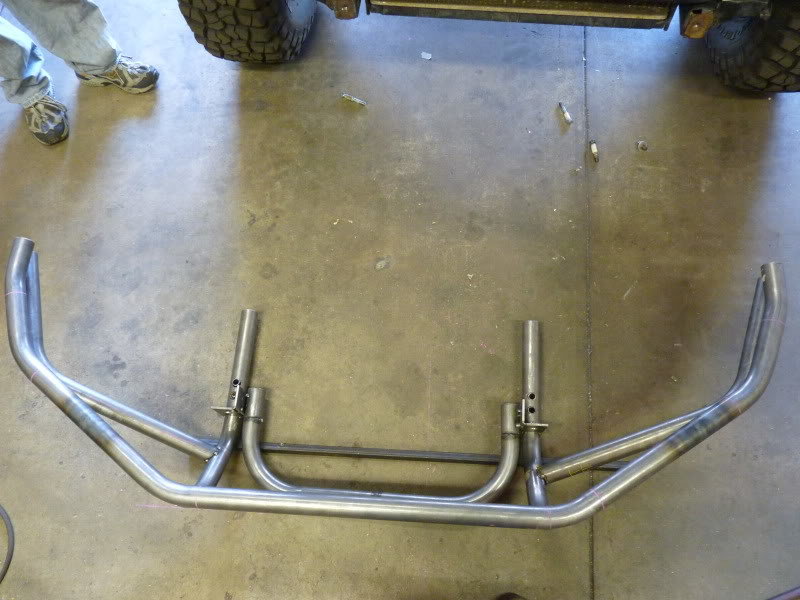

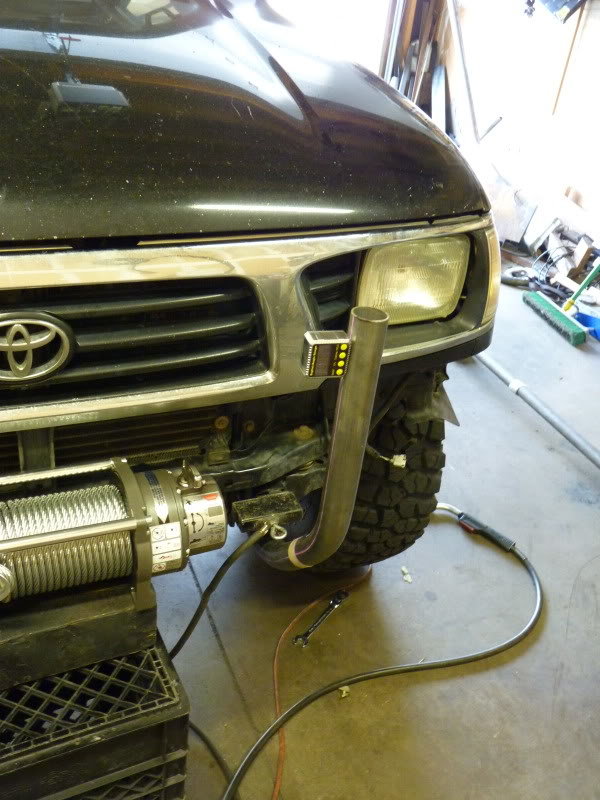

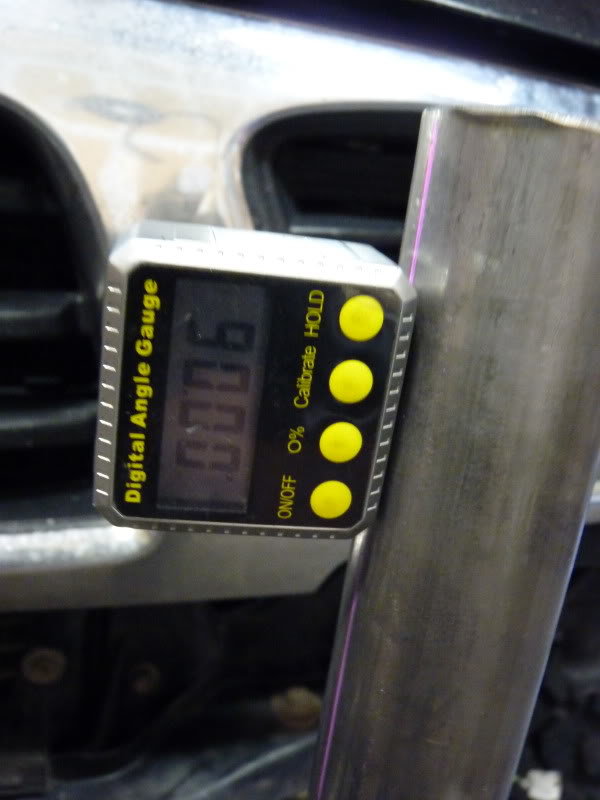

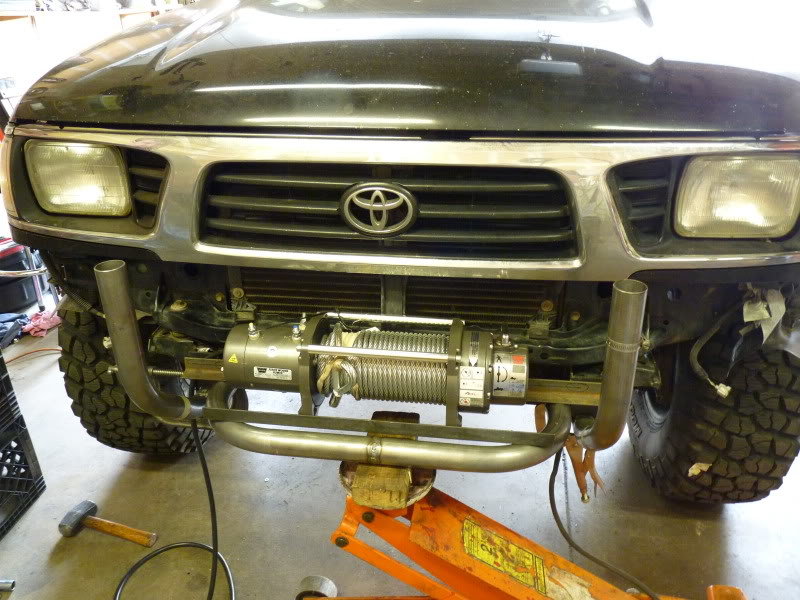

    Then we bent a couple tubes, made a couple brackets and tack welded them together. These will be the beginnings of the main hoop. They will also be cut down ~4 inches.


    Duct taped some bar on there, just to see how it would lay out.



  8. May 17, 2013 at 11:22 AM
    #8
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,978
    Gender:
    Male
    New Hampshire
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    We designed the removable winch tray. It's designed to keep the loads in shear instead of torsion. It will slide out the front, just under the top horizontal bumper bar.


    And, we bent up the top bar for the bumper

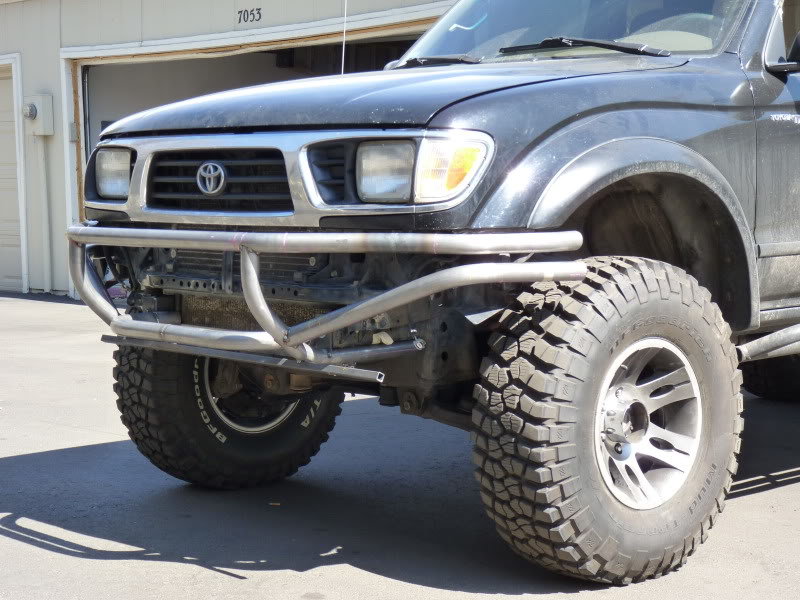

    Tacked on the diagonal tubes.

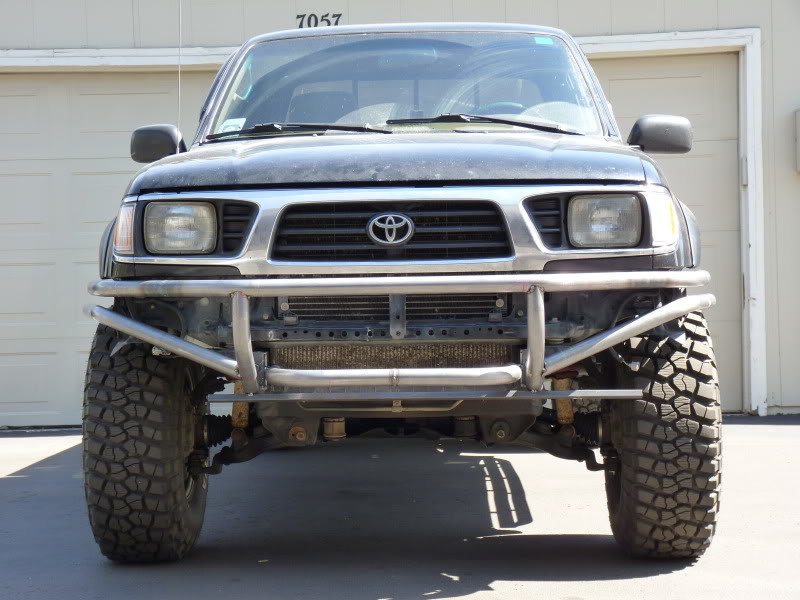

    Front view:

    Here's a quartering view:


  9. May 17, 2013 at 12:08 PM
    #9
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,978
    Gender:
    Male
    New Hampshire
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    Here's the bumper off the truck for some trimming


    Fairlead installed:


    And here it is with the light bar hoop


  10. May 17, 2013 at 12:14 PM
    #10
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,978
    Gender:
    Male
    New Hampshire
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking

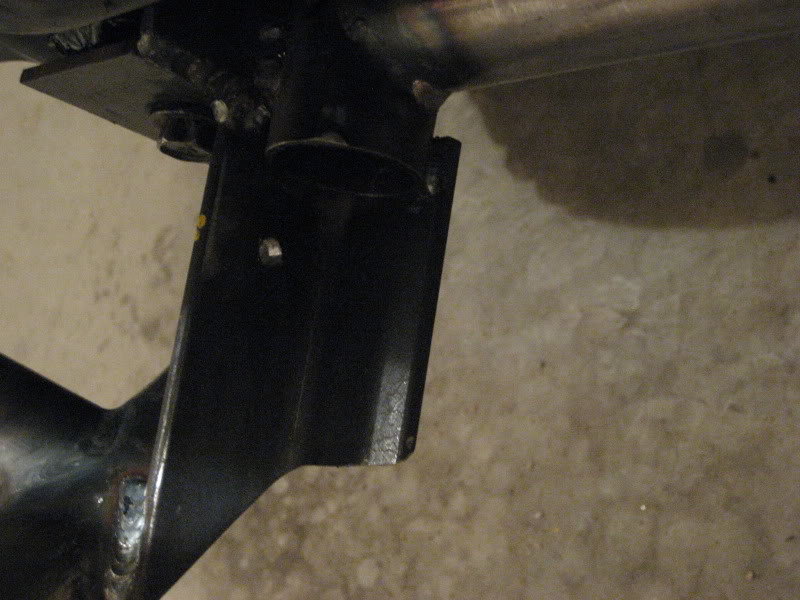

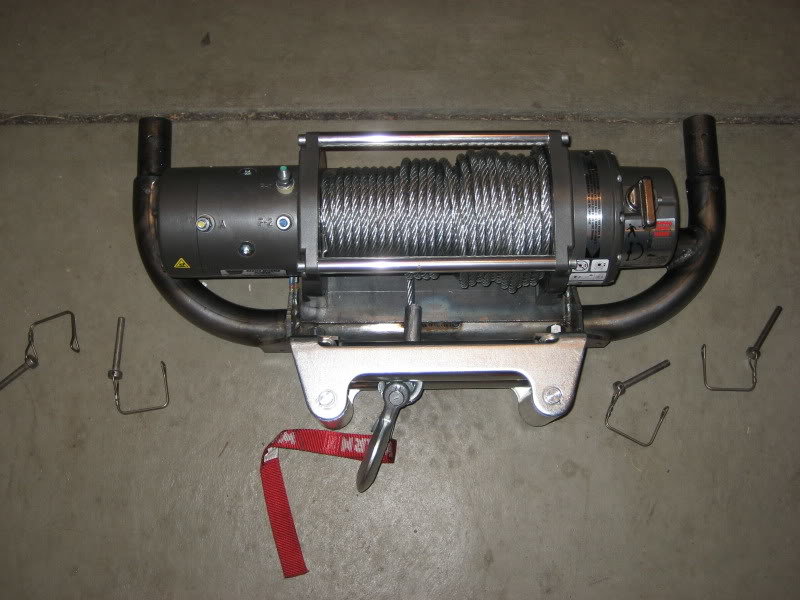

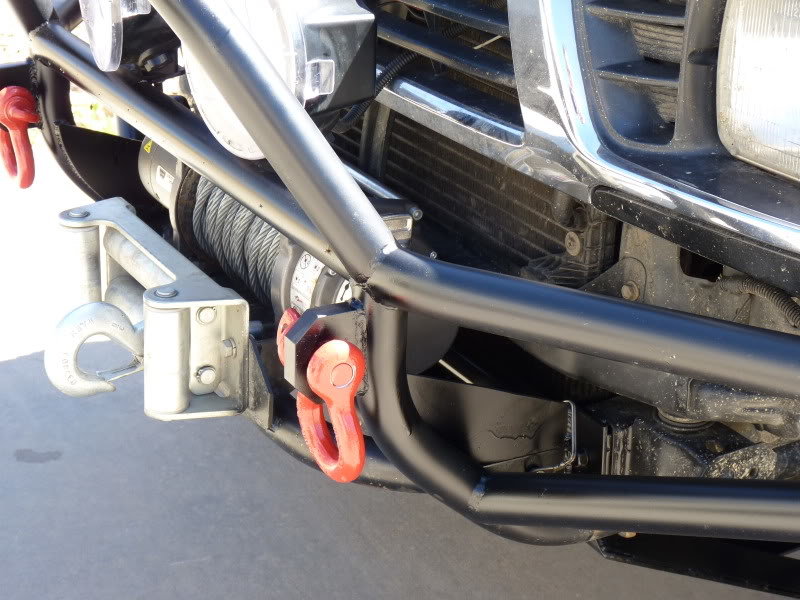

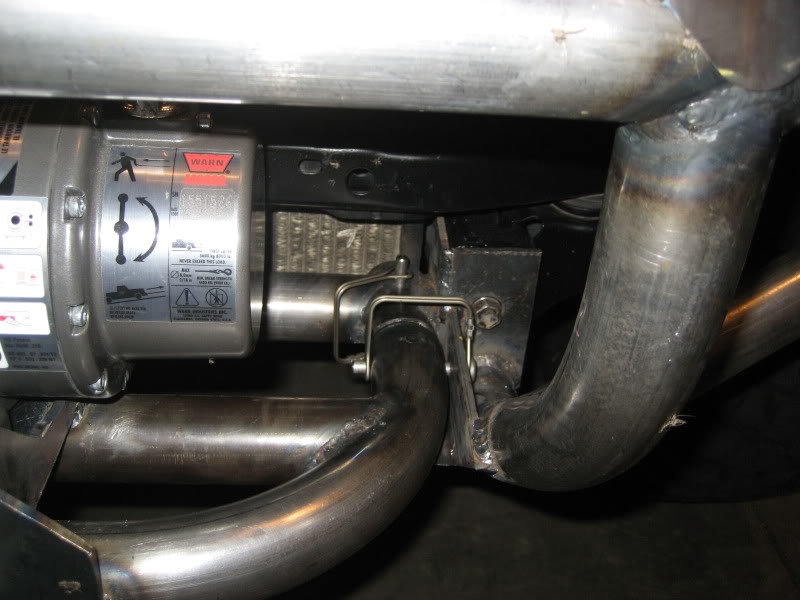

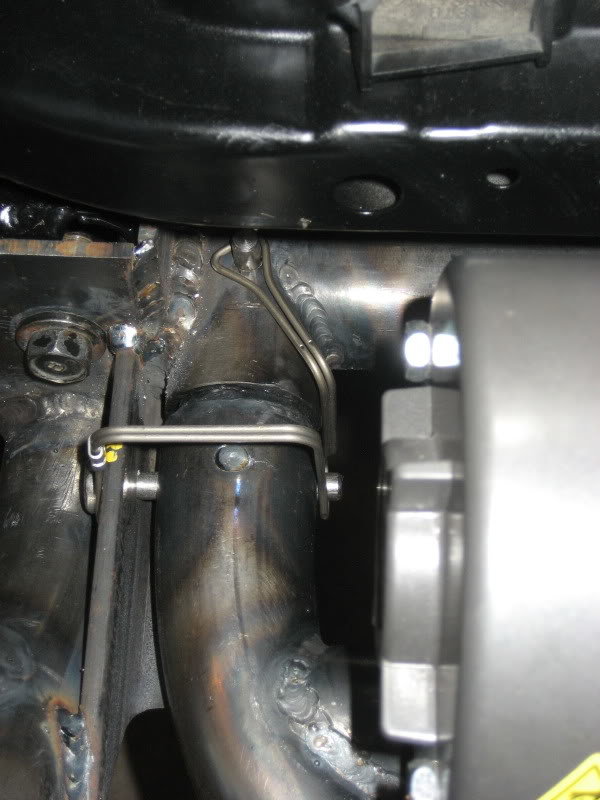

    Here are some close up shots of the removable winch setup



    No tools required to remove it, and the pins are strong enough to handle winching operations


    Here's where the plate goes. When inserting the plate, the supporting structure guides the tube into place. It's really easy and lines up every time.



    It works pretty well!

  11. May 17, 2013 at 1:30 PM
    #11
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,978
    Gender:
    Male
    New Hampshire
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    Ok, final post of the day.

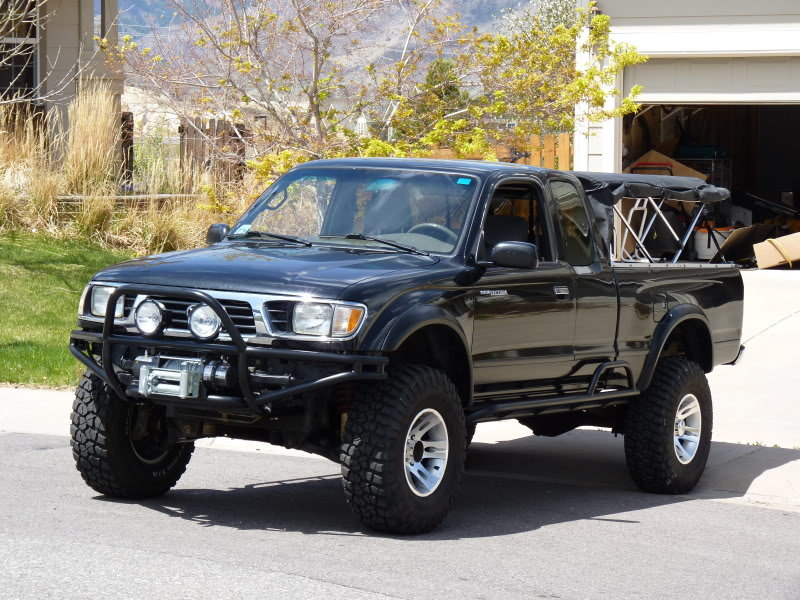

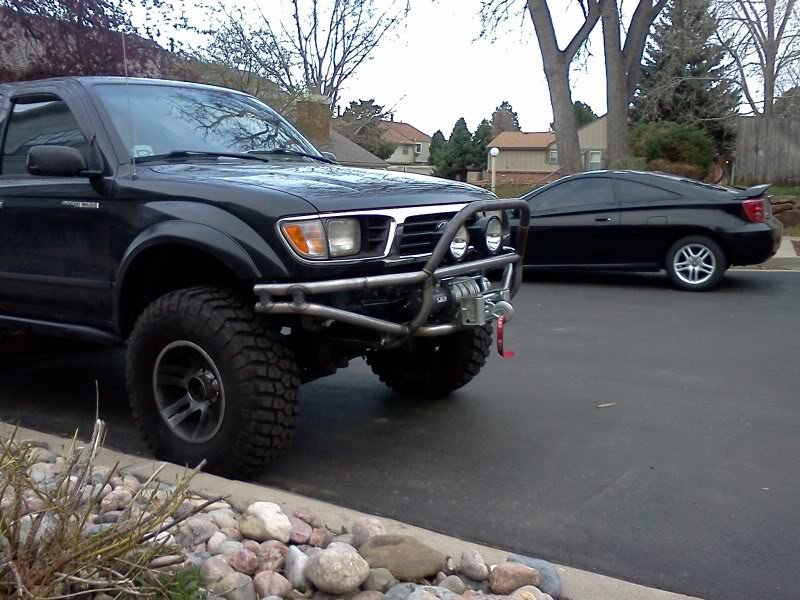

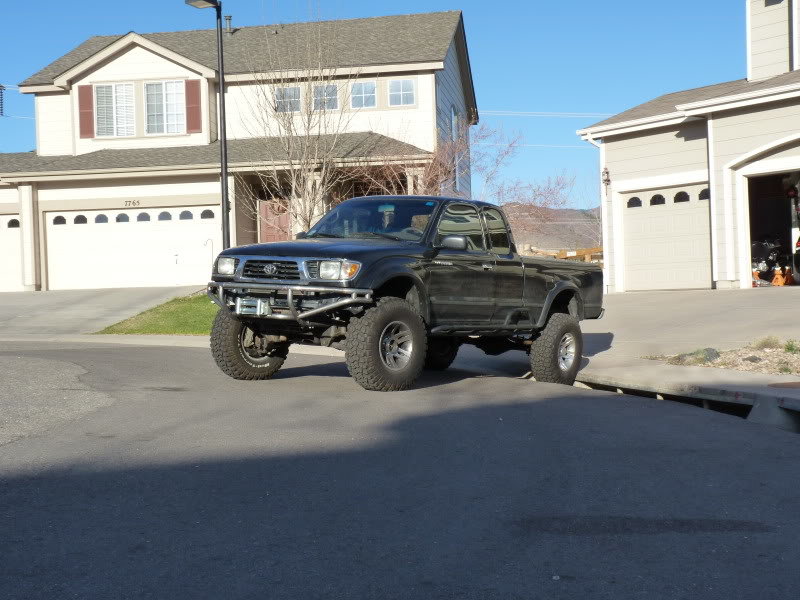

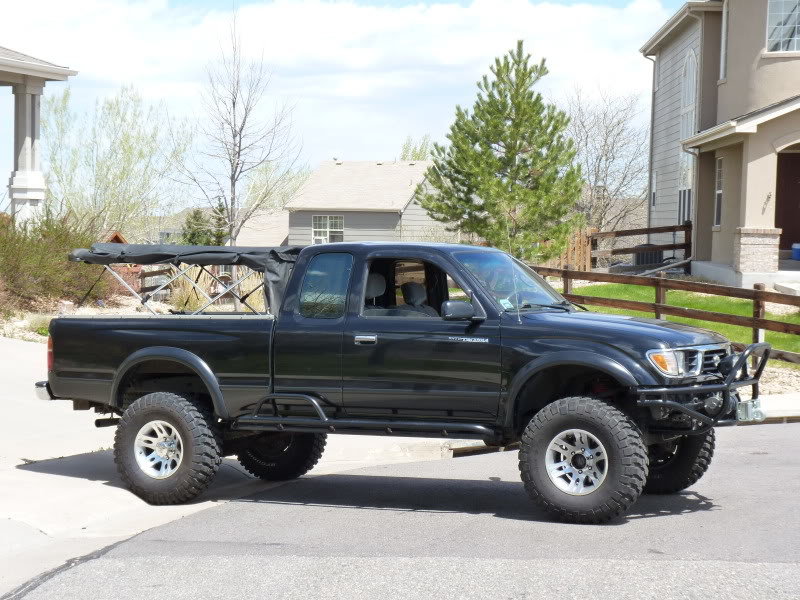

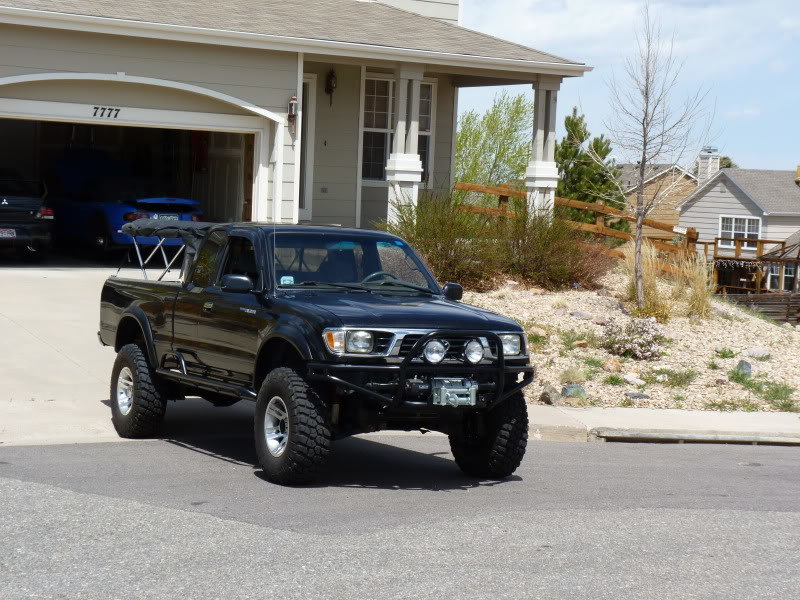

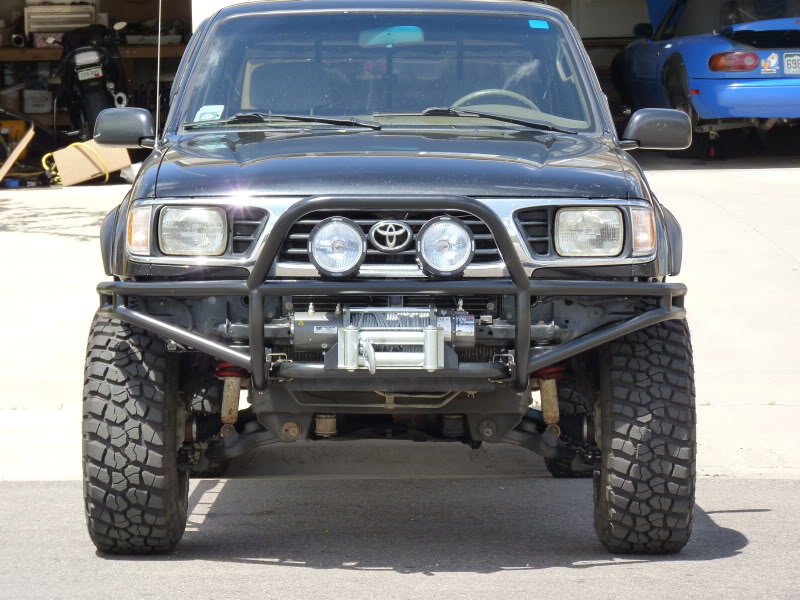

    Here's the bumper all finished up





  12. May 17, 2013 at 2:57 PM
    #12
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    64,624
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
  13. May 17, 2013 at 8:53 PM
    #13
    TACOMABOSS

    TACOMABOSS Well-Known Member

    Joined:
    Jul 7, 2011
    Member:
    #59499
    Messages:
    4,297
    Gender:
    Male
    Vehicle:
    96 SR5 4x4
    Bilstein 5100s, Toytec AAL, Deck plate mod, Hella 500ff's, Sportsman Camo seat covers, Total Chaos 1" diff drop, JVC stereo, Painted bumpers and grille, Custom grille insert, HID projectors, Black spray paint
    X2 :drool:

  14. May 17, 2013 at 9:11 PM
    #14
    PcBuilder14

    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    21,927
    Gender:
    Male
    First Name:
    Brent
    Las Vegas, Nevada
    Vehicle:
    2003 Tacoma TRD 4X4
  15. May 17, 2013 at 10:46 PM
    #15
    MapleMoose

    MapleMoose Drunk Canadian

    Joined:
    Feb 15, 2011
    Member:
    #51211
    Messages:
    8,578
    Gender:
    Male
    First Name:
    Ian
    West Kootenays
    Vehicle:
    1996 Tacoma SR5
    3" Eibach Coils, 3" AP Springs, AP 6" Shackles Toytec Diff drop, BAMF Sliders, Deck plate mod,Volt meter, Highbeam mod, PIAA fogs, 18" Magnaflow, LED dash swap, Color matched Satoshi Grille, Custom Rear Plate Bumper
    sick man! Nice bumper too

    What kind of soft topper do you have?

  16. May 17, 2013 at 11:12 PM
    #16
    higherlux

    higherlux Well-Known Member

    Joined:
    Dec 5, 2008
    Member:
    #11307
    Messages:
    6,932
    Gender:
    Male
    First Name:
    Blake
    middle of S.C.
    Vehicle:
    1998 tacoma 2.7l 4wd/1986 POS
    Mall crawler status
    Likein the bumper dude good work

  17. May 17, 2013 at 11:36 PM
    #17
    RelentlessFab

    RelentlessFab Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    14,482
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras: Sparks, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the old Taco's.... new Tundra is pretty stock
    nice job on the tube bumper
    good looking truck!

  18. May 18, 2013 at 7:23 AM
    #18
    Davtopgun

    Davtopgun Weeeee mod time!

    Joined:
    Feb 17, 2011
    Member:
    #51350
    Messages:
    5,581
    Gender:
    Male
    First Name:
    David
    Central Alabama
    Vehicle:
    2014 TRD Off-Road
    TacoAlaMode Custom grill, SCS Gunmetal F5's, Treadwright guard dogs, King extended travel coilovers w/800# springs, OME Dakars. LRUCA's. Allpro off-road plate rear bumper with high clearance hitch, steel breaded extended brake lines front and rear, SOS concepts bolt on rock sliders with top plate, Pelfreybuilt front plate bumper, rci skid plates, Airflow Snorkel, Tom Woods custom one piece drivesahft, Weathertech in channel rain guards, Bushwacker fender flares, custom cab height bedrack, 60" Hi-Lift jack w/Mount, Recon 10,500lb waterproof winch with synthetic line, rear bumper light pods, front bumper light pods and light bar.
    Also subbed. I've been looking into a duel T-case myself. How do you like the inchworm?

  19. May 18, 2013 at 7:38 AM
    #19
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,978
    Gender:
    Male
    New Hampshire
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    Thanks for the compliments on the bumper, guys! I'm hoping to build a rear bumper late summer/early fall that will accept my winch plate. That way I can winch in either direction. (Nice feature when I'm out on expo type trips by myself)


    I LOVE the inchworm setup. Really it's hard to beat the price for their full setup too. The thing to be careful about is the front adapter plate. (transmission to crawlbox) It seems like some people have problems with oil leaking out from there. So, I was really careful when drilling my clocking holes and had a machinist buddy of mine feel and file it till he was convinced it was totally flat. I haven't had a drip yet. Hopefully, I'll get this thread caught up with weekend and will detail the process a little more.

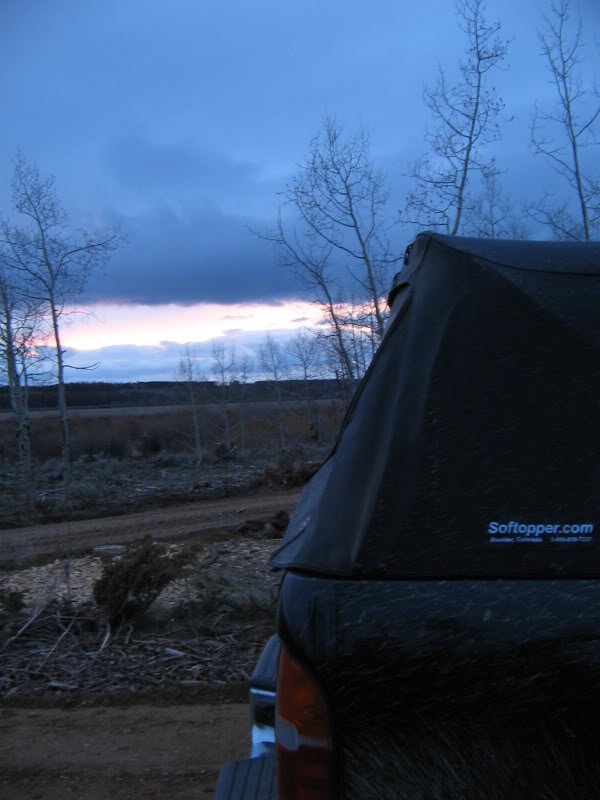

    Thanks man! My topper is the Softtopper brand, made out here in Colorado. Since they are so close, I went to the factory and met the owners. They are really nice folks that put out an awesome product. My topper has been on my truck for 4 years now through heavy snow, hail, rain and direct sun. It has held up great! I can't say enough good things about it, but I'll end my commercial now.:p


    Last edited: May 18, 2013
  20. May 18, 2013 at 9:27 AM
    #20
    Lumpskie

    Lumpskie [OP] Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,978
    Gender:
    Male
    New Hampshire
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    I forgot to show a couple of mods I made to the bumper after the initial build.

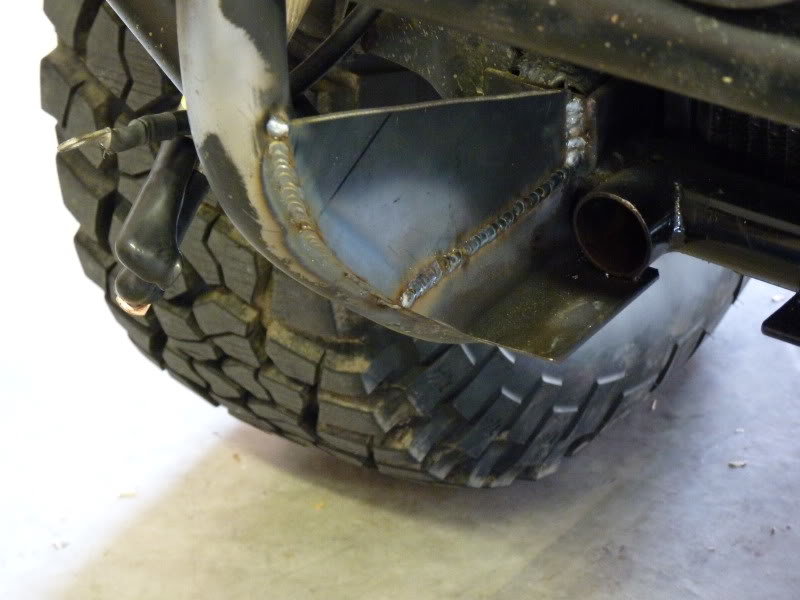

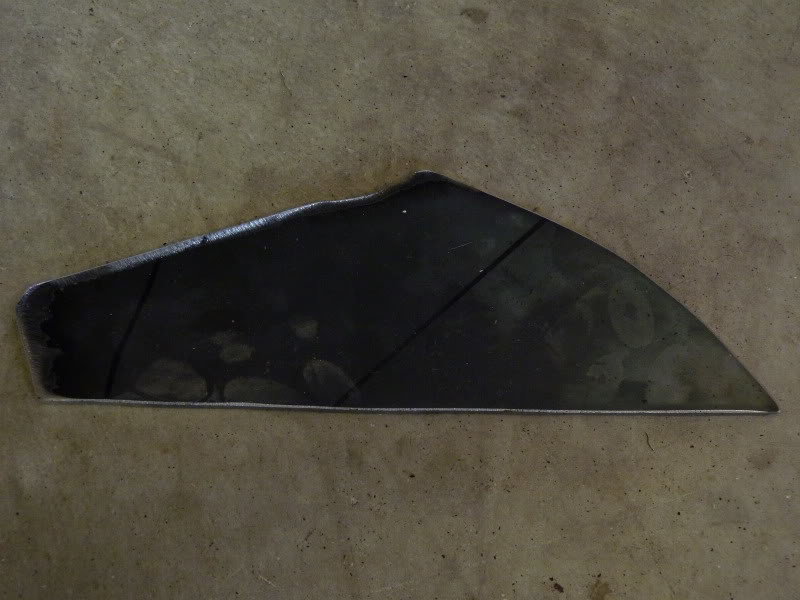

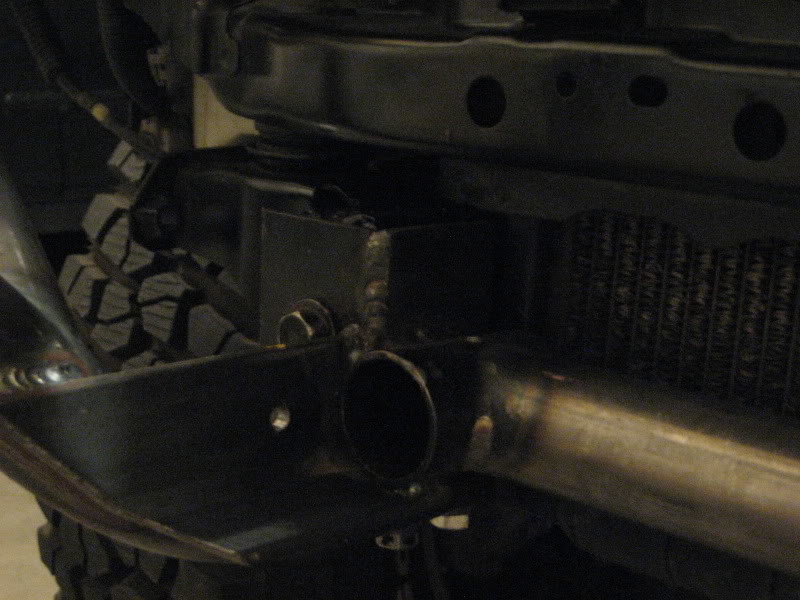

    I added some shackle hangers and reinforced the bumper with some plate steel.

    Bad job with the spray paint...
