The NorthStar AGM Battery + Voltage Booster Upgrade

Discussion in 'Technical Chat' started by crashnburn80, Apr 14, 2019.

  1. Nov 16, 2019 at 6:41 AM
    #321
    Superman910

    Superman910 Epic Dirty

    Joined:
    Jan 28, 2017
    Member:
    #208888
    Messages:
    5,850
    Gender:
    Male
    First Name:
    Eric
    Northern Virginia
    Vehicle:
    2009 Tacoma TRD Sport DCLB 4x4
    Stock as Fuck or Not Fucking Stock
    @crashnburn80 what is the dip settings again for .4 vs .5? Apologies I'm blind and tried to find it again and I lost the damn paper.

  2. Nov 16, 2019 at 7:17 AM
    #322
    Rome604

    Rome604 I am the Captain now

    Joined:
    Feb 23, 2017
    Member:
    #211478
    Messages:
    4,615
    Gender:
    Male
    First Name:
    Dave
    Alexandria, VA
    Vehicle:
    2023 TRD Pro Sequoia
    I don't think you can get to .5 with the dip switch model. Each dip switch is +0.2V so the first two dip switches will get you to 0.4V and a third would get you to 0.6V

    crashnburn80[OP] and SR-71A like this.
  3. Nov 16, 2019 at 7:24 AM
    #323
    Superman910

    Superman910 Epic Dirty

    Joined:
    Jan 28, 2017
    Member:
    #208888
    Messages:
    5,850
    Gender:
    Male
    First Name:
    Eric
    Northern Virginia
    Vehicle:
    2009 Tacoma TRD Sport DCLB 4x4
    Stock as Fuck or Not Fucking Stock
    I'll take that .4 you smart bastard you

    Rome604[QUOTED] likes this.
  4. Nov 16, 2019 at 10:28 AM
    #324
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,772
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR

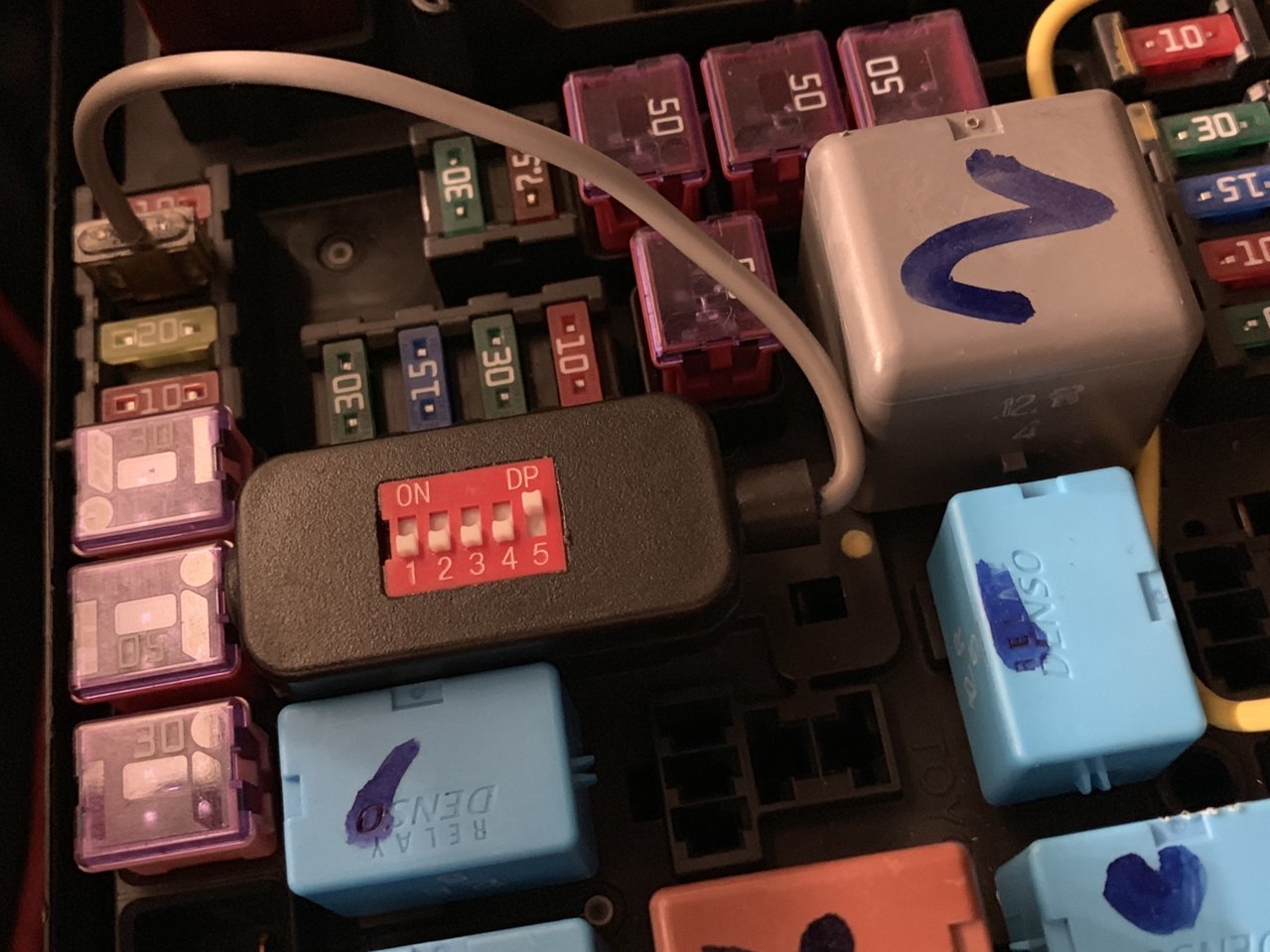

    As mentioned it is 0.2v increments. Below is shown at 0.8v, so for 0.4v you’d want the first 2 switches in the down position, and the last 3 up.


  5. Nov 16, 2019 at 10:42 AM
    #325
    Superman910

    Superman910 Epic Dirty

    Joined:
    Jan 28, 2017
    Member:
    #208888
    Messages:
    5,850
    Gender:
    Male
    First Name:
    Eric
    Northern Virginia
    Vehicle:
    2009 Tacoma TRD Sport DCLB 4x4
    Stock as Fuck or Not Fucking Stock
    Thank you sir.

  6. Nov 16, 2019 at 1:00 PM
    #326
    VE7OSR

    VE7OSR нет войне

    Joined:
    Dec 12, 2011
    Member:
    #68608
    Messages:
    5,799
    Gender:
    Male
    First Name:
    Rob II
    Okanagan, Canada
    Vehicle:
    05 DCLB TRD Sport
    Armour: All-Pro Skid plates - IFS, transmission, and transfer case. Pelfreybilt rear standard plate bumper, Metal Tech Sliders w/ kickout and dimple die filler plates. Front Suspension: OME 885 + NitroCharger 9000 shocks + 1/2" spacers for a 3" lift. Superbumps replacing stock bumpstops. Camburg ball joint UCA SS braid brake lines Future: ADS Extended length, extended length UCA BJ to increase droop capability Rear Suspension: All-Pro Expedition rear leafs, Walker Evans 27" rear shocks, extended rear brake lines (Wheelers Offroad), U -bolt flip kit, rear Timbren bumpstops. Future: Hammer Hangers, Shock relocate, ADS 12" or 14" shock. Interior: Weatherteck floor liners - front, Wet Okoles- front, ScanGauge, LED interior & map lights. Power moonroof. Exterior: Raider Cobra canopy, retrofit headlight by Insight, LED bulbs all around, modified flasher unit for LEDs. Rear diff breather mod. Front diff vibe problem, driver's side needle bearing replaced with ECGS bushing. yet to install: HID Blazer Fog Retrofit, LED Flood & Spot, + switches, fuse panel. swaybar relocate blocks (build my own)

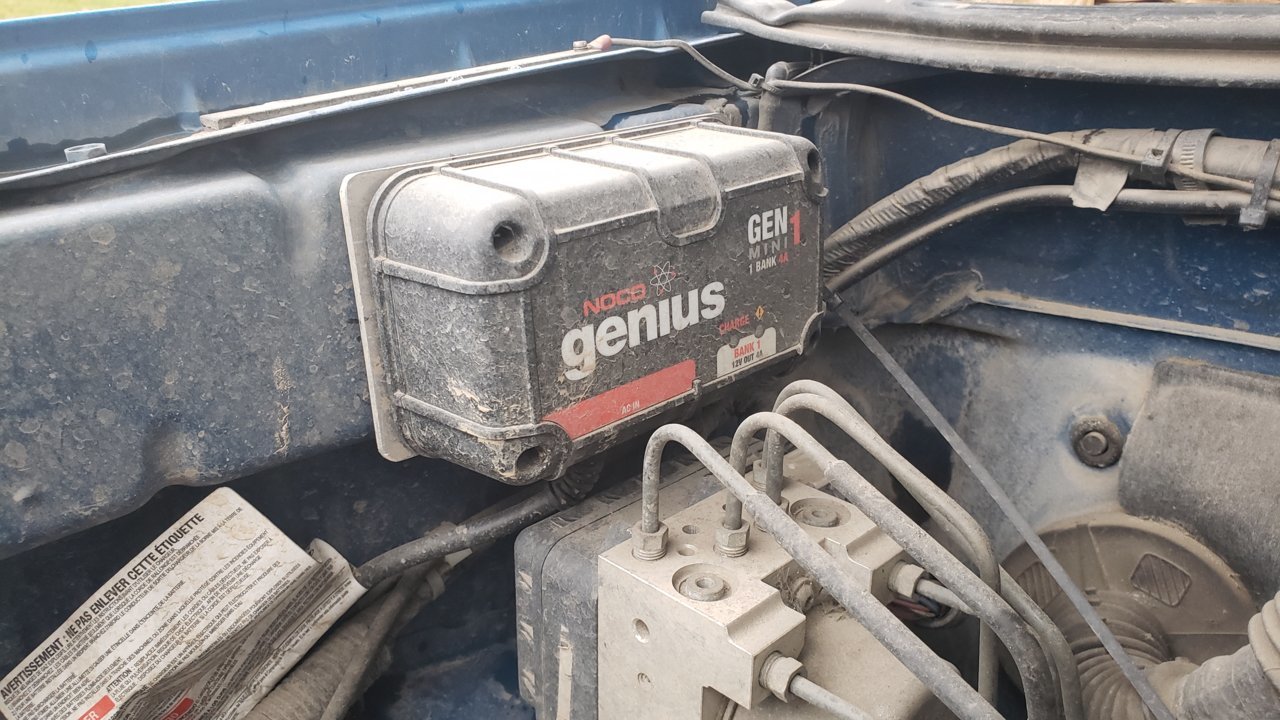

    The aluminum plate has threaded holes to receive the noco unit and clearance holes underneath the charger to allow bolts into the stock mounting holes available in the fender wall.


    Last edited: Nov 16, 2019
  7. Nov 16, 2019 at 1:21 PM
    #327
    Superman910

    Superman910 Epic Dirty

    Joined:
    Jan 28, 2017
    Member:
    #208888
    Messages:
    5,850
    Gender:
    Male
    First Name:
    Eric
    Northern Virginia
    Vehicle:
    2009 Tacoma TRD Sport DCLB 4x4
    Stock as Fuck or Not Fucking Stock
    @crashnburn80 I read your Bluetooth monitor went out. Surprise surprise mine went out too.

    crashnburn80[OP] likes this.
  8. Nov 16, 2019 at 1:23 PM
    #328
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,772
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Yeah, cheap China goods. It did its job for what I really needed though, to understand the voltage over time and correctly calibrate the charge voltage.

  9. Nov 16, 2019 at 1:24 PM
    #329
    Superman910

    Superman910 Epic Dirty

    Joined:
    Jan 28, 2017
    Member:
    #208888
    Messages:
    5,850
    Gender:
    Male
    First Name:
    Eric
    Northern Virginia
    Vehicle:
    2009 Tacoma TRD Sport DCLB 4x4
    Stock as Fuck or Not Fucking Stock
    I was using it to monitor my solar setup. Actually worked out pretty well. Till it just died after my camping trip

  10. Nov 16, 2019 at 1:26 PM
    #330
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,772
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Yeah I did really like the functionality while it lasted, it was a pretty slick device. Till it died.

    Superman910[QUOTED] likes this.
  11. Nov 16, 2019 at 1:45 PM
    #331
    TRD493

    TRD493 Well-Known Member

    Joined:
    Dec 27, 2015
    Member:
    #173269
    Messages:
    1,724
    Gender:
    Male
    First Name:
    Dave
    Texas (DFW)
    Vehicle:
    17 TRD Sport DCLB 4x4 / 01 4x4 V6 Extra Cab TRD SR5
    I looked at their website and it looks to me like yours would still be good to go according to the specs they list.

  12. Nov 16, 2019 at 2:06 PM
    #332
    OutbackHack

    OutbackHack Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26963
    Messages:
    636
    Gender:
    Male
    First Name:
    Mike
    Evergreen, CO
    Vehicle:
    2014 DCLB Heavy
    Stupid amount of extra heavy metal all over

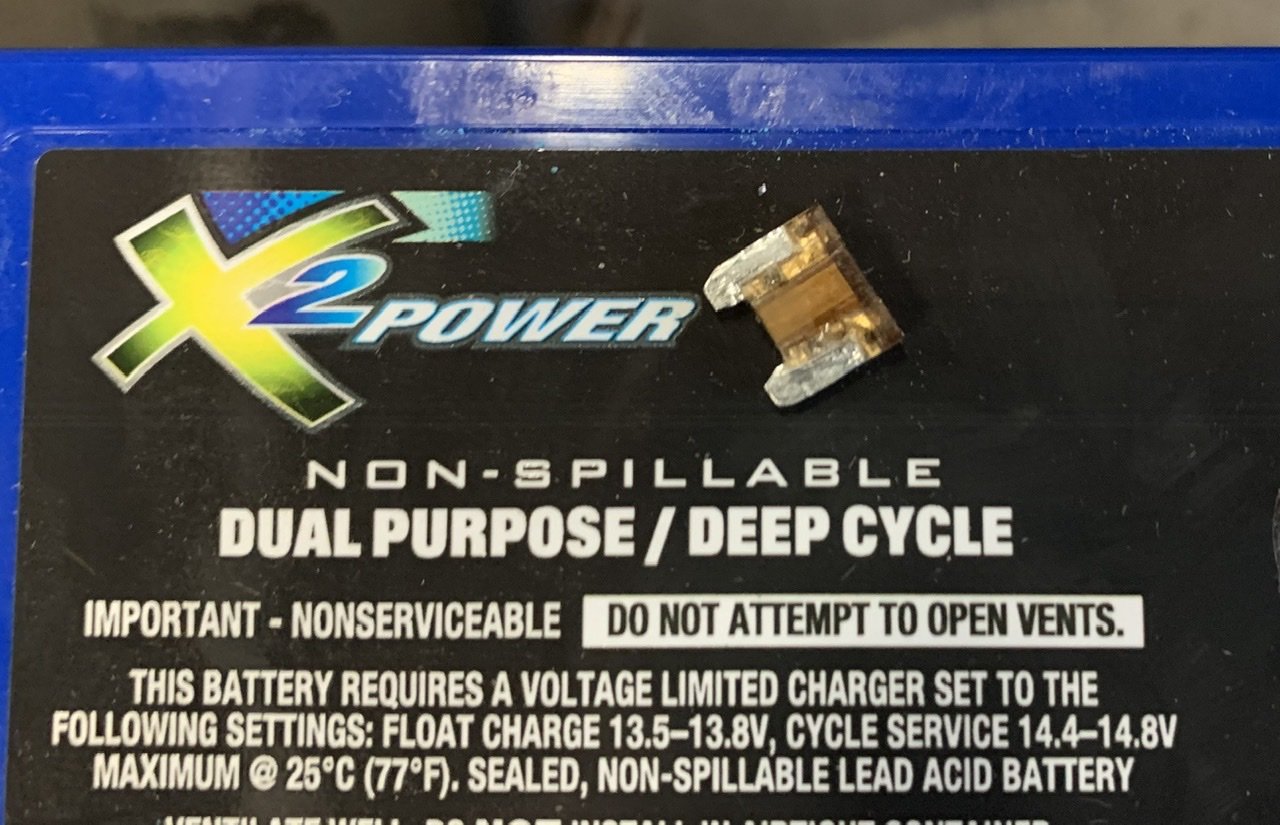

    After 3 weeks of waiting...
    this thing is heavy, glad I decided against the size 31.

  13. Nov 16, 2019 at 5:54 PM
    #333
    OutbackHack

    OutbackHack Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26963
    Messages:
    636
    Gender:
    Male
    First Name:
    Mike
    Evergreen, CO
    Vehicle:
    2014 DCLB Heavy
    Stupid amount of extra heavy metal all over
    I picked up one of those instead of a Bluetooth battery monitor cause I’m cheap. Compared to my cheap multimeters it’s within maybe 0.05v, so not bad for the price and let’s me monitor the voltage while driving.
    CCD82C10-710B-48C5-9462-D8F7284AA611.jpg 946222CD-3922-459F-8966-4ED27DBADE46.jpg

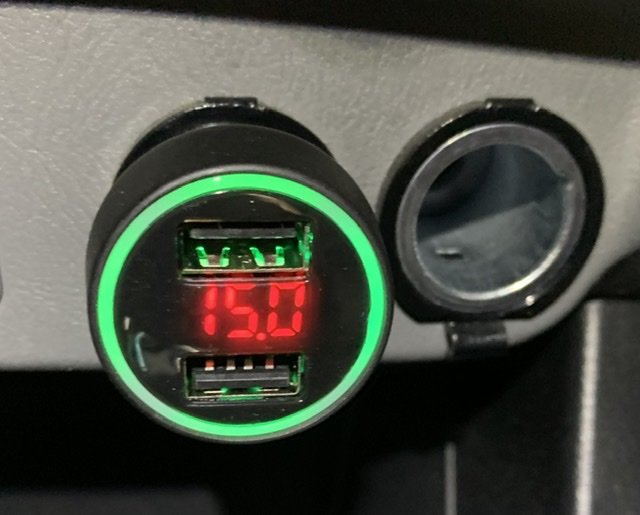

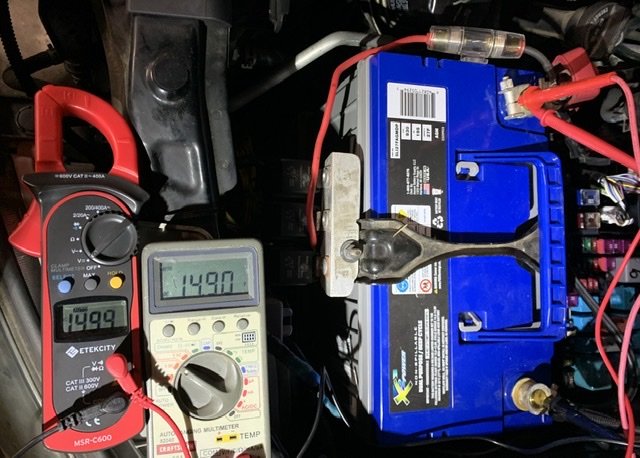

    Cold start voltage

    CF0FADE0-6D8D-4BCA-B274-B41CD0FE0180.jpg 5FCA731D-A935-4382-96B0-C8AE43340D87.jpg

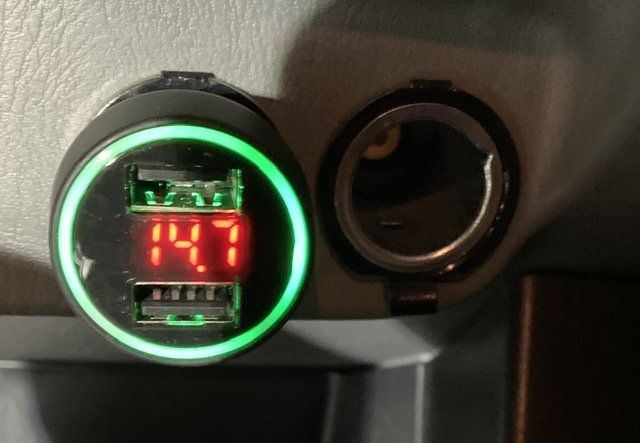

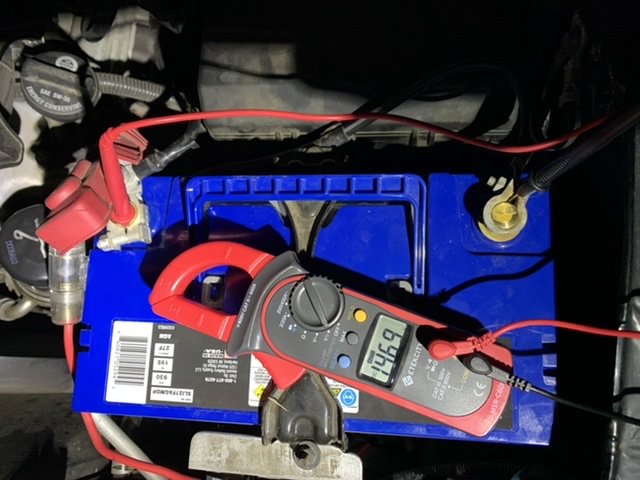

    After running for 5 minutes

    MattCowsmasher likes this.
  14. Nov 16, 2019 at 9:19 PM
    #334
    TAC1

    TAC1 Well-Known Member

    Joined:
    May 13, 2011
    Member:
    #56594
    Messages:
    2,863
    Gender:
    Male
    First Name:
    Tac1
    Miami, FL
    Vehicle:
    2015 DCSB O/R 4WD
    Hello,
    I've been looking to replace the Truestart 27F on my '15 DCSB O/R, 4.0, Auto, tow package with an AGM battery. A friend of mine recommended the Northstar 27F & this post. Thank you @crashnburn80 :thumbsup:

    I've read a couple of pages here so far but my current stock battery is low so I need to make a decidion in the next couple of days. I see the 27F Northstar has excellent reviews but it's a bit pricey. The Northstar 94R costs $60 less, is 11 lbs lighter, is more "available" here in Miami, FL and though not as powerful as the 27F it still offers 130 CCA's more than my non-agm 27F Truestart battery. Also, will the OE battery tie-down work with either of these 2 batteries? If not, any recommendations on aftermarket ones? Other than the 400W anytime mod I also plan to add a 1000W pure sine wave inverter and that's it. My previous truck ('08 4.0 Prerunner) had a 1000W inverter as well & ran with a stock battery with no issues but this truck will see a bit more use. Battery specs below. So, 27F or 94R?
    Thank you



    • Item Number: SLI27FAGMDP Item Number: SLI94RAGMDP
    • Brand: X2Power Brand: X2Power
    • Format: BCI Group 27F Format: BCI Group 94R
    • Lead Acid Type: Deep Cycle, Lead Acid Type: Deep Cycle,
    • Dual Purpose (Starting/Cycling), Starting Dual Purpose (Starting/Cycling), Starting
    • Cold Cranking Amps: 930 Cold Cranking Amps: 840
    • Battery Type: Ultimate Battery Type: Ultimate
    • Chemistry: Lead Acid Chemistry: Lead Acid
    • Color: Blue Top Capacity 20hr: 81AH
    • Lead Acid Design: AGM Cranking Amps: 1030
    • Made in the USA: True Lead Acid Design: AGM
    • Product Category: Auto/Light Truck Made in the USA: True
    • Product Sub Category: Premium AGM Maintenance Free: Yes
    • Terminal Type: SAE, Automotive Post Product Category: Auto/Light Truck
    • [​IMG]WARNING: Cancer and Reproductive Harm - Pro Terminal Type: SAE, Automotive Post
    • Warranty: 60 Month Free Replacement Warranty: 60 Month Free Replacement
    • Weight: 66.95 lbs Weight: 55.75 lbs
    • Length: 12.46 in Length: 12.4 in
    • Width: 6.77 in Width: 6.9 in
    • Height: 8.75 in Height: 7.4 in




    Last edited: Nov 16, 2019
  15. Nov 16, 2019 at 11:49 PM
    #335
    Norton

    Norton Senior Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    4,660
    Gender:
    Male
    First Name:
    Steve
    Colorado Springs, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    Magnuson S/C w/12TRDTacoma's Qwikchange Hub & 2.5" RIP-Modded Pulley, Roostfactor's Pulley Wrap Mod; FPR Mod; JustDSM Tune via HPT MPVI2; mightytacoman Intercooler Tank; aFe POWER Magnum FLOW Pro DRY S Air Filter; OME Suspension Lift (885 Coils, Dakar Leafs, NitroCharger Sports); TRD Quickshifter w/TRD 6-Spd Knob; TRD Exhaust; NSB-AGM27F Battery w/HKB Adjustable Voltage Booster & Coupe's TRD Battery Hold Down; Goodridge SS Brake Lines; Trident904's MT ADM; BFG All-Terrain T/A KO2s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; BPF TRD Skid, Tow Hook, & Cooling Panel; jsi's Locker Anytime, Up2NoGood's 2Lo Module; ramonortiz55's Always on Power Outlet Relay, ND4's Fog Light Anytime, & Crom's Speed Bleeder Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades; ThreatLevelMidnight's Wireless Charger; 4Runner 4X4 & FJ Fog Light Switches; redtaco2007-inspired LED License Plate Lights; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Noico Sound Insulation; loginfailed-inspired Speedhut Boost & AFR Gauges in a Lotek Pillar Pod; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror on ImMrYo's Mirror Lift Bracket; TacomaBeast Glove Box & Console Organizers; Husky Floor Liners; UltraGauge EM; mesojdm's Ultimate LED Dome & Map Lights & GASSHOLE; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Cali Raised Led Bed Stiffeners; Pop & Lock Power Tailgate Lock w/TacomaTruckParts Support Bracket; ARE Z-Series Cap, SolarGard Tint; BlendMounted & MirrorTapped Uniden R3; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    You won't go wrong with Northstar - expensive, but worth it. Most Tacoma owners who choose Northstar seem to stick with either 27F or 24F, with some choosing Group 31. I remain happy with my 27F, as does my son with a 24F in his 1st Gen.

    I'm not familiar with the 94R but, based on the specs you listed, it should work for your application. That said, I recommend looking at a 24F as slightly smaller/lighter/less expensive alternative to the 27F...

    27F
    Terminal configuration SAE
    Terminal illustration [​IMG]
    Pulse cranking amps
    1750 A
    CCA rating at -18°C (0°F) 930 A
    CA/MCA rating at 0°C (32°F) 1080 A
    Reserve capacity 195 min
    Capacity - 20 hour rate (1.75 vpc) 92 Ah
    Warranty 4 years full
    Height 8.75 in
    Width 6.77 in
    Length 12.44 in
    Weight 68 lbs


    24F
    Terminal configuration
    SAE
    Terminal illustration [​IMG]
    Pulse cranking amps 1500 A
    CCA rating at -18°C (0°F) 840 A
    CA/MCA rating at 0°C (32°F) 1000 A
    Reserve capacity 160 min
    Capacity - 20 hour rate (1.75 vpc) 76 Ah
    Warranty 4 years full
    Height 8.75 in
    Width 6.77 in
    Length 10.87 in
    Weight 57 lbs

    My stock tie-down wasn't long enough for the Northstar 27F, so I went with one of Coupe's TRD Battery Hold Downs that came with an extended rod.

  16. Nov 17, 2019 at 2:01 PM
    #336
    Teamrivers

    Teamrivers Well-Known Member

    Joined:
    Feb 18, 2019
    Member:
    #283513
    Messages:
    75
    Gender:
    Male
    First Name:
    Brent
    Atlanta, GA
    Vehicle:
    2018 TRD Off Road 4x4 DBL 5.5
    Diamond Back HD, full interior light change, DiodeDynamics main lamps, Caliraised amber fogs & ditches, Caliraised 25 Degree sliders no plate, SSO slimline front bumper w/ 20" LED Smitty Gen3 winch, Barricade rear bumper with rear in bumper lights from SuperbriteLEDs, Budbuilt rock 2 plates with rerouted exhaust, Method 306, 295 Ridge Graps. OEM Kings tuned from Filthy, Deaver Exp 1, SPC UCAs, 5.29 diffs. Dash mounted 1/4 threaded accessory plate. And a TRD Pro grill...assuming I qualify for pro status.
    So I'm picking up my Grp 27 XP from batteriesplus this week, I've got a JEGS 27 tray to replace the OEM tray on my 2018 OR. I think i've found a solution for charging these batteries since I'm planning to add a 2nd Grp 31 agm battery in the bed of my truck. The CTEK D250sa is an onboard DC to DC charging solution that isolates your 2nd battery while charging your auxiliary at the proper voltage. The cool thing is it has a solar input that can take any 12v source up to 500watts and backfeed the system when the vehicle isn't running. It'll charge the auxillary to capacity first, then the starting. I'll be mounting a Meanwell waterproof 12v 320 watt LED driver to power in to that solar connection that will serve as shore power when at home. It'll keep everything topped off easily and can be used on the go as well. Service from the front to the back will be over 1/0 welders cable with an anderson plug at the rear for servicing the D250, and then if I need a jump from that 2nd battery, I can just unplug it and plug it to the 2nd batt. I'll also have 4 guage wire going to a BlueSea 6 port circuit on a 100amp breaker to serve all lighting and auxillary needs. A 1500 watt inverter will be hardwired with an anderson plug that can connect to that dedicated heavy 1/0 coming off the auxillary battery.

  17. Nov 17, 2019 at 7:27 PM
    #337
    TAC1

    TAC1 Well-Known Member

    Joined:
    May 13, 2011
    Member:
    #56594
    Messages:
    2,863
    Gender:
    Male
    First Name:
    Tac1
    Miami, FL
    Vehicle:
    2015 DCSB O/R 4WD
    Thank you for that info :thumbsup:

    Norton[QUOTED] likes this.
  18. Nov 17, 2019 at 7:38 PM
    #338
    crashdb

    crashdb I break chainsaws

    Joined:
    Aug 16, 2017
    Member:
    #226954
    Messages:
    9,714
    Gender:
    Male
    First Name:
    Dave
    Manassas, VA
    Vehicle:
    2008 Toyota Matrix
    Rollin' hydrocarbons!
    Darn. Just read 18 pages to realize no one has figured out the 3rd gen yet.

  19. Nov 17, 2019 at 8:24 PM
    #339
    SC4333

    SC4333 Well-Known Member

    Joined:
    Dec 9, 2008
    Member:
    #11412
    Messages:
    2,886
    Gender:
    Male
    First Name:
    Grant
    FL
    Vehicle:
    SOLD - 2016 TRD Off-Road 4x4 DCSB
    No dice, as of now. I actually bought the adjustable voltage booster and intercepted the “alt-s” line which now runs to the ECU and installed an in-line fuse holder that would accept the booster. No difference. I have not been successful in finding a charging schematic for the 3rd gen that shows all wiring details in its entirety. The FSM has quite a bit of information, but not all. If anyone has any ideas, or stumbles upon the honey pot, feel free to share.

    edit: if you look back in this thread, I’ve provided the pertinent pages I sourced from the FSM. One concern that has not yet been an issue since I have not been able to boost the voltage, is that anything above 14.6vdc is out of spec for the charging system. I was not able to find any literature that stated what occurs (CEL possibly?) when this condition is observed by the PCM.

    Last edited: Nov 17, 2019
    SR-71A, Rome604 and TrailYeti like this.
  20. Nov 17, 2019 at 8:33 PM
    #340
    crashdb

    crashdb I break chainsaws

    Joined:
    Aug 16, 2017
    Member:
    #226954
    Messages:
    9,714
    Gender:
    Male
    First Name:
    Dave
    Manassas, VA
    Vehicle:
    2008 Toyota Matrix
    Rollin' hydrocarbons!
    I would help if I could, but alot of this is Greek to me. I will say that it is possible an overvoltage state may set a CEL. I've seen it on other cars.
