Discussion in '4Runner Builds' started by steezemcqueen, Apr 29, 2013.

  1. Apr 29, 2013 at 2:33 PM
    #1
    steezemcqueen

    steezemcqueen [OP] 4Runner Abuser

    Joined:
    Nov 2, 2011
    Member:
    #66343
    Messages:
    526
    Gender:
    Male
    First Name:
    Dylan
    Crawlorado
    Vehicle:
    1997 4Runner Turbocharged 20 speed
    Soccer mom car with some random stuff duct tapped to it
    I guess all the cool kids have moved over to TW. I'm not a cool kid but i DGAF so i'm gonna post my build thread over here too. :wave:



    Dylan's 1997 4Runner SR5 5 Speed 4WD.

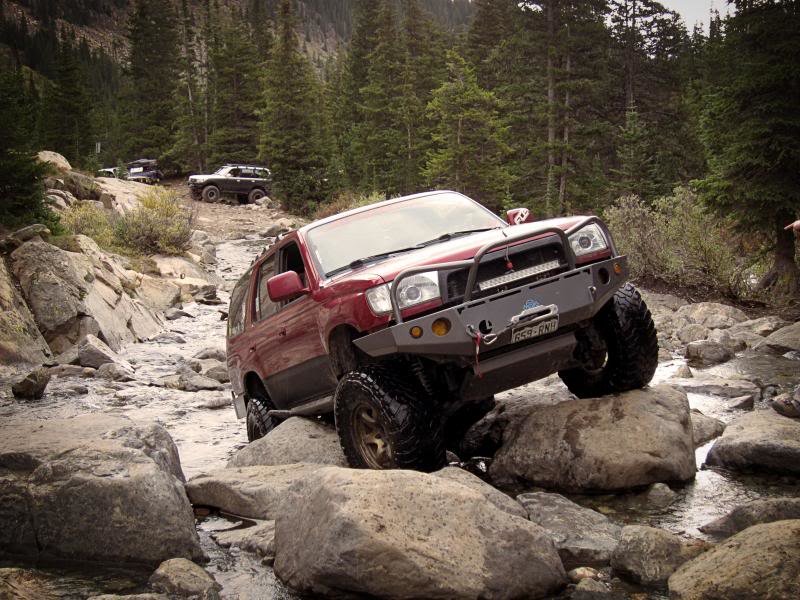

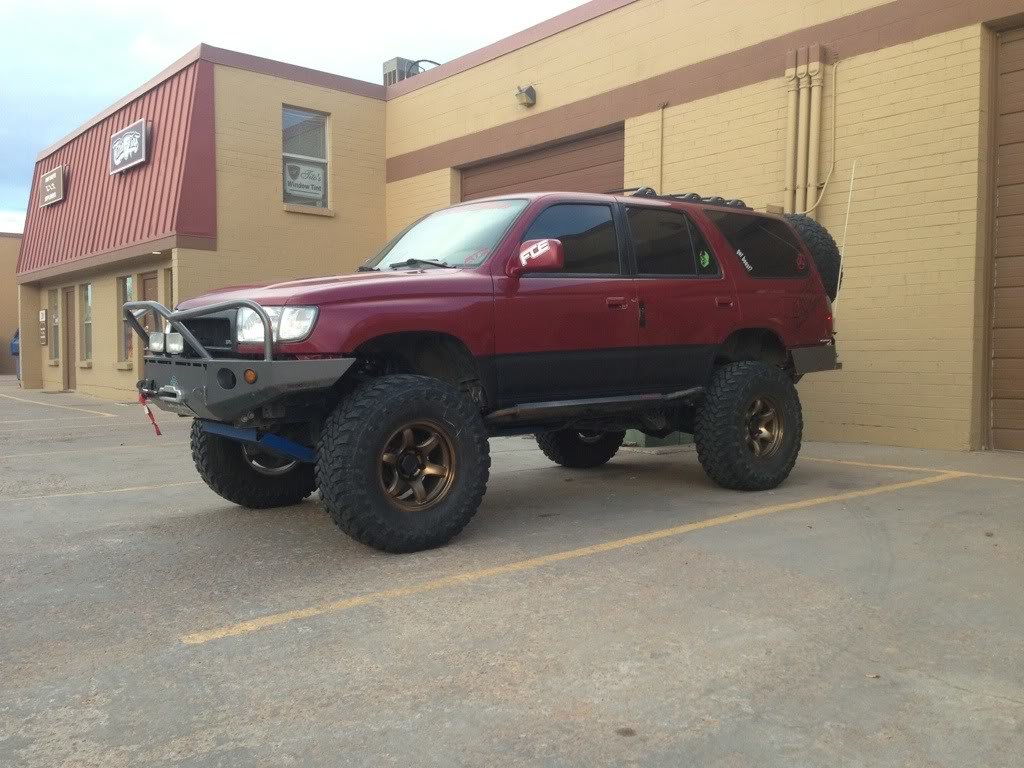

    [​IMG]

    [​IMG]Specs[​IMG]

    1997 4Runner SR5 4WD. Sunfire Red
    3.4L 5VZ-FE Turbocharged. Massive amounts of boost. Some crazy amount of horsepower.
    R150F 5 Speed
    Differential Gear Ratio: 4.10:1
    Max Crawl Ratio: 190:1
    Front Lift: 3.5 inches
    Rear Lift: 5 inches
    Front Hub to fender measurement: 25.5 inches
    Rear Hub to fender measurement: 27 inches
    Wheelbase: 105.3 inches
    Frame height: 21 inches
    Front track width:
    Rear track width:


    [​IMG]Modifications[​IMG]

    Engine
    Custom Turbo setup
    Holset HX30 Turbo
    Front mount intercooler
    Greddy BOV
    315cc Supra Injectors
    URD FTC1 performance calibration unit
    3 inch turbo-back exhaust
    Borla XR-1 muffler

    Drivetrain
    Exedy Clutch
    URD Short Shifter
    Marlin Crawler TacoBox Dual Case Setup with 4.7 low range gears
    Homemade Transfer Case Crossmember with 4xInnovations mount
    Elocker Axle Swap


    Suspension, Wheels, Tires
    ToyTec BOSS coilovers with 550lb/in springs
    OME 861 rear coils
    Custom valved ICON rear VS 2.0 Remote Reservoir shocks
    Light Racing UCA's
    ToyTec 1" diff drop
    ToyTec 2" body lift
    ToyTec Panhard bar drop
    ToyTecToyTec lower and upper links and Panhard bar[/url]
    No sway bars
    ToyTec extended front and rear stainless braided brake lines
    315/75/16 Toyo Open Country MT's
    16x8 Konig Countersteer Offroad wheels from FN Wheels

    Exterior, Armor, Recovery

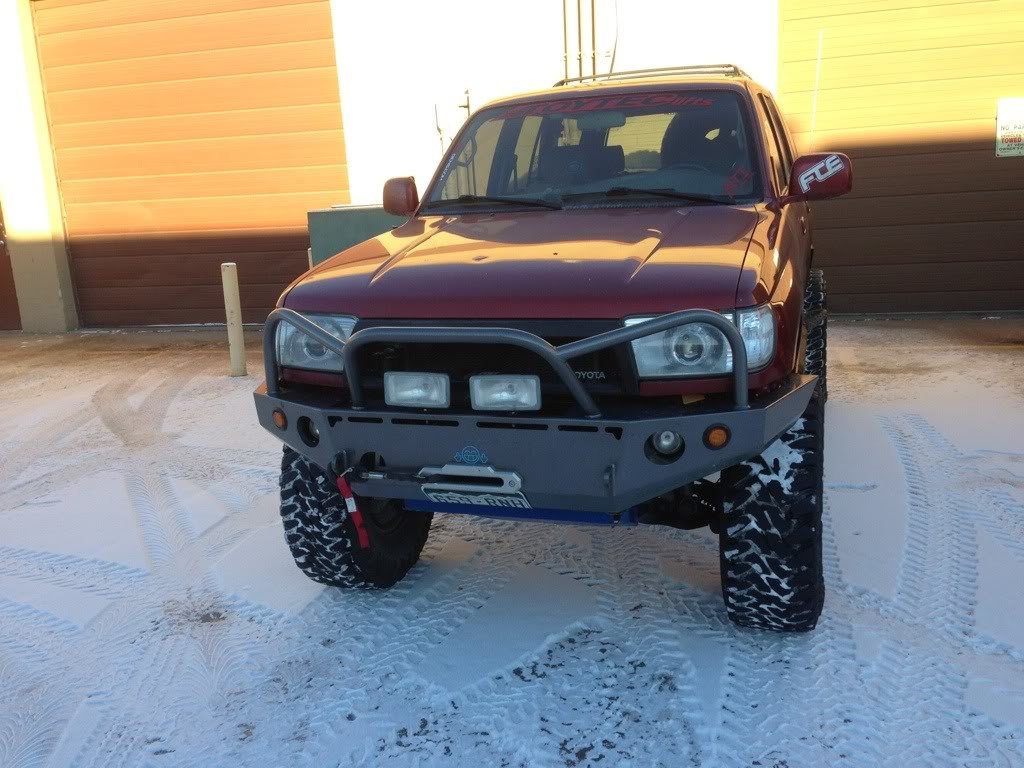

    Custom tube front bumper
    Smittybilt XRC8 with synthetic line
    Sliders by Rock Toy Industries
    Custom homemade rear bumper with swing out tire carrier, Hi-Lift and RotoPax gas can mount.
    Rear shackle mounts
    BudBuilt front skid
    Lil' Skip's belly pan
    Lotus Development RCAMS
    Marlin Crawler Rear Full Face Diff Armor
    Bedlined doors

    Lighting
    2002 Model Clear Headlights

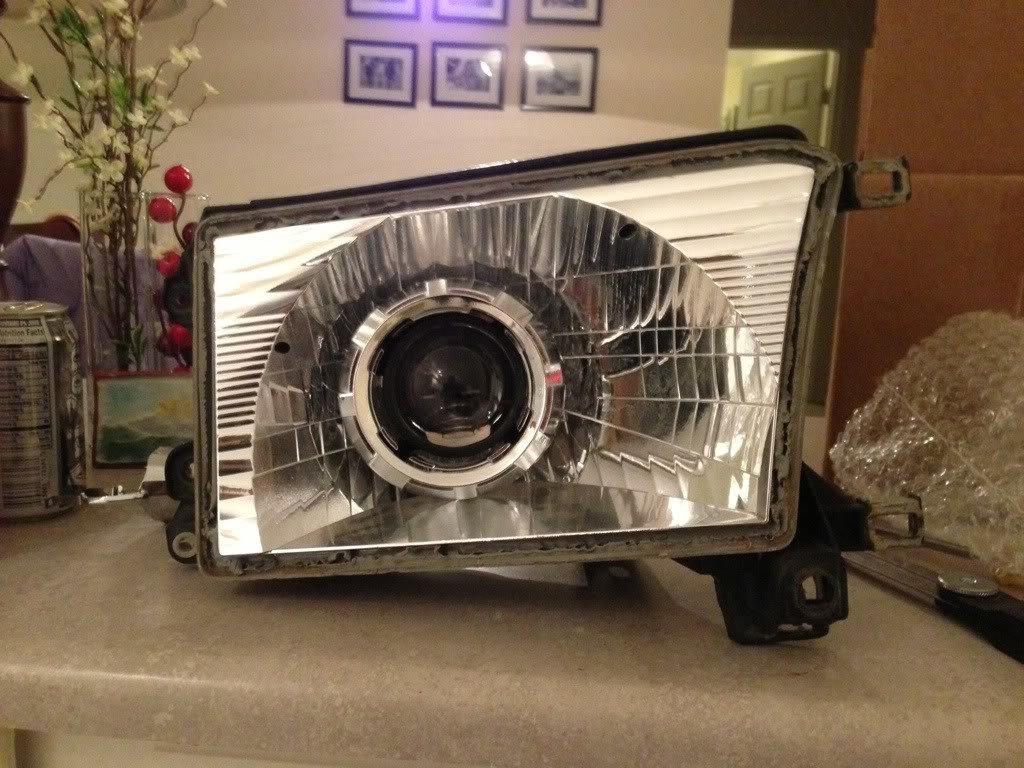

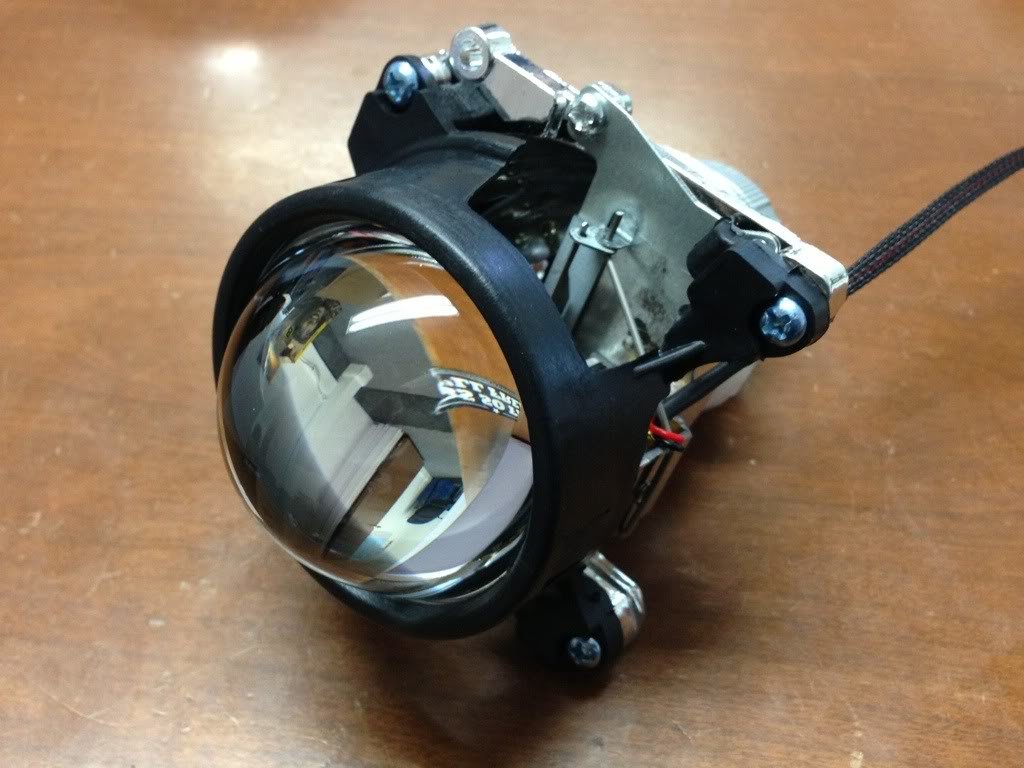

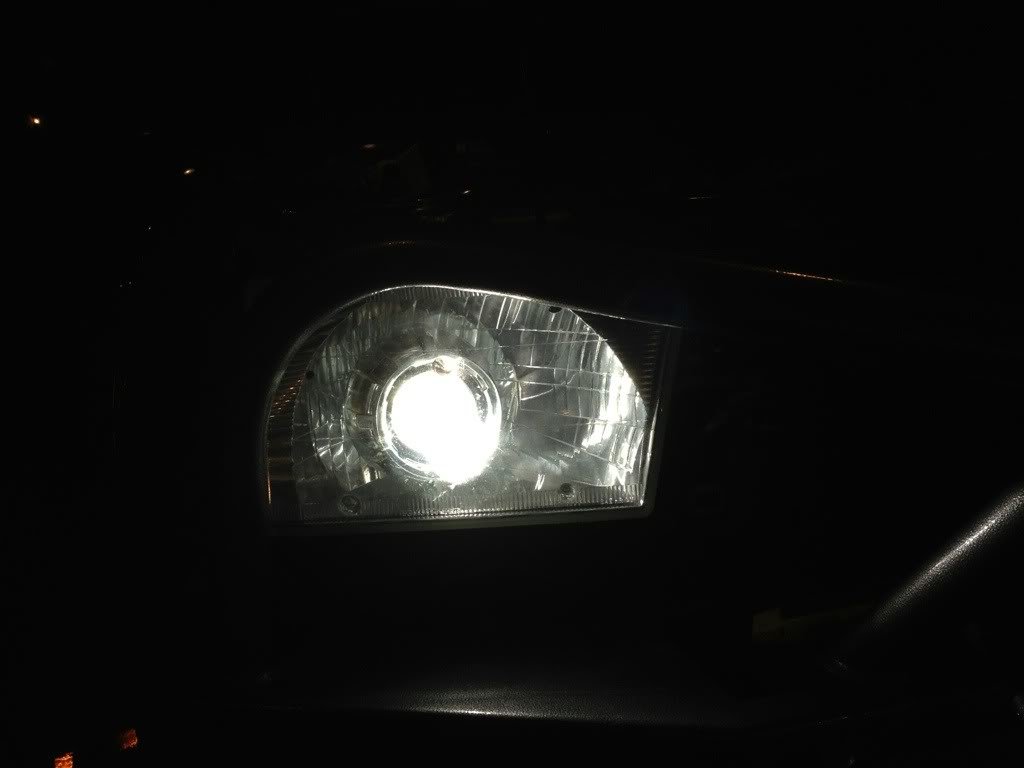

    Morimoto Stage III D2S 55w HID Projector Retrofit from The Retrofit Source
    Clear corner lights
    3 inch light pods on the front bumper
    50 inch radius on on the roof.

    Interior
    Interior lights and gauges swapped to LED's
    Boost Gauge
    Innovate MTX-L Wideband AFR Gauge
    LoTek Double Pillar Pod
    Ultragauge
    Kenwood Head Unit
    Uniden CB/PA
    Beltronics Radar Detector
    ARB drawer system
    ARB Fridge


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Jan 5, 2015
  2. Apr 29, 2013 at 10:25 PM
    #2
    NW4RUNNER

    NW4RUNNER Well-Known Member

    Joined:
    Oct 23, 2012
    Member:
    #89657
    Messages:
    1,460
    Gender:
    Male
    Vehicle:
    4 runner trail
    Dang. This truck looks so bad ass. Love the front bumper. Please put up some more pics.

  3. Apr 29, 2013 at 10:28 PM
    #3
    PcBuilder14

    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    19,660
    Gender:
    Male
    First Name:
    Brent
    Missouri
    Vehicle:
    2003 Tacoma TRD/SR5 4x4
    Suspension: Front - Bilstein 5100's/Eibach coils Rear - All Pro Expo Leafs/Rear Icon Remote Reservoir Shocks Wheels & Tires: 33x12.50x15 KM2's/Summit Racing 85 Black 8 Series Wheels/15x8/3.75" Backspacing [U]Armor:[/U] - [URL="http://www.tacomaworld.com/forum/relentless-fabrication/152694-just-released-re
  4. Apr 30, 2013 at 8:04 AM
    #4
    steezemcqueen

    steezemcqueen [OP] 4Runner Abuser

    Joined:
    Nov 2, 2011
    Member:
    #66343
    Messages:
    526
    Gender:
    Male
    First Name:
    Dylan
    Crawlorado
    Vehicle:
    1997 4Runner Turbocharged 20 speed
    Soccer mom car with some random stuff duct tapped to it
    Here is a quick timeline of the mods I've done to it.

    Stock Plus a TJM T-17 bumper I scored for $50

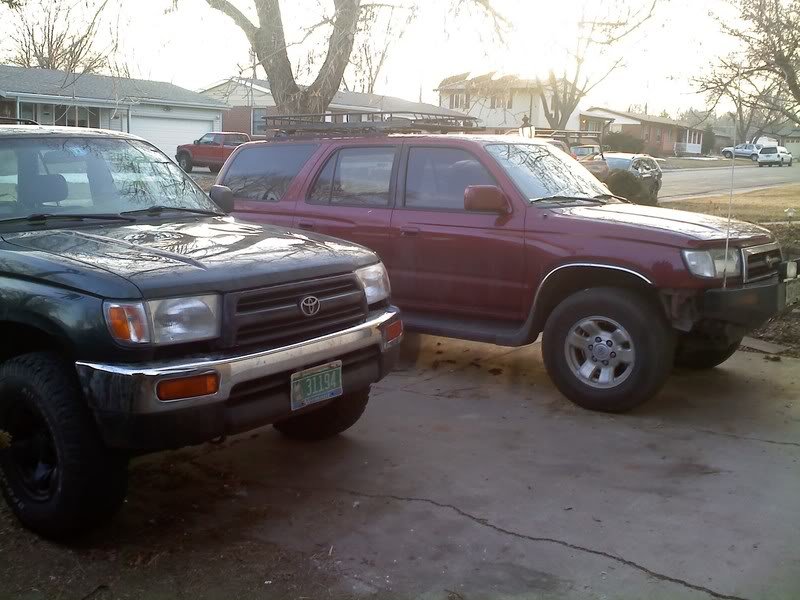

    Sitting next to my old 2000
    [​IMG]

    [​IMG]

    1st of many lift setups. This was rear LC coils and Bilstein 5125's and some front Fabtech coilovers i got for free from a buddy.
    [​IMG]

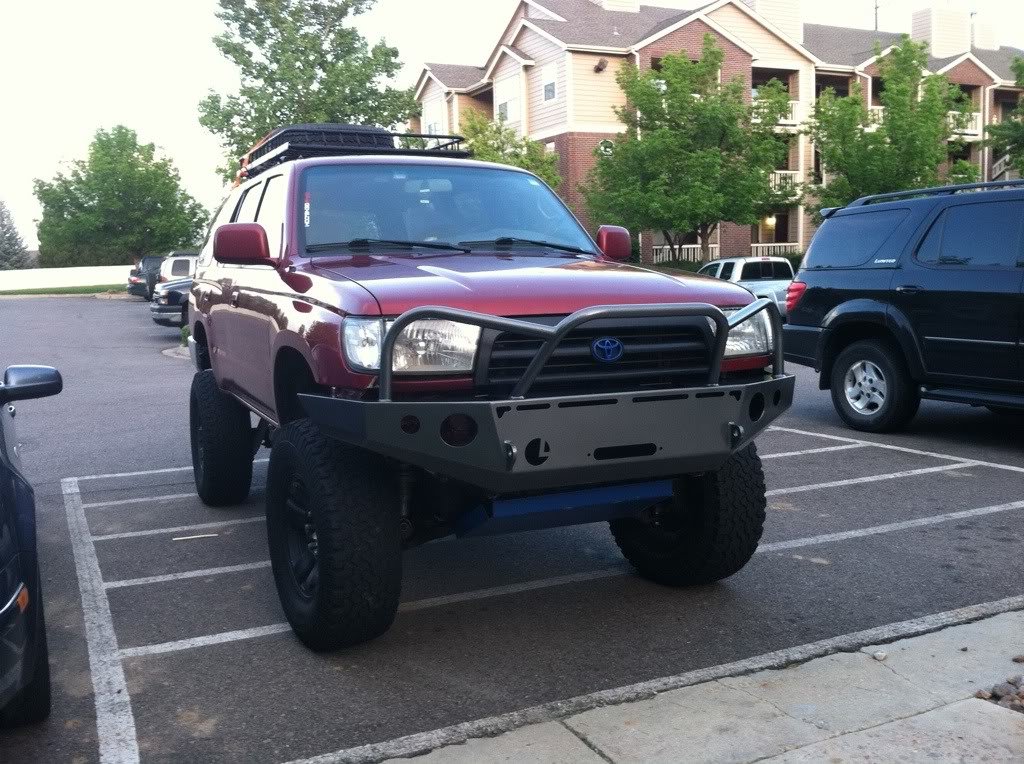

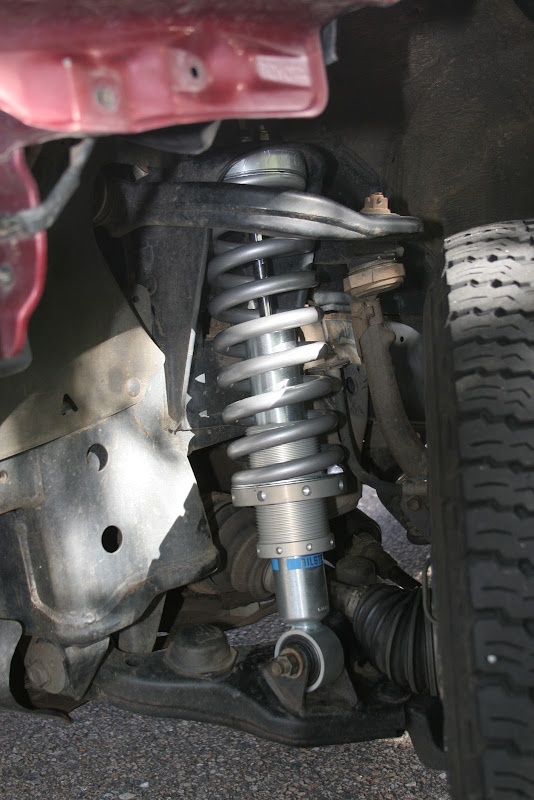

    Installed a BudBuilt front skid and swapped the Fabtech coilovers for some ToyTec ones.
    [​IMG]

    [​IMG]

    285/75/16 BFG AT's which were long overdue
    [​IMG]

    Installed a 2 inch body lift
    [​IMG]

    Last edited: Apr 30, 2013
  5. Apr 30, 2013 at 8:07 AM
    #5
    steezemcqueen

    steezemcqueen [OP] 4Runner Abuser

    Joined:
    Nov 2, 2011
    Member:
    #66343
    Messages:
    526
    Gender:
    Male
    First Name:
    Dylan
    Crawlorado
    Vehicle:
    1997 4Runner Turbocharged 20 speed
    Soccer mom car with some random stuff duct tapped to it

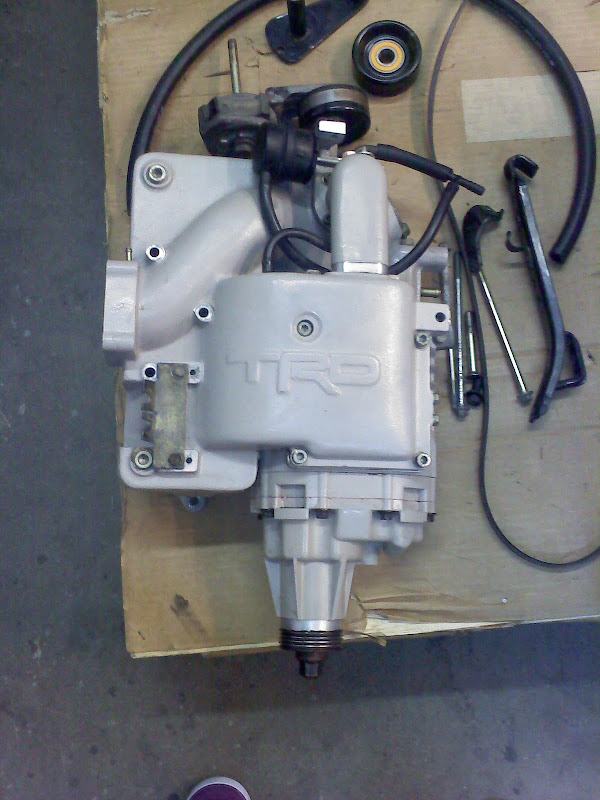

    Saw this for $900 and couldn't resist

    [​IMG]

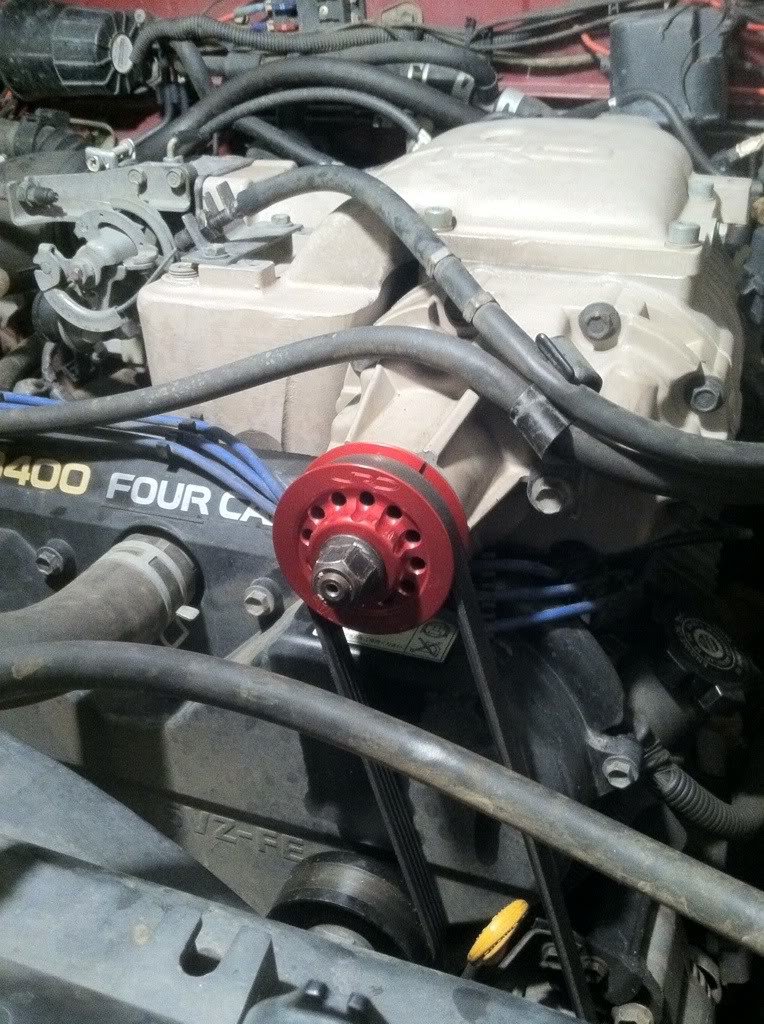

    Put that in along with a URD 2.2 pulley
    [​IMG]

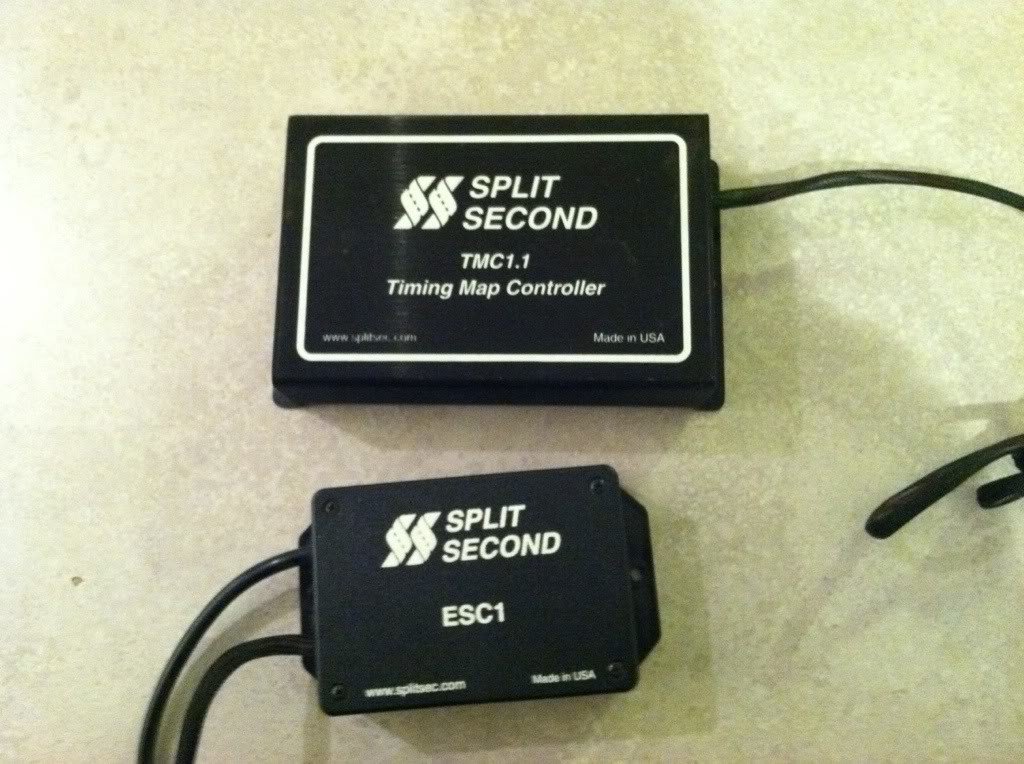

    And a Split Second timing calibrator and a fuel enricher.
    [​IMG]

  6. Apr 30, 2013 at 8:12 AM
    #6
    steezemcqueen

    steezemcqueen [OP] 4Runner Abuser

    Joined:
    Nov 2, 2011
    Member:
    #66343
    Messages:
    526
    Gender:
    Male
    First Name:
    Dylan
    Crawlorado
    Vehicle:
    1997 4Runner Turbocharged 20 speed
    Soccer mom car with some random stuff duct tapped to it

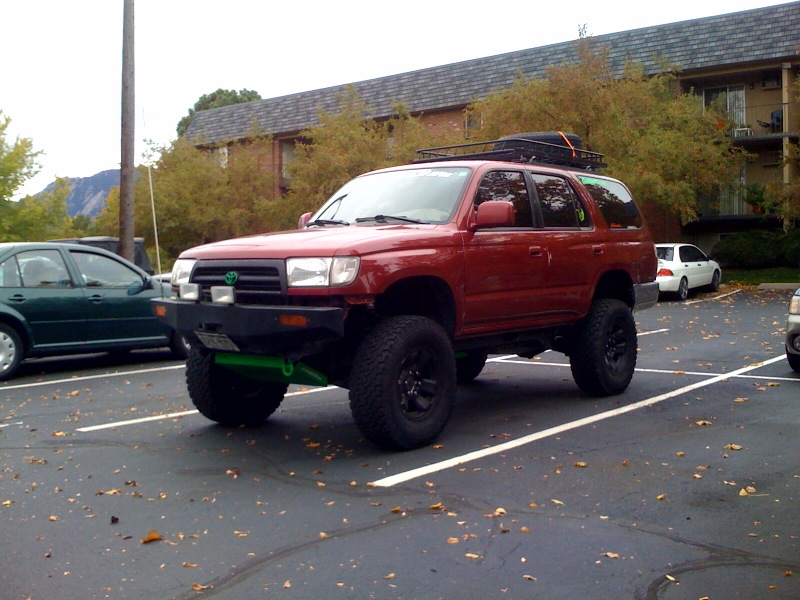

    After that, I sold the TJM so i ran bumperless for a little while.

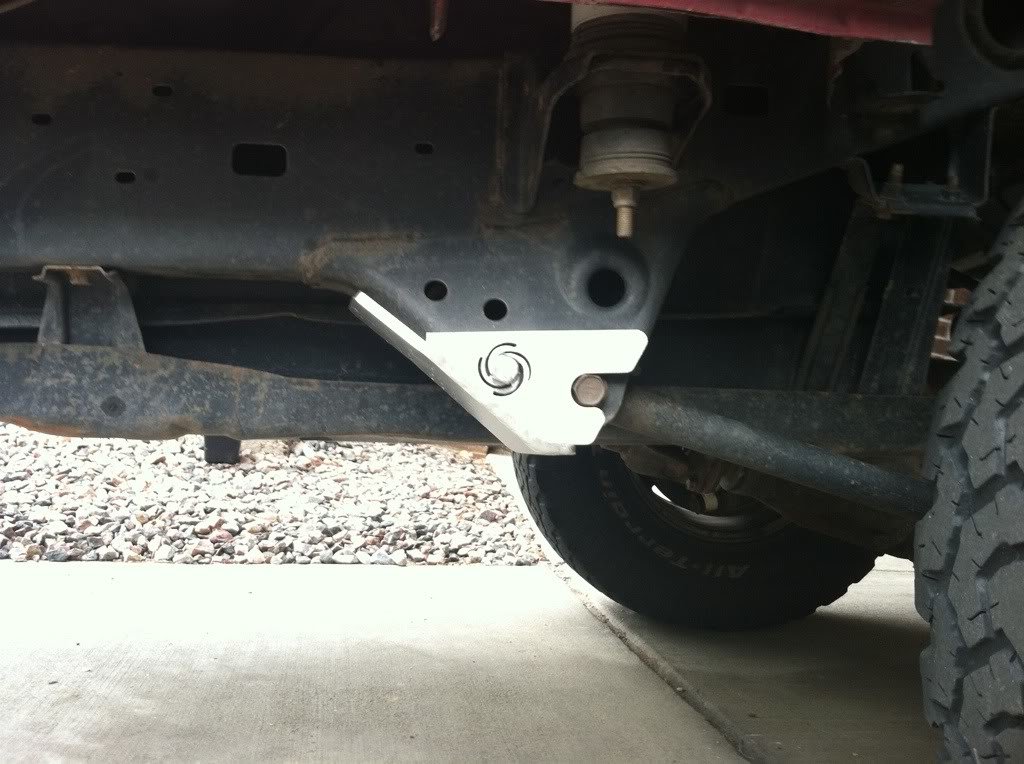

    I got the Lotus Development LCA mount skids

    [​IMG]

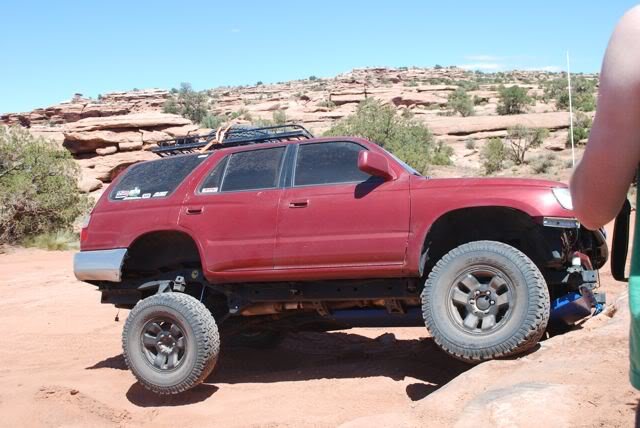

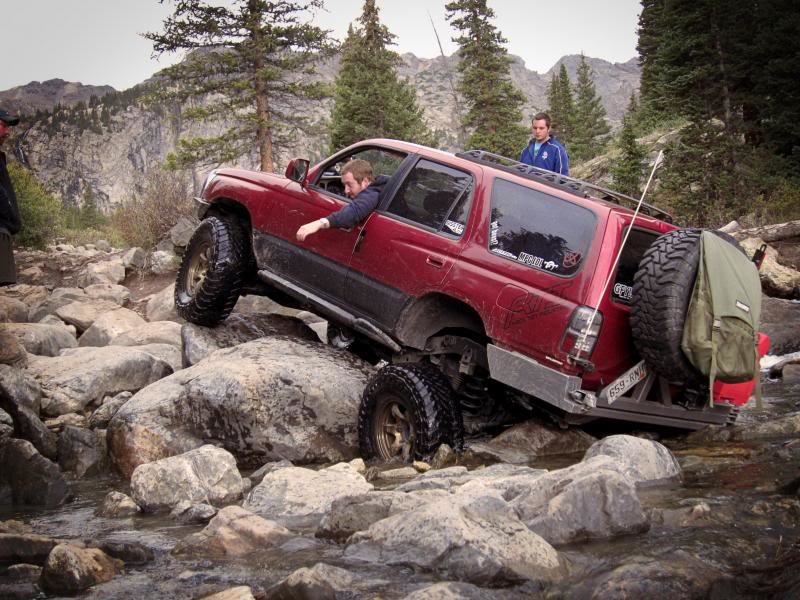

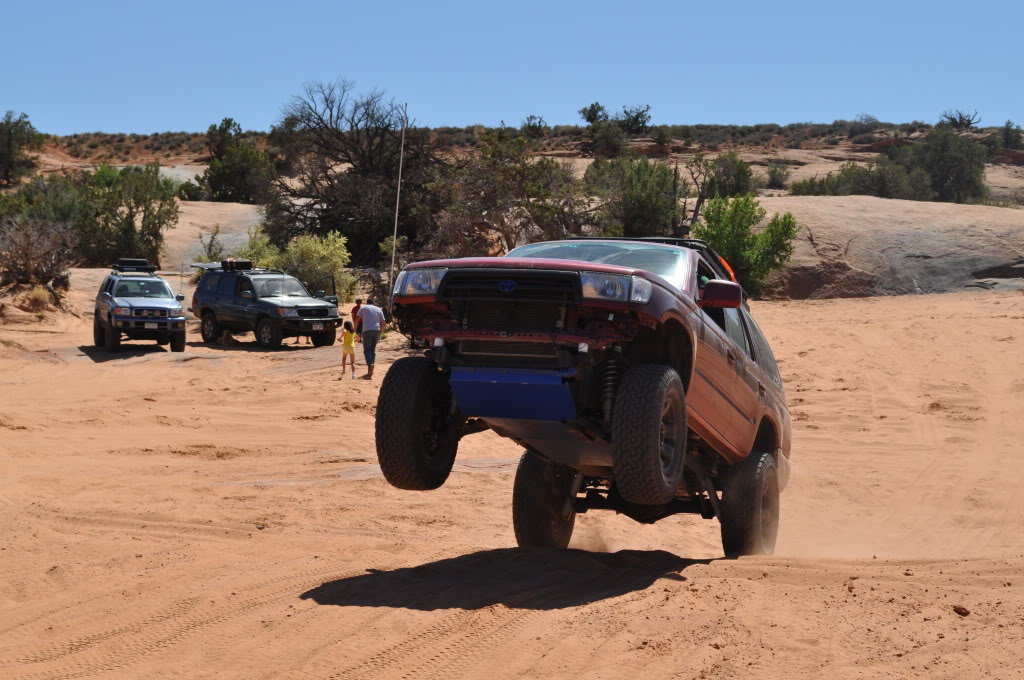

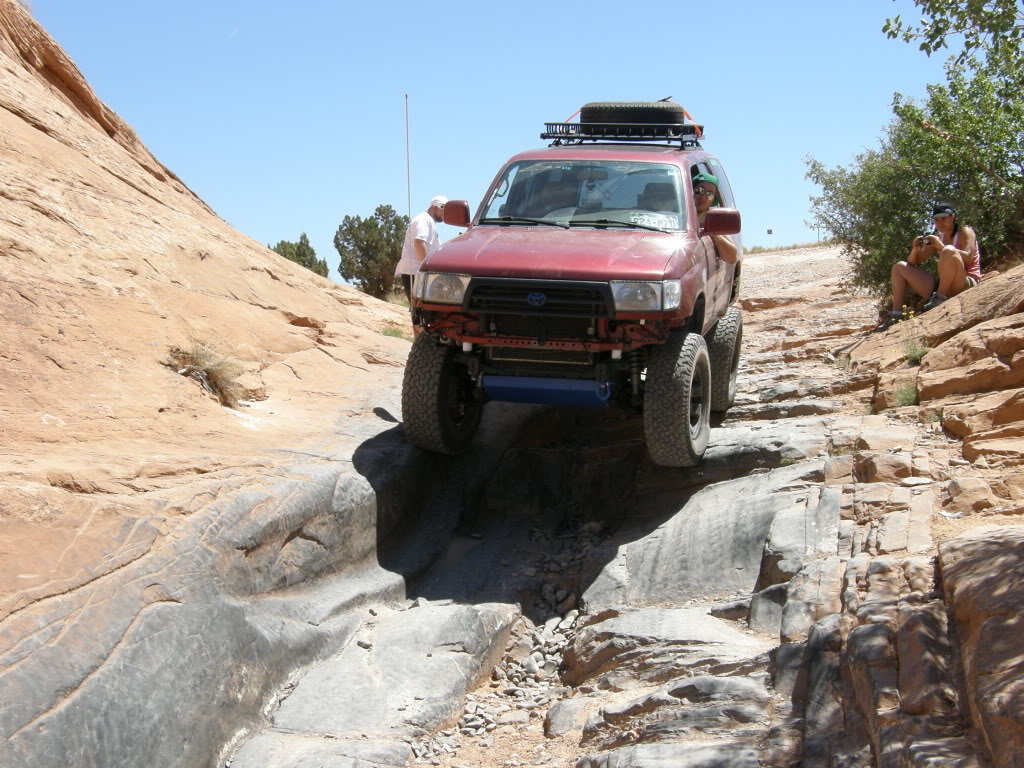

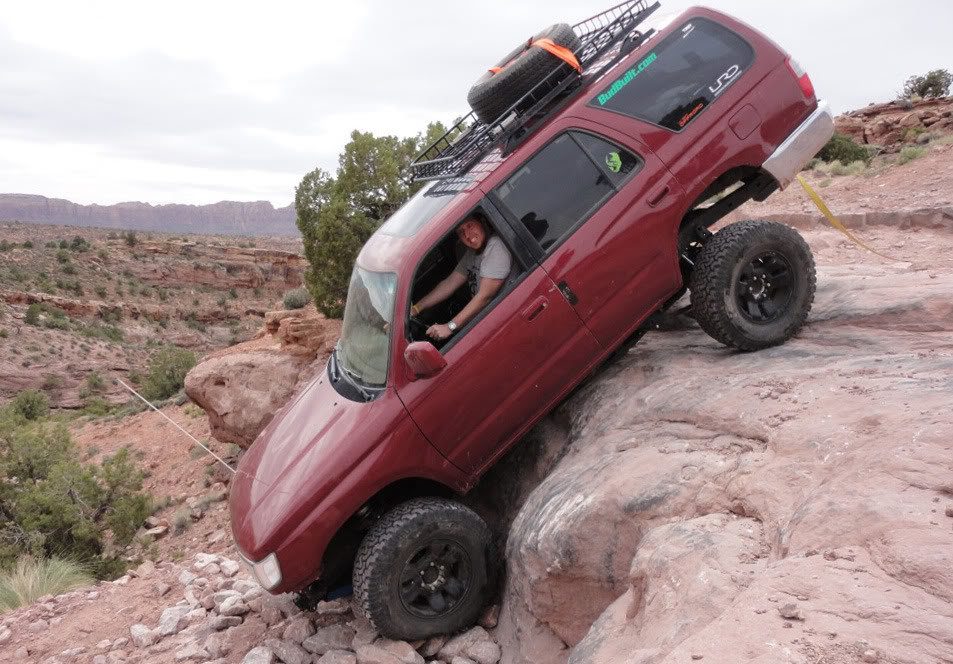

    And then went to Moab to try and break it.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Offroader12 likes this.
  7. Apr 30, 2013 at 8:18 AM
    #7
    steezemcqueen

    steezemcqueen [OP] 4Runner Abuser

    Joined:
    Nov 2, 2011
    Member:
    #66343
    Messages:
    526
    Gender:
    Male
    First Name:
    Dylan
    Crawlorado
    Vehicle:
    1997 4Runner Turbocharged 20 speed
    Soccer mom car with some random stuff duct tapped to it

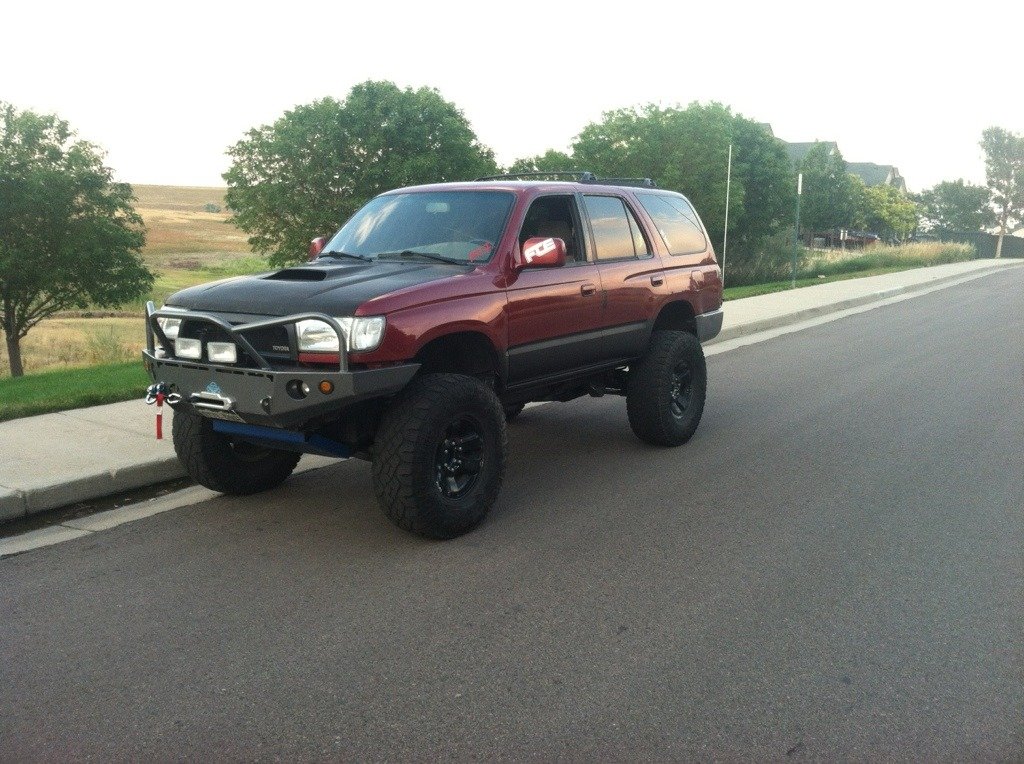

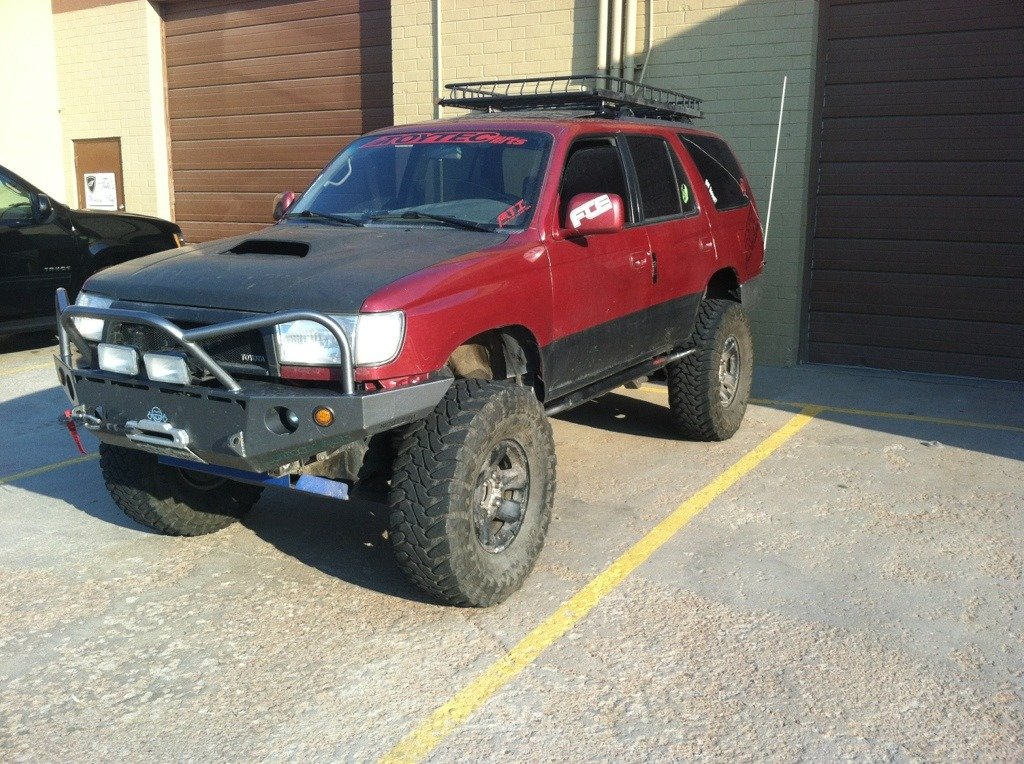

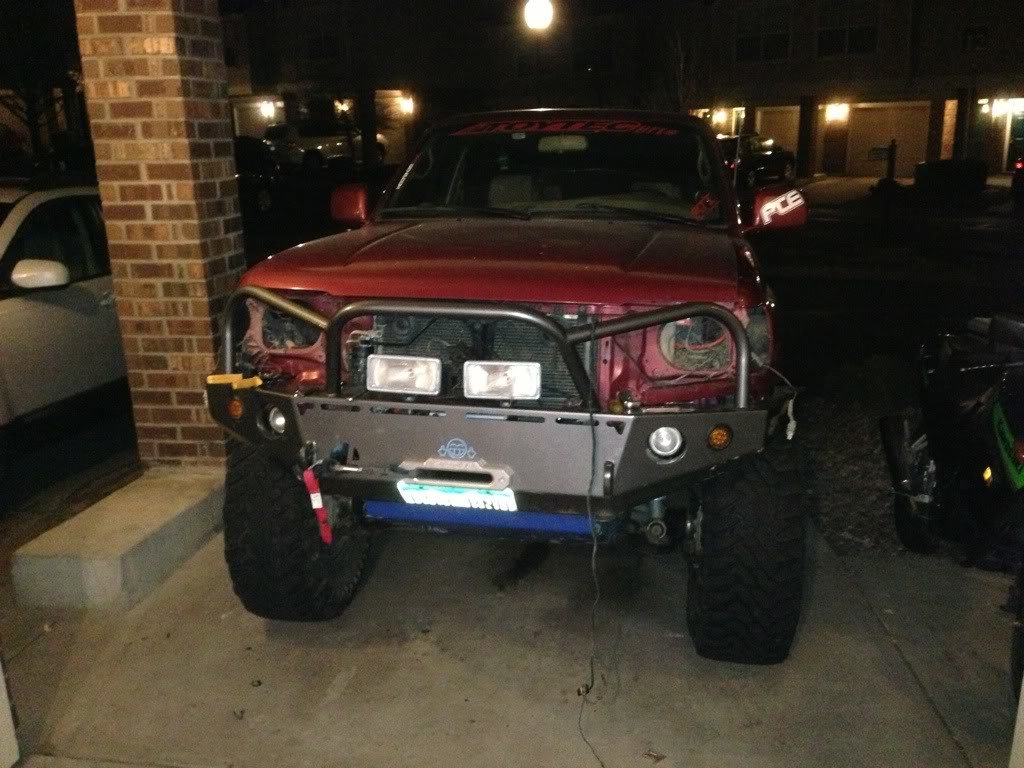

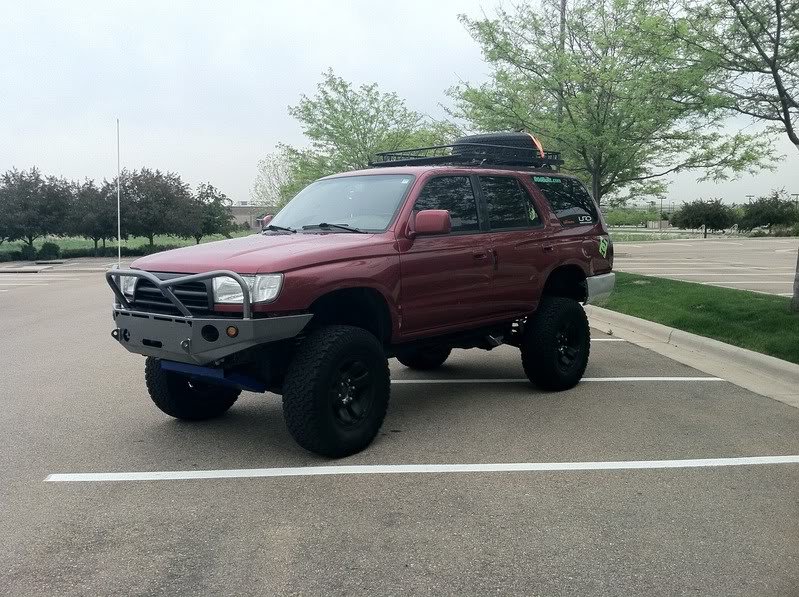

    Sometime after that, I put on a Outdoor Logic front bumper and switched the rear LC coils out for some OME 861's

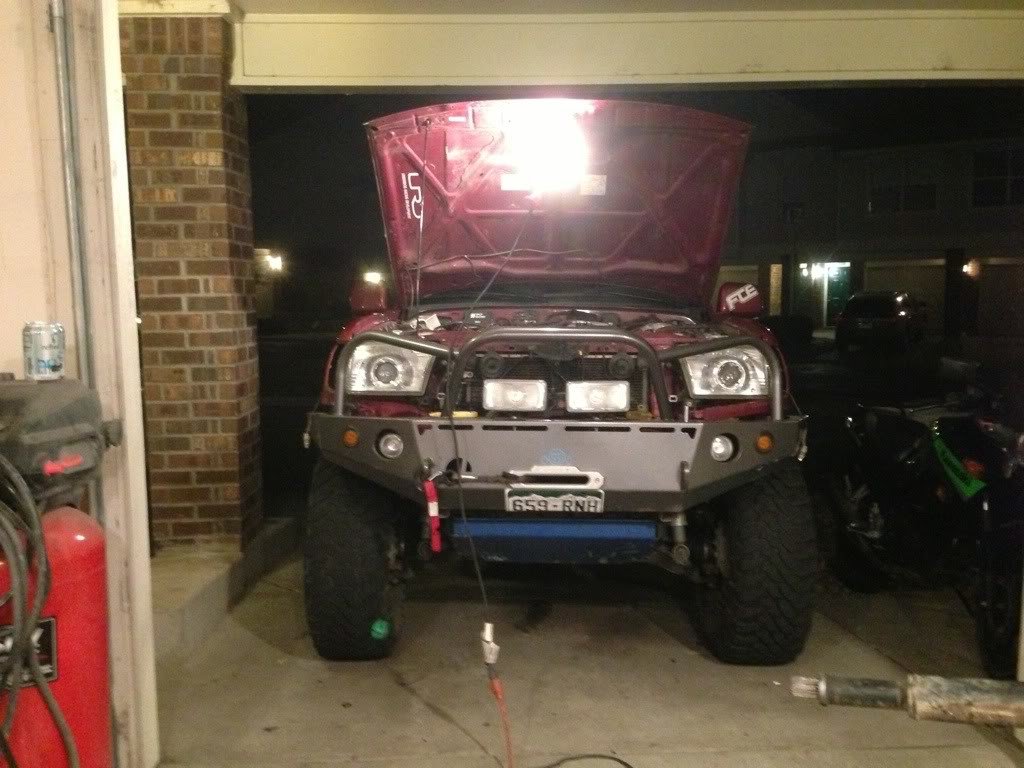

    [​IMG]

    [​IMG]

    [​IMG]

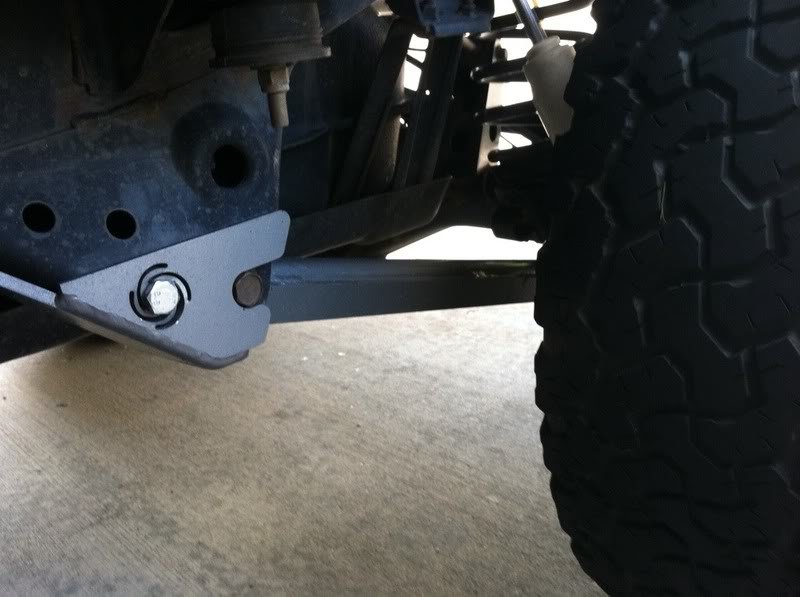

    Also bought some ToyTec LCA skids for more beefyness
    [​IMG]

  8. Apr 30, 2013 at 8:28 AM
    #8
    steezemcqueen

    steezemcqueen [OP] 4Runner Abuser

    Joined:
    Nov 2, 2011
    Member:
    #66343
    Messages:
    526
    Gender:
    Male
    First Name:
    Dylan
    Crawlorado
    Vehicle:
    1997 4Runner Turbocharged 20 speed
    Soccer mom car with some random stuff duct tapped to it

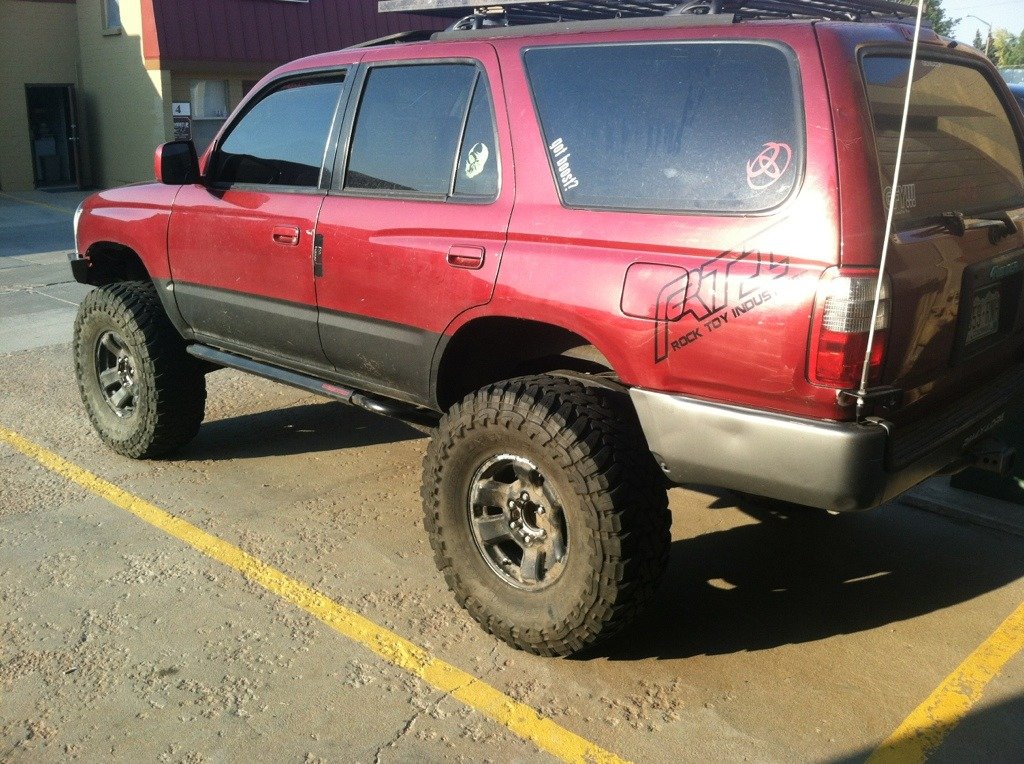

    Did a little paint work and threw on some cheap worn to shit 35" Duratracs since my one of my 33's got sliced on a rock. Bought a Certifit sport hood which i still haven't had time to paint.
    [​IMG]

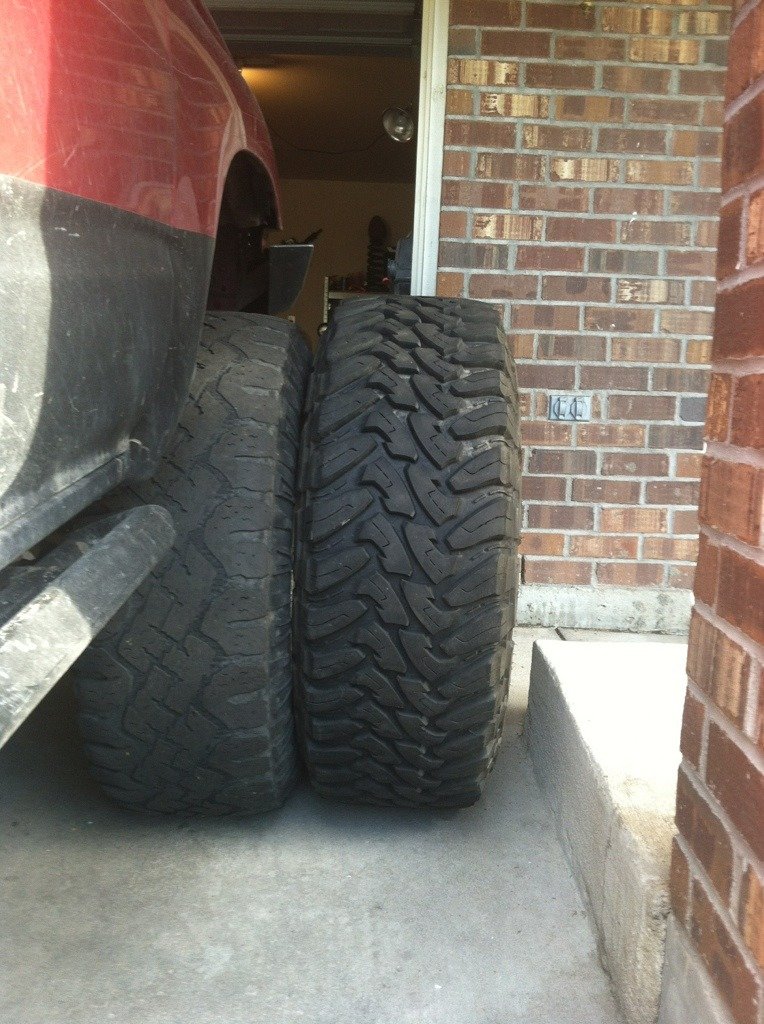

    Shortly after, i was time to get some actual tires on there. Found an awesome deal for five 315/75/16 Toyo's with 80% tread on craigslist
    [​IMG]

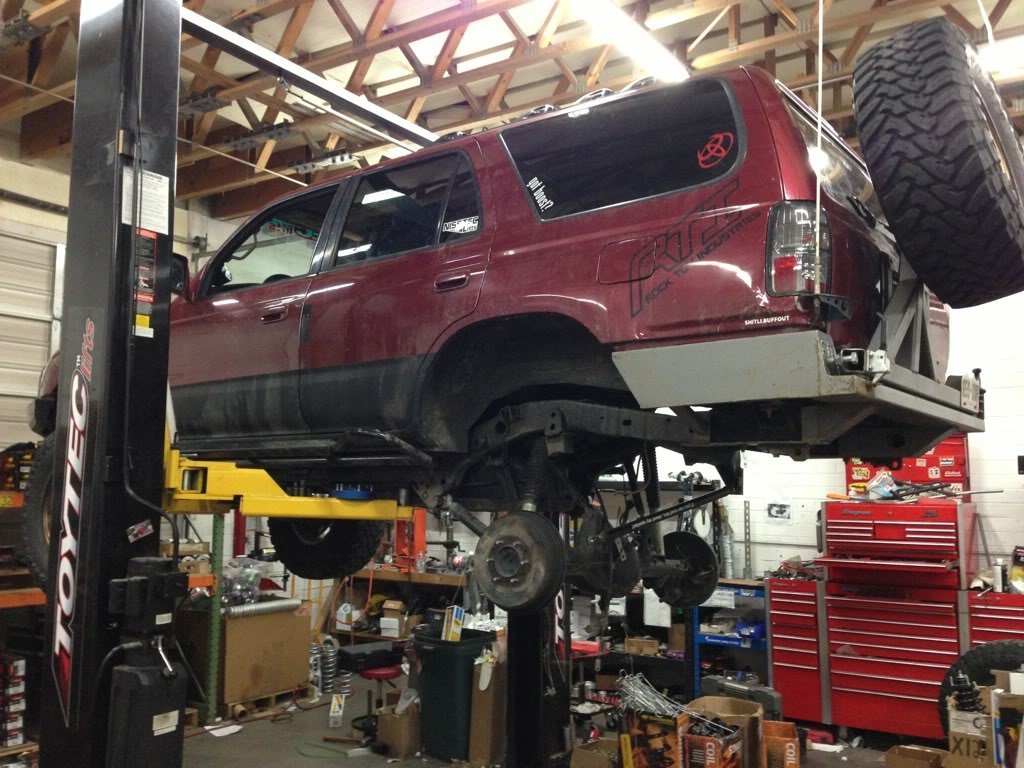

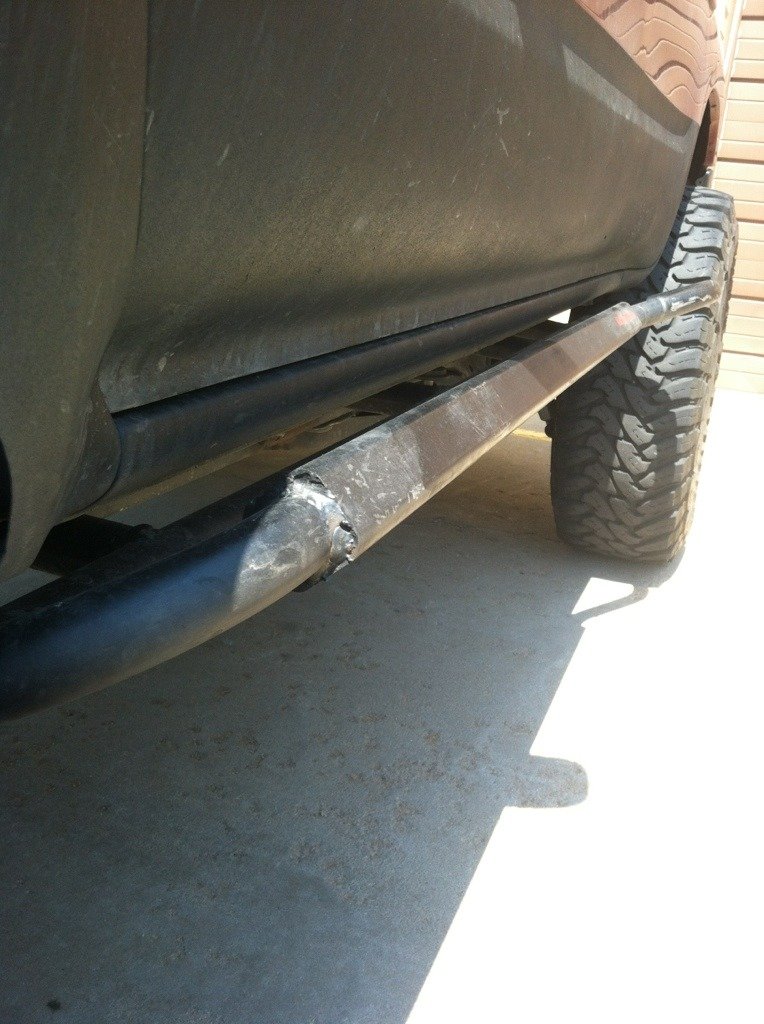

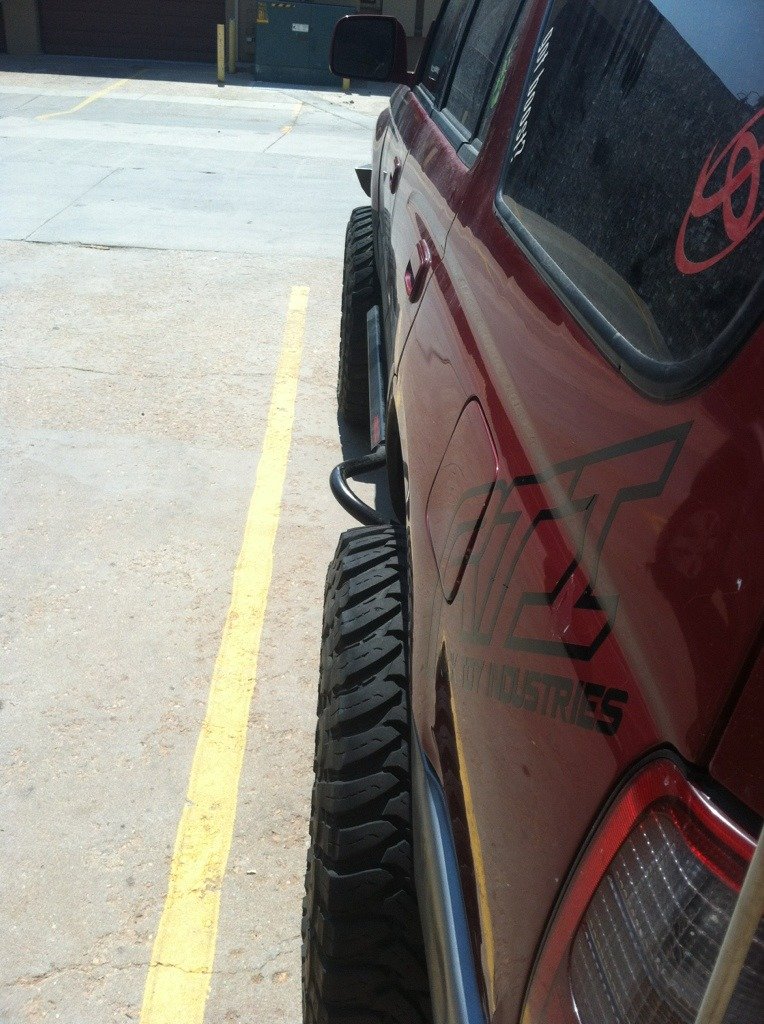

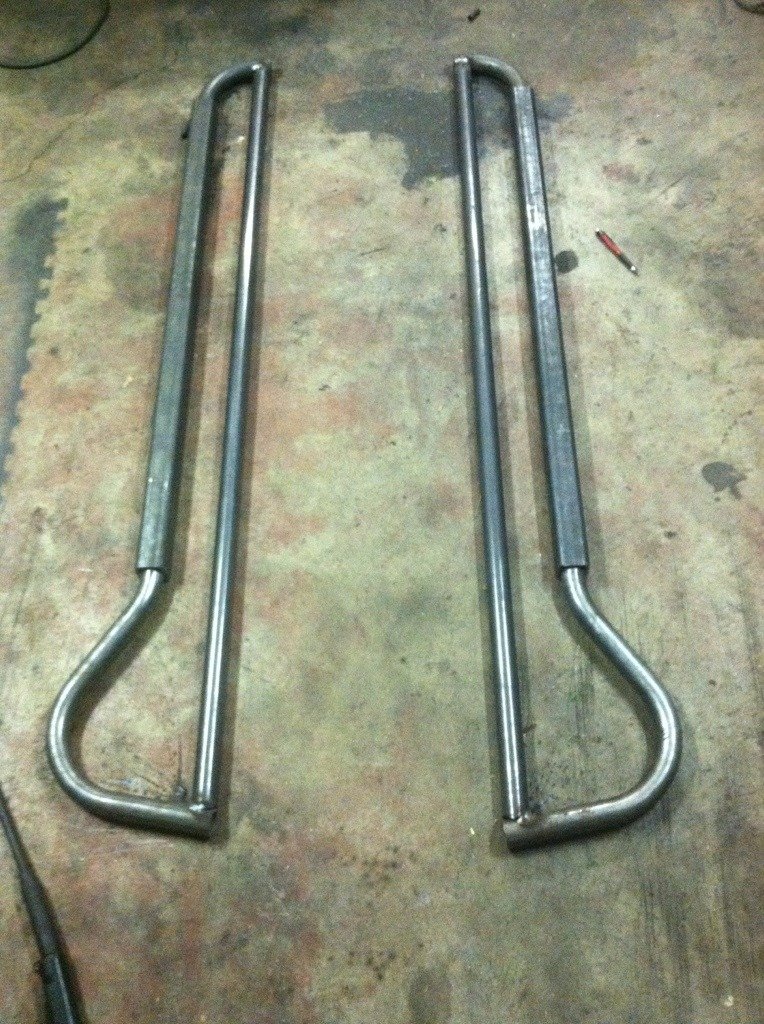

    At this point, i was incredibly overdue for some sliders so i had Rock Toy Industries help me build something kinda different
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Apr 30, 2013
  9. Apr 30, 2013 at 9:27 AM
    #9
    steezemcqueen

    steezemcqueen [OP] 4Runner Abuser

    Joined:
    Nov 2, 2011
    Member:
    #66343
    Messages:
    526
    Gender:
    Male
    First Name:
    Dylan
    Crawlorado
    Vehicle:
    1997 4Runner Turbocharged 20 speed
    Soccer mom car with some random stuff duct tapped to it

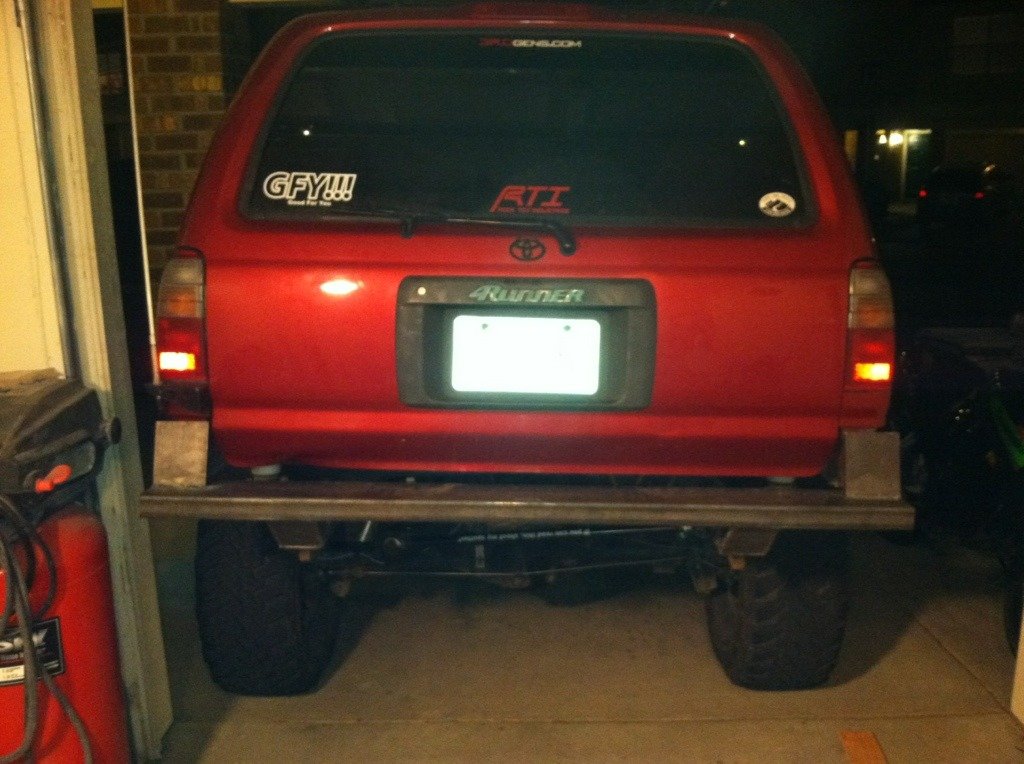

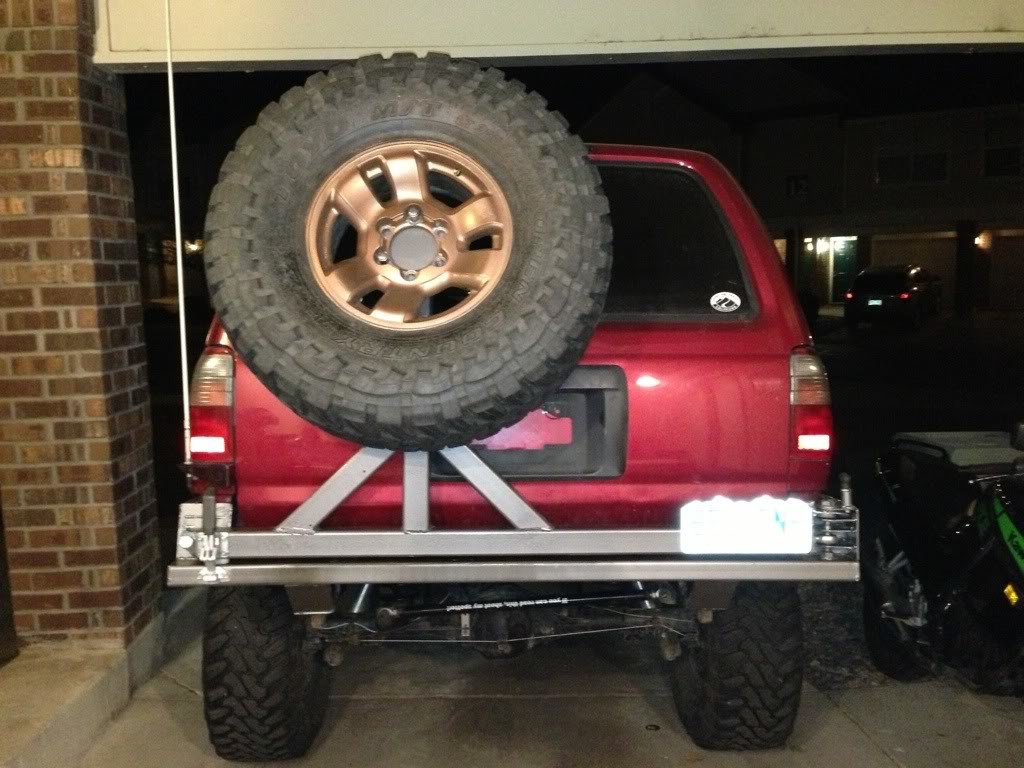

    Started on the rear bumper build back in September.

    [​IMG]

    [​IMG]

    [​IMG]

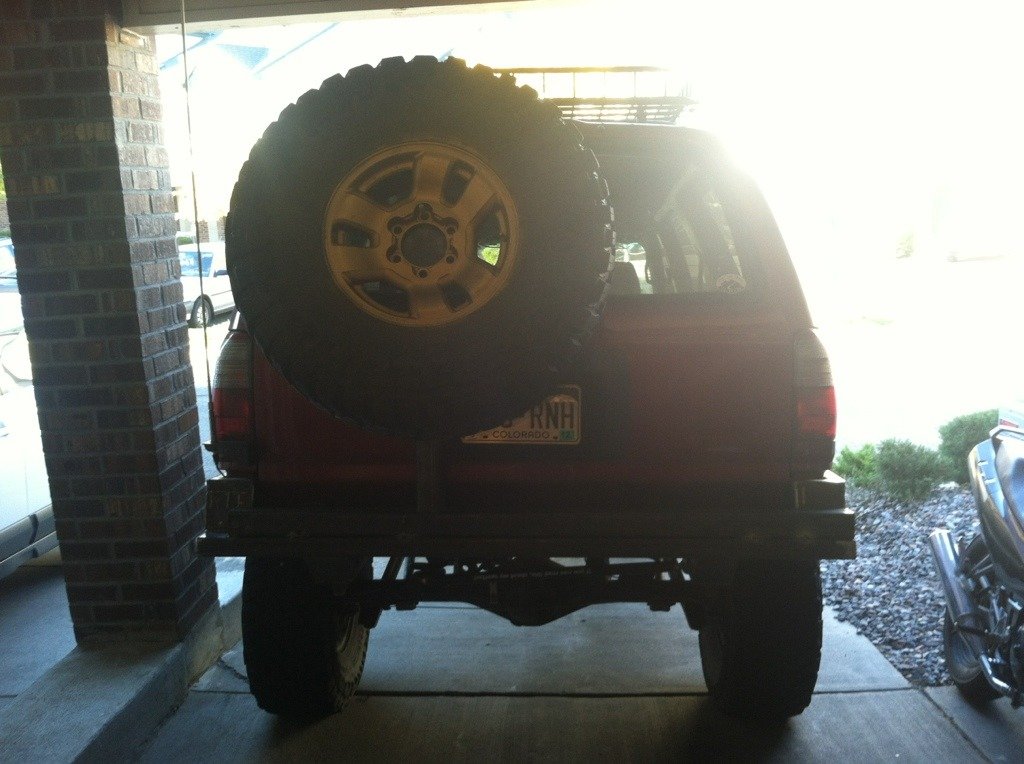

    Pretty much completed for now.

    [​IMG]

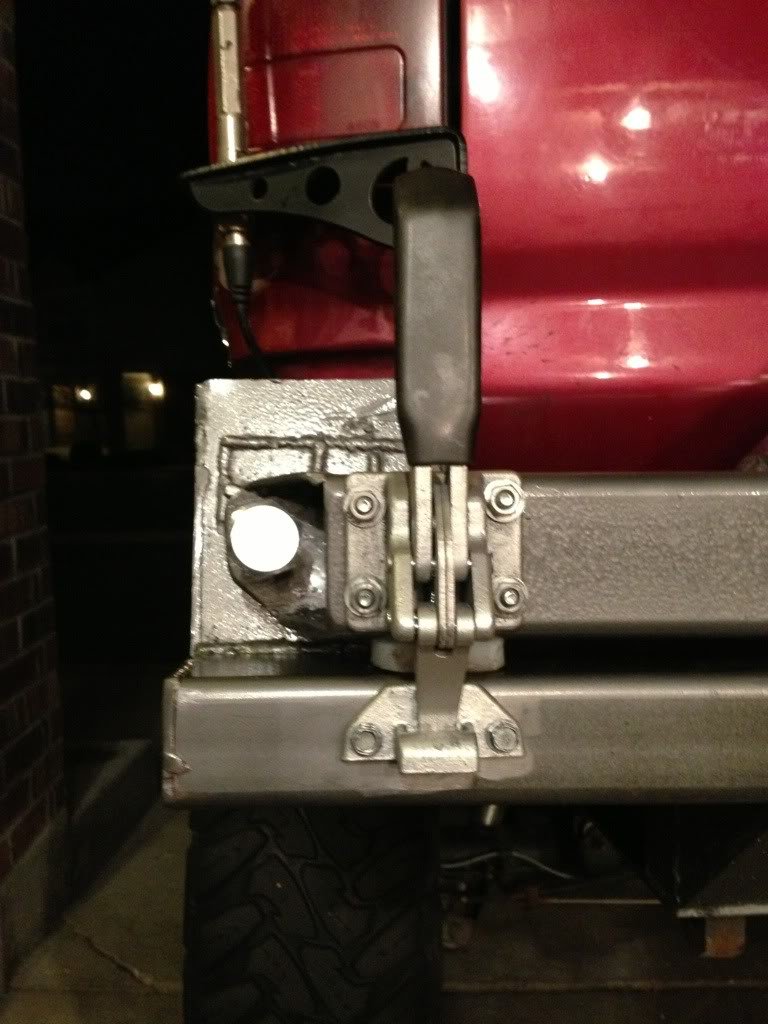

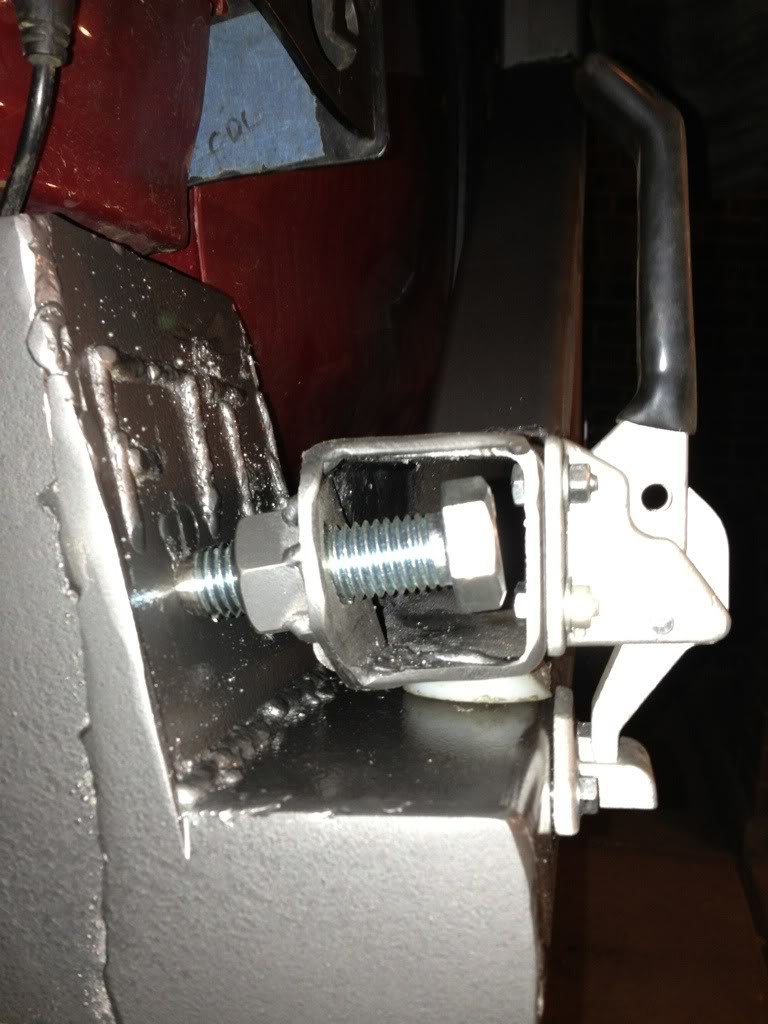

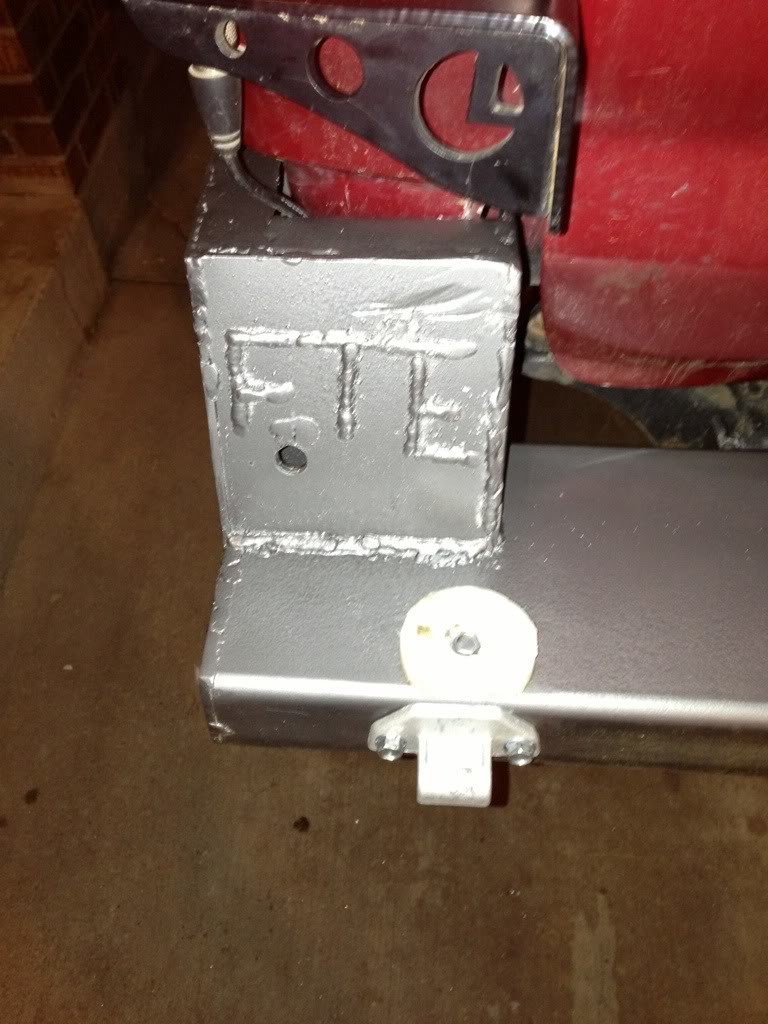

    Latch and locating bolt with adjustable tension. Jam nut to be added.
    [​IMG]

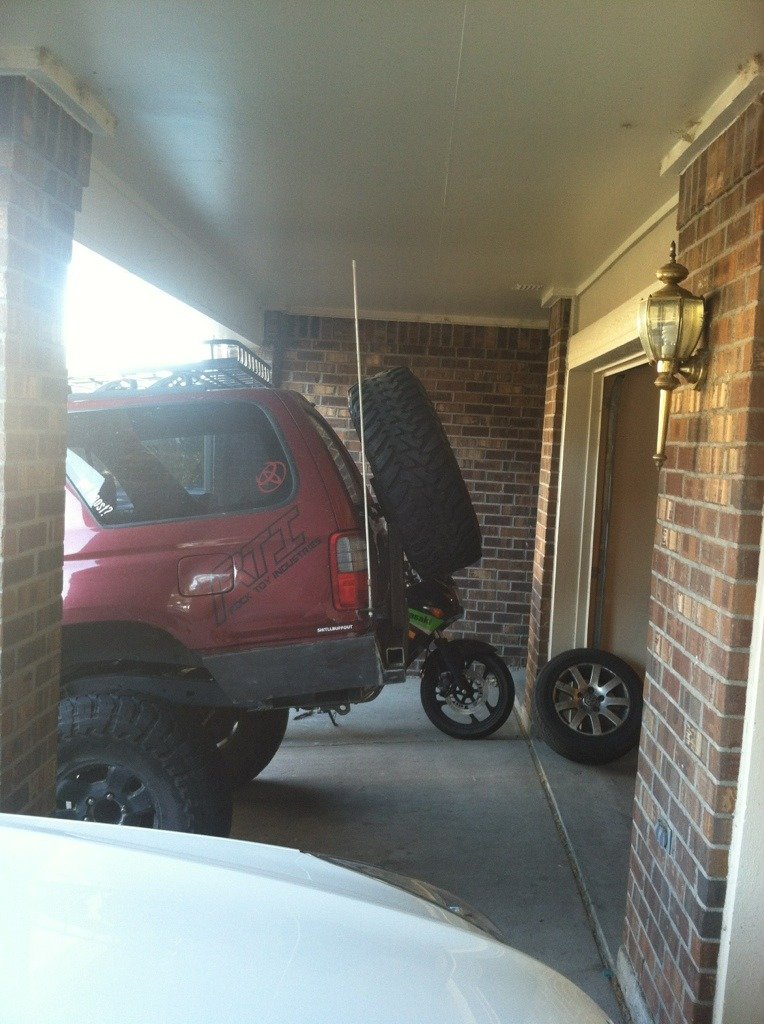

    The bottom catch will be redone. Gonna make my own and will also double as a bottle opener :D
    [​IMG]

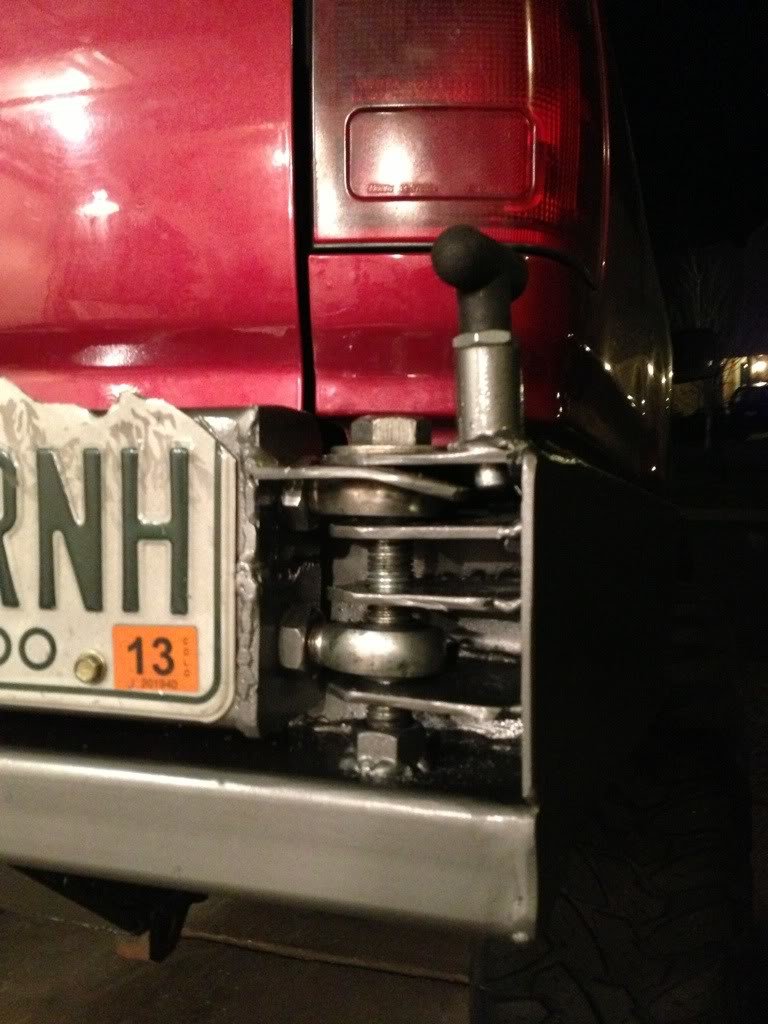

    The incredibly overly complicated hinge. The heims make the pitch of the carrier adjustable. That was something i was fighting with on the 1st hinge i did. The pin on top locks the carrier in the open position.
    [​IMG]

    UHMW poly ramp/rest thingy. AKA a body lift puck that i cut down.
    [​IMG]

  10. Apr 30, 2013 at 9:37 AM
    #10
    steezemcqueen

    steezemcqueen [OP] 4Runner Abuser

    Joined:
    Nov 2, 2011
    Member:
    #66343
    Messages:
    526
    Gender:
    Male
    First Name:
    Dylan
    Crawlorado
    Vehicle:
    1997 4Runner Turbocharged 20 speed
    Soccer mom car with some random stuff duct tapped to it
    Around Thanksgiving, i took advantage of the TRS Black Friday sale and picked up the Morimoto Mini D2S Retro kit.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    And all done!
    [​IMG]

    Output shots
    [​IMG][​IMG]

  11. Apr 30, 2013 at 9:43 AM
    #11
    steezemcqueen

    steezemcqueen [OP] 4Runner Abuser

    Joined:
    Nov 2, 2011
    Member:
    #66343
    Messages:
    526
    Gender:
    Male
    First Name:
    Dylan
    Crawlorado
    Vehicle:
    1997 4Runner Turbocharged 20 speed
    Soccer mom car with some random stuff duct tapped to it
    Up to this point, i was still running the stock split 3 spoke wheels. The main drawback to them is that they are only 7 inches wide. Running 315(12.5 inch wide) tires on them isn't exact ideal so I've been looking around for something a little wider with less offset. Problem is i feel like most wheels that are out now are just way too flashy to me.

    I've always liked the Volk TE37's but at $750/wheel, they are a little out of my price range.

    Enter the Konig Countersteer Offroad

    [​IMG]

    These are basically a replica of the TE37's but $775/set, they are much more affordable! I called up Dustin at FN Wheels and got a set on the way.

    I need to get some better pictures but here is a phone pic of them mounted.

    [​IMG]

    I need to bust out the DSLR and get some better photos of it now

    Here the wheels be
    https://www.fnwheels.com/new-products/konig-countersteer-offroad/

    Thanks again to Dustin and the guys at FN Wheels as they were awesome to work with!

  12. Apr 30, 2013 at 9:49 AM
    #12
    steezemcqueen

    steezemcqueen [OP] 4Runner Abuser

    Joined:
    Nov 2, 2011
    Member:
    #66343
    Messages:
    526
    Gender:
    Male
    First Name:
    Dylan
    Crawlorado
    Vehicle:
    1997 4Runner Turbocharged 20 speed
    Soccer mom car with some random stuff duct tapped to it

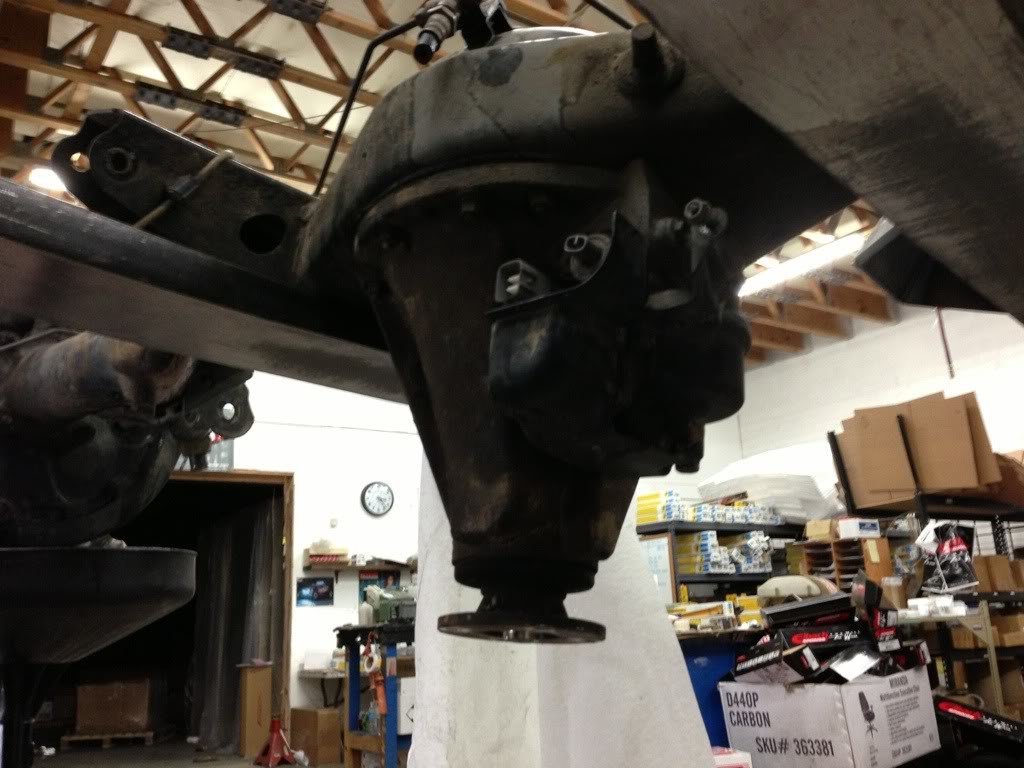

    At this point, i;m still running the stock 4.10 gears in my truck. combining that with the 35's isn't ideal but having the supercharger more than made up for the lack of gearing. Only realy problem i had was when i was wheeling it, it was hard on the truck and definitely a pain to work the clutch while getting over obstacles. It was doable but i was burning the clutch a lot.

    So my options were to spend $2000 on regearing and rebuilding the diff and probably add lockers while they were apart, or i could do a dual case setup. Considering the gearing doesn't get you as low as dual cases, i decided to go with a Marlin Crawler TacoBox.

    [​IMG]

    I'm not going to do a full writeup since Wyatt at Rock Solid Toys has a really good one that we followed. Here is the link to that writeup
    Marlin Crawler "Taco Box" into 3.4L Tacoma - RockSolidToys Toyota Solid Axle Swap & 4X4 Forum Facebook

    The TacoBox setup is pretty sweet since it is a fully built unit that is ready to install in your rig. Since you are sandwiching another transfer case in between the transmission and your stock case, the front driveshaft has to be lengthened and the rear driveshaft needs to be shortened. The length difference is just the total length of the TacoBox which is 8.5 inches.

    Since this Lobster is my winter daily driver, i couldn't have it undriveable while the driveshafts were being modified. I bought a spare junkyard driveshaft and pulled my front driveshaft and brought them to Rocky Mountain Driveline to have them modify the lengths. While they were doing that, i had them rebuild the double carden joint on the rear shaft and make sure both shafts were properly balanced.

    Once that was done, we were ready to roll(or crawl? :D)

    Going under the knife

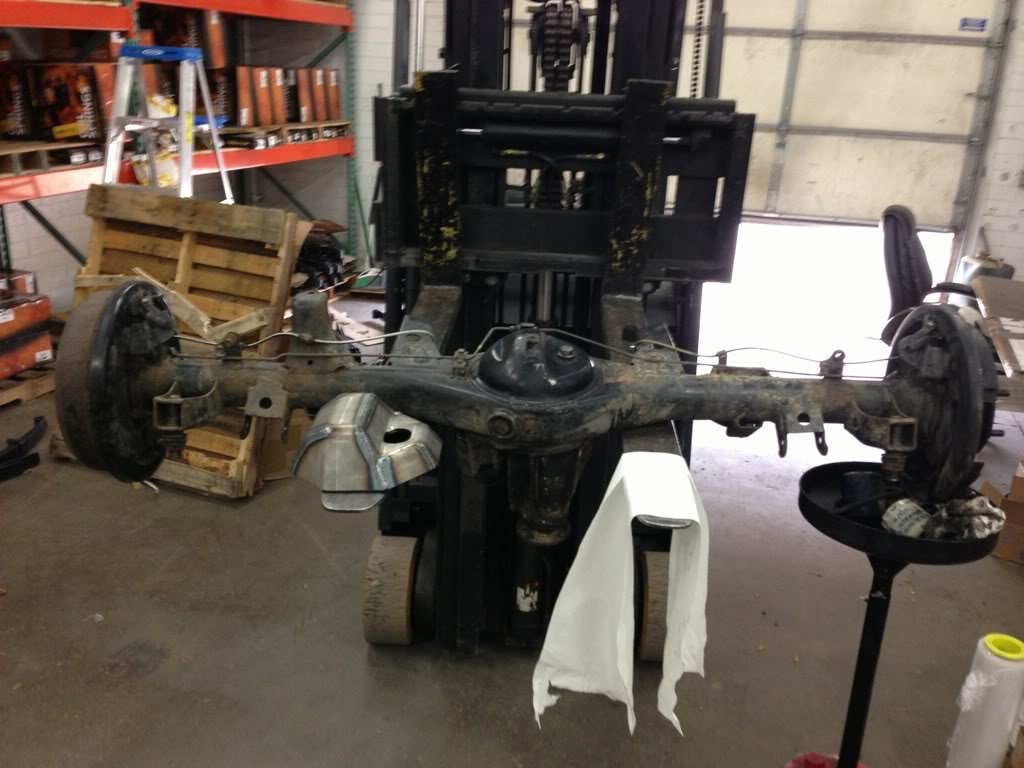

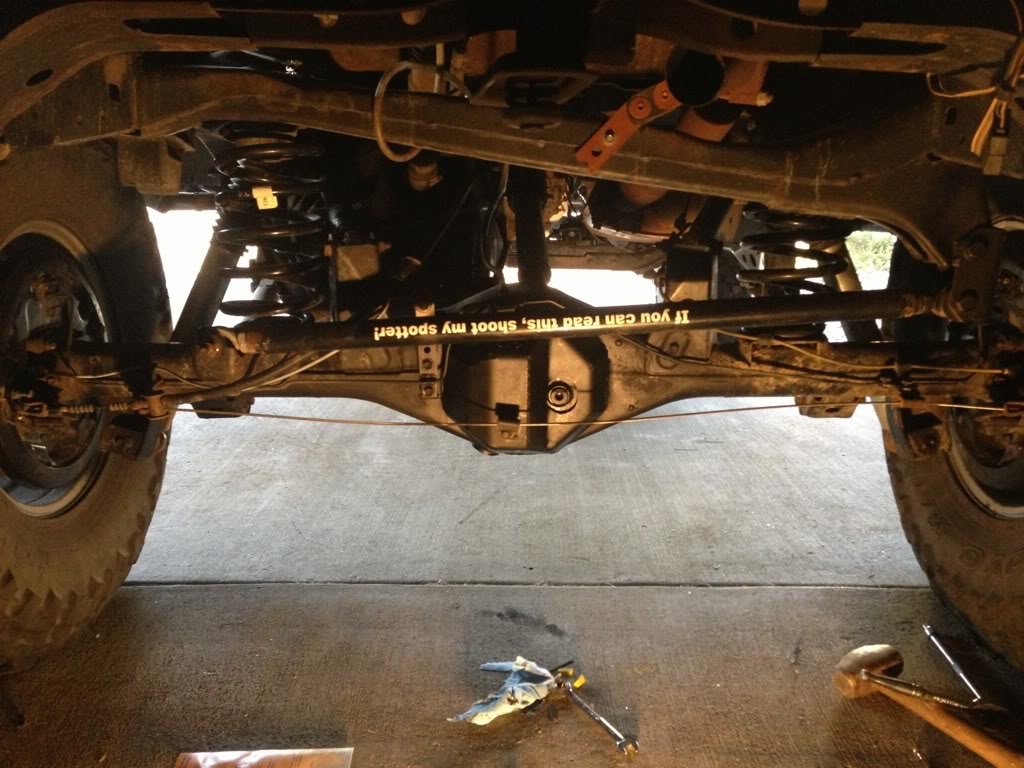

    [​IMG]

    Stock case came out pretty easy.

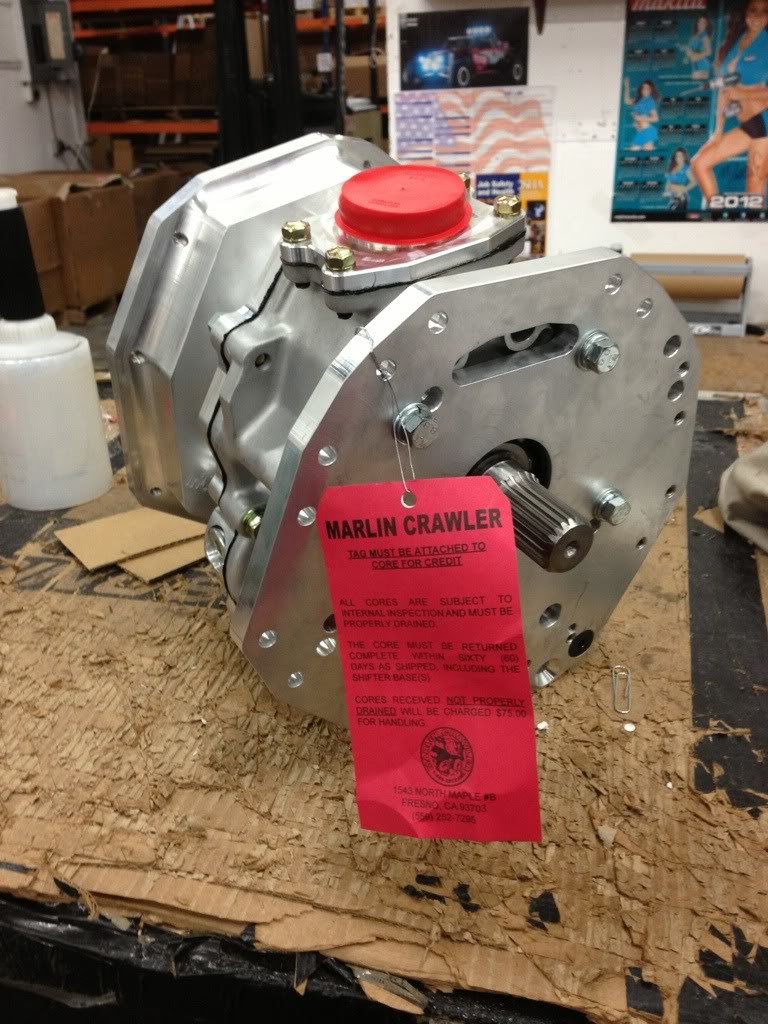

    [​IMG]

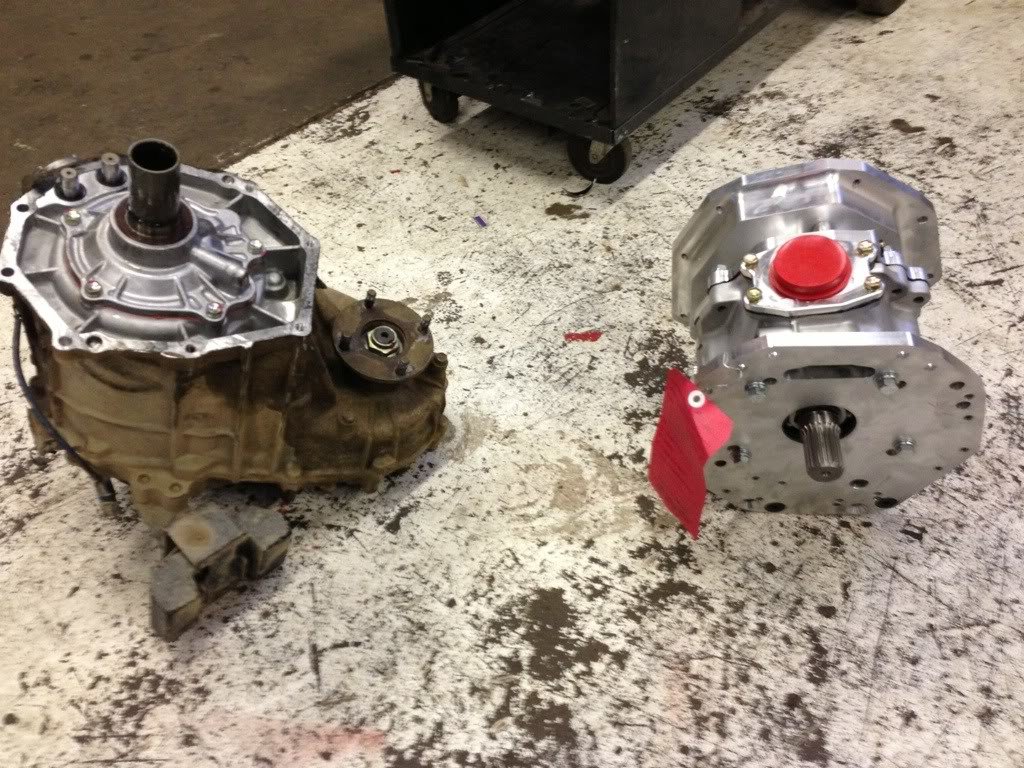

    I wonder which one is the new one?
    [​IMG]
    Yes i probably should have taken the time to wash my stock case but i am a lazy man. Its just going to get dirty again :lol:

    You need to remove the stock coupler on the input for the tcase that you see in the above picture. RST's writeup recommend welding a nut to it and threading a bolt in to pull the coupler off the input shaft.

    My cell phone camera had a moment of stupidity

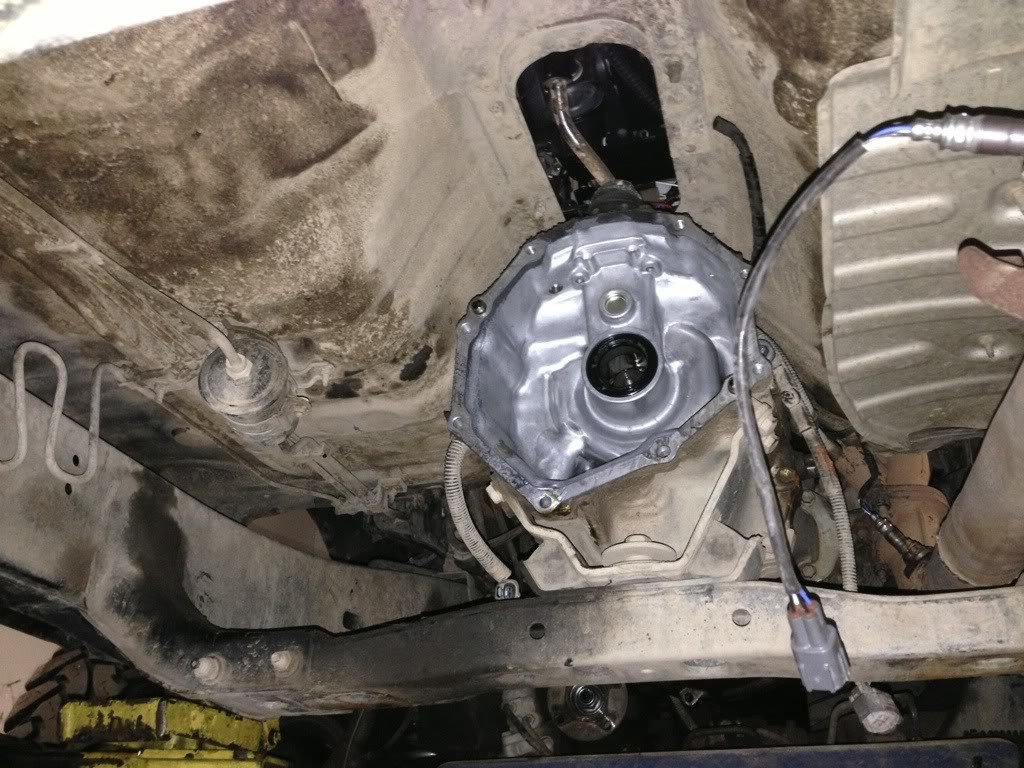

    [​IMG]

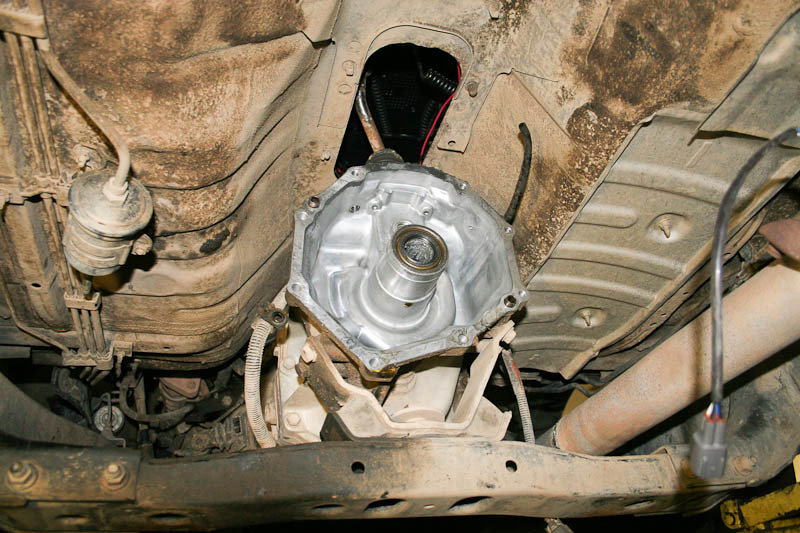

    The seal adapter and new seal gets installed on the transmission output shaft by tapping it in with a rubber mallet.

    [​IMG]

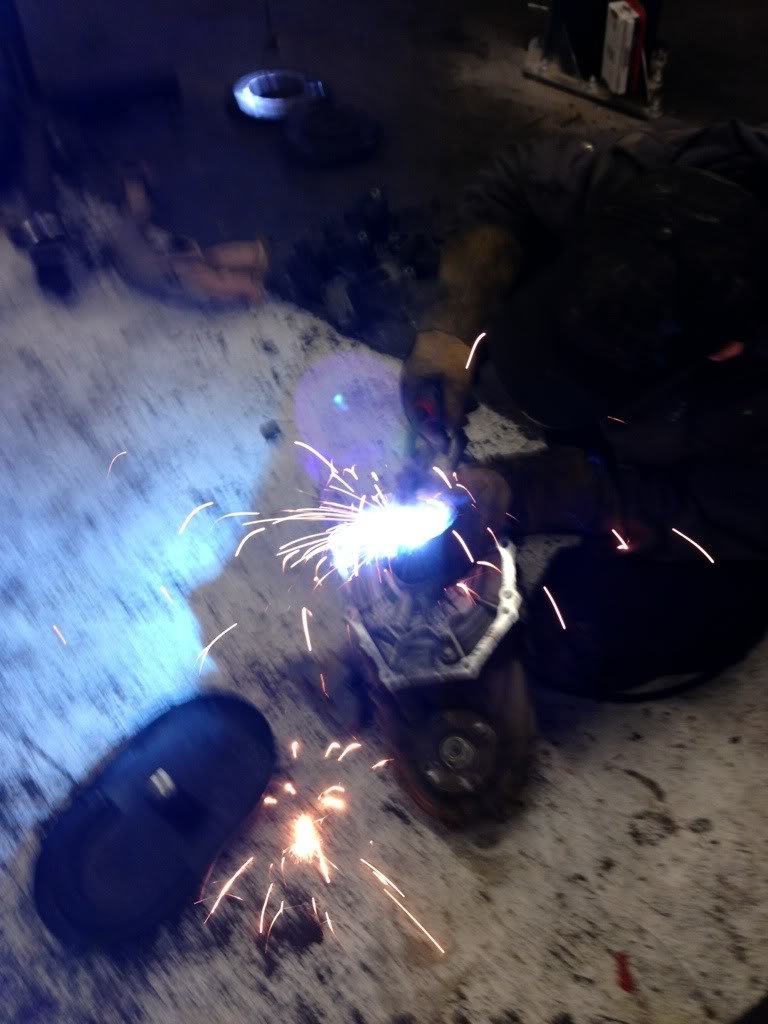

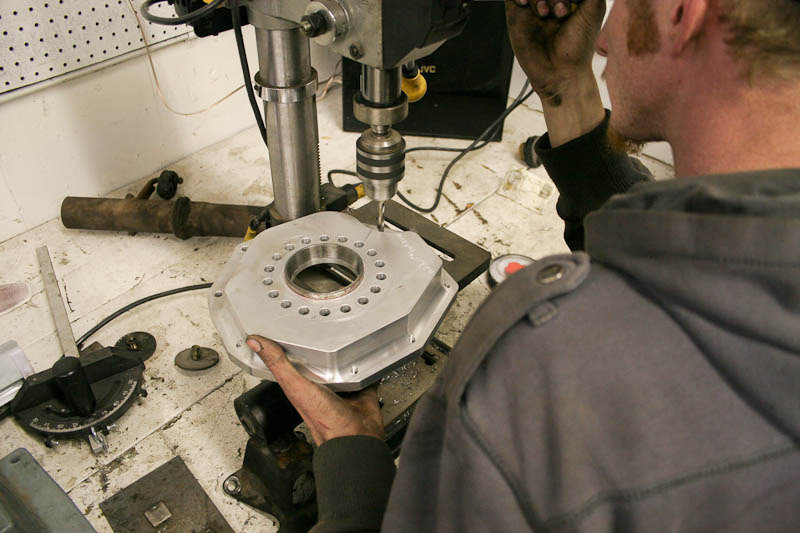

    We did a couple dry fits of everything and noticed that one of he machined hole needed to be drilled all the way through so the stock case would bolt to the crawl box. Rear plate comes off with 6 bolts and you finishing drilling out the machined hole.
    [​IMG]
    I'm assuming that should have been done at Marlin when it was built but it really was quite easy to do so NBD.

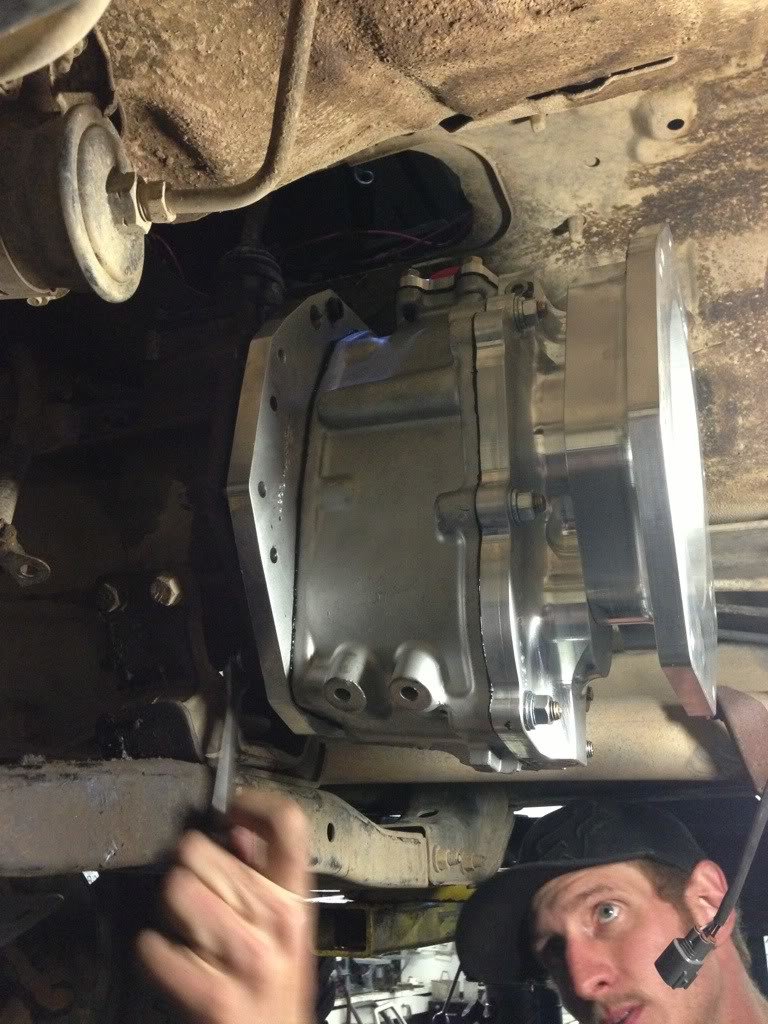

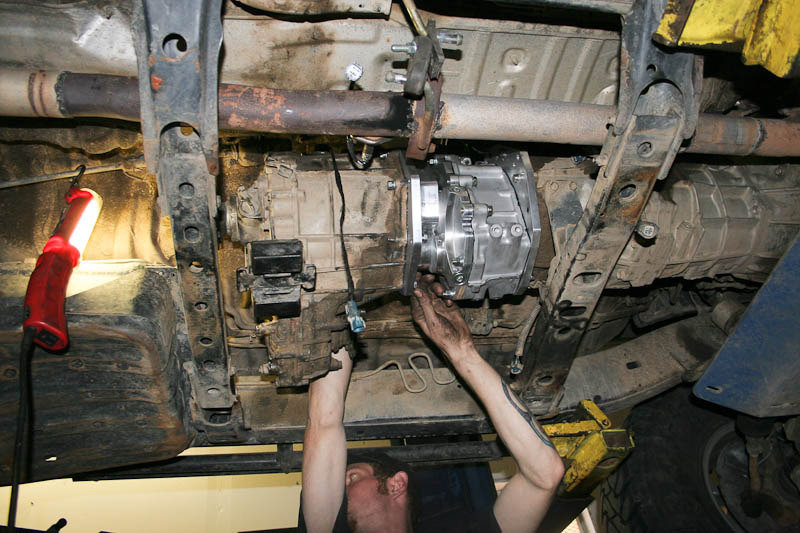

    Bolting the crawl box up.
    [​IMG]

    The adapters have a lot of different clocking options. I chose to leave it stock since i won't gain any clearance until i make a new crossmember and skid plate
    [​IMG]

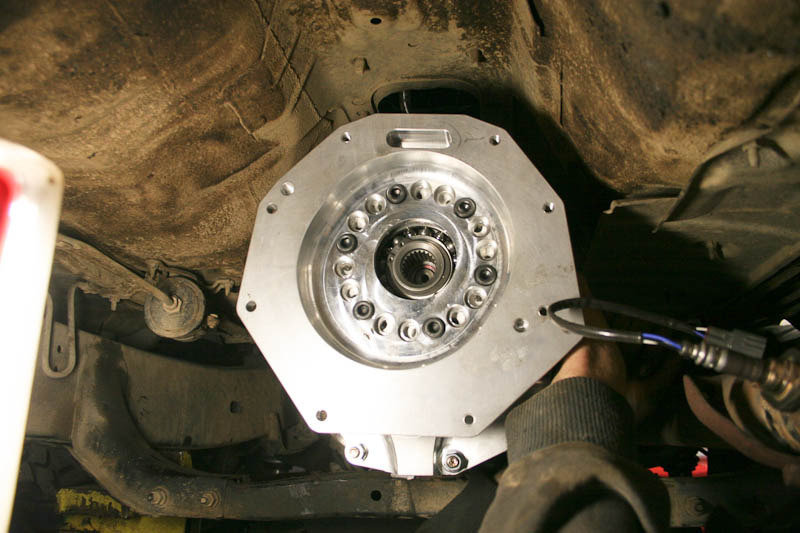

    Both cases bolted up. There is still about 4 inches of room between the rear case and the rear crossmember.
    [​IMG]

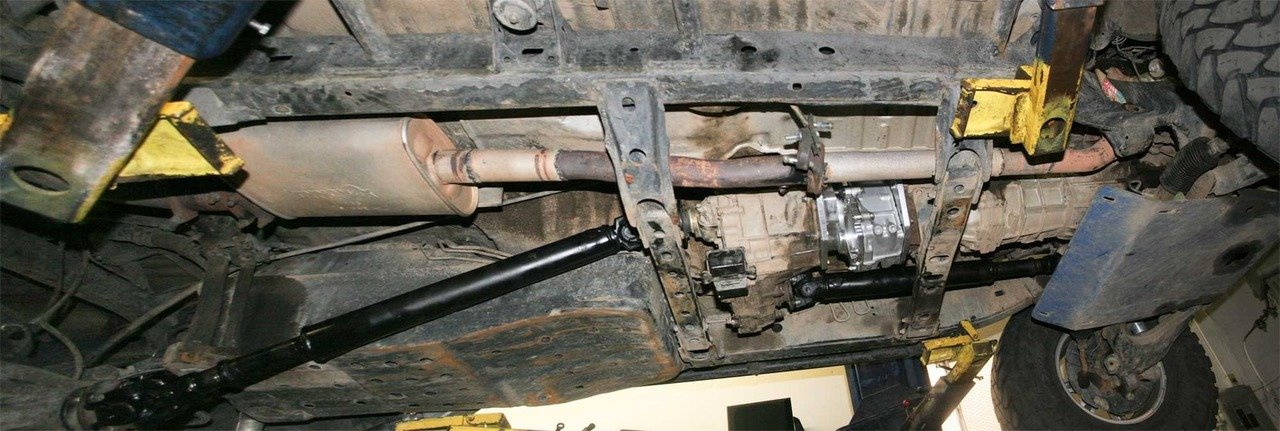

    Panorama showing the TacoBox installed along with the modified driveshafts and the rest of the lobsters beat up belly.
    [​IMG]


    Lets count the transfer cases in this picture. One. Two. Two! Two transfer cases!

    Ah ah ah ah!

    [​IMG]

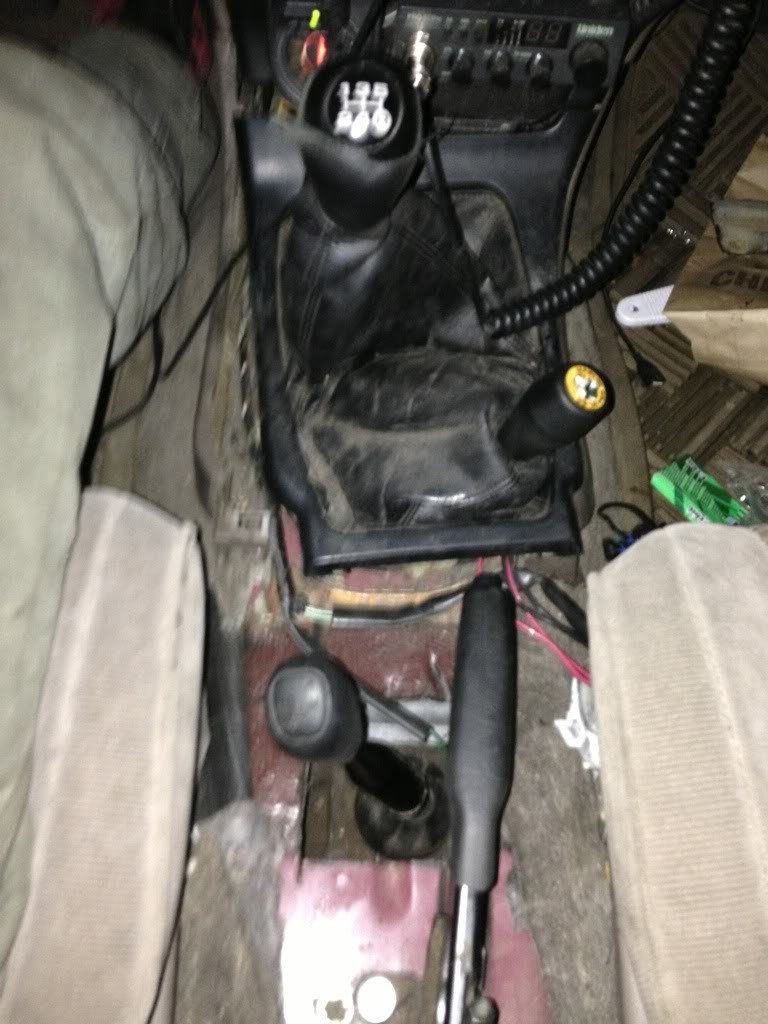

    Here are how the shifters come into the cab. This will be finished tomorrow. The rear stick will come up into one of the cupholders.
    [​IMG]


    That pretty much covers the install. But no crawlbox install would be complete with out a video of the truck driving with no one behind the wheel right? :D

    http://youtu.be/OGzN-Q5RyAY

    Just testing out the crawler. I used to have to slip the clutch and work the gas like a mofo to get up to the top. This time, i didn't touch the gas or the clutch.
    http://youtu.be/CW6sUsoktRI
    So there you have it. I give you the worlds only (probably) IFS, Dual case, Open diffs 3rd gen 4Runner.

    Last edited: Apr 30, 2013
  13. Apr 30, 2013 at 11:49 AM
    #13
    downpour11

    downpour11 Well-Known Member Vendor

    Joined:
    Jan 12, 2013
    Member:
    #95033
    Messages:
    504
    Gender:
    Male
    First Name:
    Rob
    Chico, CA
    Vehicle:
    96 4runner
    1996 4runner SR5 4x4 - 419,000 miles, 14" Spacer Lift
    It's like I just traveled back in time!! One of my favorite trucks! Good shit Dylan! Lookin forward to Moab pics for this year

  14. Apr 30, 2013 at 12:16 PM
    #14
    BAMFTACO

    BAMFTACO Pabst Blue Ribbon on ice

    Joined:
    Feb 3, 2010
    Member:
    #30639
    Messages:
    9,711
    Gender:
    Male
    First Name:
    JUAN
    Malibu, CA
    Vehicle:
    Taco
    Lift- stock suspension with light racing uppers,tc coil bucket gusset, timbern bumps ,defined extended shackles with shackle brace. Armor- custom tube bumper, kr fab rear bumper,trail gear wiy 78 in sliders Performance-intake manifold spacer, vibrant resonator Random stuff- kenwood head unit,b&m t shifter, hood bug deflector.
    Sweet 4runner op

  15. May 1, 2013 at 12:34 PM
    #15
    steezemcqueen

    steezemcqueen [OP] 4Runner Abuser

    Joined:
    Nov 2, 2011
    Member:
    #66343
    Messages:
    526
    Gender:
    Male
    First Name:
    Dylan
    Crawlorado
    Vehicle:
    1997 4Runner Turbocharged 20 speed
    Soccer mom car with some random stuff duct tapped to it
    Thank you! :cheers:

  16. May 1, 2013 at 12:45 PM
    #16
    steezemcqueen

    steezemcqueen [OP] 4Runner Abuser

    Joined:
    Nov 2, 2011
    Member:
    #66343
    Messages:
    526
    Gender:
    Male
    First Name:
    Dylan
    Crawlorado
    Vehicle:
    1997 4Runner Turbocharged 20 speed
    Soccer mom car with some random stuff duct tapped to it
    Elocker Swap

    This is still ongoing but the hard part is finished(I hope!)

    I've been wanting to put in a elocker pretty much since i bought the Rock Lobster. Recently, my rear diff started to make a horrible howling noise and the gears had way to much backlash. Also one of my wheel bearings had some play in it even though they have less then 30k on them :ybrick:

    So i decided to not bother with fixing my current open diff or do the wheel bearing again and just swap the entire axle out for an elocked one. After searching for a little while, I bought a hub to hub elocker axle from a local guy parting a 96 after a wreck. This way i would not have to mess with cutting, drilling, and tapping to retro the elocker diff in to my housing. I had purchased a 4.30 front diff awhile back in anticipation of doing the elocker swap since most 4Runner elockers are the 4.30 ratio. However, the truck i pulled the axle from was a 96 V6 5spd and the gear ratio was 4.10 so i ended up not having to swap the front diff out! I confirmed that both the new and old axles were 4.10 by doing the spin test.

    We ended up working out a deal where we would basically swap axles so he could use my axle and still move the truck around while he was parting it out.

    I went and pulled the axle yesterday and did the swap at work. The elocker axle had a leaking axle seal so i replaced that and added some diff armor while it was out and easy to work on

    My work stand

    [​IMG]

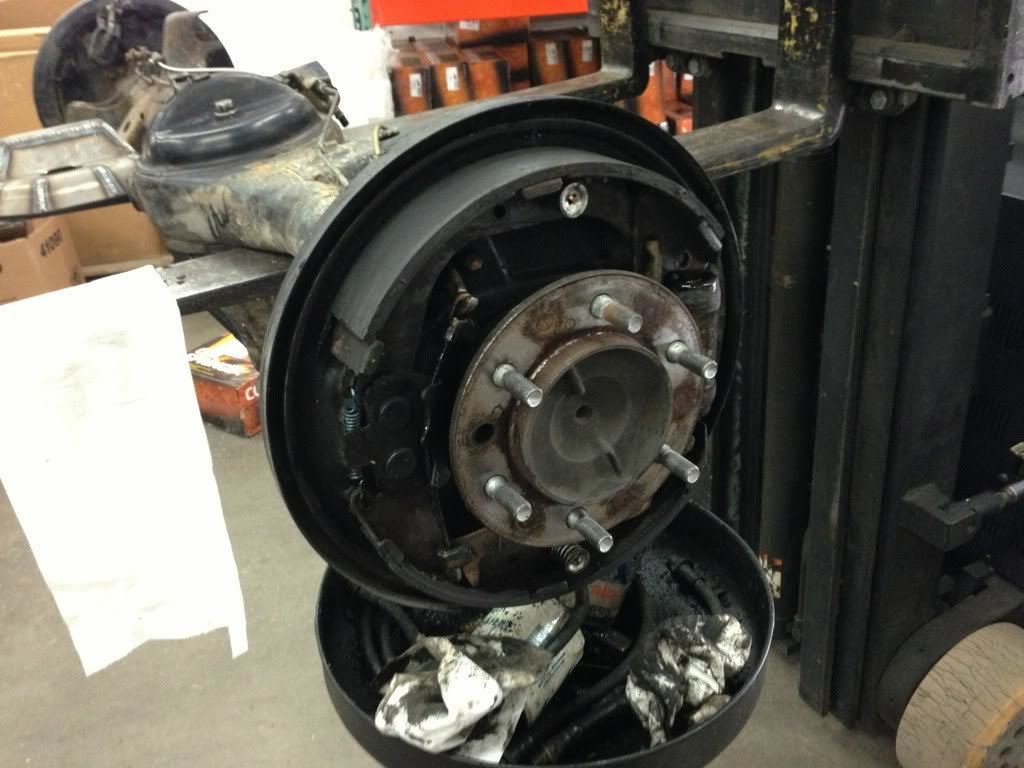

    Cleaning the oil out of the brakes. The shoes looked to be pretty new so i used 3 cans of brake clean on them and got them looking pretty good.

    [​IMG]

    Dafaq is that on my diff???? :D

    [​IMG]

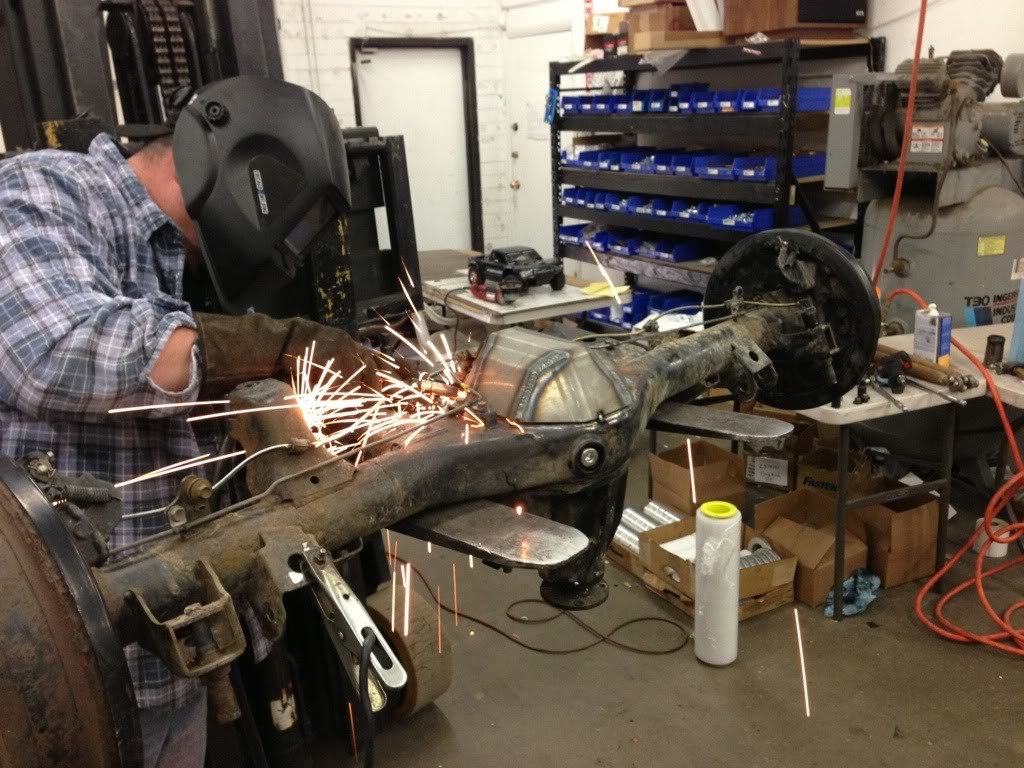

    Welding on the Marlin armor

    [​IMG]

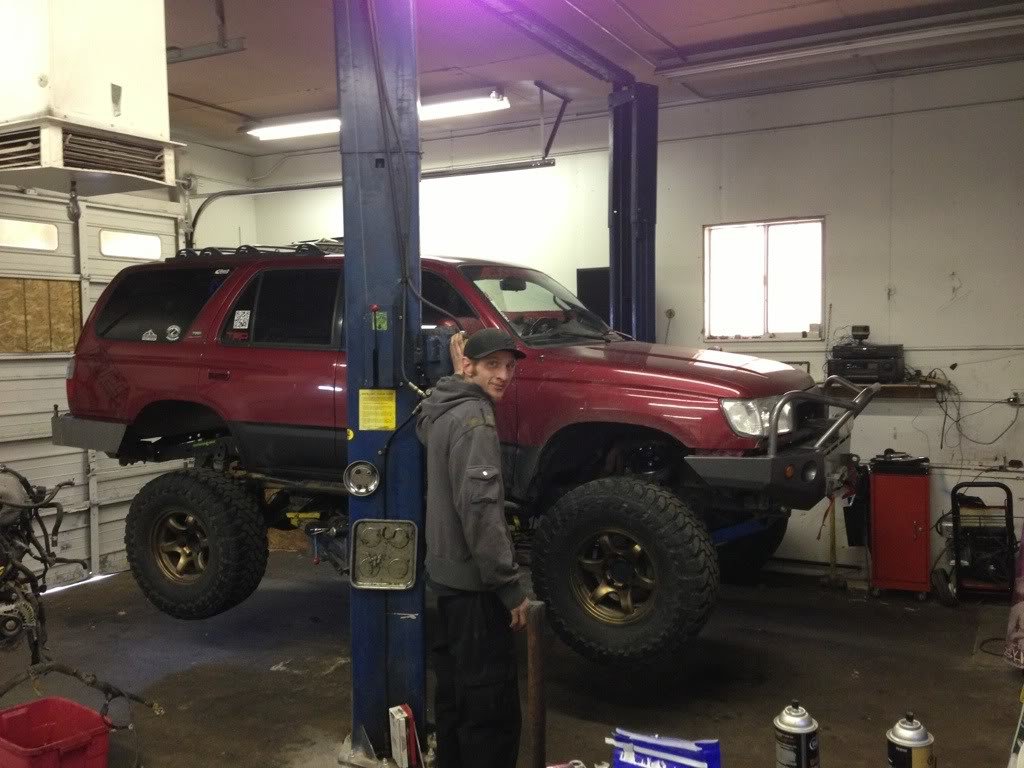

    Old axle out and new one in

    [​IMG]

    All done and painted!

    [​IMG]

    Next i need to build a control for the locker. I got the pigtails for the locker and the dash switch but no ECU. From what I've read, it should be pretty easy to make my own.


    The Moab to do list is getting smaller!

  17. Jun 11, 2013 at 12:59 PM
    #17
    Greytacoma1

    Greytacoma1 Senior Member

    Joined:
    Feb 28, 2012
    Member:
    #73797
    Messages:
    438
    Gender:
    Male
    First Name:
    dave
    Sacramento ca
    Vehicle:
    Tacoma dc lb
    Satoshi grill, Plasti derp, Ready lift kit, Wheelers 2 inch aal, Hella 700, Wheather tech floor mats, Blueinstinct armrest cover, sockmonkey bed decal, BHLM, debadge, 35% tint front windows, OEM roof rack, OEM step bar, TRD skid plate, tacomaworld.com decal, stock antenna trimed, gorilla extended lug nuts,diff breather mod, cab mount chop, AVS window visor, spidertrax 1.25 wheel spacers, toytec sway bar relocate, extra d ring mod
    Sweet build man!

  18. Dec 16, 2013 at 11:40 AM
    #18
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    50,208
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    subbed. Love this rig.

    hows 35s and 4.10s? haha im about to find out..

  19. Dec 16, 2013 at 11:51 AM
    #19
    steezemcqueen

    steezemcqueen [OP] 4Runner Abuser

    Joined:
    Nov 2, 2011
    Member:
    #66343
    Messages:
    526
    Gender:
    Male
    First Name:
    Dylan
    Crawlorado
    Vehicle:
    1997 4Runner Turbocharged 20 speed
    Soccer mom car with some random stuff duct tapped to it
    Holy crap i haven't updated this in a while.

    Thanks man!

    Its ok. Regearing is on the list but its manageable. Having the supercharger more than makes up for it and even without the SC, i think it wouldn't be too bad. Your truck is probably lighter than mine too so you should be fine. I would plan on a regear or SC though haha. Or both? :D

  20. Dec 16, 2013 at 11:54 AM
    #20
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    50,208
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    I weigh about 5200lbs empty..:anonymous: haha 5800+ with gear on a trip..What do you weigh??

    I am planing to get 4.88s yes..just probably not till summer..hopefully lockers too.

    i am gonna boost too :devil: just not a supercharger.

    I bet the crawl box helps a ton too offroad...would love that too..


    *sigh*..its only money right..haha

    Last edited: Dec 16, 2013
To Top
