The SAE J581 Aux High Beam Thread

Discussion in 'Lighting' started by crashnburn80, Nov 28, 2020.

  1. Jan 9, 2021 at 11:53 AM
    #121
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    20,292
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000K Driving Lights on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Doug Thorley Headers Magnaflow 18" Muffler w/upstream CAT delete 13WL Brake Calipers Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    The DD clear lenses that are spot and flood are not SAE complaint. Is that what you have?

    The DD SS3 clear driving pattern lenses I have are marked SAE.

    bikerx likes this.
  2. Jan 11, 2021 at 10:56 PM
    #122
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,691
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    My SAE driving lenses do not have SAE markings. Earlier SAE SS3s had the markings on the bezel, later they moved them to the lens. The ones I have are earlier production. Could ping Diode Dynamics if you need SAE markings and don't have them.

    bikerx likes this.
  3. Jan 16, 2021 at 9:56 PM
    #123
    Spike Spiegel

    Spike Spiegel Well-Known Member

    Joined:
    Oct 27, 2019
    Member:
    #309219
    Messages:
    105
    Gender:
    Male
    Vehicle:
    2019 Super White Toyota 4Runner TRD Off-road Premium
    Eibach Pro Truck Lift, JBA High Caster UCA’s, Falken Wildpeak 275/70/17, Spidertrax Spacers

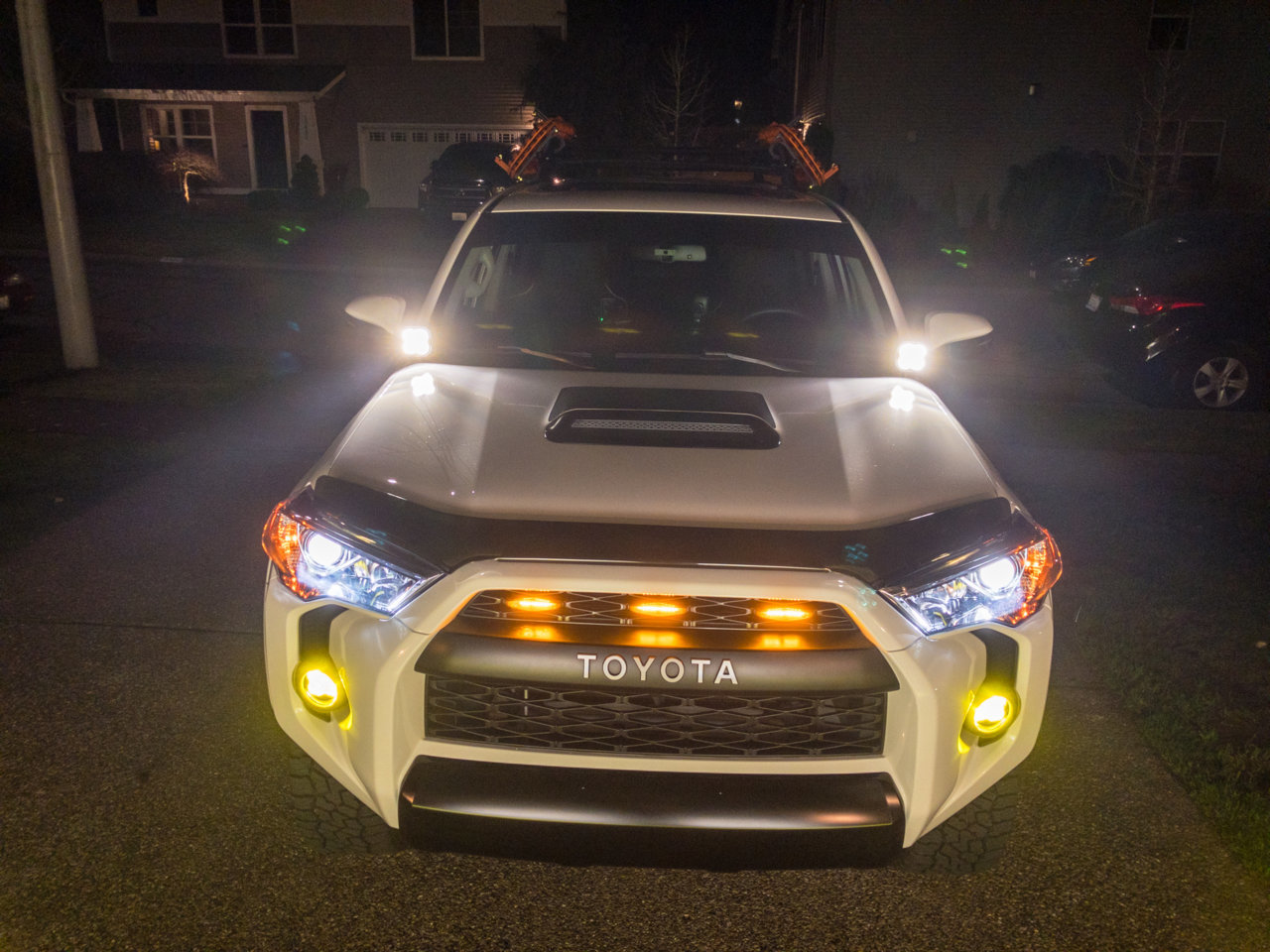

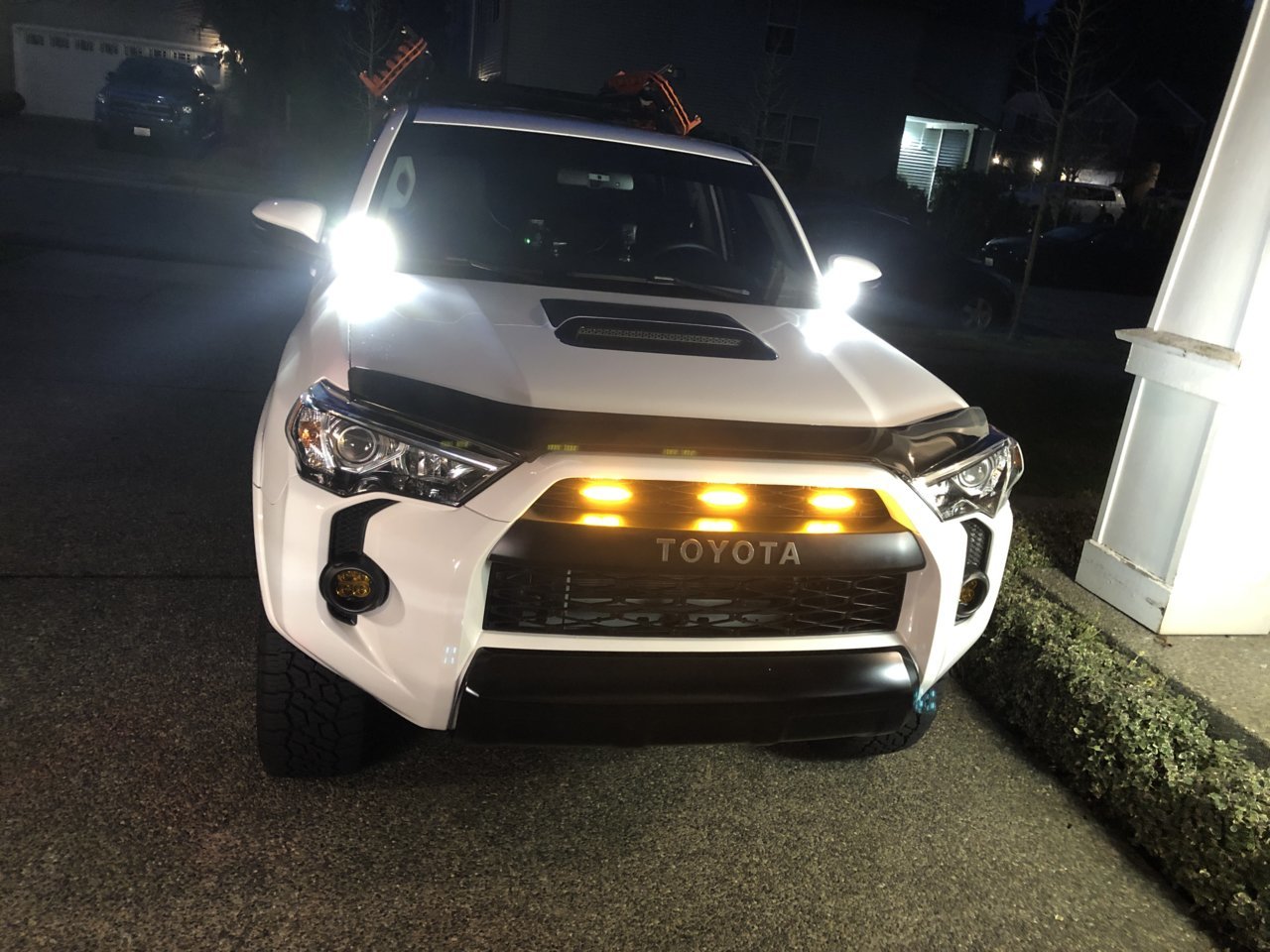

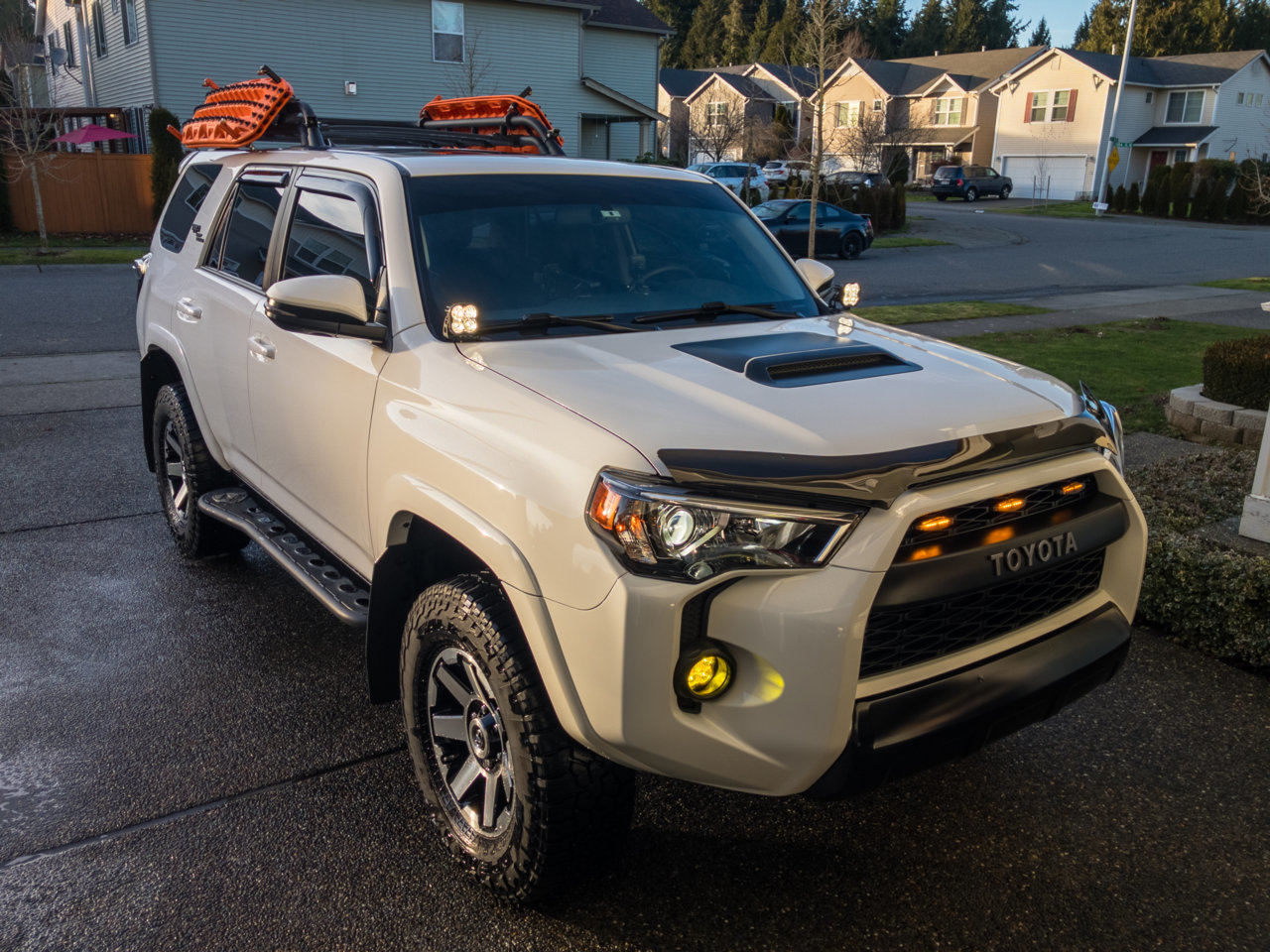

    Finally got around to installing the ditch lights (aimed as Aux High Beams at this time) and boy they have me wondering if I need a light bar. Went on a drive down a dark road and they light output is stellar.

    The light modules are the Diode Dynamics SS3 Pro Selective Yellow variant with the Clear Driving Lens installed.

    Notes: Low Beams are the Philips XV2 hid bulbs with 35w, blasphemy I know, and I have all auxiliary lights powered by the Switch Pros 9100. Hood glare is a non issue from the inside.


  4. Jan 16, 2021 at 10:17 PM
    #124
    mynameistory

    mynameistory Well-Known Member

    Joined:
    Jul 3, 2012
    Member:
    #81862
    Messages:
    696
    Gender:
    Male
    First Name:
    Tory
    Redondo Beach, CA
    Vehicle:
    4Runner

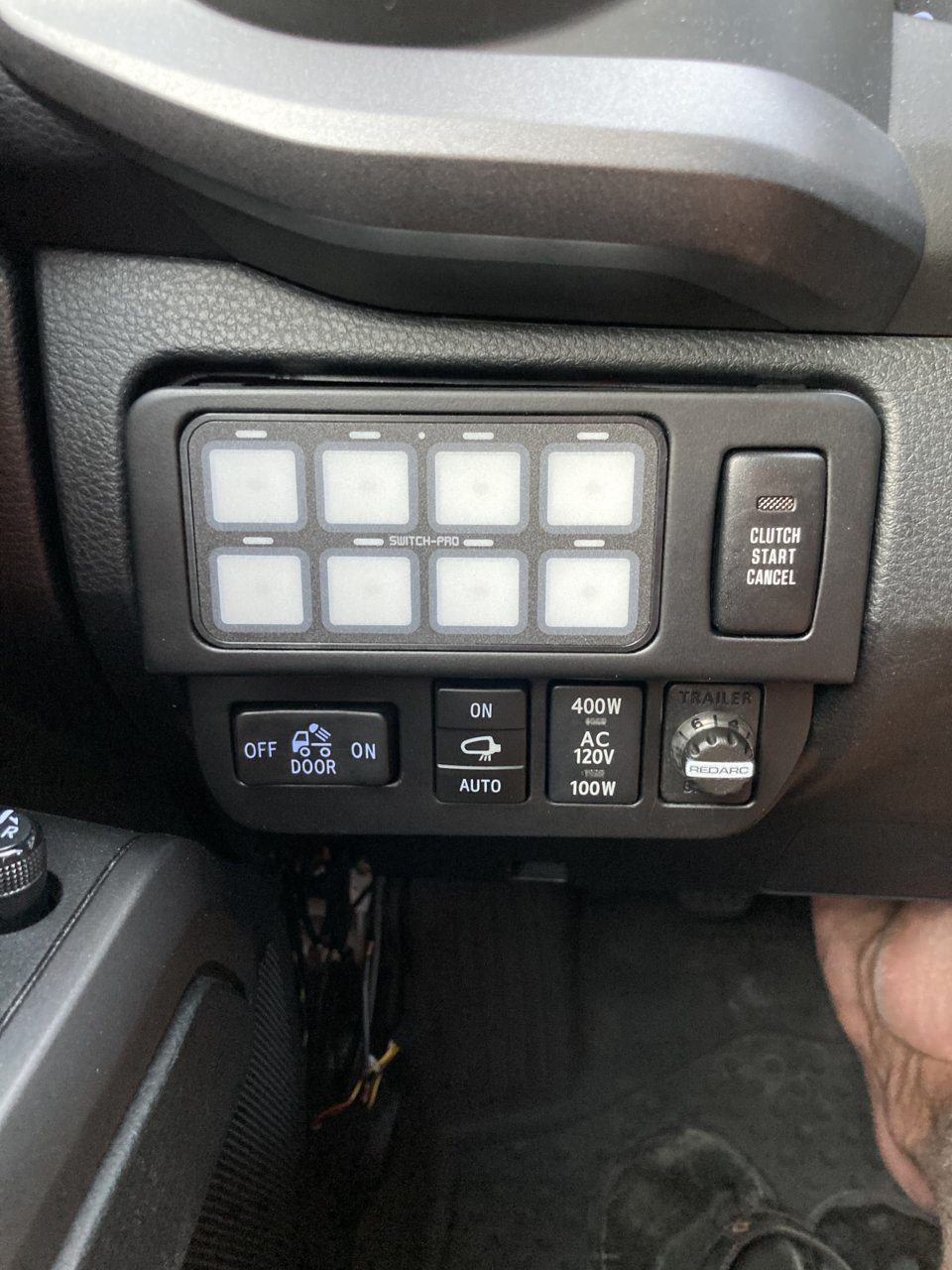

    Lookin good. How do you like the switchpro panel? I'm just using OEM style switches to replace the blanks but that pad looks nice and compact. Good use of that space.

  5. Jan 16, 2021 at 11:11 PM
    #125
    Spike Spiegel

    Spike Spiegel Well-Known Member

    Joined:
    Oct 27, 2019
    Member:
    #309219
    Messages:
    105
    Gender:
    Male
    Vehicle:
    2019 Super White Toyota 4Runner TRD Off-road Premium
    Eibach Pro Truck Lift, JBA High Caster UCA’s, Falken Wildpeak 275/70/17, Spidertrax Spacers

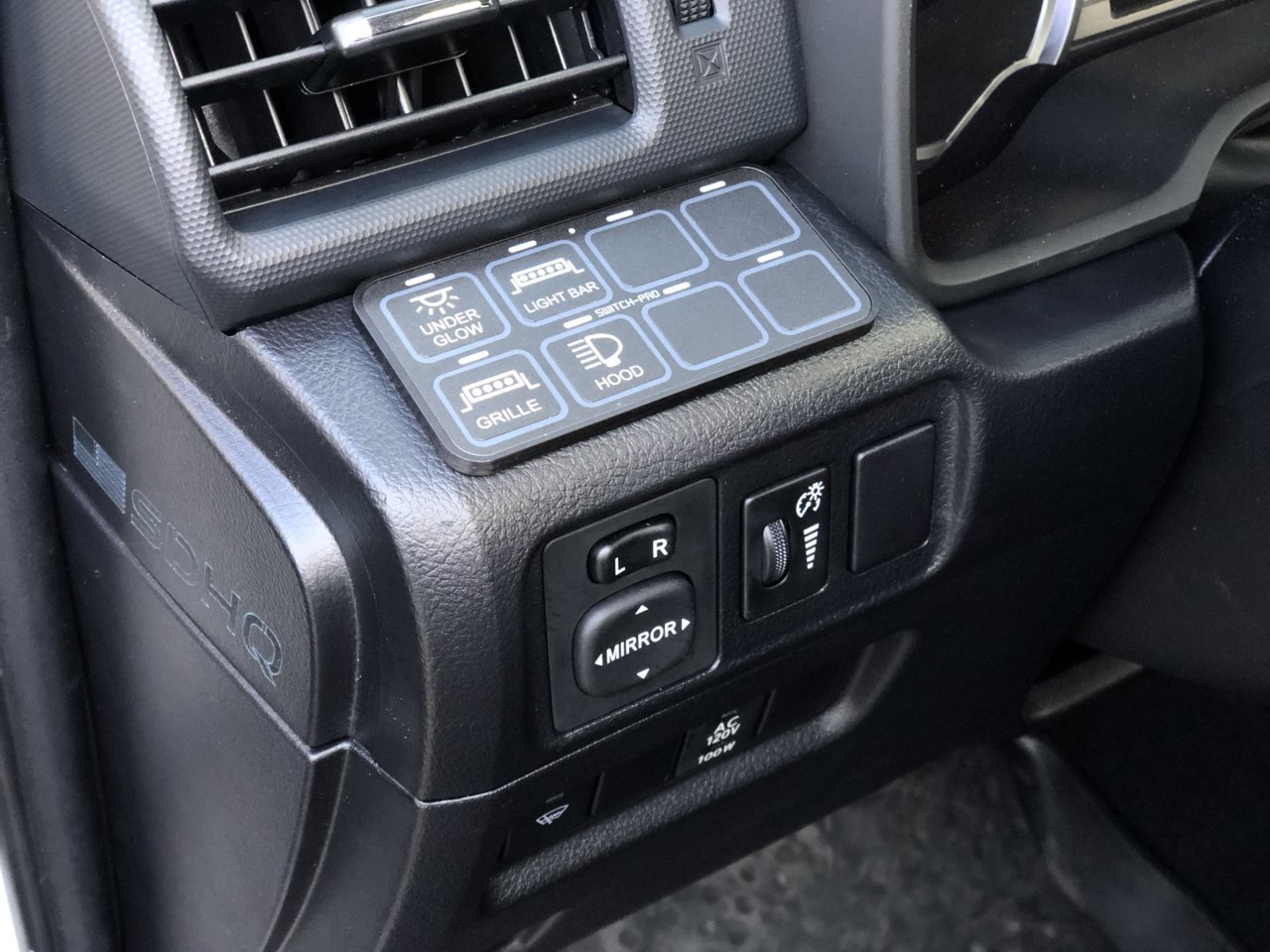

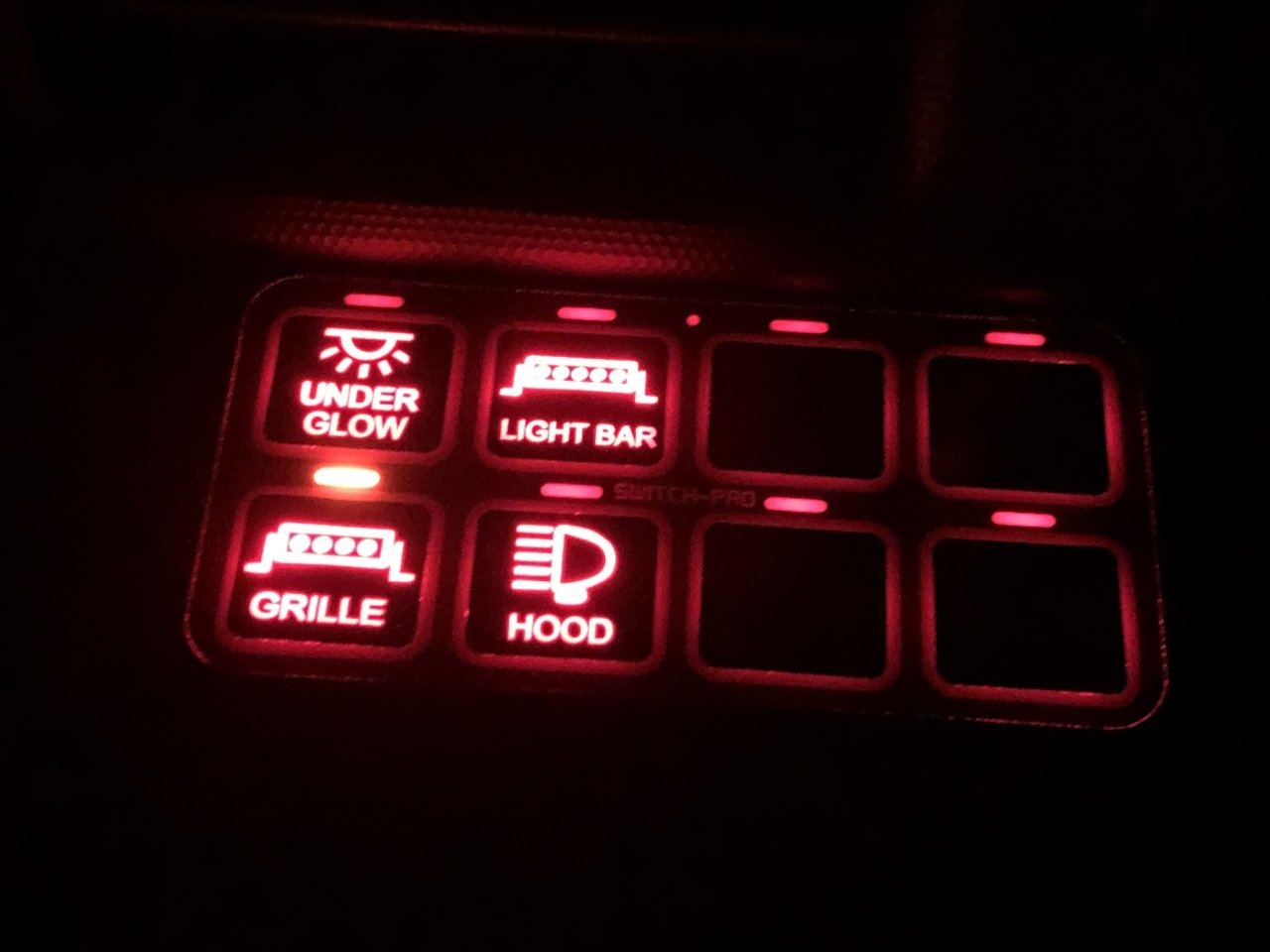

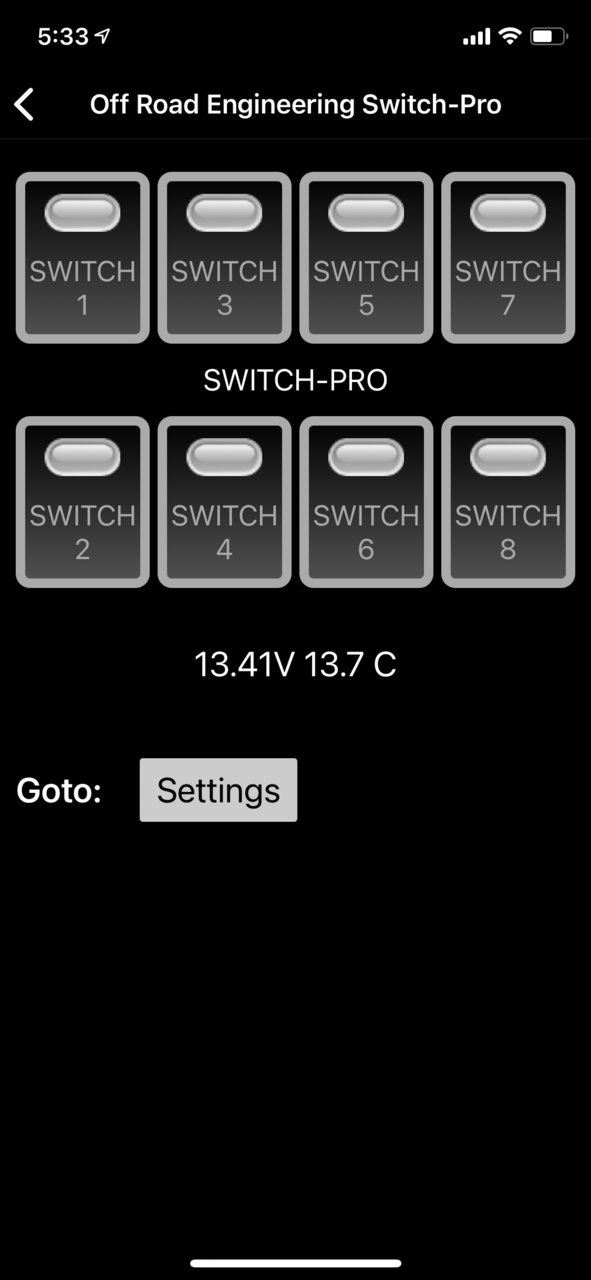

    I’m a fan. The 9100 makes it super easy to consolidate everything and the abundance of configurable options like strobe, led panel brightness and so on is nice. I changed mine to red and lowest brightness as I didn’t wire in the light sensing wire.

    Being able to use Bluetooth is a nice perk as well.

    I like the flush fit but I did notice it’s not 100% OEM tight to the rest of the panels.

    If I had to do it over I’d probably skip the sdhq piece and just drill the holes provided with the switch pros.


    mynameistory likes this.
  6. Jan 17, 2021 at 6:50 AM
    #126
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,302
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    MESO doesn’t print a 9100 panel for the T4R? Bummer.


    mynameistory likes this.
  7. Jan 18, 2021 at 3:30 PM
    #127
    Spike Spiegel

    Spike Spiegel Well-Known Member

    Joined:
    Oct 27, 2019
    Member:
    #309219
    Messages:
    105
    Gender:
    Male
    Vehicle:
    2019 Super White Toyota 4Runner TRD Off-road Premium
    Eibach Pro Truck Lift, JBA High Caster UCA’s, Falken Wildpeak 275/70/17, Spidertrax Spacers
    They seem to be mainly Tacoma based but they’re slowly branching out. Maybe one day the 4Runner will get as much support from them.

  8. Jan 19, 2021 at 4:43 PM
    #128
    Spike Spiegel

    Spike Spiegel Well-Known Member

    Joined:
    Oct 27, 2019
    Member:
    #309219
    Messages:
    105
    Gender:
    Male
    Vehicle:
    2019 Super White Toyota 4Runner TRD Off-road Premium
    Eibach Pro Truck Lift, JBA High Caster UCA’s, Falken Wildpeak 275/70/17, Spidertrax Spacers

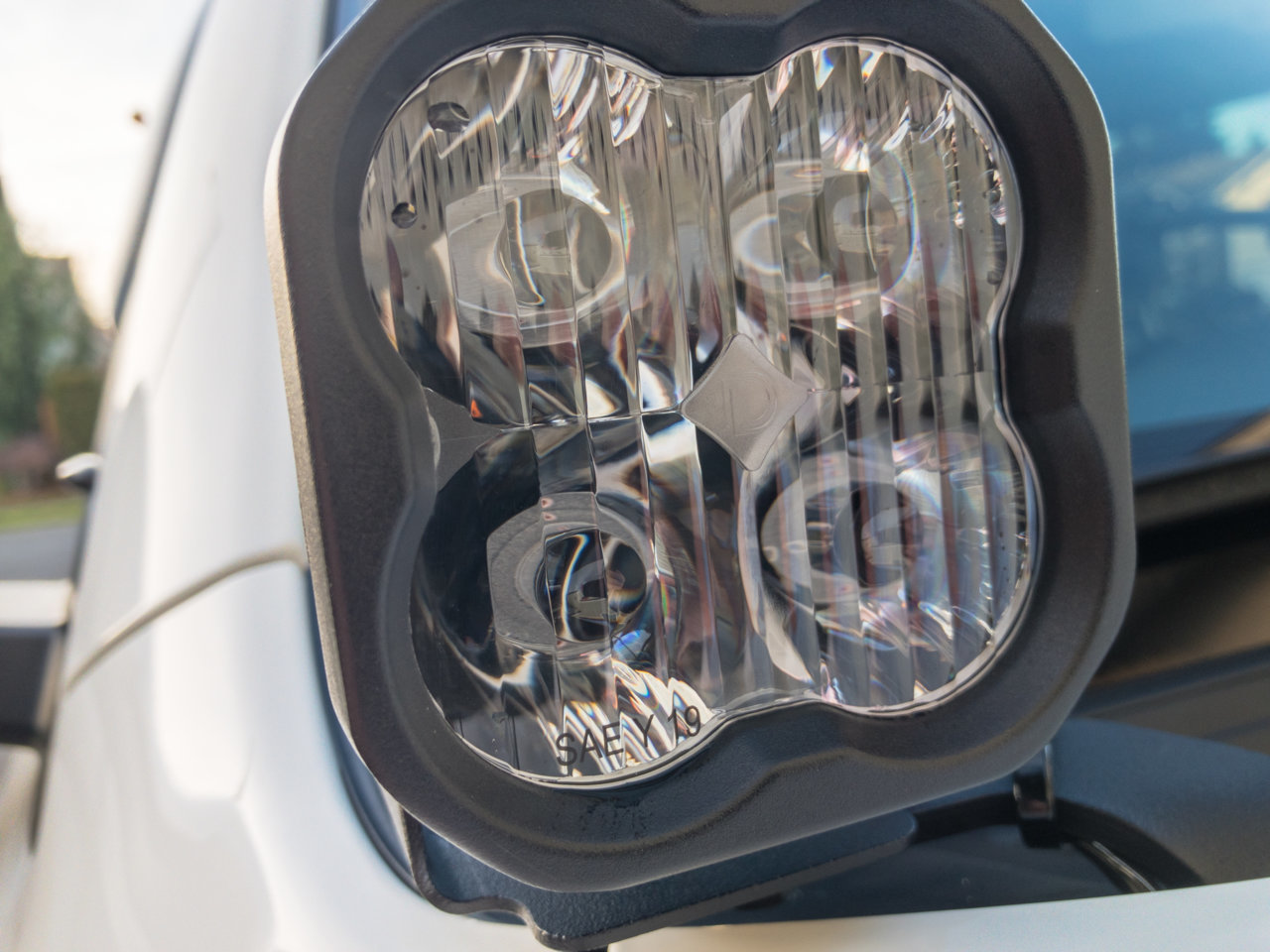

    My Driving lens has the SAE marking.

    Added another shot to display the 4000k goodness. REALLY wish DD had an offering in that color temp for their light bars.


  9. Jan 19, 2021 at 6:53 PM
    #129
    mynameistory

    mynameistory Well-Known Member

    Joined:
    Jul 3, 2012
    Member:
    #81862
    Messages:
    696
    Gender:
    Male
    First Name:
    Tory
    Redondo Beach, CA
    Vehicle:
    4Runner
    Same. I'd swap mine in a heartbeat.

  10. Jan 19, 2021 at 9:14 PM
    #130
    Aws123

    Aws123 Active Member

    Joined:
    Jul 25, 2020
    Member:
    #335564
    Messages:
    38
    Gender:
    Male
    First Name:
    Adam
    Colorado
    Vehicle:
    2019 tacoma off road
    4000k combo bar ftw!

  11. Jan 19, 2021 at 9:24 PM
    #131
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,691
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Could build a sudo one with a row of several SC2s, though not nearly as elegant.

    The Wolves, mynameistory and Aws123 like this.
  12. Jan 19, 2021 at 10:28 PM
    #132
    Spike Spiegel

    Spike Spiegel Well-Known Member

    Joined:
    Oct 27, 2019
    Member:
    #309219
    Messages:
    105
    Gender:
    Male
    Vehicle:
    2019 Super White Toyota 4Runner TRD Off-road Premium
    Eibach Pro Truck Lift, JBA High Caster UCA’s, Falken Wildpeak 275/70/17, Spidertrax Spacers
    I’ll have to keep that thought in mind when DD comes out with their larger offering.

    I have to admit I didn’t expect the current offering to throw so much light so far down when the major power outage occurred.

  13. Jan 20, 2021 at 3:32 AM
    #133
    mynameistory

    mynameistory Well-Known Member

    Joined:
    Jul 3, 2012
    Member:
    #81862
    Messages:
    696
    Gender:
    Male
    First Name:
    Tory
    Redondo Beach, CA
    Vehicle:
    4Runner
    I thought about that but all of those wiring splices would be a pain. Common internal busses are nice... Those little emitters would be too finicky for soldering by hand huh?

  14. Jan 20, 2021 at 8:08 PM
    #134
    Toy_Runner

    Toy_Runner Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311172
    Messages:
    192
    Gender:
    Male
    Vehicle:
    99 4Runner SR5
    3" OME lift, heavy coils f/r 3/16" steel skids Modified Coastal Offroad diy bumper 5spd swap ('98 donor)
    The LEDs need mounted on a metal core pcb board, so that there is a thermal path from the backside of the chip to the heatsink/housing. It would be easier to splice a new harness together to provide power for each little pod in a row. You'd just need the appropriate deutch connectors, pins and crimp tool.

    mynameistory likes this.
  15. Jan 20, 2021 at 10:23 PM
    #135
    mynameistory

    mynameistory Well-Known Member

    Joined:
    Jul 3, 2012
    Member:
    #81862
    Messages:
    696
    Gender:
    Male
    First Name:
    Tory
    Redondo Beach, CA
    Vehicle:
    4Runner
    You're right. I think I saw somewhere that I'd need a hot air solder to even try. I think they're all oven set at the factory.

  16. Jan 21, 2021 at 1:13 AM
    #136
    Toy_Runner

    Toy_Runner Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311172
    Messages:
    192
    Gender:
    Male
    Vehicle:
    99 4Runner SR5
    3" OME lift, heavy coils f/r 3/16" steel skids Modified Coastal Offroad diy bumper 5spd swap ('98 donor)
    A hot air soldering station is very handy, but you could try other means.

    If you wanted to use an external driver, you could simply pull the existing pcb out, buy LEDs pre-mounted (depending on your source) on mcpcb's of the same thickness (so you retain focus) and then just have to solder your wiring to each LED.

    You could diy your own Max pods this way, with the 2 optic pods if you reaaally wanted to push the envelope on output. DD drives the osram chips very conservatively - they're pushing for a certain performance envelope, and very high reliability as a manufacturer. If people like the lights, but expected absolute bleeding edge performance to Also be covered by a long warranty period, DD could lose a lot of business if they pushed 6 or 7A through each osram chip and develop a reputation for failing or fading lights. 6 or 7A through those osram boost chips would make for Very high output and extremely high CD numbers, but the limit then becomes the heatsinking. Realistically, the moving airflow of a vehicle would allow for the necessary cooling to push that high an output, but if mall crawlers or offroaders start frying lights because theyre stationary in hot environments, DDs reputation suffers.

    mynameistory likes this.
  17. Jan 21, 2021 at 1:33 PM
    #137
    mynameistory

    mynameistory Well-Known Member

    Joined:
    Jul 3, 2012
    Member:
    #81862
    Messages:
    696
    Gender:
    Male
    First Name:
    Tory
    Redondo Beach, CA
    Vehicle:
    4Runner
    Aren't the PCBs and components for each of the power levels different as well?

  18. Jan 21, 2021 at 2:07 PM
    #138
    ardrummer292

    ardrummer292 Resisting G.A.S.

    Joined:
    Feb 27, 2020
    Member:
    #320484
    Messages:
    951
    Gender:
    Male
    First Name:
    Austin
    Virginia Beach, VA
    Vehicle:
    2015 DCLB V6 A/T 4x4 1D6
    Overbuilt daily driver

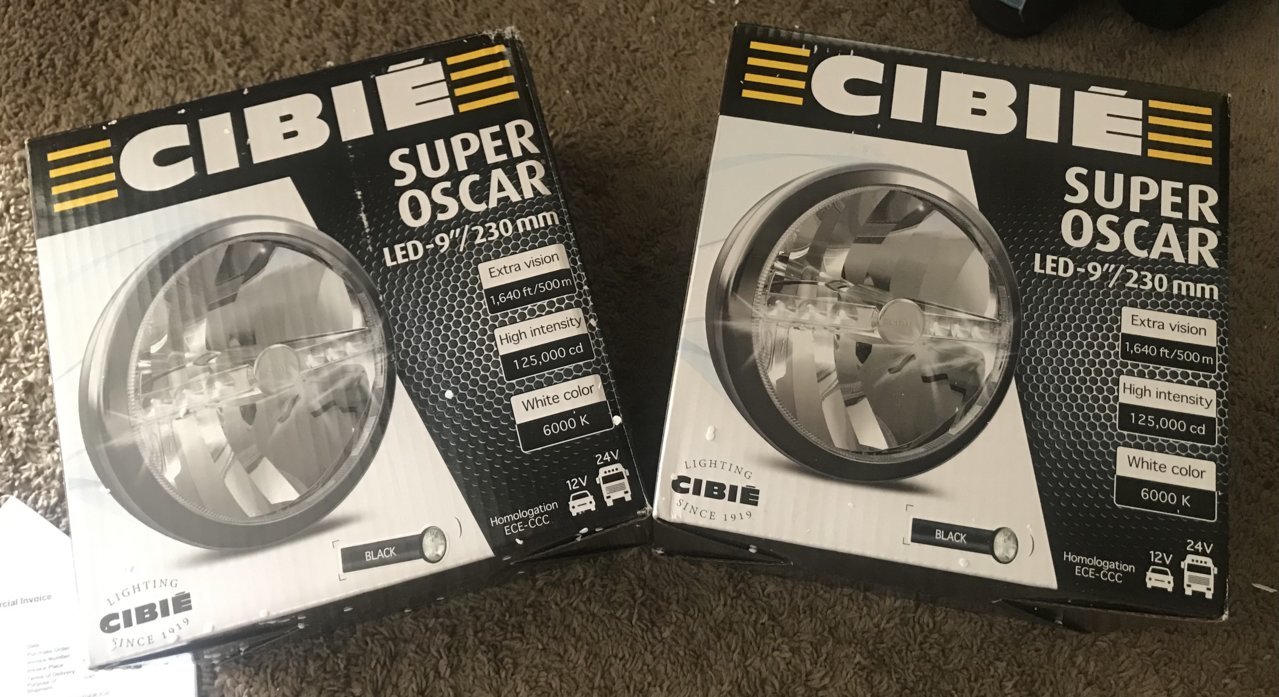

    The postman brought me something neat today: Cibie LED Super Oscars, wide beam/high power version, in black (P/N 45312). These aren’t SAE J581 spec, so technically outside the scope of this thread. I am excited to see how they perform regardless. I expect the wider beam to excel for my intended use: spotting deer lurking on the side of dark backcountry roads.


  19. Jan 21, 2021 at 5:13 PM
    #139
    Toy_Runner

    Toy_Runner Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311172
    Messages:
    192
    Gender:
    Male
    Vehicle:
    99 4Runner SR5
    3" OME lift, heavy coils f/r 3/16" steel skids Modified Coastal Offroad diy bumper 5spd swap ('98 donor)
    I'm saying buy LEDs or mount LEDs on standard sized mcpcb's from a vendor (usually 10/12/16/20mm round are easy to find in different thicknesses) and use an external driver to feed whatever power your new arrangment needs (most led's are usually around 3v forward voltage, so 4 in series nets you about 12v, letting you use a current regulator instead of more complex circuitry).

    Yes, the 3 leds available all have different footprints, so they use different pcb's that also mount the driver circuitry.

    @ardrummer292, very cool purchase. I hope you dig em.

    ardrummer292 likes this.
  20. Jan 22, 2021 at 11:38 AM
    #140
    ardrummer292

    ardrummer292 Resisting G.A.S.

    Joined:
    Feb 27, 2020
    Member:
    #320484
    Messages:
    951
    Gender:
    Male
    First Name:
    Austin
    Virginia Beach, VA
    Vehicle:
    2015 DCLB V6 A/T 4x4 1D6
    Overbuilt daily driver

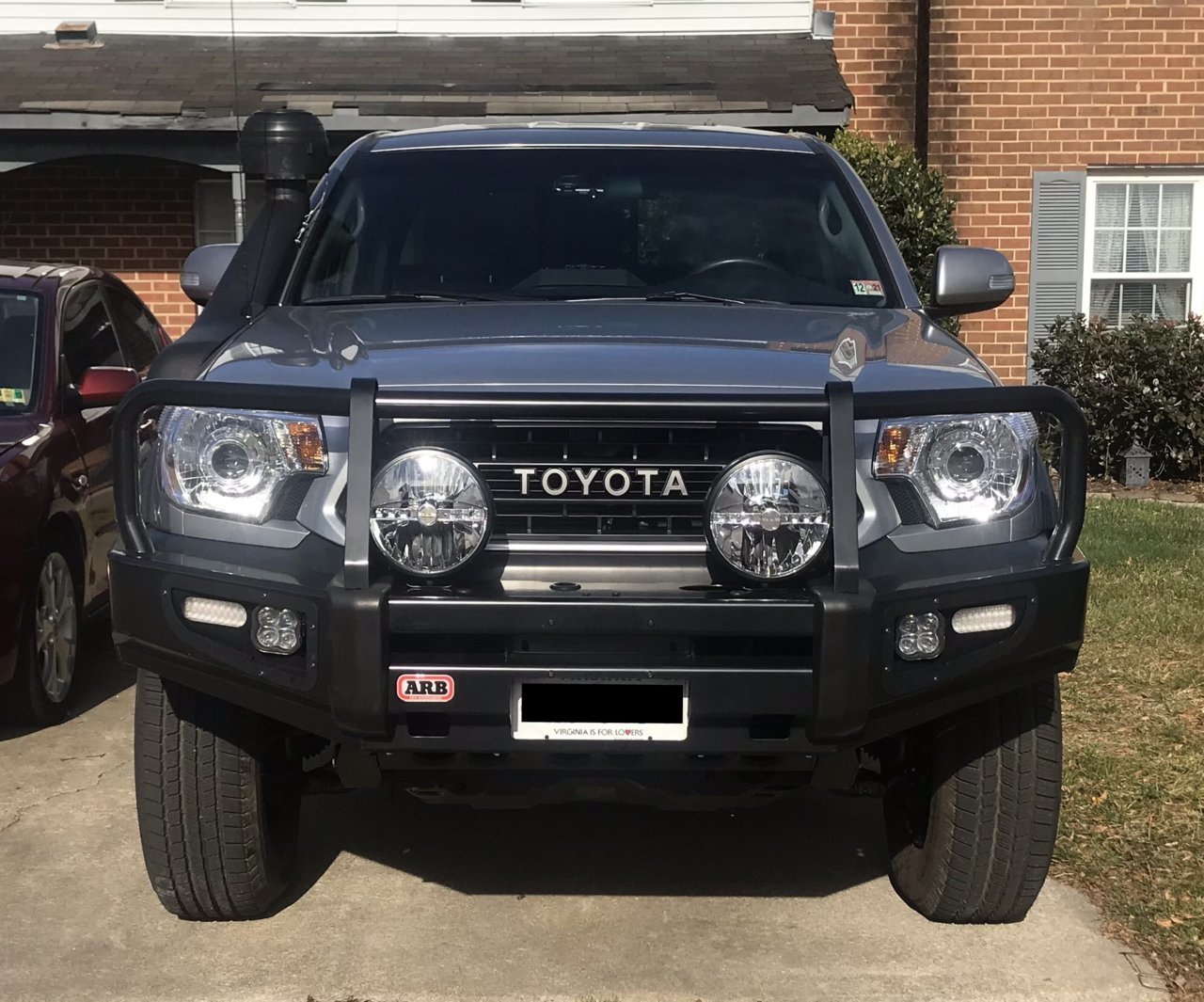

    Addendum to my previous post. I couldn’t find any information about whether these lights would fit on an ARB deluxe bumper, so I figured I’d take a chance and order them anyway. Turns out they do fit, although with almost no clearance (~1mm gap to the upright support) when installed in the outermost mounting holes. I prefer this mounting location because I want to minimize disruption of airflow to the radiator.
