The "so easy a caveman can do it" abs disable mod with pics

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Btnewman, Apr 28, 2012.

  1. Apr 28, 2012 at 4:02 PM
    #1
    Btnewman

    Btnewman [OP] Benjamin Newman

    Joined:
    Apr 15, 2011
    Member:
    #54950
    Messages:
    2,215
    Gender:
    Male
    First Name:
    Benjamin
    Grand Junction co
    Vehicle:
    07 sport, ARB rear locker, leveling kit
    ARB rear locker Leveling Kit Custom Rear Bumper Tires and Rims Air tank fully plumbed into truck
    So there is tons of good abs disable tech/wiring threads already going, so why not add another?

    I have dug through every one of them until my eyes were puking. This is what i came up with for disabling my ABS in a low tech, no frills, I don't even know the right names for the wires and connectors write up. with pics.

    I honestly cant remember which thread I got this info off, But I do want to extend a warm wet hug to the guys that have poured over manuals, wiring diagrams and fried many fuzes to finally put together an easy mod for this. thank you

    so the specifics:
    the truck started out as a 2007 double cab sport, no factory locking diff, no traction control.

    this mod allows the driver to disable and enable the ABS withOUT having to restart the truck, it works in real time.

    all you need is
    a few ft of wire,
    wire cutters/stripper
    a 3 pole switch of any flavor
    some butt connecters
    beer...


    first, pull the pocket out of the dash on the drivers left side, the one that lets you access the fuses.

    next

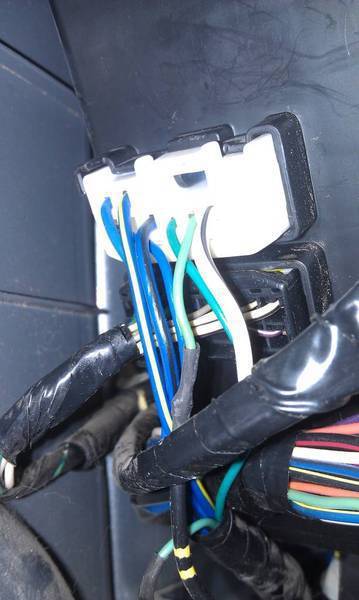

    locate this plug:
    [​IMG]

    pull that plug out and fish it out of the bottom of the console

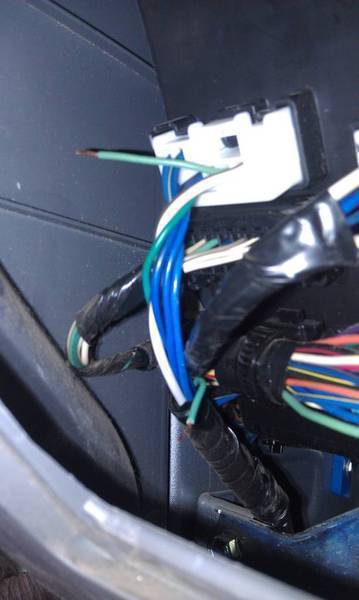

    Then cut the light green wire next to the white one with the black stripe

    [​IMG]

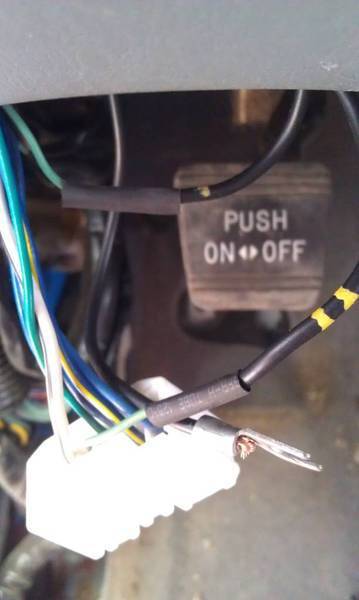

    (this pic was taken with the connector hooked up, I had to run a quick errand in the middle of this.)

    now take the side of the wire that goes back into the wiring harness and do whatever you have to do using wire and butt connectors, or solder, or tape or whatever and connect it into the middle pole of the switch

    [​IMG]
    [​IMG]
    I only had black wire so i painted 1 or 2 stripes around the wire for identification.

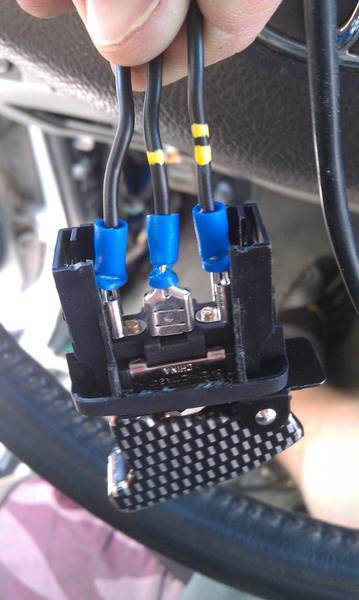

    then take and connect one of the outside poles again by any way that suits you, to the connector side of the green wire.

    [​IMG]

    and last, ground the last outer pole of the switch.

    [​IMG]


    stuff everything back in its hole and go find a dirt road and slam on the brakes with the switch on, then do it again with the switch off for the "piece of mind final check"

    On the dash you with see the ABS light turn on when the abs is disabled, and back off when abs is enabled, also you will see the "rear differential locked" emblem on the console light up with the abs light as well, even if your truck never came with a factory locking diff.
