The ultimate foglight upgrade H11 (not LED or HID)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by crashnburn80, Jun 4, 2016.

  1. Jun 14, 2016 at 10:21 PM
    #41
    roto prop

    roto prop roto-prop

    Joined:
    Mar 22, 2015
    Member:
    #151523
    Messages:
    107
    Gender:
    Male
    Washington
    Vehicle:
    2016 Tacoma TRD BC DC/OR/LB 4x4 Tow pk , jbl premium
    Dipped front grill , vinyl tail gate letters , vinyl door sill lettering , vled interior lights , Vled back up and license plate lights , Vled switch back turn signals and brake lights , h9 low beam light mod , OEM bed matt , Raised front seats.
    Do you know if ray has contacted anyone waiting to buy this harness. ?

  2. Jun 14, 2016 at 10:32 PM
    #42
    LeftCoastNerd

    LeftCoastNerd Old 'nuff to know betta

    Joined:
    Mar 27, 2016
    Member:
    #182459
    Messages:
    1,890
    First Name:
    John
    Santa Cruz, California
    Vehicle:
    08 AC 4x4 OR 6sp
    12 gauge isn't that heavy... I've been contemplating rewiring my trailer connector for 30 amps and thinking I'll need to use 8 or maybe even 6 gauge. the stock trailer connector isn't delivering enough voltage to keep the trailer battery charged when the refrigerator is in DC mode and drawing 15A. I will, of course, also need to put a 30A(or better) relay in the circuit.

  3. Jun 15, 2016 at 4:55 AM
    #43
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    4,789
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    What's the big deal with the wire size? A 100 watt bulb draws 8 amps it does not matter what the bulb is it can be gold plated but a 100 watts is still 8 amps@ 12 volts. I ran 100 watt H4's for 10 years with stock Tacoma wiring no bigger than #14 the lighting all ready has a relay because the little wires on the switch will not handle very much current nothing caught fire. Yes there is voltage drop in any length of the wire but it is highly doubtful that the loss could be detected it's not like 75' from the relay.

  4. Jun 15, 2016 at 6:14 AM
    #44
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    4,789
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    If you have a trailer package the B+ wire is a #8 it is protected with a 30 amp fuse and driven by a keyed relay. It is pretty much standard on campers all so to use a #8. Yes your fridge on 12 volts will draw 50% of you rated current so depending on the state of charge in the camper battery your are pushing the limits of a #8 wire with 20' of truck wiring and XX feet of camper. I am surprised your fridge will cool on 12 volts they were generally reserved for motor homes only that made there own power. Most modern camper fridges need 12 volts to run the controls but they only draw maybe 2 amps max. and only work on propane or 120 volts. Some modern RV fridges had a door heater to keep them from freezing the door shut but they had a small switch to turn them off on the inside edge of the door when you were running on battery and not plugged in. I run mine on propane never had it blow out just keeps on cooling does not draw a lick of power.

  5. Jun 15, 2016 at 8:01 AM
    #45
    LeftCoastNerd

    LeftCoastNerd Old 'nuff to know betta

    Joined:
    Mar 27, 2016
    Member:
    #182459
    Messages:
    1,890
    First Name:
    John
    Santa Cruz, California
    Vehicle:
    08 AC 4x4 OR 6sp
    incandescent/halogen brightness is proportional to the cube of the voltage. at your fully charged battery, with the engine running, you have like 14.2V, by the time you get to the light terminals, if thats dropped to 13.0V, that is 76% of the light you would have gotten at 14.2V.

    even 10 feet of 14 gauge (don't forget the ground return path), at 8 amps thats an 0.4V drop, so I come up with a 7% brightness loss.


    I looked at the back of my trailer connector, the BATT CHG wire sure didn't look like 8 gauge, the ground was maybe 10 gauge, and the power wire maybe 12 (I didn't actually strip them and measure them). with a 15A load in the trailer, I was seeing 14.15V at the tacoma battery, 13.0V at the trailer connector, and the brand new fully charged Interstate trailer battery was discharging, a few hours drive ran it down to 12.1V. my trailer has a 3-way fridge, propane, ac, dc, and I was hoping to use DC while traveling.

  6. Jun 15, 2016 at 8:43 AM
    #46
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    9,197
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Last I talked to him, I gave him the updated measurements for corrections on the prototype harness, which he requested to fill orders. I pinged him end of last week and haven't heard back. Last I've heard of him contacting people was last week waiting to get finalized measurements. I don't think he has filled any orders yet. I'll ping him again.

    LeftCostNerd gave you the highlights. But check out this article from Daniel Stern:
    http://www.danielsternlighting.com/tech/relays/relays.html

  7. Jun 15, 2016 at 8:46 AM
    #47
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    9,197
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    It would be exceptionally challenging to get an even heavier gauge into the ceramic H11 connectors. :)

  8. Jun 15, 2016 at 1:20 PM
    #48
    roto prop

    roto prop roto-prop

    Joined:
    Mar 22, 2015
    Member:
    #151523
    Messages:
    107
    Gender:
    Male
    Washington
    Vehicle:
    2016 Tacoma TRD BC DC/OR/LB 4x4 Tow pk , jbl premium
    Dipped front grill , vinyl tail gate letters , vinyl door sill lettering , vled interior lights , Vled back up and license plate lights , Vled switch back turn signals and brake lights , h9 low beam light mod , OEM bed matt , Raised front seats.
    :cheers: I was contacted by ray at rally lights today and the h11 wire harness's are ready to go. Ray said that his boss has decided not to stock the h11 connectors. Crashnburn80 had extra h11 connectors drop shipped to ray at Rally lights the first 3 orders for the h11 fog lights will get these connectors the rest will have to install their own connector to the harness. :) I was the lucky first one to order the harness from Ray very pleasant fellow to work with. The cost for the harness was $ 63.84 plus $9.00 shipping. you can order the harness by calling Ray at Rally Lights at (610)944-3233 ask for Ray and tell him you would like the HL282H11 Wire harness. Thank you Crashnburn80 for a well written light mod and sharing it with all of us and cheers to supplying ray with a few extra h11 connectors.

  9. Jun 15, 2016 at 1:23 PM
    #49
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    9,197
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    I was just about to post that same update as he emailed me back as well. :cheers:

  10. Jun 16, 2016 at 10:16 PM
    #50
    Norton

    Norton Senior Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    3,963
    Gender:
    Male
    First Name:
    Steve
    Colorado Springs, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    Magnuson S/C w/12TRDTacoma's Qwikchange Hub & 2.5" RIP-Modded Pulley, Roostfactor's Pulley Wrap Mod; FPR Mod; JustDSM Tune via HPT MPVI2; aFe POWER Magnum FLOW Pro DRY S Air Filter; OME Suspension Lift (885 Coils, Dakar Leafs, NitroCharger Sports); TRD Quickshifter w/TRD 6-Spd Knob; TRD Exhaust; NSB-AGM27F Battery w/HKB Adjustable Voltage Booster & Coupe's TRD Battery Hold Down; Goodridge SS Brake Lines; Trident904's MT ADM; Cooper Discoverer A/T3s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; BPF TRD Skid & Cooling Panel; jsi's Locker Anytime, Up2NoGood's 2Lo Module; ramonortiz55's Always on Power Outlet Relay, ND4's Fog Light Anytime, & Crom's Speed Bleeder Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades; 4Runner 4X4 & FJ Fog Light Switches; redtaco2007-inspired LED License Plate Lights; mattgecko's Underhood Lighting; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Noico Sound Insulation; loginfailed-inspired Speedhut Boost & AFR Gauges in a Lotek Pillar Pod; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror on ImMrYo's Mirror Lift Bracket; Husky Floor Liners; UltraGauge EM; mesojdm's Ultimate LED Dome & Map Lights & GASSHOLE; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Cali Raised Led Bed Stiffeners; Pop & Lock Power Tailgate Lock w/TacomaTruckParts Support Bracket; ARE Z-Series Cap, SolarGard Tint; BlendMounted Uniden R3; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    +1 to ALL of this. FWIW, Ray said I got the last of the available h11 connectors when I ordered earlier today.

    crashnburn80 [OP] likes this.
  11. Jun 18, 2016 at 11:29 PM
    #51
    Norton

    Norton Senior Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    3,963
    Gender:
    Male
    First Name:
    Steve
    Colorado Springs, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    Magnuson S/C w/12TRDTacoma's Qwikchange Hub & 2.5" RIP-Modded Pulley, Roostfactor's Pulley Wrap Mod; FPR Mod; JustDSM Tune via HPT MPVI2; aFe POWER Magnum FLOW Pro DRY S Air Filter; OME Suspension Lift (885 Coils, Dakar Leafs, NitroCharger Sports); TRD Quickshifter w/TRD 6-Spd Knob; TRD Exhaust; NSB-AGM27F Battery w/HKB Adjustable Voltage Booster & Coupe's TRD Battery Hold Down; Goodridge SS Brake Lines; Trident904's MT ADM; Cooper Discoverer A/T3s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; BPF TRD Skid & Cooling Panel; jsi's Locker Anytime, Up2NoGood's 2Lo Module; ramonortiz55's Always on Power Outlet Relay, ND4's Fog Light Anytime, & Crom's Speed Bleeder Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades; 4Runner 4X4 & FJ Fog Light Switches; redtaco2007-inspired LED License Plate Lights; mattgecko's Underhood Lighting; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Noico Sound Insulation; loginfailed-inspired Speedhut Boost & AFR Gauges in a Lotek Pillar Pod; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror on ImMrYo's Mirror Lift Bracket; Husky Floor Liners; UltraGauge EM; mesojdm's Ultimate LED Dome & Map Lights & GASSHOLE; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Cali Raised Led Bed Stiffeners; Pop & Lock Power Tailgate Lock w/TacomaTruckParts Support Bracket; ARE Z-Series Cap, SolarGard Tint; BlendMounted Uniden R3; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    Package arrived today from Susquehanna MotorSports. Haven't had time to open it, but I think I know what's inside. Now, I need to order a set of Flösser 90w H11 bulbs...

    crashnburn80 [OP] likes this.
  12. Jun 20, 2016 at 11:16 AM
    #52
    wedgemoose

    wedgemoose Well-Known Member

    Joined:
    Aug 17, 2015
    Member:
    #162008
    Messages:
    302
    Gender:
    Male
    First Name:
    Wedge
    Worcester,MA
    Vehicle:
    2014 TRD Sport
    Got mine Saturday !!!!!! Almost ready to install. Just have to find the time. Had bulbs for a couple weeks already

    I'll let you know how much I love this Crash once i stop being lazy......

    crashnburn80 [OP] likes this.
  13. Jun 20, 2016 at 8:03 PM
    #53
    Greenbean

    Greenbean B.S. Goodwrench

    Joined:
    Aug 8, 2012
    Member:
    #84332
    Messages:
    3,032
    Gender:
    Male
    First Name:
    Zack
    Western NC
    Vehicle:
    2015 AC 4cyl MT 4x4 Utility Package
    Very nice work!

    I am impressed...

    crashnburn80 [OP] likes this.
  14. Jun 21, 2016 at 7:43 PM
    #54
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    9,197
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Install is a breeze! Easier than the headlight mod.

    Norton likes this.
  15. Jul 3, 2016 at 8:16 PM
    #55
    Norton

    Norton Senior Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    3,963
    Gender:
    Male
    First Name:
    Steve
    Colorado Springs, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    Magnuson S/C w/12TRDTacoma's Qwikchange Hub & 2.5" RIP-Modded Pulley, Roostfactor's Pulley Wrap Mod; FPR Mod; JustDSM Tune via HPT MPVI2; aFe POWER Magnum FLOW Pro DRY S Air Filter; OME Suspension Lift (885 Coils, Dakar Leafs, NitroCharger Sports); TRD Quickshifter w/TRD 6-Spd Knob; TRD Exhaust; NSB-AGM27F Battery w/HKB Adjustable Voltage Booster & Coupe's TRD Battery Hold Down; Goodridge SS Brake Lines; Trident904's MT ADM; Cooper Discoverer A/T3s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; BPF TRD Skid & Cooling Panel; jsi's Locker Anytime, Up2NoGood's 2Lo Module; ramonortiz55's Always on Power Outlet Relay, ND4's Fog Light Anytime, & Crom's Speed Bleeder Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades; 4Runner 4X4 & FJ Fog Light Switches; redtaco2007-inspired LED License Plate Lights; mattgecko's Underhood Lighting; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Noico Sound Insulation; loginfailed-inspired Speedhut Boost & AFR Gauges in a Lotek Pillar Pod; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror on ImMrYo's Mirror Lift Bracket; Husky Floor Liners; UltraGauge EM; mesojdm's Ultimate LED Dome & Map Lights & GASSHOLE; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Cali Raised Led Bed Stiffeners; Pop & Lock Power Tailgate Lock w/TacomaTruckParts Support Bracket; ARE Z-Series Cap, SolarGard Tint; BlendMounted Uniden R3; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    Finally installed mine today. Biggest challenge was neatening- and tying-up the wires. No night-time driving yet, but I look forward to that...

    Thanks, @crashnburn80!

    Last edited: Jul 3, 2016
    crashnburn80 [OP] likes this.
  16. Jul 6, 2016 at 9:42 AM
    #56
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,849
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    Just ordered the lamps, harness and the H11 male connector to complete the trigger side. A little solder and some heat-shrink and it'll be good to go. Did the headlight upgrade 6 months ago and couldn't be happier with that. Thanks!

    crashnburn80 [OP] likes this.
  17. Jul 9, 2016 at 9:11 AM
    #57
    wedgemoose

    wedgemoose Well-Known Member

    Joined:
    Aug 17, 2015
    Member:
    #162008
    Messages:
    302
    Gender:
    Male
    First Name:
    Wedge
    Worcester,MA
    Vehicle:
    2014 TRD Sport

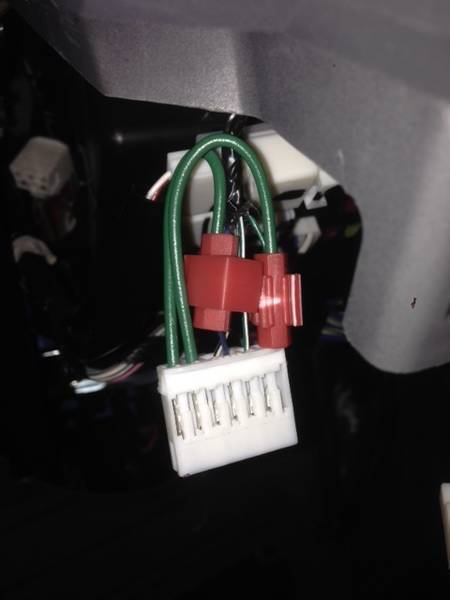

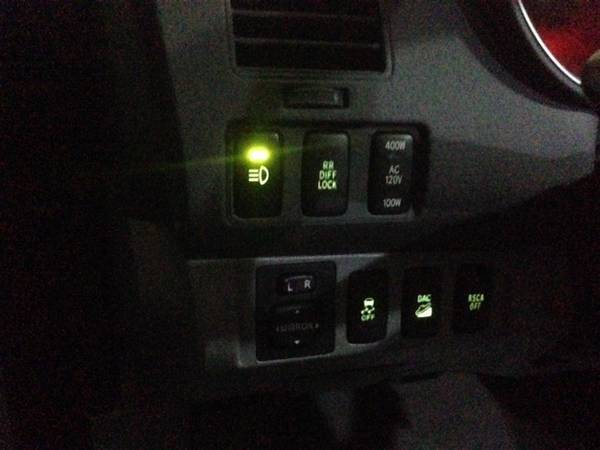

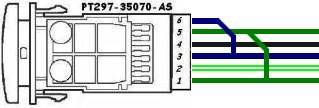

    Finally got off my arse and put this in. I likey !!!!! Real nice and a fun easy job. One thing that would make this mod perfect though!!!! A lighted switch to tell us when the fogs are on. I HATE how it's not already in these trucks. When I went to test these new ones i found out I've been driving with my fogs on for who know how long.


    Anyone know a lighted fog switch mod???????

    Norton likes this.
  18. Jul 9, 2016 at 9:48 AM
    #58
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    9,197
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    The stock fog light switch is pretty bad. In the daytime you have to feel if it is pressed in, it isn't even in an easy spot to see.

  19. Jul 9, 2016 at 9:50 AM
    #59
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,849
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    Thought has crossed my mind, too.

  20. Jul 9, 2016 at 9:55 AM
    #60
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    9,197
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    That is some good info! I may have to do this to my truck.
