The ultimate foglight upgrade H11 (not LED or HID)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by crashnburn80, Jun 4, 2016.

  1. Dec 3, 2019 at 4:04 AM
    #581
    Too Stroked

    Too Stroked Well-Known Member

    Joined:
    Jan 24, 2017
    Member:
    #208501
    Messages:
    2,299
    Gender:
    Male
    First Name:
    Tom
    South shore of Lake Ontario
    Vehicle:
    2021 4Runner SR5 Premium
    When you say "Gonna see if reconnecting a few wires fixes that" I cringe. Does that mean that the pervious headlight housings required some surgery to the wiring harness? If that's the case, your work is about to get much more interesting.

  2. Dec 3, 2019 at 4:29 AM
    #582
    Colinator4321

    Colinator4321 Well-Known Member

    Joined:
    Jul 27, 2019
    Member:
    #300435
    Messages:
    60
    Gender:
    Male
    First Name:
    Colin
    Vehicle:
    2012 Toyota Tacoma TRD Sport DBLC 6M
    Some mild surgery to remove unnecessary wiring. Since it was a full HID swap, they wired in the transformers and everything. That was fun trying to figure out what belonged with the truck, and was after market. Fortunately, the wiring wasn't spliced into, and it was just a matter of unplugging stuff till I got back to the original harness.

    What I meant by "reconnecting a few wires" was simply unplugging and re plugging in all wires going to the fixture. Since it is a halogen projector headlight, the high beams are controlled by a flap that goes up in down inside the fixture, and not by changing the brightness of the bulb.

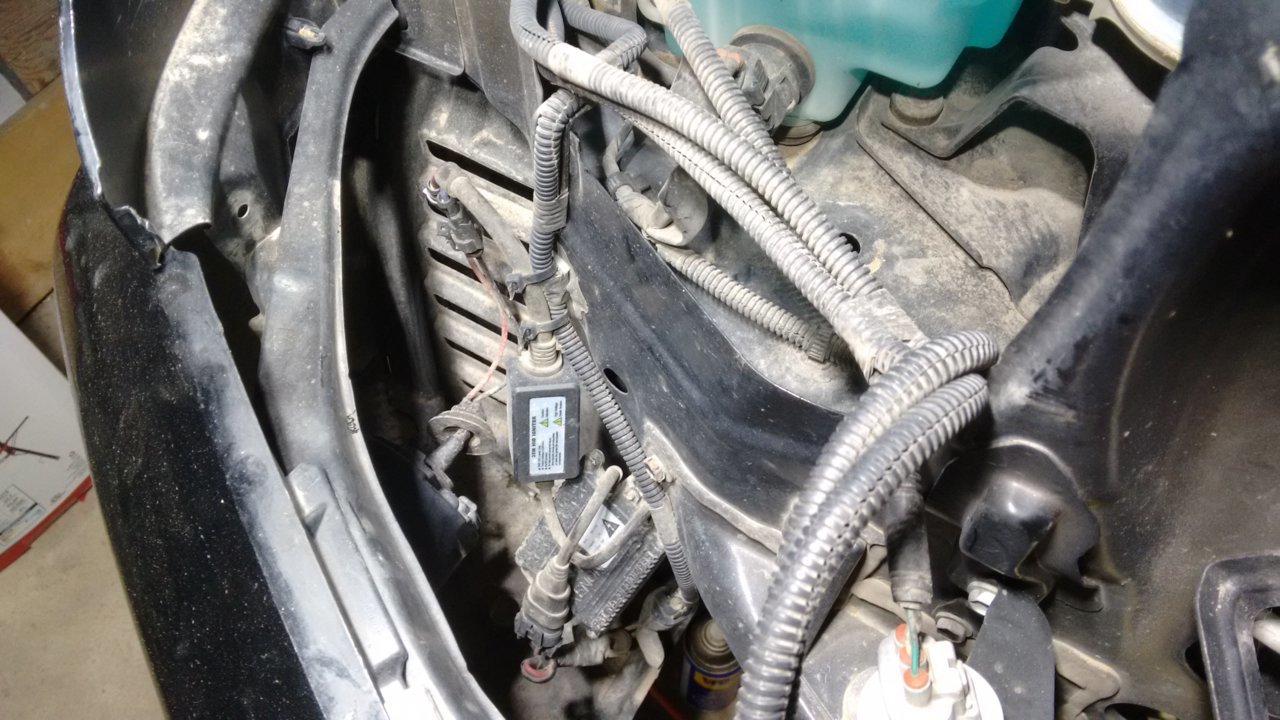

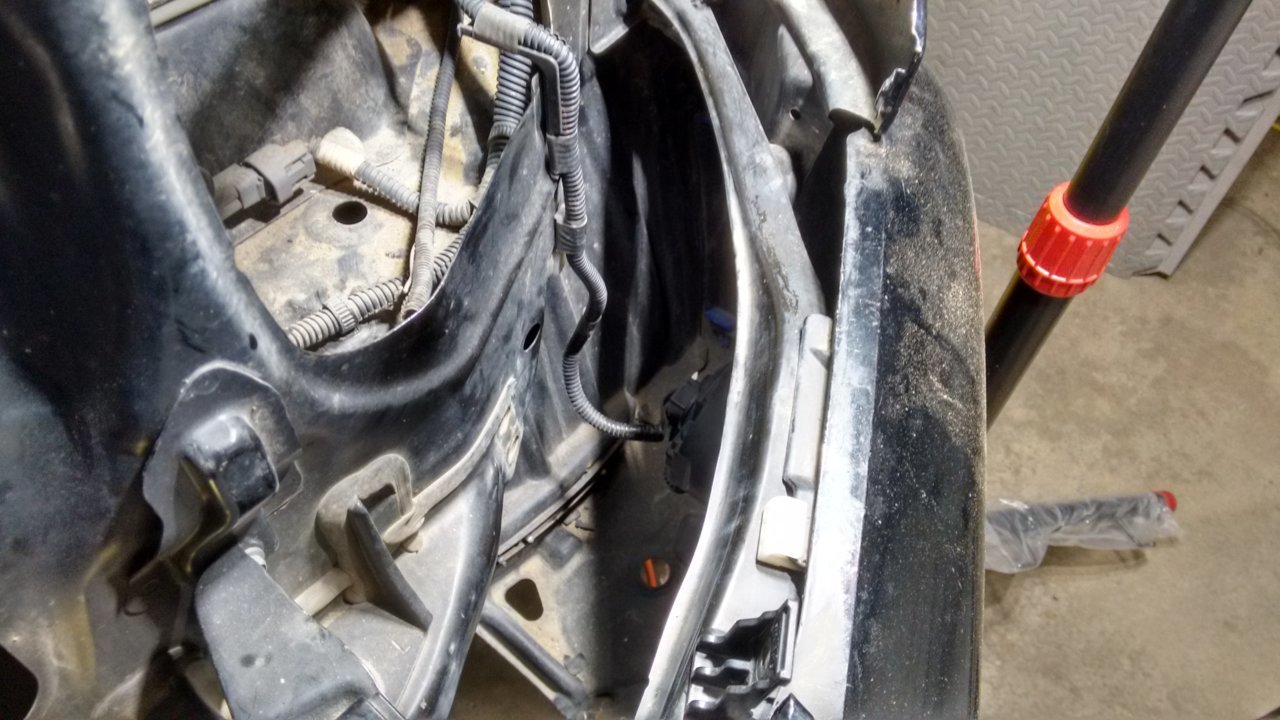

    I don't have before and after pics of the headlights, but here's and idea of what the wiring for the fogs used to look like, vs what they look like now

    Keep in mind, I had wiring like this for every light. And the Headlights were extra weird since they're after market and use different wiring themselves. Plus, many of the connections were covered in electrical tape so I couldn't see what was what.





  3. Dec 3, 2019 at 4:40 AM
    #583
    Too Stroked

    Too Stroked Well-Known Member

    Joined:
    Jan 24, 2017
    Member:
    #208501
    Messages:
    2,299
    Gender:
    Male
    First Name:
    Tom
    South shore of Lake Ontario
    Vehicle:
    2021 4Runner SR5 Premium
    Good grief, what a mess! At least as you said they didn't splice into anything. I can't stand looking at or working on hacked wiring.

  4. Dec 4, 2019 at 2:51 AM
    #584
    Colinator4321

    Colinator4321 Well-Known Member

    Joined:
    Jul 27, 2019
    Member:
    #300435
    Messages:
    60
    Gender:
    Male
    First Name:
    Colin
    Vehicle:
    2012 Toyota Tacoma TRD Sport DBLC 6M
    Ya, when I first saw that, I initially thought I was gonna have to replace both lighting harnesses and as well as the headlight fixtures. At that point I was dead set on immediately installing the ultimate fog and head light mods. Off the mindset, "If i'm gonna replace it anyways, I might as well go ahead with the mods I was gonna do later"

    But it seems the fogs work for now. I'll see how they do in the winter, maybe come summer i'll upgrade them

  5. Dec 26, 2019 at 2:31 PM
    #585
    Bubbles

    Bubbles Liquor and Whores

    Joined:
    Dec 11, 2015
    Member:
    #172003
    Messages:
    4,654
    Gender:
    Male
    Sunnyvale Trailer Park
    Vehicle:
    2005 GX470 Sport
    Suggestions for a 9006 setup?

  6. Dec 26, 2019 at 9:49 PM
    #586
    150k

    150k Member

    Joined:
    Dec 2, 2019
    Member:
    #312258
    Messages:
    22
    9012s

    Bubbles likes this.
  7. Dec 26, 2019 at 9:59 PM
    #587
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,360
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Last edited: Dec 28, 2019
    Bubbles and xxTacocaTxx like this.
  8. Dec 27, 2019 at 6:30 AM
    #588
    Bubbles

    Bubbles Liquor and Whores

    Joined:
    Dec 11, 2015
    Member:
    #172003
    Messages:
    4,654
    Gender:
    Male
    Sunnyvale Trailer Park
    Vehicle:
    2005 GX470 Sport
  9. Dec 28, 2019 at 11:33 AM
    #589
    150k

    150k Member

    Joined:
    Dec 2, 2019
    Member:
    #312258
    Messages:
    22
  10. Dec 28, 2019 at 11:37 AM
    #590
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,360
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    No harness needed to go from a 9006 to a 9012, they are rated at the same wattage.

    Wow, I had not seen that Volsa released a +120 version of the 9012. I wonder when that was released. Agreed that would be even better.

  11. Dec 28, 2019 at 6:43 PM
    #591
    Bubbles

    Bubbles Liquor and Whores

    Joined:
    Dec 11, 2015
    Member:
    #172003
    Messages:
    4,654
    Gender:
    Male
    Sunnyvale Trailer Park
    Vehicle:
    2005 GX470 Sport
    And ordered!

    crashnburn80 [OP] likes this.
  12. Dec 28, 2019 at 10:02 PM
    #592
    150k

    150k Member

    Joined:
    Dec 2, 2019
    Member:
    #312258
    Messages:
    22
    Which one, the +50 or +120?

  13. Dec 28, 2019 at 10:06 PM
    #593
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,360
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    I’d hope the +120.

    Too Stroked and Bubbles like this.
  14. Dec 29, 2019 at 3:19 AM
    #594
    Bubbles

    Bubbles Liquor and Whores

    Joined:
    Dec 11, 2015
    Member:
    #172003
    Messages:
    4,654
    Gender:
    Male
    Sunnyvale Trailer Park
    Vehicle:
    2005 GX470 Sport
    +120

  15. Jan 15, 2020 at 9:02 AM
    #595
    savage24x

    savage24x Active Member

    Joined:
    May 9, 2019
    Member:
    #292768
    Messages:
    33
    Vehicle:
    2019 TRD Sport 4x4 V6 Cavalry Blue
    Since I only use the fogs in bad weather, never during the day, I much prefer yellow bulbs. I am a huge fan of Nokya Hyper Yellow bulbs when not wanting to replace the factory housing. They pair perfectly with any halogen or HID setup. I chose the H11 version due to the cap coating on the top of the bulb. Since the factory housings have no integrated cap in the reflector, the bulb acts as the reflector cap itself, reason being why I didn't swap from H11 to H9. I'll have output shots as soon as I swap my HID's into the koito stock projector.

    http://nokyausa.com/wordpress/?page_id=3889

    davidstacoma likes this.
  16. Feb 24, 2020 at 9:20 AM
    #596
    Sold My Subaru

    Sold My Subaru 6MT AC TRD OR 1GR-FE FTMFW

    Joined:
    Oct 2, 2012
    Member:
    #88143
    Messages:
    1,169
    Oregone
    Vehicle:
    '13 TRD Off-Road
    Crash,
    After doing the ultimate h4 upgrade on my Tacoma my wife has a gripe w/ her Subaru Crosstrek lighting output.

    Her stock lamps are H11 and I’m wondering if you think the fog light harness upgrade from Rally Lights would be a a viable option to run in conjunction with higher output bulbs.

    Any thoughts?

  17. Feb 24, 2020 at 10:48 AM
    #597
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,360
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    For H11 headlights, check out the H11 thread. Does her Crosstrek have projectors or reflector headlights? I wouldn't suggest the Flossers for the headlights.
    https://www.tacomaworld.com/threads/3rd-gen-hid-vs-led-vs-halogen-h11-projector-headlights.589465/

  18. Feb 24, 2020 at 10:55 AM
    #598
    Sold My Subaru

    Sold My Subaru 6MT AC TRD OR 1GR-FE FTMFW

    Joined:
    Oct 2, 2012
    Member:
    #88143
    Messages:
    1,169
    Oregone
    Vehicle:
    '13 TRD Off-Road
  19. Mar 5, 2020 at 2:40 AM
    #599
    TegoTaco

    TegoTaco Well-Known Member

    Joined:
    Sep 29, 2016
    Member:
    #198555
    Messages:
    4,190
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    2013 Super White Tacoma DCLB TRD SPORT
  20. Sep 27, 2020 at 2:01 PM
    #600
    Regnar

    Regnar Well-Known Member

    Joined:
    Apr 25, 2018
    Member:
    #251674
    Messages:
    128
    Kodiak,AK
    Vehicle:
    2014 DCSB PreRunner SR5

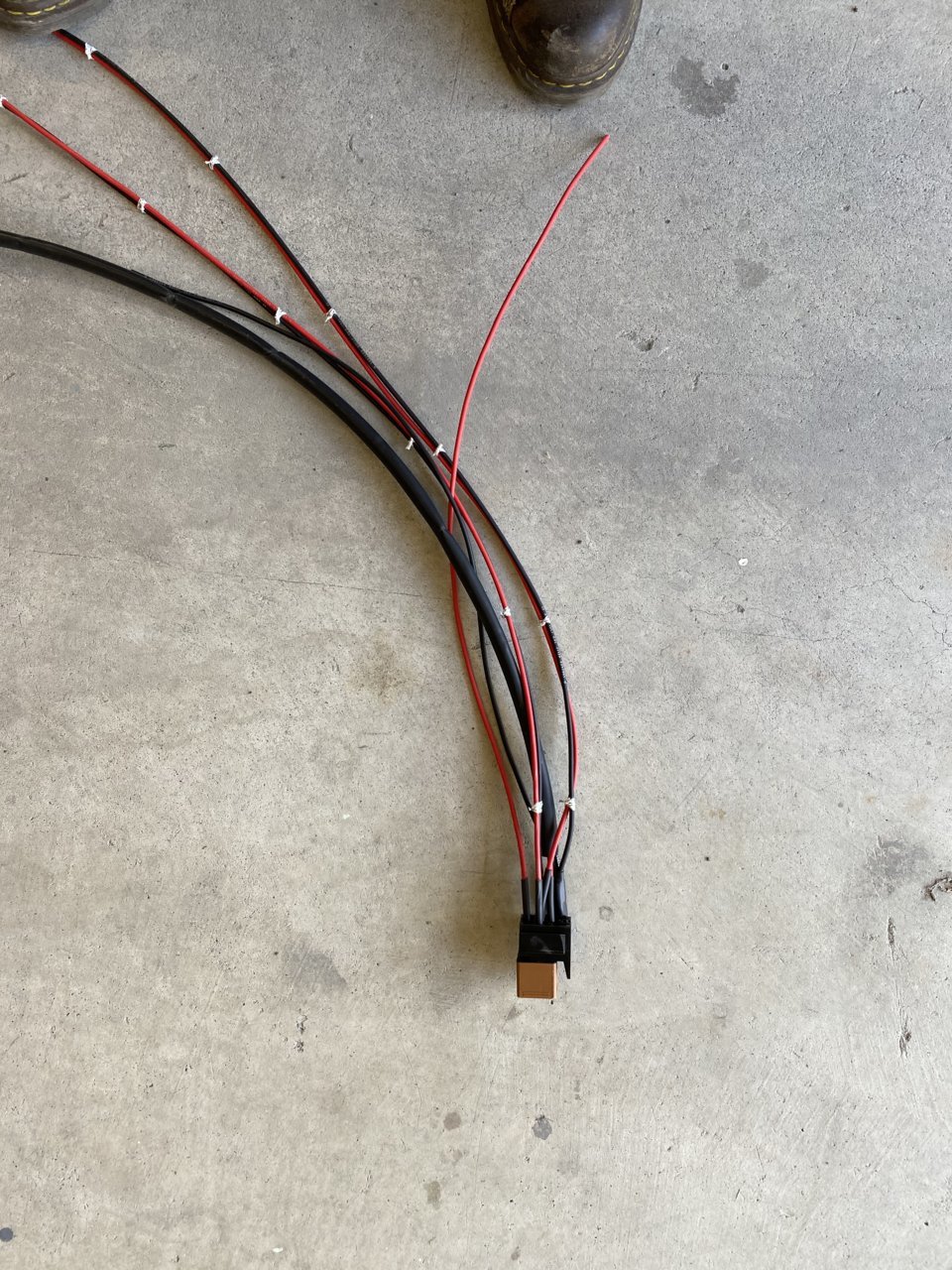

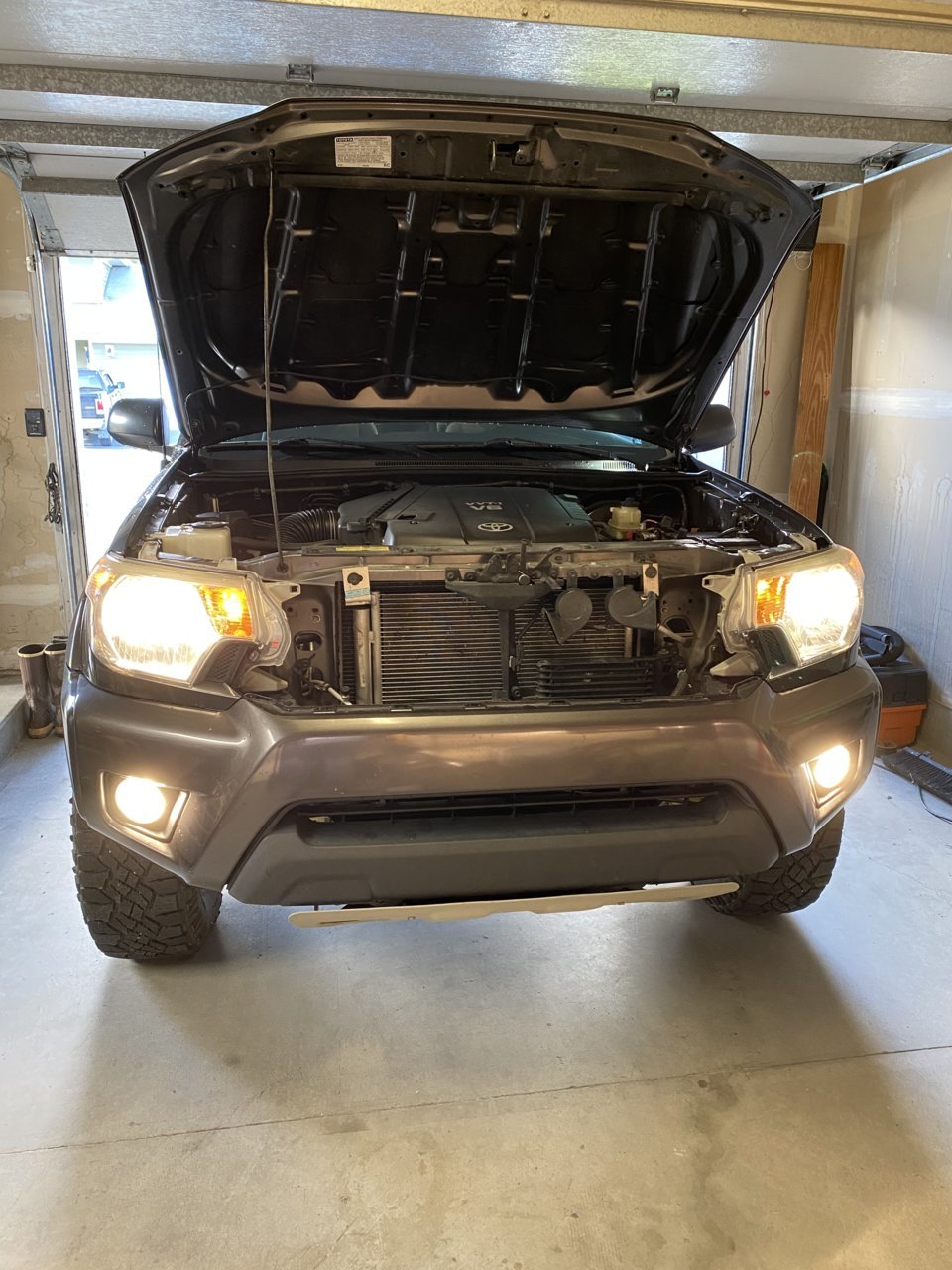

    So after doing the ultimate headlight upgrade my fog lights became useless so I decided to make my own harness and do this upgrade. Just like before the results were amazing! Light on the ground is just as bright and goes easily 10 off to the side. I dont know if I saved any money over making my own harness but I wanted to be able to have the same quality and parts as Headlight Services Harness that I already have.

    Here are a few parts if you are going to make your own

    https://www.ebay.com/itm/Tyco-12volt-30A-Relay-Automotive-Type-87/124219781412

    https://www.ebay.com/itm/US-Locatio...f-Wire/163932358360?ssPageName=STRK:MEBIDX:IT

    https://www.ebay.com/itm/12V-Mini-R...-14-16/132404189008?ssPageName=STRK:MEBIDX:IT

    https://www.ebay.com/itm/H11-880-H8...verado/331611543522?ssPageName=STRK:MEBIDX:IT

    https://www.ebay.com/itm/QTY-2-Litt...g-auto/160673172398?ssPageName=STRK:MEBIDX:IT

    https://www.ebay.com/itm/Flosser-Ra...attage/133262737301?ssPageName=STRK:MEBIDX:IT

    https://www.ebay.com/itm/50-FEET-AU...-FT-EA/302167337520?ssPageName=STRK:MEBIDX:IT

    https://www.ebay.com/itm/2-1-Heat-shrink-Tubing-3-4-25FT-Black/264803697195

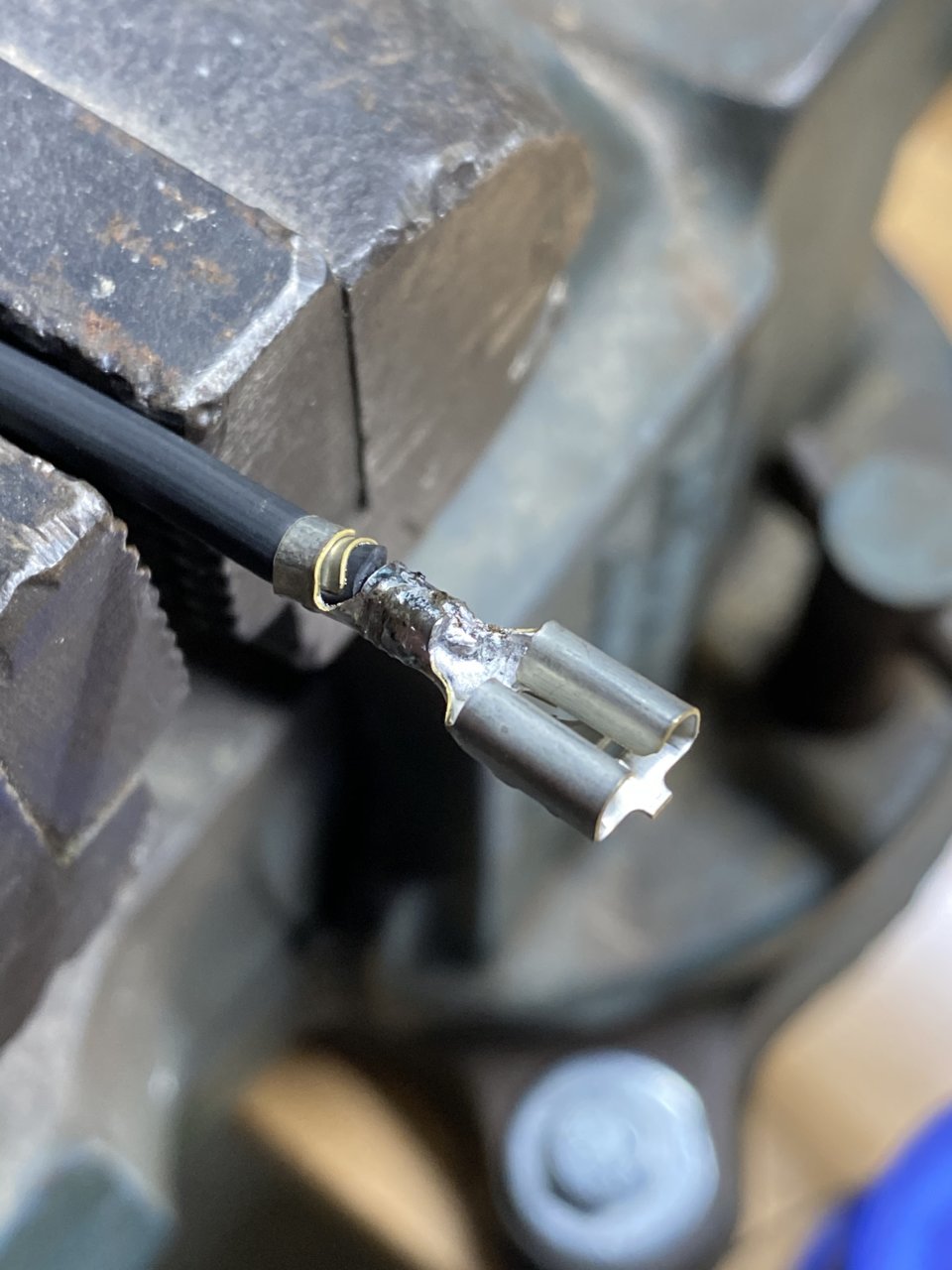

    I crimped and soldered on all terminals. So the only special tool that I have is needle nose pliers and a soldering iron. I had these already on hand no no big purchases there.

    For the lengths of each of the run.

    8ft from relay to passenger side foglight
    3ft from relay to drivers side foglight

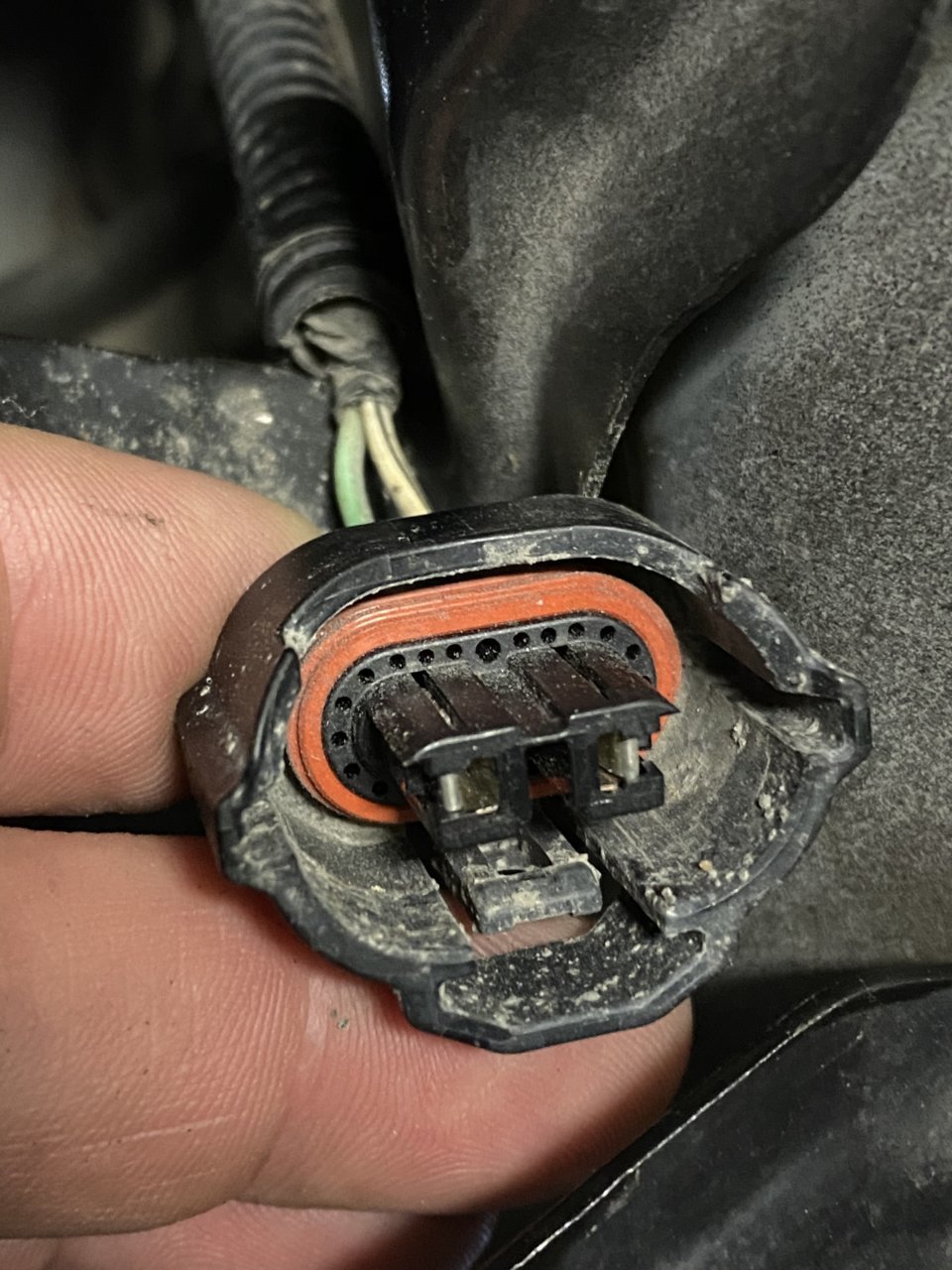

    3ft from relay to drivers side harness

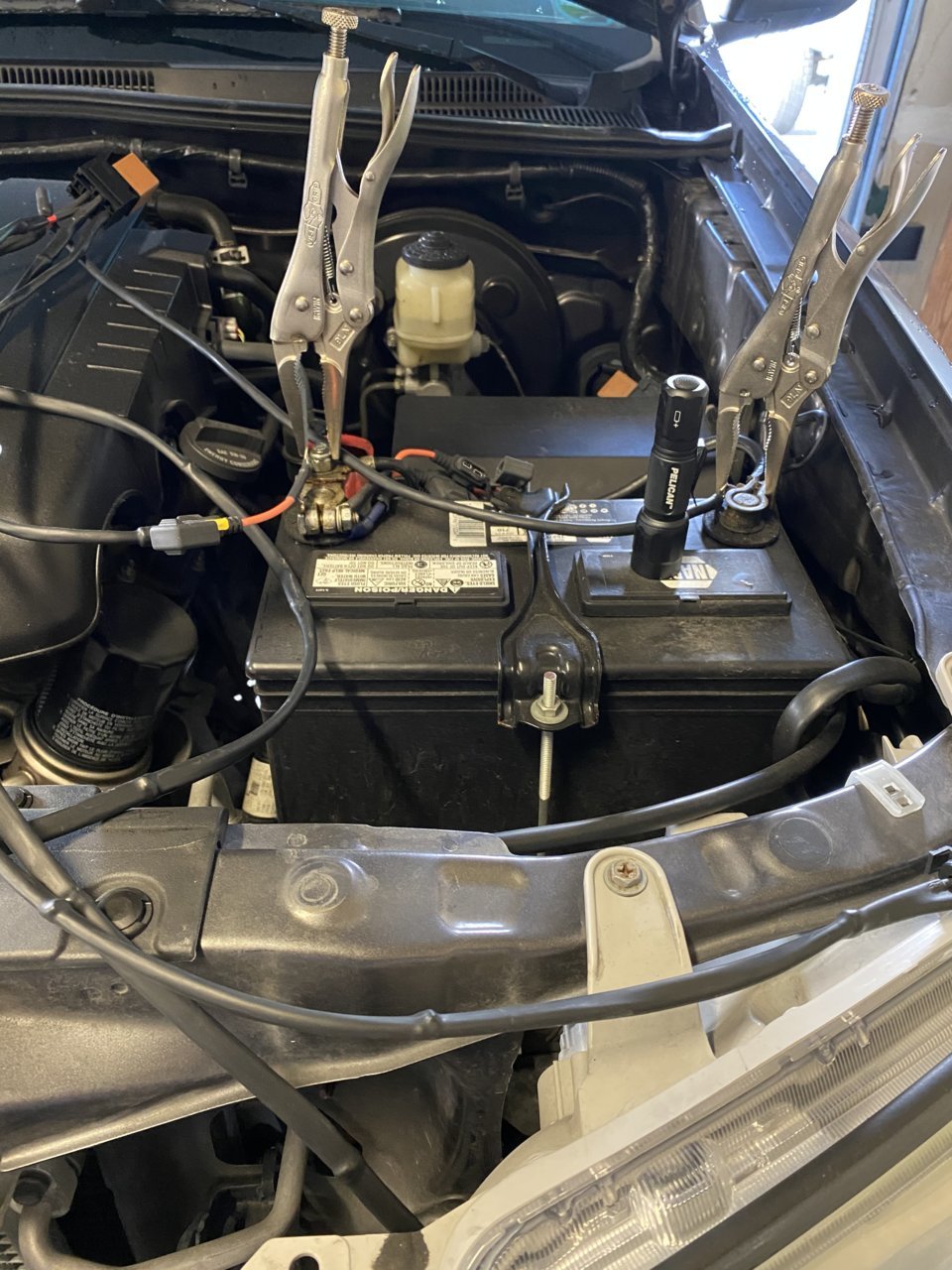

    2ft from relay to postive side of battery
    2ft from relay to negative side of battery

    Again I wanted a Head Light Services Harness quality and parts for the fogs to the key pieces are the Little Fuse Holder, Mini Relay Socket and Relay. The Relay is the most important and not your typical type of relay as it will switch 2 legs instead of 1 and will power each fog light on its own run. Pretty slick if you ask me.

    I will add pictures a little later.


    Last edited: Sep 27, 2020
    crashnburn80 [OP] likes this.
