The ultimate headlight upgrade H4 (not LED or HID)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by crashnburn80, Oct 27, 2015.

  1. Nov 24, 2019 at 6:31 PM
    #2541
    AZExplorer0112358

    AZExplorer0112358 Member

    Joined:
    Aug 10, 2019
    Member:
    #301802
    Messages:
    8
    Gender:
    Male
    Vehicle:
    2002 Tacoma TRD Extra Cab
    Ikon 3" lift. Add-a-leaf rear lift. 15" x 8" wheels with 32" x 11.5" BF Goodrich AT's. Concealed LED fog lights on custom brackets. Alpine head unit, amp, rear speakers, and Type R 12" sub in custom cabinet.
    I just replaced my 2002 Toyota Tacoma headlights with an "OEM" set from TYC. I took before and after pictures with identical camera settings and was disappointed with the beam pattern. Both low beam and high beam had significant scatter and irregular borders. The lower lights are LED fogs mounted in the wheel wells on custom brackets which prevents blinding other drivers. My truck looks brand new, but downgrading is not an option
    I've contacted TYC and am awaiting their reply.

    Stock High Beams.jpg TYC High Beams.jpg

    JR SLASH 33 and crashnburn80[OP] like this.
  2. Nov 24, 2019 at 7:07 PM
    #2542
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,637
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    Yikes. Aftermarket “OEM style” assemblies are definitely not comparable to OEM, hence recommending OEM assemblies in the thread. I don’t think you’re going to get any real support options from TYC.

    303tacoma likes this.
  3. Nov 24, 2019 at 8:07 PM
    #2543
    Norton

    Norton Senior Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    4,595
    Gender:
    Male
    First Name:
    Steve
    Colorado Springs, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    Magnuson S/C w/12TRDTacoma's Qwikchange Hub & 2.5" RIP-Modded Pulley, Roostfactor's Pulley Wrap Mod; FPR Mod; JustDSM Tune via HPT MPVI2; mightytacoman Intercooler Tank; aFe POWER Magnum FLOW Pro DRY S Air Filter; OME Suspension Lift (885 Coils, Dakar Leafs, NitroCharger Sports); TRD Quickshifter w/TRD 6-Spd Knob; TRD Exhaust; NSB-AGM27F Battery w/HKB Adjustable Voltage Booster & Coupe's TRD Battery Hold Down; Goodridge SS Brake Lines; Trident904's MT ADM; BFG All-Terrain T/A KO2s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; BPF TRD Skid, Tow Hook, & Cooling Panel; jsi's Locker Anytime, Up2NoGood's 2Lo Module; ramonortiz55's Always on Power Outlet Relay, ND4's Fog Light Anytime, & Crom's Speed Bleeder Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades; ThreatLevelMidnight's Wireless Charger; 4Runner 4X4 & FJ Fog Light Switches; redtaco2007-inspired LED License Plate Lights; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Noico Sound Insulation; loginfailed-inspired Speedhut Boost & AFR Gauges in a Lotek Pillar Pod; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror on ImMrYo's Mirror Lift Bracket; TacomaBeast Glove Box & Console Organizers; Husky Floor Liners; UltraGauge EM; mesojdm's Ultimate LED Dome & Map Lights & GASSHOLE; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Cali Raised Led Bed Stiffeners; Pop & Lock Power Tailgate Lock w/TacomaTruckParts Support Bracket; ARE Z-Series Cap, SolarGard Tint; BlendMounted & MirrorTapped Uniden R3; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    Did you go with their CAPA-certified or non-CAPA-certified versions? Years ago, I was happy with the certified-version in my 1st Gen.

  4. Nov 24, 2019 at 8:52 PM
    #2544
    Empty_Lord

    Empty_Lord Toyotaholic

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    28,175
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    66 Mercedes, 93 mr2, 95,98,01,02 Tacomas, 05 Tundra + others
    Too many trucks and mods to list.. check builds
    you dont want to see the beam pattern of my "certified" TYC fog light assemblies on my tundra.. at least the dont blind i guess. cant swing 250 a piece new OEMs right now though.

  5. Nov 25, 2019 at 2:48 PM
    #2545
    Too Stroked

    Too Stroked Well-Known Member

    Joined:
    Jan 24, 2017
    Member:
    #208501
    Messages:
    3,787
    Gender:
    Male
    First Name:
    Tom
    South shore of Lake Ontario
    Vehicle:
    2021 4Runner SR5 Premium
    Yikes! That's almost as bad as the hacked 3 bulb with cooling fans disaster we recently endured here. Are OEM units still available for a 2002?

  6. Nov 25, 2019 at 4:06 PM
    #2546
    Toy4me

    Toy4me Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85061
    Messages:
    3,740
    Gender:
    Male
    First Name:
    Tom
    NNJ
    Vehicle:
    '10 DCLB TRD Sport MGM
    That is amazing. I would just about kill to have that kind of light output. Mine look nothing like that.

  7. Nov 25, 2019 at 4:16 PM
    #2547
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,637
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    2012-15 have better headlight assemblies than earlier trucks. But a lot can vary from how the picture was taken as well.

    Norton likes this.
  8. Nov 25, 2019 at 4:22 PM
    #2548
    Toy4me

    Toy4me Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85061
    Messages:
    3,740
    Gender:
    Male
    First Name:
    Tom
    NNJ
    Vehicle:
    '10 DCLB TRD Sport MGM
    So the ultimate headlight upgrade for me might include a front end conversion.

  9. Nov 25, 2019 at 7:14 PM
    #2549
    TacoTuesday1

    TacoTuesday1 Well-Known Member

    Joined:
    Jun 19, 2019
    Member:
    #296781
    Messages:
    6,929
    Gender:
    Male
    NC

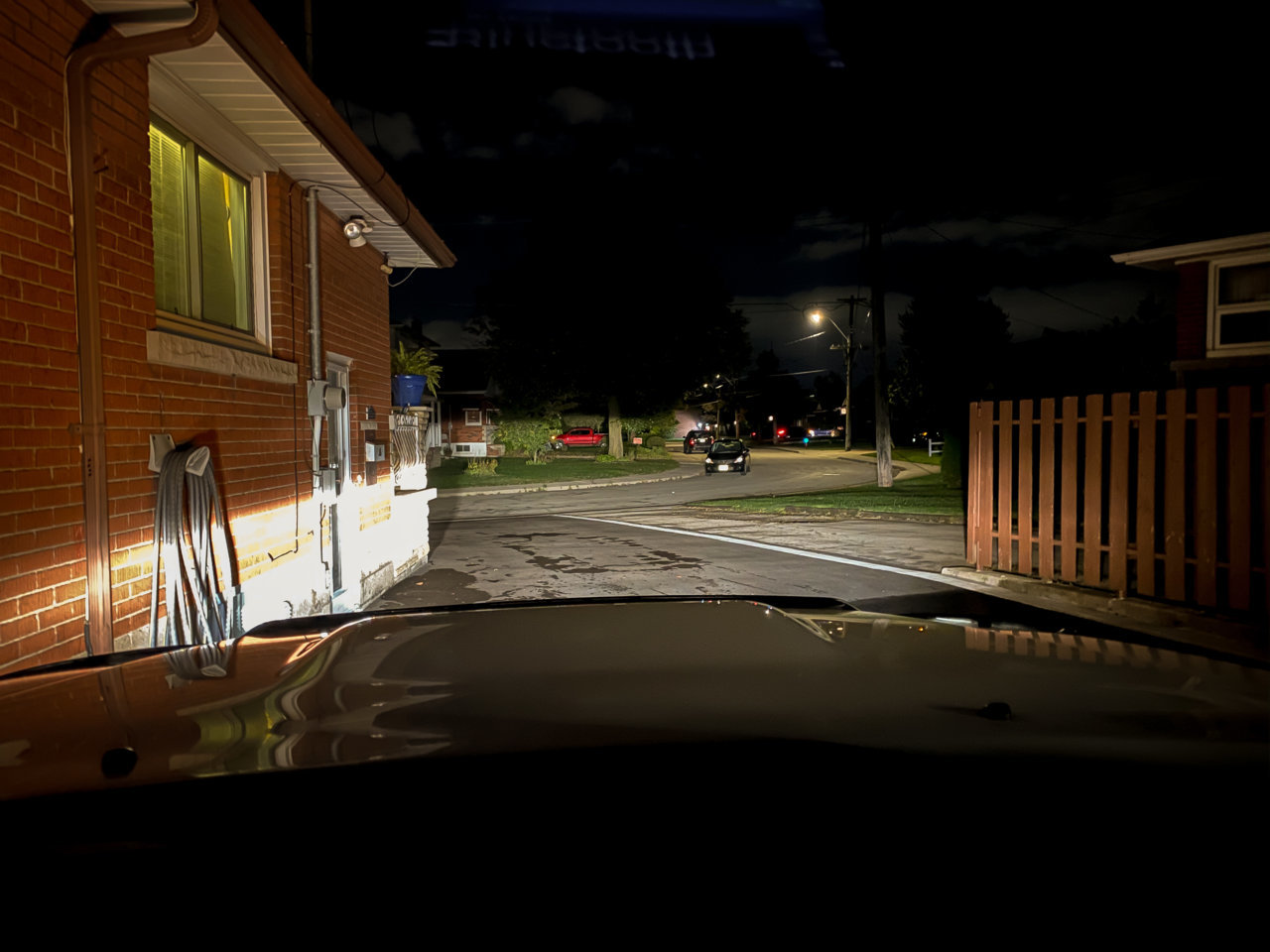

    might be a dumb question but which exact bulb setup is this? Looks good

  10. Nov 25, 2019 at 7:21 PM
    #2550
    TegoTaco

    TegoTaco Well-Known Member

    Joined:
    Sep 29, 2016
    Member:
    #198555
    Messages:
    6,554
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    2013 Super White Tacoma DCLB TRD SPORT
    I’ll take a look tomorrow, pretty sure I still have the box in the garage. :)

  11. Nov 25, 2019 at 7:27 PM
    #2551
    Bman562

    Bman562 Well-Known Member

    Joined:
    Nov 18, 2019
    Member:
    #311119
    Messages:
    241
    Gender:
    Male
    SoCal, CA
    Vehicle:
    2005 Radiant Red Tacoma Sport DCSB
    '12+ Facelift, TRD Baja Bilsteins, SCS Ray10's, K02's...
    After going between this thread and the ultimate foglight upgrade thread, I plan to buy the harness and run the Osram's super brights with the GE H11 megalights as fogs. Hopefully the color/temp isn't too far off from one-another.

  12. Nov 25, 2019 at 8:42 PM
    #2552
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,637
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    Based on my measurements the SuperBrights are 3277k as shown below.


    Tested in a 3rd Gen headlight, here are my H11 color temp readings (ignore the H9s for this application).

    And here is the output lux readings.

    You’ll see Volsa +120s are a near perfect color match, but output isn’t as intense. If going for best output, the GE Xenons +120s are the best stock wattage bulb, a little higher output and lower color temp than the GE Megalight +130s as they have less blue coating.

    Note the 3rd Gen headlight data is from a projector, reflector fogs won’t see the same level of intensity increase over stock from a high efficiency bulb as the focus is different.

    Bman562[QUOTED] likes this.
  13. Nov 26, 2019 at 1:07 AM
    #2553
    Hellenic Vanagon

    Hellenic Vanagon Member

    Joined:
    Nov 21, 2019
    Member:
    #311299
    Messages:
    15
    Gender:
    Male
    Really?

    Standard pattern, 100w bulb, one headlight:
    [​IMG]


    The triplet halogen, 3x55w:
    [​IMG]

    The reversed triplet halogen, 3x55w:
    [​IMG]
    All the above photos without editing.

    Much better results, no glaring at all, and this is just the beginning. A lot are waiting.
    (All the above photos without editing).

    And this is not my final word.


    Thank you for your time.

    Last edited: Nov 26, 2019
  14. Nov 26, 2019 at 4:00 AM
    #2554
    mjp2

    mjp2 Living vicariously through myself Moderator

    Joined:
    Feb 16, 2007
    Member:
    #924
    Messages:
    21,917
    Gender:
    Male
    First Name:
    Milton Juevo Portimous II
    NJ
    Vehicle:
    Current: '21 Bronco Badlands. Previous: '06 TRD Access Cab, v6, 6-speed
    That's been more than enough of the preachy van guy with bad ideas in this thread.

    Carry on, folks.

    303tacoma, wdb, ToyotaDriver and 8 others like this.
  15. Nov 26, 2019 at 4:02 AM
    #2555
    Superman910

    Superman910 Epic Dirty

    Joined:
    Jan 28, 2017
    Member:
    #208888
    Messages:
    5,849
    Gender:
    Male
    First Name:
    Eric
    Northern Virginia
    Vehicle:
    2009 Tacoma TRD Sport DCLB 4x4
    Stock as Fuck or Not Fucking Stock
    Thank you Sir. Any way we can get the creepy van guy who gives out free candy? Asking for a friend :anonymous:

  16. Nov 26, 2019 at 4:03 AM
    #2556
    mjp2

    mjp2 Living vicariously through myself Moderator

    Joined:
    Feb 16, 2007
    Member:
    #924
    Messages:
    21,917
    Gender:
    Male
    First Name:
    Milton Juevo Portimous II
    NJ
    Vehicle:
    Current: '21 Bronco Badlands. Previous: '06 TRD Access Cab, v6, 6-speed
    I'm already here ;)

  17. Nov 26, 2019 at 4:07 AM
    #2557
    Superman910

    Superman910 Epic Dirty

    Joined:
    Jan 28, 2017
    Member:
    #208888
    Messages:
    5,849
    Gender:
    Male
    First Name:
    Eric
    Northern Virginia
    Vehicle:
    2009 Tacoma TRD Sport DCLB 4x4
    Stock as Fuck or Not Fucking Stock



    In all seriousness - @crashnburn80 good Job on remaining professional and attempting to keep the thread on track.

    Also update your sig and add the Brake upgrade link. This will hopefully help people stop before they get a little ahead of themselves.

  18. Nov 26, 2019 at 4:26 AM
    #2558
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,637
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
  19. Nov 26, 2019 at 9:55 AM
    #2559
    Toy4me

    Toy4me Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85061
    Messages:
    3,740
    Gender:
    Male
    First Name:
    Tom
    NNJ
    Vehicle:
    '10 DCLB TRD Sport MGM
    I made myself curious and looked around and it’s not really a cost effective option. Guess I knew this but the light in that pic is so what I’m after. Since it sounds like I will not be able to achieve that from where I am at I’m going to start researching the retro fit threads. While I used to think ~$700 was too much that’s way less than a front end conversion. And if I can end up with lighting like that pic with a reliable retro then it would be worth it to me. This site will be the death of my wallet.

    ToyotaDriver likes this.
  20. Nov 26, 2019 at 10:37 AM
    #2560
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,637
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    Are you running the headlight upgrade now? You can get slightly better low beam results with the IPF bulbs, but they are pricey and stock high beam.

    If you want to do a retro, I would recommend:
    Lexus RX350 projectors - OEM Toyota
    Denso ballasts (TRS sells them) - OEM Toyota
    German D2S bulbs from Osram/Philips - OEM HID bulbs

    I would avoid kits that use H1 based HIDs, as that is a HID bulb mated to a halogen base, and no reputable manufacture will make those, so your going to be limited to aftermarket China bulbs. Use D2S based projectors, so you can buy bulbs from Philips or Osram, the same bulbs that are placed in vehicles with OEM HIDs. Denso Toyota ballasts are also OEM and made in Japan, meaning they will have much higher quality control and not be over/under wattage like some China made aftermarket ones, which is bad for the bulbs. They will also be appropriately shielded against EMI and should have a much longer life span. And the heart of any headlight system is the optics, just like I recommend OEM headlights in this thread, I would recommend an OEM projector. The RX350 is said to be among the best. Performance will be significantly better, as will build quality. Small H1 projectors will also not perform as well as larger projectors. Often with HIDs people are looking for budget friendly options, but sacrifice a lot of quality in doing so. All the above options will cost more than the budget Morimoto style builds, but if your spending that much money on a headlight I personally believe it is worth spending a little extra to do it right.

    Toy4me[QUOTED] likes this.
