The ultimate headlight upgrade H4 (not LED or HID)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by crashnburn80, Oct 27, 2015.

  1. Dec 30, 2019 at 9:32 AM
    #2701
    southwind

    southwind Member

    Joined:
    Feb 6, 2019
    Member:
    #282013
    Messages:
    13
    Gender:
    Male
    First Name:
    Tom
  2. Dec 30, 2019 at 9:50 AM
    #2702
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,637
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    I did not test those in the standardized test when I did a bunch of bulbs, but I did compare them to to the Volsa +100s, and by some rudimentary light meter comparison they were within 3% of the Volsa bulbs but had a bit whiter output. You can see where the Volsa +100s fall on the output chart below. While the Philips Xtreme Vision +130 are good bulbs, I'd opt for the Philips Racing Vision +150 for higher intensity output instead.

    Copy/past from the main thread:

    Philips vs Volsa:
    While Osram and Philips are constantly compared and about equal when running the latest version of each bulb, I hadn't seen any comparison with Volsa +100, which was marketed as a replacement to the outgoing 70w Osrams. So I took the opportunity to compare them on a 1st Gen later in the thread here.

    [​IMG]

    southwind[QUOTED] likes this.
  3. Dec 30, 2019 at 2:24 PM
    #2703
    obscurotron

    obscurotron Well-Known Member

    Joined:
    Apr 29, 2012
    Member:
    #77839
    Messages:
    871
    Gender:
    Male
    N. Nevada
    Vehicle:
    '14 DCSB 4x4
    Too many to list, and I've probably forgotten a bunch.
    I have a set due to arrive today. 2 years ago I put in a set of the Osram's....70/65, I think? Whatever the higher wattage Osram was you could use w/out redoing the harness and wiring.

    I loved those lights, but one finally burned out Saturday. I don't feel like upgrading the harness. The 1st gen comparison between the Philips and Volsa bulbs convinced me to try the Philips. Since I still have one good Osram left, I'll swap out the bad bulb and do some comparisons.

    Really hope these Philips are comparable, but I'm setting my expectations low. :-/

    Norton likes this.
  4. Dec 30, 2019 at 2:37 PM
    #2704
    pinktaco808

    pinktaco808 Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,659
    Gender:
    Male
    Brightest legal better than stock in stock housimg?

  5. Dec 30, 2019 at 2:37 PM
    #2705
    pinktaco808

    pinktaco808 Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,659
    Gender:
    Male
    Brightest legal better than stock in stock housimg?

  6. Dec 30, 2019 at 2:57 PM
    #2706
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,637
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!

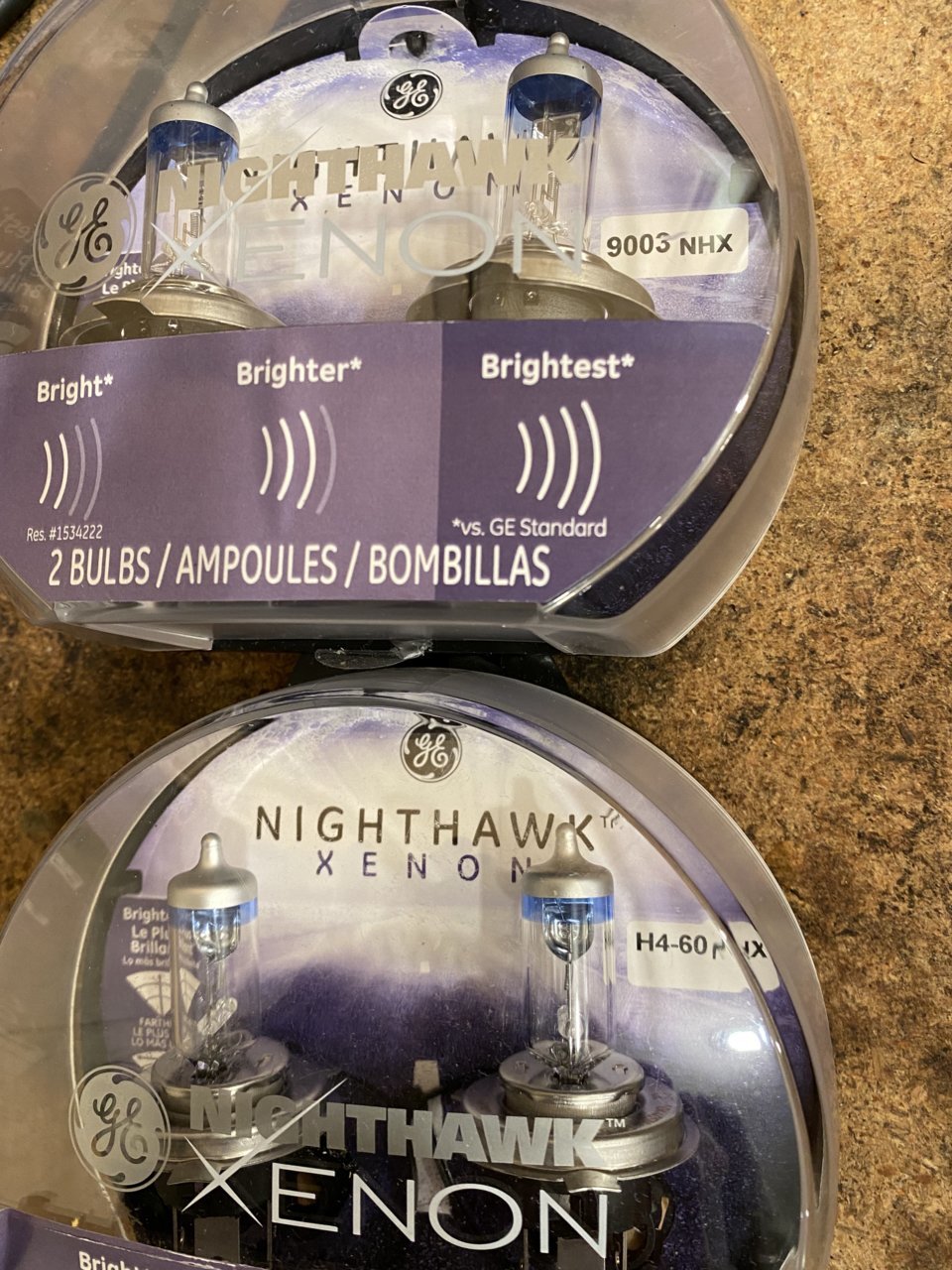

    The GE Xenon H4s have the best low beam performance without sacrificing the high beam. The Philips Racing Vision +150s have higher low beam intensity, but coat the high beam filament in a blue coating which will reduce performance. You can compare the low beam intensity difference between the GE Xenons and the Philips Racing Vision +150 in the chart in my previous post or in the original thread.

  7. Dec 30, 2019 at 3:02 PM
    #2707
    308savage

    308savage Well-Known Member

    Joined:
    Mar 6, 2016
    Member:
    #180389
    Messages:
    4,522
    Gender:
    Male
    First Name:
    Adam
    East Tennessee
    Vehicle:
    2012 Tacoma TRD Sport DCSB
    Leveling kit, roll bar
    pinktaco808 likes this.
  8. Dec 30, 2019 at 5:13 PM
    #2708
    Too Stroked

    Too Stroked Well-Known Member

    Joined:
    Jan 24, 2017
    Member:
    #208501
    Messages:
    3,787
    Gender:
    Male
    First Name:
    Tom
    South shore of Lake Ontario
    Vehicle:
    2021 4Runner SR5 Premium
    Remember, you need the HD harness for those bad boys.

  9. Dec 30, 2019 at 5:31 PM
    #2709
    308savage

    308savage Well-Known Member

    Joined:
    Mar 6, 2016
    Member:
    #180389
    Messages:
    4,522
    Gender:
    Male
    First Name:
    Adam
    East Tennessee
    Vehicle:
    2012 Tacoma TRD Sport DCSB
    Leveling kit, roll bar
    Harness? What harness? (Already installed!)

    crashnburn80[OP] likes this.
  10. Dec 30, 2019 at 7:38 PM
    #2710
    aero253

    aero253 Well-Known Member

    Joined:
    Jan 12, 2019
    Member:
    #279088
    Messages:
    85
    Gender:
    Male
    First Name:
    Nic
    Vehicle:
    2009 Gray Tacoma Trd Sport
    Kenwood DMX7706S, front & rear cameras, FJ 16" TRD wheels, side steps, Access soft tonneau, LED interior/reverse/license lights, AR bed extender, extra D rings in bed, Weathertech mats, remote start.
    Why are the headlight harnesses 12AWG? If my math is right, a 100w bulb at 13.8v has about 7.5amps of current. Double that to 15, and you're only looking at a voltage drop of about 2.2% with 14AWG, or 1.4% with 12AWG.

    I'm sure it has something to do with resistance or engine bay temperature, I just don't understand it. I'm asking because I was thinking about making my own harness, and it's much cheaper to do with 14AWG.

  11. Dec 30, 2019 at 8:16 PM
    #2711
    Norton

    Norton Senior Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    4,595
    Gender:
    Male
    First Name:
    Steve
    Colorado Springs, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    Magnuson S/C w/12TRDTacoma's Qwikchange Hub & 2.5" RIP-Modded Pulley, Roostfactor's Pulley Wrap Mod; FPR Mod; JustDSM Tune via HPT MPVI2; mightytacoman Intercooler Tank; aFe POWER Magnum FLOW Pro DRY S Air Filter; OME Suspension Lift (885 Coils, Dakar Leafs, NitroCharger Sports); TRD Quickshifter w/TRD 6-Spd Knob; TRD Exhaust; NSB-AGM27F Battery w/HKB Adjustable Voltage Booster & Coupe's TRD Battery Hold Down; Goodridge SS Brake Lines; Trident904's MT ADM; BFG All-Terrain T/A KO2s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; BPF TRD Skid, Tow Hook, & Cooling Panel; jsi's Locker Anytime, Up2NoGood's 2Lo Module; ramonortiz55's Always on Power Outlet Relay, ND4's Fog Light Anytime, & Crom's Speed Bleeder Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades; ThreatLevelMidnight's Wireless Charger; 4Runner 4X4 & FJ Fog Light Switches; redtaco2007-inspired LED License Plate Lights; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Noico Sound Insulation; loginfailed-inspired Speedhut Boost & AFR Gauges in a Lotek Pillar Pod; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror on ImMrYo's Mirror Lift Bracket; TacomaBeast Glove Box & Console Organizers; Husky Floor Liners; UltraGauge EM; mesojdm's Ultimate LED Dome & Map Lights & GASSHOLE; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Cali Raised Led Bed Stiffeners; Pop & Lock Power Tailgate Lock w/TacomaTruckParts Support Bracket; ARE Z-Series Cap, SolarGard Tint; BlendMounted & MirrorTapped Uniden R3; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    Hopefully, you mean an upgraded harness is already installed, rather than the bulbs? Running those bulbs on the OEM harness could overheat, causing a fire hazard.

  12. Dec 30, 2019 at 8:27 PM
    #2712
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,637
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    14 AWG would certainly work as well, but 12 does perform better. All my lighting stuff is optimized for peak performance. IIRC the voltage gain was .3v at the connector from a 12AWG harness. Operating voltage does fluctuate quite a bit based on alternator output, but also if the vehicle is off and running on battery alone. I always use 12.0v as a safety factor for calculations, which puts draw at 16.7A combined.

    Yikes! I thought he was saying that he already had it installed. I didn’t think of it that way. You definitely want a harness to pull 100w through each headlight.

  13. Dec 30, 2019 at 8:55 PM
    #2713
    Norton

    Norton Senior Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    4,595
    Gender:
    Male
    First Name:
    Steve
    Colorado Springs, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    Magnuson S/C w/12TRDTacoma's Qwikchange Hub & 2.5" RIP-Modded Pulley, Roostfactor's Pulley Wrap Mod; FPR Mod; JustDSM Tune via HPT MPVI2; mightytacoman Intercooler Tank; aFe POWER Magnum FLOW Pro DRY S Air Filter; OME Suspension Lift (885 Coils, Dakar Leafs, NitroCharger Sports); TRD Quickshifter w/TRD 6-Spd Knob; TRD Exhaust; NSB-AGM27F Battery w/HKB Adjustable Voltage Booster & Coupe's TRD Battery Hold Down; Goodridge SS Brake Lines; Trident904's MT ADM; BFG All-Terrain T/A KO2s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; BPF TRD Skid, Tow Hook, & Cooling Panel; jsi's Locker Anytime, Up2NoGood's 2Lo Module; ramonortiz55's Always on Power Outlet Relay, ND4's Fog Light Anytime, & Crom's Speed Bleeder Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades; ThreatLevelMidnight's Wireless Charger; 4Runner 4X4 & FJ Fog Light Switches; redtaco2007-inspired LED License Plate Lights; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Noico Sound Insulation; loginfailed-inspired Speedhut Boost & AFR Gauges in a Lotek Pillar Pod; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror on ImMrYo's Mirror Lift Bracket; TacomaBeast Glove Box & Console Organizers; Husky Floor Liners; UltraGauge EM; mesojdm's Ultimate LED Dome & Map Lights & GASSHOLE; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Cali Raised Led Bed Stiffeners; Pop & Lock Power Tailgate Lock w/TacomaTruckParts Support Bracket; ARE Z-Series Cap, SolarGard Tint; BlendMounted & MirrorTapped Uniden R3; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    Hopefully, you're right and I'm just paranoid. :anonymous:

  14. Dec 31, 2019 at 4:12 AM
    #2714
    308savage

    308savage Well-Known Member

    Joined:
    Mar 6, 2016
    Member:
    #180389
    Messages:
    4,522
    Gender:
    Male
    First Name:
    Adam
    East Tennessee
    Vehicle:
    2012 Tacoma TRD Sport DCSB
    Leveling kit, roll bar
    Headlight Services harness was installed 12-18 months ago. I do appreciate the concern though!

  15. Dec 31, 2019 at 7:10 AM
    #2715
    aero253

    aero253 Well-Known Member

    Joined:
    Jan 12, 2019
    Member:
    #279088
    Messages:
    85
    Gender:
    Male
    First Name:
    Nic
    Vehicle:
    2009 Gray Tacoma Trd Sport
    Kenwood DMX7706S, front & rear cameras, FJ 16" TRD wheels, side steps, Access soft tonneau, LED interior/reverse/license lights, AR bed extender, extra D rings in bed, Weathertech mats, remote start.
    So 14AWG should be safe, 12AWG is just to minimize the voltage drop and maximize output. I can deal with a slightly lower output as long as it's still safe from overheating.

  16. Dec 31, 2019 at 9:13 AM
    #2716
    southwind

    southwind Member

    Joined:
    Feb 6, 2019
    Member:
    #282013
    Messages:
    13
    Gender:
    Male
    First Name:
    Tom
    I ordered the racing vision, thanks!

  17. Dec 31, 2019 at 9:14 AM
    #2717
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,637
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    Yep! 14 AWG will work fine. Be sure to use ceramic connectors at the bulbs in your build.

  18. Jan 1, 2020 at 7:55 PM
    #2718
    rb9228

    rb9228 Well-Known Member

    Joined:
    Mar 25, 2014
    Member:
    #126108
    Messages:
    70
    Gender:
    Male
    Yuma, AZ
    Vehicle:
    2014 Tacoma TRD OR
    Thanks @crashnburn80 for the research and advice! I already received my wiring harness from Headlight Services and now still waiting on my bulbs (AllSeason 85/80w from Amazon UK and Siuper Brights from PowerBulbs). Super excited to upgrade my headlights. Thanks!

    crashnburn80[OP] likes this.
  19. Jan 1, 2020 at 8:06 PM
    #2719
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,637
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    You were able to find the 85/80w bulbs?

    Toy_Runner and Norton like this.
  20. Jan 1, 2020 at 8:17 PM
    #2720
    Toy_Runner

    Toy_Runner Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311172
    Messages:
    831
    Gender:
    Male
    Vehicle:
    99 4Runner SR5
    3" OME lift, heavy coils f/r 3/16" steel skids Modified Coastal Offroad diy bumper 5spd swap ('98 donor)
    Yo, if you did, hook the forum up.
