The ultimate headlight upgrade H4 (not LED or HID)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by crashnburn80, Oct 27, 2015.

  1. Sep 22, 2020 at 8:09 AM
    #3021
    TEXAS BS

    TEXAS BS Formerly known as MMXVII

    Joined:
    Jun 26, 2018
    Member:
    #257594
    Messages:
    866
    Gender:
    Male
    First Name:
    JB
    Texas
    Vehicle:
    2017 ACLB TRD OR 4X4
    At this point I’ll try anything. Is the same relay used for both highbeam and lowbeam, one relay each?

  2. Sep 22, 2020 at 8:17 AM
    #3022
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    Correct, same for both, one each.

    I used one of these after installing a voltage booster to log my battery’s condition. Might be interesting to look at the data and history and see if you have a slow drain or a sudden discharge event.

    Battery Monitor BM2 BM3 Bluetooth 4.0 Wireless Battery Tester 12V Automotive Battery Load Tester,Automotive Charging and Cranking System Monitor Digital Battery Analyzer for Android & IOS https://www.amazon.com/dp/B07GP1RXYZ/ref=cm_sw_r_cp_api_i_7tHAFb5SWJ14G

  3. Sep 22, 2020 at 8:23 AM
    #3023
    TEXAS BS

    TEXAS BS Formerly known as MMXVII

    Joined:
    Jun 26, 2018
    Member:
    #257594
    Messages:
    866
    Gender:
    Male
    First Name:
    JB
    Texas
    Vehicle:
    2017 ACLB TRD OR 4X4
    Thanks for the info. Every time I have put a Fluke on it I get the normal 72 to 80 milliampere draw when off. Some thing is coming on in the middle of the night and draining the battery.

  4. Sep 22, 2020 at 8:37 AM
    #3024
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    Your profile says you have a 3rd Gen, is that correct? The relays are for the headlight wiring harness used on a 2nd Gen.

  5. Sep 22, 2020 at 8:43 AM
    #3025
    TEXAS BS

    TEXAS BS Formerly known as MMXVII

    Joined:
    Jun 26, 2018
    Member:
    #257594
    Messages:
    866
    Gender:
    Male
    First Name:
    JB
    Texas
    Vehicle:
    2017 ACLB TRD OR 4X4
    Correct 3rd gen, I got the order canceled in time.

    Last edited: Sep 22, 2020
  6. Sep 22, 2020 at 11:14 AM
    #3026
    TacoFergie

    TacoFergie Well-Known Member

    Joined:
    Dec 21, 2015
    Member:
    #172832
    Messages:
    1,302
    Gender:
    Male
    First Name:
    Chris
    Iowa

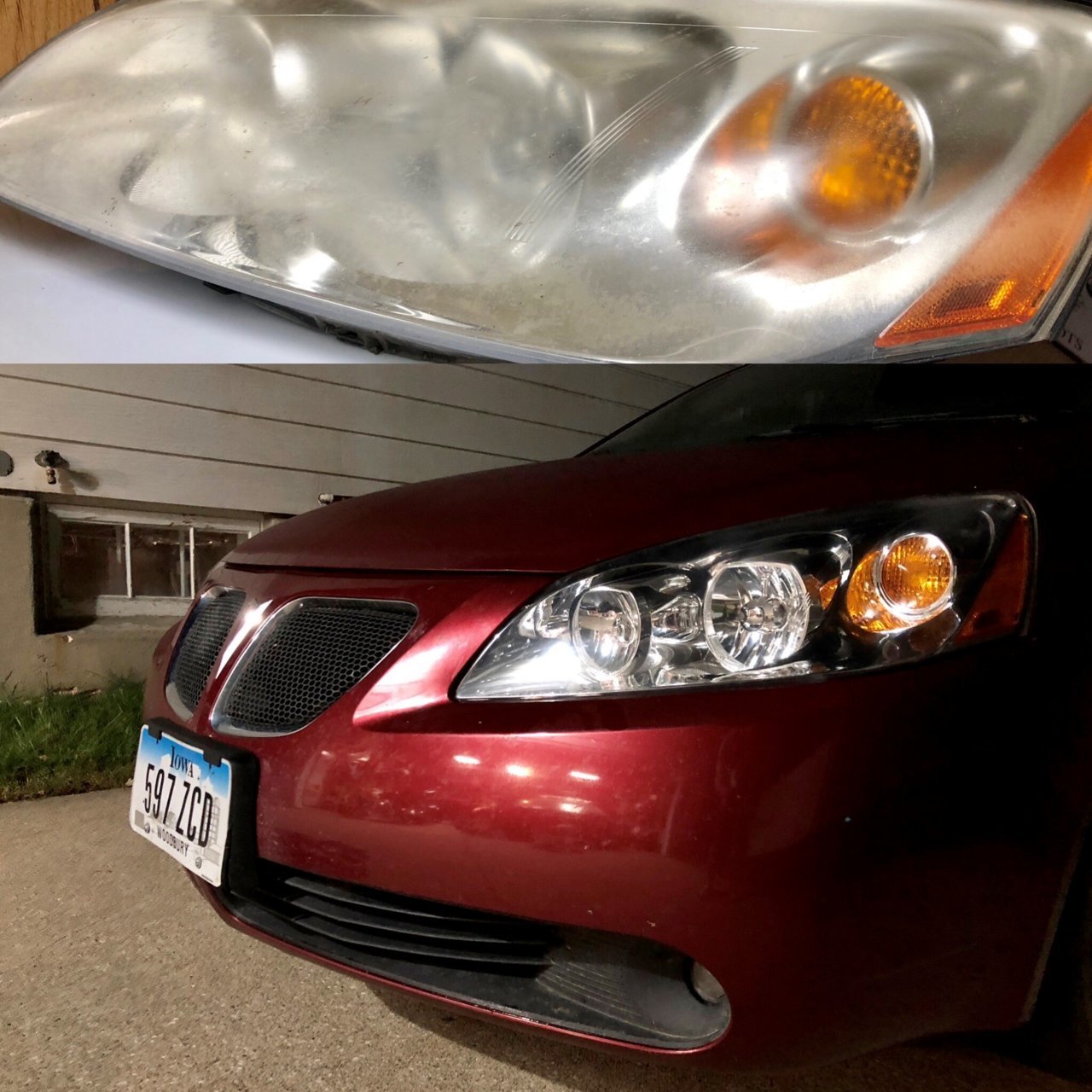

    Simply buffing them and adding a layer of wax, sealant or a coating will not work long term. It may work for a year depending on your climate till they start to yellow/fade again, but it WILL happen again. Period. The ONLY PERMANENT solution is to sand and clear coat them with a 2 part automotive clear coat. The only one in a can that I know of is Spraymax 2k Glamour, which I have used multiple times with outstanding results. This is my process when restoring headlights:

    -Remove headlights
    -Sand 340 grit DRY till ALL the factory clear coating is gone.
    -Wet sand 340. I use regular water in a 32oz spray bottle with 1-2 drops of Dawn, more is not better in this situation.
    -Wet sand 600 grit till all the deep sanding marks are gone from the 340 grit.
    -Wet sand 800 grit. DO NOT use any finer than 800, you need the mechanical adhesion since you cannot use a primer. Some people sand to 1000 grit but I haven't found any end product clarity differences between the two.
    -Clean with Isopropyl Alcohol or Automotive Wax and Grease remover.
    -Setup a VERY WELL VENTILATED AREA for spraying the clear coat!!! 2 part auto clear coats are no joke, VERY BAD FOR YOUR LUNGS!!!
    -Spray the Spraymax 2k Glamour in a light coat and re-coat per the instructions using the WHOLE can for both headlights.
    -If you get a small run or slight orange peel, don't worry.
    -Once you're finished if you have a run or orange peel simply wet sand with 2500 grit and depending on your buffing skills and products you can buff it crystal clear from there.

    This set I did almost 4 years ago. It sees gravel roads a lot, winter, no garage and rarely washed. They still look great! Before and After:

    wdb, EdgemanVA, Toy_Runner and 4 others like this.
  7. Sep 22, 2020 at 1:43 PM
    #3027
    shiko_m

    shiko_m Member

    Joined:
    Sep 21, 2020
    Member:
    #341514
    Messages:
    8
    Gender:
    Male
    First Name:
    Shay
    Vehicle:
    Taco TRD OR 2020

    Sounds interesting, will these require new harness or modification to stock wiring or assembly ?

  8. Sep 22, 2020 at 1:48 PM
    #3028
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    No, they are stock wattage performance bulbs, though a harness does increase voltage and boost performance.

  9. Sep 22, 2020 at 10:30 PM
    #3029
    Empty_Lord

    Empty_Lord Toyotaholic

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    28,175
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    66 Mercedes, 93 mr2, 95,98,01,02 Tacomas, 05 Tundra + others
    Too many trucks and mods to list.. check builds
    I did this to my 09 corolla 2 weeks ago. same clear coat. this plus the 9012 +1011 bulbs have made light output significantly better

    did my audi years ago and they held up till i sold it. sanding and clear coating with good 2K clear is the only correct way to go

    [​IMG]

  10. Sep 22, 2020 at 10:58 PM
    #3030
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    While this is a Tacoma thread, I do enjoy seeing peoples other headlight projects. :)

    Empty_Lord likes this.
  11. Sep 23, 2020 at 3:43 AM
    #3031
    klavender1

    klavender1 Well-Known Member

    Joined:
    Sep 8, 2015
    Member:
    #163705
    Messages:
    2,572
    Columbia/Lugoff, South Carolina
    Vehicle:
    2005 GX 470
    I'm trying to get better light out of my 2000 Silverado, it takes a 9006 low beam. I've cleaned the lenses and want to use stock wattage bulbs. So far I'm considering these:
    Hella +50 $12 for 2
    Philips Vision Plus $23 for 2
    Osram Night Breaker $40 for 2

    Osram is the only one with a blue coating but its a partial coating and there's no blue over the filament. Any suggestions?

    This is eventually going to be my Lowe's/trash truck when I find a GX or 4Runner to buy. But for now, more light is better as it sucks right now.

  12. Sep 23, 2020 at 4:31 AM
    #3032
    ohiowa

    ohiowa Have you tried rebooting?

    Joined:
    Jul 27, 2018
    Member:
    #260809
    Messages:
    64
    Gender:
    Male
    First Name:
    Jason
    Ohio
    Vehicle:
    2015 Super White TRD OR DCSB V6 6MT
    ARE Overland Shell
    I've had good luck polishing with 3M's kit and then applying WeatherTech's LampGard which never needed any maintenance after application. YMMV

    BenMara likes this.
  13. Sep 23, 2020 at 5:58 AM
    #3033
    TacoFergie

    TacoFergie Well-Known Member

    Joined:
    Dec 21, 2015
    Member:
    #172832
    Messages:
    1,302
    Gender:
    Male
    First Name:
    Chris
    Iowa
    Oh boy...... I will not get started, maybe I'll post some when I get to my home computer. I have done a handful of lighting projects and illegitimate testing. I may make a post but I don't want to get too off track. Most of my projects have been retrofitting and swapping bulbs. One of my favorite bulbs is getting hard to come by. The 3357A Sylvania Silverstar bulb for front and rear signal/DRL. It's a higher wattage, slightly deeper amber, looks cool when off (personal preference) and I have one set in my wifes car that has lasted for almost 10 years! I like them a lot because they are brighter for signals to attract attention when signaling but doesn't have the odd scatter or strange hotspots that the majority of LED's have.

    Here is the running light on in the headlight and what it looks like off on the tail light.
    taco light.jpg

  14. Sep 23, 2020 at 7:38 PM
    #3034
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    The upgrade for a 9006 is to swap a higher output 9012 HIR. It does involve trimming the top outer plastic tab to fit in the socket. I believe these are the current highest performing 9012s:
    https://store.candlepower.com/bvohi93subrl.html

    See this page for trimming instructions:
    https://store.candlepower.com/mohirbuba.html

    klavender1[QUOTED] likes this.
  15. Sep 30, 2020 at 11:22 AM
    #3035
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    This was shared in the 3rd Gen thread, Philips has released a new Racing +200 bulb series called the GT200 and it is available in H4. Philips is calling it the highest performing halogen bulb in their product line. Unfortunately it still has a blue coating over the high beam filament. I’ll order a pair to test.

    https://www.powerbulbs.com/us/product/philips-racingvision-gt200-h4-twin

    wdb, Philrab, EdgemanVA and 4 others like this.
  16. Sep 30, 2020 at 1:06 PM
    #3036
    The Wolves

    The Wolves Well-Known Member

    Joined:
    May 31, 2020
    Member:
    #329912
    Messages:
    582
    Gender:
    Male
    First Name:
    Jason
    Los Angeles
    Vehicle:
    2010 DCLB TRD Sport 4x4

    You may have already said this somewhere in this thread. So apologies if you have. But what is the purpose of these companies putting the blue coating on their bulbs?

  17. Sep 30, 2020 at 1:11 PM
    #3037
    Too Stroked

    Too Stroked Well-Known Member

    Joined:
    Jan 24, 2017
    Member:
    #208501
    Messages:
    3,787
    Gender:
    Male
    First Name:
    Tom
    South shore of Lake Ontario
    Vehicle:
    2021 4Runner SR5 Premium
    People think (incorrectly) that blueish-white light is brighter. Although it defies any kind of decent scientific explanation, the Marketing guys say people want it, so companies give the people what they want. Truth be told, putting light through a dark colored filter actually cuts down on the amount of light coming out - somewhat surprisingly.

  18. Sep 30, 2020 at 2:25 PM
    #3038
    Clearwater Bill

    Clearwater Bill Never answer an anonymous letter

    Joined:
    Oct 11, 2014
    Member:
    #140097
    Messages:
    23,062
    Gender:
    Male
    First Name:
    Billy
    Largo Florida
    Vehicle:
    '13 5 lug AC w/convenience package
    A few OE parts from fancy trucks
    F & F wannabe's

  19. Sep 30, 2020 at 3:00 PM
    #3039
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    As mentioned, blue coatings filter out yellow light making the light output whiter, however coatings only remove light so they reduce performance. Good performance bulbs will avoid covering the filament with a coating to minimize the negative effect while getting some increase in color temperature by putting coatings in proximity of the filament. Unfortunately in dual filament bulbs like the 9003/H4 this often results in covering the high beam filament, sacrificing some high beam output in exchange for slightly whiter low beam output.

    The Wolves[QUOTED] likes this.
  20. Sep 30, 2020 at 6:22 PM
    #3040
    The Wolves

    The Wolves Well-Known Member

    Joined:
    May 31, 2020
    Member:
    #329912
    Messages:
    582
    Gender:
    Male
    First Name:
    Jason
    Los Angeles
    Vehicle:
    2010 DCLB TRD Sport 4x4

    Good to know. Thanks guys! Love following this thread and learning about lighting. Great work.
