The ultimate headlight upgrade H4 (not LED or HID)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by crashnburn80, Oct 27, 2015.

  1. Jan 2, 2024 at 5:04 PM
    #5101
    dborrer

    dborrer Well-Known Member

    Joined:
    Apr 28, 2018
    Member:
    #251944
    Messages:
    519
    Gender:
    Male
    First Name:
    Mr. Dan
    St. Augustine, FL
    Vehicle:
    2006 Tacoma TRD Sport 4x MT
    2018 new Frame (thank you Rust!), FJ T-case swap. SPC(LR) UCAs, Bilstein 5100s front - rear, OME 883 at 0, HeadStrongOffRoad 3 leaf progressive AAL, MESO custom 2nd gen (Red/White) LED dome & Ultimate Maps, Spyder Halo Projector w LEDs (which SUCK), Spyder LED tails
  2. Jan 2, 2024 at 5:07 PM
    #5102
    daveeasa

    daveeasa FBC Harness Solutions Vendor

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    6,981
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2005 RC 5MT PreRunner, 2002 Tundra SR5 RCLB 4x4
    https://www.tacomaworld.com/threads/the-921-led-reverse-light-bulb-study.490137/#post-15088360

  3. Jan 2, 2024 at 5:23 PM
    #5103
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!

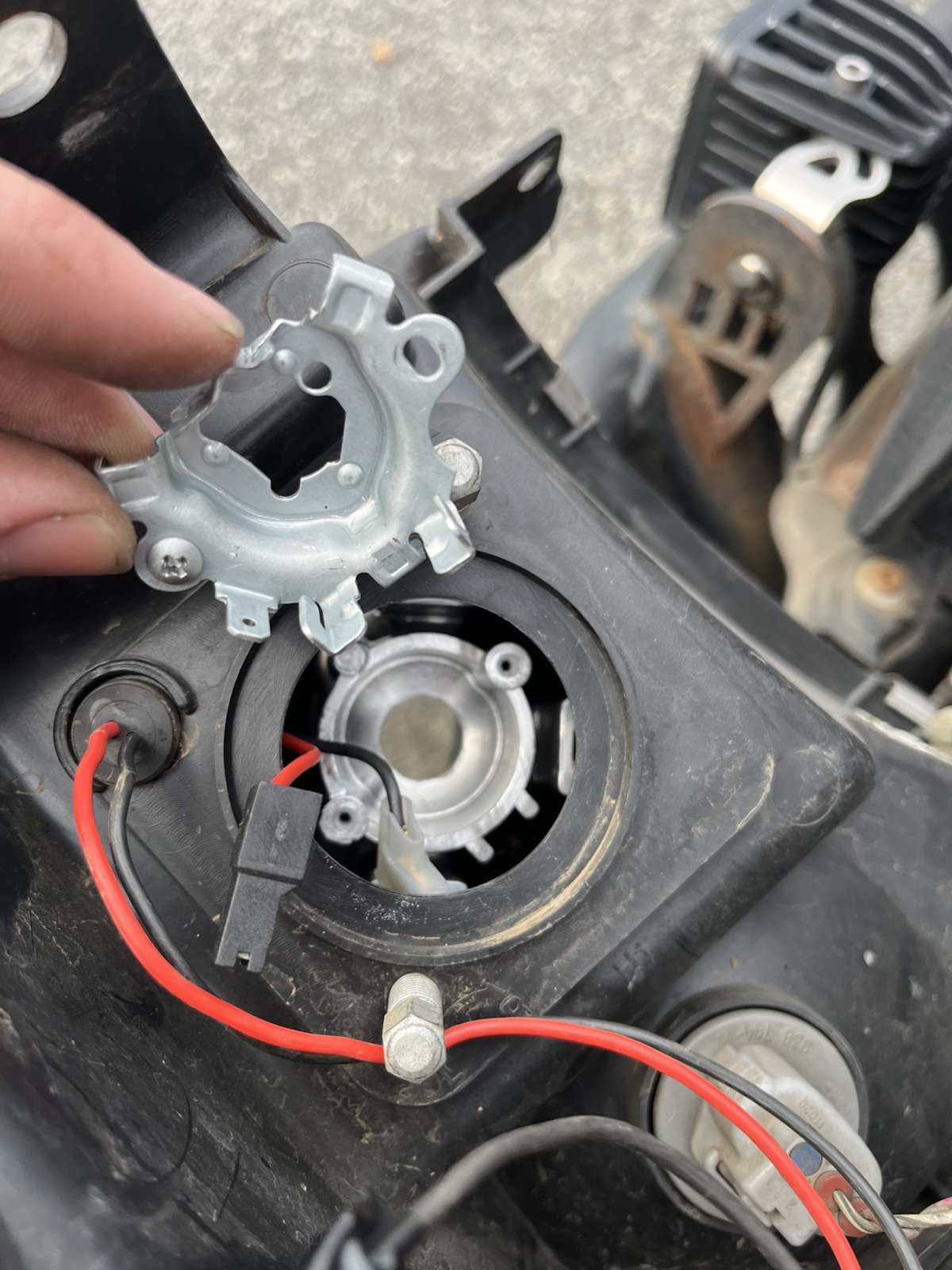

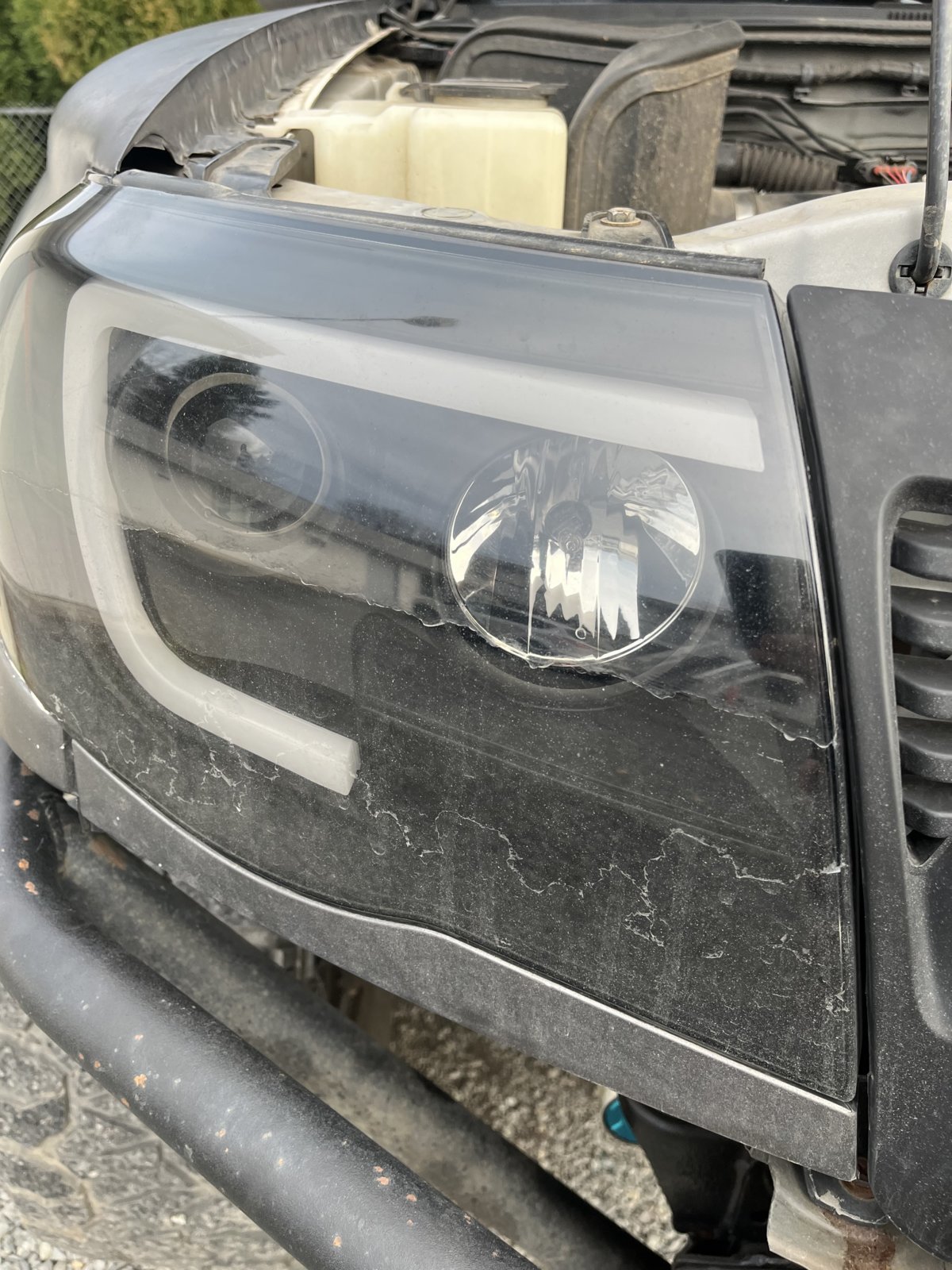

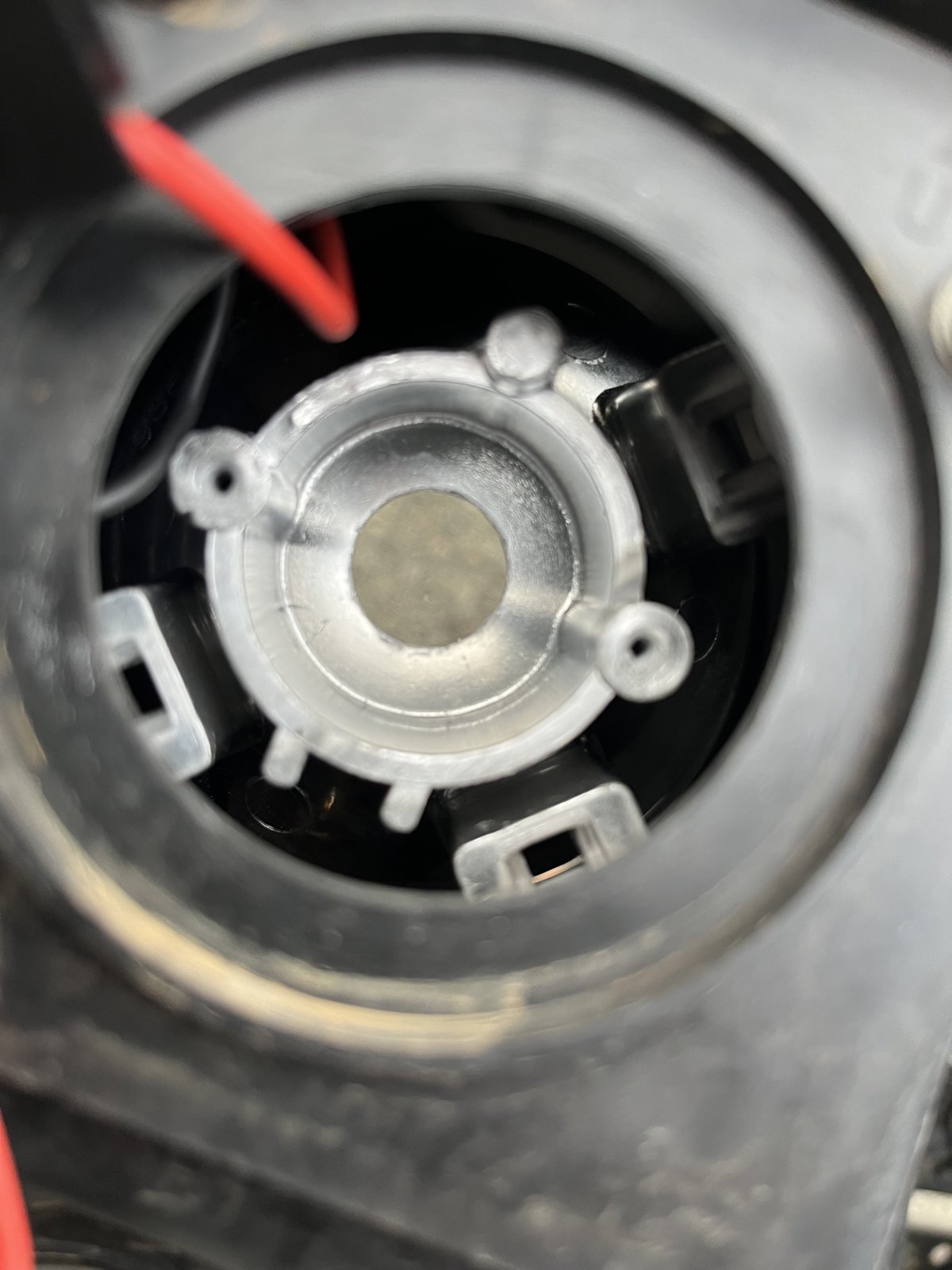

    Those are Spyder lights, they are terrible in every performance metric. You cannot retrofit an H4 into an H1 assembly, the optics are all wrong even if you could make it fit. Those lights are a massive downgrade from stock, and nothing you can do really makes them better since improved light sources require quality optics to make them work, and that is something those lights do not have, they are sold primarily for cosmetic looks. Replacing with OEM will be your best solution.

    For an aux reverse light in that application, I'd personally lean toward Baja. The open bucket reflectors do a better job at the style of flood you'd want in that application compared to other optics and the 5000k color temp is nicer than 6000k. The S2 Pro does hit thermal roll back very quickly and scales output back from peak output intensity, I don't know that Baja ever addressed that but I'd suspect not. For a reverse light application I don't think it is a big deal though.

  4. Jan 2, 2024 at 5:24 PM
    #5104
    Watermallon

    Watermallon ID Tacooo

    Joined:
    Feb 28, 2022
    Member:
    #391413
    Messages:
    342
    Gender:
    Male
    First Name:
    Zach
    Idaho
    Vehicle:
    2006 TRD Sport
    Fair enough. Thanks for the reply.

  5. Jan 2, 2024 at 5:25 PM
    #5105
    Toy_Runner

    Toy_Runner Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311172
    Messages:
    837
    Gender:
    Male
    Vehicle:
    99 4Runner SR5
    3" OME lift, heavy coils f/r 3/16" steel skids Modified Coastal Offroad diy bumper 5spd swap ('98 donor)
    @Watermallon

    ...no... don't do that. That reflector is meant for a single filament bulb. Just because the bulb could be made to fit does not mean it will perform... at all... as intended.

    crashnburn80[OP] likes this.
  6. Jan 2, 2024 at 5:33 PM
    #5106
    Watermallon

    Watermallon ID Tacooo

    Joined:
    Feb 28, 2022
    Member:
    #391413
    Messages:
    342
    Gender:
    Male
    First Name:
    Zach
    Idaho
    Vehicle:
    2006 TRD Sport
    Yup that’s why I’m asking yall. Thanks

  7. Jan 2, 2024 at 5:49 PM
    #5107
    Sharpish

    Sharpish Well-Known Member

    Joined:
    Jan 4, 2016
    Member:
    #173981
    Messages:
    3,774
    Gender:
    Male
    First Name:
    Brian
    Victoria, British Columbia, Canada
    Vehicle:
    2012 Tacoma TRD OR 4x4
    Argh I attempted to adjust my headlights down and went too far. @crashnburn80 do you have a link to a description on the proper way to setup headlight aim?

  8. Jan 2, 2024 at 5:50 PM
    #5108
    CraigF

    CraigF Well-Known Member

    Joined:
    Jun 21, 2020
    Member:
    #332105
    Messages:
    1,595
    Gender:
    Male
    First Name:
    Craig
    Oak Grove, OR
    Vehicle:
    06 AC PR OR 4.0L
    none yet
  9. Jan 2, 2024 at 5:51 PM
    #5109
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    Norton and TacoLolz like this.
  10. Jan 2, 2024 at 6:03 PM
    #5110
    Sharpish

    Sharpish Well-Known Member

    Joined:
    Jan 4, 2016
    Member:
    #173981
    Messages:
    3,774
    Gender:
    Male
    First Name:
    Brian
    Victoria, British Columbia, Canada
    Vehicle:
    2012 Tacoma TRD OR 4x4
  11. Jan 2, 2024 at 6:11 PM
    #5111
    EricOutside

    EricOutside Well-Known Member

    Joined:
    Nov 27, 2018
    Member:
    #274067
    Messages:
    173
    Gender:
    Male
    First Name:
    Eric
    NW Washington
    Vehicle:
    2014 DCLB Sport 4x4
    Home-built roof rack for spotting platform and/or kayaks & bikes & stuff. Home built bed drawers Firestone Ride-Rite airbags on the rear for level camp trailer towing
    I've now purchased and installed 2 of the Headlight Services harnesses. Totally sold on the improvement this brings to night driving. First one I installed on my 2014 Tacoma and the second on my wife's 2012 Honda CR-V. Yes, I had to defeat the daytime running lights to do that to her car. Turns out simply removing fuse #21 in the pedal well fuse box did the trick.

    Highly recommend, would do this mod again and again.

  12. Jan 2, 2024 at 8:42 PM
    #5112
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    TLDR; you’re looking for a 2” drop at 25’ on level ground. 3” if you are lifted excessively high.

  13. Jan 2, 2024 at 10:09 PM
    #5113
    Sharpish

    Sharpish Well-Known Member

    Joined:
    Jan 4, 2016
    Member:
    #173981
    Messages:
    3,774
    Gender:
    Male
    First Name:
    Brian
    Victoria, British Columbia, Canada
    Vehicle:
    2012 Tacoma TRD OR 4x4
    Thanks. I measured from the ground to the center of the headlight, 43” and marked 43” on a wall 25’ away and adjusted the cut off up to that mark. Seems ok.

  14. Jan 3, 2024 at 10:34 AM
    #5114
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    That sounds high, sounds like you have near zero slope and will be blinding other drivers. They should be angled down 2-3" over 25'. I'd pull the truck right up to the wall so the bumper is almost touching, mark the cut off line with tape on the wall. Then back the truck up 25'. Mark a new tape line 2-3" below your existing one. Then adjust your headlights to the lower line. In the chart in the link, you can see that headlights above 39.5" from the ground a 3" drop is spec'd due to the high ride height, 35-39" specs a 2" drop.

    Ridgewalker1, TacoLolz and Toy_Runner like this.
  15. Jan 3, 2024 at 1:46 PM
    #5115
    Sharpish

    Sharpish Well-Known Member

    Joined:
    Jan 4, 2016
    Member:
    #173981
    Messages:
    3,774
    Gender:
    Male
    First Name:
    Brian
    Victoria, British Columbia, Canada
    Vehicle:
    2012 Tacoma TRD OR 4x4
    Ok thanks, I will do that!

    TacoLolz likes this.
  16. Jan 4, 2024 at 4:32 PM
    #5116
    Sharpish

    Sharpish Well-Known Member

    Joined:
    Jan 4, 2016
    Member:
    #173981
    Messages:
    3,774
    Gender:
    Male
    First Name:
    Brian
    Victoria, British Columbia, Canada
    Vehicle:
    2012 Tacoma TRD OR 4x4
    Harness and bulbs installed. Getting dark now so I will be taking them a test drive!

    szidls and crashnburn80[OP] like this.
  17. Jan 4, 2024 at 6:06 PM
    #5117
    Sharpish

    Sharpish Well-Known Member

    Joined:
    Jan 4, 2016
    Member:
    #173981
    Messages:
    3,774
    Gender:
    Male
    First Name:
    Brian
    Victoria, British Columbia, Canada
    Vehicle:
    2012 Tacoma TRD OR 4x4
    Huge improvement. It will really shine on country roads with no street lights etc.

    Norton, wdb and crashnburn80[OP] like this.
  18. Jan 4, 2024 at 6:09 PM
    #5118
    Watermallon

    Watermallon ID Tacooo

    Joined:
    Feb 28, 2022
    Member:
    #391413
    Messages:
    342
    Gender:
    Male
    First Name:
    Zach
    Idaho
    Vehicle:
    2006 TRD Sport
    How did you end up aligning them?

  19. Jan 4, 2024 at 6:18 PM
    #5119
    Sharpish

    Sharpish Well-Known Member

    Joined:
    Jan 4, 2016
    Member:
    #173981
    Messages:
    3,774
    Gender:
    Male
    First Name:
    Brian
    Victoria, British Columbia, Canada
    Vehicle:
    2012 Tacoma TRD OR 4x4
    I didn’t change the housings. I incorrectly adjusted the lights downward too much before I installed the harness etc today. So I was only off in the up/down axis. I followed crashes advice to fine tune them.

  20. Jan 4, 2024 at 6:18 PM
    #5120
    Sharpish

    Sharpish Well-Known Member

    Joined:
    Jan 4, 2016
    Member:
    #173981
    Messages:
    3,774
    Gender:
    Male
    First Name:
    Brian
    Victoria, British Columbia, Canada
    Vehicle:
    2012 Tacoma TRD OR 4x4
    I have new pro housings but the original ones are still decent so I’ll swap the pros in next summer I think.
