The ultimate headlight upgrade H4 (not LED or HID)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by crashnburn80, Oct 27, 2015.

  1. May 16, 2024 at 9:06 PM
    #5301
    Yuddzy

    Yuddzy Member

    Joined:
    May 11, 2024
    Member:
    #449587
    Messages:
    5
    Gender:
    Male
    First Name:
    Jake
    Vehicle:
    2011 Black SR5 Access Cab
    I have a broken passenger side headlight housing and a cracked grille that I'm planning to replace pretty quick here. Good excuse to do a little lighting upgrade at the same time. Just placed my order for the Headlight Services harness, have yet to order the Osram 100/90 bulbs. Currently running Osram Nightbreaker +200% bulbs on the stock harness. Light is alright, but wish it were a tad better at times. I'm in deer country, so I feel it's worth the cost to get this upgrade done. Will update when it all comes together.

  2. May 17, 2024 at 7:09 AM
    #5302
    Toy_Runner

    Toy_Runner Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311172
    Messages:
    832
    Gender:
    Male
    Vehicle:
    99 4Runner SR5
    3" OME lift, heavy coils f/r 3/16" steel skids Modified Coastal Offroad diy bumper 5spd swap ('98 donor)
    http://www.danielsternlighting.com/tech/aim/aim.html

    Take the time to re-aim both lamps following the instructions in the link above, and you'll be very pleased with your headlamp upgrade. I have the OEM LED headlights in my '22 tacoma, but I did this upgrade on my old '99 4runner (lamos are similar in size to the tacomas H4 lamps) and it was a massive upgrade I wish I had known about years earlier.

    crashnburn80[OP] likes this.
  3. May 19, 2024 at 1:17 PM
    #5303
    Adoucet11

    Adoucet11 Member

    Joined:
    Jun 30, 2022
    Member:
    #400432
    Messages:
    5
    Gender:
    Male
    Ok,
    Thanks a Bunch!

  4. May 19, 2024 at 1:50 PM
    #5304
    phazedplasma

    phazedplasma Member

    Joined:
    Jul 5, 2018
    Member:
    #258415
    Messages:
    16
    Gender:
    Male
    Vehicle:
    1999 Tacoma
    Was asked to cross post in this thread for trouble shooting a 1st gen issue:

    Having an issue with this upgrade on my ground switched 99.

    Installed everything. Passenger headlight is good, measure high/low voltage on new connector etc.

    Drivers side is extremely dim, no voltage detected. Unplugged the trigger took out the fuses from the new harness and measured voltage on the original drivers side connector. Voltage is good on both high and low.

    Also swapped the bulbs, same issue.

    it looks like an issues with with m/f connection on the drivers side but im a bit confused what to troubleshoot next... Both fuses on the harness look good as well

  5. May 19, 2024 at 4:34 PM
    #5305
    Tiedie

    Tiedie Well-Known Member

    Joined:
    Jun 28, 2011
    Member:
    #58973
    Messages:
    4,001
    Gender:
    Male
    First Name:
    David
    WFOY
    Vehicle:
    09 4X4
    Katzkin, Dobinsons full suspension. Redlinegoods console cover and door panel arm rests, Double USB charger in dash installed, Ballistic Jesters 16x8. BlackVue DR 590 Dash Cam
    Ok I had an issue with not osram bulbs as soon as I spread the contacts out and fit them in no more issues. Then I received my osram bulbs and no issues.

  6. May 19, 2024 at 7:09 PM
    #5306
    phazedplasma

    phazedplasma Member

    Joined:
    Jul 5, 2018
    Member:
    #258415
    Messages:
    16
    Gender:
    Male
    Vehicle:
    1999 Tacoma
    Hmmm this is with the 100/90 Osrams

  7. May 20, 2024 at 4:31 AM
    #5307
    Tiedie

    Tiedie Well-Known Member

    Joined:
    Jun 28, 2011
    Member:
    #58973
    Messages:
    4,001
    Gender:
    Male
    First Name:
    David
    WFOY
    Vehicle:
    09 4X4
    Katzkin, Dobinsons full suspension. Redlinegoods console cover and door panel arm rests, Double USB charger in dash installed, Ballistic Jesters 16x8. BlackVue DR 590 Dash Cam
    I only knew it was the 1 bulb because I switched sides and it went from left to right issue. Sooo maybe it's something that simple.

  8. May 21, 2024 at 10:38 AM
    #5308
    phazedplasma

    phazedplasma Member

    Joined:
    Jul 5, 2018
    Member:
    #258415
    Messages:
    16
    Gender:
    Male
    Vehicle:
    1999 Tacoma
    Yeah that was the first thing I tried, swapping bulbs. No dice

  9. Jun 2, 2024 at 1:13 AM
    #5309
    Yuddzy

    Yuddzy Member

    Joined:
    May 11, 2024
    Member:
    #449587
    Messages:
    5
    Gender:
    Male
    First Name:
    Jake
    Vehicle:
    2011 Black SR5 Access Cab
    Wiring harness is in, new OEM smoked headlight housings going in sometime next week. Harness install was easy, all went well. I'm new to electrical and I do have a couple of questions I'd like some better educated members to clarify if possible. I'll try to keep it short.

    I found this thread: https://www.tacomaworld.com/threads/grounding-point-around-the-battery-area.741699/
    (yes it's 3rd gen, but general enough to not matter).

    A reply there basically states that grounding to the battery is not a good idea. My harness has, per the instructions, the black cable grounded directly at the battery. Is this okay?

    There is a body ground on the inside of the fender that stems directly from the negative battery terminal, I suppose I could just move it there if necessary.

  10. Jun 2, 2024 at 6:38 AM
    #5310
    Tiedie

    Tiedie Well-Known Member

    Joined:
    Jun 28, 2011
    Member:
    #58973
    Messages:
    4,001
    Gender:
    Male
    First Name:
    David
    WFOY
    Vehicle:
    09 4X4
    Katzkin, Dobinsons full suspension. Redlinegoods console cover and door panel arm rests, Double USB charger in dash installed, Ballistic Jesters 16x8. BlackVue DR 590 Dash Cam
    You'll be fine with that. If you look the battery is grounded there too.

  11. Jun 2, 2024 at 12:11 PM
    #5311
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    The ground is floating/isolated in this case, those rules don’t apply as noted in that thread saying it isn’t necessary for floating/isolated grounds. Grounding to the negative battery is fine, a chassis ground is fine too, but not necessary.

    Last edited: Jun 2, 2024
    Norton and Tiedie like this.
  12. Jun 3, 2024 at 7:27 AM
    #5312
    Dalandser

    Dalandser ¡Me Gustan Las Tacos-mas!

    Joined:
    Feb 19, 2015
    Member:
    #149090
    Messages:
    17,089
    First Name:
    Anthony
    Downey
    Vehicle:
    08 PreRunner Regular Cab / 98 4x4 Extra Cab
    Empty Wallet Mod

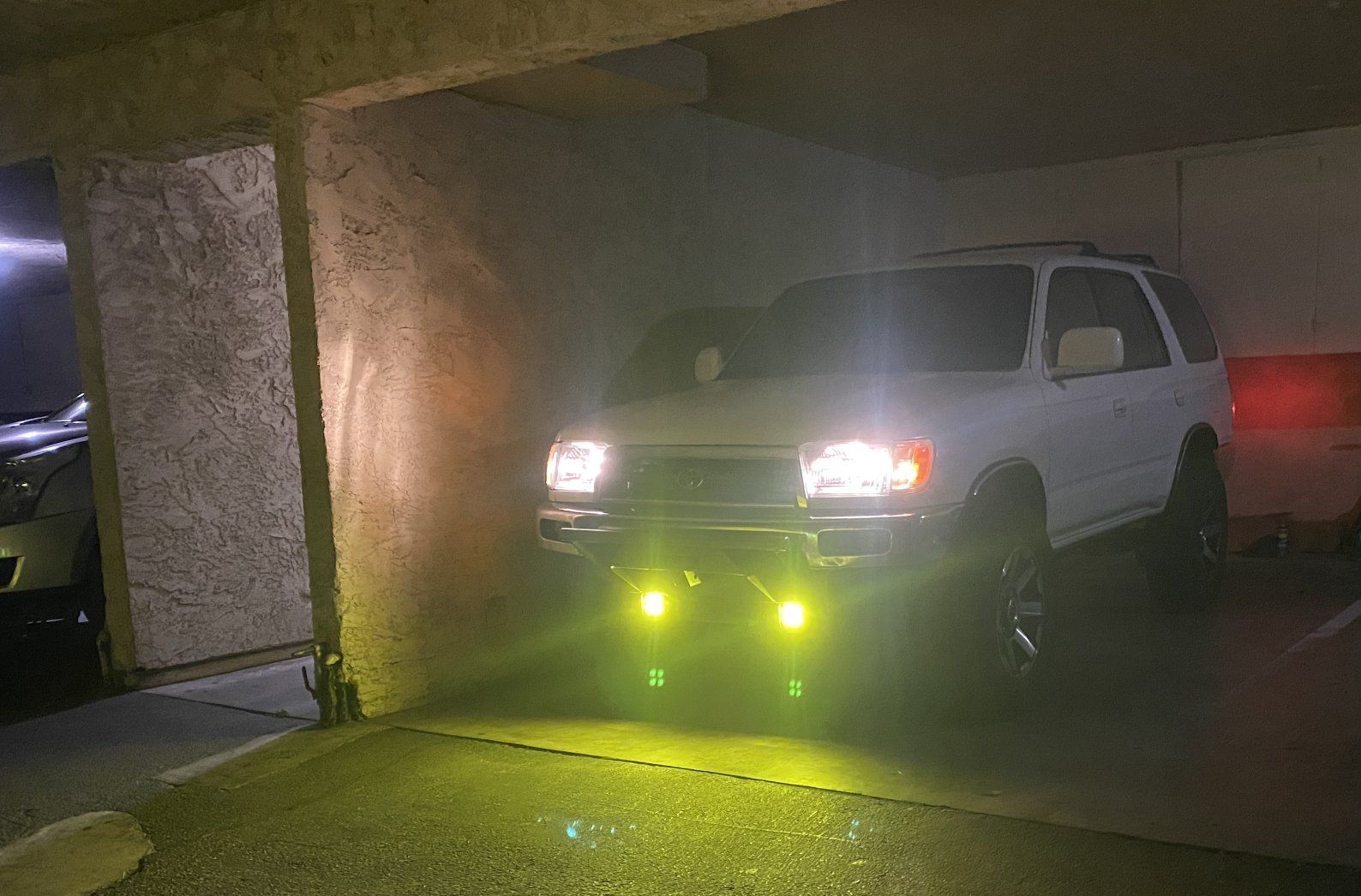

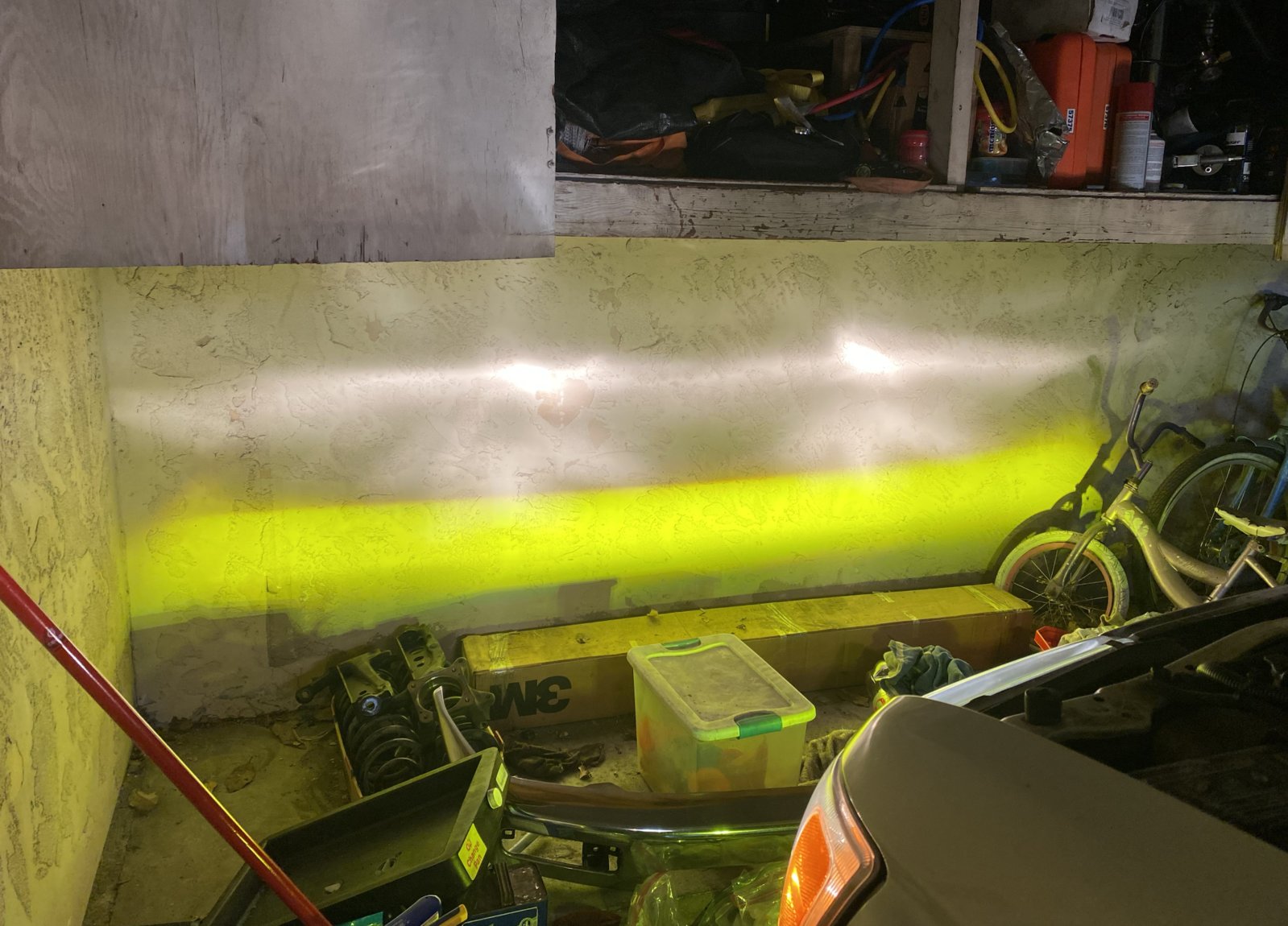

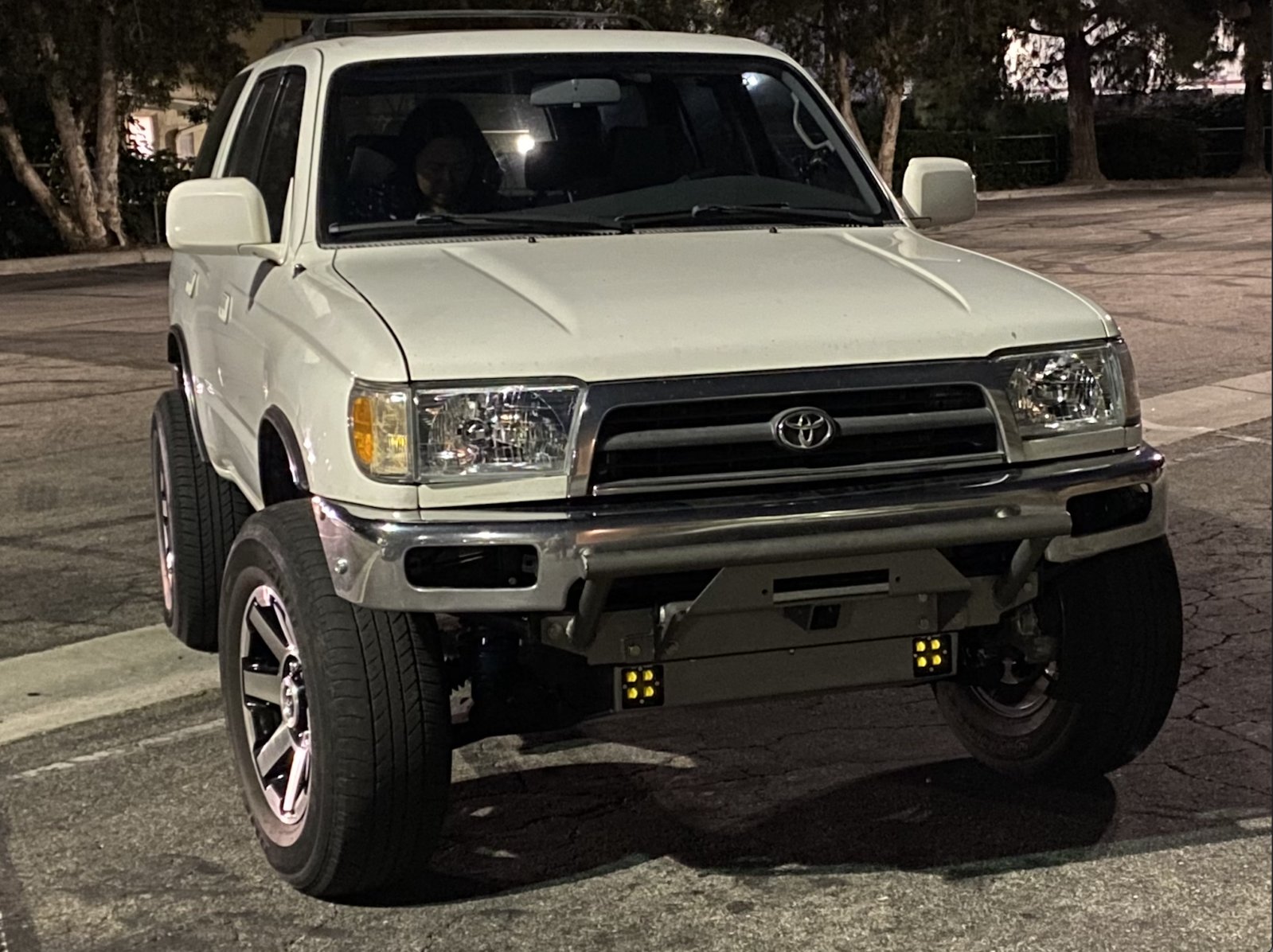

    Well it took some time, but I ordered a male H4 pigtail and wired up a harness to run off of the passenger side connector. I couldn't find an accurate diagram for high beam / low beam / ground but since there are only 3 wires, I did a test to see which ones would make them light up. Interestingly there were two combinations that made the BD's turn on, but one was dim and the other was as bright as hooking them up directly to the battery. Also, the BD's stay on while the high beams are on which was interesting, as I had them wired to come on with the low beams and thought they would turn off when the high beams were switched on. Not a problem, but makes me wonder if high beams switched on still give the low beam filament voltage on the stock bulbs?





    mojojojo78 and Green Jeans like this.
  13. Jun 10, 2024 at 5:48 PM
    #5313
    amp3d

    amp3d Well-Known Member

    Joined:
    Aug 26, 2011
    Member:
    #62377
    Messages:
    143
    Gender:
    Male
    First Name:
    Mark
    Toronto
    Vehicle:
    2002 Double Cab TRD Offroad, 2012 Access Cab
    Are you all really paying $150 usd for a wiring harness? Lol

  14. Jun 10, 2024 at 6:50 PM
    #5314
    Sharpish

    Sharpish Well-Known Member

    Joined:
    Jan 4, 2016
    Member:
    #173981
    Messages:
    3,774
    Gender:
    Male
    First Name:
    Brian
    Victoria, British Columbia, Canada
    Vehicle:
    2012 Tacoma TRD OR 4x4
    It hurt, I waffled for a while. But honestly it’s a damn fine harness and you couldn’t build it yourself for $100 so meh

  15. Jun 10, 2024 at 7:10 PM
    #5315
    amp3d

    amp3d Well-Known Member

    Joined:
    Aug 26, 2011
    Member:
    #62377
    Messages:
    143
    Gender:
    Male
    First Name:
    Mark
    Toronto
    Vehicle:
    2002 Double Cab TRD Offroad, 2012 Access Cab
    I guess if money is no object for some its fine.
    I have few harnesses laying around from past retrofits (motorcycle, tacoma, my 2 cars etc) and I can't ever remember spending more than $30. Never had one failure yet.

    I don't think one needs to spend that much on a harness imo.

  16. Jun 10, 2024 at 7:29 PM
    #5316
    Norton

    Norton Senior Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    4,595
    Gender:
    Male
    First Name:
    Steve
    Colorado Springs, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    Magnuson S/C w/12TRDTacoma's Qwikchange Hub & 2.5" RIP-Modded Pulley, Roostfactor's Pulley Wrap Mod; FPR Mod; JustDSM Tune via HPT MPVI2; mightytacoman Intercooler Tank; aFe POWER Magnum FLOW Pro DRY S Air Filter; OME Suspension Lift (885 Coils, Dakar Leafs, NitroCharger Sports); TRD Quickshifter w/TRD 6-Spd Knob; TRD Exhaust; NSB-AGM27F Battery w/HKB Adjustable Voltage Booster & Coupe's TRD Battery Hold Down; Goodridge SS Brake Lines; Trident904's MT ADM; BFG All-Terrain T/A KO2s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; BPF TRD Skid, Tow Hook, & Cooling Panel; jsi's Locker Anytime, Up2NoGood's 2Lo Module; ramonortiz55's Always on Power Outlet Relay, ND4's Fog Light Anytime, & Crom's Speed Bleeder Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades; ThreatLevelMidnight's Wireless Charger; 4Runner 4X4 & FJ Fog Light Switches; redtaco2007-inspired LED License Plate Lights; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Noico Sound Insulation; loginfailed-inspired Speedhut Boost & AFR Gauges in a Lotek Pillar Pod; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror on ImMrYo's Mirror Lift Bracket; TacomaBeast Glove Box & Console Organizers; Husky Floor Liners; UltraGauge EM; mesojdm's Ultimate LED Dome & Map Lights & GASSHOLE; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Cali Raised Led Bed Stiffeners; Pop & Lock Power Tailgate Lock w/TacomaTruckParts Support Bracket; ARE Z-Series Cap, SolarGard Tint; BlendMounted & MirrorTapped Uniden R3; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    Your opinion is just that and, given you appear to have checked into this nearly nine-year-old thread less than two hours ago, it seems premature for you to render such critical opinions. Suggest you spend some time educating yourself on the preceding 5300+ posts before rendering judgement.

  17. Jun 10, 2024 at 9:41 PM
    #5317
    Dalandser

    Dalandser ¡Me Gustan Las Tacos-mas!

    Joined:
    Feb 19, 2015
    Member:
    #149090
    Messages:
    17,089
    First Name:
    Anthony
    Downey
    Vehicle:
    08 PreRunner Regular Cab / 98 4x4 Extra Cab
    Empty Wallet Mod
    I have a $150 and a $30 harness going strong in two of my trucks for 6 months now. We’ll see if one outlasts the other…

    amp3d likes this.
  18. Jun 11, 2024 at 5:10 AM
    #5318
    wdb

    wdb intolerance intolerant

    Joined:
    Jun 11, 2014
    Member:
    #131735
    Messages:
    4,651
    Gender:
    Male
    First Name:
    Dave
    the perimeter
    Vehicle:
    plain jane
    Hella 4000 eurobeams, Amp Bed Step, IamMrYo mirror riser, Wet Okoles, HomerTaco satoshi, retrofit intermittent wipers & backup camera
    Gladly, for:
    • quality components
    • quality construction
    • decent paycheck for hard-working American

  19. Jun 11, 2024 at 6:08 AM
    #5319
    Green Jeans

    Green Jeans 6MT AC TRD OR 1GR-FE FTMFW

    Joined:
    Oct 2, 2012
    Member:
    #88143
    Messages:
    1,424
    Oregone
    Vehicle:
    '13 TRD Off-Road
    I did. I’d would do it again.

    williams63, Norton and bartender138 like this.
  20. Jun 11, 2024 at 6:41 AM
    #5320
    bartender138

    bartender138 Member

    Joined:
    Feb 12, 2024
    Member:
    #443683
    Messages:
    18
    Gender:
    Male
    First Name:
    Ed
    North Shore MA
    Vehicle:
    2009 2.7L 5M access cab
    Considering the alternatives (and costs) for improved headlights, I feel it's the best $150 I've spent on my Tacoma. Your mileage may vary...

    williams63 and Norton like this.
