The ultimate headlight upgrade H4 (not LED or HID)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by crashnburn80, Oct 27, 2015.

  1. Jan 3, 2018 at 10:08 PM
    #881
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    Which bulbs did you use?

  2. Jan 3, 2018 at 10:11 PM
    #882
    Nick_Taco

    Nick_Taco Well-Known Member

    Joined:
    May 19, 2009
    Member:
    #17448
    Messages:
    253
    Gender:
    Male
    First Name:
    Nick
    Maryland
    Vehicle:
    2014 DCSB OR 4x4 Auto
    Osram 85/80

  3. Jan 4, 2018 at 12:36 AM
    #883
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    I have my relays between the battery and fender. I've pressure washed under the hood aggressively (at a car wash, not commercial/home pressure washer) and the relays have always been fine, over 10 years. Being we are running the same harness, you should be fine. You bought quality parts, not cheap crap.

    Norton likes this.
  4. Jan 4, 2018 at 7:46 AM
    #884
    Nick_Taco

    Nick_Taco Well-Known Member

    Joined:
    May 19, 2009
    Member:
    #17448
    Messages:
    253
    Gender:
    Male
    First Name:
    Nick
    Maryland
    Vehicle:
    2014 DCSB OR 4x4 Auto
    Then I'll try not to worry. Any point in covering up the unused stock passenger headlight plug just in case I ever want to switch back?

    Thanks again for the write up!

  5. Jan 4, 2018 at 8:13 AM
    #885
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    I put some electrical tape over the face of mine. I don’t see switching back, but I do have plans to use it for something else. :spy:

    Norton and G.T. like this.
  6. Jan 4, 2018 at 10:26 PM
    #886
    Norton

    Norton Senior Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    4,595
    Gender:
    Male
    First Name:
    Steve
    Colorado Springs, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    Magnuson S/C w/12TRDTacoma's Qwikchange Hub & 2.5" RIP-Modded Pulley, Roostfactor's Pulley Wrap Mod; FPR Mod; JustDSM Tune via HPT MPVI2; mightytacoman Intercooler Tank; aFe POWER Magnum FLOW Pro DRY S Air Filter; OME Suspension Lift (885 Coils, Dakar Leafs, NitroCharger Sports); TRD Quickshifter w/TRD 6-Spd Knob; TRD Exhaust; NSB-AGM27F Battery w/HKB Adjustable Voltage Booster & Coupe's TRD Battery Hold Down; Goodridge SS Brake Lines; Trident904's MT ADM; BFG All-Terrain T/A KO2s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; BPF TRD Skid, Tow Hook, & Cooling Panel; jsi's Locker Anytime, Up2NoGood's 2Lo Module; ramonortiz55's Always on Power Outlet Relay, ND4's Fog Light Anytime, & Crom's Speed Bleeder Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades; ThreatLevelMidnight's Wireless Charger; 4Runner 4X4 & FJ Fog Light Switches; redtaco2007-inspired LED License Plate Lights; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Noico Sound Insulation; loginfailed-inspired Speedhut Boost & AFR Gauges in a Lotek Pillar Pod; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror on ImMrYo's Mirror Lift Bracket; TacomaBeast Glove Box & Console Organizers; Husky Floor Liners; UltraGauge EM; mesojdm's Ultimate LED Dome & Map Lights & GASSHOLE; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Cali Raised Led Bed Stiffeners; Pop & Lock Power Tailgate Lock w/TacomaTruckParts Support Bracket; ARE Z-Series Cap, SolarGard Tint; BlendMounted & MirrorTapped Uniden R3; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    +1 to all of this.

    FWIW, I look forward to learning about "something else" for which you "have plans."

  7. Jan 5, 2018 at 10:44 AM
    #887
    jet123

    jet123 Well-Known Member

    Joined:
    Sep 26, 2016
    Member:
    #198314
    Messages:
    152
    Gender:
    Male
    First Name:
    John
    Ft Collins
    Vehicle:
    2013 DCLB
    Question...

    I just tested my OEM set-up per the instructions on the 1st page. I pulled a 0.145 volt reading. The instructions state no measurable amount should be read and the picture jives with that by displaying 00.0. It appears that I have a conventionally ground set-up.

    But I am pulling just the slightest bit...

    Q1). Would you agree that I have a conventionally grounded set-up despite the small amount of pull? I am asking as I took your statement literally - "...would never have any measurable voltage present..." and I do have a measurable amount.

    Dumb question most likely, but this is not my area of knowledge. Or would a reading like this mean - yes, conventionally switched but something else may be going on electrically as It should be a literal "0" on a conventionally switched set-up.

    Thank you very much for the write-up and subsequent updating!

    John

    crashnburn80[OP] likes this.
  8. Jan 5, 2018 at 11:05 AM
    #888
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    0.145v would be considered just noise. My meter fluctuated a tiny amount with noise, but it was also a super cheap meter. What you are looking for is 0v or 12v+, you are basically zero. Never is too strong of a word in that case, I’ll update it with some of my other To-Dos for the thread.

    Also, get the 85/80w bulbs. I’m going back to those. I’ll post an update as to why hopefully this weekend. If ordering from Headlight Services, they also sell the 85/80w bulbs.

    G.T. likes this.
  9. Jan 5, 2018 at 11:06 AM
    #889
    jet123

    jet123 Well-Known Member

    Joined:
    Sep 26, 2016
    Member:
    #198314
    Messages:
    152
    Gender:
    Male
    First Name:
    John
    Ft Collins
    Vehicle:
    2013 DCLB
    Thanks for that and noted on the bulbs

    crashnburn80[OP] likes this.
  10. Jan 5, 2018 at 1:31 PM
    #890
    kek413

    kek413 New Member

    Joined:
    Jan 3, 2018
    Member:
    #240140
    Messages:
    2
    Gender:
    Female
    First Name:
    Kendra
    Vehicle:
    2005 Tacoma access cab
    I have decided that this will be my next upgrade to my truck. I am very glad I stumbled across this thread - I was teetering in my decision on whether to go LED or not. This made my decision not to very very easy. Thank you for all of the super helpful information.

    I have a questions:

    While your new housings look awesome, I am hoping to find some with a bit more matte black in them as I will be switching out my grille to a matte black in the same project. I may have missed it somewhere on the thread, but you seem to be like minded in the idea of using quality parts to do the job right the first time. Do you have any recommendation on other housing manufacturers that are quality but come in different looks? I found these on Amazon, but I am not sure they are the best quality.

    https://www.amazon.com/gp/product/B0743PTY65/ref=ox_sc_act_title_2?smid=A1M5677DEEH6HI&psc=1

    Any input is welcome, thanks in advance!

    G.T. likes this.
  11. Jan 5, 2018 at 2:16 PM
    #891
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    Welcome to the forum!

    The headlights I used were OEM, there can be lots of variability in both build quality and output quality from aftermarket headlights. A popular matte black assembly on the forum that people seem pretty happy with is lights from Depo.

    Depo 312-1186P-US2 Toyota Tacoma Headlight with Black Bezel, One Pair https://www.amazon.com/dp/B005XRPNYI/ref=cm_sw_r_cp_api_PF.tAb9ABSHE9

    I’d suggest Depo over the ones you linked.

    Some will also do a black headlight mod (BHLM) and bake their OEM lights in the oven to separate the lens, then paint the inside housing black (not the reflector) and glue it back together.

    Unchained 5150 likes this.
  12. Jan 5, 2018 at 2:21 PM
    #892
    Toy4me

    Toy4me Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85061
    Messages:
    3,740
    Gender:
    Male
    First Name:
    Tom
    NNJ
    Vehicle:
    '10 DCLB TRD Sport MGM
    Slowly picking away at this install. Got my relay bracket in, and @Nick_Taco , yours is on the way. One left up for grabs. Temps are supposed to get into the 30's next week so I should be able to finish up.


    crashnburn80[OP] likes this.
  13. Jan 5, 2018 at 4:27 PM
    #893
    jet123

    jet123 Well-Known Member

    Joined:
    Sep 26, 2016
    Member:
    #198314
    Messages:
    152
    Gender:
    Male
    First Name:
    John
    Ft Collins
    Vehicle:
    2013 DCLB
    Toy4Me - Can I get that last bracket? PM coming

    Toy4me likes this.
  14. Jan 5, 2018 at 4:33 PM
    #894
    Unchained 5150

    Unchained 5150 Rick

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    65,410
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    Vehicle:
    2021 TRD Poser Pro Manual.
    Gotta tag him properly @Toy4me

  15. Jan 5, 2018 at 4:47 PM
    #895
    Unchained 5150

    Unchained 5150 Rick

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    65,410
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    Vehicle:
    2021 TRD Poser Pro Manual.
    @Toy4me which harness did you go with?

  16. Jan 5, 2018 at 5:24 PM
    #896
    Toy4me

    Toy4me Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85061
    Messages:
    3,740
    Gender:
    Male
    First Name:
    Tom
    NNJ
    Vehicle:
    '10 DCLB TRD Sport MGM
    Sure, all yours sir :thumbsup:.

    Edit - got your pm. I will have it in the mail tomorrow or Monday the latest.

    I went with the Headlight Services one. Looks to be well assembled. Hoping to get it in next week with the warmer temps. Aside from me hating the cold, the wire really stiffens up and I want to make sure I do a nice job routing it and making it look factory. We'll have to do our Florida trip another time.

  17. Jan 5, 2018 at 6:12 PM
    #897
    slomoe

    slomoe Well-Known Member

    Joined:
    Nov 8, 2017
    Member:
    #235473
    Messages:
    667
    Gender:
    Male
    Stuart,Fl
    Vehicle:
    2011 Tacoma DCLB TRD Sport 4x4
    Wet Okole, Maxxis Razor (285x70x17), Bilstein 6112, RXT's Fn 5star
    Really like this idea over all the others. I plan on doing this at the same time I move to led switchbacks and new light housings since mine are melted.

    crashnburn80[OP] likes this.
  18. Jan 6, 2018 at 12:32 PM
    #898
    Toy4me

    Toy4me Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85061
    Messages:
    3,740
    Gender:
    Male
    First Name:
    Tom
    NNJ
    Vehicle:
    '10 DCLB TRD Sport MGM
    @jet123 your bracket is in the mail.

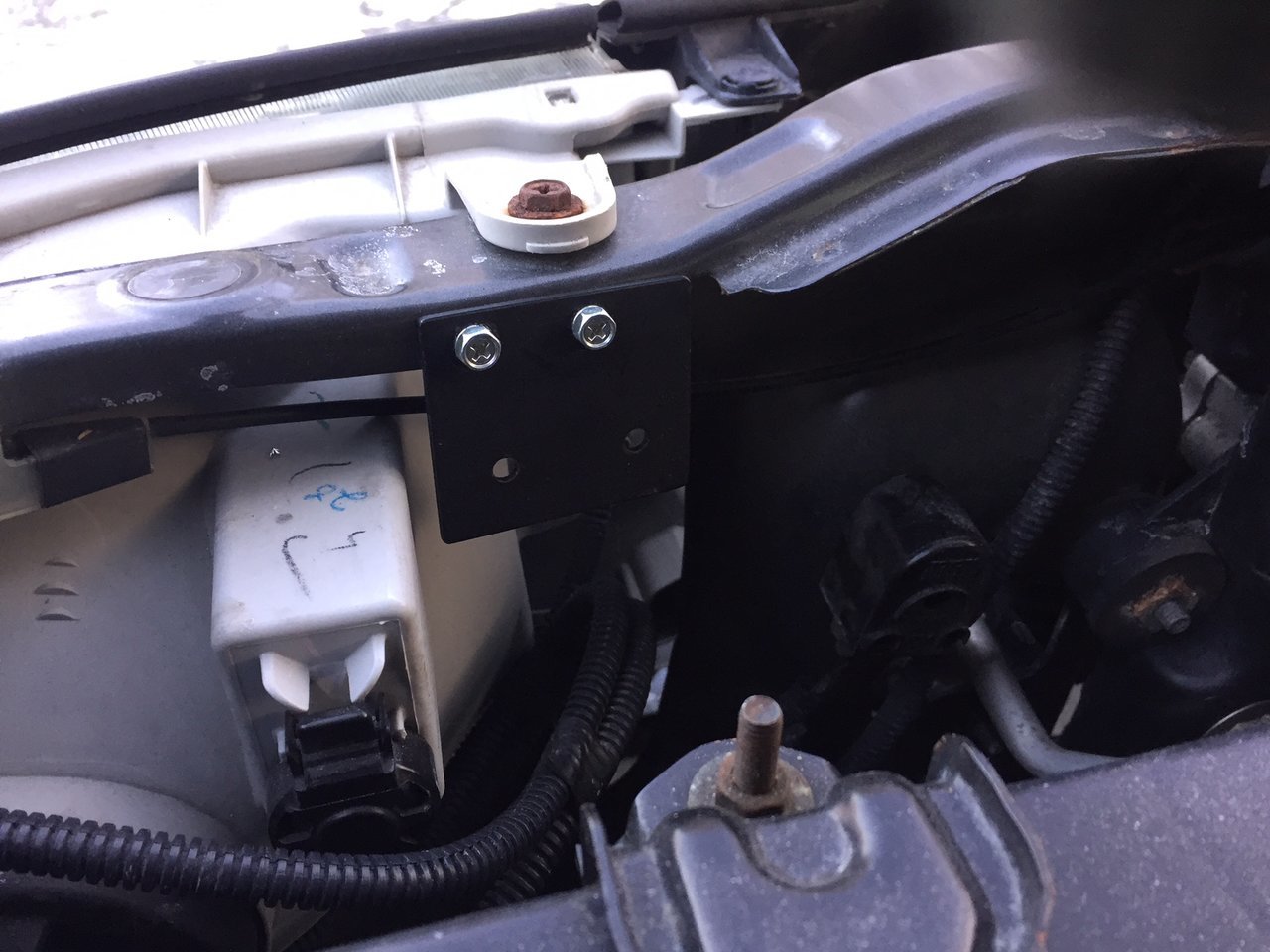

    Lets see if Nick and John are happy with my idea for relay placement and if they are I'll try to get some more metal and make more up. I figured this out in the cold so I won't be offended if I missed an obviously better location for the relays.

    crashnburn80[OP] likes this.
  19. Jan 6, 2018 at 12:35 PM
    #899
    Unchained 5150

    Unchained 5150 Rick

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    65,410
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    Vehicle:
    2021 TRD Poser Pro Manual.
    You gonna run the wire under the plastic on top of the radiator to hide it???

    crashnburn80[OP] likes this.
  20. Jan 6, 2018 at 12:40 PM
    #900
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,638
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    I ran my second harness along the front lower core support behind the crash bar, which is another easy location.
