The ultimate headlight upgrade H4 (not LED or HID)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by crashnburn80, Oct 27, 2015.

  1. Dec 23, 2018 at 2:16 PM
    #1501
    topaza

    topaza Well-Known Member

    Joined:
    Jan 25, 2018
    Member:
    #242370
    Messages:
    190
    Gender:
    Male
    Vehicle:
    2013 Black ACLB 4x4 V6
    No kidding. And it's not blinding other drivers! My favorite mod so far.

  2. Dec 23, 2018 at 4:43 PM
    #1502
    GWN627

    GWN627 Member

    Joined:
    Nov 6, 2018
    Member:
    #271903
    Messages:
    5
    Gender:
    Male
    Vehicle:
    2014 Green TRD sport Dblc SB Standard
    Icon 2.5 longtravel front covers Dirtking upper and lower control arms Icon 2.5 RTX rear kit Arb Deluxe bullbar bumper Konig 16 inch bronze offroad rims Toyo M/ts
    @topaza. Nice looking truck brother. I've got flashes a few times but I think its cause my rig is lifted 3 inch and on 33s. I may angle them down a smidge

  3. Dec 23, 2018 at 6:57 PM
    #1503
    topaza

    topaza Well-Known Member

    Joined:
    Jan 25, 2018
    Member:
    #242370
    Messages:
    190
    Gender:
    Male
    Vehicle:
    2013 Black ACLB 4x4 V6
    Thanks man.

    Before my lift I was sagging in the rear which caused me to get flashed several times on stock headlights. With a 3" lift, I haven't gotten flashed once since the upgrade.

  4. Dec 23, 2018 at 7:30 PM
    #1504
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,236
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Sagging rear causing the front lights to pitch upward will have a far greater negative effect than a couple more inches in height.

    Freeheelbillie, FastEddy59 and Norton like this.
  5. Dec 23, 2018 at 7:31 PM
    #1505
    308savage

    308savage Well-Known Member

    Joined:
    Mar 6, 2016
    Member:
    #180389
    Messages:
    2,112
    Gender:
    Male
    First Name:
    Adam
    East Tennessee
    Vehicle:
    2012 Tacoma TRD Sport DCSB
    Leveling kit, BFG AT KO2, Warrior Products steps, roll bar
    Just ordered the harness and two bulbs. Where’s the best place online to order GE +120 bulbs?

  6. Dec 23, 2018 at 9:34 PM
    #1506
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,236
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    You can order them from Daniel Stern domestically at a premium, or from eBay internationally out of Europe for very inexpensive, but shipping takes about a month.

  7. Dec 24, 2018 at 2:00 PM
    #1507
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,236
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Wow, I ordered these Thursday afternoon, effectively Friday in the UK, I paid the extra 2 Euros (8 total) for expedited shipping and they attempted delivery at my office this morning. Amazons delivery speeds are impressive, even internationally.

    GWN627 and FastEddy59 like this.
  8. Dec 24, 2018 at 2:19 PM
    #1508
    FastEddy59

    FastEddy59 TTC #0061

    Joined:
    Jan 20, 2017
    Member:
    #208155
    Messages:
    20,751
    Gender:
    Male
    First Name:
    Eddie
    Smack, Dab in the middle of Winnipeg
    Vehicle:
    '13 Barc. Red Tacoma SR5 4X4
    Rigid 23004 Radiance light bar Cheap 3K 18W LED Fogs General AT-2's Pioneer AVH4200NEX w/ iDatalink JL XD5003V2 Focal 165KRX2's JL 10TW3 Arcticstart 803
    Canada Post must have some sort of a secret agreement with the U.K. I get goods from the UK faster than most Canadian Provinces even at the standard shipping method.:canada:

    crashnburn80 [OP] likes this.
  9. Dec 25, 2018 at 1:20 AM
    #1509
    GWN627

    GWN627 Member

    Joined:
    Nov 6, 2018
    Member:
    #271903
    Messages:
    5
    Gender:
    Male
    Vehicle:
    2014 Green TRD sport Dblc SB Standard
    Icon 2.5 longtravel front covers Dirtking upper and lower control arms Icon 2.5 RTX rear kit Arb Deluxe bullbar bumper Konig 16 inch bronze offroad rims Toyo M/ts
    crashnburn80 [OP] likes this.
  10. Dec 26, 2018 at 10:25 AM
    #1510
    MadRiverTaco

    MadRiverTaco Join TW, they said. It's free, they said.

    Joined:
    Sep 10, 2015
    Member:
    #163915
    Messages:
    1,661
    Gender:
    Male
    First Name:
    Brenden
    Waterbury, VT
    Vehicle:
    2012 Black DCSB TRD OR "Caroline"
    King 2.5 Ext. w/ Compression Adjusters (Front & Rear), Dakars w/ D29XL, TC UCA's, ARE CX, 17" SEMA Pro's, 265/70/17 Falken Wildpeaks, BORA spacers, Rigid Side shooter ditch lights, ATHF bedside reinforcements, OME carrier bearing drop bracket, extended rear brake lines, Northstar 27F battery, Yakima Jetsream crossbars, OEM roof rack, OEM skid plate, TRD Pro grill, BensonX bedside tool mounts, fire extinguisher bedside mount, AMP research bed step, Redline Tuning hood struts, ECGS needle bearing mod, CV Boot slide mod, Differential breather mod, U-Bolt Flip Kit w/ Timbren Bumpstops, A-pillar RAM mount w/ cell phone holder, ProFX tow mirrors with turn signals and heat, "Raptor" lights, DEPO taillights, motorized Pop n' Lock
    Is there an alternative to these clips that hold the bulb in place? They're such a PITA.

  11. Dec 26, 2018 at 10:39 PM
    #1511
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,236
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    I wish. Retros with D2S bulbs. It gets easier the more you do it, but still a PITA.

    MadRiverTaco likes this.
  12. Dec 27, 2018 at 7:55 AM
    #1512
    fishburn7

    fishburn7 Member

    Joined:
    Oct 7, 2015
    Member:
    #166056
    Messages:
    10
    Vehicle:
    2015 Black SR5 4x4
    Has anyone had an issue with this mod draining their battery? I made the change on Saturday and twice since then I’ve woke up to a dead battery.

    Everything is connected well and plugged in correctly

  13. Dec 27, 2018 at 8:52 AM
    #1513
    Norton

    Norton Senior Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    4,307
    Gender:
    Male
    First Name:
    Steve
    Colorado Springs, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    Magnuson S/C w/12TRDTacoma's Qwikchange Hub & 2.5" RIP-Modded Pulley, Roostfactor's Pulley Wrap Mod; FPR Mod; JustDSM Tune via HPT MPVI2; mightytacoman Intercooler Tank; aFe POWER Magnum FLOW Pro DRY S Air Filter; OME Suspension Lift (885 Coils, Dakar Leafs, NitroCharger Sports); TRD Quickshifter w/TRD 6-Spd Knob; TRD Exhaust; NSB-AGM27F Battery w/HKB Adjustable Voltage Booster & Coupe's TRD Battery Hold Down; Goodridge SS Brake Lines; Trident904's MT ADM; Cooper Discoverer A/T3s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; BPF TRD Skid & Cooling Panel; jsi's Locker Anytime, Up2NoGood's 2Lo Module; ramonortiz55's Always on Power Outlet Relay, ND4's Fog Light Anytime, & Crom's Speed Bleeder Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades; ThreatLevelMidnight's Wireless Charger; 4Runner 4X4 & FJ Fog Light Switches; redtaco2007-inspired LED License Plate Lights; mattgecko's Underhood Lighting; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Noico Sound Insulation; loginfailed-inspired Speedhut Boost & AFR Gauges in a Lotek Pillar Pod; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror on ImMrYo's Mirror Lift Bracket; Husky Floor Liners; UltraGauge EM; mesojdm's Ultimate LED Dome & Map Lights & GASSHOLE; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Cali Raised Led Bed Stiffeners; Pop & Lock Power Tailgate Lock w/TacomaTruckParts Support Bracket; ARE Z-Series Cap, SolarGard Tint; BlendMounted & MirrorTapped Uniden R3; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    About two years post-upgrade here, and I've never had this (or any other) issue with my headlight upgrade. (The Chinese-made Hella relay in my fog light upgrade died a few months ago, but the result was non-functional fog lights, not a dead battery.)

    I know you believe "everything is connected well and plugged in correctly" but, at the risk of stating the obvious, you either have a short somewhere or your battery dying is just coincidence. Given your truck's relatively young age, my money's on the former.


    EDIT: Forgot to mention my son has also had this upgrade in his 1st Gen for a couple of years and, to date, has not experienced any problems.

    Last edited: Dec 27, 2018
    crashnburn80 [OP] and fishburn7 like this.
  14. Dec 27, 2018 at 9:17 AM
    #1514
    fishburn7

    fishburn7 Member

    Joined:
    Oct 7, 2015
    Member:
    #166056
    Messages:
    10
    Vehicle:
    2015 Black SR5 4x4
    You’re most likely right. Would the lights not work at all if I have the wrong harness? Ground switched vs conventionally switched?

  15. Dec 27, 2018 at 9:51 AM
    #1515
    Norton

    Norton Senior Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    4,307
    Gender:
    Male
    First Name:
    Steve
    Colorado Springs, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    Magnuson S/C w/12TRDTacoma's Qwikchange Hub & 2.5" RIP-Modded Pulley, Roostfactor's Pulley Wrap Mod; FPR Mod; JustDSM Tune via HPT MPVI2; mightytacoman Intercooler Tank; aFe POWER Magnum FLOW Pro DRY S Air Filter; OME Suspension Lift (885 Coils, Dakar Leafs, NitroCharger Sports); TRD Quickshifter w/TRD 6-Spd Knob; TRD Exhaust; NSB-AGM27F Battery w/HKB Adjustable Voltage Booster & Coupe's TRD Battery Hold Down; Goodridge SS Brake Lines; Trident904's MT ADM; Cooper Discoverer A/T3s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; BPF TRD Skid & Cooling Panel; jsi's Locker Anytime, Up2NoGood's 2Lo Module; ramonortiz55's Always on Power Outlet Relay, ND4's Fog Light Anytime, & Crom's Speed Bleeder Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades; ThreatLevelMidnight's Wireless Charger; 4Runner 4X4 & FJ Fog Light Switches; redtaco2007-inspired LED License Plate Lights; mattgecko's Underhood Lighting; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Noico Sound Insulation; loginfailed-inspired Speedhut Boost & AFR Gauges in a Lotek Pillar Pod; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror on ImMrYo's Mirror Lift Bracket; Husky Floor Liners; UltraGauge EM; mesojdm's Ultimate LED Dome & Map Lights & GASSHOLE; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Cali Raised Led Bed Stiffeners; Pop & Lock Power Tailgate Lock w/TacomaTruckParts Support Bracket; ARE Z-Series Cap, SolarGard Tint; BlendMounted & MirrorTapped Uniden R3; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    @crashnburn80 is the expert, but I don't think they'd work properly with the wrong harness. (Assume you ran the electrical ground system test before purchasing your harness?) FWIW, ground switching is more common in older 1st Gens than late model 1st Gens and 2nd Gens.

    crashnburn80 [OP] likes this.
  16. Dec 27, 2018 at 11:08 AM
    #1516
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,236
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    The only way this would drain your battery is if the relay was stuck in the closed (energized) position, in which case your lights would be visibly on even if the switch in the dash had them set to off, which is exceptionally unlikely. The relay is energized when you turn on the OEM headlight switch, when the OEM switch is off the relayed circuit is open, there is nothing to draw power as the circuit is not completed. So the battery issue shouldn't be related to your headlights.

    I've installed a ground switched harness from into a conventionally switched truck. That is how I discovered Toyota made the change. The harness will not work at all, and the headlights will not operate if you use the incorrect harness. While your trucks age is seemingly too new to have a charging system/battery issue, it doesn't mean it is not a possibility. Do you have any other aftermarket electrical accessories on the truck? You can always get your charging system/battery tested for free at an autoparts store.

  17. Dec 27, 2018 at 2:05 PM
    #1517
    fishburn7

    fishburn7 Member

    Joined:
    Oct 7, 2015
    Member:
    #166056
    Messages:
    10
    Vehicle:
    2015 Black SR5 4x4
    No other aftermarket electrical accessories...
    I tested the battery this morning with a multimeter and everything looked fine. I went through and checked all the connections again and everything was tight, the 2 inline fuses were had backed out a little but were making contact, I fixed them..
    No problems with the battery completely dying today, just a little longer crank time before it starts.

  18. Dec 27, 2018 at 2:51 PM
    #1518
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,236
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!

    New Osram AllSeason 85/80w bulbs to test out tonight and compare to the 85/80w Hypers. These have a very light yellow “interference” coating, that appears to reflect back blue light.

    BenMara and Norton like this.
  19. Dec 28, 2018 at 1:16 AM
    #1519
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    11,236
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Testing out the discontinued Osram 85/80w Hypers vs the 85/80w AllSeasons.

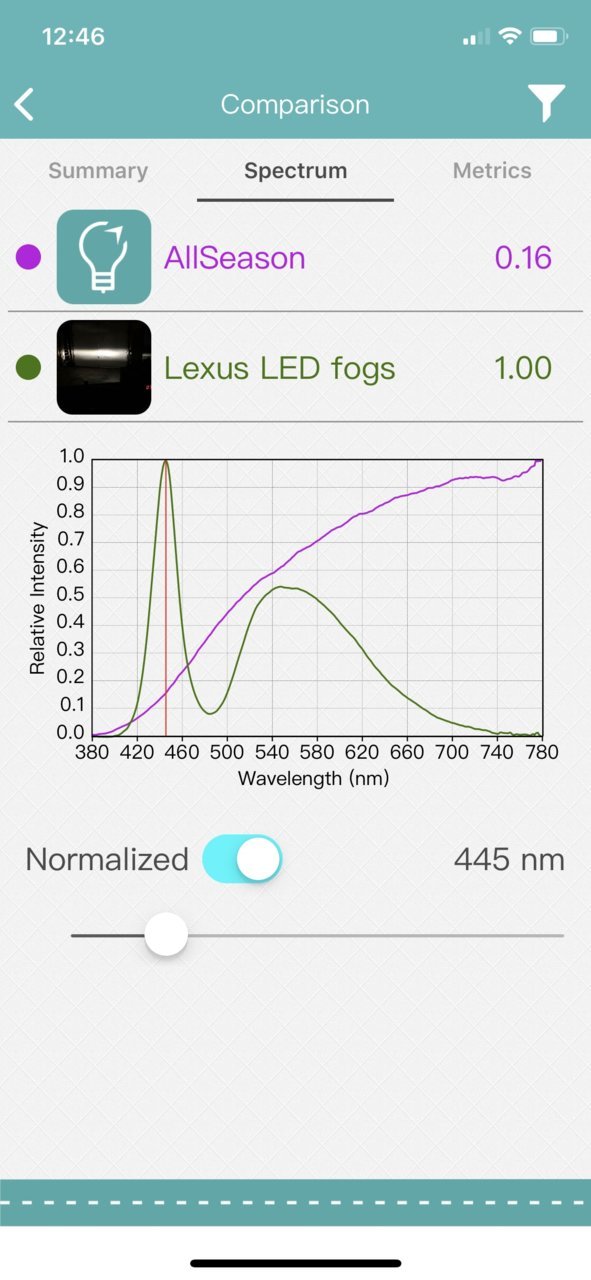

    Reducing short wavelength blue light output should provide better visibility in poor weather conditions, as short wavelength blue light refracts off the rain/snow/fog back at the driver causing you to see the precipitation in the air rather than the road beyond it. I've had enough late night remote mountain pass crossing in snow storms that I was looking for something better for the winter season. I have no doubts in the ability of my truck, but it doesn't do me any good in near white out conditions where I cannot see the road.

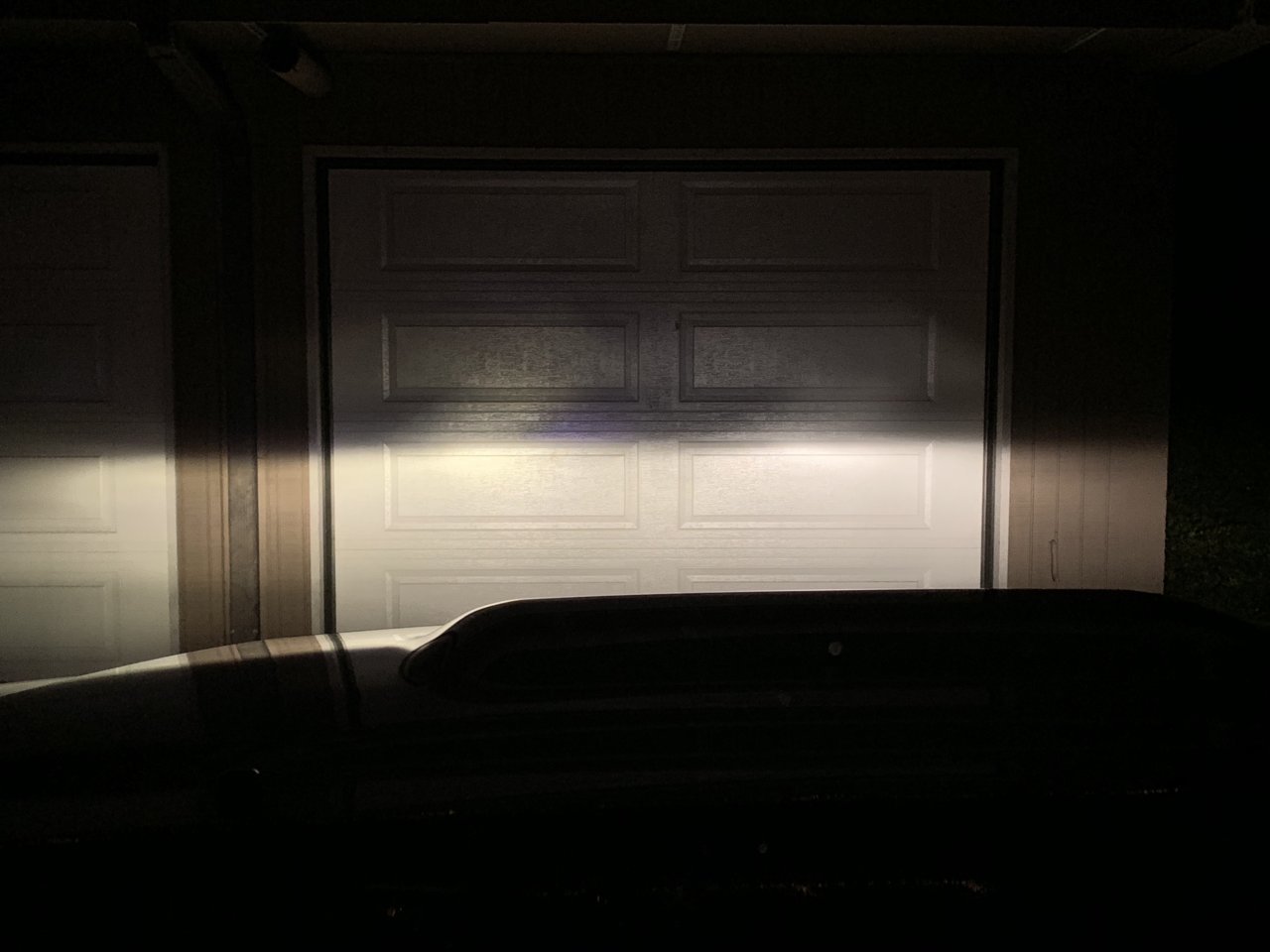

    AllSeason left vs Hyper Right

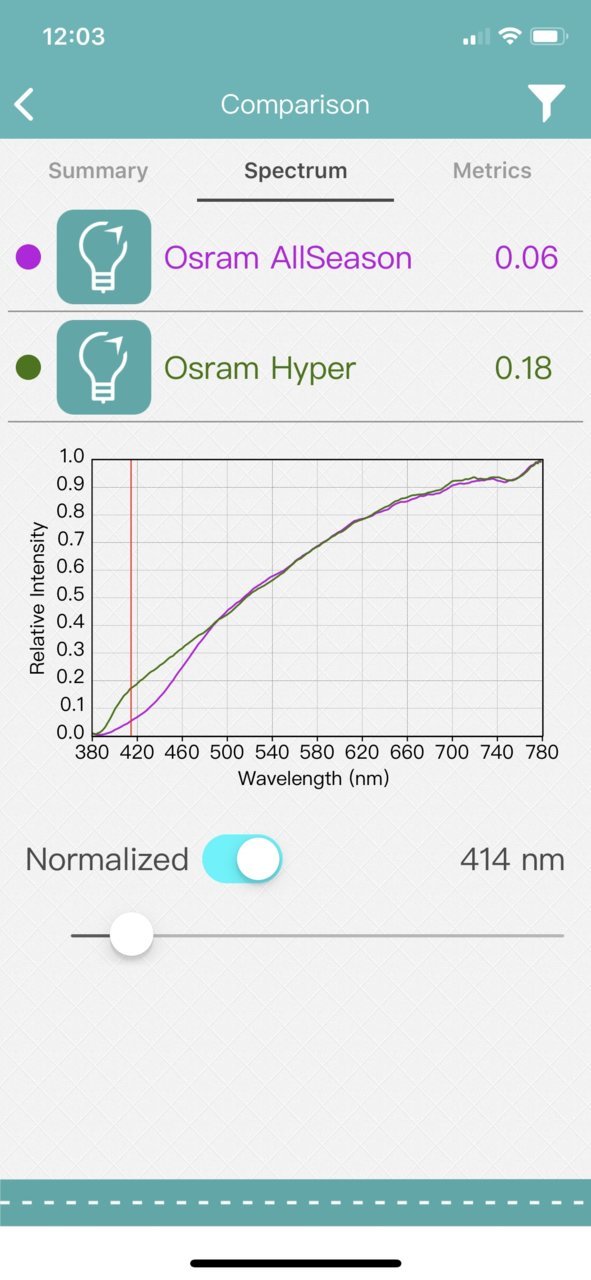

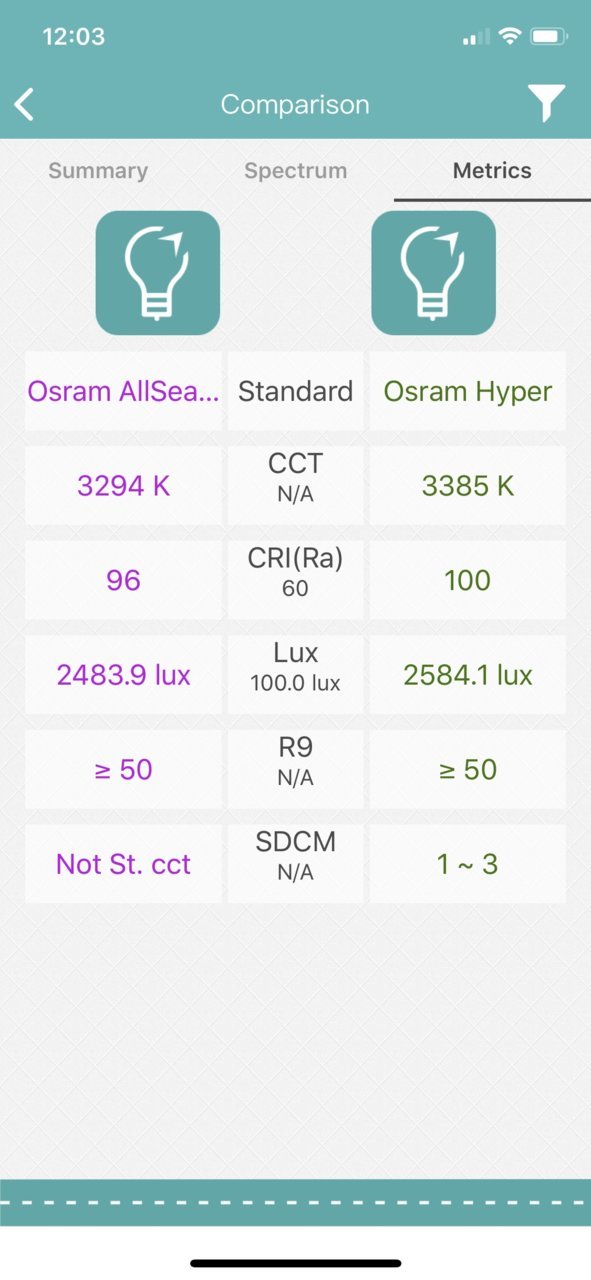

    Output measurements

    fullsizeoutput_e38.jpg fullsizeoutput_e37.jpg

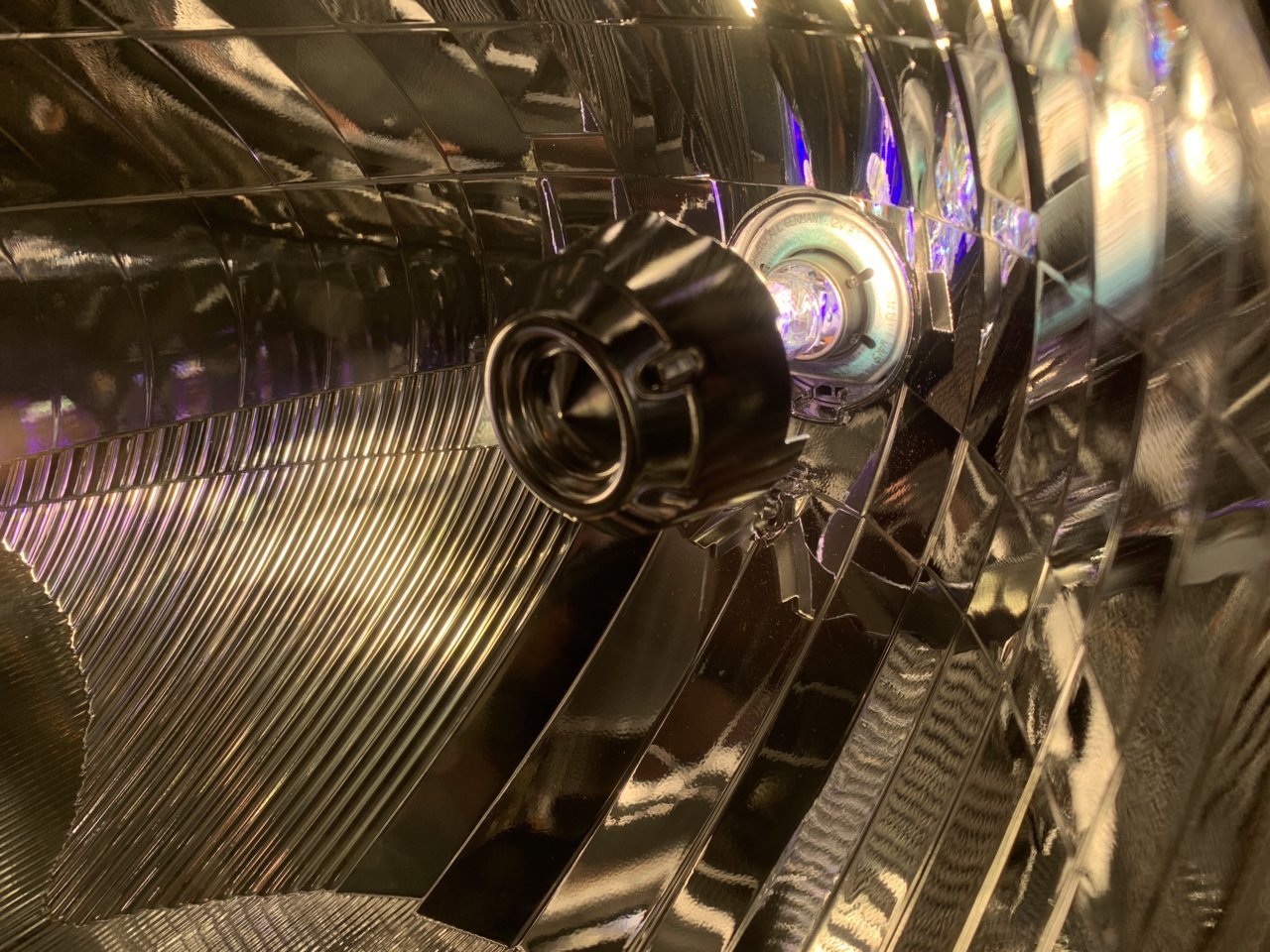

    The coating reduces the short wavelength blue light output by nearly 2/3rds which should significantly reduce refraction in poor weather while having minimal negative impact on the output causing a 4% output loss. Blue light which is prone to refraction is approximately less than 500nm, you can see the AllSeasons work to reduce the output at less than 500nm while nearly identically matching the spectrum across the rest of the output. This causes the color temp to drop approx 100k but when looking at the light color on the wall it seems a bit more than that. Halogens produce very little short wave blue light, so filtering blue light is not nearly as impactful as putting a blue filter on the bulb to filter out the long wave yellow light, which is a majority of the output.

    While the AllSeasons light output is warmer, they do have a bit more blue/purple near the cut offs on the perimeter of the pattern than I was anticipating. You can see it slightly in the above picture, left side just above the cut off to the right of the hot spot. It was a bit difficult to photograph, but looking up close is more evident.

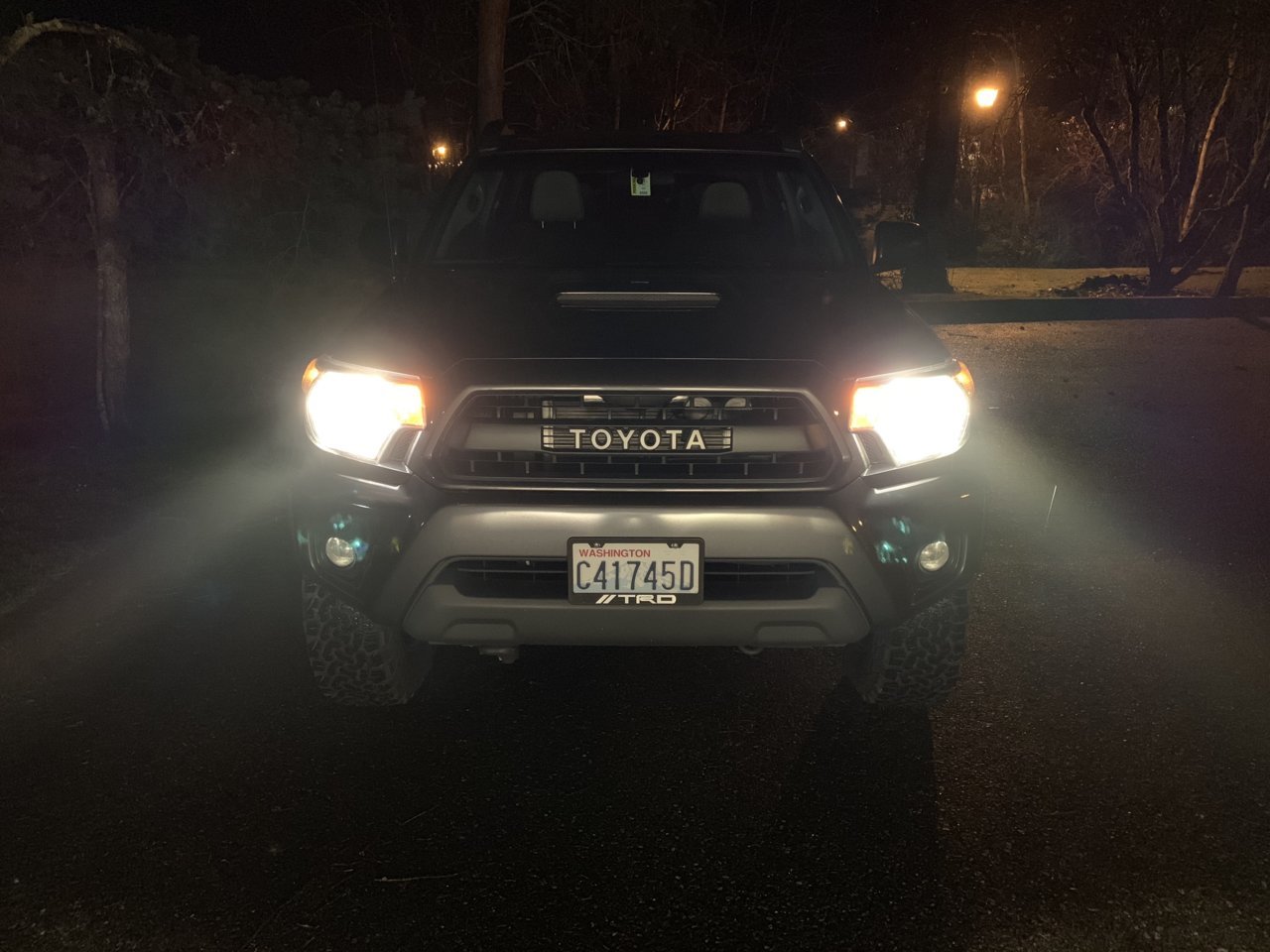

    However, facing head on, it is much less noticeable. Hyper left (passenger), AllSeason right (driver).


    But I know the real question people are thinking about, how do the 85/80w versions compare to the available 100/90w Superbrights. Unfortunately in the photo below my left 100/90w was a little high as I was adjusting them and hit the door contour just right to make the hot spot look weird.

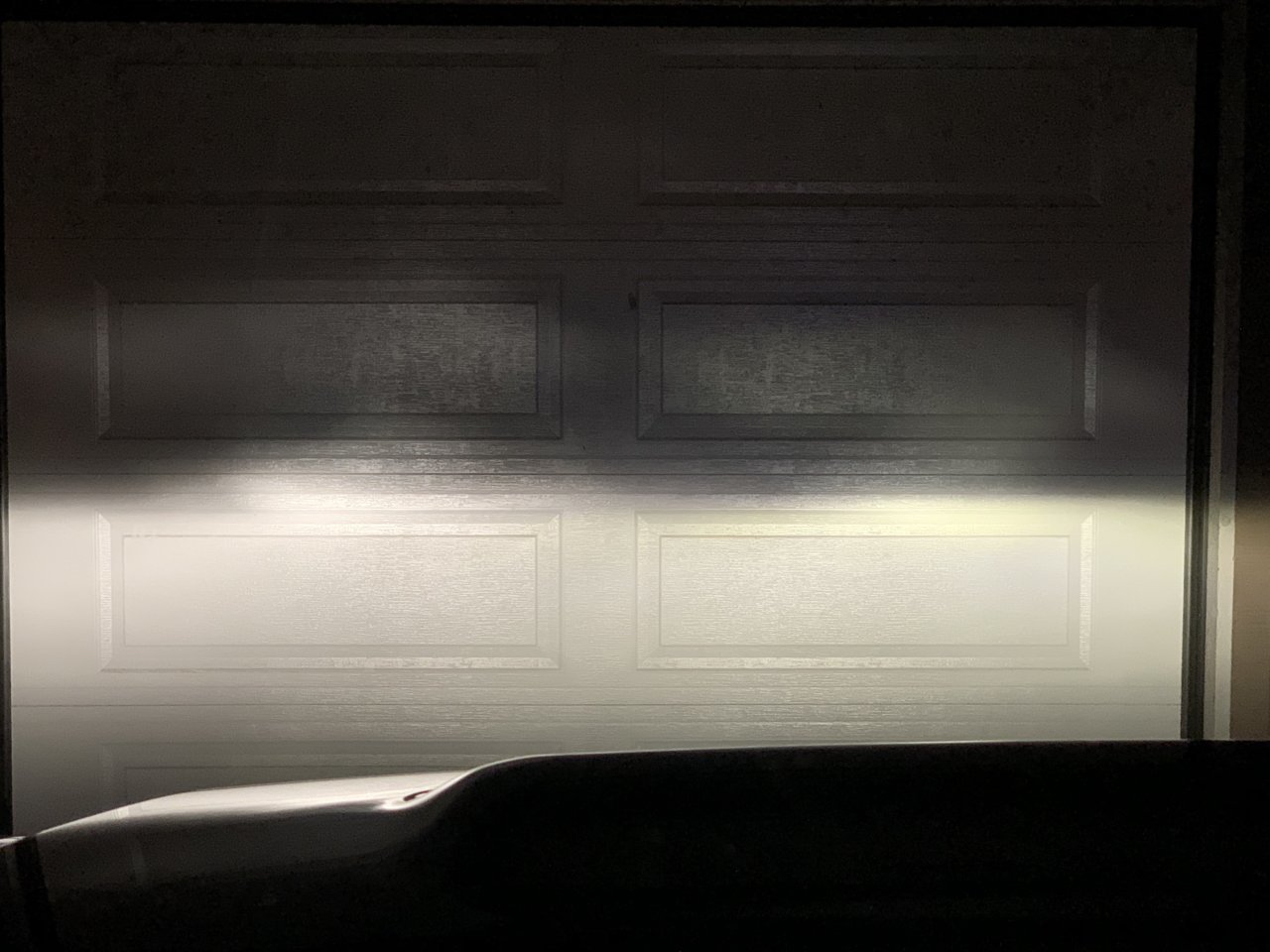

    100/90w Superbright left vs 85/80w AllSeason right.

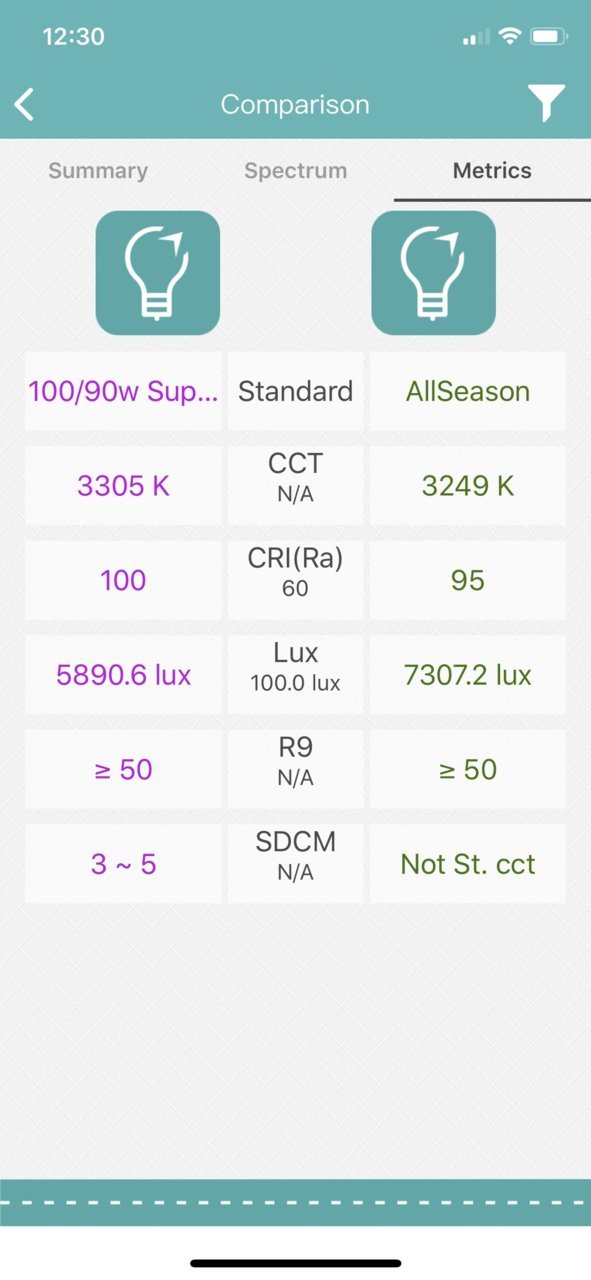

    Osram 100/90w Superbright vs the 85/80w AllSeasons


    Note the above measurement is at a closer distance than the first measurement between the two 85/80w bulbs, therefore they are not directly comparable.

    Remember these measurements are lux (intensity) at the hot spot and not cumulative output. The greater the hot spot intensity the better the distance projection. While lumen output is similar between the bulbs, the Hyper based 85/80w AllSeasons bulbs do a much better job at concentrating the light into the hot spot for superior distance projection with about 24% greater intensity.

    The AllSeason light is a little yellower than I feel pictures do justice, the up close picture of the headlight reflector is a good representation of the actual color. These lights are certainly not for everyone, as many people like cooler light for appearance purposes.

    Comparing a product designed to perform well in poor weather, with the LEDs that everyone is flocking to for their cool color temperature looks, it is very clear which will be the superior performer in poor weather by minimizing the short wavelength light. If you want to minimize short wavelength light for superior poor weather preformance, even OEM LEDs are not a good solution. Measurement below normalized for output.


    For the time being I've swapped in the 85/80w AllSeasons to try them out, and plan to leave them in for the winter and then switch back to my standard 85/80w Hypers in the spring.

    Street output photo here:
    https://www.tacomaworld.com/threads...4-not-led-or-hid.398066/page-77#post-19501976

    [​IMG]

    I ordered my 85/80w Osram AllSeasons from Amazon in the UK here.

    Also interesting, there was a 75/70w version of the Osram Hyper before they were discontinued. These were extremely popular as a great headlight bulb upgrade without needing a harness. There is a "stock wattage" AllSeason "Super" H4. But, when you look at the spec sheet nothing is inline with Osrams line. Everything is pegged at the legal maximum, power input is rated at 75/68w, which is legal max for a 60/55w bulb in Europe. All the rest of the legal Osram h4 line is 60/55w. So I think they used the 75/70w Hypers for the 'stock wattage' AllSeason Supers. Assuming the 4% loss remains true, the 70w bulb should be a significant upgrade over stock, at a slightly lower color temp.

    AllSeason Super tech specs, showing Supers are not the standard bulb, available here.

    Last edited: Jan 3, 2019
  20. Dec 28, 2018 at 1:56 AM
    #1520
    AugustusJack

    AugustusJack Well-Known Member

    Joined:
    Sep 30, 2018
    Member:
    #267950
    Messages:
    497
    Gender:
    Male
    First Name:
    A.J.
    NW WA
    Vehicle:
    '19 DCLB OR, '00 XC 3.4L 4wd MT
    You should be required reading prior to vehicle ownership. Prior to light modding, at the very least.

    GWN627, Norton and crashnburn80 [OP] like this.
