The ultimate headlight upgrade H4 (not LED or HID)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by crashnburn80, Oct 27, 2015.

  1. Feb 6, 2019 at 3:30 PM
    #1661
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,498
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!
    And! Bosch relays made in Portugal, not China. :)

    Norton likes this.
  2. Feb 7, 2019 at 6:53 AM
    #1662
    SportsmanJake

    SportsmanJake Well-Known Member

    Joined:
    Nov 18, 2015
    Member:
    #169982
    Messages:
    288
    Gender:
    Male
    VA
    Vehicle:
    2006 Tundra
    Is this the correct bulb for the Osram you are mentioning? I have the stock harness.
    https://smile.amazon.co.uk/Osram-Se...036&sr=8-1&keywords=osram+super+all+season+h4

    crashnburn80 [OP] likes this.
  3. Feb 7, 2019 at 7:02 AM
    #1663
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,498
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!
    Yes. You can check out the product data sheet and see that it is an elevated wattage bulb. Max legal wattage in the EU is 75/68w for a 60/55w bulb. The Osram Hypers made a 75/70w version, I’m pretty sure they just fudged the numbers on those. Here is the spec sheet:

    https://www.osram.asia/appsj/pdc/pdf.do?cid=GPS01_1057020&vid=PP_APAC_Asia_eCat&lid=EN&mpid=

    SportsmanJake likes this.
  4. Feb 8, 2019 at 3:24 PM
    #1664
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,498
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!

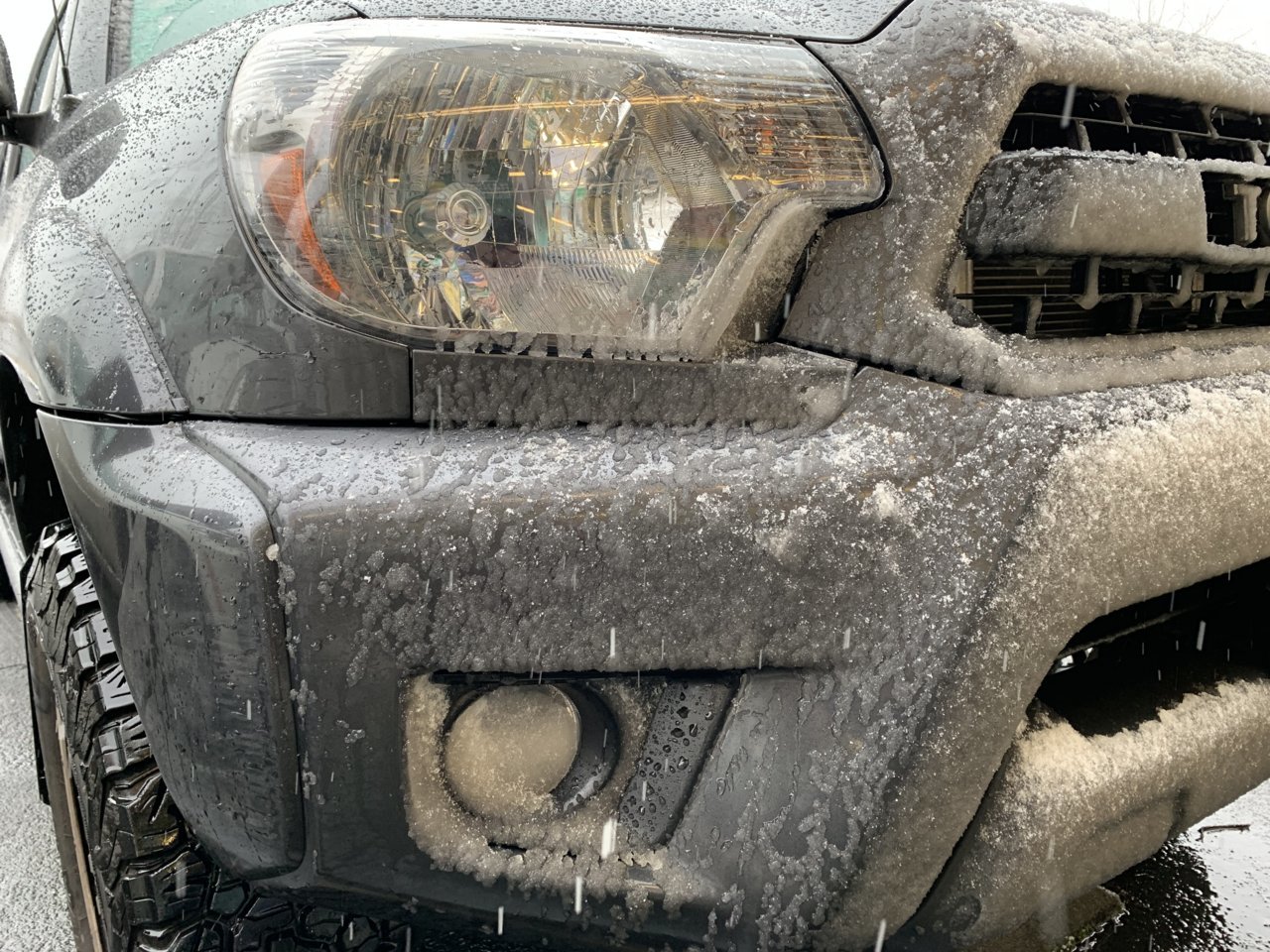

    In the Seattle area snowpocalypse today, on my drive home i noticed many vehicles with OEM LED headlights were icing over. I ran my KC G4 amber fogs and the headlights on the way home to test icing performance once I got there. Not too surprisingly the fogs were completely frozen and the hot headlights were completely clear.


    Last edited: Feb 8, 2019
    Rick_Taco, Norton, BenMara and 2 others like this.
  5. Feb 8, 2019 at 3:46 PM
    #1665
    FastEddy59

    FastEddy59 TTC #0061

    Joined:
    Jan 20, 2017
    Member:
    #208155
    Messages:
    8,534
    Gender:
    Male
    First Name:
    Eddie
    Smack, Dab in the middle of Winnipeg
    Vehicle:
    '13 Barc. Red Tacoma SR5 4X4
    Rigid 23004 Radiance light bar Cheap 3K 18W LED Fogs General AT-2's Pioneer AVH4200NEX w/ iDatalink JL XD5003V2 Focal 165KRX2's JL 10TW3 Arcticstart 803
    Think I might have mentioned my concerns over switchin from Halogen's to LED's just for that particular reason. I like the low amp draw of the LED's over Halogens but the object is light not heat & the lights no damn good if it can't project beyond the housing. Always a compromise somewhere.

    crashnburn80 [OP] likes this.
  6. Feb 8, 2019 at 3:49 PM
    #1666
    H20man

    H20man Well-Known Member

    Joined:
    Nov 21, 2018
    Member:
    #273346
    Messages:
    79
    First Name:
    Tom
    The Rainy State
    Vehicle:
    09 MGM DCSB 4WD TRD Sport
    Mods~Pretty much stock
    Yep might 15 minute commute home turned into an 1 hour and 15 mins. 1 completely rolled over Jeep Cherokee in a ditch on my side of the road and several people attempting a small hill by Beaver lake sliding down backwards. Nutz I tell ya! Just Nutz!!!

    crashnburn80 [OP] likes this.
  7. Feb 8, 2019 at 3:55 PM
    #1667
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,498
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!
    It is why I am working on v2.0 of my foglight upgrade.

    Took me 35min to make it 4 blocks, in what should be 3 minutes, to get from my office to 405.

    MattCowsmasher and BenMara like this.
  8. Feb 8, 2019 at 5:25 PM
    #1668
    JeffB

    JeffB Well-Known Member

    Joined:
    Sep 21, 2016
    Member:
    #197889
    Messages:
    895
    Gender:
    Male
    First Name:
    Jeff
    N.E. CT
    Vehicle:
    2017 TRD Sport
    If you have the Headlight Services Harness installed then I have the bulbs.
    Unfortunately I totaled my truck between installing the harness and installing the bulbs.

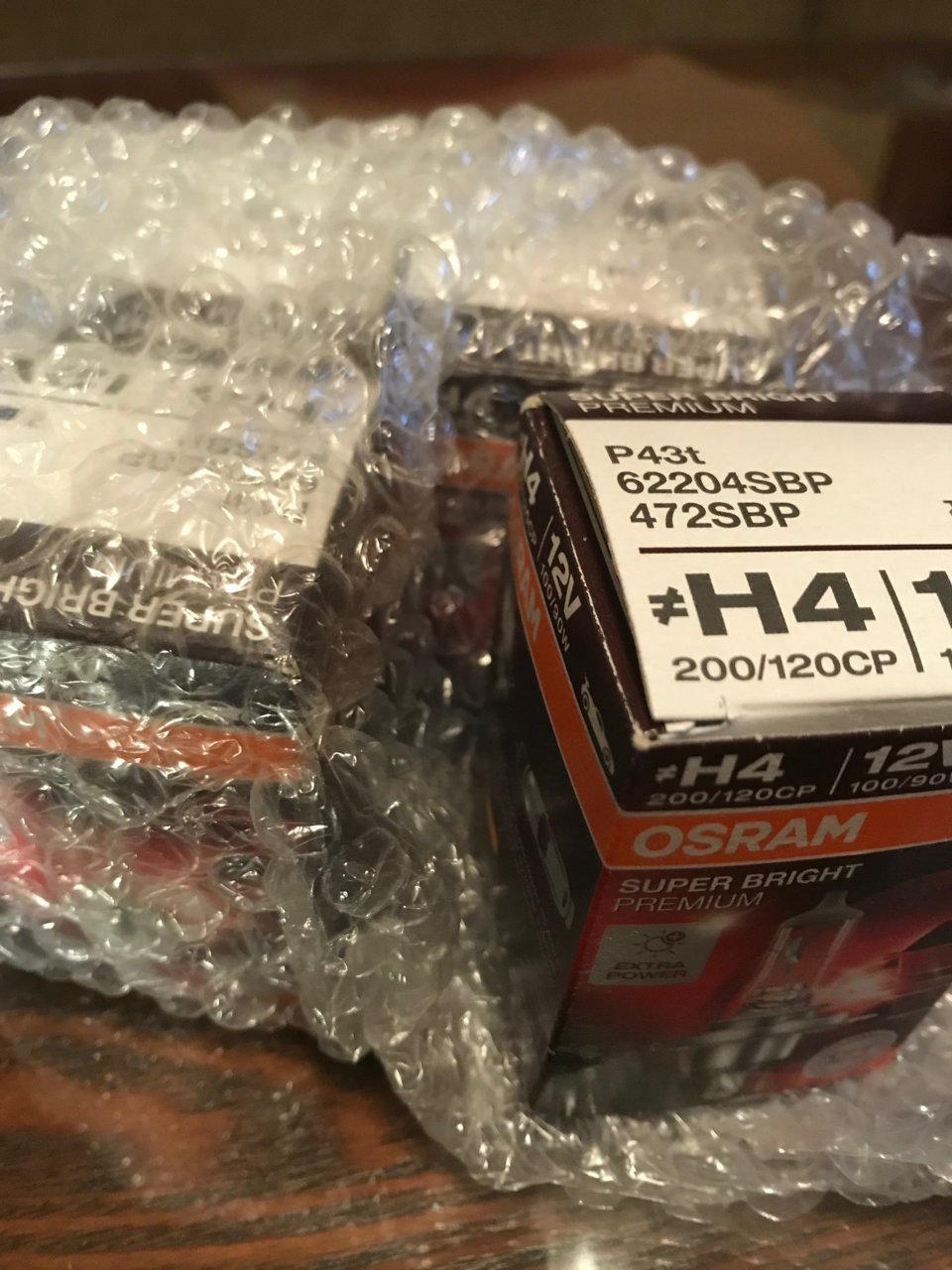

    So now I have 4 H4 Osram 100/90w bulbs for exchange for a PM to discuss PP value.


    Shipping will be free.

    Rick_Taco and crashnburn80 [OP] like this.
  9. Feb 8, 2019 at 6:21 PM
    #1669
    H20man

    H20man Well-Known Member

    Joined:
    Nov 21, 2018
    Member:
    #273346
    Messages:
    79
    First Name:
    Tom
    The Rainy State
    Vehicle:
    09 MGM DCSB 4WD TRD Sport
    Mods~Pretty much stock
    PM inbound

    crashnburn80 [OP] likes this.
  10. Feb 8, 2019 at 6:41 PM
    #1670
    Shadowhunter

    Shadowhunter Well-Known Member

    Joined:
    Mar 24, 2017
    Member:
    #214241
    Messages:
    148
    Gender:
    Male
    First Name:
    Nate
    Concrete Washington
    Vehicle:
    2013 Tacoma DCSB Sport
    Lol, our kid had early release today because of the storm. I went out to warm up the truck. I was standing there like a dumb ass watching the snow melt off the headlights when the wife came out and asked me WTF I was doing. Lol, she told me I’m a dork and I was just trying to justify doing the upgrade.

  11. Feb 8, 2019 at 9:55 PM
    #1671
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,498
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!
    They never understand...

    Rick_Taco and Shadowhunter like this.
  12. Feb 9, 2019 at 4:24 AM
    #1672
    Too Stroked

    Too Stroked Well-Known Member

    Joined:
    Jan 24, 2017
    Member:
    #208501
    Messages:
    678
    Gender:
    Male
    First Name:
    Tom
    Rochester, NY
    Vehicle:
    2014 Tacoma TRD Sport 4x4
    Yup, looks exactly like my Tacoma with the KC's on the way back from Colorado about a month ago. Each time we stopped for gas, I cleaned off the fogs and my fiancé asked me what I was doing up there. "Keeping you safe my dear."

    Last edited: Feb 9, 2019
    Rick_Taco and crashnburn80 [OP] like this.
  13. Feb 9, 2019 at 8:06 AM
    #1673
    Norton

    Norton Senior Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    3,444
    Gender:
    Male
    First Name:
    Steve
    Colorado Springs, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    Magnuson S/C, OME Suspension Lift (885 Coils, Dakar Leafs, NitroCharger Sports); TRD Quickshifter w/TRD 6-Spd Knob; TRD Exhaust; aFe POWER Magnum FLOW Pro DRY S Air Filter; NSB-AGM27F Battery w/Coupe's TRD Battery Hold Down; Goodridge SS Brake Lines; Cooper Discoverer M+S (Studded) on TRD OR Rims w/FJ SE Ctr Caps; N-Fab 6-Step Nerf Bars; BPF TRD Skid & Cooling Panel; jsi's Locker Anytime, ramonortiz55's Always on Power Outlet Relay Mods & Crom's Speed Bleeder Mod; crashnburn80's Ultimate Headlight & Fog Light Upgrades (RallyLights Harnesses, Osram 85/80W H4 & Flösser 90W H11 Bulbs); mattgecko's Underhood Lighting; ND4's Fog Light Anytime Mod; mesojdm's Ultimate LED Dome and Map Lights; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Noico Sound Insulation; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror on ImMrYo's Mirror Lift Bracket; 4Runner 4X4 & FJ Fog Light Switches; Husky Floor Liners; UltraGauge EM; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Cali Raised Led Bed Stiffeners; Pop & Lock Power Tailgate Lock; ARE Z-Series Cap, SolarGard Tint; BlendMounted BEL Pro 500; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    Very sorry to read of your automotive loss. Hope you weren't injured in the process.

    PM sent - interested in the bulbs, if @H20man doesn't take them.

    crashnburn80 [OP] likes this.
  14. Feb 10, 2019 at 7:31 AM
    #1674
    ryangriffith

    ryangriffith Member

    Joined:
    Oct 8, 2013
    Member:
    #114131
    Messages:
    18
    Gender:
    Male
    First Name:
    Ryan
    Minneapolis, MN
    Vehicle:
    2008 Tacoma Double Cab TRD
    Map light mod Heated Seat GROM audio Headlight Mod
    @crashnburn80 thanks for the excellent OP. I did the headlight conversion and am stoked with the results. It made a huge difference for my nighttime visibility. Thanks for your work.

    Rick_Taco and crashnburn80 [OP] like this.
  15. Feb 10, 2019 at 12:04 PM
    #1675
    H20man

    H20man Well-Known Member

    Joined:
    Nov 21, 2018
    Member:
    #273346
    Messages:
    79
    First Name:
    Tom
    The Rainy State
    Vehicle:
    09 MGM DCSB 4WD TRD Sport
    Mods~Pretty much stock
    ^^^^I can't agree more, Thank You Thank You!

    crashnburn80 [OP] likes this.
  16. Feb 10, 2019 at 12:45 PM
    #1676
    replica9000

    replica9000 ./$0|./$0&

    Joined:
    Apr 6, 2008
    Member:
    #5782
    Messages:
    13,988
    First Name:
    Jason
    Lake Chargoggagoggmanchauggagoggchaubunagungamaugg
    Vehicle:
    2019 T4R OR Premium
  17. Feb 10, 2019 at 3:55 PM
    #1677
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,498
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!
    Had a high beam headlight relay failure on the Rallylights harness on @White lightning boosted truck. The Rallylights harness uses Chinese Hella relays, whereas the Headlight Services harness uses Bosch European made relays. I had already swapped my Hella fog relay out to use the Bosch relay and still had the Hella laying around that we were able to swap in to get the high beams back. If using the Rallylights harness I would highly recommend swapping the higher quality relays preemptively. It is inexpensive and good insurance.

    The recommended replacement is the Bosch 332019150 Relay, made in Portugal, as identified by @Norton. A conventionally/power switched truck takes 2 of these relays, separate high and low.

    If running the Headlight Services harness, your harness already came with the high quality Bosch relays.


    Rick_Taco and Norton like this.
  18. Feb 10, 2019 at 4:17 PM
    #1678
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,498
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!
    Videos are a hard thing to judge by, the camera used in that video has a low light mode which likely means that it is going to do some image processing/adjusting of the image in low light, which if that was used means that the images may not be truly comparable. Add that to the other automatic settings used in an autofocus camera like that and it is very challenging to have a decent side-by-side comparison. To really do that you need to have a DSLR and use fixed setting with manual focus, but event then light color can be misleading in a photo. All reasons why I like quantifiable measured numbers in addition to photos. The +100s should have a better high beam though, since the +130s have a blue coating over the low beam.

    replica9000 likes this.
  19. Feb 10, 2019 at 5:19 PM
    #1679
    White lightning boosted

    White lightning boosted Well-Known Member

    Joined:
    Dec 30, 2017
    Member:
    #239848
    Messages:
    2,437
    Gender:
    Male
    First Name:
    Jesse
    Lynnwood wa.
    Vehicle:
    15' DCSB OR S/C
    Lift, pedal commander, led foglights, led interior lights, led back ups, led under lighting, urd tcai, led headlights, methanol injection, 76mm tb, hood struts, dif breather mod, ratiotek trans kit, x-series gauges, true cool trans cooler, belt wrap mod, 2.8 pulley
    The price difference isnt enough to buy a coffee. Another fine example where buying quality components counts.

    Norton and crashnburn80 [OP] like this.
  20. Feb 10, 2019 at 5:30 PM
    #1680
    White lightning boosted

    White lightning boosted Well-Known Member

    Joined:
    Dec 30, 2017
    Member:
    #239848
    Messages:
    2,437
    Gender:
    Male
    First Name:
    Jesse
    Lynnwood wa.
    Vehicle:
    15' DCSB OR S/C
    Lift, pedal commander, led foglights, led interior lights, led back ups, led under lighting, urd tcai, led headlights, methanol injection, 76mm tb, hood struts, dif breather mod, ratiotek trans kit, x-series gauges, true cool trans cooler, belt wrap mod, 2.8 pulley
    @crashnburn80 are the night breaker bulbs on Amazon below the ones I have? Or the newer style that's slightly yellowed? They are the German made variety ya?
