The ultimate headlight upgrade H4 (not LED or HID)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by crashnburn80, Oct 27, 2015.

  1. Feb 10, 2019 at 6:07 PM
    #1681
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,530
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!
    Missing the link. But you are not running Nightbreakers. You’ve either got Osram 100/90w Superbrights or if you swapped in the new bulbs the Osram 85/80 All Seasons.

  2. Feb 11, 2019 at 8:35 AM
    #1682
    smmarine

    smmarine Well-Known Member

    Joined:
    Apr 3, 2013
    Member:
    #101279
    Messages:
    6,445
    Gender:
    Male
    First Name:
    Sean
    Melbourne FL
    Vehicle:
    1999 Tacoma 4wd Supercharged 2.7L Auto
    LCE supercharger, Harrop Eaton front and rear E-Lockers, Ultimate headlight upgrade, LCE header
    It’s interesting that this happened so near mine. I was about to jump on here and see if anyone had issues with the harness. I went to drive my truck last night, and headlights wouldn’t come on at all, low or high beams. Diagnosed it today, and there’s power coming from the truck, getting to the relays, but no power making it to the headlight plugs at all. The Rallylights harness also has this resistor or diode box on the input plug from the truck. With the light switch on the thing would get so hot I couldn’t hold it very quickly. I’m not sure if that was the problem, but it’s obviously a harness problem. Pulled the harness, looking for another solution. Sucks to pay $120 or so for a product that only lasts a few years max. I had a problem with one of the ceramic plugs breaking/melting at the light as well.


    crashnburn80 [OP] likes this.
  3. Feb 11, 2019 at 8:41 AM
    #1683
    smmarine

    smmarine Well-Known Member

    Joined:
    Apr 3, 2013
    Member:
    #101279
    Messages:
    6,445
    Gender:
    Male
    First Name:
    Sean
    Melbourne FL
    Vehicle:
    1999 Tacoma 4wd Supercharged 2.7L Auto
    LCE supercharger, Harrop Eaton front and rear E-Lockers, Ultimate headlight upgrade, LCE header
    Research shows it is a resistor. I’m going to assume the resistor fried. Resistors have to be mounted to a metal surface for a heat sink to avoid overheating. Rallylights has it tied to the harness itself.

    I wonder why they put a resistor after the truck plug input side?

  4. Feb 11, 2019 at 8:47 AM
    #1684
    Norton

    Norton Senior Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    3,451
    Gender:
    Male
    First Name:
    Steve
    Colorado Springs, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    Magnuson S/C, OME Suspension Lift (885 Coils, Dakar Leafs, NitroCharger Sports); TRD Quickshifter w/TRD 6-Spd Knob; TRD Exhaust; aFe POWER Magnum FLOW Pro DRY S Air Filter; NSB-AGM27F Battery w/Coupe's TRD Battery Hold Down; Goodridge SS Brake Lines; Cooper Discoverer M+S (Studded) on TRD OR Rims w/FJ SE Ctr Caps; N-Fab 6-Step Nerf Bars; BPF TRD Skid & Cooling Panel; jsi's Locker Anytime, ramonortiz55's Always on Power Outlet Relay Mods & Crom's Speed Bleeder Mod; crashnburn80's Ultimate Headlight & Fog Light Upgrades (RallyLights Harnesses, Osram 85/80W H4 & Flösser 90W H11 Bulbs); mattgecko's Underhood Lighting; ND4's Fog Light Anytime Mod; mesojdm's Ultimate LED Dome and Map Lights; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Noico Sound Insulation; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror on ImMrYo's Mirror Lift Bracket; 4Runner 4X4 & FJ Fog Light Switches; Husky Floor Liners; UltraGauge EM; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Cali Raised Led Bed Stiffeners; Pop & Lock Power Tailgate Lock; ARE Z-Series Cap, SolarGard Tint; BlendMounted BEL Pro 500; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    I don't recall mine, my son's, or a friend's harnesses having any component like the one pictured. Neither have we had any problems with our ceramic plugs in the years since installing.

    Are you conventional- or ground-switched? When and from where did you buy your harness?

    crashnburn80 [OP] likes this.
  5. Feb 11, 2019 at 8:49 AM
    #1685
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,530
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!
    You have a ground switched harness. A resister like that is supposed to get hot, they are only used on the ground switched harness by Rallylights. Pull a relay and use a multimeter to determine if you are getting voltage in the terminals. If so you just need to replace the relay with the ones I linked. If not it sounds like the resister. Does your vehicle have headlight DRLs?

    The Headlight Services harness is higher quality and lower cost, it also does not use a resister and has better ceramic plugs:
    http://www.headlightservices.com/4runner3.html

    Last edited: Feb 11, 2019
    Norton likes this.
  6. Feb 11, 2019 at 9:59 AM
    #1686
    smmarine

    smmarine Well-Known Member

    Joined:
    Apr 3, 2013
    Member:
    #101279
    Messages:
    6,445
    Gender:
    Male
    First Name:
    Sean
    Melbourne FL
    Vehicle:
    1999 Tacoma 4wd Supercharged 2.7L Auto
    LCE supercharger, Harrop Eaton front and rear E-Lockers, Ultimate headlight upgrade, LCE header
    I ordered mine through Rallylights after finding this thread. I’ve had it 2-3 years. It’s ground switched. I have a 1st gen with H4 bulbs.

    Rick_Taco and Norton like this.
  7. Feb 11, 2019 at 10:03 AM
    #1687
    smmarine

    smmarine Well-Known Member

    Joined:
    Apr 3, 2013
    Member:
    #101279
    Messages:
    6,445
    Gender:
    Male
    First Name:
    Sean
    Melbourne FL
    Vehicle:
    1999 Tacoma 4wd Supercharged 2.7L Auto
    LCE supercharger, Harrop Eaton front and rear E-Lockers, Ultimate headlight upgrade, LCE header
    No DRLs. That harness looks better made. It looks like that resistor is built in to fully illuminate the high beam indicator bulb according to your link there.

    crashnburn80 [OP] likes this.
  8. Feb 11, 2019 at 10:13 AM
    #1688
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,530
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!
    And they mention they don’t include it to eliminate risk. If your resister is bad you could just bypass it, and your high beam indicator will just be a bit dimmer.

  9. Feb 11, 2019 at 10:16 AM
    #1689
    smmarine

    smmarine Well-Known Member

    Joined:
    Apr 3, 2013
    Member:
    #101279
    Messages:
    6,445
    Gender:
    Male
    First Name:
    Sean
    Melbourne FL
    Vehicle:
    1999 Tacoma 4wd Supercharged 2.7L Auto
    LCE supercharger, Harrop Eaton front and rear E-Lockers, Ultimate headlight upgrade, LCE header
    I’ve got a broken plug too. I emailed Rallylights about just to see what they say. I’ll decide what to do after I hear from them.

    crashnburn80 [OP] likes this.
  10. Feb 11, 2019 at 10:21 AM
    #1690
    Norton

    Norton Senior Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    3,451
    Gender:
    Male
    First Name:
    Steve
    Colorado Springs, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    Magnuson S/C, OME Suspension Lift (885 Coils, Dakar Leafs, NitroCharger Sports); TRD Quickshifter w/TRD 6-Spd Knob; TRD Exhaust; aFe POWER Magnum FLOW Pro DRY S Air Filter; NSB-AGM27F Battery w/Coupe's TRD Battery Hold Down; Goodridge SS Brake Lines; Cooper Discoverer M+S (Studded) on TRD OR Rims w/FJ SE Ctr Caps; N-Fab 6-Step Nerf Bars; BPF TRD Skid & Cooling Panel; jsi's Locker Anytime, ramonortiz55's Always on Power Outlet Relay Mods & Crom's Speed Bleeder Mod; crashnburn80's Ultimate Headlight & Fog Light Upgrades (RallyLights Harnesses, Osram 85/80W H4 & Flösser 90W H11 Bulbs); mattgecko's Underhood Lighting; ND4's Fog Light Anytime Mod; mesojdm's Ultimate LED Dome and Map Lights; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Noico Sound Insulation; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror on ImMrYo's Mirror Lift Bracket; 4Runner 4X4 & FJ Fog Light Switches; Husky Floor Liners; UltraGauge EM; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Cali Raised Led Bed Stiffeners; Pop & Lock Power Tailgate Lock; ARE Z-Series Cap, SolarGard Tint; BlendMounted BEL Pro 500; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    crashnburn80 [OP] likes this.
  11. Feb 11, 2019 at 2:10 PM
    #1691
    Too Stroked

    Too Stroked Well-Known Member

    Joined:
    Jan 24, 2017
    Member:
    #208501
    Messages:
    686
    Gender:
    Male
    First Name:
    Tom
    Rochester, NY
    Vehicle:
    2014 Tacoma TRD Sport 4x4
    In addition to what @crashnburn80 has already stated, let me add one more thought. I can't tell you how many times I've seen pictures of various lights and somebody says they "look brighter." The problem is, looking brighter and putting more usable light where its needed are generally two different things. For instance, lots of aftermarket LED headlight replacement bulbs look brighter. (The internet is full of these.) The truth is, there is indeed more light - aimed at your eyes and not onto the ground where it's needed. So they indeed look brighter. But it's mostly just glare and it doesn't do anybody any good. More light and more usable light are not always the same thing.

    The only way I'll buy a claim of "brighter" lights is where it's backed up with the kind of instrumented, unbiased, scientific testing that @crashnburn80 does. You'll rarely see that from manufacturers.

  12. Feb 11, 2019 at 2:53 PM
    #1692
    1rider

    1rider Member

    Joined:
    Apr 29, 2012
    Member:
    #77863
    Messages:
    17
    Gender:
    Male

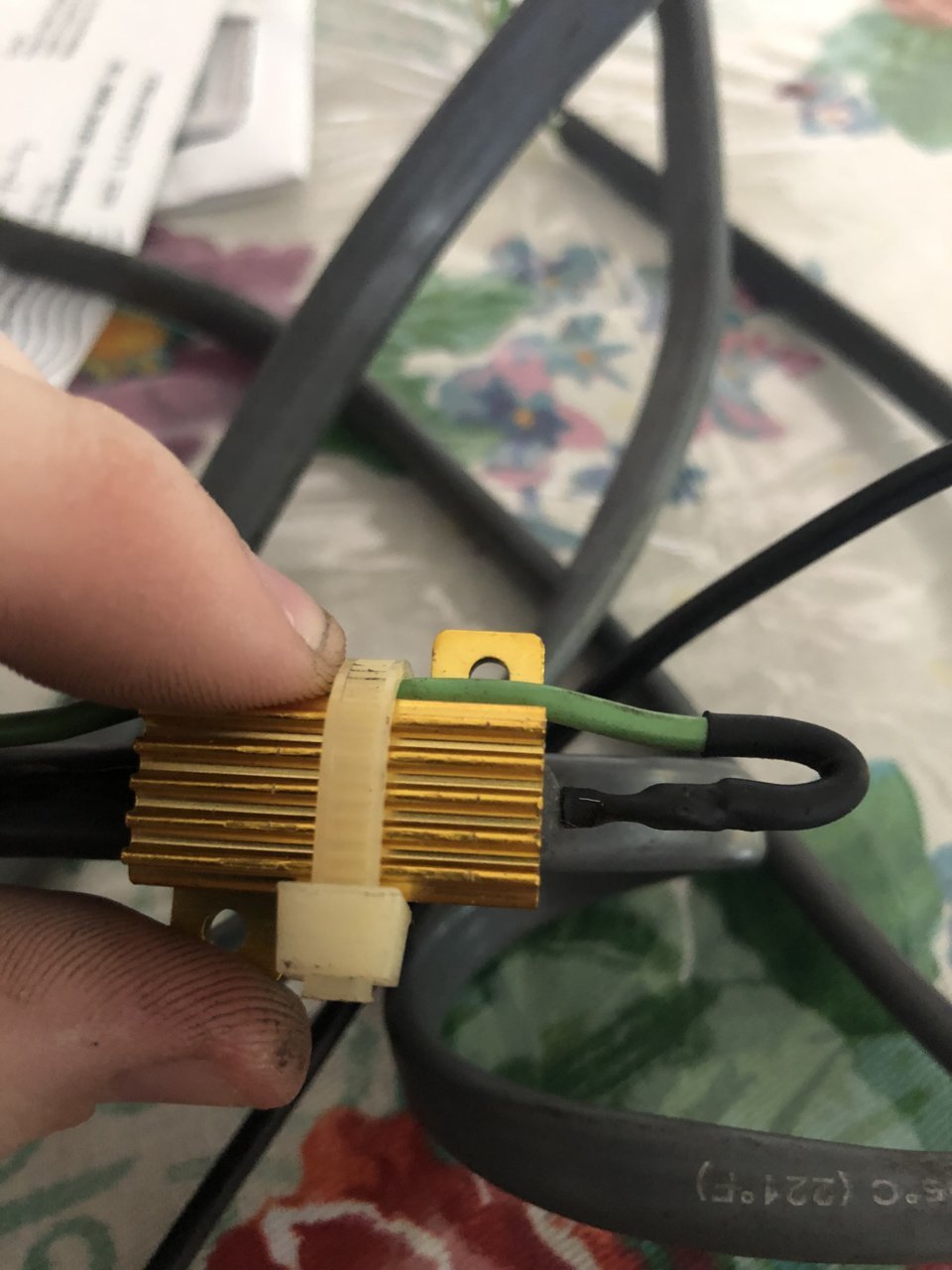

    Quick update, Headlightservices harness installed burning https://www.powerbulbs.com/us/product/osram-super-bright-premium-h4 and I am very happy. As crash mentioned, way more light but no flashers because it’s still a halogen bulb in a halogen lens. Burning This along with Crash’s fog lamp mod with 2K * paint cap mod. We have some weather here in Gloucester tomorrow afternoon/evening, even if I’m home already from work I’ll go for a rip around the point to reaffirm my satisfaction.

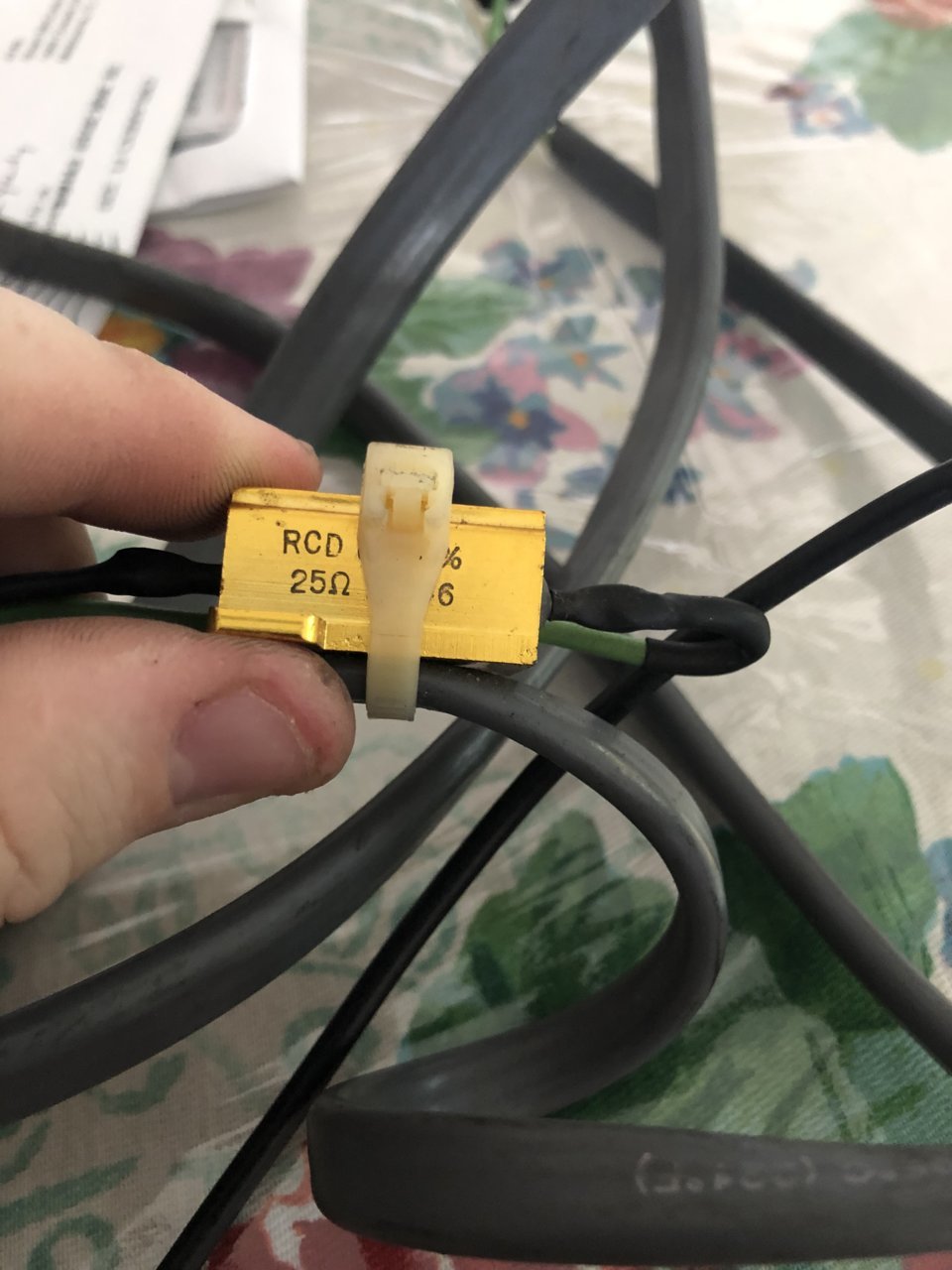

    A photo of the point;




  13. Feb 12, 2019 at 2:46 PM
    #1693
    Bravisimo

    Bravisimo So many mods, so little money.

    Joined:
    Nov 17, 2014
    Member:
    #142575
    Messages:
    544
    Gender:
    Male
    First Name:
    Joe
    Santa Clarita, CA
    Vehicle:
    2014 Tacoma PreRunner SR5 DCLB
    Tint, headlights wrapped & rear lights smoked, power outlet mod., grill & rear bumper wrapped, Falken A/T 3W,

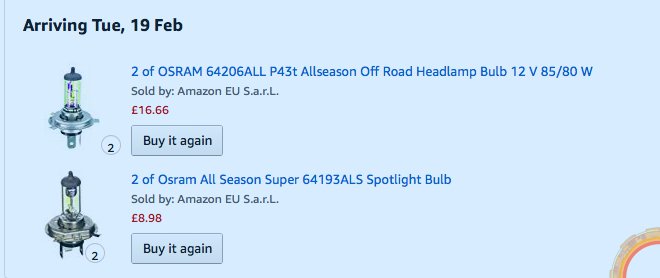

    So I pulled the trigger on these ..

    . Screen Shot 2019-02-12 at 2.36.18 PM.jpg

    Figuring it would be smart to have an all season bulb for inclement weather (although living in So Cal, we barely see rain but these past few days have been stormy) And having regular bulbs for the spring / summer. If I had a garage, Id be doing the same rotation with tires. But anyways, Hope I get my all seasons before the next rain day and see how they perform. Needless to say, I need a case to hold the spares in my truck, Any suggestions?

    For those of you who are on the fence on the harness, get it! I do not regret the upgrade and @crashnburn80 has the best info on lighting, hands down. My next upgrade will probably be organizing the wiring under the hood. Right now it looks like a mess according to my OCD. Then fog lights upgrade and rear backup lights research (provided by @crashnburn80).

    crashnburn80 [OP] likes this.
  14. Feb 12, 2019 at 3:16 PM
    #1694
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,530
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!
    Both those bulbs are All Seasons, one is the high power 85/80w and the other Super is the mid-power 75/68w listed as a stock 60/55w bulb. Both good bulbs and big improvements over stock.

    For the OCD way to carry spares (note that is an H4 and H7, not twin H4s):
    https://www.amazon.co.uk/UNIVERSAL-...HHRN4HMHH2C&psc=1&refRID=1FP7ZVSW8HHRN4HMHH2C

    Osram and others also make special spare bulb carrying boxes for H4s for use in the motorcycle market, since having your only headlight go out would be pretty bad. Someone has to sell these individually but they come in Osram blister packs for motorcycles:
    https://www.amazon.co.uk/Osram-6419...0YMH4BNVRNY&psc=1&refRID=4W0JZ9QXN0YMH4BNVRNY

    As for the fogs, I hope to share some cool fog updates this evening in the fog thread.

    Rick_Taco and Bravisimo like this.
  15. Feb 12, 2019 at 5:29 PM
    #1695
    replica9000

    replica9000 ./$0|./$0&

    Joined:
    Apr 6, 2008
    Member:
    #5782
    Messages:
    13,999
    First Name:
    Jason
    Lake Chargoggagoggmanchauggagoggchaubunagungamaugg
    Vehicle:
    2019 T4R OR Premium

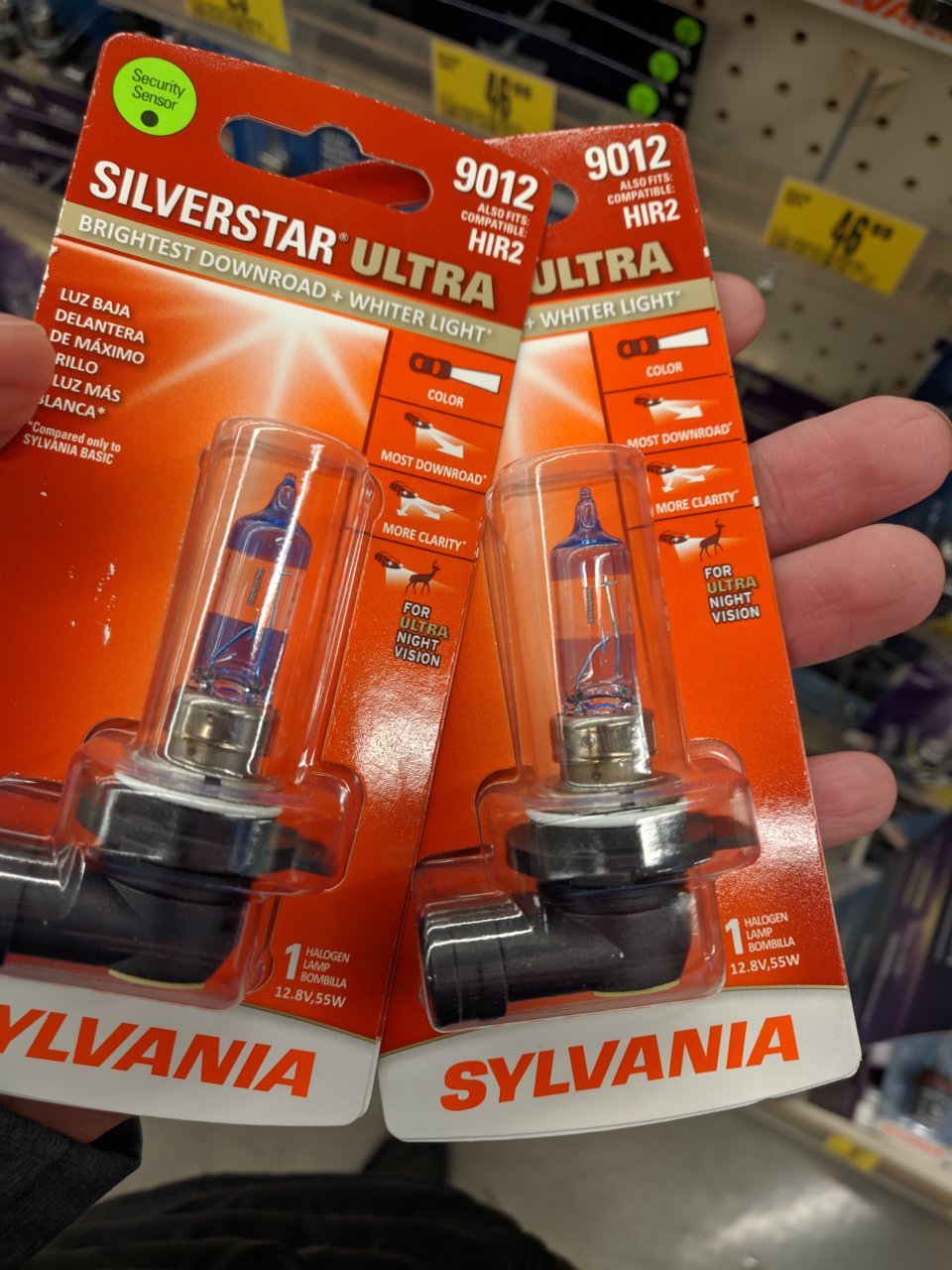

    Headlight went out on my girl's Rav4. Stopped by an auto parts store for some bulbs. I was possibly considering Silverstar Ultra bulbs, but at $50+ each, you'd think the quality might be better. Settled for the Silverstar basics for now.


    The stock bulbs are Philips.

    crashnburn80 [OP] likes this.
  16. Feb 12, 2019 at 6:23 PM
    #1696
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,530
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!

    9012s :drool:

    Any blue coating reduces output, so less coating is better. If you wanted the best 9012s, check out these Volsa +30s:
    https://store.candlepower.com/bvohi93subrl.html

  17. Feb 12, 2019 at 6:23 PM
    #1697
    Too Stroked

    Too Stroked Well-Known Member

    Joined:
    Jan 24, 2017
    Member:
    #208501
    Messages:
    686
    Gender:
    Male
    First Name:
    Tom
    Rochester, NY
    Vehicle:
    2014 Tacoma TRD Sport 4x4
    Still got the receipt? You're going to be disappointed. Regular Silverstars have a very short life. Ultras are only a little better. And as for the promised dramatic increase in light output? Not so much.

    Norton and crashnburn80 [OP] like this.
  18. Feb 13, 2019 at 5:26 AM
    #1698
    Rick_Taco

    Rick_Taco I'll do it myself

    Joined:
    Feb 20, 2018
    Member:
    #245008
    Messages:
    449
    Gender:
    Male
    First Name:
    Rick
    Indiana
    Vehicle:
    '13 DCSB 4WD Limited MGM 57K Miles
    Bird Dog RVM Bracket, Tint 20% all around, Spider Trax 1.250" wheel spacers K&N Drop in air filter Ram Mount A Pillar (And hard wire charging) Dual 2.4amp Charging USB LED Lower Center Dash Light Center Console Light Trailer plug moved to bumper Tonneau Cover Air Pump Filter Upgrade (UNI Filter) Ultimate reverse light upgrade (Phillips 18161) Anytime Fog Lights Blue LED shift light Mods to Buy Short Term: Ultimate Headlight Upgrade Ultimate Fog light Upgrade Wheelers Bump Stops On Board Compressor Mods to Buy Long Term: Billys and 885's OME leafs & Billys BFG TA K02
    I like that little bulb case! My spare bulbs are not anywhere near that organized right now. :(

    crashnburn80 [OP] likes this.
  19. Feb 13, 2019 at 9:21 AM
    #1699
    replica9000

    replica9000 ./$0|./$0&

    Joined:
    Apr 6, 2008
    Member:
    #5782
    Messages:
    13,999
    First Name:
    Jason
    Lake Chargoggagoggmanchauggagoggchaubunagungamaugg
    Vehicle:
    2019 T4R OR Premium
    Wasn't a lot to choose from at the store. If they carried Philips or Nokya, I would have bought those instead.

  20. Feb 13, 2019 at 6:01 PM
    #1700
    lpfe42

    lpfe42 Well-Known Member

    Joined:
    Jul 2, 2015
    Member:
    #158633
    Messages:
    310
    Gender:
    Male
    First Name:
    Kenny
    Santa Barbara County
    Vehicle:
    17' DCSB Silver
    5100/887 Icon uca
    :fingerscrossed:I have a quick question for you guys so I have a 2017 TRD off-road with the LED strips can you swap out those headlights for an SR5 model that have the amber running lights like the second generation Tacoma’s

    crashnburn80 [OP] likes this.
