TheNatural's 2012 Totally Expo Trail Limo Build

Discussion in '2nd Gen. Builds (2005-2015)' started by TheNatural, Oct 20, 2014.

  1. Oct 20, 2014 at 8:52 AM
    #1
    TheNatural

    TheNatural [OP] Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,143
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff
    I bought my 2012 DCLB TRD Sport used in October of 2013. It was stock except for some ProComp rims. I need to take some new photos, these ones are getting old.

    Summer Tires:
    [​IMG]

    Winter Tires:
    [​IMG]

    Suspension & Wheels:
    -Front OME Coilovers w/ 886 coils
    -Front Wheelers Superbumps
    -Icon Uniball UCA's
    -Total Chaos spindle gussets
    -Total Chaos cam tabs
    -Whiteline Poly LCA bushings
    -Cab mount chop
    -Alpine Designs cab mount relocation
    -Rear OME shocks
    -Deaver AAL
    -1.5" rear block lift
    -Deaver U402 Expedition III leaf pack
    -All-pro ubolt flip kit
    -Rear Timbren bump stops
    -305/65r17 Mickey Thompson ATZ P3's on Pro Comp 17x9's (Summer)
    -Studded 265/70r17 Hercules Avalanche X-Treme's on Pro Comp 17x8's (Winter)
    -315/70r17 General Grabber ATX's on Replika R213's
    -1.25" Wheel Spacers on All 4 Corners

    Performance & Mechanical:
    -Uni filter mod
    -Crawford Eco Block
    -TRD Air Filter
    -URD Y-Pipe
    -TRD Supercharger!
    -Yellow Wire Mod
    -ABS Kill Switch Mod
    -Rear ARB locker w/ SS braided air line
    -ARB compressor
    -4.56 gears
    -Rear diff breather relocate
    -EBC Stage III brake kit (pads and rotors)
    -+1" front and +6" rear SS braided brake hoses
    -Energy Suspension Cab Mount and Radiator Core Support Bushings
    -Energy Suspension steering rack bushings

    Lights:
    -2 20" combo beam China lights on a BAMF behind the grill light bar mount
    -China ditch lights on CBI brackets
    -50" curved spot beam China light bar on custom PrInSu roof mount, formerly MCM Fab mounts
    -BLBM (Black Light Bar Mod)
    -BHLM (Black Head Light Mod)
    -LED head light bulbs
    -Switchback LED turn signal bulbs
    -Smoked fog lights with yellow LED bulbs
    -Depo black tail lights
    -LED reverse lights & parking lights
    -LED strip under hood lights
    -LED map, dome, vanity & license plate lights

    Armour & Recovery:
    -USOffroad winch mount bumper
    -Smittybilt XRC9.5 winch with black ebay fairlead
    -Brute Force Fab high clearance rear bumper with swingout and flip up license plate mount
    -4x Innovations IFS skid
    -4x Innovations mid skid
    -4x Innovations transfer case skid
    -BAMF sliders
    -BAMF LCA skids
    -Trail Toys UHMW gas tank skid
    -Two pairs of Maxtrax on custom roof rack mounts w/ Maxtrax mounting pins
    -The regular shackles, tow straps, etc.
    -60" Hi Lift Xtreme on Rago Fab bed mounts
    -Stihl MS 290 Chainsaw

    Interior:
    -Alpine INE-Z928HD head unit
    -Dynamat Xtreme applied to doors and roof
    -ImMrYo rearview mirror bracket
    -Clazzio's with front seat heaters
    -Arm rests matched to Clazzio vinyl
    -Outlets in cab mod
    -Mob Armor phone mount
    -Panavise mounting bracket with Quad Lock phone mount/charger
    -Husky floor mats
    -LROR shift knob
    -Custom center console switch panel with OTRATTW switches
    -Overhead switch panel with OTRATTW switches
    -42 Quart Fridge

    Exterior:
    -Shorty "TRD" radio antenna
    -Relocated trailer connector to bumper
    -Grillcraft grill with ebay TRD badge

    -Airflow Snorkel
    -PrInSu Roof Rack
    -Plano rifle cases (2)
    -Extang Trifecta tonneau cover
    -Custom SOS concepts bed rack - that I later hacked up myself to make it more like the run of the mill bed racks.
    -CVT Mt Rainier roof top tent moved to trailer
    -OEM bed mat
    -Custom bedside decals
    -Relentless tailgate reinforcement
    -Exhaust dumped after axle
    -Fenders trimmed 2"
    -Faux Bushwacker fender flares also trimmed 2" and converted to bolt on
    -Redline Tuning hood struts
    -OEM bug deflector

    Electrical & Comms:
    -BlueSea aux fuse panel and breakers
    -Group 31 Odyssey battery in Rago battery cage with Slee military style terminals and extension
    -HKB adjustable voltage booster
    -Cobra 75 CB with BAMF antenna mount and Firestik
    -ICOM commercial VHF radio with BAMF antenna mount and aux speaker
    -Viper 5806V remote start and alarm
    -OEM heated mirrors

    Future Plans:
    -Relocate rear view camera (half done)
    -Rock lights
    -Bed lights
    -40" light bar (Waiting on install)
    -Ally lights
    -Reverse lights
    -Soundproofing cab (in progress)
    -Solar
    -URD 2.85" Supercharger Pulley
    -BAMF rear shock relocate towers (Waiting on install)
    -12" rear King shocks (Waiting on install)
    -Rear seat delete
    -Cameras all around for self spotting
    -Front air locker
    -WeBoost Drive 4G cell phone booster
    -Full Front Bumper
    -Heated steering wheel?

    Maintenance & Mod Log
    Some other build threads have this and I thought it was a cool idea. Mine starts at 150k, but up until then it hasn't had anything major; just routine maintenance and fun mods. Plus some front end stuff on the passenger side thanks to someone hitting it in a parking lot.
    -150,190km Replaced oil in front & rear diffs & transfer case (Lucas 85W-140). New windshield wipers
    -152xxxkm Oil & filter change
    -153xxxkm New Deaver U402 Expedition III leaf springs and ubolt flip, rotate winter tires
    -160,684km Oil & filter change, clean air filter
    -160,7xxkm Front Superbumps and Uni filter mod, switch to summer tires
    -162,512km Rear Timbren bump stops and tire rotation, fill windshield washer fluid
    -168,1xxkm Oil & filter change, clean air filter
    -170,xxxkm Switch to winter tires
    -173,9xxkm Rotate winter tires
    -174,xxxkm Low Oil Pressure Light!! Turned out to be a bad oil filter. Replaced.
    -175,9xxkm Replaced gas cap and EVAP canister to get rid of pesky CEL.
    -176,148km Oil & filter change, clean air filter, replace supercharger belt
    -176,350km Switch to summer tires
    -179,6xxkm Replace UCA uniballs, grease UCA bushings, rotate summer tires
    -184,098km Oil & filter change, clean air filter, fill windshield washer fluid
    -184,6xxkm Remove skid plates to repaint, grease prop shafts
    -185,1xxkm Switch to winter tires, replace cracked drivers side mirror glass, replace broken fog lights, replace DRL/turn signal bulb
    -185,2xxkm Install LED switchback DRL/turn signals, replace winch controller socket on solenoid, replace pop pin in rear bumper swing out
    -189,4xxkm Replace clock spring to get horn working again
    -190,0xxkm Trim front fenders, install new fender flares, replace front corner marker lights, top up windshield washer fluid, top up coolant bottle with OEM red, zip tie small coolant hose going into the top of the reservoir to stop a small leak, replace 7 pin trailer plug.
    -190,6xxkm match arm rests to Clazzio seats and Dynamat doors.
    -192,167km oil & filter change
    -193,2xxkm rotate tires, install EBC brake kit (pads and rotors), install ditch lights and CBI brackets
    -193,940km replace headlight bulbs, relocate backup camera.
    -196,560km plug flat tire, install Odyssey G31 AGM battery in Rago cage and HKB adjustable voltage booster
    -197,1xxkm install new Grabber ATX tires on new rims, repaint sliders
    -197,297km replace front right axle seal and CV axle, install wheel spacers and poly rad core support bushings, clean corroded fog light connection
    -199,217km install alpine designs cab mount relocation, rotate tires.
    -200,xxxkm oil & filter change (mobil1), grease UCA bushings, grease prop shafts, change diff & transfer case oil (Lucas 85W-140), install Rago Fab hi lift mounts, flush brake fluid and install new brake hoses, clean air filter, replace windshield wipers, replace license plate frame, paint correction and sealant
    -201,240km replace spark plugs (IKH22), change supercharger oil, replace supercharger nose drive coupler, clean throttle body
    -202,020km replace rear cab mount bushings with Energy Suspension, install Whiteline LCA bushings, replace driver side Icon UCA bushings, replace passenger lower ball joint, install Total Chaos cam tabs, install Total Chaos spindle gussets, replace LCA hardware with new OEM, install Energy Suspension steering rack bushings, refill steering fluid, replace driver side CV axle, replace driver side inner hub seal, wheel alignment

    Last edited: Sep 1, 2021
  2. Oct 22, 2014 at 11:47 PM
    #2
    TheNatural

    TheNatural [OP] Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,143
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff
    Below is a bit of a walk through memory lane. I included all the pics I could, but a lot of things were done without a free hand to work a camera :cool:

    The day I picked it up from the dealer
    [​IMG]

    Added Grillcraft (first real mod.. slippery slope)
    [​IMG]

    Light bars on the BAMF mount, headlights out for BHLM
    [​IMG]

    The day I decided the stock highway tires were not going to cut it. This tow strap broke and left a nice dent in the tailgate :(
    [​IMG]

    It stayed in this form for quite a while. BHLM complete and shorty antenna have been added.
    [​IMG]

    BlueSea aux fuse block and breaker, another breaker spot for future winch
    [​IMG]

    Outlets in the cab, wired into factory inverter.
    [​IMG]

    I decided it should be taller
    [​IMG]

    And I did some trimming
    [​IMG]

    New meats, US Offroad bumper, and XRC9.5 winch installed.
    [​IMG]
    [​IMG]

    Roof light bar on MCM Fab mounts
    [​IMG]

    Working on the Clazzio's
    [​IMG]

    Last edited: Jun 25, 2015
    ChadsPride likes this.
  3. Nov 13, 2014 at 7:44 PM
    #3
    TheNatural

    TheNatural [OP] Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,143
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff

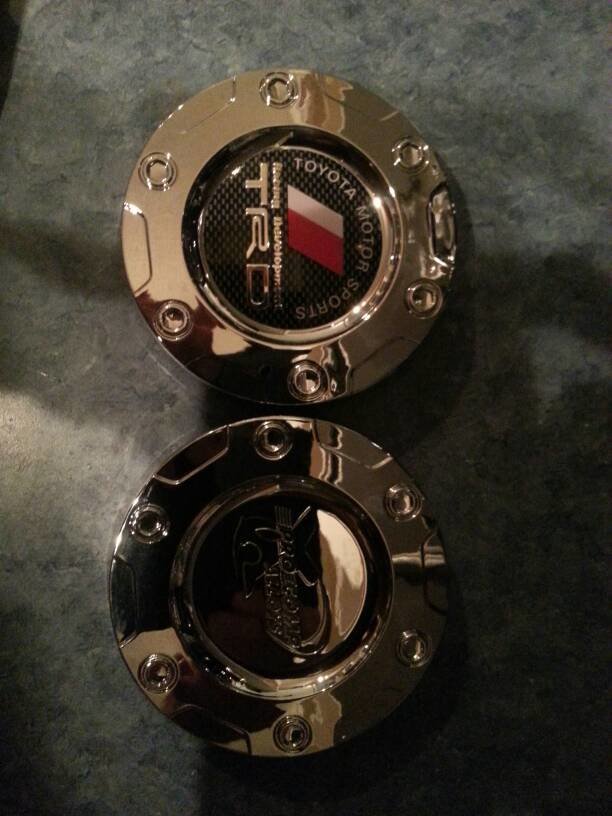

    "TRD" hub cap mod

    ChadsPride likes this.
  4. Nov 13, 2014 at 7:49 PM
    #4
    T4RFTMFW

    T4RFTMFW Well-Known Member

    Joined:
    Jul 23, 2014
    Member:
    #134525
    Messages:
    69,491
    Nice truck. :popcorn:

  5. Nov 16, 2014 at 3:17 PM
    #5
    TheNatural

    TheNatural [OP] Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,143
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff
    Got the LED bar mounted on my roof today. I'm not totally sold on how it looks. Maybe I'll like it more once I get it wired and get to try it out. (waiting on switch in the mail)

    [​IMG]

    [​IMG]

  6. Nov 20, 2014 at 8:46 AM
    #6
    TheNatural

    TheNatural [OP] Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,143
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff
    Clazzio's came in! I got the drivers seat in late last night and I love it. I'll snap a pic when I finish the install.

  7. Nov 25, 2014 at 10:46 AM
    #7
    TheNatural

    TheNatural [OP] Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,143
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff
    Switches came in the mail just now! :yes:

    [​IMG]

  8. Nov 25, 2014 at 7:07 PM
    #8
    uscg2008

    uscg2008 Well-Known Member

    Joined:
    Nov 6, 2009
    Member:
    #25537
    Messages:
    2,884
    Gender:
    Male
    First Name:
    coby
    San Diego, CA originally from Huntington Beach, CA
    Vehicle:
    06 trd sr5 four door 4x4
    CLICK ON SIGNATURE>>>>
    Where you planning on mounting the switches in the sun glass holder?

  9. Nov 25, 2014 at 7:38 PM
    #9
    TheNatural

    TheNatural [OP] Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,143
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff
    One of the members on here is making me a custom panel that goes in the space in front of the cup holders, below HVAC controls. First prototype needed a couple tweaks, but the final version should ship out this week. Stay tuned for pics?

  10. Nov 25, 2014 at 9:45 PM
    #10
    Shmellmopwho

    Shmellmopwho Well-Known Member

    Joined:
    Apr 10, 2014
    Member:
    #127399
    Messages:
    10,722
    Gender:
    Male
    First Name:
    Ryan
    Lomita CA
    Vehicle:
    2013 White DCLB TRD sport
    Bunch of stuff
    Looking really good so far! I like it. Good work!!!

  11. Nov 25, 2014 at 10:31 PM
    #11
    TheNatural

    TheNatural [OP] Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,143
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff
    I updated the first post with a bunch of pics I dug up. More of a build thread now

    Thanks!

  12. Dec 5, 2014 at 9:19 AM
    #12
    TheNatural

    TheNatural [OP] Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,143
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff
    I noticed I was getting close to the end of my future mod list... so I added to it, a lot.

  13. Dec 6, 2014 at 9:18 PM
    #13
    TheNatural

    TheNatural [OP] Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,143
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff
    Got the rear Clazzio's in. The leather look really adds some class to the interior and the heated seats will be real nice once I finish wiring them. Pics when it's not so dark.

  14. Dec 6, 2014 at 9:34 PM
    #14
    T4RFTMFW

    T4RFTMFW Well-Known Member

    Joined:
    Jul 23, 2014
    Member:
    #134525
    Messages:
    69,491
  15. Dec 16, 2014 at 10:00 AM
    #15
    TheNatural

    TheNatural [OP] Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,143
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff
    Yay! Skid plates are here! I guess I have some work to do getting them painted. (ignore my disgusting basement, it's a construction zone right now)
    [​IMG]

  16. Dec 18, 2014 at 9:31 PM
    #16
    TheNatural

    TheNatural [OP] Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,143
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff
    Good news everyone! My switch mounting panel came in and I got it painted... and full of switches! Hopefully I'll find time to wire some stuff over the holidays!

    [​IMG]
    [​IMG]
    [​IMG]

    llamasmurf likes this.
  17. Dec 18, 2014 at 9:44 PM
    #17
    TheNatural

    TheNatural [OP] Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,143
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff
    And I scaled all the picture sizes down so they wont break your internets anymore!

  18. Dec 18, 2014 at 11:54 PM
    #18
    nxrunner

    nxrunner Well-Known Member

    Joined:
    May 20, 2012
    Member:
    #79221
    Messages:
    115
    Gender:
    Male
    First Name:
    Nick
    Lafayette La.
    Vehicle:
    2015 Tacoma Double Cab 6 Speed

    which bug shield is this?

  19. Dec 19, 2014 at 3:51 AM
    #19
    TheNatural

    TheNatural [OP] Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,143
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff
    I had the dealer throw it on when I bought it... I assumed OEM but honestly not too sure.

  20. Dec 24, 2014 at 11:31 PM
    #20
    dandrilla

    dandrilla Member

    Joined:
    Nov 24, 2014
    Member:
    #143015
    Messages:
    23
    Gender:
    Male
    First Name:
    Dominic
    Seattle
    Vehicle:
    07 Double Cab LB 4x4
    3 inch lift, AM nerf bars, Plasti-dip badges, Areis bull bar, KC 6in spotlights, AM stereo + sub, AM high performance Halogen headlight bulbs
    looks great! how complicated was the light bar roof install? i'd be curious to see what a difference that one makes when you've got it wired


Products Discussed in

To Top
