Thoughts and opinions on THIRD BREAK LIGHT set-up

Hello everybody, so I have a few KC Cyclone lights and did not know what to do with them.

I ended giving @MESO a call and the USPS dropped this at my door.

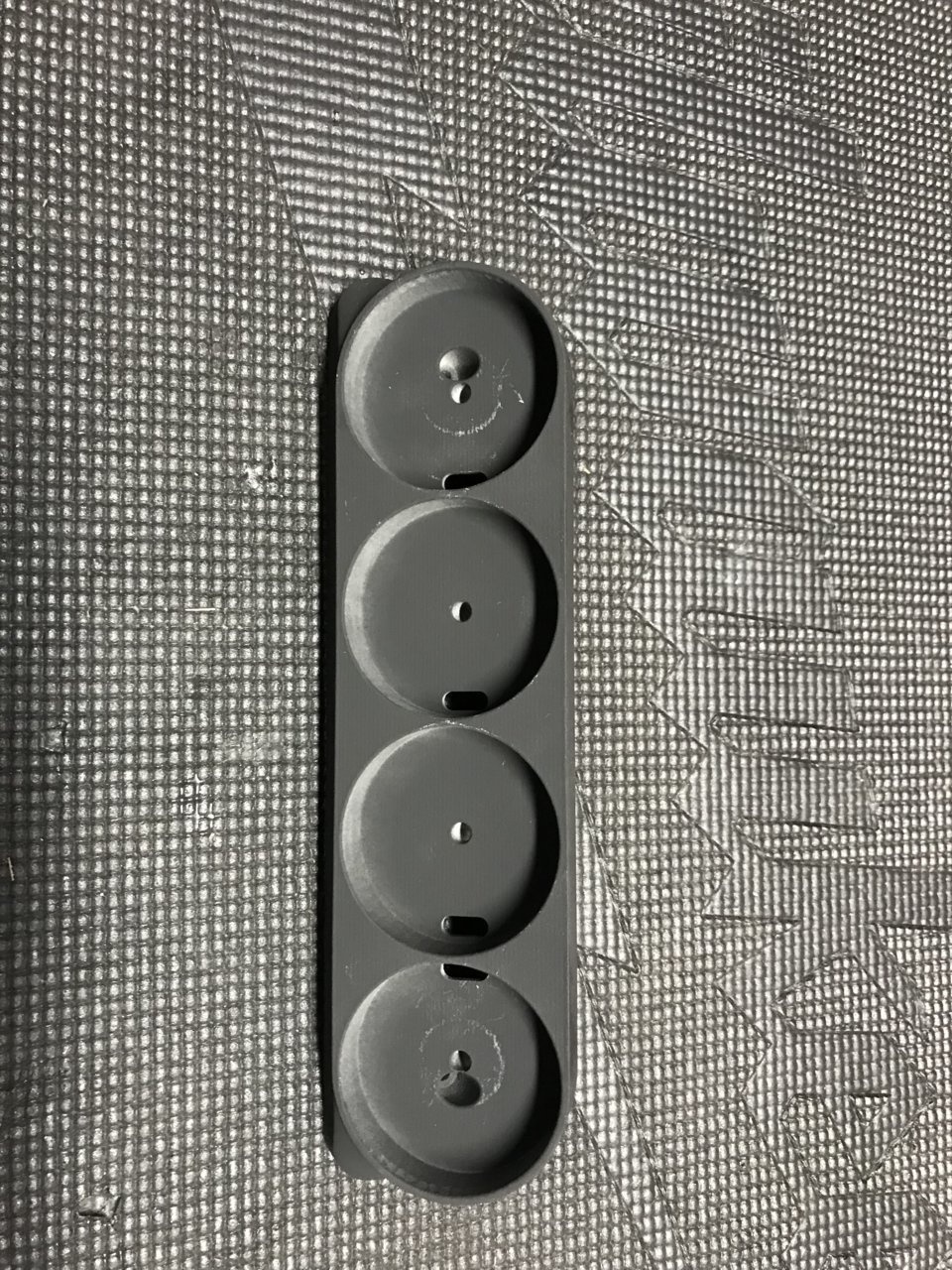

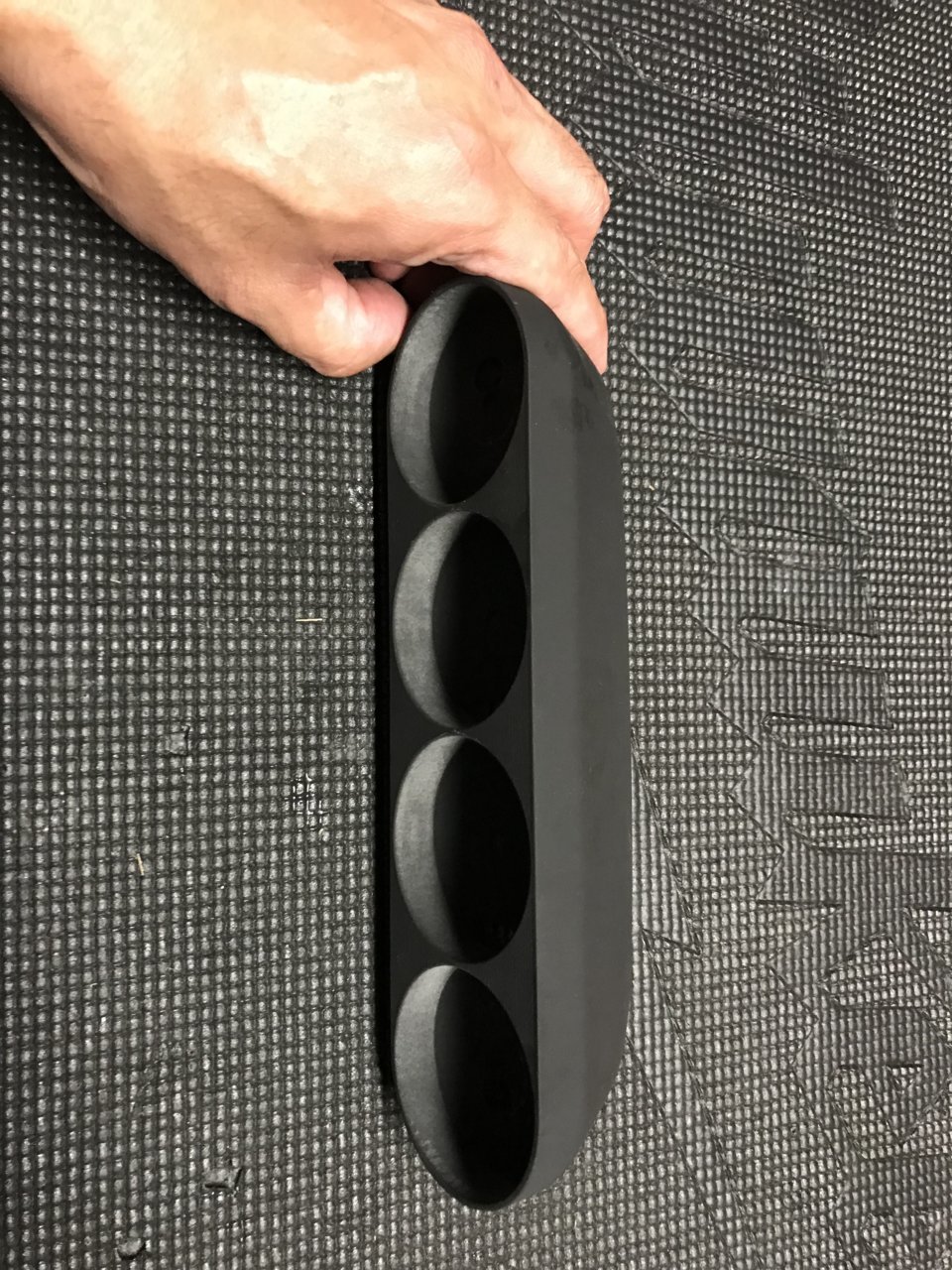

Should I color key the housing OEM 1E7 Silver Streak Mica OR keep it flat black??

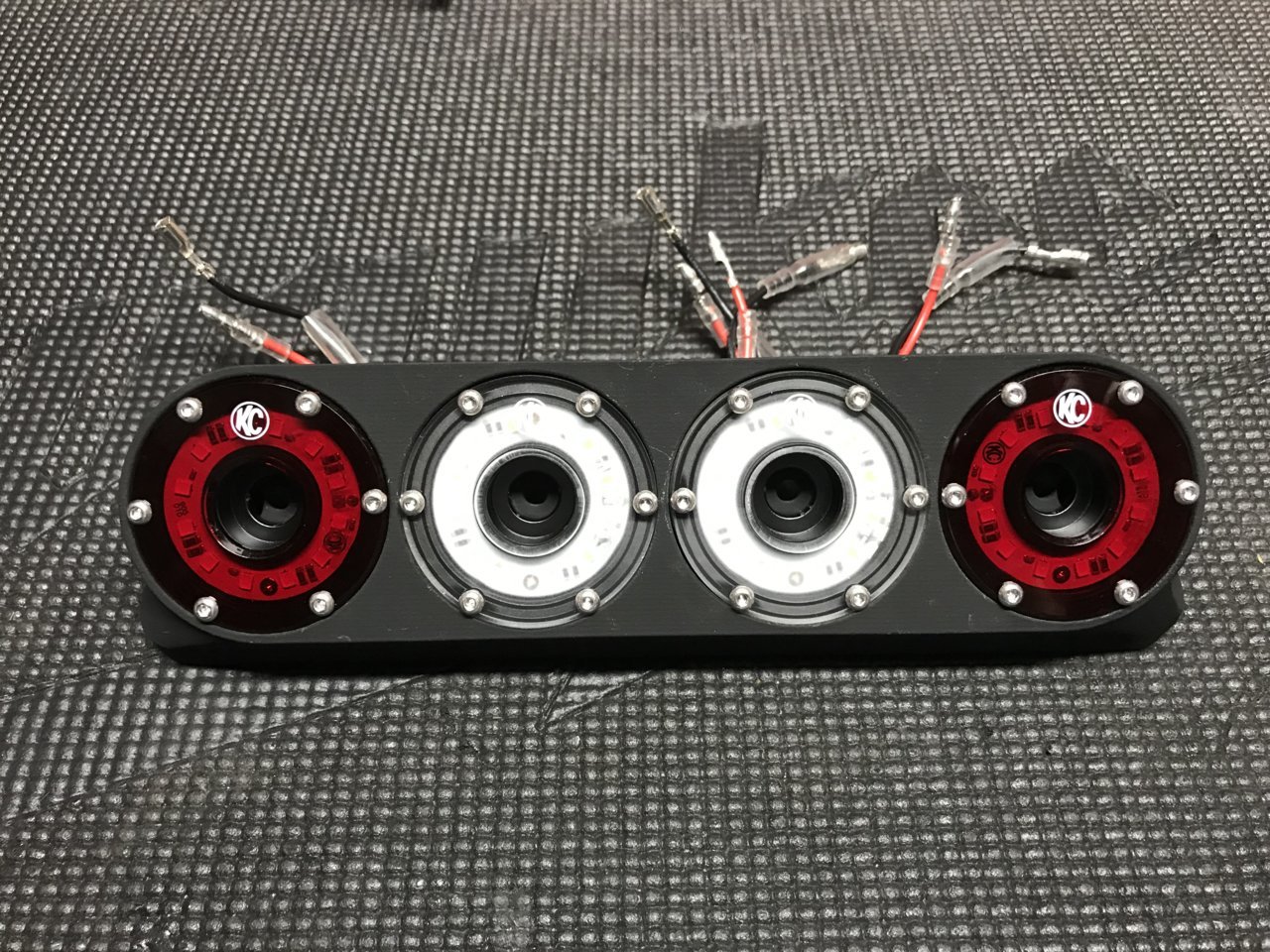

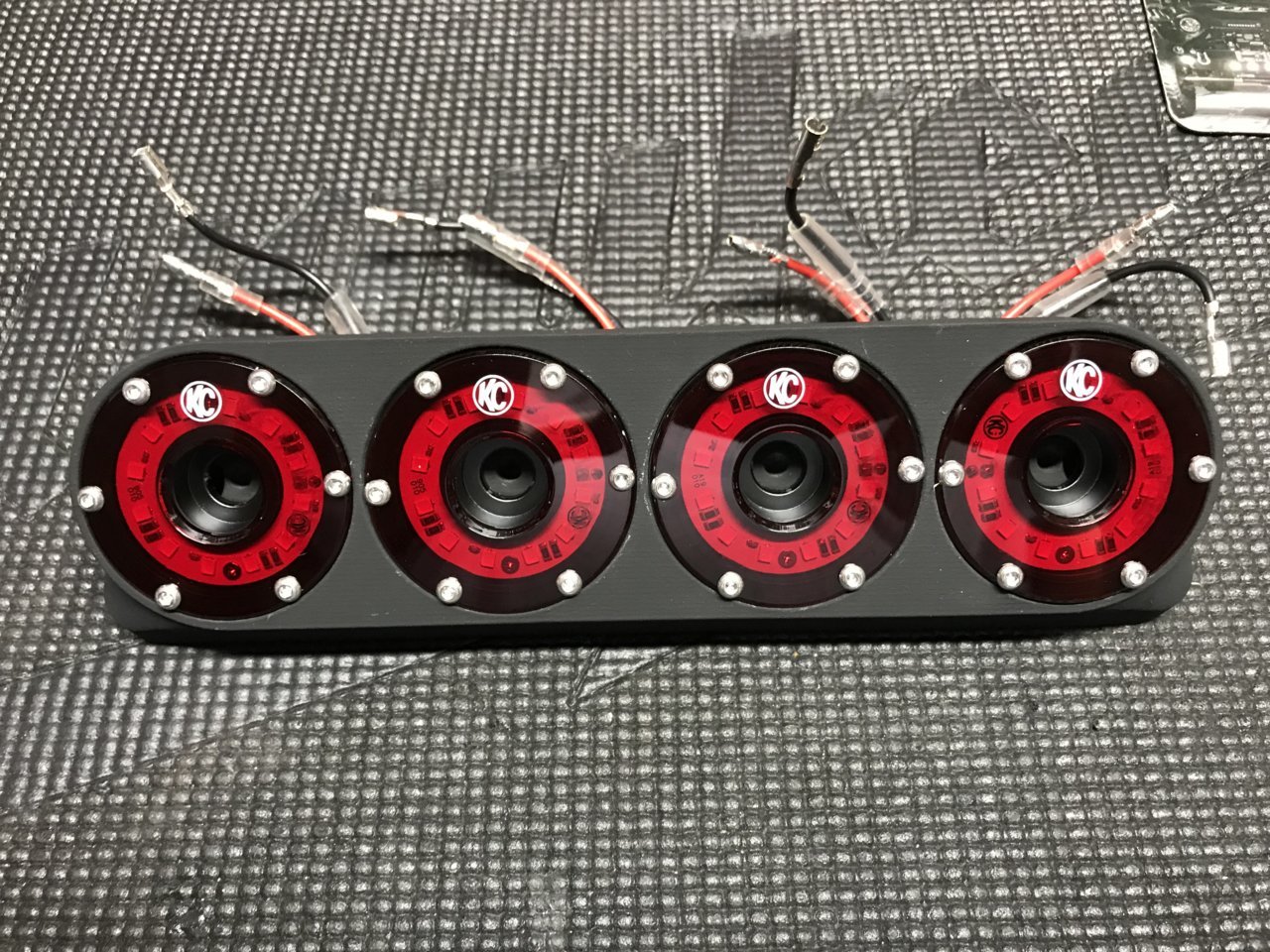

Now, for the reason of this post. The poll, should I go All 4 RED KC Cyclone lights - ALL BREAK, NO CARGO LIGHTS



Or should I go Two RED KC Cyclone lights and Two White Diffused KC Cyclone lights



Any help and/or opinions will be greatly appreciated.

Thanks!

Rick

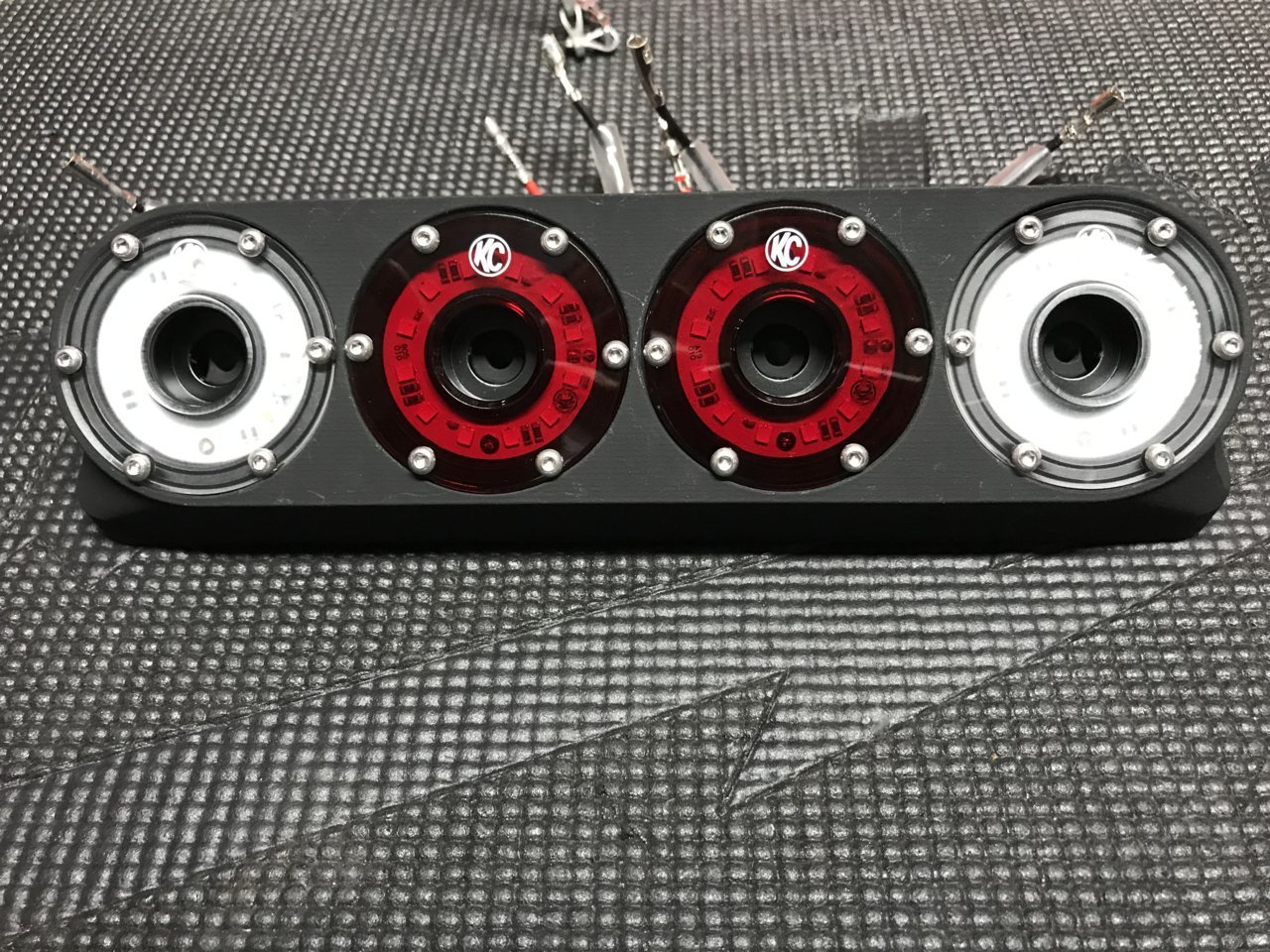

2 red in the middle, white on the ends...



Thank you sir!



Red inside, 2 white outside. Having the whites further apart increases your light spread.
I’d also paint the PCB boards black inside the cyclones, make them not stand out as much.
Color match might look ok, but can never go wrong with black accents.



Thanks Stew! You are right, black accents never let you down. BTW, what black paint did you used?? Will need to repaint whole fixture after mock-up, want to have it nice and clean - ZERO scratches.



Any ideas/suggestions on what to use for gasket between fixture and cab?? OEM??

Thanks!

Rick



Yes it was designed to retain the OEM gasket seal. The paint is SEM black primer. I would not use that long term as it does not hold up well to scratching. It’s jist a good filler/sealer primer for the plastic.



So, spray painting the PCB boards will not affect it? I’m sure paint is conductive, any thoughts?

Also, if the PCB boards can be painted, how do I do it? What do I need to mask, etc.

AND, what spay paint do you recommend on top of the SEM primer??

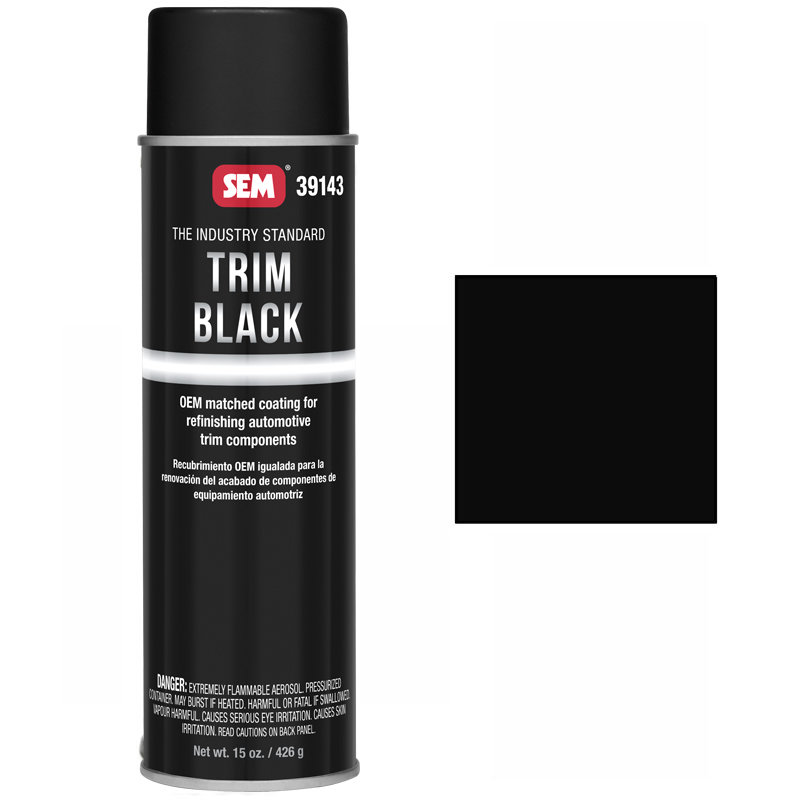

Trim black housing. Red centers. White putters.



Thanks! What do you mean “trim black housing”?



any krylon black paint. Spray over everything, Qtip with acetone and wipe the LED face off.
See postHERE

Blacked out looks much better and does not affect output.



Not gloss. Not flat. But a very nice OEM lookin matte sheen.



Awesome thanks!



that's great for a smooth look. If you want any type of texture, underbody coating works well too.

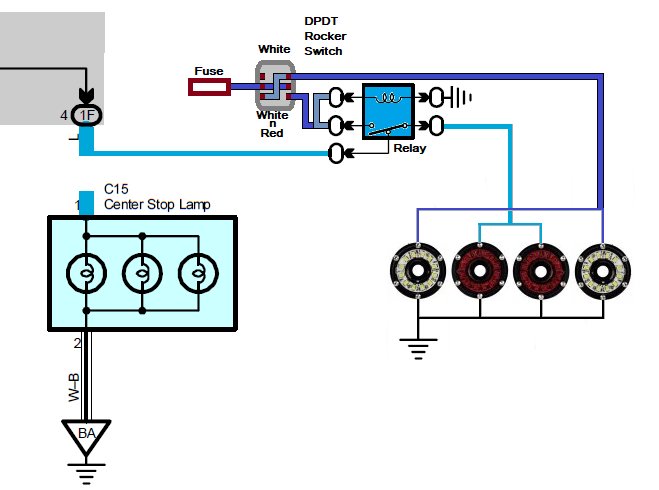

Stop power via 87a to 30 to RED KC Cyclones

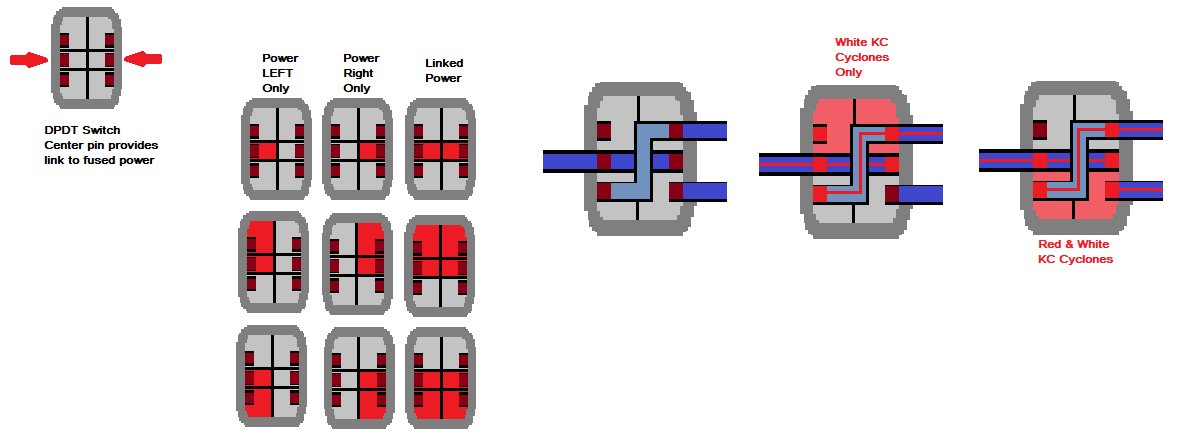

DPDT Switch White ONLY - OFF - White & RED



I have a 06 DCLB, I was thinking of wiring the red lights directly to the break lights, and the cargo white tap them to the dome light lights for a “auto” power up when opening doors.

Can you explain a little bit the diagram that you sent? I’m not an electrical genius, but with a little guidance I can get it done. I am VERY familiar with my Taco.

I was thinking of using the OEM cargo switch but have not figured out where to place it...



Any other options/ideas would be greatly appreciated.

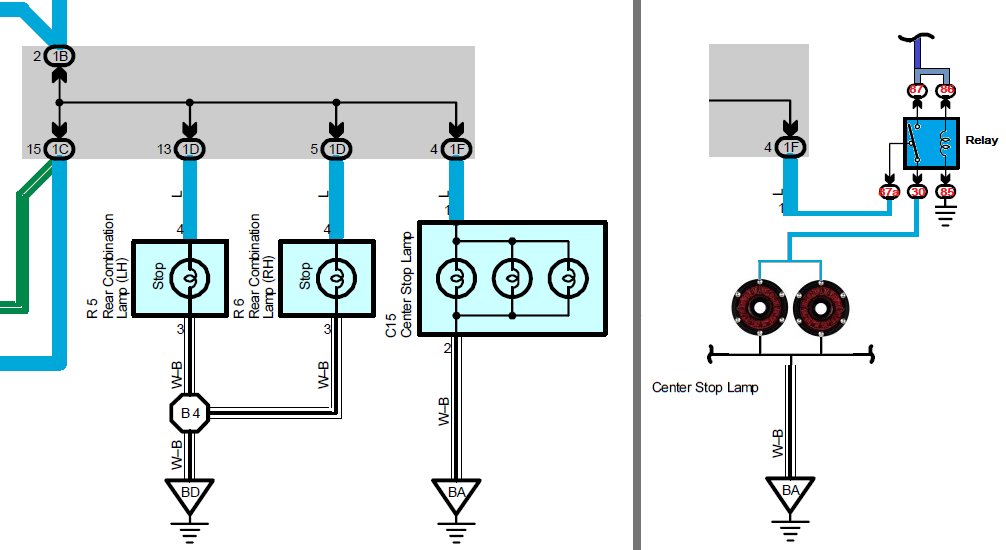

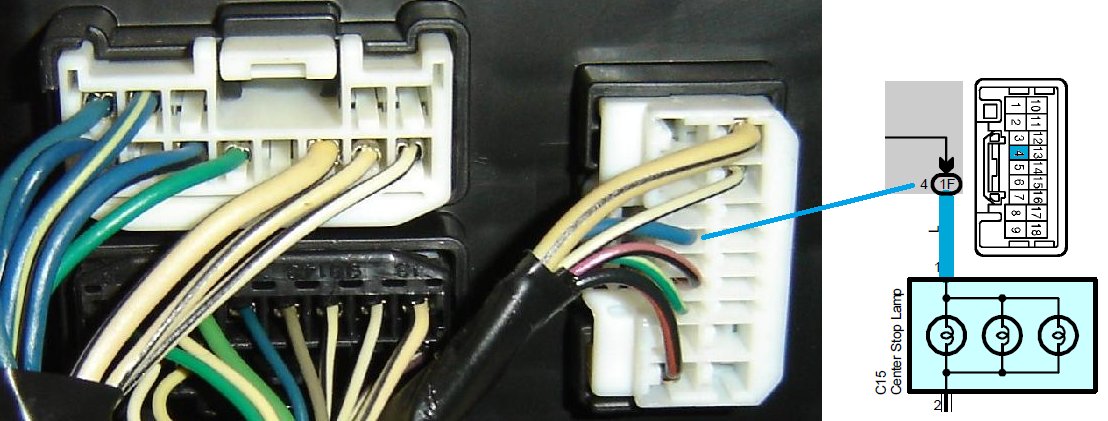

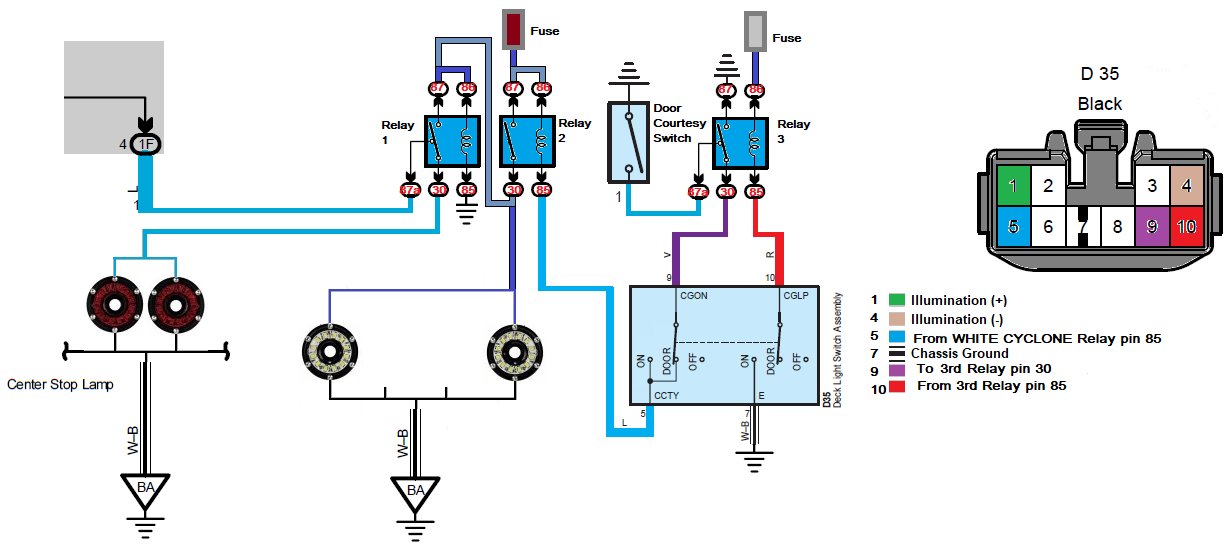

This shows the center KC Cyclone's replacing the OEM center stop lamps. The Relay is a 5 pin which has 87a & 30 Normally Closed (NC), so without any power they are connected to provide the power when stop/brake is selected.



You should make a lens that is blacked out but when you stop, the word “BREAK” lights up.



Red Cyclones to Stop circuit via 87a & 30 on relay (NC)
White Cyclones to Cargo Lamp Switch.
Hot Fuse to relay pins 87 & 86
Relay pin 30 to White Cyclones and Red Cyclones relay, pins 86 &87
White Cyclone relay pin 85 to Deck/Cargo switch #5
Deck/Cargo switch wire #9 to relay pin 30 - to 87a to Door switch circuit or Driver's door Courtesy switch. (-)
Deck/Cargo switch "ON" pin 30 goes to 87 - to ground (switching lights ON) relay to wire #10 provides ground to relay via wire #7.
