Throw out bearing clip orientation

Discussion in '1st Gen. Tacomas (1995-2004)' started by timjtitus, Oct 6, 2021.

  1. Oct 6, 2021 at 4:52 PM
    #1
    timjtitus

    timjtitus [OP] Member

    Joined:
    Apr 8, 2019
    Member:
    #289519
    Messages:
    7
    Gender:
    Male
    First Name:
    Timothy
    Vehicle:
    2000 4runner
    Hey guys, 4Runner guy looking for some help. Putting a rebuilt r150f into my 4Runner and I’m not sure how the throw out bearing clips to the clutch fork. I’ve seen it done multiple ways.

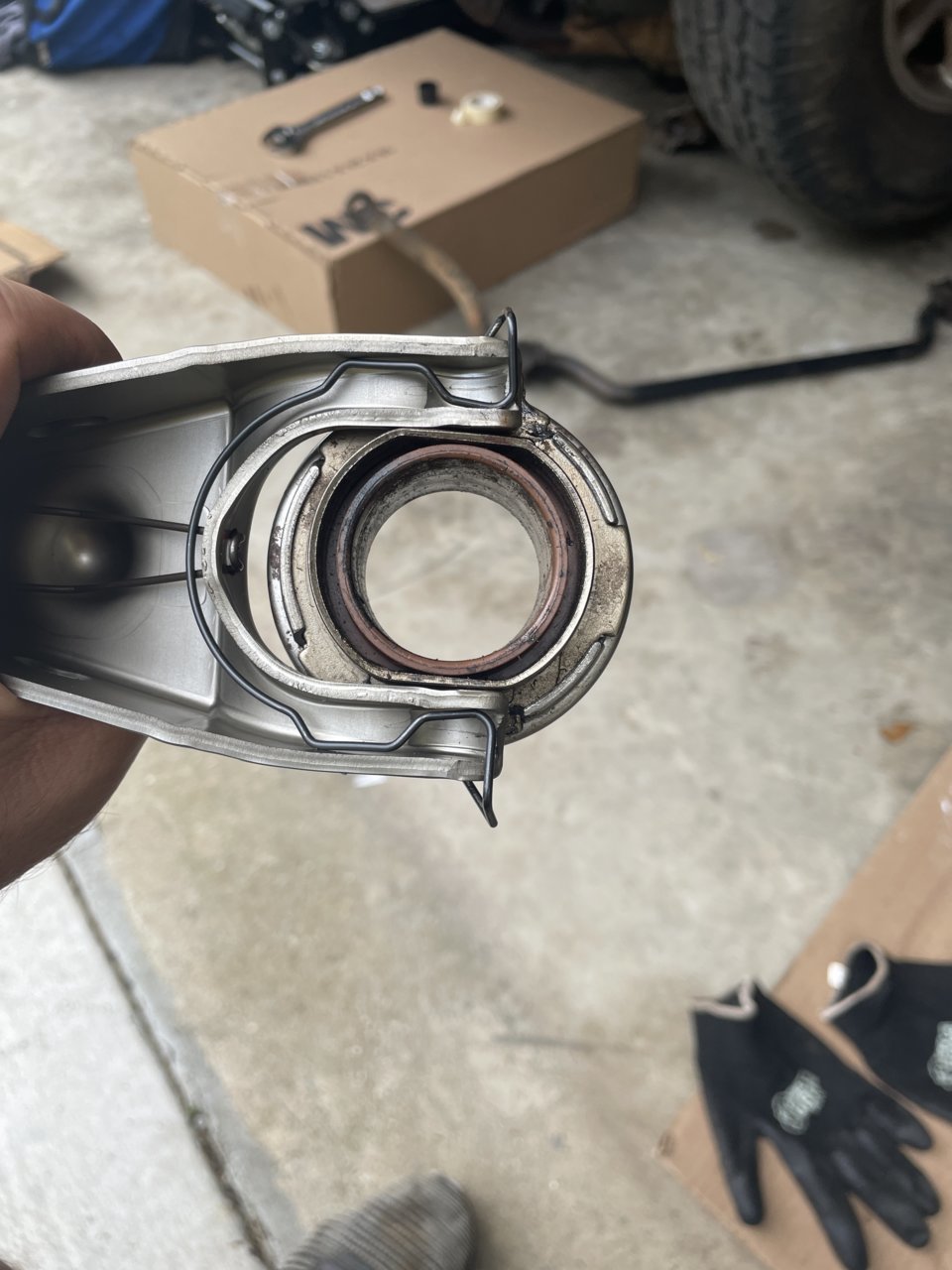

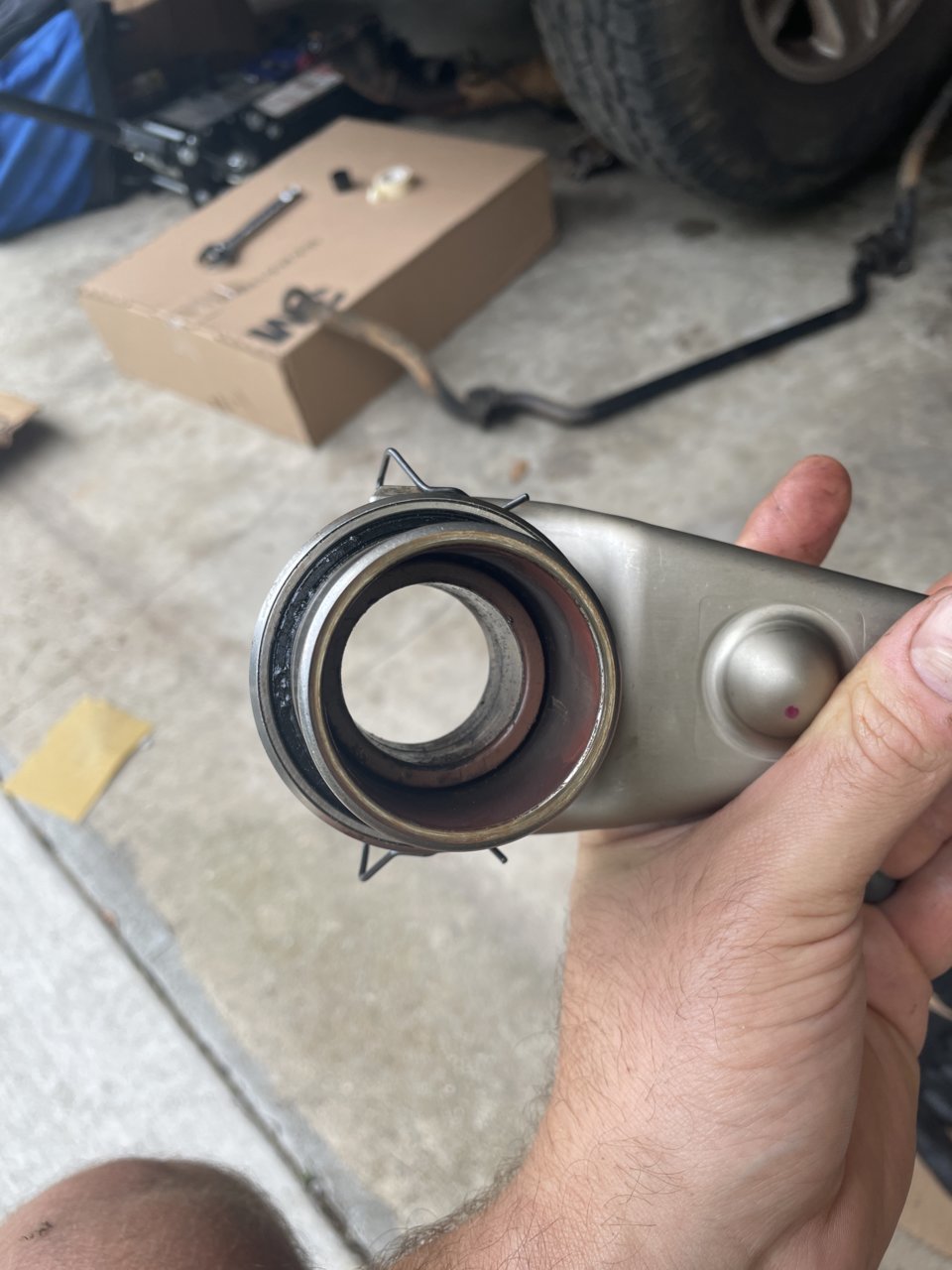

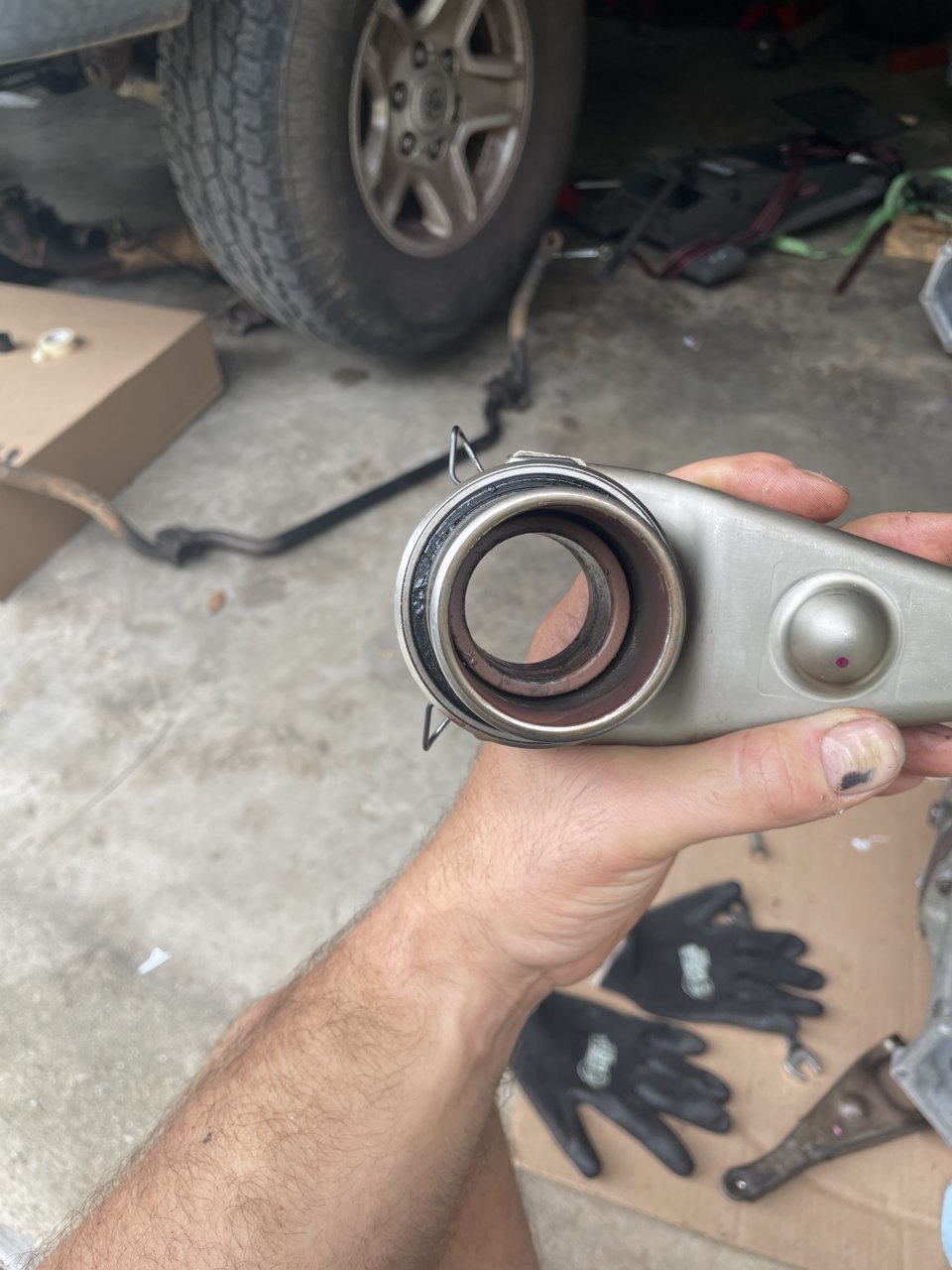

    I’ve got pictures here with the clip mostly on the bearing and the clip mostly inside the fork. Thanks
    16ED9F30-836E-4ECC-AE87-7EB5BFEFC496.jpg 82EB18EF-F208-4757-BD8F-062577E732A1.jpg 5C1E13F0-313B-4E22-AAD8-9ABE0CB66E07.jpg 8D341401-5772-4A29-9BA1-7733ABBCC9C5.jpg

  2. Oct 6, 2021 at 5:43 PM
    #2
    CrustyTaco

    CrustyTaco Well-Known Member

    Joined:
    Jan 20, 2019
    Member:
    #279940
    Messages:
    1,044
    Gender:
    Male
    First Name:
    Todd
    Louisville, KY
    Vehicle:
    04 Ext Cab V6 5MT 4X4 185k
    881/5100/Dakars 4R wheels / TBU / New frame
    Don't know if you seen Timmy's video on the clutch replacement, but may have the answer you're looking for.. Start at around 50:30 mark

    https://youtu.be/5PJPZ5-AK-I?t=3037

  3. Oct 6, 2021 at 5:49 PM
    #3
    CrustyTaco

    CrustyTaco Well-Known Member

    Joined:
    Jan 20, 2019
    Member:
    #279940
    Messages:
    1,044
    Gender:
    Male
    First Name:
    Todd
    Louisville, KY
    Vehicle:
    04 Ext Cab V6 5MT 4X4 185k
    881/5100/Dakars 4R wheels / TBU / New frame
  4. Oct 6, 2021 at 6:14 PM
    #4
    timjtitus

    timjtitus [OP] Member

    Joined:
    Apr 8, 2019
    Member:
    #289519
    Messages:
    7
    Gender:
    Male
    First Name:
    Timothy
    Vehicle:
    2000 4runner
    Right, if you watch him pull it out of the transmission it’s put together one way and then he puts it together the opposite way.

  5. Oct 6, 2021 at 6:24 PM
    #5
    CrustyTaco

    CrustyTaco Well-Known Member

    Joined:
    Jan 20, 2019
    Member:
    #279940
    Messages:
    1,044
    Gender:
    Male
    First Name:
    Todd
    Louisville, KY
    Vehicle:
    04 Ext Cab V6 5MT 4X4 185k
    881/5100/Dakars 4R wheels / TBU / New frame
    I didn't notice that at first, that is subtle. Based on your pictures it seems to me that the first orientation you posted would be the correct one. That also seems to be the orientation of the clip in the removal video.

    Hopefully someone else will chime in and correct me if that's wrong. I haven't swapped my clutch out yet.

  6. Oct 6, 2021 at 6:34 PM
    #6
    timjtitus

    timjtitus [OP] Member

    Joined:
    Apr 8, 2019
    Member:
    #289519
    Messages:
    7
    Gender:
    Male
    First Name:
    Timothy
    Vehicle:
    2000 4runner
    The first way feels and looks right, seems to work in both orientations though.
