Timing chains installation test

Discussion in '2nd Gen. Tacomas (2005-2015)' started by foampile, Dec 14, 2021.

  1. Dec 14, 2021 at 8:52 AM
    #1
    foampile

    foampile [OP] Well-Known Member

    Joined:
    Dec 15, 2011
    Member:
    #68807
    Messages:
    1,081
    Gender:
    Male
    Mid-Atlantic
    Vehicle:
    2007 V6 4WD 6 speed Extended Cab
    Other than following the instructions from the manual WHILE DOING IT, is there a method to test the timing chains installation AFTER THE FACT? Like you delegated the task to an employee and now you have to come see he did it right.

    When installing the camshafts, one design flaw that inhibited testing, as I observed, was that, while the dot market on the exhaust camshafts was still visible, the view to the one on the intake side was blocked on the front by the VVT phaser drum and in the back by the first (largest) bearing. So, to verify that whoever did it did it right, you need another testing method, which I am sure must exist.

    I understand the generic advice "do it right when doing it" (or some variation thereof) but being able to test any technical product before committing to the stage where mistakes are costly is an integral part of any quality product lifecycle.

    Last edited: Dec 14, 2021
    tacotoe likes this.
  2. Dec 14, 2021 at 7:21 PM
    #2
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,796
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    The only other 2 "verification" methods of timing aside from timing mark alignment would be a cam/crank sensor waveform scope capture compared to a known good or in cylinder pressure waveform both would require the engine to be cranking or running.
    If you put the colored links in the correct positions when you assembled it there's really no way for it to get out of time without jumping teeth.

    foampile[OP] likes this.
  3. Dec 14, 2021 at 8:50 PM
    #3
    foampile

    foampile [OP] Well-Known Member

    Joined:
    Dec 15, 2011
    Member:
    #68807
    Messages:
    1,081
    Gender:
    Male
    Mid-Atlantic
    Vehicle:
    2007 V6 4WD 6 speed Extended Cab

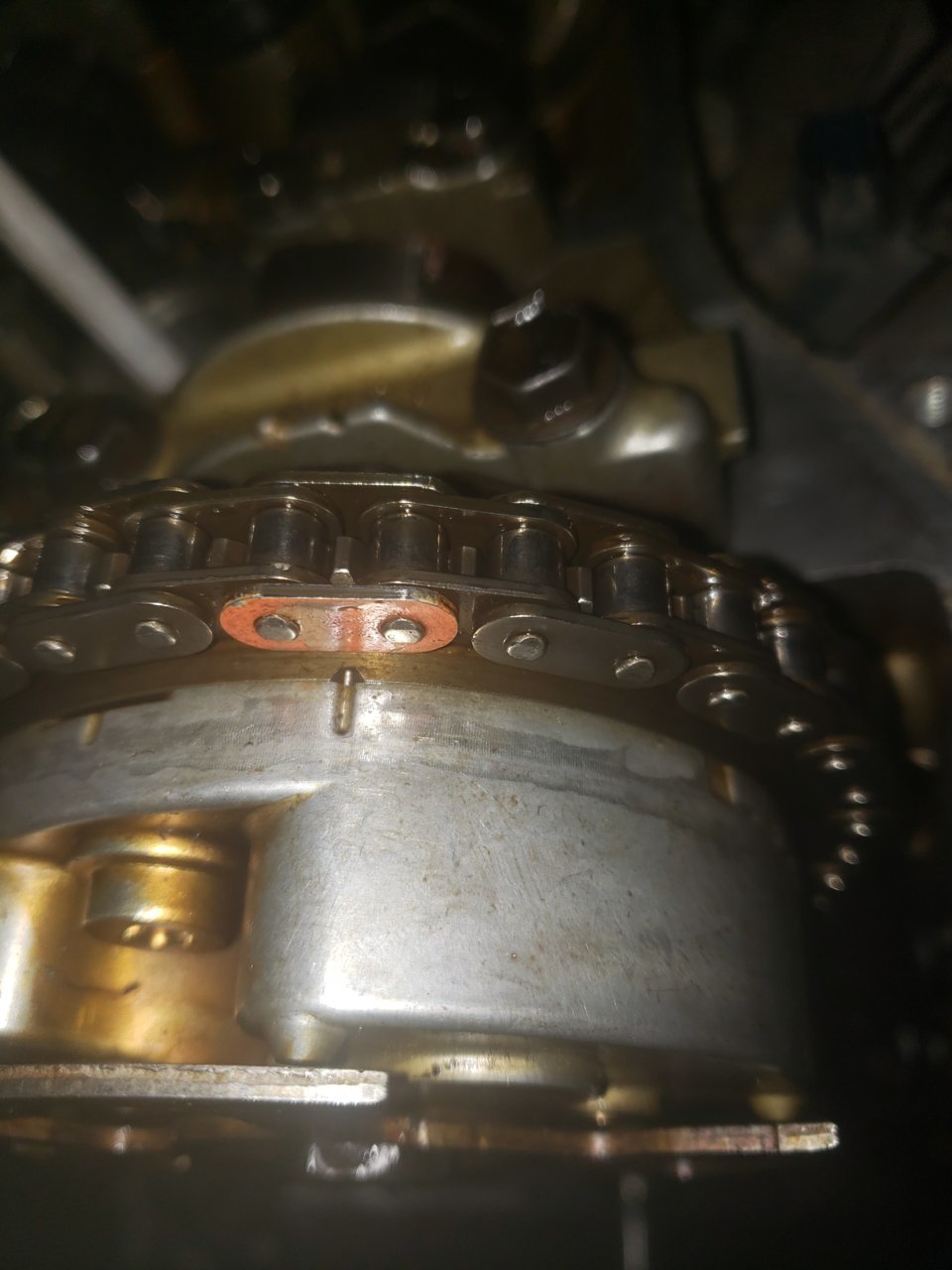

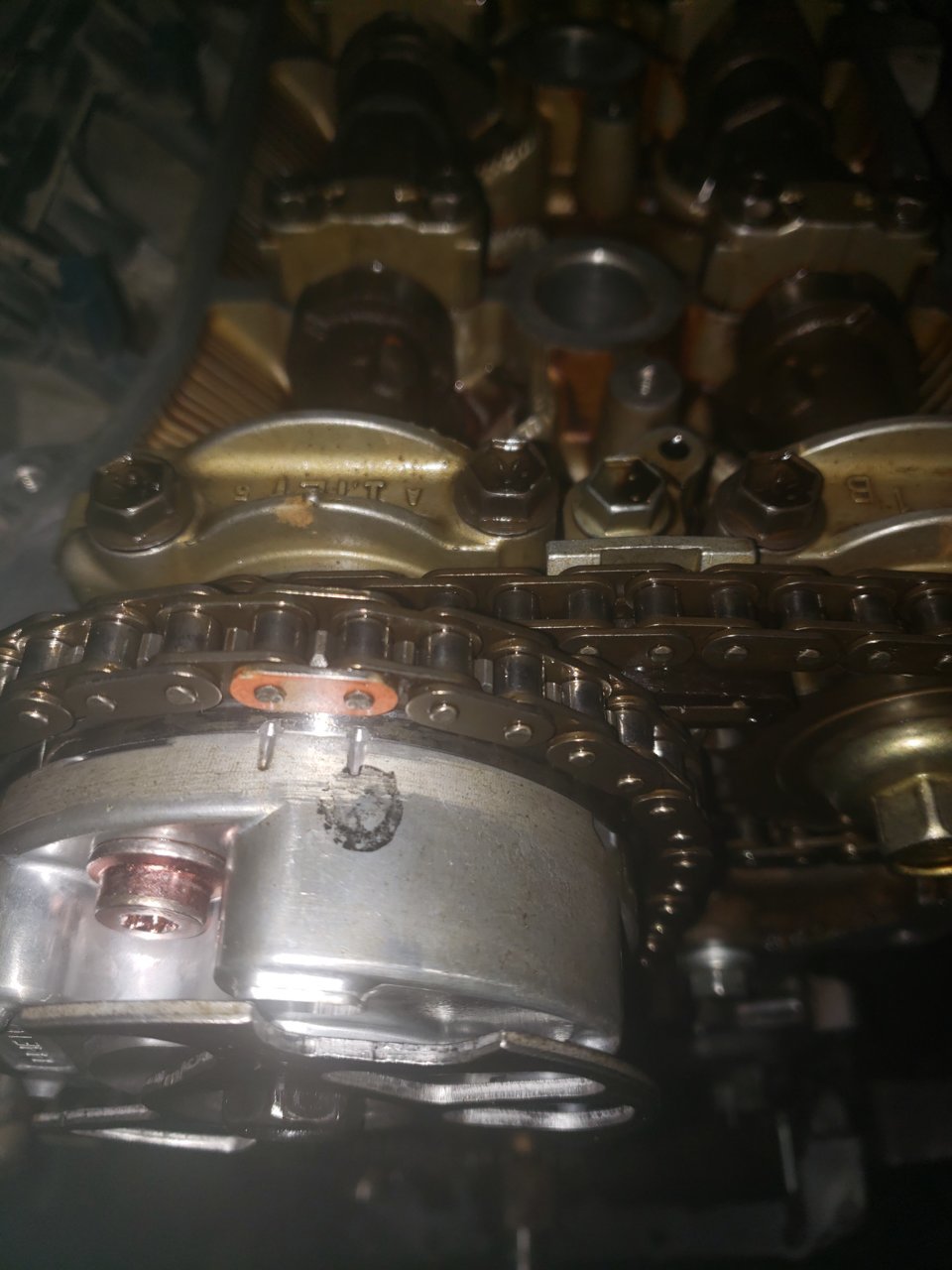

    Crank:


    Right:


    Left:


    tacotoe likes this.
  4. Dec 14, 2021 at 9:31 PM
    #4
    b_r_o

    b_r_o Gnar doggy

    Joined:
    Nov 17, 2016
    Member:
    #202672
    Messages:
    14,628
    First Name:
    Alex
    WA
    Vehicle:
    2015 DCLB
    Is there some pids you could see on a scan tool that would show correlation? I've used that on VW/audi.. not sure about toyota

    Other than that or a scope capture all I can think of is just driving it and hoping it doesn't code

    All you have is visual /mechanical reference until everything is reassembled and running

    Last edited: Dec 14, 2021
    tcjacado likes this.
  5. Dec 14, 2021 at 9:35 PM
    #5
    tcjacado

    tcjacado Well-Known Member

    Joined:
    Aug 29, 2016
    Member:
    #195947
    Messages:
    41,570
    TnShooter likes this.
  6. Dec 14, 2021 at 9:51 PM
    #6
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,357
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
  7. Dec 14, 2021 at 9:56 PM
    #7
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,357
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    FWIW, you don’t show the crank key correlation to the block timing line.
    But your picture looks about right for where the dot should be.

    tcjacado likes this.
  8. Dec 14, 2021 at 10:11 PM
    #8
    Bishop84

    Bishop84 Well-Known Member

    Joined:
    Dec 17, 2015
    Member:
    #172494
    Messages:
    12,050
    Gender:
    Male
    It's good, can't confirm the secondary marks.

    As a back up I always want to see TDC on cylinder #1 to have both valves equally closed. So cam lobes opposed.

    I'm doing a tundra chain right now, I'll snap a pic tomorrow.

  9. Dec 15, 2021 at 12:46 AM
    #9
    Empty_Lord

    Empty_Lord Toyotaholic

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    28,298
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    66 Mercedes, 93 mr2, 95,98,01,02 Tacomas, 05 Tundra + others
    Too many trucks and mods to list.. check builds
    Looks fine off what I remember on the 1GR

    tcjacado likes this.
  10. Dec 15, 2021 at 4:29 AM
    #10
    avery0829

    avery0829 Well-Known Member

    Joined:
    Jan 9, 2014
    Member:
    #120273
    Messages:
    112
    Gender:
    Male
    Western Washington
    Vehicle:
    2005 Tacoma DCLB Sport
    Bilstein 5100, Trail edition wheels, 265/70/17 Falkens
    From what I recall, it takes like 6-8 full revolutions of the chain to have the color coded links and crank match up.

    When I put everything back together I rotated it to make double sure.

    foampile[OP] likes this.
  11. Dec 15, 2021 at 8:31 AM
    #11
    foampile

    foampile [OP] Well-Known Member

    Joined:
    Dec 15, 2011
    Member:
    #68807
    Messages:
    1,081
    Gender:
    Male
    Mid-Atlantic
    Vehicle:
    2007 V6 4WD 6 speed Extended Cab
    Correct. After the original alignment of the three marked links on the chain and the notches/dots on the crank and cam sprockets, it takes something like what you said (maybe 7) full revolutions of the no. 1 (big) chain (so not just of the crank) to get the same alignment again.

  12. Dec 15, 2021 at 10:04 AM
    #12
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,796
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    If your marks all line up and you installed/torqued everything properly you should be good to go.

    foampile[QUOTED][OP] likes this.
  13. Dec 15, 2021 at 10:08 AM
    #13
    foampile

    foampile [OP] Well-Known Member

    Joined:
    Dec 15, 2011
    Member:
    #68807
    Messages:
    1,081
    Gender:
    Male
    Mid-Atlantic
    Vehicle:
    2007 V6 4WD 6 speed Extended Cab
    I get that and they are indeed -- I was just wondering about other testing methods.

    Like, for example, since 1GR-FE is an interference engine, would a mistake in timing necessarily always result in an interference, which could be timely and cheaply detected by a stall when turning the crankshaft, i.e. much before firing up the engine? Or is there a scenario where that does not happen but the timing is still wrong?

  14. Dec 15, 2021 at 10:14 AM
    #14
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,796
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    You would have to be quite a few teeth out of time before interference would occur but you would feel it get tight barring the engine over by hand with the plugs removed if something was hitting.

  15. Dec 15, 2021 at 10:22 AM
    #15
    nd4spdbh

    nd4spdbh Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    14,604
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto

    it can take MANY more turns than that to get colored markings to line up on all 3 chains. Colored markings should only be used as a reference, the end all is the mark on the crank to block then marks on cam gears to head.

  16. Dec 17, 2021 at 4:23 AM
    #16
    6 gearT444E

    6 gearT444E Certified Electron Pusher

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    7,798
    Deep South
    Herculiner Hootus
    Are you putting an engine back together by asking each step on a new thread @foampile ? I see lots of separate threads where it seems you are lacking the knowledge and maybe better off taking to a mechanic.

    burrito782 and AllTacosFloat like this.
  17. Dec 17, 2021 at 6:01 AM
    #17
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,357
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
  18. Dec 17, 2021 at 6:13 AM
    #18
    AllTacosFloat

    AllTacosFloat If yours sank you’re entitled to compensation

    Joined:
    Nov 26, 2019
    Member:
    #311742
    Messages:
    7,054
    First Name:
    John
    Boston ish
    Vehicle:
    Has lockers, a skewp and a bit of droop.
    Should have just kept one thread going. Could have maybe been an informative timing chain and cam shaft replacement thread.

    Need a general "ask a pro" sticky for each gen.?

    6 gearT444E likes this.
  19. Dec 17, 2021 at 6:20 AM
    #19
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,357
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Those “ask a Pro” threads never work out. 90% of the time you’ll get advice from guys that aren’t pro’s.

    50% of the answer is not even relative to the question.

    And No, I’m not a Pro. :rofl:

    tacotoe and SR-71A like this.
  20. Dec 17, 2021 at 6:24 AM
    #20
    6 gearT444E

    6 gearT444E Certified Electron Pusher

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    7,798
    Deep South
    Herculiner Hootus
    I agree, I see 3 or 4 threads on what appear to be the same topic and I gave up on answering the smattering of questions that could be combined in one thread.
