??? to the LED guys here???

Discussion in 'Lighting' started by nharkey85, Dec 3, 2009.

  1. Dec 3, 2009 at 11:34 PM
    #1
    nharkey85

    nharkey85 [OP] 2yr Old Co-Pilot

    Joined:
    Oct 28, 2009
    Member:
    #25086
    Messages:
    63
    Gender:
    Male
    First Name:
    Neil
    Alabama
    Vehicle:
    08 D-Cab TRD OffRoad
    3" Rev-Tek Lift, N-Fab steps, Aux. Rev. lights, DTRL, Fog light mod
    I know LEDs usually need resistors on them, or at least in the circuit to prevent too high of voltage. would it be safe to assume that if on a curcuit board, incandescent bulbs are replaced by LEDs (component not PLCC or such), that resistors would be needed. this is NOT on a tacoma let alone a toyota. only info i could find for this vehicle was a completely custom setup instead of using factory locations for bulbs. essentially this vehicle uses what looks like the mini twist sockets in our fog light switch and A/C panel (2005+), but they are soldered to the surface of the PCB where the lead of the bulb wraps around the socket. using or not using the socket looks like would make no difference


    Im not asking you guys how to do what i want to do. i already know how to do it. just would like to know bout the resistors

    oh and no i do not have multimeter to test. found my old one stuffed away with batteries all corroded.

    Thanks

  2. Dec 4, 2009 at 9:24 AM
    #2
    PreRunnerSeth

    PreRunnerSeth Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21110
    Messages:
    4,195
    Gender:
    Male
    Apex, NC
    Vehicle:
    15 Black DC OR Prerunner
    yes you will need resistors. Heres how to figure it out. First in the specs of the LED you will see Vf (forward voltage) and IF (forward current).

    Example PLCC2 White LED. Vf = 3.2V IF = 20mA

    First you need to know how much voltage to drop across the resistor.
    V = Voltage at the bulb 12-14V for a car.

    V - Vf = drop across resistor.

    14V - 3.2V = 10.8V (the voltage needed to drop across the resistor)

    Now you need the resistance of the resistor needed to drop that voltage at 20mA (the rating of the LED)

    R = E (V) / I (If of the led)

    R = 10.8V / 0.020A (mA converted to A) = 540 Ohms

    You will need a 540Ohm resistor to get 20mA on the LED at max voltage of 14V.

    Now you need to know what power rating resistor you need.

    P = E (voltage across resistor) x I (Current through resistor)

    P = 10.8V x 0.020A = .216W or 216mW you will need a 1/4 (.250)W resistor.

    Now If you want to put 2 LEDs in series. just add two Vfs together and use that value as Vf in the first equation.

    3.2V + 3.2V = 6.4V Now use 6.4V as the Vf in the first equation.

    Note: always use the high end of your voltage range for this calculation. If you use the low end then at higher voltage you will overcurrent the LED.

  3. Dec 4, 2009 at 10:25 AM
    #3
    Viet2100

    Viet2100 Well-Known Member

    Joined:
    Jun 27, 2007
    Member:
    #1930
    Messages:
    2,515
    Gender:
    Male
    First Name:
    Viet
    Delray Beach, FL
    Vehicle:
    2007 Infiniti G35S
    Holy shit.

  4. Dec 4, 2009 at 12:16 PM
    #4
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,077
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen
    x2:eek:

  5. Dec 4, 2009 at 12:29 PM
    #5
    Jester243

    Jester243 ( ͡° ͜ʖ ͡°)

    Joined:
    Jun 25, 2008
    Member:
    #7552
    Messages:
    9,392
    Gender:
    Male
    First Name:
    Dan
    Spokane, WA
    Vehicle:
    2008 Doublecab 4x4 IRP
    Lifetime LED 70W headlights 10-8-14 (set #2) Sylvania Silverstar fogs, front side windows tinted 27% to match the others, added Tacomaworld.com sticker, suspension TSB as of 7-21-09, Devil Horns by Andres, BFG's, Alpine with Bluetooth and Ipod contols, Rear view mirror relocation bracket, Ultragauge...
    :bowdown:

  6. Dec 4, 2009 at 12:43 PM
    #6
    rme

    rme Well-Known Member

    Joined:
    Aug 3, 2008
    Member:
    #8309
    Messages:
    1,899
    Gender:
    Male
    Savannah
    Vehicle:
    Green TACOMA
    XM, Panasonic Stereo, Headlights,Electric Ant,Toyota Deluxe Wheels, Rhino Lining, Cargo Rails
    JEEEEEEZUS CHRIIIIIIIIIIIIIIIST :help:

  7. Dec 4, 2009 at 12:52 PM
    #7
    Artiz

    Artiz This space is in BLANK mode.

    Joined:
    Nov 24, 2009
    Member:
    #26471
    Messages:
    84
    Gender:
    Male
    I kinda said the same thing...

    EDIT: Oh he's an electronics engineer. :D

  8. Dec 4, 2009 at 1:05 PM
    #8
    JM76

    JM76 Ride On

    Joined:
    Dec 3, 2007
    Member:
    #3695
    Messages:
    2,038
    Gender:
    Male
    First Name:
    Jon
    SC
    Vehicle:
    06 silver double cab 4x4
    seconday air filter removal, tw sticker afe pro dry s filter , black rims , cb radio with four foot firestik antenna,black nasta nerf bars,5100's in the rear,mp3 player hookup,led overhead light,5100's up front @ 1.75, rear AAL,custom dent package,blacked out rear bumper, blacking out front grille,camo gt seat covers , 6k HIDs, 6k fogs coming, devil horns grille mod,elite offroad aluminum bumper,Canadoshi grille mod.light bar behind the grille with bright lights coming sooner or later
    and that tw, is why I do what I do, I just wasn't that good at physics.

  9. Dec 4, 2009 at 3:58 PM
    #9
    Artiz

    Artiz This space is in BLANK mode.

    Joined:
    Nov 24, 2009
    Member:
    #26471
    Messages:
    84
    Gender:
    Male
    ^^Dude I love your name.

  10. Dec 4, 2009 at 6:43 PM
    #10
    JM76

    JM76 Ride On

    Joined:
    Dec 3, 2007
    Member:
    #3695
    Messages:
    2,038
    Gender:
    Male
    First Name:
    Jon
    SC
    Vehicle:
    06 silver double cab 4x4
    seconday air filter removal, tw sticker afe pro dry s filter , black rims , cb radio with four foot firestik antenna,black nasta nerf bars,5100's in the rear,mp3 player hookup,led overhead light,5100's up front @ 1.75, rear AAL,custom dent package,blacked out rear bumper, blacking out front grille,camo gt seat covers , 6k HIDs, 6k fogs coming, devil horns grille mod,elite offroad aluminum bumper,Canadoshi grille mod.light bar behind the grille with bright lights coming sooner or later
    thank you, it's actually in honour of a buddy of mine over in Iraq, that's what he used to call me. Even when he gets back, I don't think I'm gonna change it. :)

  11. Dec 5, 2009 at 5:54 AM
    #11
    nharkey85

    nharkey85 [OP] 2yr Old Co-Pilot

    Joined:
    Oct 28, 2009
    Member:
    #25086
    Messages:
    63
    Gender:
    Male
    First Name:
    Neil
    Alabama
    Vehicle:
    08 D-Cab TRD OffRoad
    3" Rev-Tek Lift, N-Fab steps, Aux. Rev. lights, DTRL, Fog light mod
    wow. umm....question answered. thanks that was what i was looking to find out

  12. Dec 5, 2009 at 11:26 AM
    #12
    nharkey85

    nharkey85 [OP] 2yr Old Co-Pilot

    Joined:
    Oct 28, 2009
    Member:
    #25086
    Messages:
    63
    Gender:
    Male
    First Name:
    Neil
    Alabama
    Vehicle:
    08 D-Cab TRD OffRoad
    3" Rev-Tek Lift, N-Fab steps, Aux. Rev. lights, DTRL, Fog light mod
    Project complete

    Fruits of my labor. "pink" LED cluster illumination in 2006 Cobalt SS (the GF's, not mine)
    [​IMG]
    [​IMG]

    dont mind the date on the pic. camera is an 'antique', stays dead more than not.

    Thank you prerunnerseth. problem free job

  13. Dec 5, 2009 at 9:57 PM
    #13
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,905
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    basic electronics guys;)

    ....prerunnerseth your a showoff!!

  14. Dec 5, 2009 at 9:58 PM
    #14
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,905
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    rrriiiiiight.....:D

  15. Dec 5, 2009 at 10:05 PM
    #15
    Untamed_SS

    Untamed_SS Stayed Up Too Late

    Joined:
    Oct 22, 2008
    Member:
    #10163
    Messages:
    1,962
    Gender:
    Male
    First Name:
    Adam
    Haughton, Louisiana
    Vehicle:
    08 Speedway Blue Access Cab
    Alpine iDA-X200 Deck, Rockford P3, Infinity 1600 A Amp, Black Badges, "KnightRider Mod", Back-up lights. Painted Engine Cover. TRD QuickShifter & Shift Knob. MAF Calibrator. Doug Thorley LT Headers. Custom Y-Pipe. Flowmaster 50 series. Satoshi Grill
    What's that supposed to mean? :rolleyes:

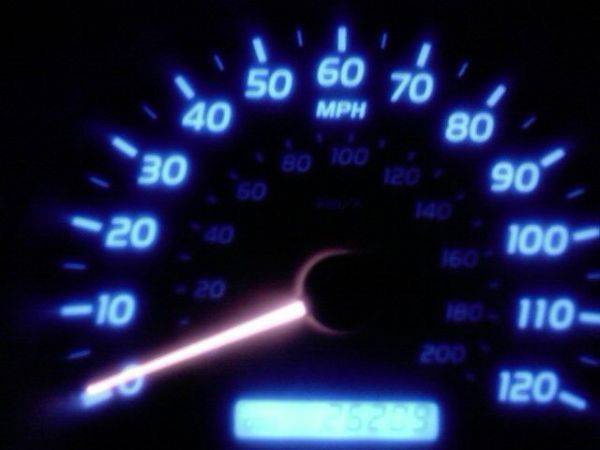

    I have pink needles and some idiot lights are pink in my truck. :D

  16. Dec 5, 2009 at 10:06 PM
    #16
    Untamed_SS

    Untamed_SS Stayed Up Too Late

    Joined:
    Oct 22, 2008
    Member:
    #10163
    Messages:
    1,962
    Gender:
    Male
    First Name:
    Adam
    Haughton, Louisiana
    Vehicle:
    08 Speedway Blue Access Cab
    Alpine iDA-X200 Deck, Rockford P3, Infinity 1600 A Amp, Black Badges, "KnightRider Mod", Back-up lights. Painted Engine Cover. TRD QuickShifter & Shift Knob. MAF Calibrator. Doug Thorley LT Headers. Custom Y-Pipe. Flowmaster 50 series. Satoshi Grill
  17. Dec 6, 2009 at 8:56 PM
    #17
    normbal

    normbal Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25724
    Messages:
    199
    Gender:
    Male
    First Name:
    Norm
    socialist occupied Maryland
    Vehicle:
    White SR5 long bed
    minor mods. Hood moustache, truckchamp SS oval step-bars, Go Rhino Hitch step, popnlock plus tailgate hoseclamp, Weathertech digitalfit floor mats. Wheel and spare tire locks.
    Questions remain:

    - how to take out instrument panel/cluster
    - warranty voided?
    - Anyone do this in Maryland DC-BMO route?

    I would LOVE having blue all around and putting a set under the dash for the cup holders.

    Thanks.

    Norm

  18. Dec 6, 2009 at 9:13 PM
    #18
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,905
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    1 - here, here and here
    2 - of course (for the cluster only)
    3 - ? couldnt help you there....but i know i have had a guy from vegas and SC mail their clusters to me and i did them. prerunnerseth also does a mail service for gauges as well.

    remember, you cannot change the climate controls area, those have to stay orange per the sandwiched plastic.

  19. Dec 6, 2009 at 9:43 PM
    #19
    nharkey85

    nharkey85 [OP] 2yr Old Co-Pilot

    Joined:
    Oct 28, 2009
    Member:
    #25086
    Messages:
    63
    Gender:
    Male
    First Name:
    Neil
    Alabama
    Vehicle:
    08 D-Cab TRD OffRoad
    3" Rev-Tek Lift, N-Fab steps, Aux. Rev. lights, DTRL, Fog light mod
    scouts honor;) this was actually not pain to do, except for removing the painted color filter crap on back of the face. (compared to my damn HU LED swap)

    now for something to ponder....installed LED dome light (in the cobalt), now when in "door" position with door closed it still emits very dim light. swapped with bulb in my truck, same deal????

  20. Dec 7, 2009 at 7:30 AM
    #20
    PreRunnerSeth

    PreRunnerSeth Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21110
    Messages:
    4,195
    Gender:
    Male
    Apex, NC
    Vehicle:
    15 Black DC OR Prerunner
    This means you have some current leakage. Normally not enough to light a bulb. but, with leds its just enough to make it light up a little. My wifes car is the same with with the two map lights for the rear. only way to solve this would be to redesign the circuit with relay.
