TodayWasTHeDaY's Canadian Supercharged Stick Shift Taco

Discussion in '2nd Gen. Builds (2005-2015)' started by TodayWasTHeDaY, Aug 22, 2020.

?

Should I or should I not?

  1. Should

    83.3%
  2. Should not

    0 vote(s)
    0.0%
  3. Abstaining from voting due to political/religious/nefarious reasons

    16.7%
  1. Mar 1, 2021 at 9:59 AM
    #101
    TodayWasTHeDaY

    TodayWasTHeDaY [OP] Hoser

    Joined:
    Jul 10, 2017
    Member:
    #223673
    Messages:
    1,999
    Gender:
    Male
    First Name:
    Russ
    Calgary
    Vehicle:
    2015 DCSB SC M/T TRD Sport
    That's not counting the giant patch that was under my truck lol

  2. Mar 11, 2021 at 5:27 PM
    #102
    TodayWasTHeDaY

    TodayWasTHeDaY [OP] Hoser

    Joined:
    Jul 10, 2017
    Member:
    #223673
    Messages:
    1,999
    Gender:
    Male
    First Name:
    Russ
    Calgary
    Vehicle:
    2015 DCSB SC M/T TRD Sport

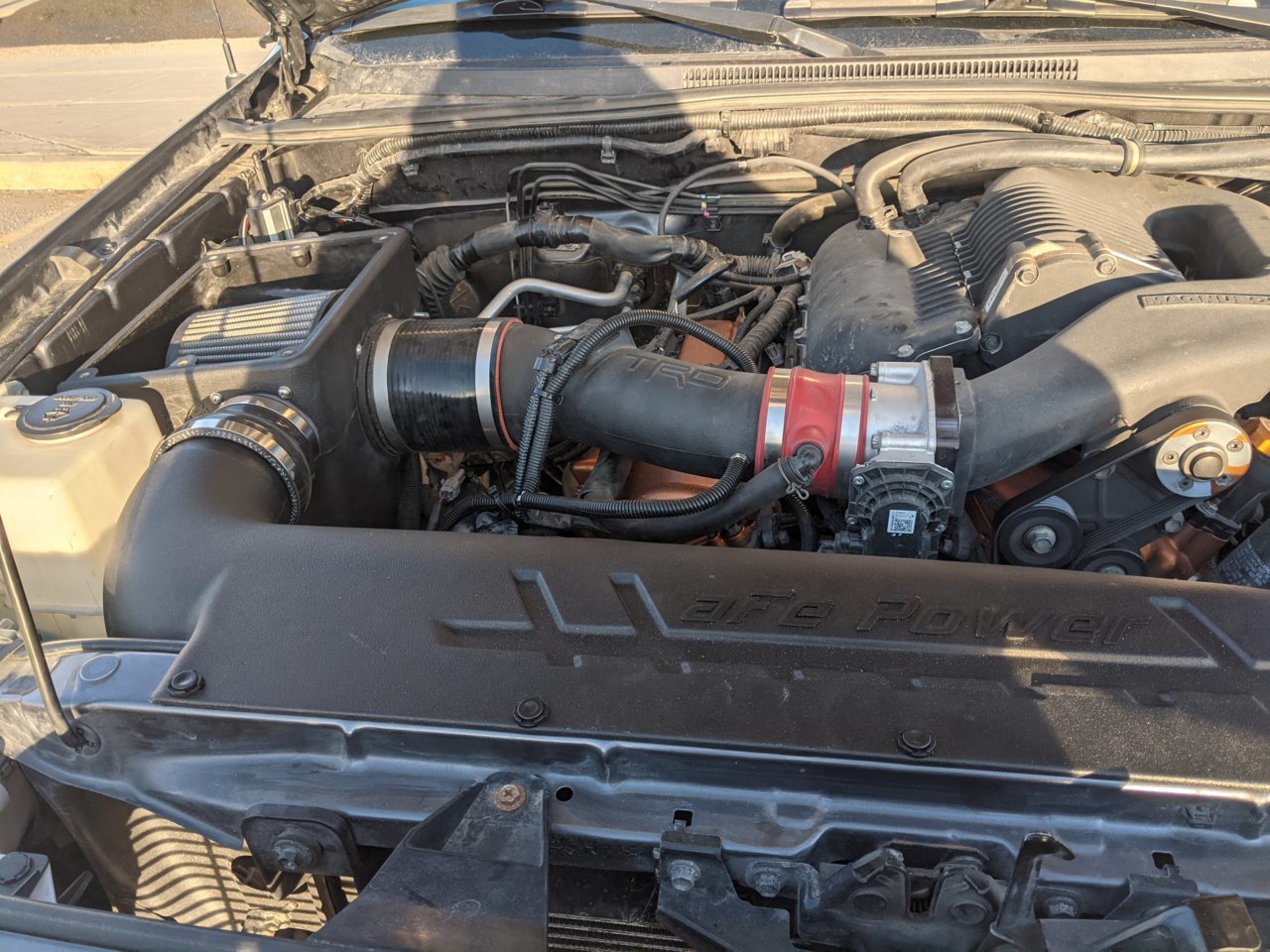

    So after about three weeks of pissing about for a few hours here and there my truck is back on the road. I'll say the stock slave cylinder setup is slightly easier to manage than the hydro bearing was because the engagement was quicker, so other than not feeling quite as buttery smooth it does seem a little nicer to slip the clutch. Pedal doesn't feel heavy at all due to the Spec pressure plate, which I thought was a possibility. PDM sleeve and throwout bearing installed.

    Additionally I added a Truetrac, cause why not? Truck feels a little different when driving but it's hard to put a finger on it. Changed the front diff and transfer case oil as well. Then added an AFE momentum scoop (got it on black friday sale) to my frankenstein'd magnum intake. I think it makes the engine bay look a little nicer and hopefully it sucks more air.

    Cleaned out the rear drums and painted them black.

    Drilled through my firewall and put a daystar boot so I can run switch wiring for the Bussman RTMR relay box and am fabbing up mounts for it.

    Will be playing with wiring for a while but it's gonna be at my leisure. Want to wire a traction aid disable switch so I can leave it always on or off as needed.

    Also want to Heli coil the supercharger lid.


    Last edited: Mar 12, 2021
    BassAckwards likes this.
  3. Mar 14, 2021 at 9:23 PM
    #103
    Athlaos

    Athlaos Zero-Force Member

    Joined:
    Nov 24, 2010
    Member:
    #46672
    Messages:
    2,541
    Gender:
    Male
    First Name:
    Leigh
    Edmonton
    Vehicle:
    2011 SR5 Manual TRD SC 1.87" pulley
    A flux retro-capacitance encabulator
    Funny you mention that about the helicoil, I just bought some new bolts for the lid. I haven't put them in yet, but as I think you're inferring, a few of the 10mm ones have stripped the threads out of the manifold... I bought bolts with one size bigger threads and will drill and tap each one.

    Great work on the turnaround, I feel you on having to take the transmission off again just to fix the hydro bearing (happened to me a couple of years ago but it was my fault, not the bearing's)

  4. Mar 14, 2021 at 10:12 PM
    #104
    TodayWasTHeDaY

    TodayWasTHeDaY [OP] Hoser

    Joined:
    Jul 10, 2017
    Member:
    #223673
    Messages:
    1,999
    Gender:
    Male
    First Name:
    Russ
    Calgary
    Vehicle:
    2015 DCSB SC M/T TRD Sport
    Seems to be a common problem, it's on the first page of the SC thread. A couple of the bolts did feel stripped last time I put that cover on. It didn't take much force at all either. Definitely wasn't cranking on it. I'm curious if my intercooler gasket stayed in place or not as I had a hell of a time getting it to glue on. Will probably just yank it out if it's loose or has shifted. Don't think my engine ate it though, probably would have felt something.

    As for the turnaround, you want to learn to do something, do it twice lol.

    Athlaos[QUOTED] likes this.
  5. Mar 14, 2021 at 10:19 PM
    #105
    Athlaos

    Athlaos Zero-Force Member

    Joined:
    Nov 24, 2010
    Member:
    #46672
    Messages:
    2,541
    Gender:
    Male
    First Name:
    Leigh
    Edmonton
    Vehicle:
    2011 SR5 Manual TRD SC 1.87" pulley
    A flux retro-capacitance encabulator
    Helicoil seems like a very expensive way to do it.... maybe I’ll do it my way and take a bunch of pictures, and call it the Athlaos method. Finally something to my name.

  6. Mar 15, 2021 at 6:30 AM
    #106
    TodayWasTHeDaY

    TodayWasTHeDaY [OP] Hoser

    Joined:
    Jul 10, 2017
    Member:
    #223673
    Messages:
    1,999
    Gender:
    Male
    First Name:
    Russ
    Calgary
    Vehicle:
    2015 DCSB SC M/T TRD Sport
    It was $40 for the kit through Amazon so nothing too crazy.

    Athlaos[QUOTED] likes this.
  7. Mar 15, 2021 at 5:13 PM
    #107
    Athlaos

    Athlaos Zero-Force Member

    Joined:
    Nov 24, 2010
    Member:
    #46672
    Messages:
    2,541
    Gender:
    Male
    First Name:
    Leigh
    Edmonton
    Vehicle:
    2011 SR5 Manual TRD SC 1.87" pulley
    A flux retro-capacitance encabulator
    Nice. Did that include the taps? I bought the bolts and two taps and that came to $40 as well. Maybe slightly more actually. But the bolts are hex drive so it'll look slick.

  8. Mar 15, 2021 at 5:24 PM
    #108
    TodayWasTHeDaY

    TodayWasTHeDaY [OP] Hoser

    Joined:
    Jul 10, 2017
    Member:
    #223673
    Messages:
    1,999
    Gender:
    Male
    First Name:
    Russ
    Calgary
    Vehicle:
    2015 DCSB SC M/T TRD Sport
    Yup, it's got enough coils of the right size, drill bit, tap, install tool. Only need a tap handle (or use a wrench) which surprisingly I don't have considering how many threads I've tapped at work and home.

    Hex heads will look badass though!

  9. Mar 19, 2021 at 7:49 PM
    #109
    TodayWasTHeDaY

    TodayWasTHeDaY [OP] Hoser

    Joined:
    Jul 10, 2017
    Member:
    #223673
    Messages:
    1,999
    Gender:
    Male
    First Name:
    Russ
    Calgary
    Vehicle:
    2015 DCSB SC M/T TRD Sport

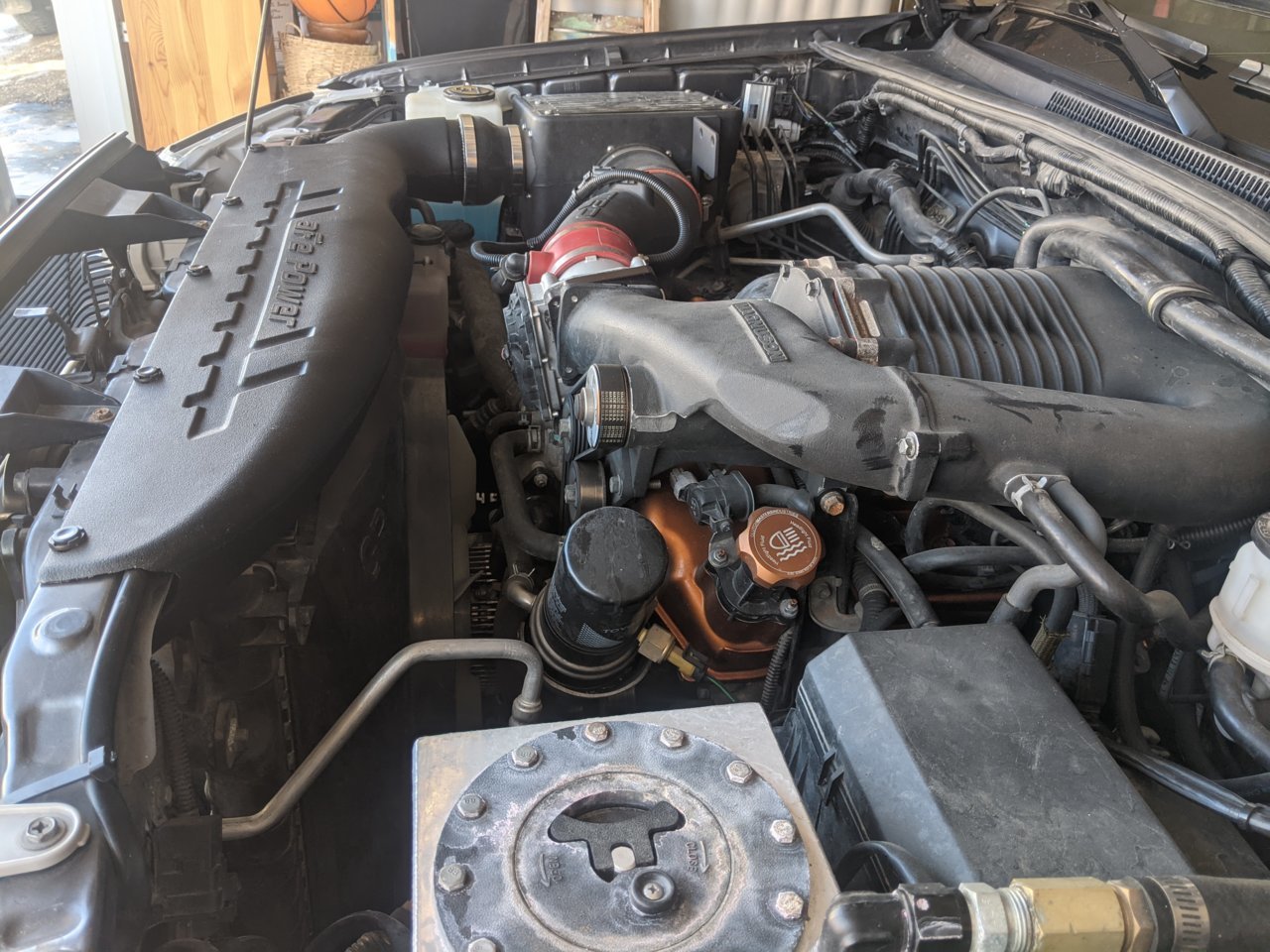

    Installed 10 helicoils (kit came with 12) out of the 12 bolt holes for the SC lid today. One helicoil got dropsied into never-never-land and it was never seen again (near workbench, not engine bay). One coil got buggered up when the install tool wouldn't quite line up properly on one of the two holes recessed into the cooling fins. Shaved the install tool down a bit and that fixed that problem.

    The intercooler gasket was barely hanging on so I just said fuck it and took it off. Last spring I used brake cleaner, roughed up the bonding surface of both gasket and intercooler, used 3M super 77 and red high temp gasket sealant and nothing wanted to stick particularly well. Will have to do a log because I'm thinking that there's got to be a flow increase without it (and probably slight heat increase as well).

    Last edited: Mar 19, 2021
  10. Mar 20, 2021 at 4:48 PM
    #110
    TodayWasTHeDaY

    TodayWasTHeDaY [OP] Hoser

    Joined:
    Jul 10, 2017
    Member:
    #223673
    Messages:
    1,999
    Gender:
    Male
    First Name:
    Russ
    Calgary
    Vehicle:
    2015 DCSB SC M/T TRD Sport

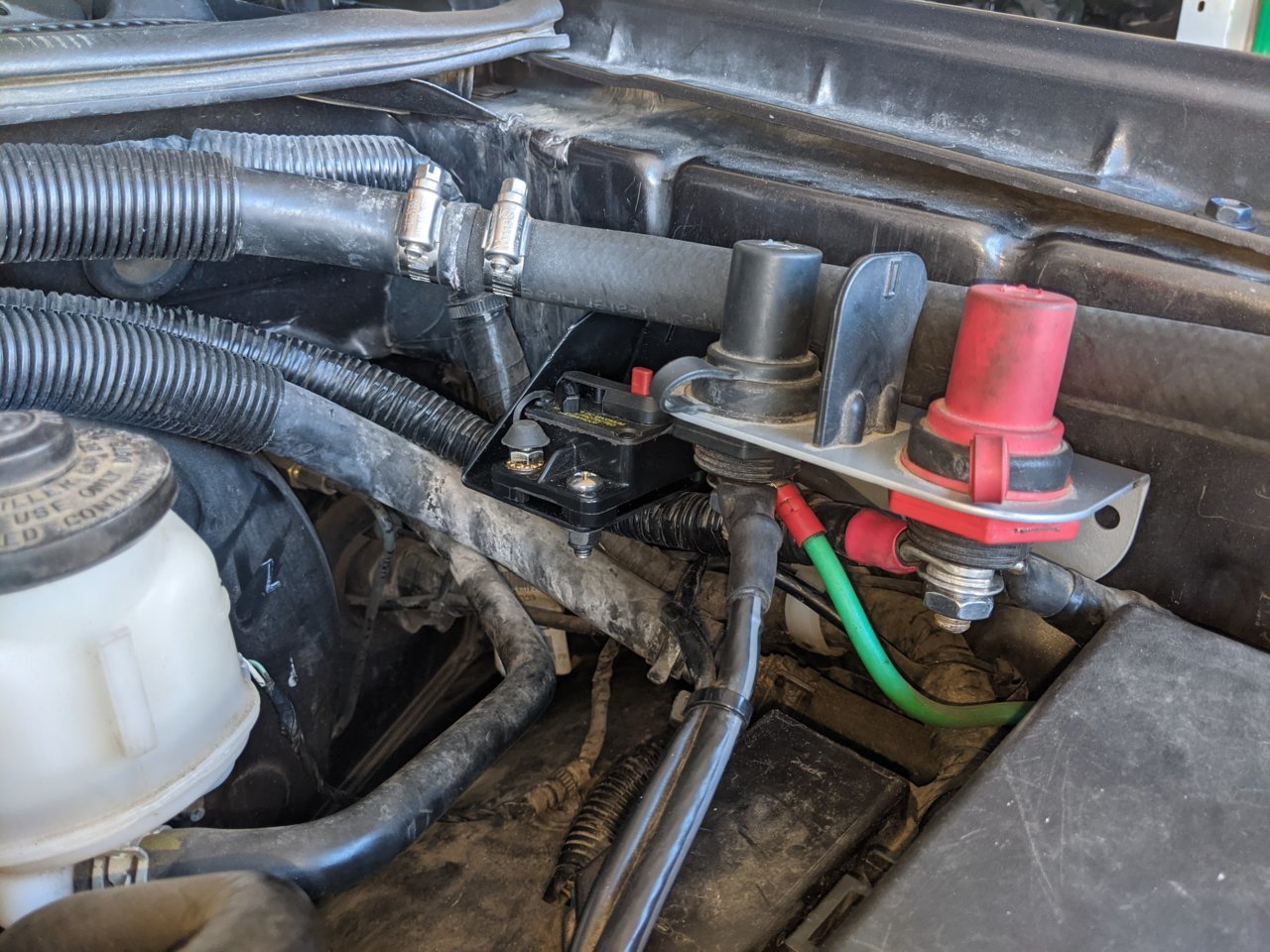

    Spent half the day making a bracket (out of a scrap bracket) for a breaker which will then provide power to the Bussman relay box. Turned into a nice little protective shelf.

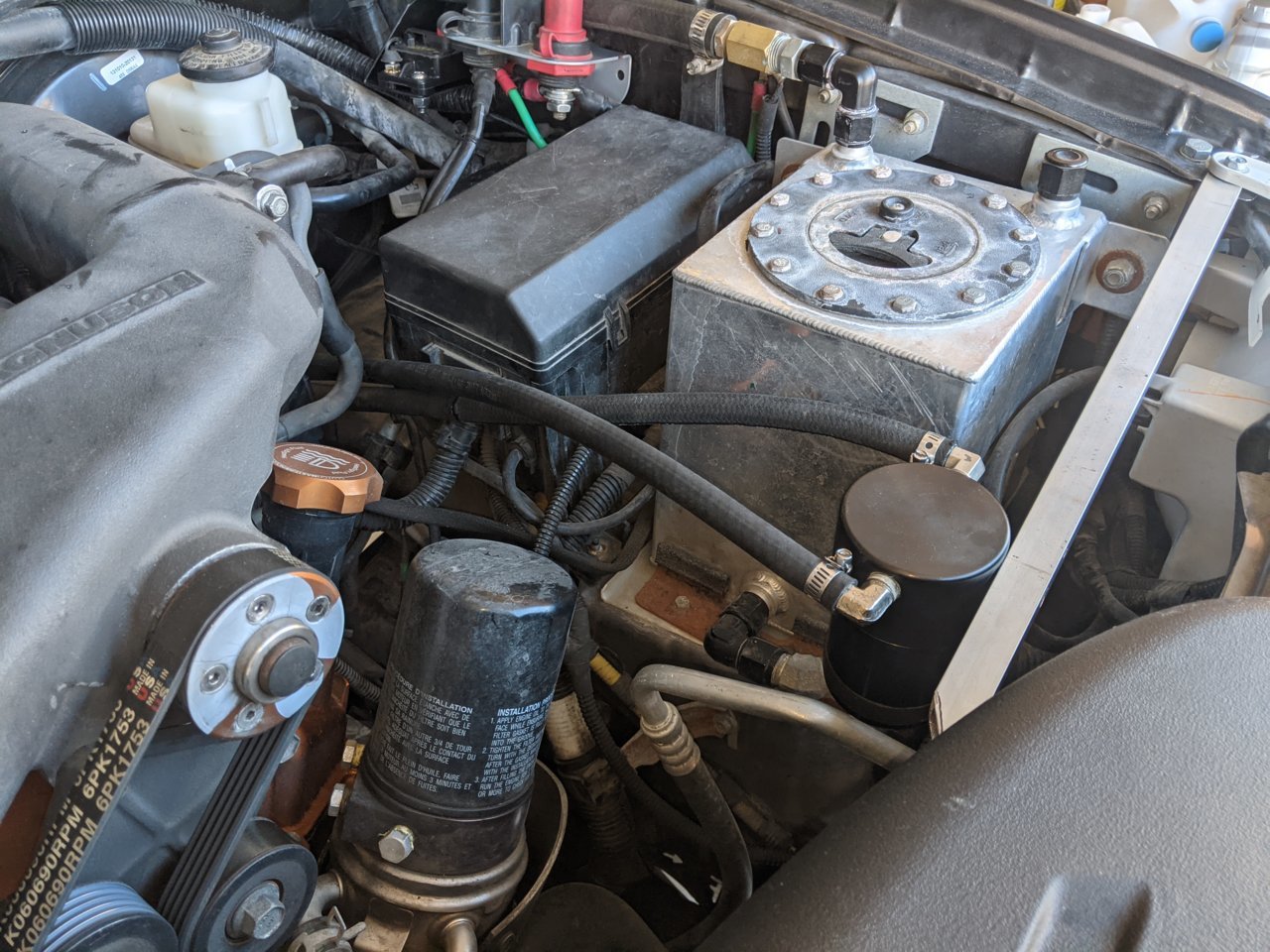

    And relocated my catch can because it was right in that area before and it was a pain in the ass to empty it due to the congestion. Simple aluminum bar bracket and now it's out of the way and nice and accessible.

  11. Mar 28, 2021 at 10:20 AM
    #111
    TodayWasTHeDaY

    TodayWasTHeDaY [OP] Hoser

    Joined:
    Jul 10, 2017
    Member:
    #223673
    Messages:
    1,999
    Gender:
    Male
    First Name:
    Russ
    Calgary
    Vehicle:
    2015 DCSB SC M/T TRD Sport

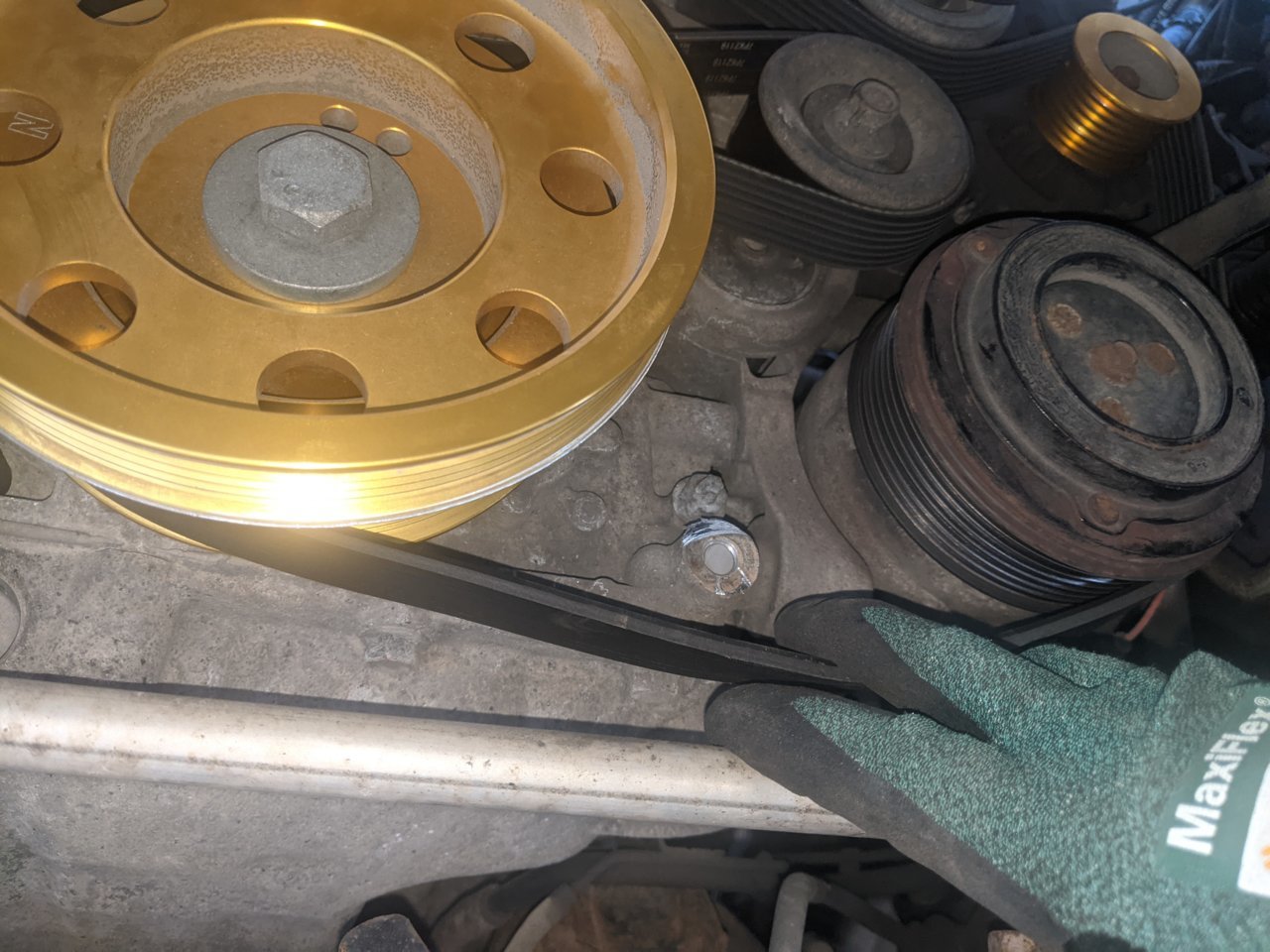

    Well, I've just had a pain in the ass week. To top it off my truck threw the SC belt the other day. Wasn't too far from home so drove back. Upon inspection the nut appeared loose on the lower tensioner/serpentine pulley. Tried tightening nut and it spun but the threads looked good on nut and stud.

    Turns out the stud broke off in the block. Some obvious damage/wear to the fancy crank pulley and SC pulley edges and some rounding off where the stud mounts to the engine.

    Already drilled a hole in the broken off stud piece and have to borrow some extractors from my dad this afternoon. Think the chunk should come out pretty easy.

    Too much rouche tensioner muscle? Running 23mm pulley and 69" belt.

    Have to order parts on Monday. If I get the stud chunk out I can put the serp back on and run without the SC.


    Athlaos likes this.
  12. Mar 28, 2021 at 7:48 PM
    #112
    TodayWasTHeDaY

    TodayWasTHeDaY [OP] Hoser

    Joined:
    Jul 10, 2017
    Member:
    #223673
    Messages:
    1,999
    Gender:
    Male
    First Name:
    Russ
    Calgary
    Vehicle:
    2015 DCSB SC M/T TRD Sport
    Copied from the SC thread:

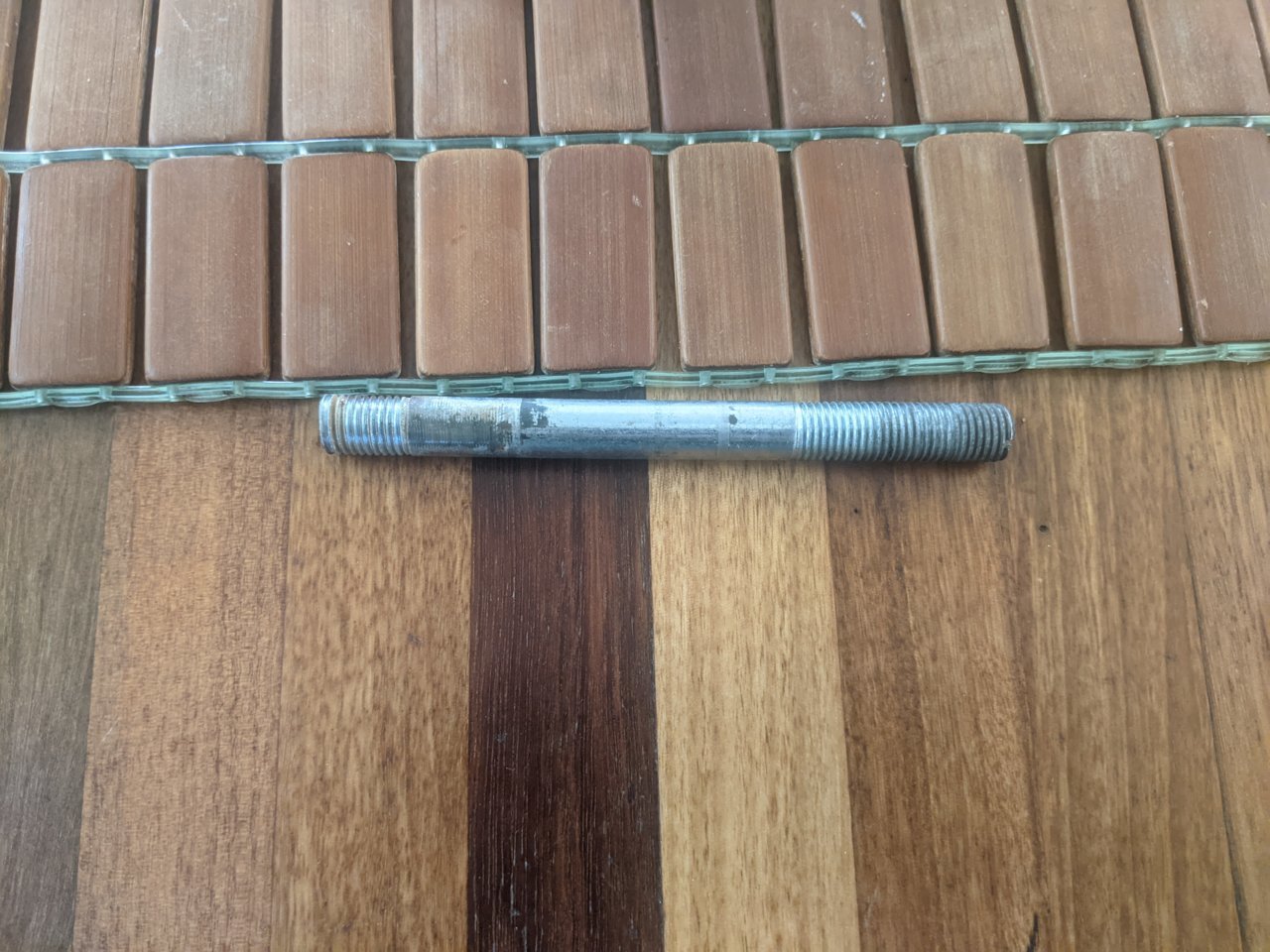

    Gotcha ya wee bastard!

    :quickdraw:
    [​IMG]

    Real clean looking break.
    [​IMG]

    SnozzCumber and Athlaos like this.
  13. Mar 28, 2021 at 7:49 PM
    #113
    TodayWasTHeDaY

    TodayWasTHeDaY [OP] Hoser

    Joined:
    Jul 10, 2017
    Member:
    #223673
    Messages:
    1,999
    Gender:
    Male
    First Name:
    Russ
    Calgary
    Vehicle:
    2015 DCSB SC M/T TRD Sport
    Gonna have to source a replacement stud on Monday.

    Athlaos likes this.
  14. Mar 29, 2021 at 3:19 PM
    #114
    TodayWasTHeDaY

    TodayWasTHeDaY [OP] Hoser

    Joined:
    Jul 10, 2017
    Member:
    #223673
    Messages:
    1,999
    Gender:
    Male
    First Name:
    Russ
    Calgary
    Vehicle:
    2015 DCSB SC M/T TRD Sport
    Canada lifestyle. $20 stud required $40 to ship to Canada should be here next week. Fast shipping would've been $65.

    Athlaos likes this.
  15. Mar 29, 2021 at 7:28 PM
    #115
    Athlaos

    Athlaos Zero-Force Member

    Joined:
    Nov 24, 2010
    Member:
    #46672
    Messages:
    2,541
    Gender:
    Male
    First Name:
    Leigh
    Edmonton
    Vehicle:
    2011 SR5 Manual TRD SC 1.87" pulley
    A flux retro-capacitance encabulator
    Buy American they said. It'll be fun they said

  16. Mar 29, 2021 at 8:20 PM
    #116
    TodayWasTHeDaY

    TodayWasTHeDaY [OP] Hoser

    Joined:
    Jul 10, 2017
    Member:
    #223673
    Messages:
    1,999
    Gender:
    Male
    First Name:
    Russ
    Calgary
    Vehicle:
    2015 DCSB SC M/T TRD Sport
    On the phone after he said the shipping cost I was all "fuuuuuck........ pardon my French".
    "I completely understand" he says lol

    Athlaos likes this.
  17. Apr 8, 2021 at 9:33 AM
    #117
    jakub4

    jakub4 Active Member

    Joined:
    May 6, 2013
    Member:
    #103626
    Messages:
    41
    Gender:
    Male
    First Name:
    Jakub
    Calgary, AB
    Vehicle:
    '11 DCLB Sport in fast blue
    ADS shocks, Dakars, Lots of custom electrics, too much money spent
    Russ, you ever order from partsouq? I'm in Calgary as well, and have often ordered from there, usually parts that are generic for yotas you can find if you have the part number.
    Fedex will sometimes ding you tho, so fair warning.

    Nice build btw, i'd say you've used your covid time well.

    TodayWasTHeDaY[OP] likes this.
  18. Apr 8, 2021 at 9:51 AM
    #118
    TodayWasTHeDaY

    TodayWasTHeDaY [OP] Hoser

    Joined:
    Jul 10, 2017
    Member:
    #223673
    Messages:
    1,999
    Gender:
    Male
    First Name:
    Russ
    Calgary
    Vehicle:
    2015 DCSB SC M/T TRD Sport
    Thanks dude!
    I've never used partsource but will check it out the next time I need something. I've used tdotperformance and partengine a couple times.

    The stud was unique to Magnuson and wherever they sourced it. They referred me to Superchargers online and their shipping options were brutal obviously. I needed the part though and it actually came faster than predicted so I'm back on the road again.

    Last edited: Dec 10, 2022
    Athlaos likes this.
  19. Apr 11, 2021 at 5:26 PM
    #119
    TodayWasTHeDaY

    TodayWasTHeDaY [OP] Hoser

    Joined:
    Jul 10, 2017
    Member:
    #223673
    Messages:
    1,999
    Gender:
    Male
    First Name:
    Russ
    Calgary
    Vehicle:
    2015 DCSB SC M/T TRD Sport
    And in the continuing saga of shit luck I have been experiencing lately.

    Went with the family to go for a walk by the river and the road was closed due to construction. As I went to turn around the truck bucked and stalled. Turned on and stalled again and lost power to the truck as well. Slowly gravity backed up out of the way and called my dad to pick up my wife and boy and bring brake fluid, a 10 mm wrench (which I usually keep in the truck at all times) and a multimeter.

    Eventually found a popped ANL fuse that I have between the alternator and battery. Replaced that and topped up clutch fluid and drove home and truck felt pretty good. When I parked I noticed clutch fluid leakage. No appearance of any visible shorts or wiring issues whatsoever.

    Found a leaking brass brake union going to my clutch slave cylinder from the accumulator delete. Tightened it and it felt like it stripped. Took it out and it was cracked. Probably from prior over tightening (it's in such a tight, awkward area).

    I think what happened is it gave out and/or let out a good squirt of fluid and I stalled due to unpredictable engagement. I started the truck and the clutch was partially engaged because of it and the truck lurched which most likely surged the alternator and popped the fuse.

    To top it off my "quality" over the range microwave died yesterday after about five years.

    I'm gonna have to find a horse shoe and stuff it up my ass or something...

    Last edited: Apr 11, 2021
  20. Apr 12, 2021 at 11:10 AM
    #120
    Athlaos

    Athlaos Zero-Force Member

    Joined:
    Nov 24, 2010
    Member:
    #46672
    Messages:
    2,541
    Gender:
    Male
    First Name:
    Leigh
    Edmonton
    Vehicle:
    2011 SR5 Manual TRD SC 1.87" pulley
    A flux retro-capacitance encabulator
    Wow. One of these days something has to go right. Even the best of us get unlucky sometimes. At least you didn't get towed.

    What is this fuse you speak of between the alternator and battery? Is that a recommended upgrade? Now you got me nervous.

    I don't think your fitting should have cracked just from tightening it with too much vigor. I'd bet you suffered from another defective component.
