Tonneau Brackets for BakFlip Covers with Relocated Accessory Rails

KB Voodoo · Sep 21, 2018

h5863emtmatt said: ↑

I have the 46" short rack mid height. I wanted the option to have the cover open and or closed so I choose the mounting points further back to clear the folded up cover.

The bed tracks are too far forward and needed to be moved back toward the tailgate 2 7/8".

I removed each bed track using a Torx30 and drilled (3) 1/4" holes 2 7/8" forward of each existing hole.

I remounted the bed track which is now moved back.

Separate the BakFlip bed rail using the Torx30 leaving the mounting point closest to the bulkhead attached. Wiggle the the bracket in place. Its a pain in the ass.

Measure 46" and install other bracket.

Cover locks in and closes without issue.

I left the cover open for ease of install. Also had to make slight adjustments to the rear brackets to fit the side mounts. Pain in the ass because you have to almost uninstall the BakFlip bed rails to loosen the brackets.

Bolt to bed tracks.

I uninstalled each corner from the brackets and closed the cover. Everything is lined up and bed rack ready for complete assembly.

Done son. When you need the bed unbolt each corner and with a help of a friend remove the rack. Now you have your bed.
Click to expand...

Beautiful!!!!

PinoyTacoToy · Sep 21, 2018

KB Voodoo[OP] initial post: ↑

You want a bed rack on your truck......but you have a Bakflip cover with relocated accessory rails

MAX Modular has the solution!!

How to order

Go to our website and pick out the bed rack of your choice: https://www.max-modular.com/shop-max-modular/

When asked "UPGRADE TO TONNEAU BRACKETS ($125 OPTION)"....say NO, and add the rack to your cart.

Then add these little beauties to your cart: https://www.max-modular.com/shop-max-modular/tonneau-brackets-bakflip

A few days later your new bed rack kit will arrive at your door
Click to expand...

That is what I'm been looking for. I have Bakflip cover.

KB Voodoo · Sep 21, 2018

PinoyTacoToy said: ↑

That is what I'm been looking for. I have Bakflip cover.
Click to expand...

Today is your lucky day.

KB Voodoo · Sep 21, 2018

h5863emtmatt said: ↑

I have the 46" short rack mid height. I wanted the option to have the cover open and or closed so I choose the mounting points further back to clear the folded up cover.

The bed tracks are too far forward and needed to be moved back toward the tailgate 2 7/8".

I removed each bed track using a Torx30 and drilled (3) 1/4" holes 2 7/8" forward of each existing hole.

I remounted the bed track which is now moved back.

Separate the BakFlip bed rail using the Torx30 leaving the mounting point closest to the bulkhead attached. Wiggle the the bracket in place. Its a pain in the ass.

Measure 46" and install other bracket.

Cover locks in and closes without issue.

I left the cover open for ease of install. Also had to make slight adjustments to the rear brackets to fit the side mounts. Pain in the ass because you have to almost uninstall the BakFlip bed rails to loosen the brackets.

Bolt to bed tracks.

I uninstalled each corner from the brackets and closed the cover. Everything is lined up and bed rack ready for complete assembly.

Done son. When you need the bed unbolt each corner and with a help of a friend remove the rack. Now you have your bed. All the difficulty came with the BakFlip not the rack. Assembly of the rack was easy and the product is awesome.
Click to expand...

One suggestion I would make for any new customers: Assemble the entire rack upside down on a flat surface, then flip the whole thing over and put it on the truck.

h5863emtmatt · Sep 21, 2018

I did that initially but didn’t have help. Also if the 4 mounting points aren’t exact you have to take the whole thing off again, disassemble the bed rails to free up the brackets to make adjustments. At least with it in several pieces it’s easier to maneuver solo. If you have a helper then assemble it whole and install.

KB Voodoo · Sep 21, 2018

h5863emtmatt said: ↑

I did that initially but didn’t have help. Also if the 4 mounting points aren’t exact you have to take the whole thing off again, disassemble the bed rails to free up the brackets to make adjustments. At least with it in several pieces it’s easier to maneuver solo. If you have a helper then assemble it whole and install.
Click to expand...

I've done it that way too when no one was around. Sometimes you gotta do what you gotta do to get shit done.

h5863emtmatt · Sep 21, 2018

KB Voodoo[OP] said: ↑

I've done it that way too when no one was around. Sometimes you gotta do what you gotta do to get shit done.
Click to expand...

Ya my wife was like it’s too late, I’m busy, you’re on your own, I’m bored etc

KB Voodoo · Sep 21, 2018

h5863emtmatt said: ↑

Ya my wife was like it’s too late, I’m busy, you’re on your own, I’m bored etc
Click to expand...

I normally drag the old lady off the couch by the hair, I don't care what episode of Chopped or Dr Pol is on.

hordboy · Sep 21, 2018

But it's not possible to open the cover with the rack installed... right?

KB Voodoo · Sep 21, 2018

hordboy said: ↑

But it's not possible to open the cover with the rack installed... right?
Click to expand...

Correct.

hordboy · Sep 21, 2018

Gotcha. Thanks.

dcrew1x · Sep 22, 2018

@
h5863emtmatt

You said you purchased the mid height. I"m assuming that's the 14" version for the short bed unless you purchased the 10" Max Modular Taco (since there are no 14" options). Also did you get the Max Modular Taco, Steel, or Aluminum version? Thanks for the pictures and info/install information!

KB Voodoo · Sep 22, 2018

dcrew1x said: ↑

@
h5863emtmatt

You said you purchased the mid height. I"m assuming that's the 14" version for the short bed. Also did you get the Max Modular Taco, Steel, or Aluminum version? Thanks for the pictures and info/install information!
Click to expand...

He has the 10" TACO Max, 46" long.

Now, back to my Bob Seger videos on YouTube.

h5863emtmatt · Sep 22, 2018

KB Voodoo[OP] said: ↑

He has the 10" TACO Max, 46" long.

Now, back to my Bob Seger videos on YouTube.
Click to expand...

He’s right. It’s the tits

KB Voodoo · Sep 22, 2018

h5863emtmatt said: ↑

He’s right. It’s the tits
Click to expand...

The rack, or Bob Seger?

Have I failed to mention that Bob Seger is doing his final tour? Ya'll should jump on that.

h5863emtmatt · Sep 22, 2018

Ill be at the Zac Brown, Doobie Brothers and Eagles concert tonight

Gmarq · Sep 22, 2018

@KB Voodoo Will this solution work with the BAK Revolver X2/X4? It's the "rolling" kind of cover, not the folding/flipping kind. It would be nice to be able to roll the cover up with the bed rack on but I also wouldn't mind rolling the cover-up or leaving it rolled down when using a bed rack. Extra points if you have pictures. TIA!

KB Voodoo · Sep 22, 2018

Gmarq said: ↑

@KB Voodoo Will this solution work with the BAK Revolver X2/X4? It's the "rolling" kind of cover, not the folding/flipping kind. It would be nice to be able to roll the cover up with the bed rack on but I also wouldn't mind rolling the cover-up or leaving it rolled down when using a bed rack. Extra points if you have pictures. TIA!
Click to expand...

Yes, it will work, but I’m not sure if your cover will roll up past the legs of the rack.

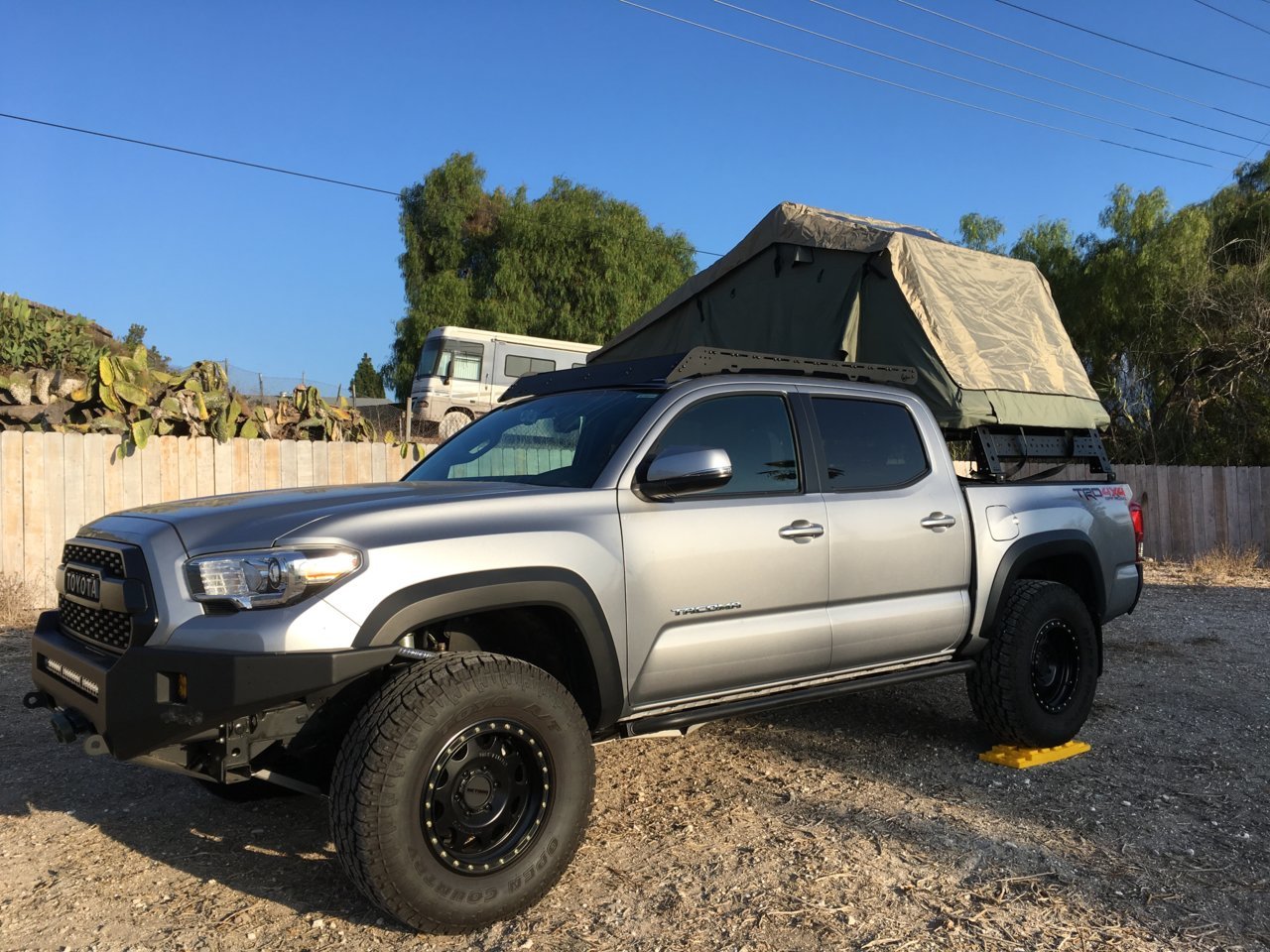

h5863emtmatt · Sep 24, 2018

KB Voodoo · Sep 24, 2018

h5863emtmatt said: ↑

Click to expand...

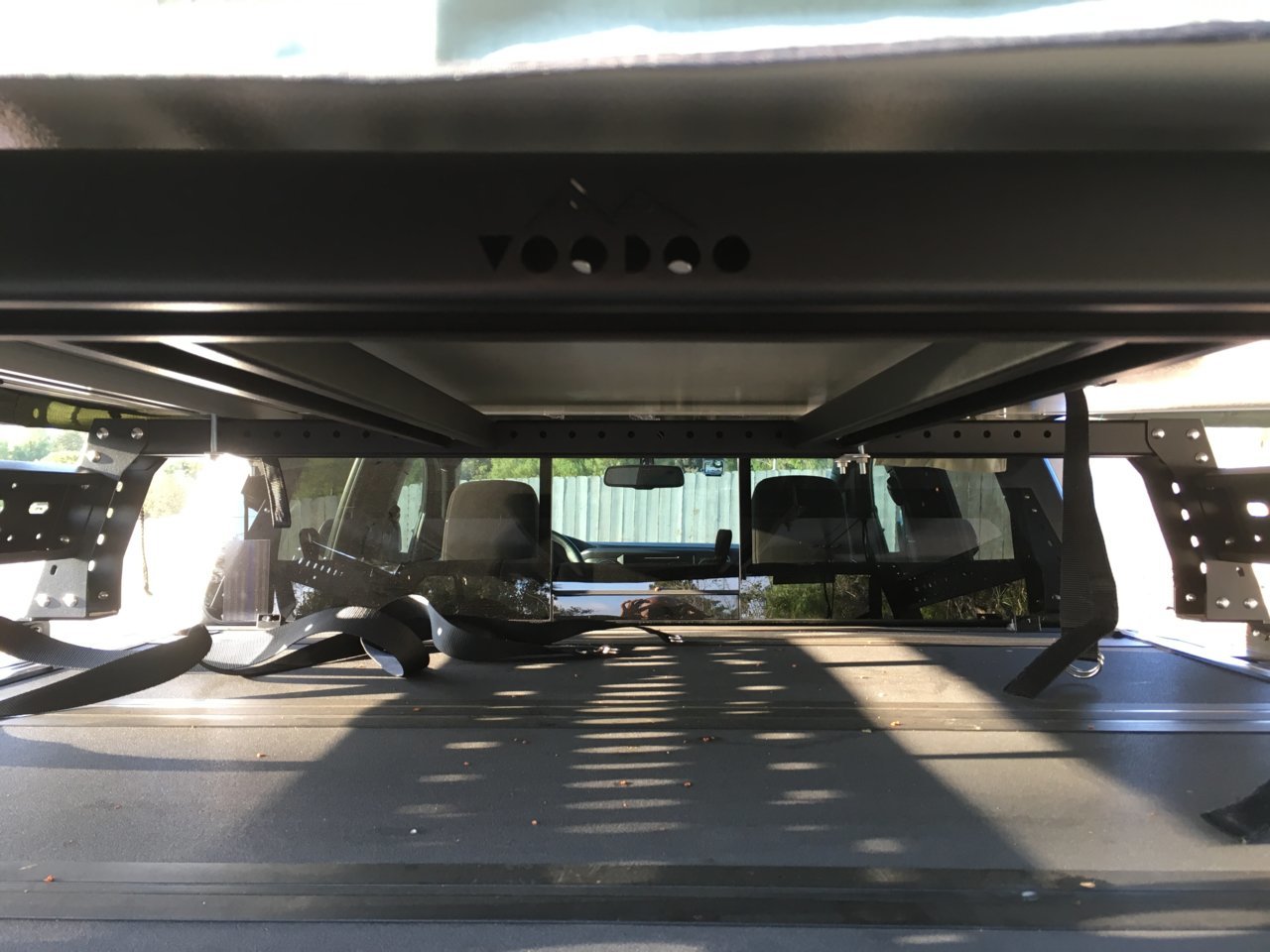

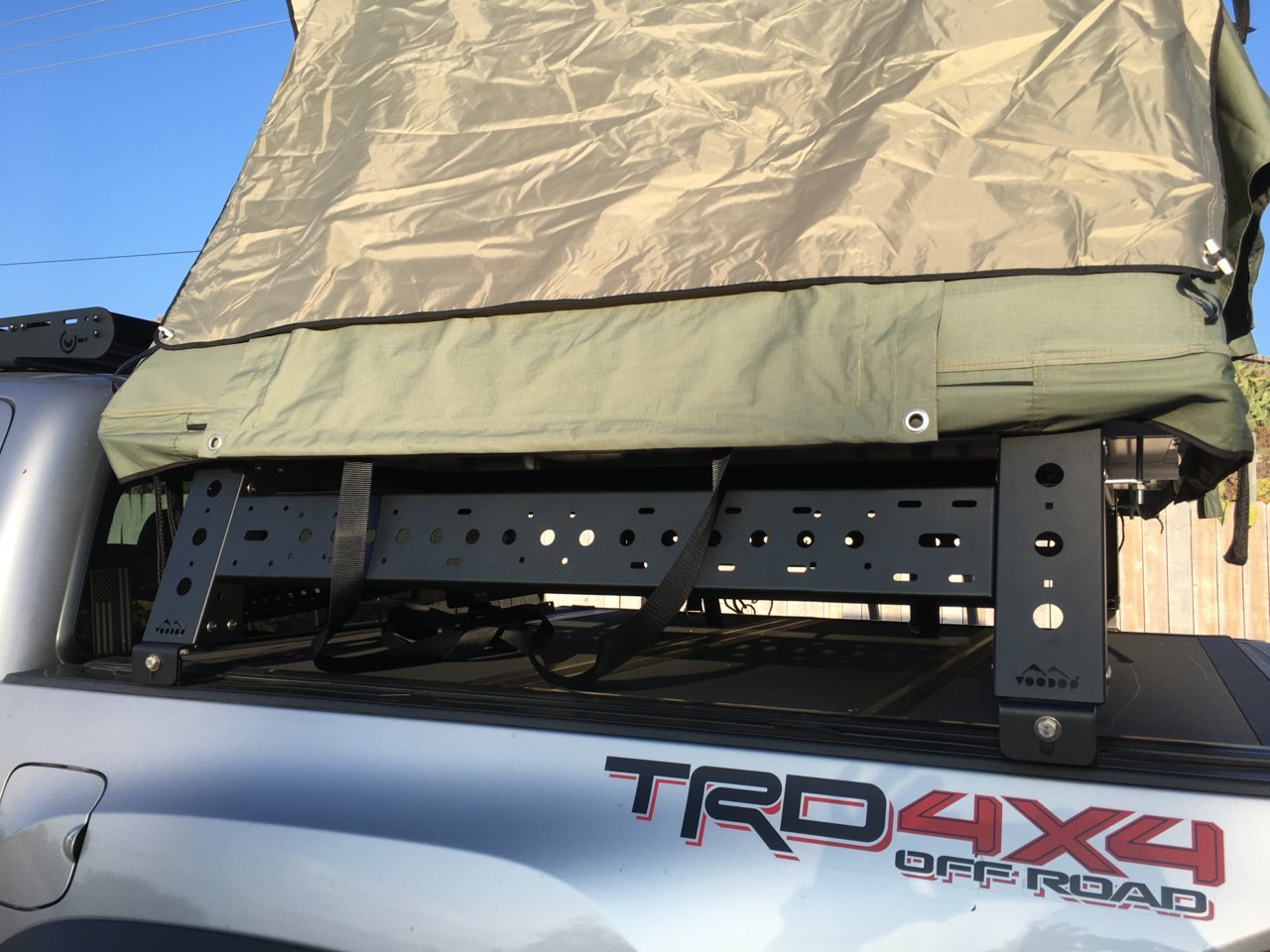

Rear visibility doesn't look bad, even with the 10" rack. Of course, the tonneau brackets don't hurt.
