tooter 2.7 intake manifold spacer...

Discussion in '4 Cylinder' started by tooter, Jul 11, 2013.

  1. Oct 2, 2013 at 9:55 AM
    #381
    allmotorrex

    allmotorrex Grove St. Motorsports

    Joined:
    Aug 29, 2010
    Member:
    #42441
    Messages:
    11,450
    Gender:
    Male
    First Name:
    Gideon
    Memphis 901
    Vehicle:
    08 SR5 4wd 2.7
    4.88s w/h rear Powertrax locker, Fox 2.5 Ext. RR COs, Camburg 1.25” ucas, Fox 12" smooth body RR, BAMF shock kit, AP 3" springs, ext. brake lines, 315/75/16 BFG KM2, AP 1.5" spacers, 16x8 Pro Comp wheels, BFF front hybrid, GSM rear HC, Relentless Fab ifs skid, BAMF lca skids, BAMF k/o sliders, X2O 10K comp. winch, TP glass fenders, OKled 20"bar, EBS dimpled/slotted rotors, EBS green pads, K&N 63 CAI, LCE headers, FM Super 44 w/h turn down, URD MAF cali., LCE Dual Comp clutch, URD ss, TMPer M1 Abrams shift knob, Amsoil oil, Cobra 75wxst w/h 4' firestix, ARB compressor, Grillcraft, FXR TRS, T1 eyelids, 500 hellas w/h 6k hid conv., custom ADV Monster model 60 lights, bed lights, speedo light mod, Glow Shift volt/oil pres gauges, Glow shift 2g column pod, Optima yellow tops dual battery setup w/h IBS system, Pioneer DEH-P7200HD head unit, Pioneer 600W 4ch & 350w 2ch amps for doors and sub, Wet Oakle covers, Weather Tech
    That thing looks badass. I like it black better than aluminium

  2. Oct 2, 2013 at 11:02 AM
    #382
    qdude79

    qdude79 Member

    Joined:
    May 6, 2013
    Member:
    #103664
    Messages:
    23
    Gender:
    Male
    Central Cal
    Vehicle:
    '13 Reg Cab 4x4 5spd
    Debadged
    Why don't they come from Toyota like this? Seems cheap and simple enough, in mass production...

  3. Oct 2, 2013 at 11:04 AM
    #383
    Kavik

    Kavik Kavik

    Joined:
    Jan 30, 2012
    Member:
    #71810
    Messages:
    3,150
    Gender:
    Male
    First Name:
    Rylan
    Texas, DFW
    Vehicle:
    2005 Toyota Tacoma
    3 inch drop blocks (Beefed Taco),Satoshi Grill, Morimoto bi-xenon H1 Retrofitted headlights, Flowmaster exhaust, Blue LED interior and exterior, blue LED dome light, Anzo black LED taillights, Hifonics Brutus 1100w Mono Block, Bazooka 300w Amp, LED license plate lights.
    Did I miss what the price is roughly gonna be?

  4. Oct 2, 2013 at 2:14 PM
    #384
    MaxT

    MaxT Member

    Joined:
    Apr 30, 2013
    Member:
    #103161
    Messages:
    15
    Gender:
    Male
    St Marys, GA
    Vehicle:
    2013 xspX Prerunner
    Painted Cab and Hood Hot Lava, Intermittent wiper install, WeatherTech Window Vents,AFE Air Filter, Removal of charcoal prefilter
    :D Quality takes time. It is better to wait a few days and get a perfect product. Again thanks for helping our 4-bangers sing.

    Max

  5. Oct 2, 2013 at 5:24 PM
    #385
    tooter

    tooter [OP] play every day

    Joined:
    Apr 13, 2013
    Member:
    #102021
    Messages:
    2,391
    Gender:
    Male
    First Name:
    Greg
    Los Angeles
    Vehicle:
    2012, std cab, 5 lug, 2.7, 5 speed
    Built for maximum low end torque, tooter II.VII intake manifold spacer, LCE long tube header, Injen long tube intake, 2,900 rpm torque peak.
    It does. :) And it should also work a little better as nylon is an insulator exactly like the rest of the intake manifold is.

  6. Oct 2, 2013 at 5:50 PM
    #386
    tooter

    tooter [OP] play every day

    Joined:
    Apr 13, 2013
    Member:
    #102021
    Messages:
    2,391
    Gender:
    Male
    First Name:
    Greg
    Los Angeles
    Vehicle:
    2012, std cab, 5 lug, 2.7, 5 speed
    Built for maximum low end torque, tooter II.VII intake manifold spacer, LCE long tube header, Injen long tube intake, 2,900 rpm torque peak.
    I asked myself exactly that same question, as Toyota could mold a nylon intake manifold in any form they wanted.

    My guess is that it's likely a compromise between top and and bottom end performance and of course emissions requirements. Although I don't see how just making the intake runners longer would affect the A/F ratio. The fuel doesn't even get sprayed until after the intake air has already passed the spacer.

    2 inch longer runners isn't a huge amount, and it's not like it magically "supercharges" the engine. It just made the torque peak come on 250 rpm sooner, and fattened up the curve in a few places.

    But for a simple passive bolt on part... the results are actually pretty decent. :)

    Greg

    Last edited: Oct 2, 2013
  7. Oct 2, 2013 at 5:54 PM
    #387
    tooter

    tooter [OP] play every day

    Joined:
    Apr 13, 2013
    Member:
    #102021
    Messages:
    2,391
    Gender:
    Male
    First Name:
    Greg
    Los Angeles
    Vehicle:
    2012, std cab, 5 lug, 2.7, 5 speed
    Built for maximum low end torque, tooter II.VII intake manifold spacer, LCE long tube header, Injen long tube intake, 2,900 rpm torque peak.
    Yeah, it keeps getting buried in these long threads. The price is $225 including shipping to the lower 48 states. When I have the spacers assembled into kits and all boxed up ready to ship, I'll begin a fresh "For Sale" thread in the 2nd generation Marketplace.

    Greg

  8. Oct 2, 2013 at 6:18 PM
    #388
    tooter

    tooter [OP] play every day

    Joined:
    Apr 13, 2013
    Member:
    #102021
    Messages:
    2,391
    Gender:
    Male
    First Name:
    Greg
    Los Angeles
    Vehicle:
    2012, std cab, 5 lug, 2.7, 5 speed
    Built for maximum low end torque, tooter II.VII intake manifold spacer, LCE long tube header, Injen long tube intake, 2,900 rpm torque peak.
    While nothing in this world is perfect, I'll get it reasonably close. :thumbsup:

    What I find so exciting is the whole creative process... :)
    We set off into uncharted waters, and encounter all sorts of little design and production obstacles, and then try to come up with clever inventive ways to sail around them. This brings with it all the feelings of being an explorer or a pioneer... without the danger. ;)

    You're most welcome... :)
    It's literally my pleasure, because my cup is already overflowing with the rewards of personal satisfaction from turning a concept into reality. I tell you, if I never even sold one of these, I already consider the project a success because of how nicely it works on my own truck. :thumbsup:

    Greg

  9. Oct 3, 2013 at 4:13 AM
    #389
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    10,318
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    I'm sure hoping these will be available still come January, which is realistically when I'll be able to grab one.............diggin the black nylon too. This may be just the thing to influence my want to go ahead with 265/75/16s from the 265/70/16s I have now. I think a little less gap in the wells would look better and I'll be needing to be making a tire decision come first of year as well.

    Last edited: Oct 3, 2013
  10. Oct 3, 2013 at 4:16 AM
    #390
    vstrom

    vstrom Well-Known Member

    Joined:
    Dec 12, 2010
    Member:
    #47569
    Messages:
    110
    Gender:
    Male
    Would you be willing to ship to Canada?

  11. Oct 3, 2013 at 4:40 AM
    #391
    tooter

    tooter [OP] play every day

    Joined:
    Apr 13, 2013
    Member:
    #102021
    Messages:
    2,391
    Gender:
    Male
    First Name:
    Greg
    Los Angeles
    Vehicle:
    2012, std cab, 5 lug, 2.7, 5 speed
    Built for maximum low end torque, tooter II.VII intake manifold spacer, LCE long tube header, Injen long tube intake, 2,900 rpm torque peak.
    No problem. The CNC design program is completely set to make accurate parts that fit perfectly. And when the jig to grip the spacers from inside the runners is made, the outside can then be finished off smoothly and completely in just one pass.

    The company I'm working with creates one-off prototype designs, and is not a product manufacturer, so this project falls outside their primary focus. But the engineer is willing to creatively explore new production techniques that will allow consistent results with less machine time.

    Besides the holding issue, machining nylon does have some inherent advantages in that no coolant is required and there is very little stress on the CNC machine's moving parts. So we're making progress on the manufacturing techniques, and when the issues have been resolved, it will be possible to make parts consecutively.

    And don't be concerned about future availability. Once sales begin and catch up with orders, the spacers will always be in stock. :thumbsup:

    Greg

    Last edited: Oct 3, 2013
  12. Oct 3, 2013 at 4:47 AM
    #392
    tooter

    tooter [OP] play every day

    Joined:
    Apr 13, 2013
    Member:
    #102021
    Messages:
    2,391
    Gender:
    Male
    First Name:
    Greg
    Los Angeles
    Vehicle:
    2012, std cab, 5 lug, 2.7, 5 speed
    Built for maximum low end torque, tooter II.VII intake manifold spacer, LCE long tube header, Injen long tube intake, 2,900 rpm torque peak.
    Sure. :)
    For a slight additional charge just to cover the actual difference between shipping domestically and shipping to Canada.

  13. Oct 3, 2013 at 5:19 AM
    #393
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    10,318
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    Good news!

  14. Oct 4, 2013 at 4:49 AM
    #394
    vstrom

    vstrom Well-Known Member

    Joined:
    Dec 12, 2010
    Member:
    #47569
    Messages:
    110
    Gender:
    Male
    So, would putting a intake spacer on any engine (motorcycle v-twin or a small diesel) have the same type of results?(ie dropping the torque curve).

  15. Oct 4, 2013 at 7:50 AM
    #395
    tooter

    tooter [OP] play every day

    Joined:
    Apr 13, 2013
    Member:
    #102021
    Messages:
    2,391
    Gender:
    Male
    First Name:
    Greg
    Los Angeles
    Vehicle:
    2012, std cab, 5 lug, 2.7, 5 speed
    Built for maximum low end torque, tooter II.VII intake manifold spacer, LCE long tube header, Injen long tube intake, 2,900 rpm torque peak.
    Now that's an intriguing question. :)
    I was wondering if it would make a difference on my DRZ...

    [​IMG]

    I'm sure the intake on my bike is already optimized for torque to fit it's primary purpose. The long really strange bulging tapering intake "velocity stack" is definitely designed to make the best of the resonance of the intake pulses.

    [​IMG]


    The problem with lengthening the intake runner is that the relocated carb would wreak havoc with the rest of the intake system. Trying to make everything else fit would be a nightmare.

    I had much better luck modifying the exhaust system, by making a reverse megaphone out of the stock exhaust. I gutted the baffles and cut the can short to make the megaphone part of the profile.

    [​IMG]

    [​IMG]

    Then adapted a billet end cap made for a Honda XR and added SuperTrapp tuning disks. This makes up the reverse part of the megaphone profile.

    [​IMG]



    [​IMG]


    [​IMG]

    The head pipe is an FMF Powerbomb which has an added chamber, the volume of which which effectively lengthens the exhaust length for added low end torque.

    [​IMG]

    Then I ran the bike trying different numbers of SuperTrapp disks until I found the right combination that had the most low end pull.

    I'm totally pleased with the results, and have been using this exhaust for over 20,000 miles. The bike runs super. :)

    [​IMG]

    Greg

    Last edited: Oct 4, 2013
  16. Oct 4, 2013 at 12:55 PM
    #396
    vstrom

    vstrom Well-Known Member

    Joined:
    Dec 12, 2010
    Member:
    #47569
    Messages:
    110
    Gender:
    Male
    Ok.. officially you're my hero. I have a DRZ400 as well.

    You, sir, are making me spend way too much money.

    If you have also modified a V-strom 650 then I'll just mail you my visa now and be done with it.

  17. Oct 5, 2013 at 3:22 PM
    #397
    tooter

    tooter [OP] play every day

    Joined:
    Apr 13, 2013
    Member:
    #102021
    Messages:
    2,391
    Gender:
    Male
    First Name:
    Greg
    Los Angeles
    Vehicle:
    2012, std cab, 5 lug, 2.7, 5 speed
    Built for maximum low end torque, tooter II.VII intake manifold spacer, LCE long tube header, Injen long tube intake, 2,900 rpm torque peak.
    I know that feeling... I've sunk quite chunk of money into this project. Don't worry, you're safe! :thumbsup:

    I'm 135 pounds and can only handle smaller bikes like the DRZ comfortably. I got mine slimmed down to just 301lbs. curb weight with a full tank of gas. It's also lowered 1 1/2 inches front and rear, which really improves the handling. I even took off the heavy off road bars and installed low narrow lightweight alloy racing clip on bars. Also all the lighting except the headlight is small lightweight LED's

    [​IMG]

    Last edited: Oct 5, 2013
  18. Oct 5, 2013 at 3:40 PM
    #398
    tooter

    tooter [OP] play every day

    Joined:
    Apr 13, 2013
    Member:
    #102021
    Messages:
    2,391
    Gender:
    Male
    First Name:
    Greg
    Los Angeles
    Vehicle:
    2012, std cab, 5 lug, 2.7, 5 speed
    Built for maximum low end torque, tooter II.VII intake manifold spacer, LCE long tube header, Injen long tube intake, 2,900 rpm torque peak.

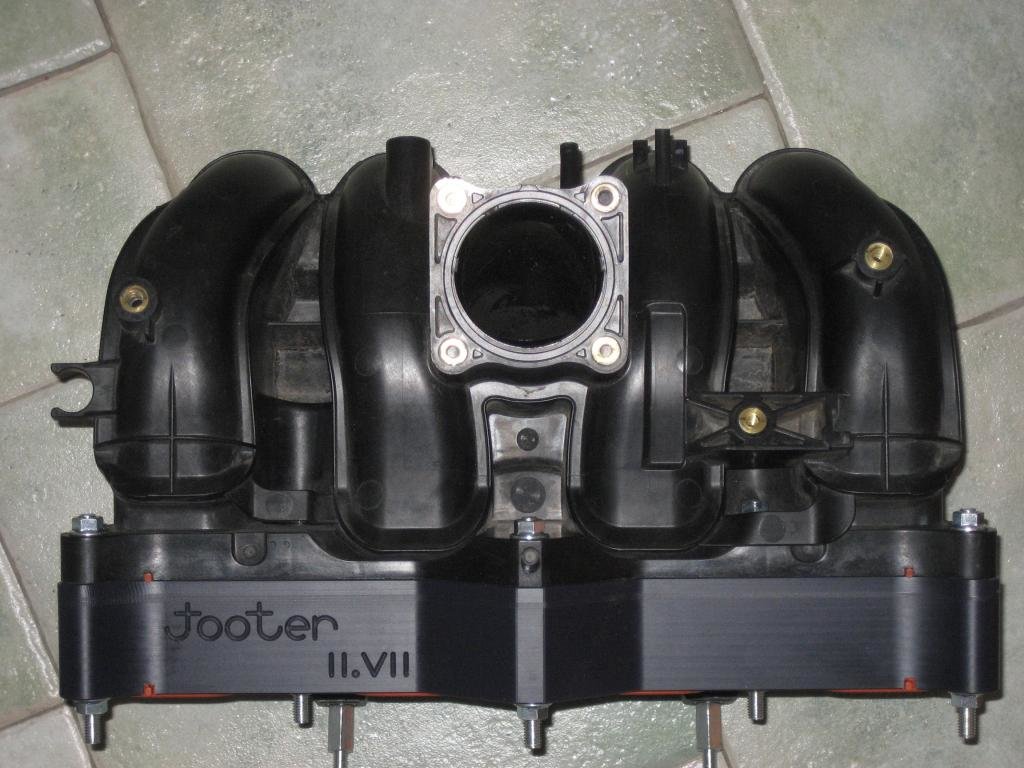

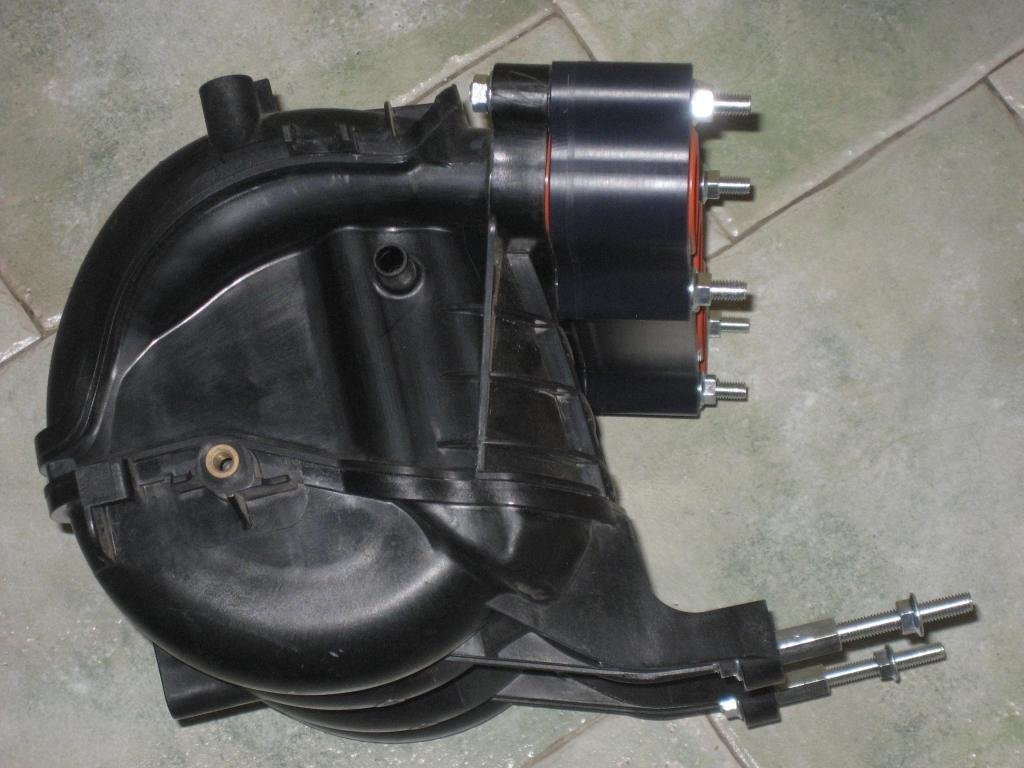

    Oh, and here's a couple pics of the first production spacer on the manifold... :)

    [​IMG]

    [​IMG]

    ...and a lot more pics are posted on the spacer thread in the 2nd Generation Marketplace section.

  19. Oct 16, 2013 at 11:07 AM
    #399
    tacoJAK

    tacoJAK Nothin like a Toyota...

    Joined:
    Oct 2, 2013
    Member:
    #113681
    Messages:
    41
    Gender:
    Male
    First Name:
    Josh
    Middleboro
    Vehicle:
    06 Base 4x4
    None yet...
    A V8...

  20. Oct 17, 2013 at 7:49 AM
    #400
    DonziGT230

    DonziGT230 Gearhead

    Joined:
    Aug 30, 2013
    Member:
    #111514
    Messages:
    378
    Gender:
    Male
    First Name:
    Oscar
    Hacienda Hts, Ca.
    Vehicle:
    '07 base taco
    Factory cruise added, wood storage box in bed, wood center console/armrest, charcoal air filter delete.
    Turbo diesel, I'm guessing a cummins.
