Top Hat Front Strut Replaced?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by ElkNut, Nov 30, 2017.

  1. Nov 30, 2017 at 3:47 PM
    #1
    ElkNut

    #1
    ElkNut [OP] Member

    Joined:
    Nov 25, 2017
    Member:
    #236909
    Messages:
    24
    Gender:
    Male
    First Name:
    Paul
    Vehicle:
    Tacoma
    3" lift
    Hey guys, does anyone know the proper name of the Top Hat that has the 3 holes & the coil spring fits into it & strut protrudes through the middle of it? I'm installing new Bilstein Struts & do not want to use the old one but I cannot seem to find them online, most likely because I do not know their actual ordering name? Thanks!

    ElkNut/Paul

    ElkNut, Nov 30, 2017
    #1
  2. Nov 30, 2017 at 3:57 PM
    #2
    blu92in99

    #2
    blu92in99 Hates everyone, equally

    Joined:
    Aug 8, 2017
    Member:
    #226282
    Messages:
    1,160
    Gender:
    Male
    Elk Grove, Ca
    "Strut mount" or "upper shock mount" typically.

    blu92in99, Nov 30, 2017
    #2
    PapaBear likes this.
  3. Nov 30, 2017 at 3:59 PM
    #3
    PapaBear

    #3
    PapaBear Never test how deep the water is with both feet.

    Joined:
    Feb 10, 2014
    Member:
    #122782
    Messages:
    3,563
    Gender:
    Male
    First Name:
    Austin
    SIN CITY
    Vehicle:
    07 DCSB PR 4.0... Aaaand she’s GONE
    Soft Suspension Hard Rubber ®
    You can reuse the metal portion of the top hat but you should replace bushings and the main rubber coil spacer.

    PapaBear, Nov 30, 2017
    #3
    BassAckwards likes this.
  4. Nov 30, 2017 at 4:13 PM
    #4
    ElkNut

    #4
    ElkNut [OP] Member

    Joined:
    Nov 25, 2017
    Member:
    #236909
    Messages:
    24
    Gender:
    Male
    First Name:
    Paul
    Vehicle:
    Tacoma
    3" lift
    Thank you! I'll check to see if there's a kit available with the bushings & rubber coil spacer!

    ElkNut/Paul

    ElkNut, Nov 30, 2017
    #4
    PapaBear likes this.
  5. Nov 30, 2017 at 4:17 PM
    #5
    BassAckwards

    #5
    BassAckwards Well-Known Member

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    27,954
    Vehicle:
    2009 Tacoma AWD Turbo 2TR-FE
    Full-time AWD & BorgWarner EFR 6258
    The bushing you need for between the coil and the top hat is called a coil isolator. Wheelers offroad has a pair of them for $20. Heres a link Ive been looking for a set of front shock bushings as my 5100s that i bought didnt come with any

    BassAckwards, Nov 30, 2017
    #5
    Tibetan Nomad, PapaBear and blu92in99 like this.
  6. Nov 30, 2017 at 4:18 PM
    #6
    blu92in99

    #6
    blu92in99 Hates everyone, equally

    Joined:
    Aug 8, 2017
    Member:
    #226282
    Messages:
    1,160
    Gender:
    Male
    Elk Grove, Ca
    KYB, p/n#
    $29 SM5640 - Mount Kit
    SM5640. About $25/ea on Amazon.

    blu92in99, Nov 30, 2017
    #6
    Tibetan Nomad likes this.
  7. Nov 30, 2017 at 4:23 PM
    #7
    ElkNut

    #7
    ElkNut [OP] Member

    Joined:
    Nov 25, 2017
    Member:
    #236909
    Messages:
    24
    Gender:
    Male
    First Name:
    Paul
    Vehicle:
    Tacoma
    3" lift
    Sweet! Those are it! Thanks a ton guys!

    ElkNut/Paul

    ElkNut, Nov 30, 2017
    #7
  8. Nov 30, 2017 at 4:27 PM
    #8
    Muddinfun

    #8
    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,489
    Muddinfun, Nov 30, 2017
    #8
    Tibetan Nomad likes this.
  9. Nov 30, 2017 at 4:28 PM
    #9
    BassAckwards

    #9
    BassAckwards Well-Known Member

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    27,954
    Vehicle:
    2009 Tacoma AWD Turbo 2TR-FE
    Full-time AWD & BorgWarner EFR 6258
    BassAckwards, Nov 30, 2017
    #9
    Tibetan Nomad likes this.
  10. Nov 30, 2017 at 5:02 PM
    #10
    ElkNut

    #10
    ElkNut [OP] Member

    Joined:
    Nov 25, 2017
    Member:
    #236909
    Messages:
    24
    Gender:
    Male
    First Name:
    Paul
    Vehicle:
    Tacoma
    3" lift
    Thanks again, parts ordered!

    ElkNut/Paul

    ElkNut, Nov 30, 2017
    #10
  11. Nov 30, 2017 at 5:48 PM
    #11
    Subway4X4

    #11
    Subway4X4 Shameless Copy Cat

    Joined:
    Nov 10, 2015
    Member:
    #169260
    Messages:
    11,652
    Gender:
    Male
    First Name:
    Lloyd
    NY/NJ
    Vehicle:
    05 Speedway Blue DCSB OR TRD
    Everything TW members recommend
    If you order
    $29 KYB SM5640 - Mount Kit
    this kit from Amazon,

    It comes with the top hat, ALL the rubber bushings below and above the top hat, all the large bushing washers and the three stud nuts AND the coil spring isolators.

    How do I know this?

    Did it last week. Except I re-used the three tophat stud nuts coz they were black, instead of the supplied bright zinc.

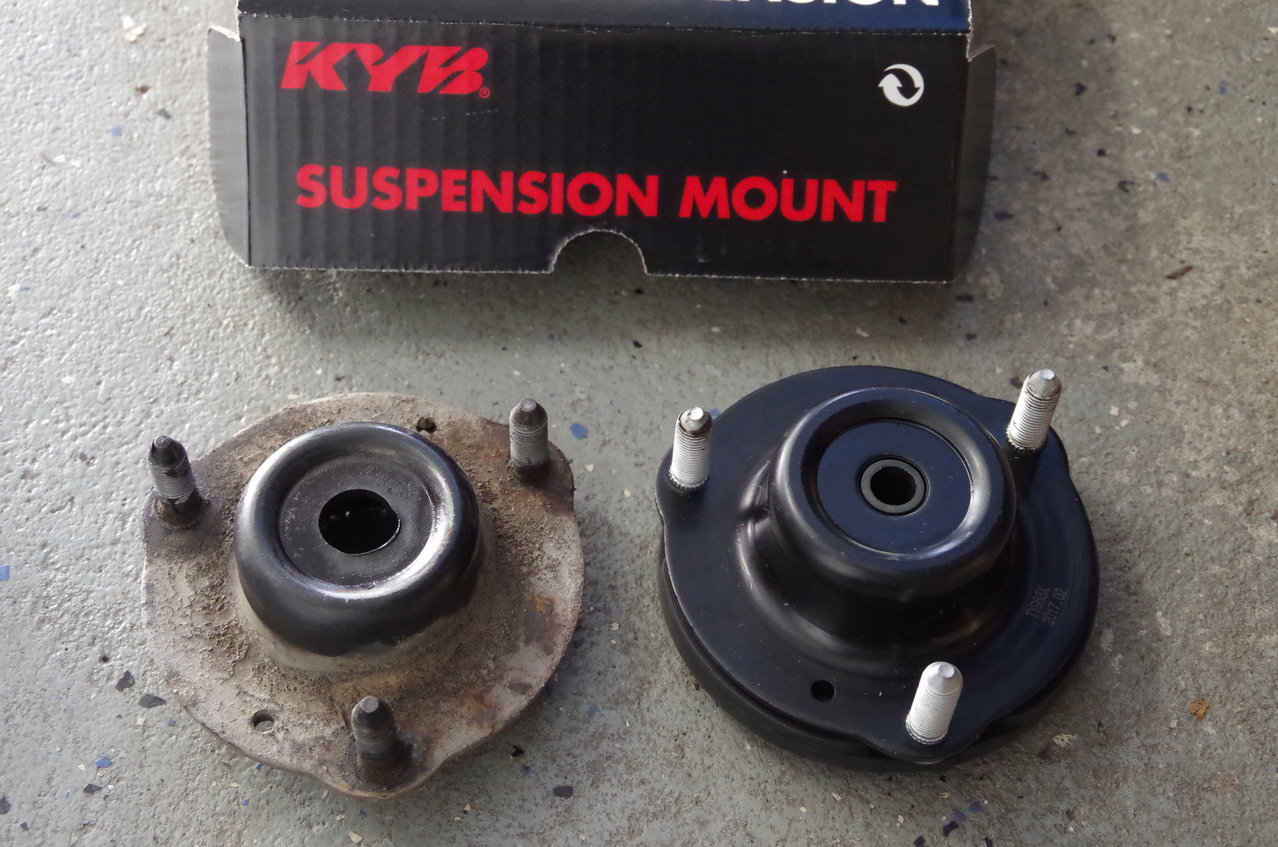

    Old vs. new

    Last edited: Nov 30, 2017
    Subway4X4, Nov 30, 2017
    #11
    Tibetan Nomad, Larzzzz and BassAckwards like this.
  12. Nov 30, 2017 at 5:55 PM
    #12
    Pigpen

    #12
    Pigpen My truck is never clean

    Joined:
    Mar 6, 2012
    Member:
    #74319
    Messages:
    9,183
    Gender:
    Male
    First Name:
    Dan
    Northwest Montana
    Vehicle:
    2012 AC Manual 4.0 4x4 Base Model
    Access cab with child seat in the back, yellow wire mod, diff breather relocated to tail light, engine block heater, Leer topper with Yakima tracks and rack, Yakima rack on cab, Ride Rite air bags with Daystar cradles, CBI hidden front hitch, wired for winch front and rear Warn quick connect, Warn x8000i on external carrier, sway bar delete, trailer plug relocated to under bumper, Pelfreybilt IFS and Mid skids, BAMF Tcase skid, ECGS front diff bushing, ARB CKMA12 compressor, 255/85/16 Backcountry MT 3 load E tires on stock steel rims, Toyo M55 tires (same size) on another set of stock steelies, Up2NoGood heated mirror kit, Husky X-act Contour front floor liners, Northstar AGM 24F battery under the hood, Northstar 27F in the cab, Redarc 25 amp DC to DC charger, Pelfreybilt bolt on sliders with kickout and top plates, TRD Pro headlights, Depo smoked tail lights, Energy suspension body mount bushing kit, OME Dakar leaf packs with AAL, OME rear shocks, OME 90021 front shocks with 885 coils, SPC LR UCAs, Up2NoGood 2wd low range mod, 4 Wheel Campers Grandby slide in camper, 4xinnovations high clearance rear bumper, Uniclutch 800 lb/ft clutch

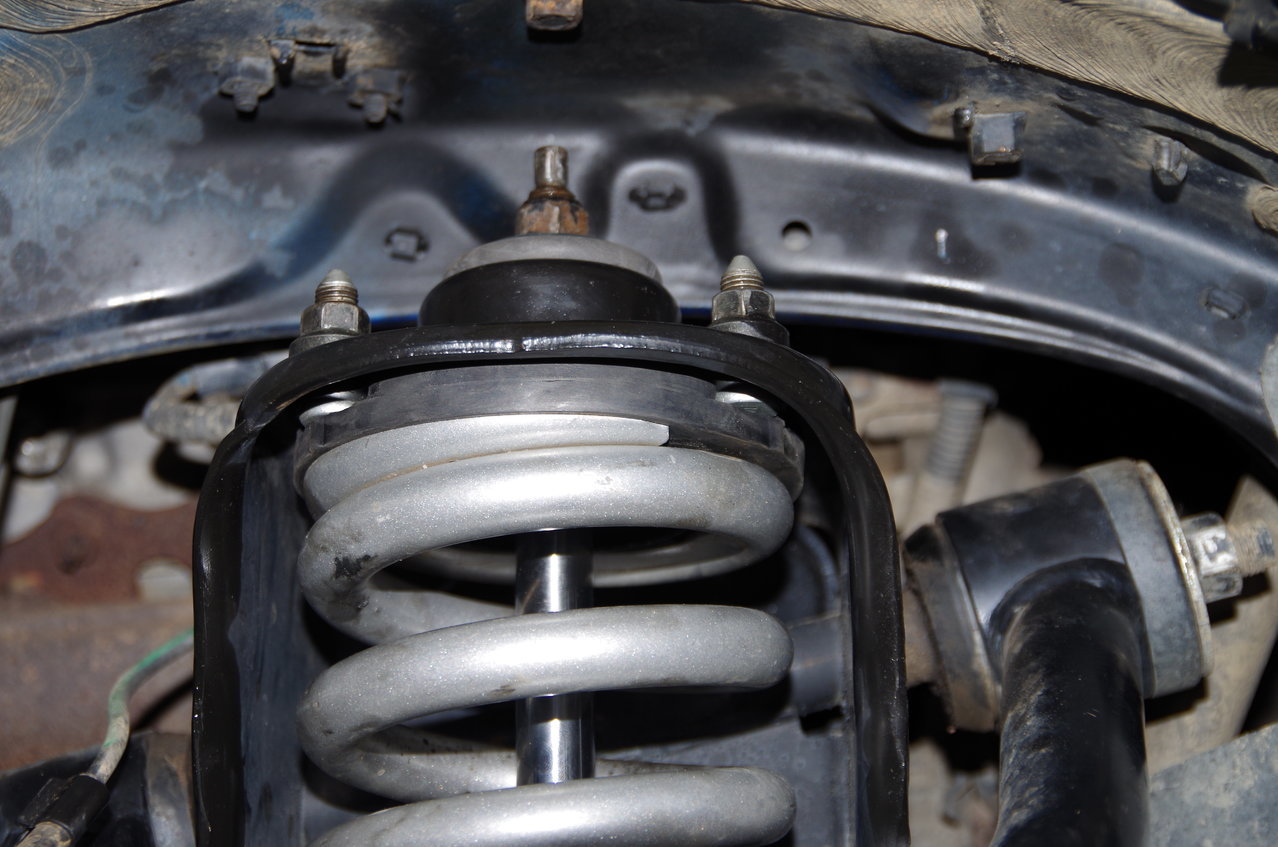

    As mentioned above, you don't want to reuse a strut mount that looks like this


    Pigpen, Nov 30, 2017
    #12
    Tibetan Nomad, PapaBear and Subway4X4 like this.
  13. Nov 30, 2017 at 5:57 PM
    #13
    ElkNut

    #13
    ElkNut [OP] Member

    Joined:
    Nov 25, 2017
    Member:
    #236909
    Messages:
    24
    Gender:
    Male
    First Name:
    Paul
    Vehicle:
    Tacoma
    3" lift
    No problem guys, I ordered the complete assembly! Thanks a bunch!

    ElkNut/Paul

    ElkNut, Nov 30, 2017
    #13
    Pigpen likes this.
  14. Nov 30, 2017 at 5:57 PM
    #14
    Subway4X4

    #14
    Subway4X4 Shameless Copy Cat

    Joined:
    Nov 10, 2015
    Member:
    #169260
    Messages:
    11,652
    Gender:
    Male
    First Name:
    Lloyd
    NY/NJ
    Vehicle:
    05 Speedway Blue DCSB OR TRD
    Everything TW members recommend
    Yup. When it was still all together, I could actually see the shock rod NOT centered in the top hat hole. Not good.

    Subway4X4, Nov 30, 2017
    #14
    Tibetan Nomad likes this.
  15. Nov 30, 2017 at 6:00 PM
    #15
    Pigpen

    #15
    Pigpen My truck is never clean

    Joined:
    Mar 6, 2012
    Member:
    #74319
    Messages:
    9,183
    Gender:
    Male
    First Name:
    Dan
    Northwest Montana
    Vehicle:
    2012 AC Manual 4.0 4x4 Base Model
    Access cab with child seat in the back, yellow wire mod, diff breather relocated to tail light, engine block heater, Leer topper with Yakima tracks and rack, Yakima rack on cab, Ride Rite air bags with Daystar cradles, CBI hidden front hitch, wired for winch front and rear Warn quick connect, Warn x8000i on external carrier, sway bar delete, trailer plug relocated to under bumper, Pelfreybilt IFS and Mid skids, BAMF Tcase skid, ECGS front diff bushing, ARB CKMA12 compressor, 255/85/16 Backcountry MT 3 load E tires on stock steel rims, Toyo M55 tires (same size) on another set of stock steelies, Up2NoGood heated mirror kit, Husky X-act Contour front floor liners, Northstar AGM 24F battery under the hood, Northstar 27F in the cab, Redarc 25 amp DC to DC charger, Pelfreybilt bolt on sliders with kickout and top plates, TRD Pro headlights, Depo smoked tail lights, Energy suspension body mount bushing kit, OME Dakar leaf packs with AAL, OME rear shocks, OME 90021 front shocks with 885 coils, SPC LR UCAs, Up2NoGood 2wd low range mod, 4 Wheel Campers Grandby slide in camper, 4xinnovations high clearance rear bumper, Uniclutch 800 lb/ft clutch
    Same here. The shaft on the struts had a little wear, but I put them right back in - they are 5100s that are just over a year old with about 15K miles in them.

    Pigpen, Nov 30, 2017
    #15
  16. May 26, 2018 at 11:26 PM
    #16
    cheeze

    #16
    cheeze New Member

    Joined:
    May 26, 2018
    Member:
    #254605
    Messages:
    1
    OP, did the strut mount being bored out like that make any clattering or clunking?

    I have a GX470 that uses the same KYB # number. When I swapped to 5100s, I left the old top hat on since it was damn near welded onto the perch. Now, when I go down washboards, it clatters like crazy and is driving me insane. It also kinda feels like the shock isn't damping 100%.

    cheeze, May 26, 2018
    #16
