Topper/ Canopy storage solutions

Discussion in 'Garage / Workshop' started by taco47001, Jun 12, 2014.

  1. Jun 12, 2014 at 12:40 PM
    #1
    taco47001

    taco47001 [OP] Newborn

    Joined:
    May 11, 2012
    Member:
    #78644
    Messages:
    1,707
    Gender:
    Male
    Aurora, IN
    Vehicle:
    Silver Taco
    3" Lift (Billies 5100 front and back), Toytec springs, All Pro 3" Standard Pack, LR UCA's, Diff Drop, SCS F5's, 265/75/16 Treadwright Wardens, Rear Diff Breather, pinch weld mod, Morimoto Projector retro w/ amber halo's, grey wire mod, Elite front bumper....so far....
    I spent countless hours searching different websites like garage journal and the likes when I was trying to come up with a good solution for my need of, not only a good storage option for my topper, but also a way to mount and remove my topper at any given time with using only one person (me) and relatively quickly.

    Let see what the members of TW have come up with to tackle this problem.

    Here's mine

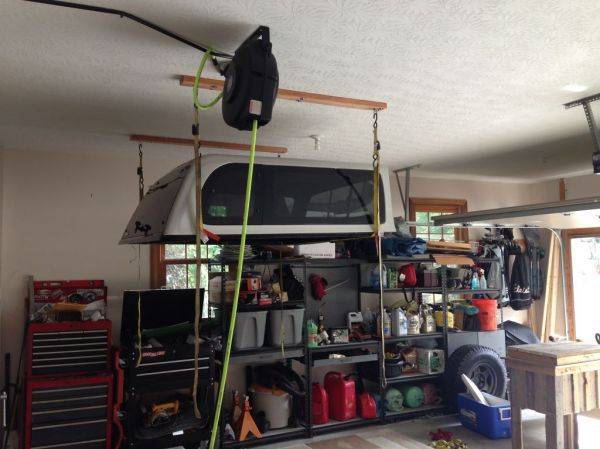

    It started like this

    [​IMG]

    [​IMG]

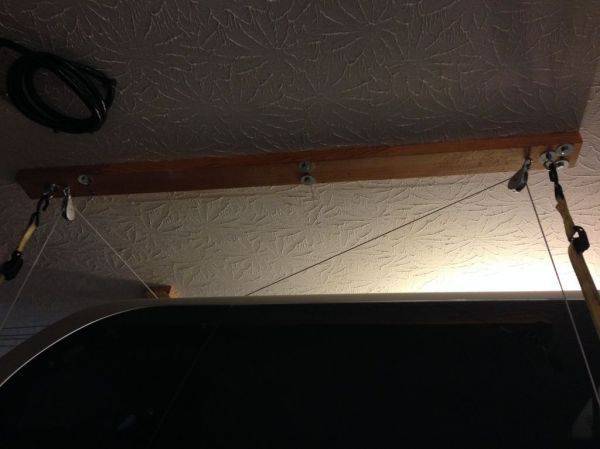

    You can see from the pic that I just cut 2x4's the length to span three rafters, measured and pre-drilled, and lag bolted the 2x4's with 5/16"x 4.5" lag bolts. For the eyelets I used 1.5" threaded eyes found in the hardware aisle, with some washers and nuts countersunk on the ceiling side. To countersink I used an appropriately sized spade bit in my drill. At this point I was still using straps and bungee cords for the topper to rest on as well. It was hoisted by ratchet straps which was quite annoying and time consuming. I eventually found my motorcycle cinch straps and used them which made it much faster.

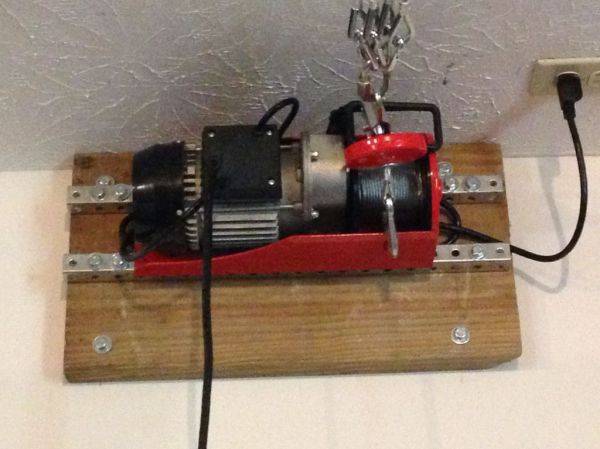

    I then decided it was time to finally get the HF winch mounted up on the wall and automate this process. Here's a pic of the winch mounted.

    [​IMG]

    I used a scrap 2x12 I had laying around as the base. You may, or may not need this but I didn't feel that mounting the winch and uni-strut to the wall stud with just one lag per, would do the job in the long run. The 2x12 is secured to the wall with 2 lags each side (4 total), and then the uni-strut is secured to the 2x12 AND through the 2x12 to the wall stud. On the left side there are 4 lags total which penetrate to the stud, and the right there is 3 (I sheared one off with the dewalt impact) The lags used were again 5/16"x 4.5" paired with 5/16" flat washers. Along the length of the uni-strut that wasn't atop the wall stud, I secured using 2.5" lags with washers. The winch isn't moving.

    As for the rigging, I picked up some pulleys and such and went to town. This was the part which I was really baffled by for the longest time. I couldn't picture in my head how it would turn out so therefore I just never went for it. After countless more hours scouring the web, I decided to just buy the stuff and go for it.

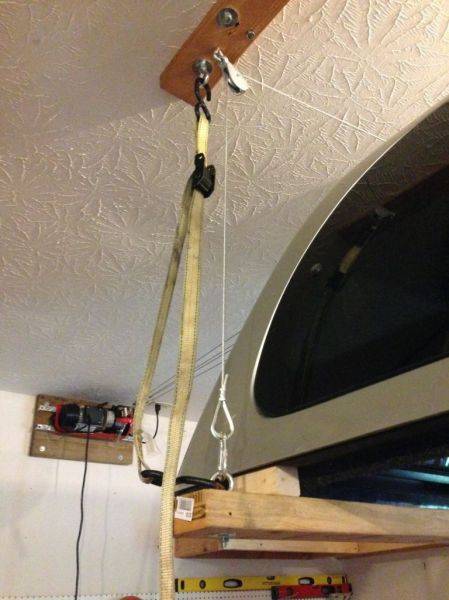

    There's a pulley at each corner.
    [​IMG]

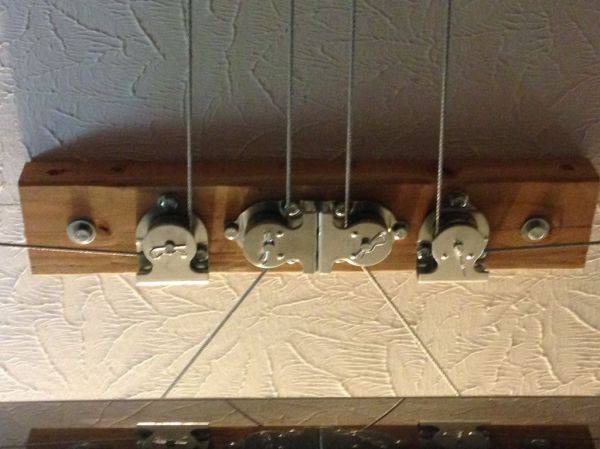

    and a routing block to keep my winch rigging all parallel.

    [​IMG]

    [​IMG]

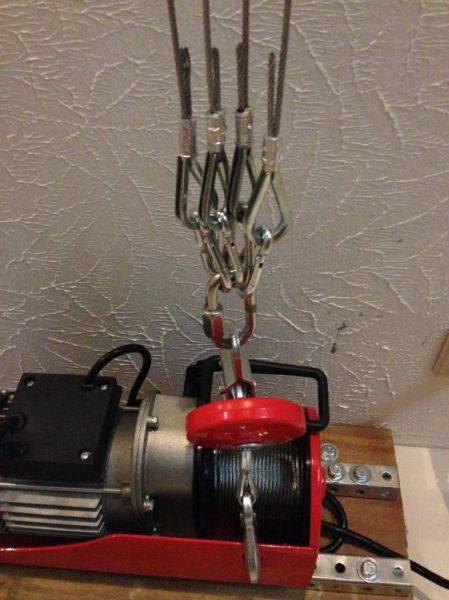

    Here's what it looks like at the winch. Each rope is for a different corner. Starting from the left is PS rear corner, PS front corner, DS front corner, DS rear corner.

    [​IMG]

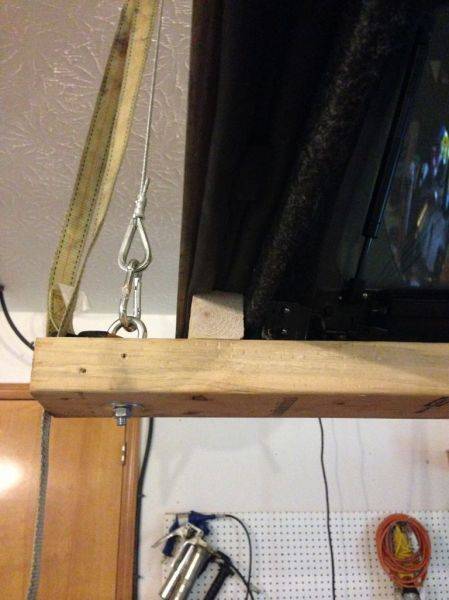

    I cut some more 2x4's for the topper to rest on. The topper shouldn't rest on the flange so I measure and cut some spacers made from 2x2 material so the topper would sit on the outside edge, instead of the flange.

    [​IMG]

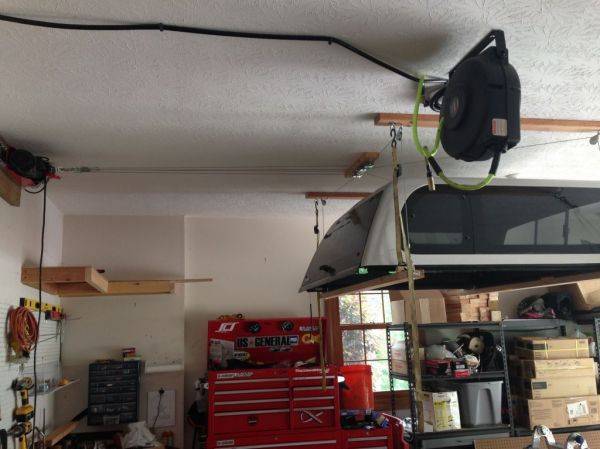

    Here is the finished product.

    [​IMG]

    I don't have any pics of them but I'm making additional hangers to replace the yellow straps in the pics. These hangers will be made out of the same wire rope and will be non adjustable. I will have the same quick clip/ carabiners on the ends for removal. These will be used as the hangers so I can release the tension on the winch brake and the topper will hang from them.

    Parts list.
    HF 120v 400lb electric winch
    5/16"x 4.5" lags
    5/16"x 2.5" lags
    5/16" flat washers
    6' uni-strut from lowes
    100'-3mm wire rope (HF)
    8- 1/8" Wire Ferrules
    8- 1/8" Wire rope thimbles
    Swagging tool
    4- 2"x 4"x 8's
    8-threaded eyelets with two fender washers and two properly sized nuts for each (think sandwiching the 2x4's)
    4-pulley blocks from Lowes (ones on the routing block)
    4- 100lb pulleys from HF

    There's probably more that I'm forgetting but for the most part...that's it.


    There's mine in a nutshell. If you have any questions or anything, feel free. I'm no rocket scientist but I'll try to help. There are any number of solutions out there and any number of ways to do the same thing. Experiment, learn, and have fun. I had a great time making this with my wife in the background saying "all that just so you can raise and lower it?" She has no idea......ha.

    What do you guys/ gals have?

    Last edited: Jun 13, 2014
  2. Jun 12, 2014 at 1:06 PM
    #2
    scocar

    scocar being weird again....still

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    23,201
    Gender:
    Male
    First Name:
    Glitterdick
    In close proximity to an undisclosed location
    Vehicle:
    15 DCLB x4 SR5, 01 Xcab TRD x4 V6 Man. SR5
    01: OME 881s, Dakars, greasable shackles, Nitrocharger sports, extended exhaust hanger, BAMF BPV relocate, Wheeler's extended brake line, rear diff breather mod, swaybar removed, Pilot backup lights, Redline hood struts, 4Runner 5-stars, Hidden Hitch Class III, 7-pin marine-grade wiring
    Outstanding, thanks. Where did you get the pulleys on the routing block?

    And for cable length, I imagine you started with all 4 ends attached at the winch, ran them through the rigging to 2x4s sitting at level height relative to where the cap would sit when coming off the truck, then cut them to length?

    [​IMG]

    Last edited: Jun 12, 2014
  3. Jun 12, 2014 at 1:09 PM
    #3
    taco47001

    taco47001 [OP] Newborn

    Joined:
    May 11, 2012
    Member:
    #78644
    Messages:
    1,707
    Gender:
    Male
    Aurora, IN
    Vehicle:
    Silver Taco
    3" Lift (Billies 5100 front and back), Toytec springs, All Pro 3" Standard Pack, LR UCA's, Diff Drop, SCS F5's, 265/75/16 Treadwright Wardens, Rear Diff Breather, pinch weld mod, Morimoto Projector retro w/ amber halo's, grey wire mod, Elite front bumper....so far....
    Lowes.

    I added a parts list too. Quantities and sizes of parts may vary with your application so just take that into consideration.

  4. Jun 12, 2014 at 1:10 PM
    #4
    presto

    presto Well-Known Member

    Joined:
    May 9, 2011
    Member:
    #56375
    Messages:
    2,036
    Gender:
    Male
    First Name:
    Topher
    san francisco
    Vehicle:
    97 4wd 2.7L xtra cab auto
    Look at build thread
    very nicely done bro.
    Wish i had my own garage :pout:

  5. Jun 12, 2014 at 1:13 PM
    #5
    taco47001

    taco47001 [OP] Newborn

    Joined:
    May 11, 2012
    Member:
    #78644
    Messages:
    1,707
    Gender:
    Male
    Aurora, IN
    Vehicle:
    Silver Taco
    3" Lift (Billies 5100 front and back), Toytec springs, All Pro 3" Standard Pack, LR UCA's, Diff Drop, SCS F5's, 265/75/16 Treadwright Wardens, Rear Diff Breather, pinch weld mod, Morimoto Projector retro w/ amber halo's, grey wire mod, Elite front bumper....so far....
    Thanks man.

    You don't have to have a lot of $, just good credit....ha

  6. Jun 12, 2014 at 1:16 PM
    #6
    presto

    presto Well-Known Member

    Joined:
    May 9, 2011
    Member:
    #56375
    Messages:
    2,036
    Gender:
    Male
    First Name:
    Topher
    san francisco
    Vehicle:
    97 4wd 2.7L xtra cab auto
    Look at build thread
    I better get a credit card soon.. Damn. all these years i coulda been building credit. oh well. lol

  7. Jun 12, 2014 at 1:19 PM
    #7
    stroM-

    stroM- Well-Known Member

    Joined:
    Jul 9, 2009
    Member:
    #19479
    Messages:
    1,963
    Gender:
    Male
    First Name:
    Jason
    Santa Rosa, CA
    Vehicle:
    06 4x4 TRD OFF-ROAD
    OME 885's, Front and Rear 5100's, Rear AAL, 16x8 Konig Countersteers, 35" Falken Wild Peak AT, Cobra CB & Antenna, All-Pro Sliders, All-Pro Front & Rear Bumper, IFS Skid, Snugtop Rebel Shell, RTT
    Great work! Definitely bookmarking this for later. Awesome write up :thumbsup:

  8. Jun 12, 2014 at 1:24 PM
    #8
    taco47001

    taco47001 [OP] Newborn

    Joined:
    May 11, 2012
    Member:
    #78644
    Messages:
    1,707
    Gender:
    Male
    Aurora, IN
    Vehicle:
    Silver Taco
    3" Lift (Billies 5100 front and back), Toytec springs, All Pro 3" Standard Pack, LR UCA's, Diff Drop, SCS F5's, 265/75/16 Treadwright Wardens, Rear Diff Breather, pinch weld mod, Morimoto Projector retro w/ amber halo's, grey wire mod, Elite front bumper....so far....
    Thanks man. Ya the problem I was running into when trying to come up with this wasn't inventing it....TONS of ppl have this done, and have pics of it. The problem I had was that no one had GOOD pics showing how they did it. I hope this helps someone out down the line.....

  9. Jun 12, 2014 at 1:28 PM
    #9
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,858
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Nice work OP

  10. Jun 12, 2014 at 1:33 PM
    #10
    taco47001

    taco47001 [OP] Newborn

    Joined:
    May 11, 2012
    Member:
    #78644
    Messages:
    1,707
    Gender:
    Male
    Aurora, IN
    Vehicle:
    Silver Taco
    3" Lift (Billies 5100 front and back), Toytec springs, All Pro 3" Standard Pack, LR UCA's, Diff Drop, SCS F5's, 265/75/16 Treadwright Wardens, Rear Diff Breather, pinch weld mod, Morimoto Projector retro w/ amber halo's, grey wire mod, Elite front bumper....so far....
    Thanks OZ. The shelf in the pics has been fixed too.....:D
