TOTAL CHAOS +3.5" Race Series Long Travel

https://youtu.be/3r6YdLJskv8

TOTAL CHAOS +3.5" Race Series Long Travel

LIFT: 3-4"
TRAVEL: 13"
TIRE: 33" or 285
TRACK WIDTH INCREASE: 7"

MORE INFO

TOTAL CHAOS
WWW.CHAOSFAB.COM

• 100% chromoly constructed Race System offers maximum ground clearance and weighs 10 pounds less than the standard TC +3.5" LT kit.
• 3.5" extended 4130 chromoly tubular upper arms bolt to factory control arm mounting locations.
• Upper and lower ball joints are replaced with 1" uniballs for maximum wheel travel and component strength. TOTAL CHAOS includes 1" I.D. uniballs that feature a heat treated stainless steel ball & heat treated stainless steel race for maximum corrosion resistance and component longevity. These uniball's also features a military grade PTFE woven fabric liner that helps prevent noise.
• 4130 chromoly boxed and internally gusseted 3.5" extended lower control arms bolt to factory control arm mounting locations and are pre tabbed for dual shock capability.
• Lower control arms feature an integrated uniball cup that provides 2.5" additional ground clearance when compared to the standard mild steel +3.5" LT kit.
• Lower arms are 5 pounds lighter each side than the standard +3.5" LT kit.
• 2.5" long travel specific coil over shocks bolt into the factory coil bucket location. Extended travel shocks are too short and will not work.
• A secondary external bypass shock can be installed to increase dampening and tune-ability.
• Spring rate options offer the ability to customize your ride for your specific application allowing you to custom tune the vehicle for specific terrain or desired performance.
• Adjustable limit strap clevis' are included so that you can properly limit the suspensions droop wheel travel and make necessary adjustments during the life of the limit strap.
• DOT approved stainless steel braided brake lines, TC custom 17-4 stainless hi-misalignment spacers and grade 8 mounting hardware is included.
• TC 4340 custom extended axles reuse factory inner and outer CV's to retain 4wd.
  (axles are sold separately and not included with the kit)
• 2 stage powder coat process includes a durable clear coat to provide a long lasting finish.
• Hand crafted in the U.S.A.
• Fiberglass fenders are required on Tacoma.
• *If FOX Shox will be used, an "F" must be added to the LT kit part number, i.e. 86000-R-F



@ilubtimmyhos



Any tacomaworld discount?



Sorry - No forum discounts or specials

TOTAL CHAOS
WWW.CHAOSFAB.COM



I got the race kit to run lift spindles and I love it



Nice truck! Have any more pics? Post them up if you don't mind

TOTAL CHAOS
WWW.CHAOSFAB.COM



Love the race kit...just need to install my bypasses now.

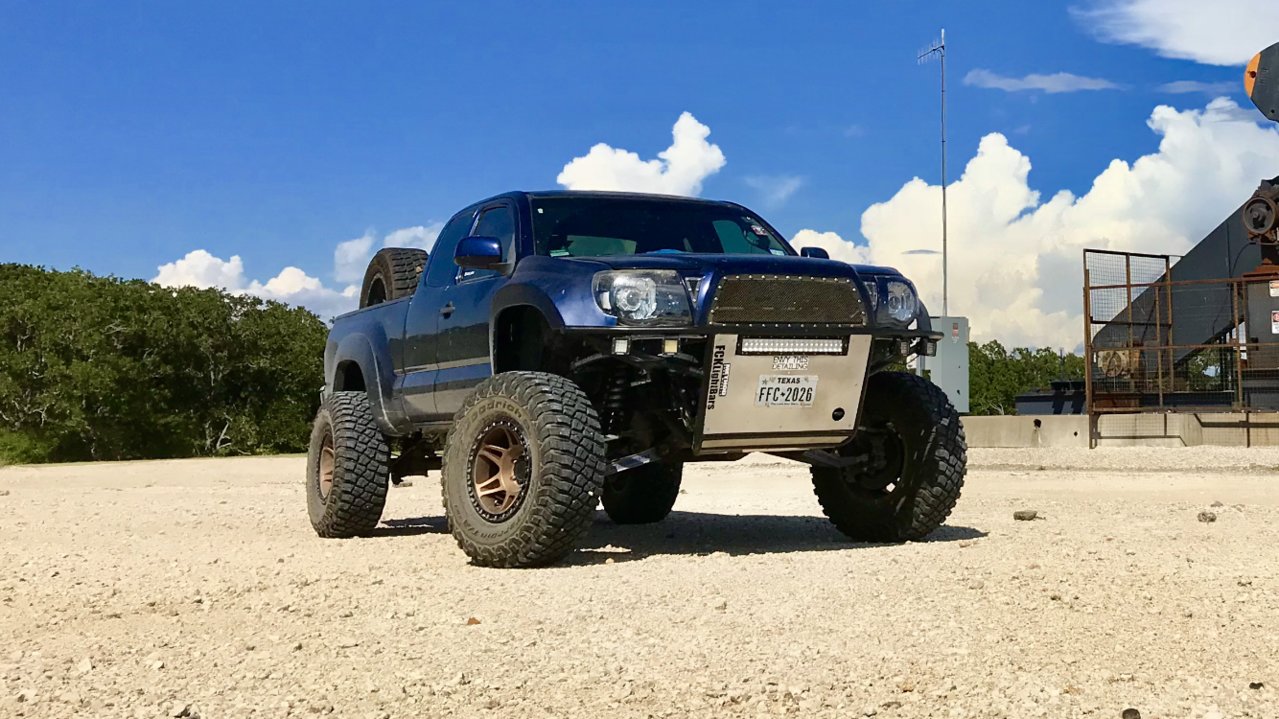

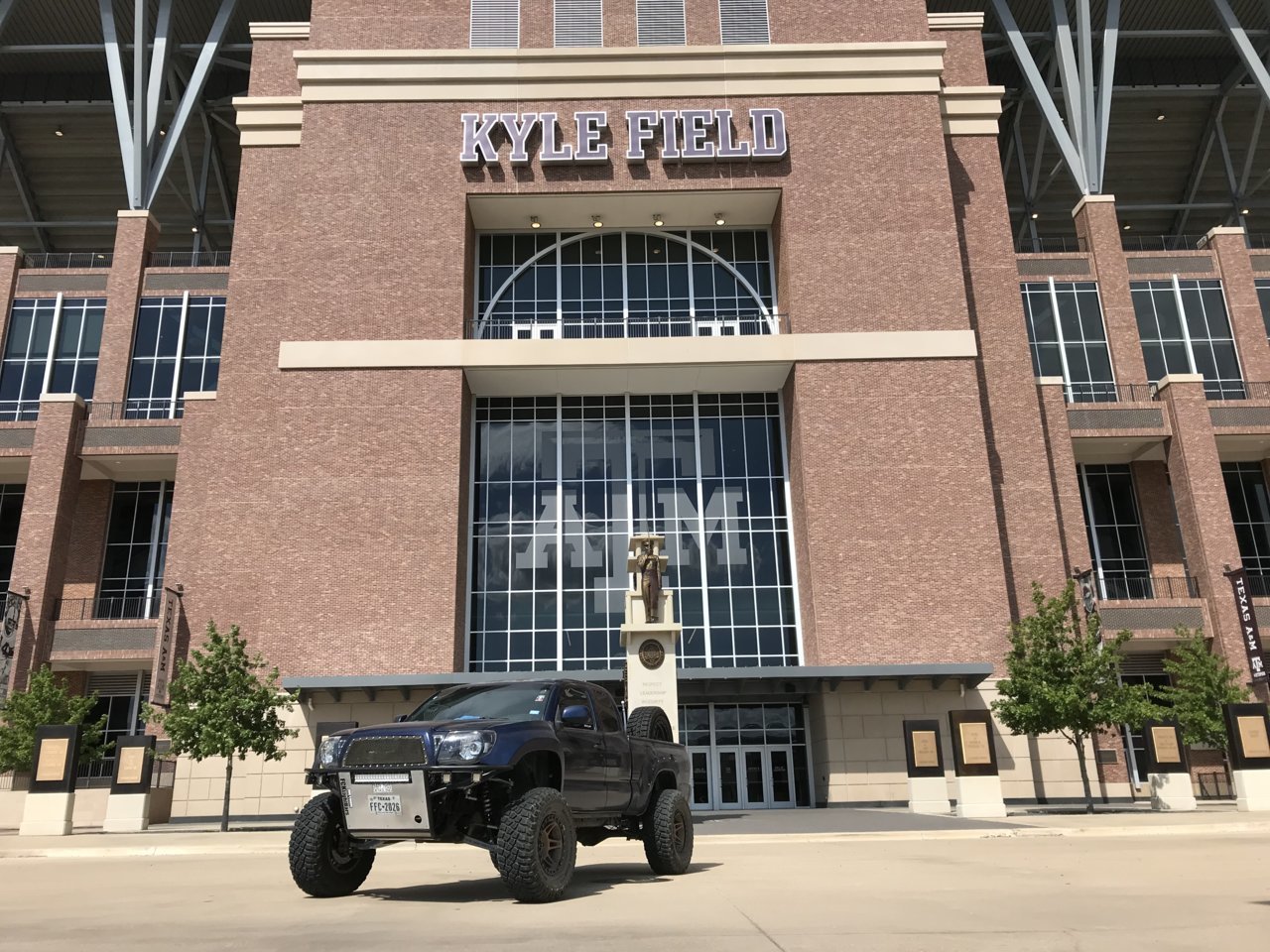

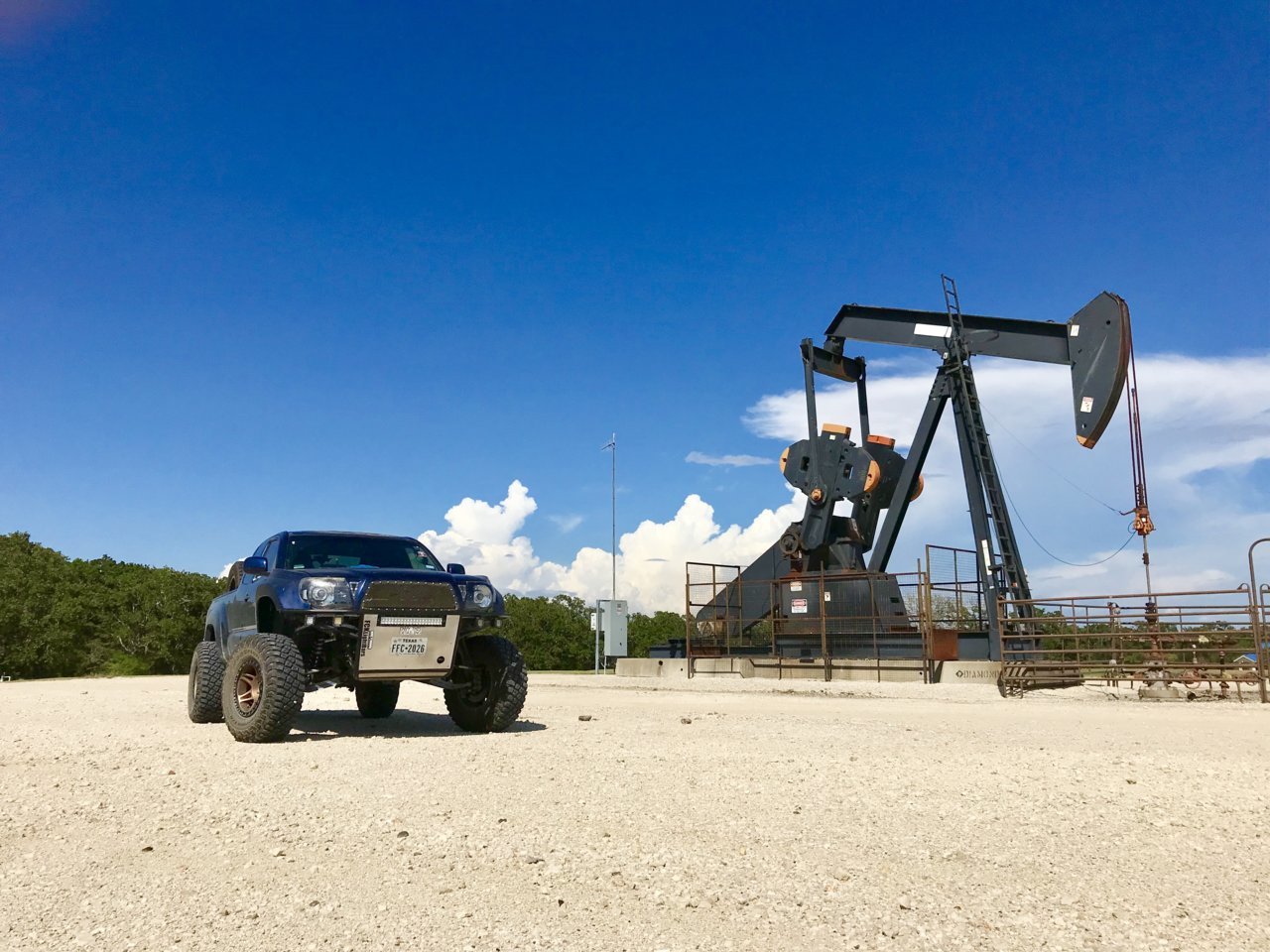

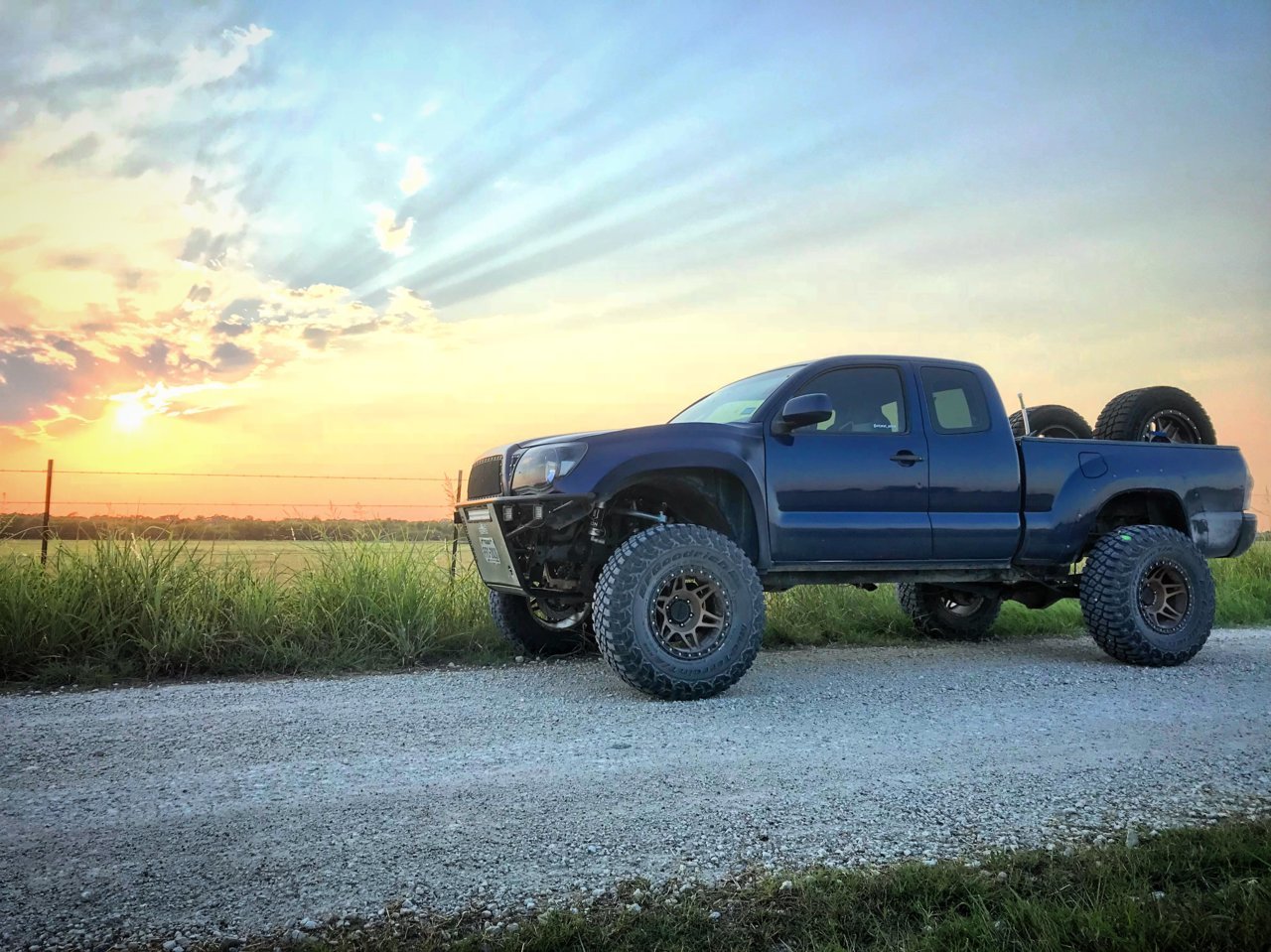

I actually took pictures today. I just got the Method 106 Beadlocks and BFG KM3s on a few days ago. I wish I could post videos on here of me hooning it. Next up is a rear suspension to match the front



What you doing for the rear?



#goals
​

Upload the video to youtube and post the link!



Probably Camburgs spring under, or getting a local shop to build a spring under. I’d like 4 link but my pay grade doesn’t like that idea



Crazy man didn’t think you would run burg...icons in the rear too?



Probably. Icons front shocks ride really good, and the 2.0 icons I have on the rear now are also really good. I’ll probably get rear shocks similar to @tubbsisland spring under setup. I wish Total Chaos would come out with a long travel rear kit.



I would be surprised if they ever made one as many of them run a linked rear or the dmz kit. Since dmz has been around so long and has a good following I feel it may not be worth competing with that. Would you have to get custom triples made? It seems icon only makes double bypasses readily available.



No LT, but we do have a Mid Travel setup for the rear end

Mid Travel Rear - Spring Under Conversion (without springs)

Mid Travel Rear - Spring Under Conversion (with springs)


*Shown with a FOX 2.5 10" bypass + TOTAL CHAOS Rear Shock Hoop

• Wheel travel specs: Wheel travel with stock mounting location shocks- 9.5"
• Wheel travel with custom shock mounts- Capable of 12"

MORE INFO

TOTAL CHAOS
WWW.CHAOSFAB.COM



THANKS FOR SHARING THESE!!!!

TOTAL CHAOS
WWW.CHAOSFAB.COM

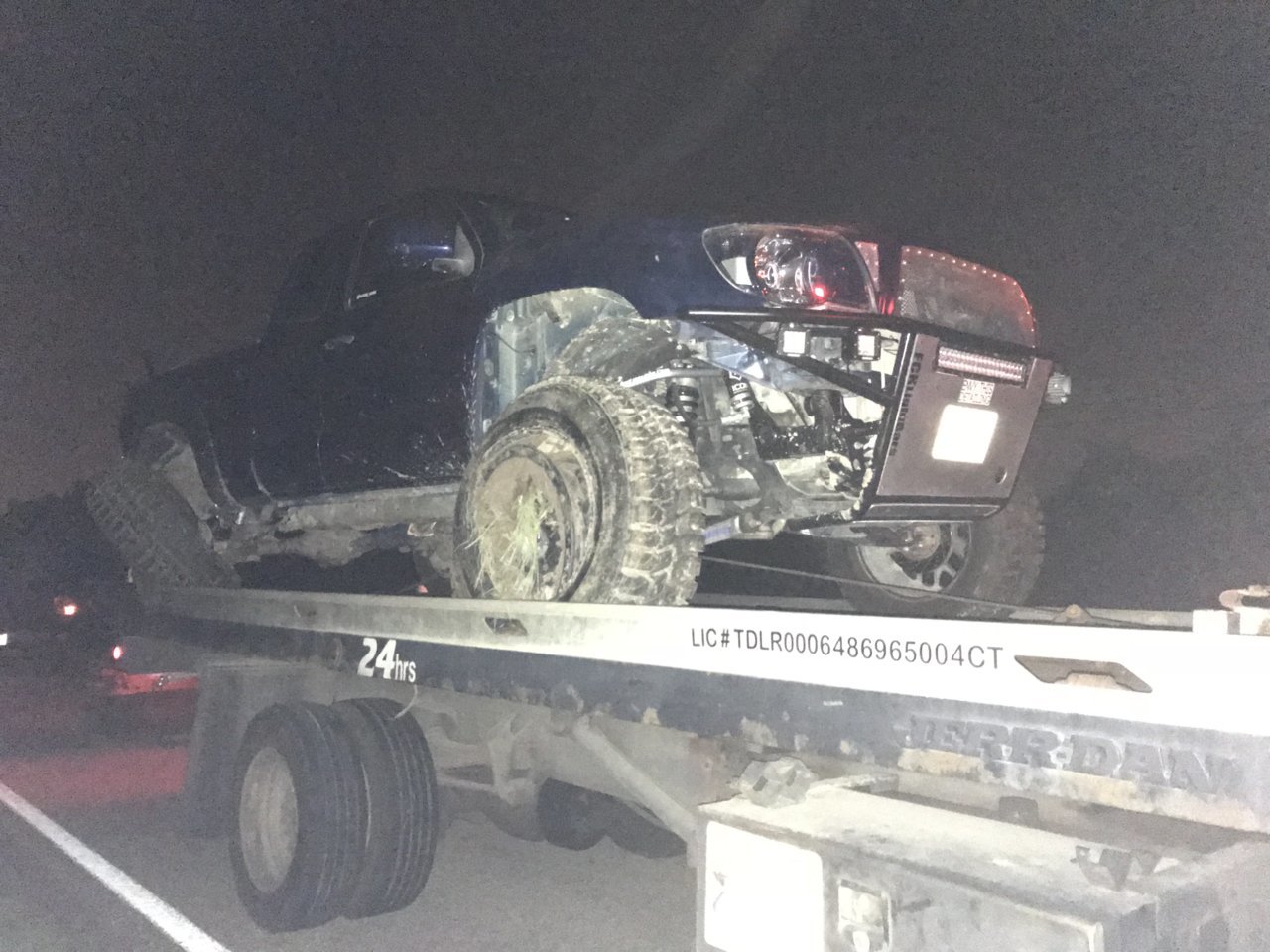

It looks like a good kit, but y’all need to build a rear kit that’s a proper match to the front end! And let me test it. I’ll do my best to break it. I’ve tried to break the front, haven’t been able to yet. The closest I’ve gotten is exploding the wheels and tires by hitting a 4’ deep ditch, but the suspension is fine



*also, feel free to post those on your website or Instagram



My truck when it was sprung under was pretty much the exact same kit as what @TOTAL CHAOS offers below. Stock shackle mounts and fromt hangers with a custom Deaver spring, it may auctually be the same exact kit. It was made by Defined Engineering when I had it. TC has a great working relationship with DMZ too and Tim has a really solid kit so that would naturally be the logical next step beyond their mid travel and is probably the reason why they haven't made a LT spring under kit of their own. If it ain't broke don't fix it.



+3.5" Race Series LT on a 4th Gen T4R



TOTAL CHAOS
WWW.CHAOSFAB.COM



Hey are those your 3.5” lift spindles on the tacoma in the video?? Or stock with gussets ?
