Total Chaos bed stiffeners with Amp research bed extender

Discussion in '2nd Gen. Tacomas (2005-2015)' started by nazlax10, Apr 4, 2017.

  1. Apr 4, 2017 at 1:32 PM
    #1
    nazlax10

    nazlax10 [OP] Check out my build thread for any products used!

    Joined:
    Mar 31, 2015
    Member:
    #152198
    Messages:
    2,219
    Gender:
    Male
    First Name:
    David
    Woodstock, GA
    Vehicle:
    18 Toyota Rav4 LE... At least it's a Toyota
    https://www.tacomaworld.com/threads/nazlax10s-build.408318/
    Hey all! So I've only seen this done once before, but it was only a picture with no real description. I wanted a bed extender but also needed bed stiffeners. Here's how I did it.

    *Your results may vary and I am in no way responsible for any damages if you choose to follow my write up.


    Here's all the products I used:
    Total Chaos bed stifferners
    Amp research bed extender

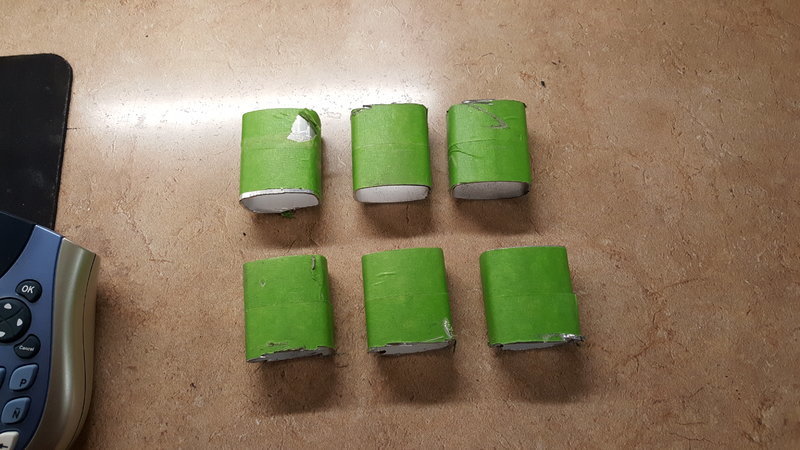

    6- 1 inch spacers
    2- 3/4 inch spacers
    4- 1/2 inch spacers
    6- #10-24 x 3-in Oval-Head Stainless Steel Standard (SAE) Machine Screws
    6- #10 Stainless Steel Standard (SAE) Nylon Insert Lock Nuts

    First you need to cut two inches off of each end of each bed extender tube. Sorry I didn't think of doing a write up until after I already cut them. Here's the after math though.


    Then mount your bed stiffeners per total chaos' instructions.

    After that get the template that came with the bed extenders and cut 3/4'' off the bottom of it. This will allow it to clear the bed stiffener.


    Then tape your template onto the bed stiffener. It'll go towards the rear of the truck, in the corner of the bed stiffener up right.

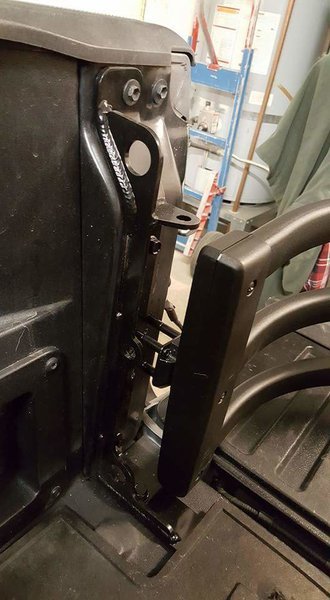

    Drill all 6 holes. Install the bed extender brackets with the spacers behind them. 4 of the screws should go through the bed stiffiners, these will need 1 1/2" spacers. The screws that go through the door pillar only will need 1 3/4" spacers.

    Then adjust the bed extender width per instructions and install it in the brackets.

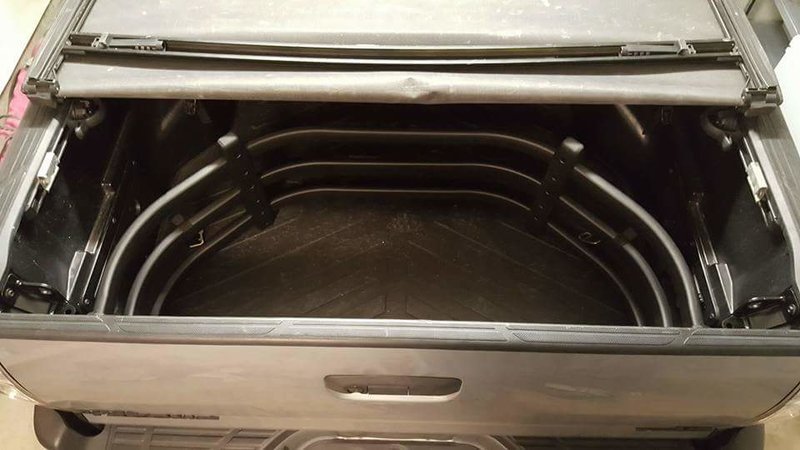

    FB_IMG_1491321307804.jpg FB_IMG_1491321312981.jpg FB_IMG_1491321319136.jpg FB_IMG_1491321323908.jpg
