Total Chaos LCA Skid-plate: how-to install

Discussion in 'Suspension' started by ktmrider, Oct 22, 2010.

  1. Oct 22, 2010 at 11:25 PM
    #1
    ktmrider

    ktmrider [OP] Senior Member

    Joined:
    Jul 20, 2009
    Member:
    #19933
    Messages:
    5,102
    Gender:
    Male
    Vehicle:
    07 DCLB 4x4 Sport S/C
    Junk
    Got these along with my mid travel today, and this is the easiest install ever. I bought these for a little extra protection, plus they give that boxed look a little bit and IMO looks better. Im not sure why these arnt so popular on the forum, Ive only seen one other person with them so I wanted to try them out.

    review the instructions and make sure you ha've all your parts

    Materials:
    Total Chaos Skid plates
    Drill with a 3/8ths bit
    14mm wrench

    Note- all nuts provided are ny-locks so tons of torque isnt necessary but these are beefy bolts so its not like you are going to strip anything. I tightened as tight as I could with an 6 inch wrench

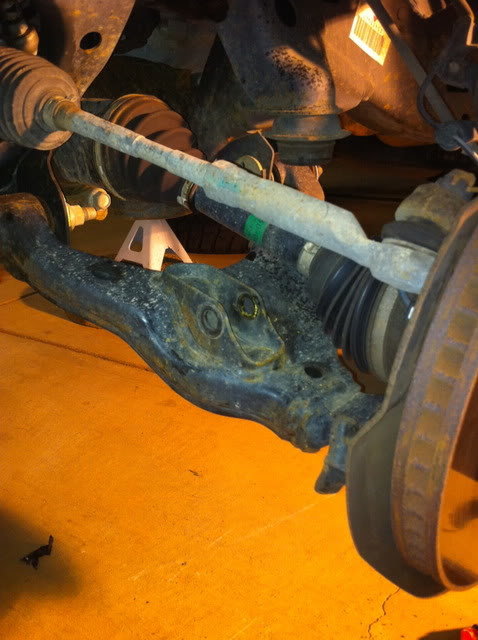

    1. Remove your front tires. I would recommend removing the shock its easier, but i did it the first time with it on so it is possible.

    [​IMG]

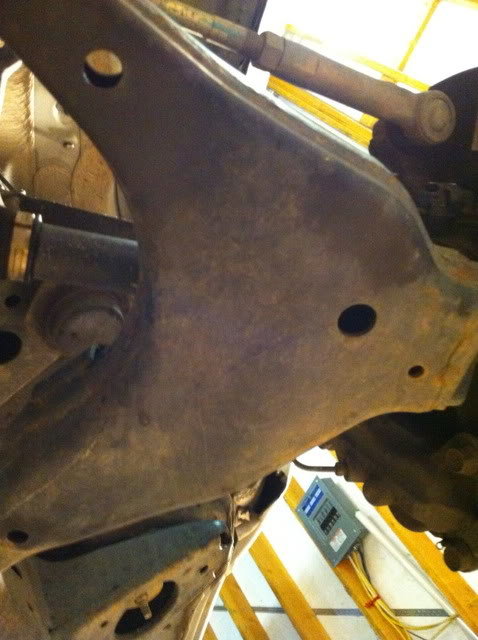

    2. Locate the 3 holes that will be used to attach the skid plate

    [​IMG]

    3. Find the one closest to the lower ball joint, the furthest away from the engine and enlarge the small hole to 3/8ths using the drill bit

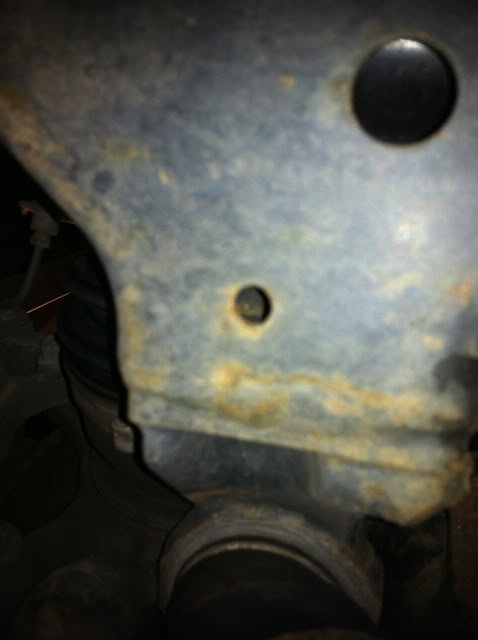

    Before:
    [​IMG]

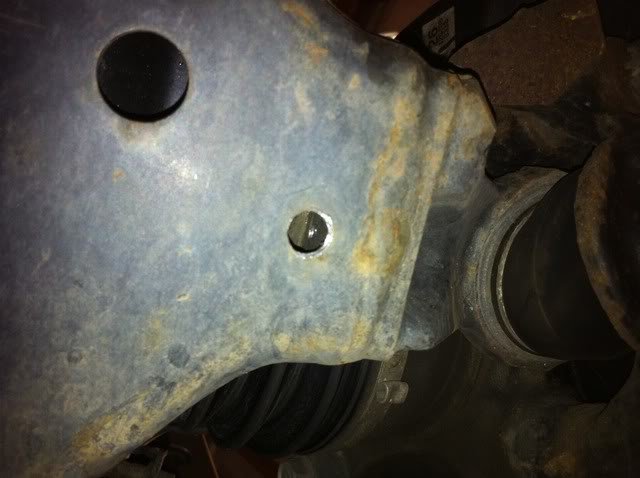

    After:
    [​IMG]

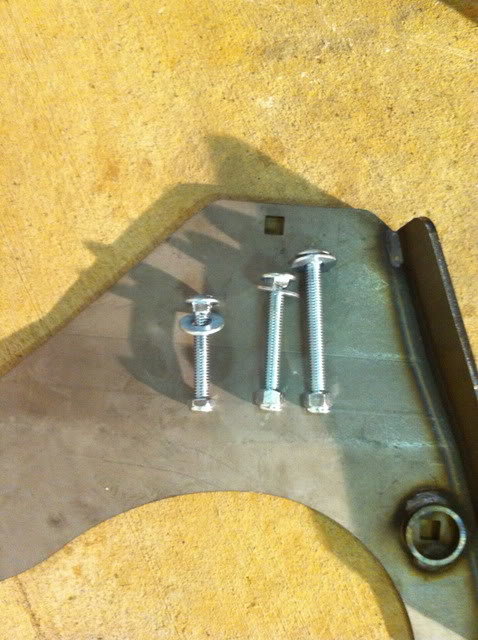

    4. Examine the 3 different sized bolts. The smallest goes nearest to the ball joint, the medium goes toward the front of the cab and the long one goes to the rear of the cab. There are also 2 different sized nuts, the smallest goes with the short bolt.

    [​IMG]

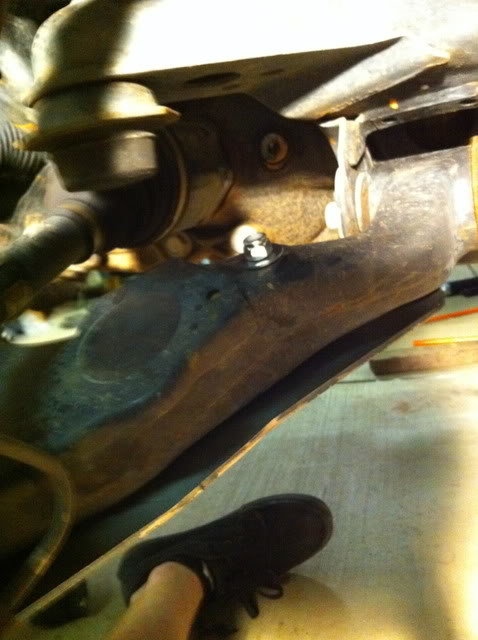

    5. Start with the hole closest to the rear of the cab, hold the skid plate up and insert the long carriage bolt into the skid plate and through the lower control arm. Use a washer provided and one of the large nuts to secure it in place.

    [​IMG]

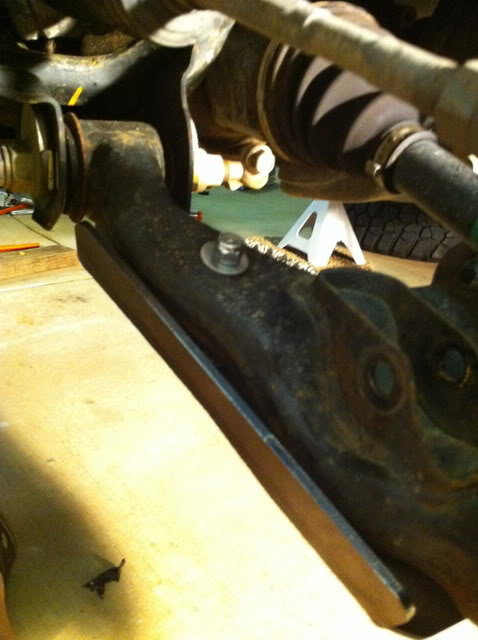

    6. Next go to the hole that you have drilled out. Install the short bolt the same way as the first one, but if you are 4x4 make sure you are careful around your cv boots.

    [​IMG]

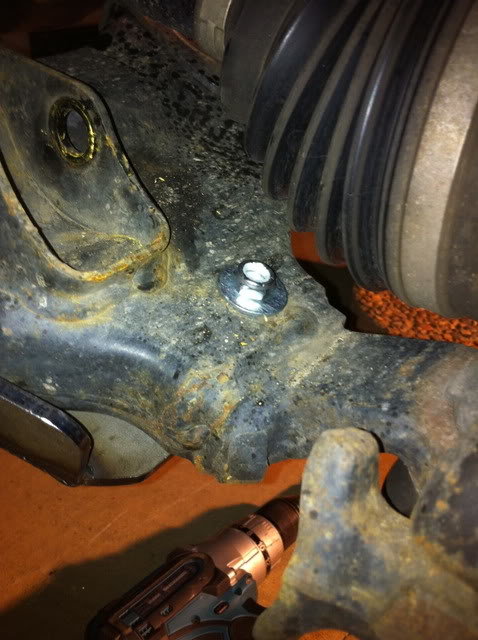

    7. Install the remaining bolt toward the front of the cab. Use the medium bolt along with a washer and nut and firmly tighten.

    [​IMG]


    Now you are done, good work. High five.
