Total Chaos UCA how-to Install

Discussion in 'Suspension' started by SILVER06TRD, Sep 14, 2008.

  1. Jan 4, 2013 at 5:20 PM
    #361
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    104,108
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Thats another way to do it :)

  2. Feb 28, 2013 at 12:30 PM
    #362
    Robbiethekidmusic

    Robbiethekidmusic Deer dogger

    Joined:
    Feb 11, 2013
    Member:
    #97301
    Messages:
    5
    Gender:
    Male
    First Name:
    Robbo
    Mechanicsville, va
    Vehicle:
    07 tacoma SR5 TRD 4x4 DCSB
    Alright I have a question for Chris since you seem to be really knowledgable about this stuff. I have a zone offroad 6" suspension lift with the 6" strut spacers, stock springs and billy 5100's set at 0. I would like to set the Billy's at 2.5" of lift plus the 6" that's already there to achieve more lift. If I went with a set of total chaos UCA's and that setting on the billys would I be able to get it in alignment spec? Just something I've never done before so any advice would be much appreciated.

  3. Feb 28, 2013 at 12:32 PM
    #363
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    104,108
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Yes.

  4. Feb 28, 2013 at 1:08 PM
    #364
    Robbiethekidmusic

    Robbiethekidmusic Deer dogger

    Joined:
    Feb 11, 2013
    Member:
    #97301
    Messages:
    5
    Gender:
    Male
    First Name:
    Robbo
    Mechanicsville, va
    Vehicle:
    07 tacoma SR5 TRD 4x4 DCSB
    Awesome man, I surely appreciate it.

  5. Mar 2, 2013 at 11:38 PM
    #365
    1904

    1904 Member

    Joined:
    Mar 20, 2011
    Member:
    #53407
    Messages:
    23
    Gender:
    Male
    Installed mine today! Great write up

  6. Mar 2, 2013 at 11:42 PM
    #366
    bullaculla

    bullaculla IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    4,977
    Gender:
    Male
    Honolulu HI
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    Fox 2.5 IFP extended travel coilovers, Fox 2.0 extended travel FJC rear piggyback shock, Icon 3 leaf progressive mini AAL pack, Total Chaos UCAs, konig countersteer wheels and 265/75/16 duratrac tires.

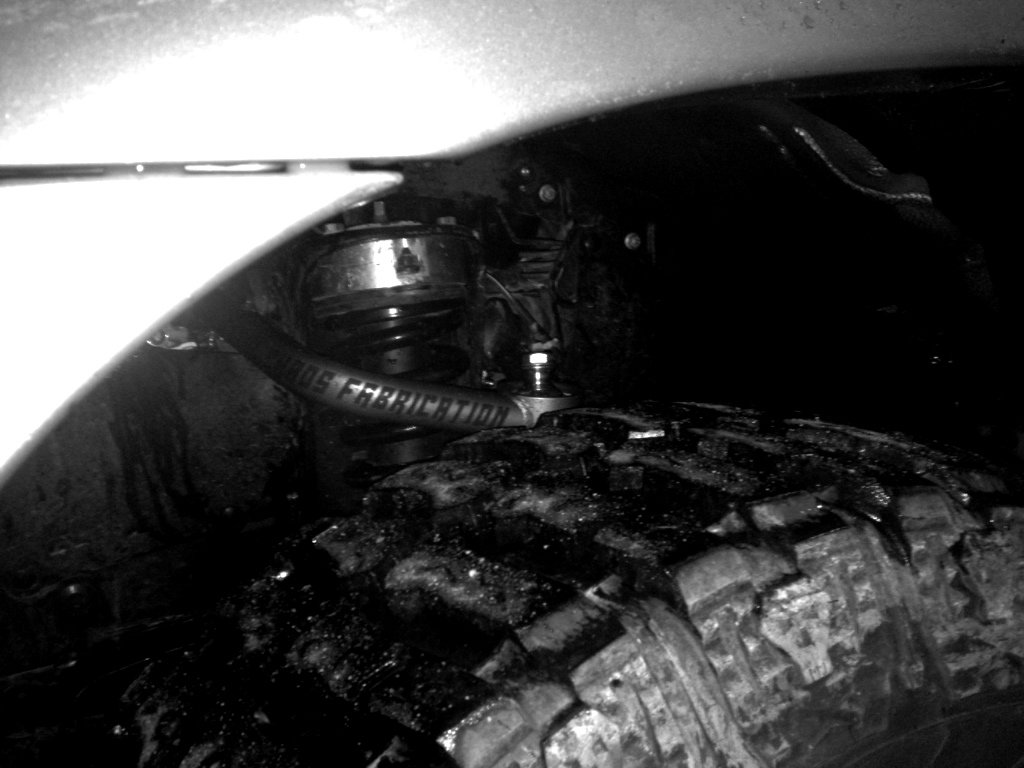

    Me too. This sticky was very helpful.
    But before I started, I had already decided to cut off the bolt heads instead of bending the sheet metal. Local dealership had them instock and I pad $12 each. It took less than a minute to cut off the head with a sawzall and slide them out through the back.

    Last edited: Mar 2, 2013
  7. Mar 2, 2013 at 11:47 PM
    #367
    Millertime187

    Millertime187 I'll be your huckleberry!

    Joined:
    Sep 25, 2012
    Member:
    #87698
    Messages:
    1,919
    Gender:
    Male
    First Name:
    David
    Clay City, KY
    Vehicle:
    2012 4x4 Single Cab Taco!
    EZ Lift/Pro Comp 3" lift. Spacer in front, add a leaf in rear, Bilstien 5100 shocks, TC UCA, 5% Tint all around, Painted all trim to match. Magnaflow muffler dumped, drop in k&n air filter, tinted tail lights
    [​IMG]

    I love mine!!!

  8. Mar 3, 2013 at 6:31 PM
    #368
    bullaculla

    bullaculla IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    4,977
    Gender:
    Male
    Honolulu HI
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    Fox 2.5 IFP extended travel coilovers, Fox 2.0 extended travel FJC rear piggyback shock, Icon 3 leaf progressive mini AAL pack, Total Chaos UCAs, konig countersteer wheels and 265/75/16 duratrac tires.
    Got both sides done now.

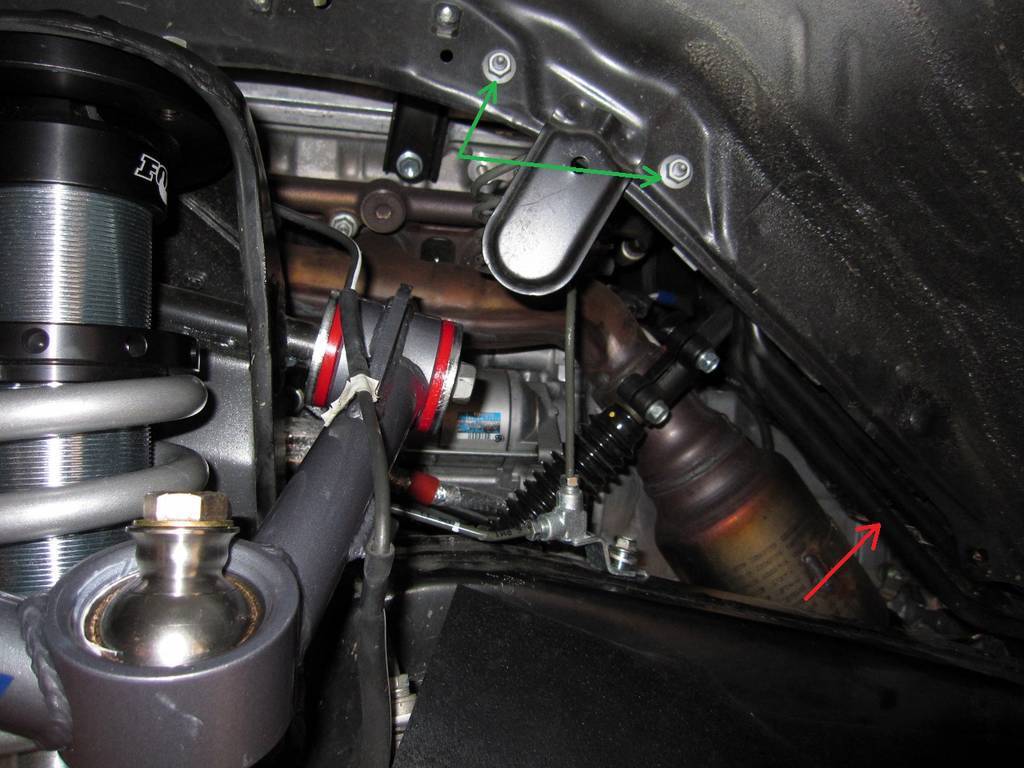

    Quick tip on the drivers side.
    There are a few lines(red arrow) in the way of removing/installing the pivot bolt. Remove the two nuts (green arrows) with a 10mm wrench. I got some paracord and made a choker to tie the fuel lines off to the header. There was enough room to slide the bolt back in this way.
    [​IMG]
    hope this helps somebody :cool:

    Last edited: Mar 3, 2013
  9. Mar 27, 2013 at 9:30 AM
    #369
    TRDMike66

    TRDMike66 Well-Known Member

    Joined:
    Mar 16, 2012
    Member:
    #75000
    Messages:
    119
    Gender:
    Male
    so. cal.
    Vehicle:
    2007 TRD SR5 Package
    Bilstiens 5100's all the way around, wet okale seat covers, red led interior lights,Level 8 Guardians wrapped with Hankook Dynapro's 260/70/17 and 35mm caps/black gorilla lugs,sock monkey TRD So Cal Bedside Decals BANKS-Monster Cat-Back Exhaust, Light Racing Upper Control Arms, One of a kind satoshi grille thin lip by Homer Taco.
    quick question i have billies at the highest setting should i install uca's? or are the stock ones fine?

  10. Mar 27, 2013 at 10:11 AM
    #370
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    8,472
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Is your alignment good without them? Do you have the amount of travel you want with your equipment? If it is fine then the next question is how deep are your pockets?

  11. Apr 8, 2013 at 3:51 PM
    #371
    VE7OSR

    VE7OSR 'interfering with Darwin since 1990'

    Joined:
    Dec 12, 2011
    Member:
    #68608
    Messages:
    2,827
    Gender:
    Male
    First Name:
    Rob II
    Okanagan, Canada
    Vehicle:
    05 DCLB TRD Sport
    Armour: All-Pro Skid plates - IFS, transmission, and transfer case. Front Suspension: Revtek 3" lift replaced with -> OME 885 + NitroCharger 9000 shocks + 1/2" spacers for a 3" lift. Superbumps replacing stock bumpstops. Camburg ball joint UCA SS braid brake lines Rear Suspension: Revtek blocks replaced with -> All-Pro Expedition rear leafs, Walker Evans 27" rear shocks, extended rear brake lines (Wheelers Offroad), U -bolt flip kit, rear Timbren bumpstops. Interior: Weatherteck floor liners - front, Wet Okoles- front, ScanGauge, LED interior & map lights. Power moonroof. Exterior: Raider Cobra canopy, PIAA bulbs, LED bulbs all around, modified flasher unit for LEDs Rear diff breather mod. Front diff vibe problem, driver's side needle bearing replaced with ECGS bushing. yet to install: HID Blazer Fog Retrofit, LED Flood & Spot, + switches, fuse panel. Metal Tech Sliders w/ kickout and dimple die filler plates. swaybar relocate blocks (build my own)
    Ha, easier, but barely. I used a piece of 11-12" 3/8" redirod with a sleeve of tygon tubing over it (just because I had it) to align the the washers & UCA to the truck mounting, sliding the redirod in from the top.That held everything aligned so the cursed long bolt would hopefully be lined up properly when it got pushed in.

    Then cursed, wiggled fuel lines, (driver's side), lined up, tapped the UCA bolt in from the bottom, along with the occasional turning, pushing, and more cursing.

    needless to say this post was a big help, installing Camburg BJ UCA, outside in the rain, last night. Passenger side is tonight's adventure. Should be easier, hope the rain stays away long enough. 24" - 1/2" drive breaker bar is my friend, works well in bending the fender lip.:rain:

  12. Apr 8, 2013 at 10:34 PM
    #372
    VE7OSR

    VE7OSR 'interfering with Darwin since 1990'

    Joined:
    Dec 12, 2011
    Member:
    #68608
    Messages:
    2,827
    Gender:
    Male
    First Name:
    Rob II
    Okanagan, Canada
    Vehicle:
    05 DCLB TRD Sport
    Armour: All-Pro Skid plates - IFS, transmission, and transfer case. Front Suspension: Revtek 3" lift replaced with -> OME 885 + NitroCharger 9000 shocks + 1/2" spacers for a 3" lift. Superbumps replacing stock bumpstops. Camburg ball joint UCA SS braid brake lines Rear Suspension: Revtek blocks replaced with -> All-Pro Expedition rear leafs, Walker Evans 27" rear shocks, extended rear brake lines (Wheelers Offroad), U -bolt flip kit, rear Timbren bumpstops. Interior: Weatherteck floor liners - front, Wet Okoles- front, ScanGauge, LED interior & map lights. Power moonroof. Exterior: Raider Cobra canopy, PIAA bulbs, LED bulbs all around, modified flasher unit for LEDs Rear diff breather mod. Front diff vibe problem, driver's side needle bearing replaced with ECGS bushing. yet to install: HID Blazer Fog Retrofit, LED Flood & Spot, + switches, fuse panel. Metal Tech Sliders w/ kickout and dimple die filler plates. swaybar relocate blocks (build my own)
    No rain tonight, passenger side in, almost half the time, now that I know what i'm doing. Had a bit of rust in this bolt; looks like it got some moisture trapped in there; cleaned up the bolt, brushed some anti-sieze on it, and got it back in. The clip for the Antilock brake sensor did not line up well on the passenger side; secured with zap strap for now. Added some ABS 1.5" (i think) pipe caps and siliconed them in to cover the Camburg arm BJ. drilled and tapped in a small wood screw in the top to pull off the cover in the future to get at the grease nipple.

  13. Apr 9, 2013 at 6:15 AM
    #373
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    8,472
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    You already bend the metal of the way to slide the bolt out, No reason to fuss with the lines to get the bolt in the opposite direction. I found the driver side a lot easier to get the bolt in and out.

    Last edited: Apr 9, 2013
  14. Apr 9, 2013 at 6:17 AM
    #374
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    104,108
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    On some trucks, the body is over slightly to one side, than others. This can make the difference.

  15. Apr 9, 2013 at 4:20 PM
    #375
    VE7OSR

    VE7OSR 'interfering with Darwin since 1990'

    Joined:
    Dec 12, 2011
    Member:
    #68608
    Messages:
    2,827
    Gender:
    Male
    First Name:
    Rob II
    Okanagan, Canada
    Vehicle:
    05 DCLB TRD Sport
    Armour: All-Pro Skid plates - IFS, transmission, and transfer case. Front Suspension: Revtek 3" lift replaced with -> OME 885 + NitroCharger 9000 shocks + 1/2" spacers for a 3" lift. Superbumps replacing stock bumpstops. Camburg ball joint UCA SS braid brake lines Rear Suspension: Revtek blocks replaced with -> All-Pro Expedition rear leafs, Walker Evans 27" rear shocks, extended rear brake lines (Wheelers Offroad), U -bolt flip kit, rear Timbren bumpstops. Interior: Weatherteck floor liners - front, Wet Okoles- front, ScanGauge, LED interior & map lights. Power moonroof. Exterior: Raider Cobra canopy, PIAA bulbs, LED bulbs all around, modified flasher unit for LEDs Rear diff breather mod. Front diff vibe problem, driver's side needle bearing replaced with ECGS bushing. yet to install: HID Blazer Fog Retrofit, LED Flood & Spot, + switches, fuse panel. Metal Tech Sliders w/ kickout and dimple die filler plates. swaybar relocate blocks (build my own)
    ^^^ Interesting, I did find I had to bend the sheet metal a bit more on the passenger side to get the bolt out.

  16. Jul 3, 2013 at 5:46 PM
    #376
    MagneticTaco

    MagneticTaco Well-Known Member

    Joined:
    May 1, 2013
    Member:
    #103273
    Messages:
    108
    Gender:
    Male
    First Name:
    Kiel
    Louisiana
    Vehicle:
    2013 DCSB Magnetic
    3" toytech lift, front spacers, AAL in the rear, 285/75r16 goodyear duratrac, blacked out emblems and taillights, pained grill
    sub for install

  17. Jul 13, 2013 at 2:52 PM
    #377
    Bengland25

    Bengland25 Never Forget! 343

    Joined:
    Nov 17, 2011
    Member:
    #67192
    Messages:
    1,986
    Gender:
    Male
    First Name:
    Bradley
    Southern California
    Vehicle:
    09 Tacoma TRD
    MB Chaos 6 17" wheels, BF Goodrich All-Terrain TA/KO LT265-70R17, Anytime Fog Lights, Anytime Backup Camera, Bed Lights, Tailgate Lock, Light bar with 3 Hella 700FF's, Realtree Camo arm-rests, Anytime DTRL (With Switch), Blue Seas Fuse Block and Circuit Breaker, Custom Bed Light-Bar, Cobra 29 LTD Chrome, 4' Firestik, Masterlock Hitch Key Safe, Bed Storage Compartment Locks, Custom Shovel Bracket Mount, Flag Pole Mount (RED SOLO CUP FLAG!), DIY Washable Cabin Filter, URD MAF Cal., Homelink Garage Door Opener, Volant CAI w/ Ram Scoop, AeroTurbine 3030XL, URD Short Throw Shifter, Custom Satoshi, Blitzpro 21S, 2 Blitzpro 6LZ's, Blitzpro 6D, BAMF Sliders
    Wanting to get this done today or tomorrow. What type of grease do I need for the bushings and did you guys put anything on the ball joint??

  18. Jul 13, 2013 at 3:59 PM
    #378
    Bengland25

    Bengland25 Never Forget! 343

    Joined:
    Nov 17, 2011
    Member:
    #67192
    Messages:
    1,986
    Gender:
    Male
    First Name:
    Bradley
    Southern California
    Vehicle:
    09 Tacoma TRD
    MB Chaos 6 17" wheels, BF Goodrich All-Terrain TA/KO LT265-70R17, Anytime Fog Lights, Anytime Backup Camera, Bed Lights, Tailgate Lock, Light bar with 3 Hella 700FF's, Realtree Camo arm-rests, Anytime DTRL (With Switch), Blue Seas Fuse Block and Circuit Breaker, Custom Bed Light-Bar, Cobra 29 LTD Chrome, 4' Firestik, Masterlock Hitch Key Safe, Bed Storage Compartment Locks, Custom Shovel Bracket Mount, Flag Pole Mount (RED SOLO CUP FLAG!), DIY Washable Cabin Filter, URD MAF Cal., Homelink Garage Door Opener, Volant CAI w/ Ram Scoop, AeroTurbine 3030XL, URD Short Throw Shifter, Custom Satoshi, Blitzpro 21S, 2 Blitzpro 6LZ's, Blitzpro 6D, BAMF Sliders
    Also, I re-tapped the holes for the zerks, they thread nicely but TC says not to over tighten, you guys just finger tightening these or what? Don't want to collapse them by over tightening but also don't want to have issues with them being too loose..

  19. Jul 17, 2013 at 7:26 PM
    #379
    MagneticTaco

    MagneticTaco Well-Known Member

    Joined:
    May 1, 2013
    Member:
    #103273
    Messages:
    108
    Gender:
    Male
    First Name:
    Kiel
    Louisiana
    Vehicle:
    2013 DCSB Magnetic
    3" toytech lift, front spacers, AAL in the rear, 285/75r16 goodyear duratrac, blacked out emblems and taillights, pained grill
    I installed mine last week and I also had more trouble with the passenger bolt coming out. Other than that went really smooth. The ball joint is self lubricating according to the instructions and does not need any grease. I used green grease for the bushings. Got it aligned the next day and made a huge difference compared to stock with my 3" lift. Not a bad install besides getting the bolts in and out. Really happy with the outcome

  20. Jul 18, 2013 at 3:10 PM
    #380
    Bengland25

    Bengland25 Never Forget! 343

    Joined:
    Nov 17, 2011
    Member:
    #67192
    Messages:
    1,986
    Gender:
    Male
    First Name:
    Bradley
    Southern California
    Vehicle:
    09 Tacoma TRD
    MB Chaos 6 17" wheels, BF Goodrich All-Terrain TA/KO LT265-70R17, Anytime Fog Lights, Anytime Backup Camera, Bed Lights, Tailgate Lock, Light bar with 3 Hella 700FF's, Realtree Camo arm-rests, Anytime DTRL (With Switch), Blue Seas Fuse Block and Circuit Breaker, Custom Bed Light-Bar, Cobra 29 LTD Chrome, 4' Firestik, Masterlock Hitch Key Safe, Bed Storage Compartment Locks, Custom Shovel Bracket Mount, Flag Pole Mount (RED SOLO CUP FLAG!), DIY Washable Cabin Filter, URD MAF Cal., Homelink Garage Door Opener, Volant CAI w/ Ram Scoop, AeroTurbine 3030XL, URD Short Throw Shifter, Custom Satoshi, Blitzpro 21S, 2 Blitzpro 6LZ's, Blitzpro 6D, BAMF Sliders
    Yeah mine wasn't too bad at all either, got it all done this morning and love the ride!

    Anyone ever not need an alignment after installing these? Mine is just a straight as the day I drove it off the lot!! Was absolutely stoked and amazed at the same time
